TOYOTA AVALON 2018 Accessories, Audio & Navigation (in English)

21
2. QUICK REFERENCE
QUICK GUIDE
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.57
Select to customize the home screen.37
Select to set the voice settings.63
Select to adjust the contrast and brightness of the screens, etc.41
Select to link the driver’s cellular phone settings. (audio presets, lan-
guage, etc.)65
Select to set audio settings.11 8
Select to set the phone sound, contacts, message settings, etc.194
Select to set Bluetooth® phones and Bluetooth® audio devices.49
Select to turn the screen off. To turn it on, press any button.⎯
Select to set vehicle information.“Owner’s
Manual”
*
Select to change the phone data plan pop-up message timing. (“Con-
nected Navigation” is downloadable application via smartphones using
a cellular data connection.)
⎯
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.256, 265
*Select to set Entune App Suite settings.292
*Select to set data services settings.145
*Select to set traffic information.269
*: Available in the 48 states, D.C. and Alaska

22
3. NAVIGATION OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1. REGISTERING HOME*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
There are different kinds of meth-
ods to search for your home.
(→
P.229)
*: Entune Premium Audio only
1
2
3
4
5
6
3. NAVIGATION OPERATION

23
3. NAVIGATION OPERATION
QUICK GUIDE
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way
→P.257
 Editing the name, location, phone num-
ber and icon
→P.257
 Setting home as the destination
→P.232
7
8

24
3. NAVIGATION OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
2. REGISTERING PRESET DESTINATIONS*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”. Select one of the preset destina-
tion buttons.
Select “Yes”.
There are different kinds of meth-
ods to search for a destination.
(→
P.229)
*: Entune Premium Audio only
1
2
3
4
5
6

25
3. NAVIGATION OPERATION
QUICK GUIDE
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1Select “Enter”.
Select a position for this preset
destination.
Select “OK”.
Registration of preset destinations is
complete.
Registering preset destinations in a dif-
ferent way
→P.258
 Editing the name, location, phone num-
ber and icon
→P.259
 Setting preset destinations as the desti-
nation
→P.232
7
8
9

26
3. NAVIGATION OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
3. OPERATION FLOW: GUIDING THE ROUTE*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
There are different kinds of meth-
ods to search for a destination.
(→P.229)Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended. ( →P.241)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5
6

27
3. NAVIGATION OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
QUICK GUIDE
1
4. SETTING HOME AS THE DESTINATION*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”. Select “OK”.
Selecting routes other than the one recom-
mended. ( →P.241)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5

28
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U

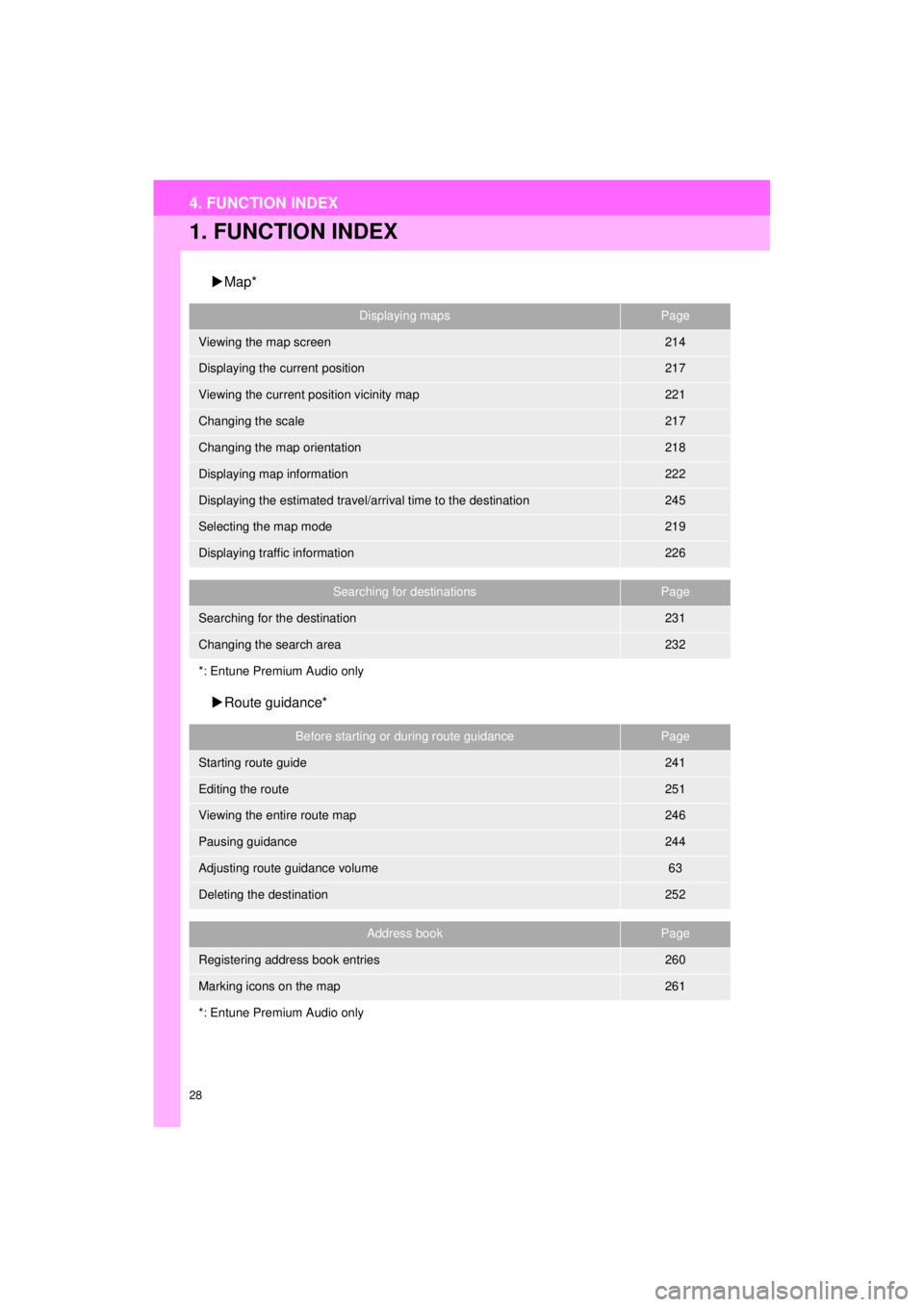

4. FUNCTION INDEX
1. FUNCTION INDEX
Map*
 Route guidance*
Displaying mapsPage
Viewing the map screen214
Displaying the current position217
Viewing the current position vicinity map221
Changing the scale217
Changing the map orientation218
Displaying map information222
Displaying the estimated travel/arrival time to the destination245
Selecting the map mode219
Displaying traffic information226
Searching for destinationsPage
Searching for the destination231
Changing the search area232
*: Entune Premium Audio only
Before starting or during route guidancePage
Starting route guide241
Editing the route251
Viewing the entire route map246
Pausing guidance244
Adjusting route guidance volume63
Deleting the destination252
Address bookPage
Registering address book entries260
Marking icons on the map261
*: Entune Premium Audio only

29
4. FUNCTION INDEX
QUICK GUIDE
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1
Useful functions
InformationPage
Displaying vehicle maintenance*66
Hands-free system (for cellular phone)Page
Registering/connecting Bluetooth® phone44
Making a call on a Bluetooth® phone179
Receiving a call on the Bluetooth® phone185
Voice command systemPage
Operating the system with your voice130
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle147
*: Entune Premium Audio only

30
4. FUNCTION INDEX
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
