21Pictorial index

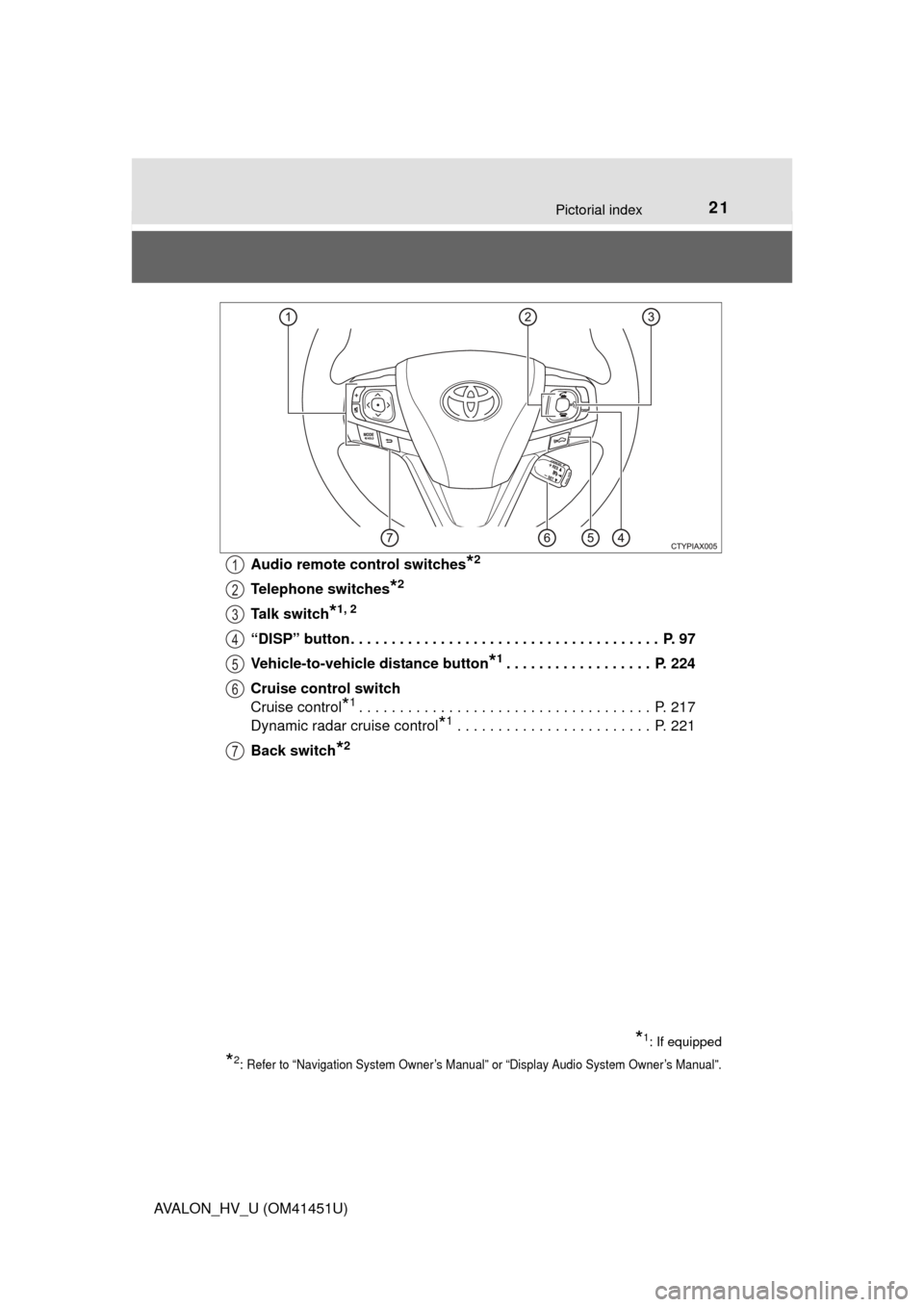

AVALON_HV_U (OM41451U)Audio remote control switches
*2
Telephone switches*2
Talk switch*1, 2
“DISP” button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 97
Vehicle-to-vehicle distance button
*1. . . . . . . . . . . . . . . . . . P. 224
Cruise control switch
Cruise control
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Dynamic radar cruise control
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Back switch
*2
*1: If equipped
*2: Refer to “Navigation System Owner’s Manual” or “Display Audio System Owner’s Manual”.
1
2
3
4
5
6
7
Page 22 of 512
22Pictorial index
AVALON_HV_U (OM41451U)

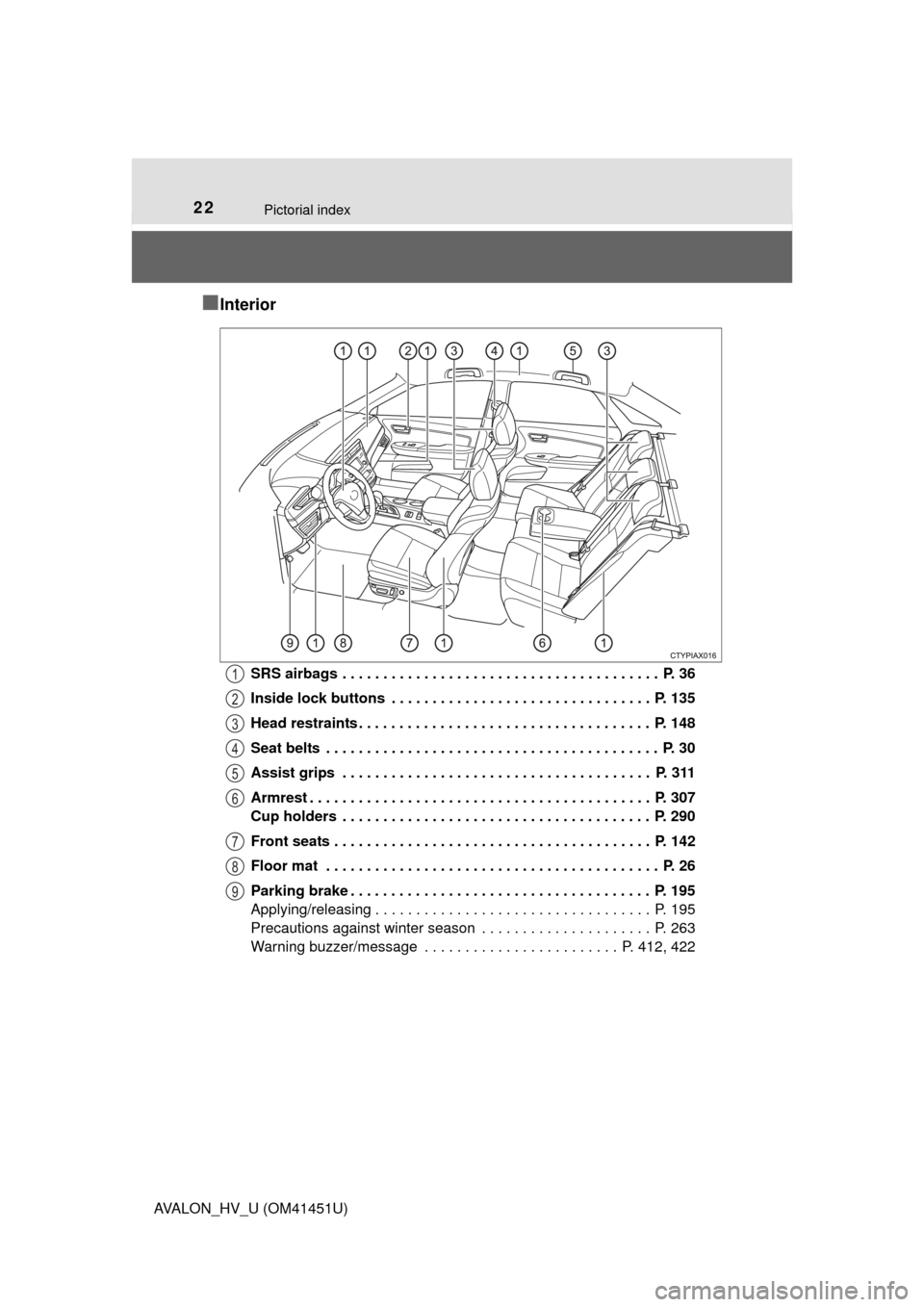

■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 36
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 311
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
Floor mat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 263
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . P. 412, 4221
2
3
4
5
6
7
8
9
Page 23 of 512
23Pictorial index

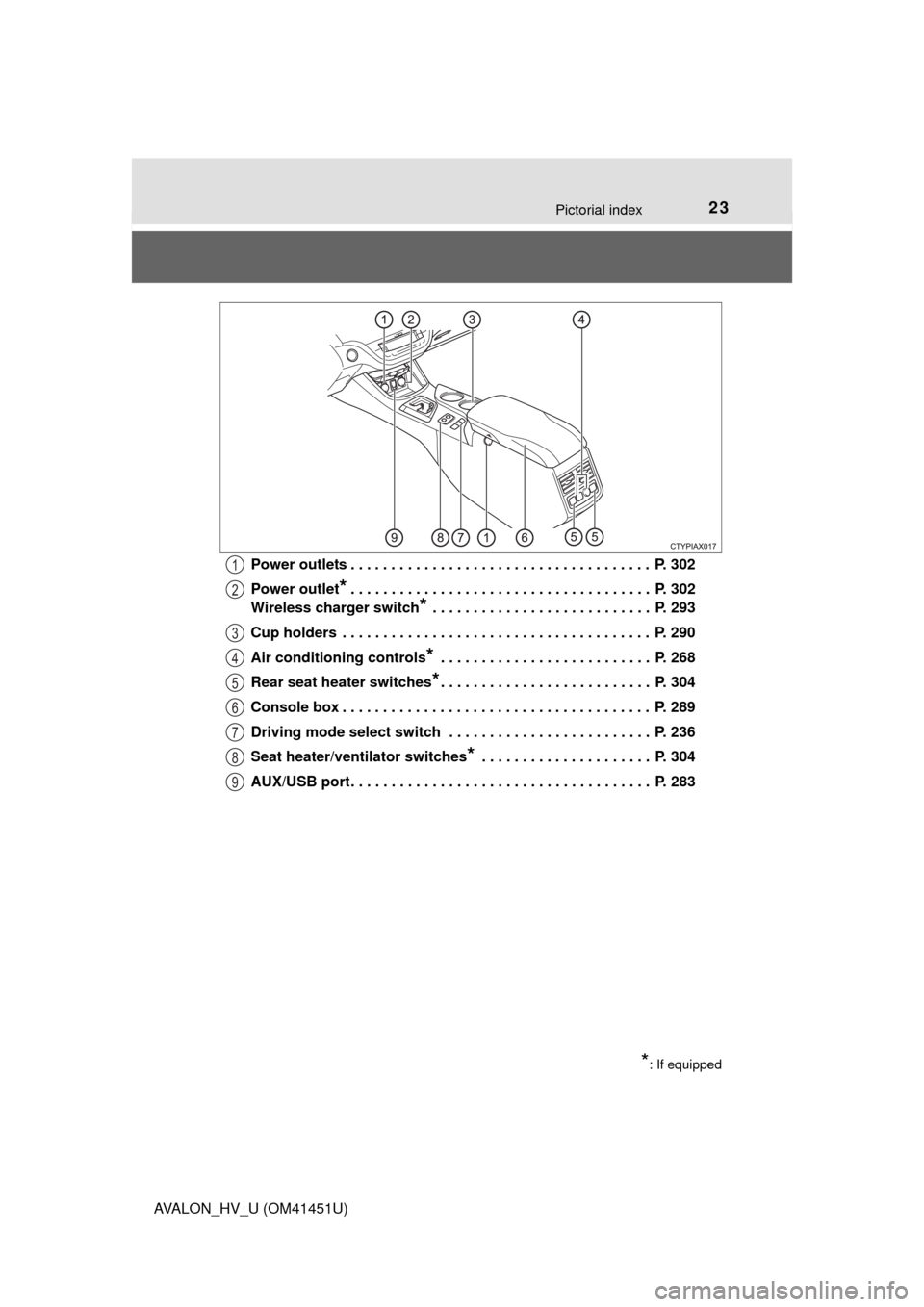

AVALON_HV_U (OM41451U)Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 302
Power outlet
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 302
Wireless charger switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 293
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Air conditioning controls
* . . . . . . . . . . . . . . . . . . . . . . . . . . P. 268
Rear seat heater switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . P. 304
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 289
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Seat heater/ven tilator switches
* . . . . . . . . . . . . . . . . . . . . . P. 304
AUX/USB port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
*: If equipped
1
2
3
4
5
6
7
8
9
Page 24 of 512
24Pictorial index

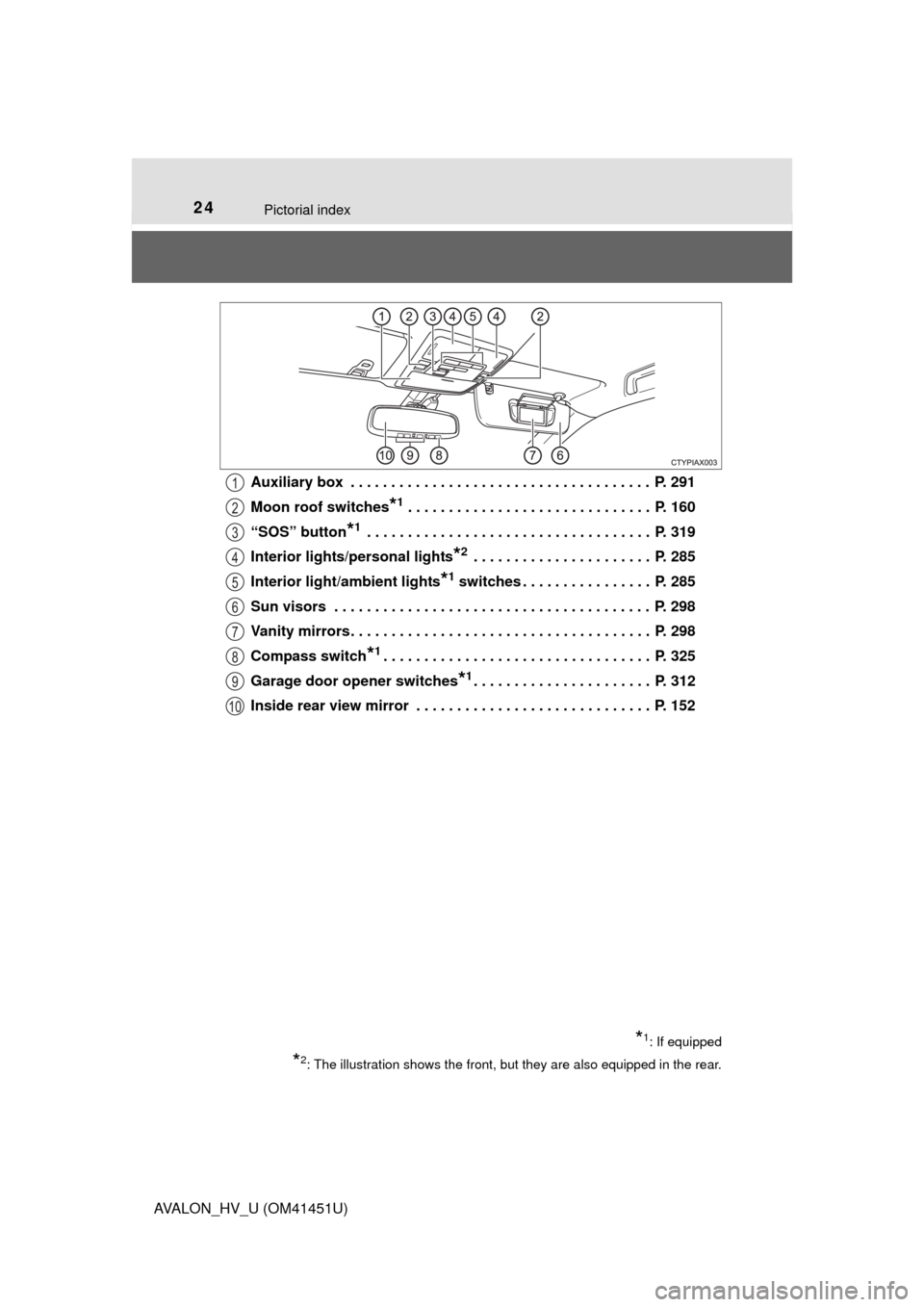

AVALON_HV_U (OM41451U)Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 319
Interior lights/personal lights
*2 . . . . . . . . . . . . . . . . . . . . . . P. 285
Interior light/ambient lights
*1 switches . . . . . . . . . . . . . . . . P. 285
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
Compass switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 325
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 312
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
7
8
9
10
Page 25 of 512
25
For safety and security1
AVALON_HV_U (OM41451U)1-1. For safe use
Before driving ...................... 26
For safety drive ................... 28
Seat belts ............................ 30
SRS airbags ........................ 36
Front passenger occupant classification system ......... 47
Safety information for children ............................. 53
Child restraint systems........ 54
Installing child restraints...... 58
Exhaust gas precautions..... 68
1-2. Hybrid system Hybrid system features ....... 69
Hybrid system precautions ....................... 73
1-3. Theft deterrent system Immobilizer system ............. 79
Alarm................................... 81
Theft prevention labels (U.S.A.) ............................. 83
Page 26 of 512
26
AVALON_HV_U (OM41451U)
1-1. For safe use

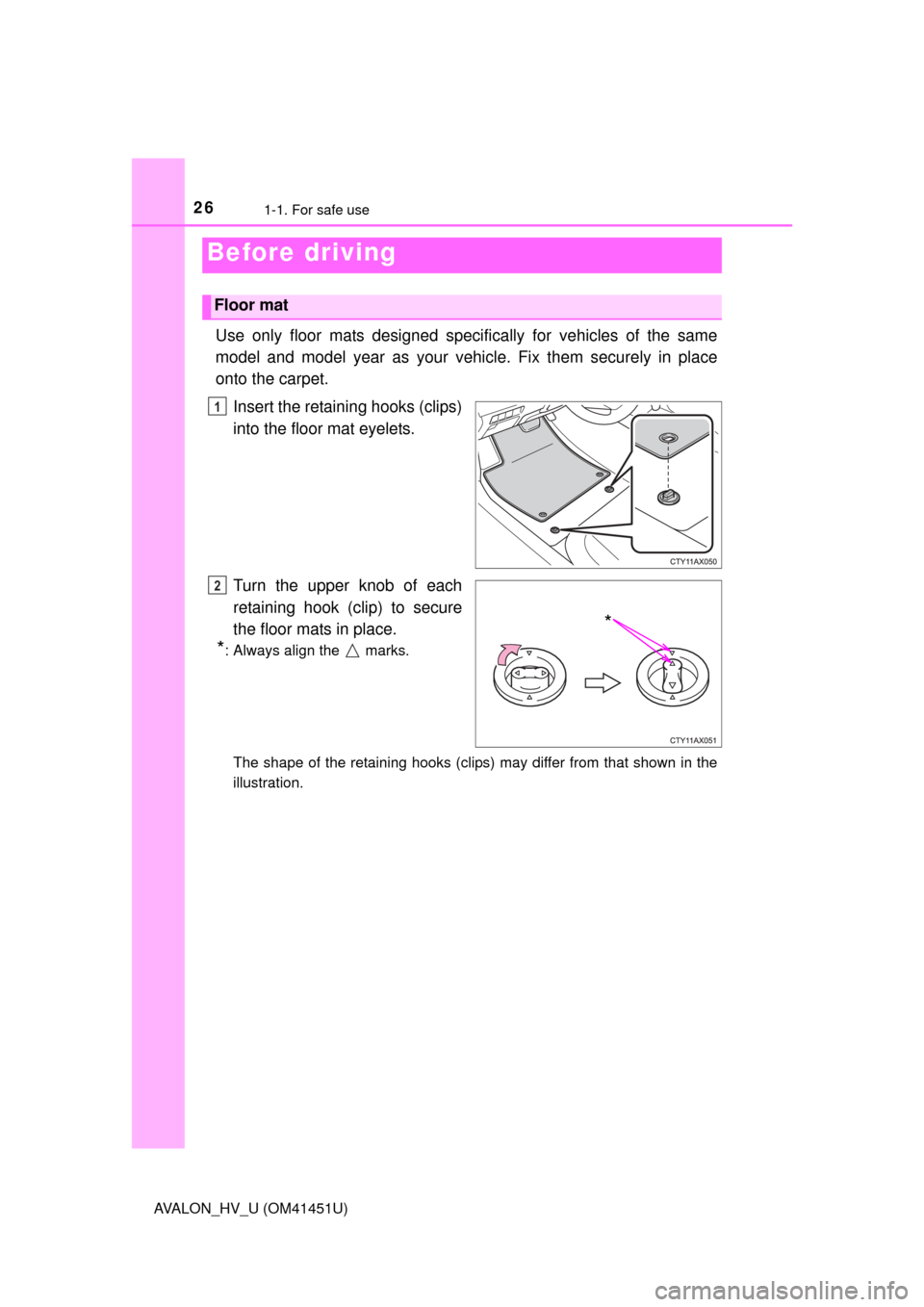

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2
Page 27 of 512
271-1. For safe use
1
For safety and security
AVALON_HV_U (OM41451U)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to an accident, or leading to death
or a serious injury.

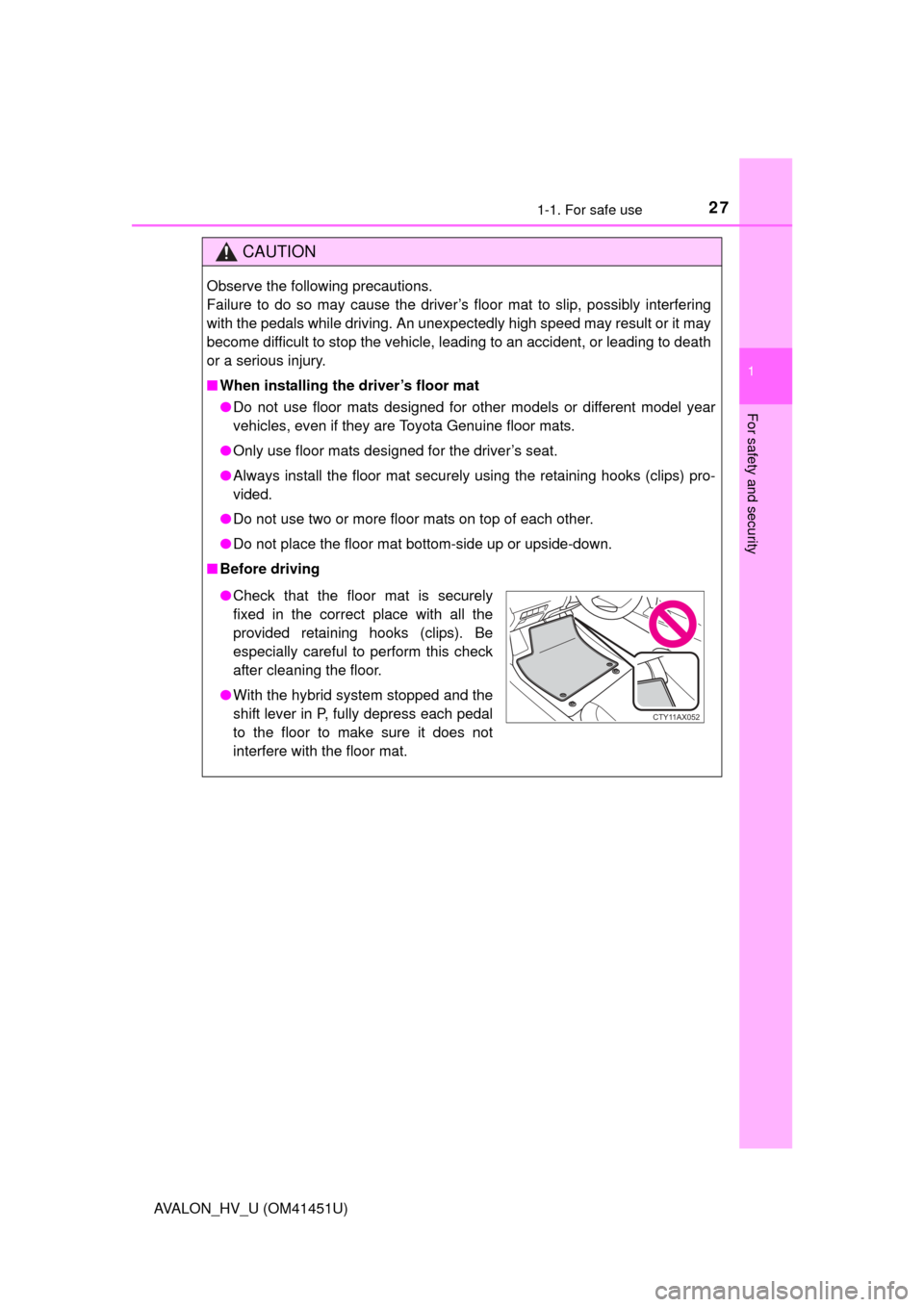

■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.
CTY11AX052
Page 28 of 512
281-1. For safe use
AVALON_HV_U (OM41451U)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 142)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 142)
Adjust the tilt and telescopic
positions of the steering wheel
downward so the airbag is fac-
ing your chest. ( P. 151)
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. ( P. 148)
Wear the seat belt correctly.
( P. 30)
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 0 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 54)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.

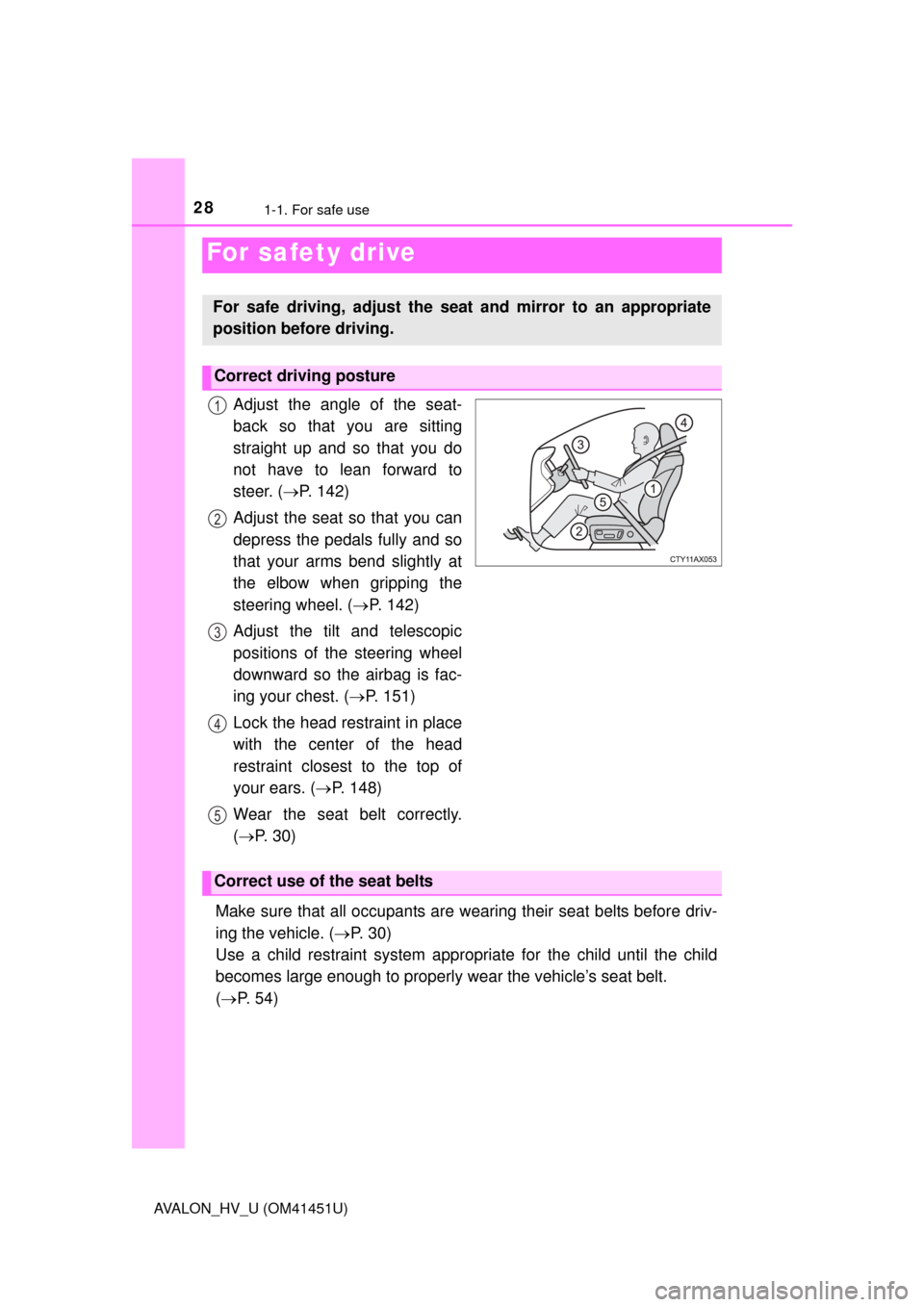

Correct driving posture
1
2
3
4
5
Correct use of the seat belts
Page 29 of 512
291-1. For safe use
1
For safety and security
AVALON_HV_U (OM41451U)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 152, 154)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
Page 30 of 512
301-1. For safe use
AVALON_HV_U (OM41451U)
●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.

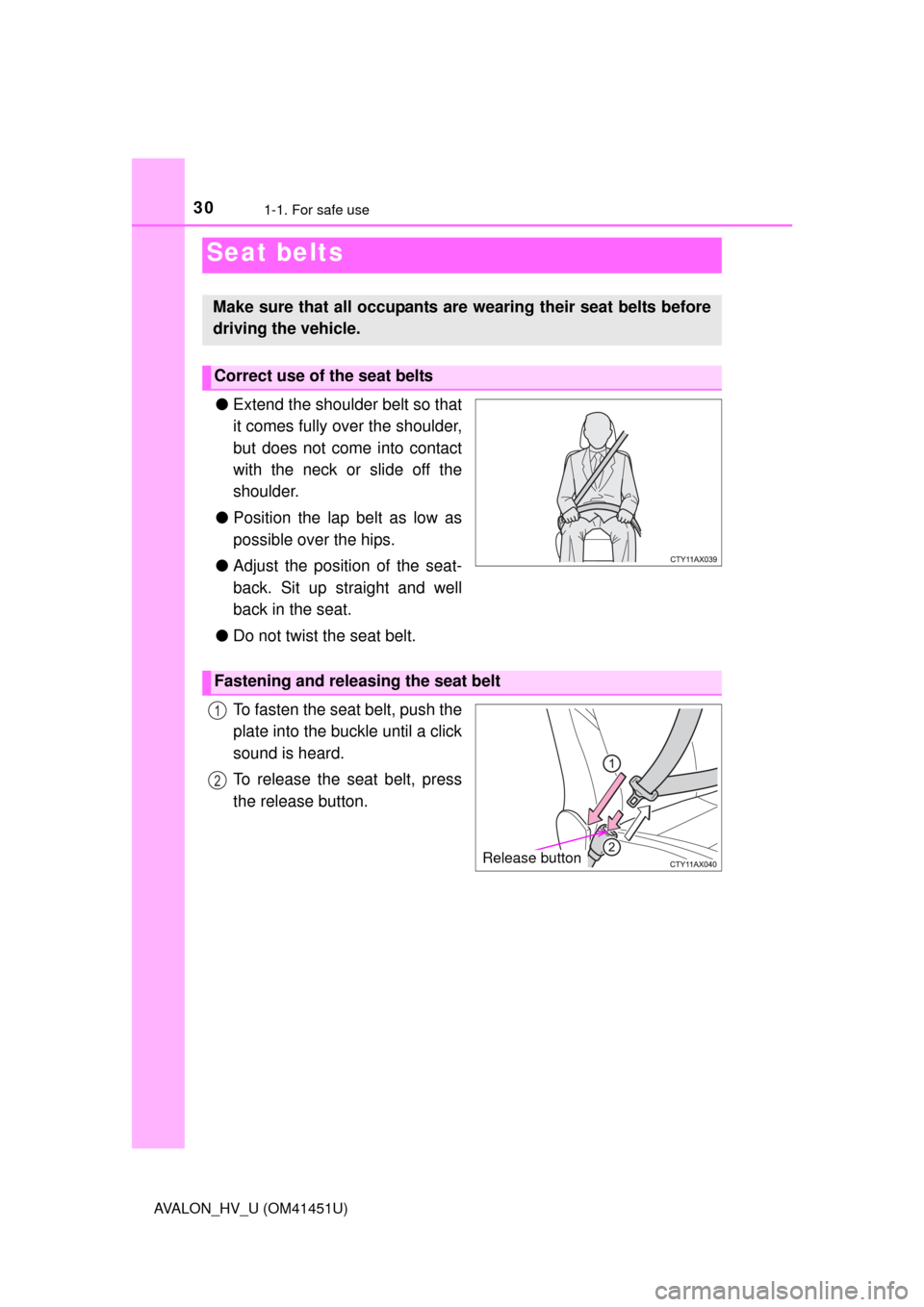

Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
