Page 5 of 512
5
1
8 7
6
5
4
3
2
9
AVALON_HV_U (OM41451U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 330
Cleaning and protecting the vehicle interior ........... 333
6-2. Maintenance Maintenance requirements ................... 336
General maintenance ........ 338
Emission inspection and maintenance (I/M)
programs ......................... 342
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 343
Hood.................................. 346
Positioning a floor jack ...... 347
Engine compartment ......... 349
12-volt battery ................... 358
Tires .................................. 362
Tire inflation pressure........ 369
Wheels .............................. 372
Air conditioning filter .......... 375
Electronic key battery ........ 377
Checking and replacing fuses ............................... 379
Light bulbs ......................... 390 7-1. Essential information
Emergency flashers ........... 406
If your vehicle has to be stopped in an
emergency....................... 407
7-2. Steps to take in an emergency
If your vehicle needs to be towed .......................... 408
If you think something is wrong............................... 411
If a warning light turns on or a warning buzzer
sounds ............................. 412
If a warning message is displayed ......................... 422
If you have a flat tire .......... 423
If the hybrid system will not start ........................... 435
If the shift lever cannot be shifted from P ............. 437
If the electronic key does not operate properly ........ 438
If the 12-volt battery is discharged ....................... 440
If your vehicle overheats......................... 444
If the vehicle becomes stuck ................................ 448
6Maintenance and care7When trouble arises
Page 17 of 512
17Pictorial index
AVALON_HV_U (OM41451U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 262
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 459
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 262
Checking/rotation/tire pressure warning system . . . . . . . . . P. 362
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 423
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
Headlights/parking lights/side marker lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Stop/tail lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 390, Wattages: P. 460)
*: If equipped
8
9
10
11
12
13
Page 95 of 512
952. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41451U)The instrument panel light auto dimmer control can be changed.
(Customizable feature:
P. 477)
NOTICE
■To prevent damage to the engine and its components
●When indicating the tachometer (Using the S mode driving): Do not let the
indicator of the tachometer enter the red zone, which indicates the maxi-
mum engine speed. ( P. 192)
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 444)
Page 170 of 512
1704-1. Before driving
AVALON_HV_U (OM41451U)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When driving the vehicle
●During normal driving, do not turn off the hybrid system. Turning the hybrid
system off while driving will not cause loss of steering or braking control,
but the power assist to these systems will be lost. This will make it more
difficult to steer and brake, so you should pull over and stop the vehicle as
soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 407
● Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 191)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.
● Do not drive in excess of the speed limit. Even if the legal speed limit per-
mits it, do not drive over 85 mph ( 140 km/h) unless your vehicle has high-
speed capability tires. Driving over 85 mph (140 km/h) may result in tire
failure, loss of control and possible injury. Be sure to consult a tire dealer
to determine whether the tires on y our vehicle are high-speed capability
tires or not before driving at such speeds.
Page 172 of 512
1724-1. Before driving
AVALON_HV_U (OM41451U)
CAUTION
■If you hear a squealing or scraping noise (brake pad wear limit indica-
tors)
Have the brake pads checked and replaced by your Toyota dealer as soon
as possible.
Rotor damage may result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or those of the brake discs are exceeded.
■ When the vehicle is stopped
●Do not depress the accelerator pedal unnecessarily.
If the vehicle is in any gear other than P or N, the vehicle may accelerate
suddenly and unexpectedly, causing an accident.
● In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the “READY” indicator is on, and apply
the parking brake as necessary.
● If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or backward, always depress the brake pedal
and securely apply the parking brake as needed.
● Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combusti\
ble
material is nearby.
Page 176 of 512
1764-1. Before driving
AVALON_HV_U (OM41451U)
NOTICE
■When encounterin g flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
● Brake function
● Changes in quantity and quality of oil and fluid used for the engine, trans-
mission, etc.
● Lubricant condition for the bearings and suspension joints (where possi-
ble), and the function of all joints, bearings, etc.
Page 261 of 512
2614-6. Driving tips
4
Driving
AVALON_HV_U (OM41451U)■
Air conditioning
Use the air conditioning only when
necessary. Doing so can help
control excessive gasoline consumption.
In summer: In high temperatures, use the recirculated air mode.
Doing so will help to reduce the burden on the air conditioner and
reduce fuel cons umption as well.
In winter: Because the gasoline eng ine will not automatically cut out
until the gasoline engine and the in terior of the vehicle are warm, it
will consume fuel. Also, fuel consumption can be improved by
avoiding overuse of the heater.
■Checking tire inflation pressure
Make sure to check the tire infl ation pressure frequently. Improper
tire inflation pressure can cause poor fuel consumption.
Also, as snow tires can cause large amounts of friction, their use on
dry roads can lead to poor fuel co nsumption. Use a tire that is
appropriate for the season.
■Luggage
Carrying heavy luggage can lead to poor fuel consumption. Avoid
carrying unnecessary luggage. Insta lling a large roof rack can also
cause poor fuel consumption.
■Warming up before driving
Since the gasoline engine starts up and cuts out automatically
when cold, warming up the engine is unnecessary. Moreover, fre-
quently driving short distances will cause the engine to repeatedly
warm up, which can lead to poor fuel consumption.
Page 329 of 512
329
6Maintenance and care
AVALON_HV_U (OM41451U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 330
Cleaning and protecting the vehicle interior ........... 333
6-2. Maintenance Maintenance requirements ................... 336
General maintenance ........ 338
Emission inspection and maintenance (I/M)
programs ......................... 342 6-3. Do-it-yourself
maintenance
Do-it-yourself service precautions ..................... 343
Hood ................................. 346
Positioning a floor jack ...... 347
Engine compartment ......... 349
12-volt battery ................... 358
Tires .................................. 362
Tire inflation pressure ....... 369
Wheels .............................. 372
Air conditioning filter.......... 375
Electronic key battery........ 377
Checking and replacing fuses ............................... 379
Light bulbs......................... 390

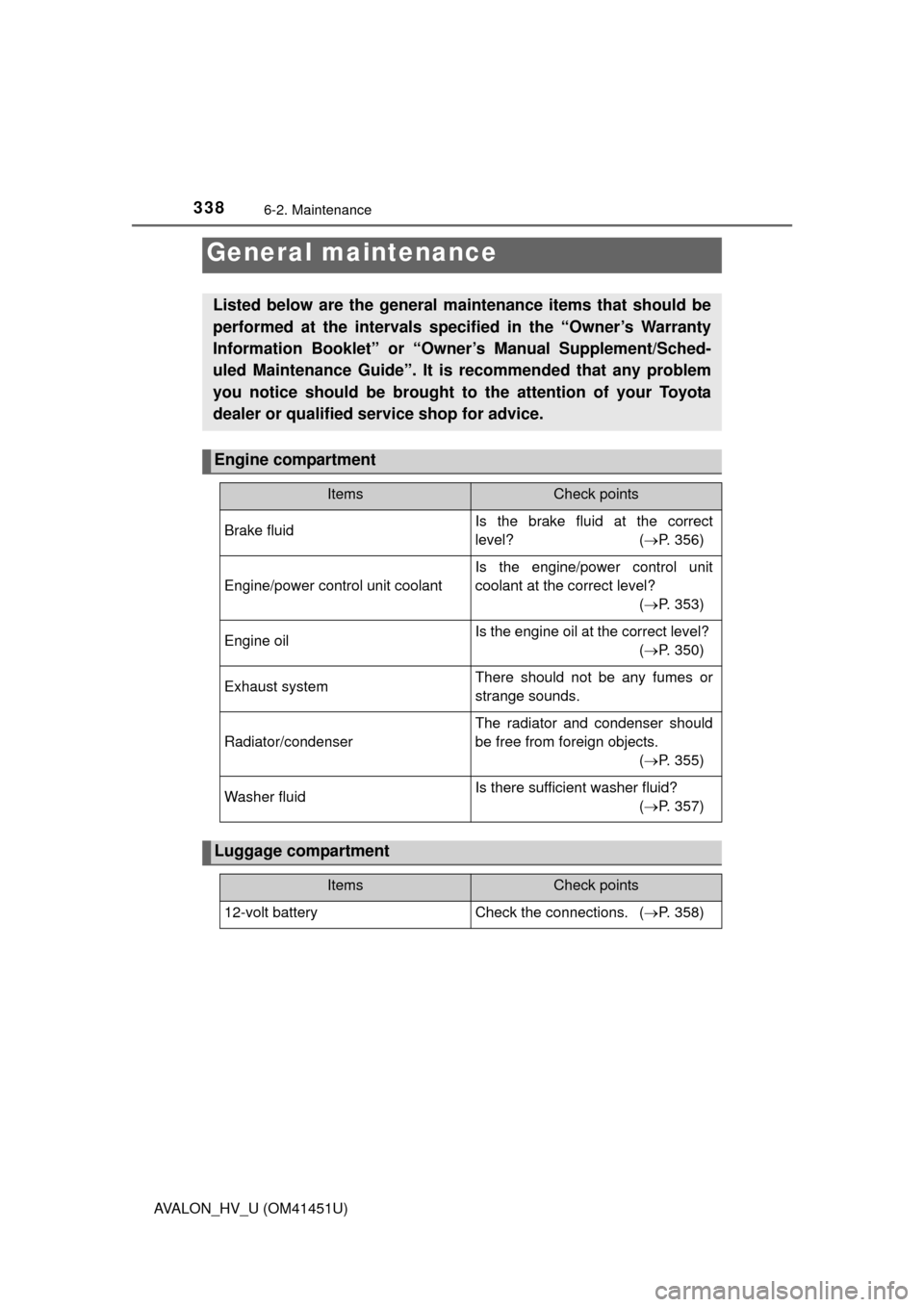

Page 338 of 512
3386-2. Maintenance
AVALON_HV_U (OM41451U)
General maintenance
Listed below are the general maintenance items that should be
performed at the intervals specified in the “Owner’s Warranty
Information Booklet” or “Owner’s Manual Supplement/Sched-
uled Maintenance Guide”. It is recommended that any problem
you notice should be brought to the attention of your Toyota
dealer or qualified service shop for advice.
Engine compartment
ItemsCheck points
Brake fluidIs the brake fluid at the correct
level? ( P. 356)
Engine/power control unit coolant
Is the engine/power control unit
coolant at the correct level?
(P. 353)
Engine oilIs the engine oil at the correct level?
(P. 350)
Exhaust systemThere should not be any fumes or
strange sounds.
Radiator/condenser
The radiator and condenser should
be free from foreign objects.
(P. 355)
Washer fluidIs there sufficient washer fluid?
(P. 357)
Luggage compartment
ItemsCheck points
12-volt batteryCheck the connections. ( P. 358)

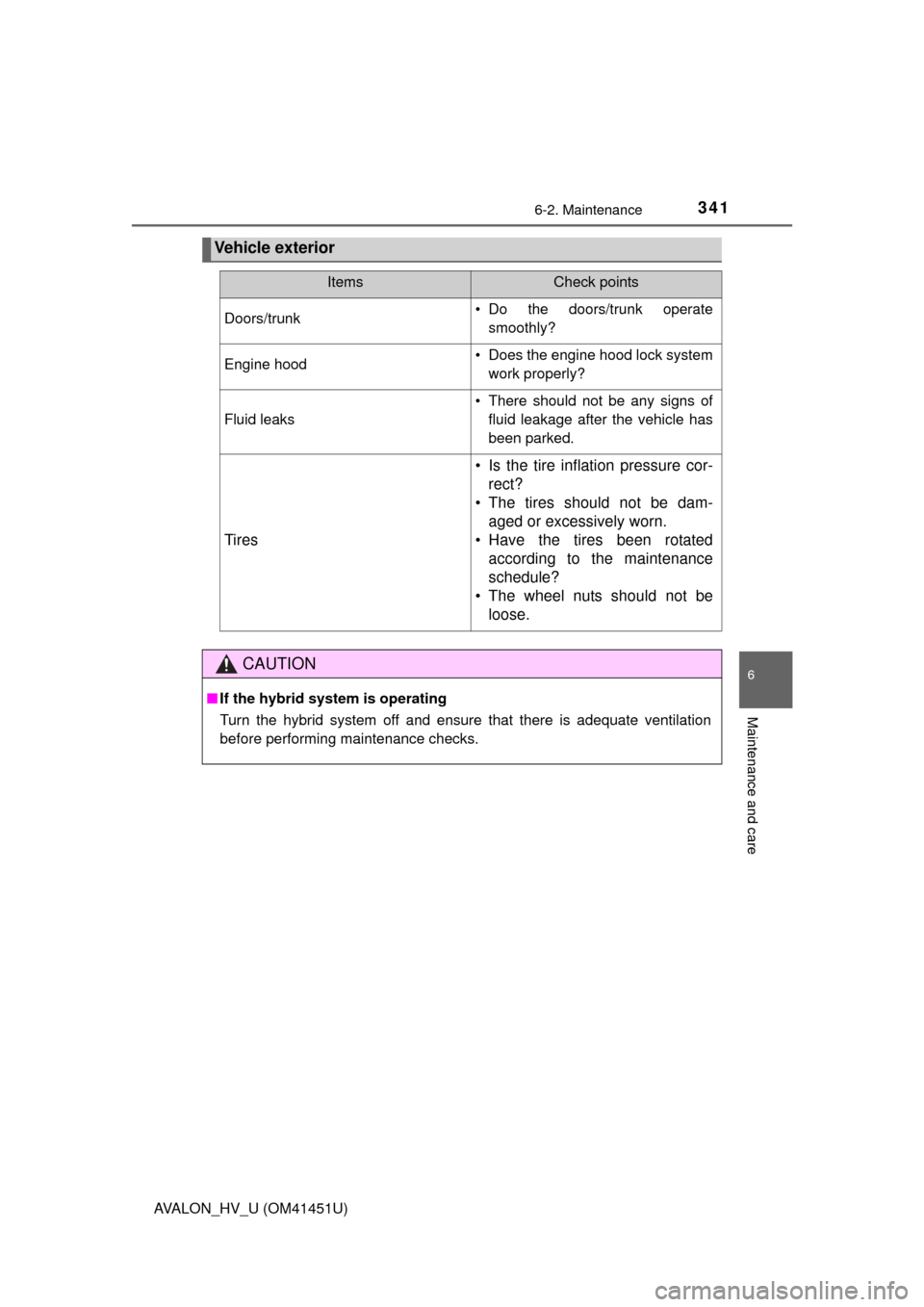

Page 341 of 512
3416-2. Maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)
Vehicle exterior
ItemsCheck points
Doors/trunk• Do the doors/trunk operatesmoothly?
Engine hood• Does the engine hood lock systemwork properly?
Fluid leaks
• There should not be any signs offluid leakage after the vehicle has
been parked.
Tires
• Is the tire inflation pressure cor-rect?
• The tires should not be dam- aged or excessively worn.
• Have the tires been rotated according to the maintenance
schedule?
• The wheel nuts should not be loose.
CAUTION
■ If the hybrid system is operating
Turn the hybrid system off and ensure that there is adequate ventilation
before performing maintenance checks.
