FEATURES/OPERATIONS
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly and firmly
(3) The “READY” light will blink. After a few seconds, when the light remains
steady and a beep sounds, you may begin driving.

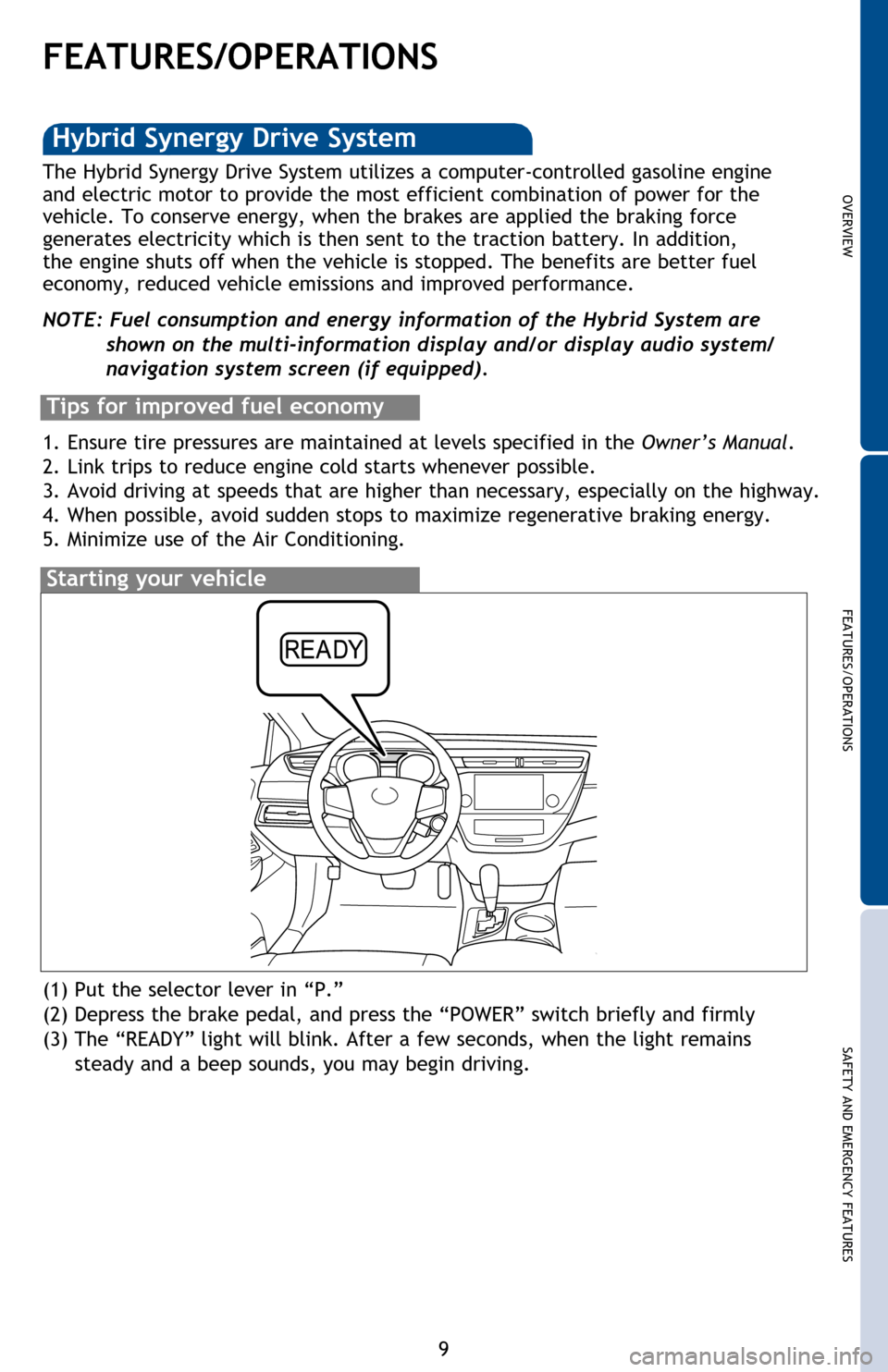

Starting your vehicle
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are shown on the multi-information display and/or display audio system/
navigation system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual .
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
127476_AvalonHybrid_TEXT.indd 910/24/12 10:45 PM

10

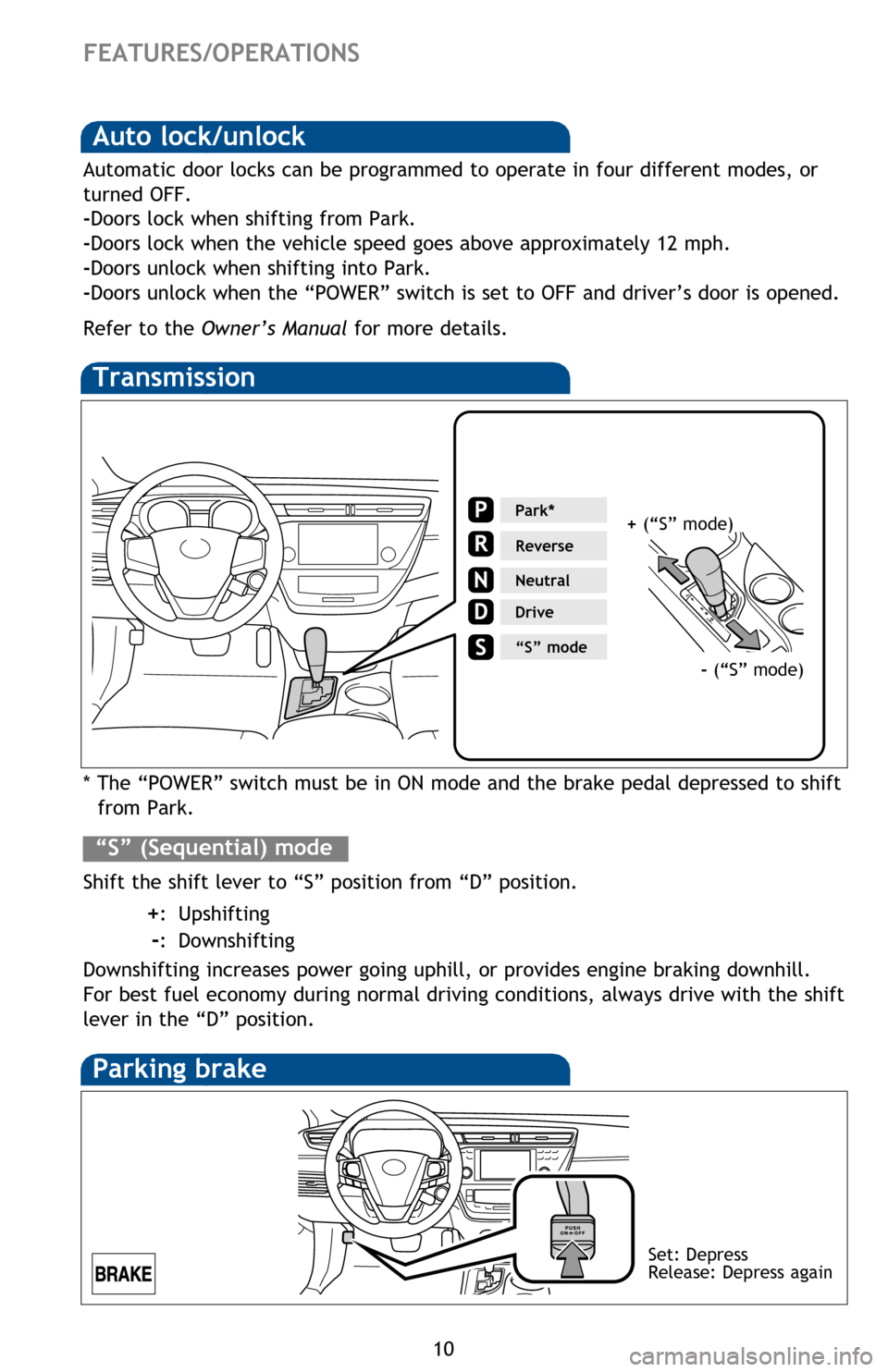

Transmission
* The “POWER” switch must be in ON mode and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Steering lock release
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “POWER” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Gently turn steering wheel while pressing the “POWER” switch. If the lock does
not release, a message informing the driver that the steering wheel is locked will
be displayed on the Multi-Information Display.
N
Park*
Reverse
Neutral
Drive
“S” mode
+ (“S” mode)
- (“S” mode)

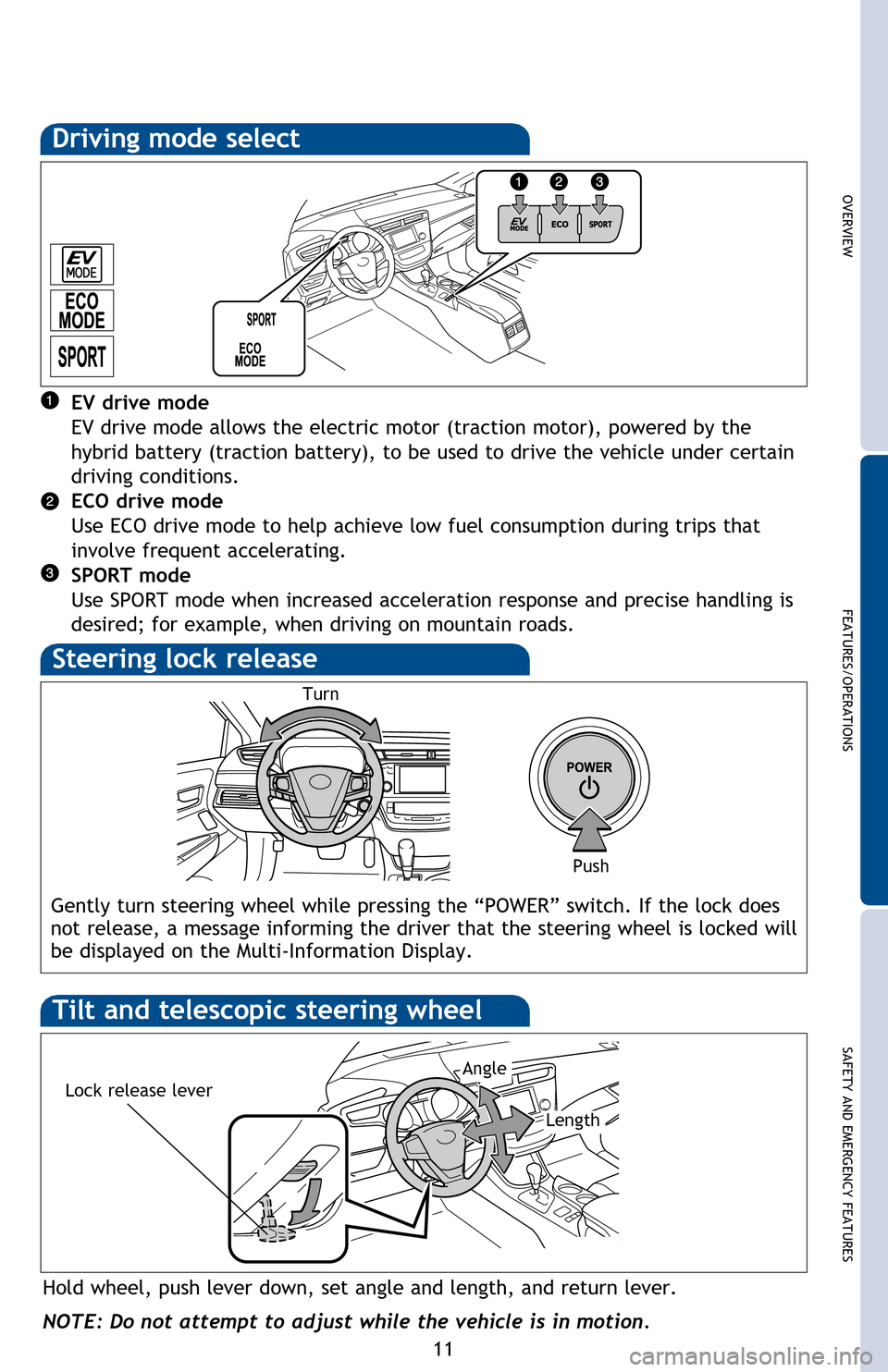

Driving mode select
EV drive mode
EV drive mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle under certain
driving conditions.
ECO drive mode
Use ECO drive mode to help achieve low fuel consumption during trips that
involve frequent accelerating.
SPORT mode
Use SPORT mode when increased acceleration response and precise handling is
desired; for example, when driving on mountain roads.
Parking brake
Set: Depress
Release: Depress again
FEATURES/OPERATIONS
127476_AvalonHybrid_TEXT.indd 1010/24/12 10:45 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
* The “POWER” switch must be in ON mode and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Steering lock release
Push
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “POWER” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Gently turn steering wheel while pressing the “POWER” switch. If the lock does
not release, a message informing the driver that the steering wheel is locked will
be displayed on the Multi-Information Display.
Angle
Length
Driving mode select
EV drive mode
EV drive mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle under certain
driving conditions.
ECO drive mode
Use ECO drive mode to help achieve low fuel consumption during trips that
involve frequent accelerating.
SPORT mode
Use SPORT mode when increased acceleration response and precise handling is
desired; for example, when driving on mountain roads.
Set: Depress
Release: Depress again
Turn
127476_AvalonHybrid_TEXT.indd 1110/24/12 10:45 PM

12
FEATURES/OPERATIONS
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended open position
to minimize wind noise.

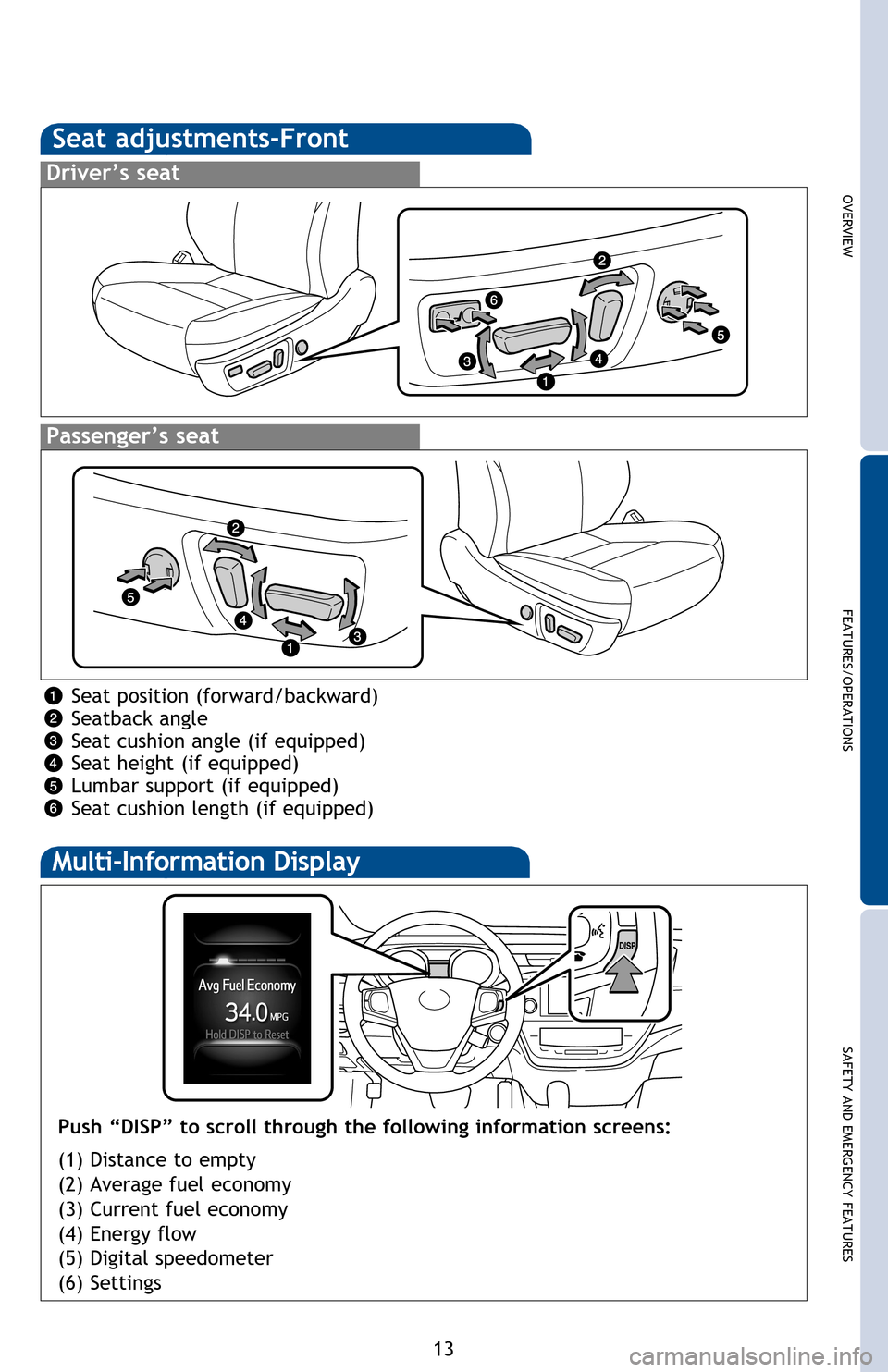

Seat adjustments-Front
Driver’s seat
Passenger’s seat
Seat position (forward/backward)
Seatback angle
Seat cushion angle (if equipped)
Seat height (if equipped)
Lumbar support (if equipped)
Seat cushion length (if equipped)
Seats-Head restraints
Lock release button

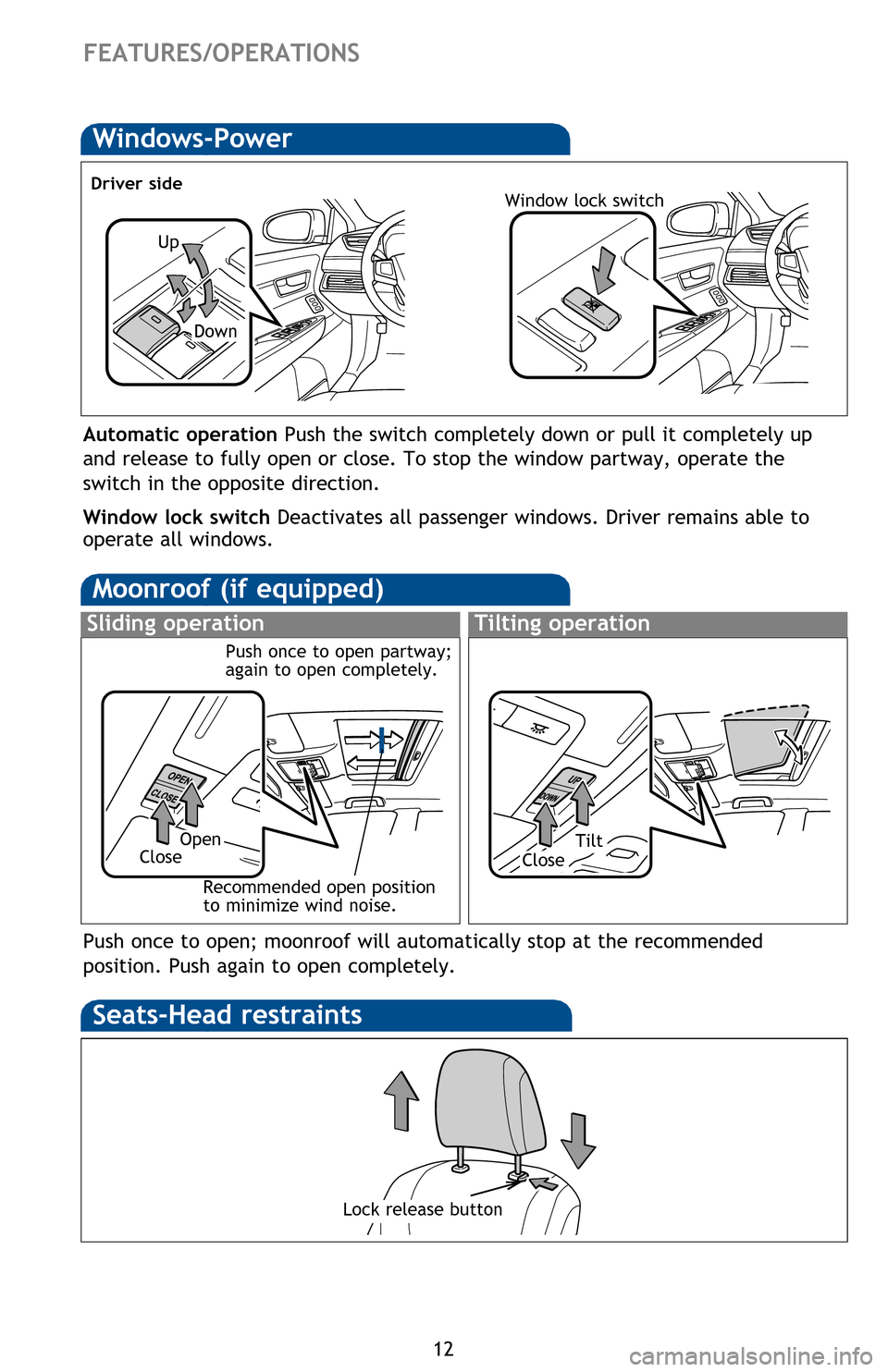

Windows-Power
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver remains able to
operate all windows.
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
Push once to open partway;
again to open completely.
Up
Down
Driver sideWindow lock switch
Multi-Information Display
Push “DISP” to scroll through the following information screens:
(1) Distance to empty
(2) Average fuel economy
(3) Current fuel economy
(4) Energy flow
(5) Digital speedometer
(6) Settings
127476_AvalonHybrid_TEXT.indd 1210/24/12 10:45 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Tilting operation
Seat adjustments-Front
Driver’s seat
Passenger’s seat
Seat position (forward/backward)
Seatback angle
Seat cushion angle (if equipped)
Seat height (if equipped)
Lumbar support (if equipped)
Seat cushion length (if equipped)
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver remains able to
operate all windows.
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
Multi-Information Display
Push “DISP” to scroll through the following information screens:
(1) Distance to empty
(2) Average fuel economy
(3) Current fuel economy
(4) Energy flow
(5) Digital speedometer
(6) Settings
127476_AvalonHybrid_TEXT.indd 1310/24/12 10:45 PM

14
Power outlets-12V DC
Front console
The “POWER” switch must be in the ACCESSORY or ON mode for use.
Center console
Lights & turn signals
Turn signals
Headlights
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the headlights to make vehicle more visible to other drivers. Not for use at night.
-Automatic light cut off system In Auto mode, automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
Parking lights

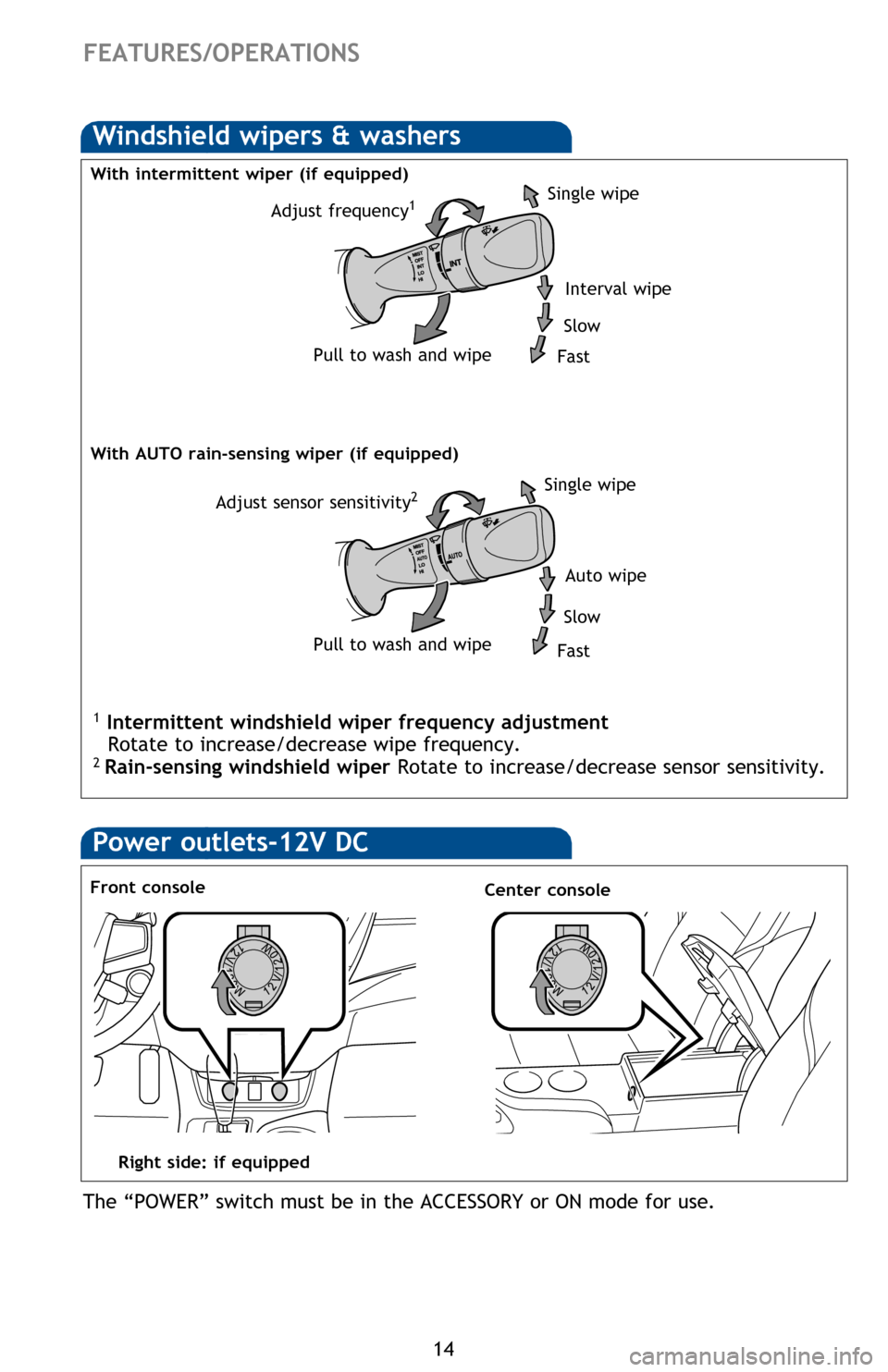

Windshield wipers & washers
Adjust sensor sensitivity2
Pull to wash and wipe
Single wipe
Auto wipe
Slow
Fast
Front fog lights come on only when the headlights are on low beam.
FEATURES/OPERATIONS
1 Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
With intermittent wiper (if equipped)
Right side: if equipped
With AUTO rain-sensing wiper (if equipped)
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Automatic high beam (if equipped)
* Refer to the
Owner’s Manual for details on activating the automatic high beams.
Adjust frequency1
Activate*
127476_AvalonHybrid_TEXT.indd 1410/24/12 10:45 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
The “POWER” switch must be in the ACCESSORY or ON mode for use.

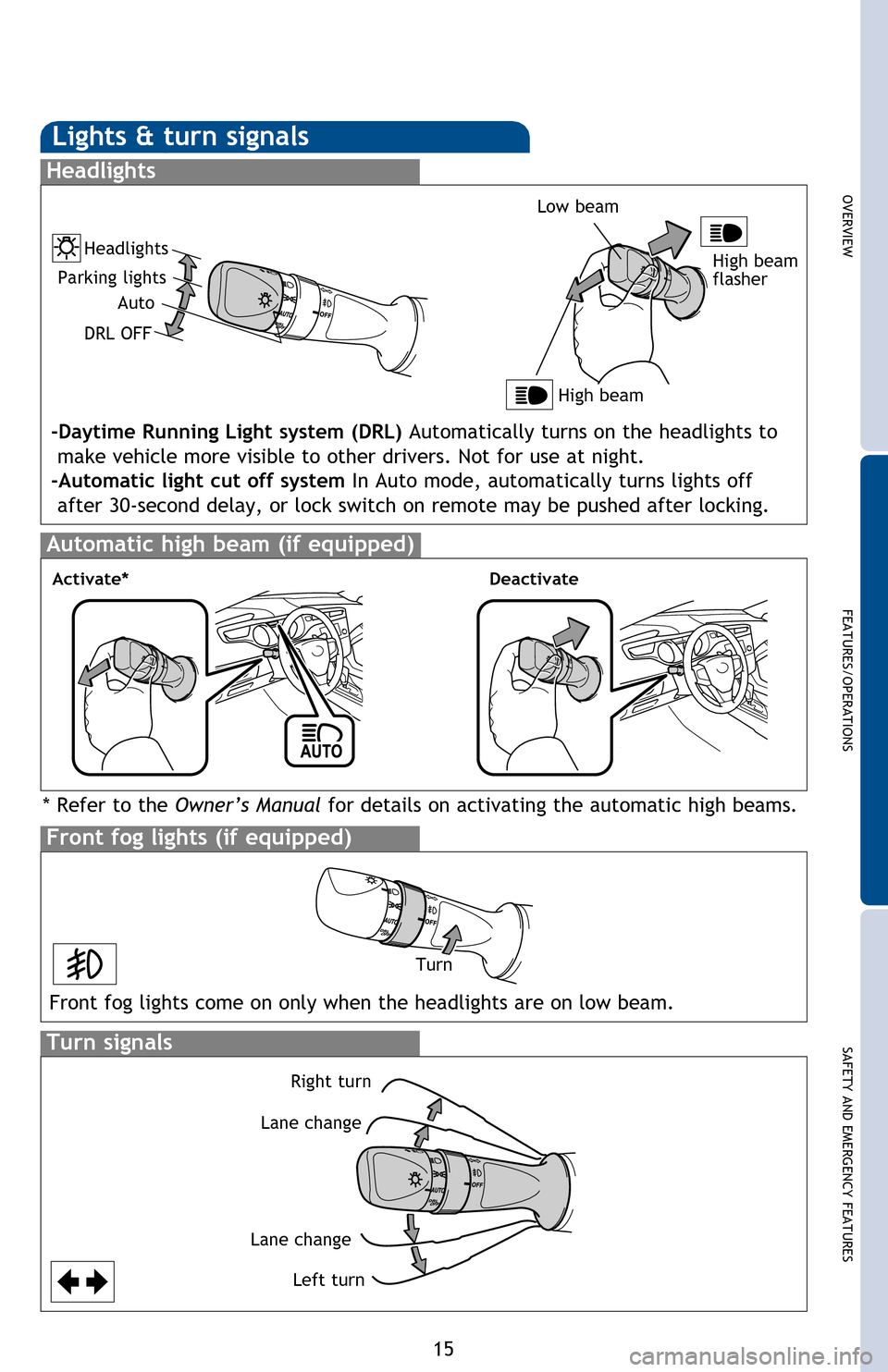

Lights & turn signals
Turn signals
Headlights
High beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) Automatically turns on the headlights to make vehicle more visible to other drivers. Not for use at night.
-Automatic light cut off system In Auto mode, automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
Parking lights
Right turn
Lane change
Lane change Left turn High beam
flasher
Auto
DRL OFF
Turn
Front fog lights come on only when the headlights are on low beam.
1 Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
Low beam
Automatic high beam (if equipped)
* Refer to the Owner’s Manual for details on activating the automatic high beams.
DeactivateActivate*
127476_AvalonHybrid_TEXT.indd 1510/24/12 10:46 PM

16
FEATURES/OPERATIONS
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2

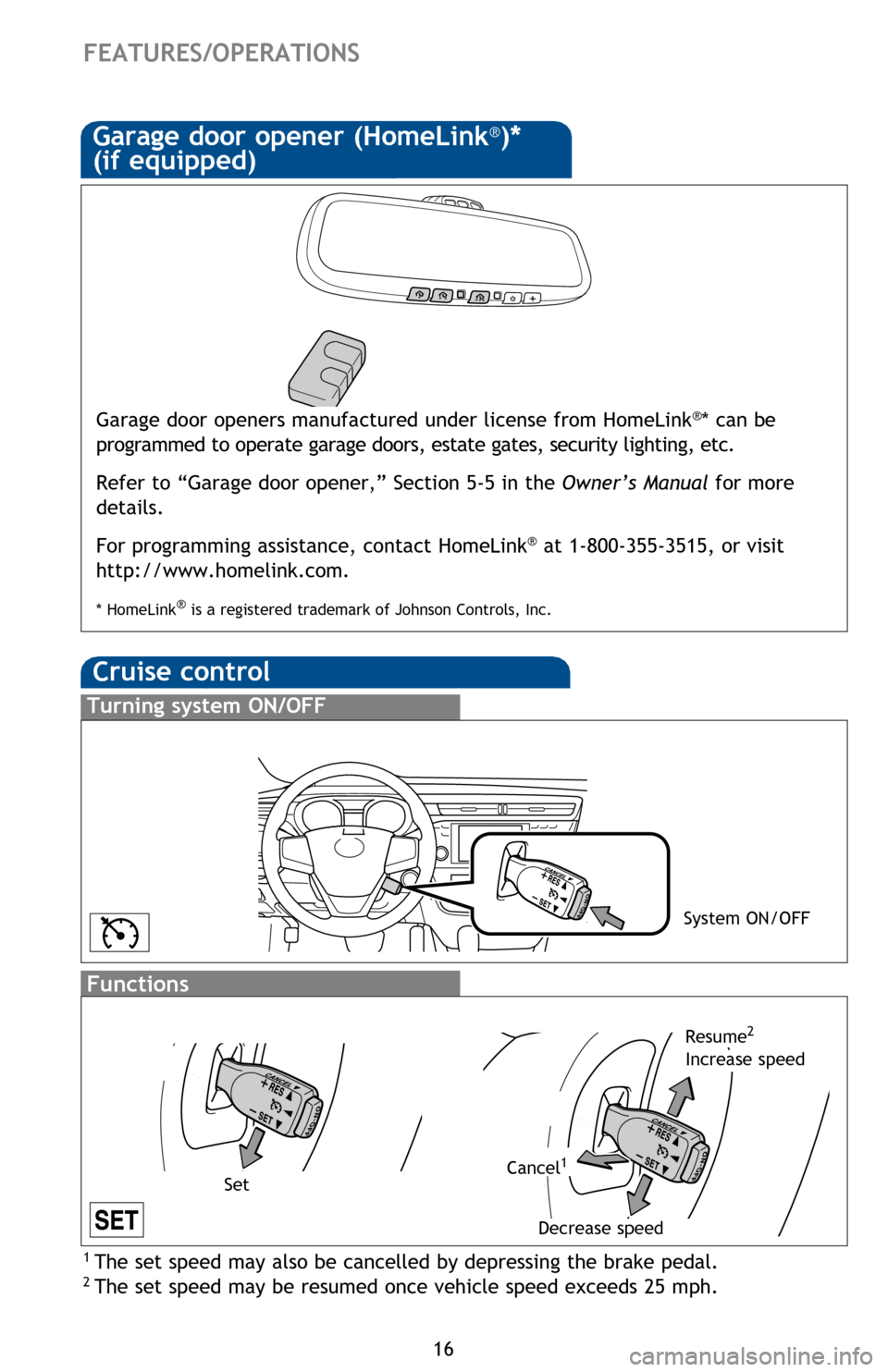

Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 5-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Set
To set, cancel and resume a speed Refer to “Functions” in the Cruise Control
section, and to the Owner’s Manual for more details.
Fixed speed mode
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic radar cruise control.”

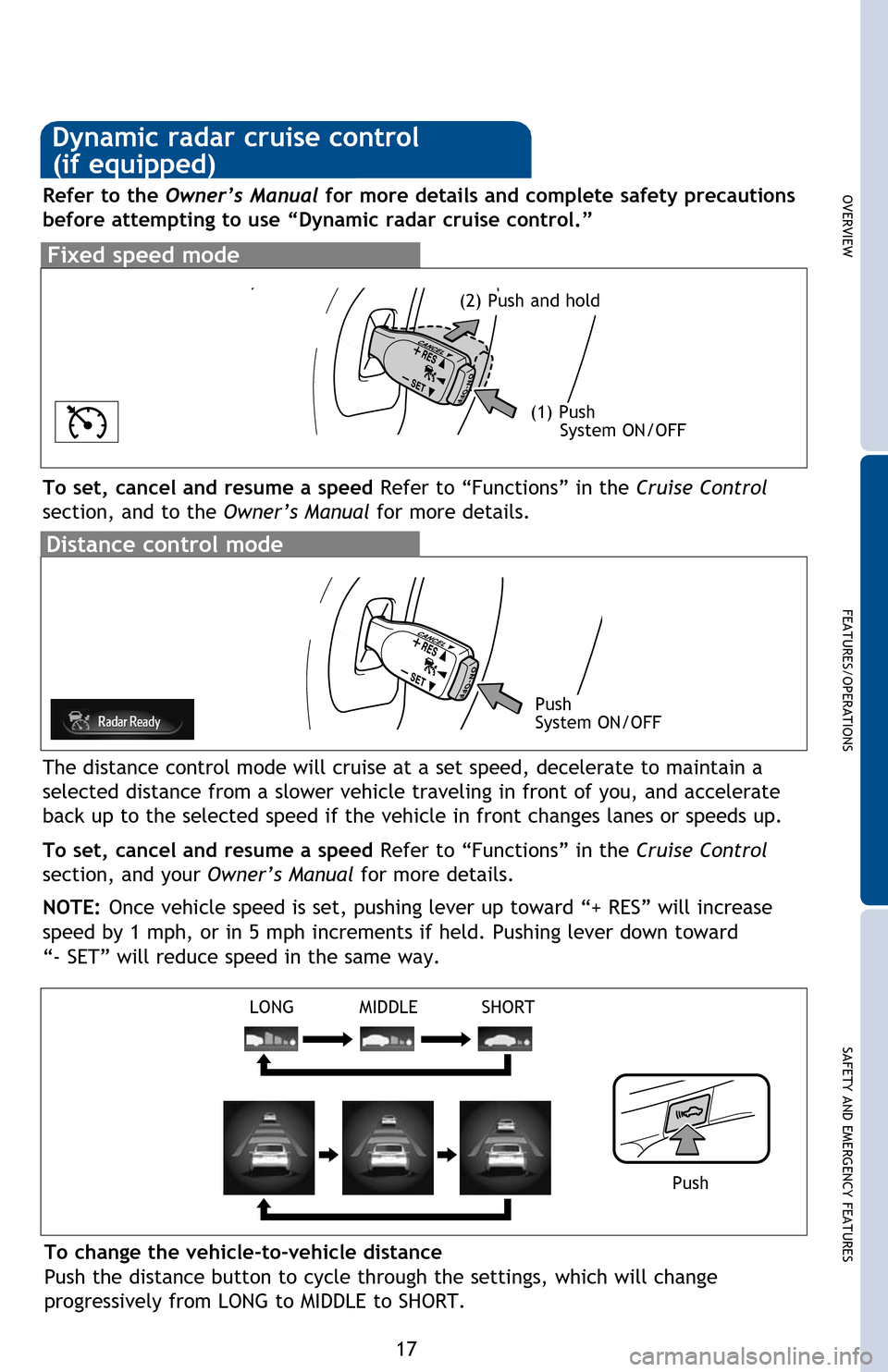

Dynamic radar cruise control
(if equipped)
Distance control mode
To set, cancel and resume a speed Refer to “Functions” in the Cruise Control
section, and your Owner’s Manual for more details.
NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will increase
speed by 1 mph, or in 5 mph increments if held. Pushing lever down toward
“- SET” will reduce speed in the same way. The distance control mode will cruise at a set speed, decelerate to maintain a
selected distance from a slower vehicle traveling in front of you, and accelerate
back up to the selected speed if the vehicle in front changes lanes or speeds up.
To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will change
progressively from LONG to MIDDLE to SHORT.
127476_AvalonHybrid_TEXT.indd 1610/24/12 10:46 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
System ON/OFF
Increase speed
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 5-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
To set, cancel and resume a speed Refer to “Functions” in the Cruise Control
section, and to the Owner’s Manual for more details.
Fixed speed mode
(1) Push
System ON/OFF
(2) Push and hold
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic radar cruise control.”
Dynamic radar cruise control
(if equipped)
Distance control mode
To set, cancel and resume a speed Refer to “Functions” in the Cruise Control
section, and your Owner’s Manual for more details.
NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will increase
speed by 1 mph, or in 5 mph increments if held. Pushing lever down toward
“- SET” will reduce speed in the same way.
The distance control mode will cruise at a set speed, decelerate to maintain a
selected distance from a slower vehicle traveling in front of you, and accelerate
back up to the selected speed if the vehicle in front changes lanes or speeds up.
Push
Push
System ON/OFF
LONG MIDDLE SHORT
To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will change
progressively from LONG to MIDDLE to SHORT.
127476_AvalonHybrid_TEXT.indd 1710/24/12 10:46 PM

18

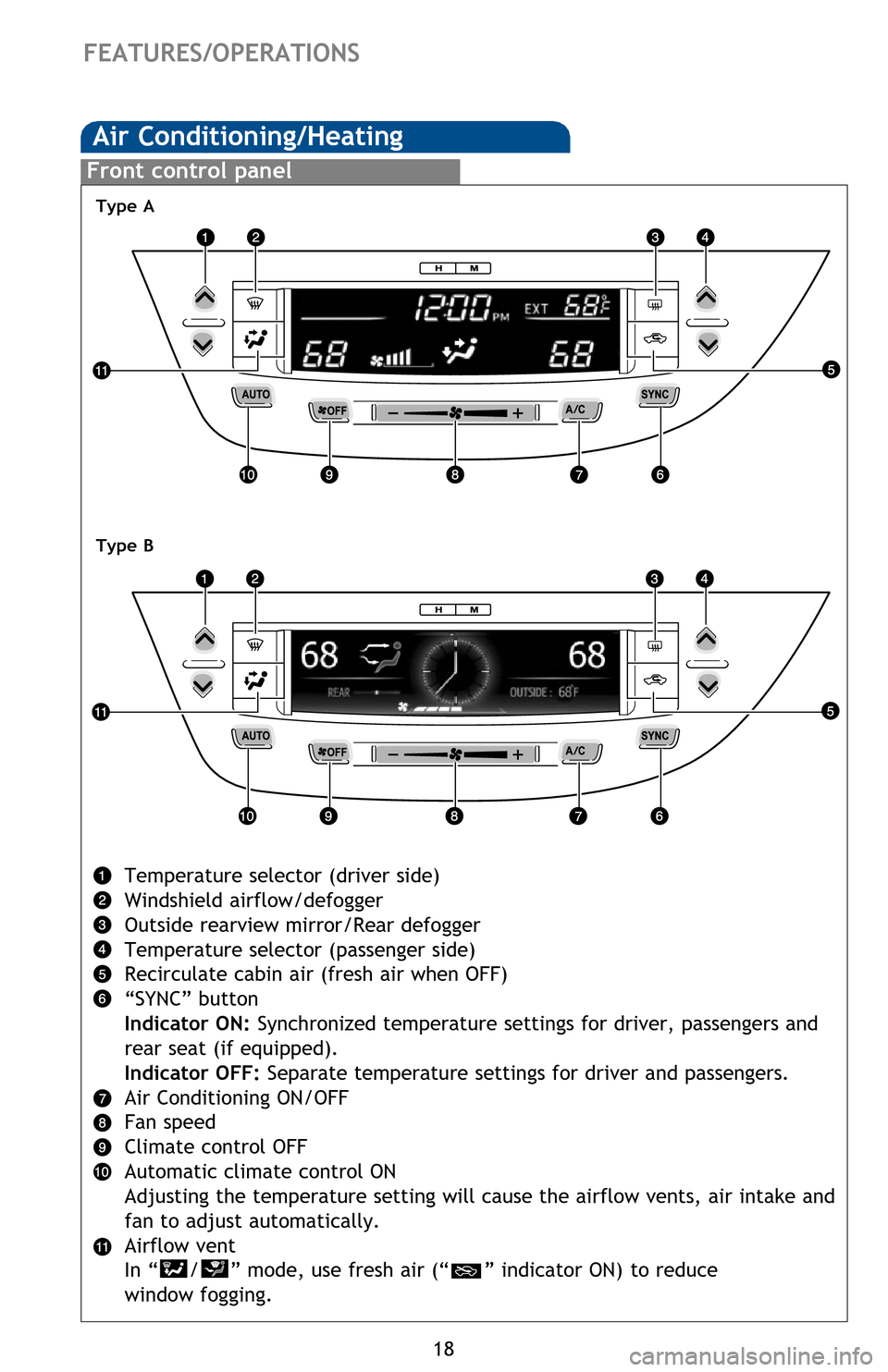

Front control panel
Temperature selector (driver side)
Windshield airflow/defogger
Outside rearview mirror/Rear defogger
Temperature selector (passenger side)
Recirculate cabin air (fresh air when OFF)
“SYNC” button
Indicator ON: Synchronized temperature settings for driver, passengers and
rear seat (if equipped).
Indicator OFF: Separate temperature settings for driver and passengers.
Air Conditioning ON/OFF
Fan speed
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Airflow vent
In “
/” mode, use fresh air (“” indicator ON) to reduce
window fogging.
FEATURES/OPERATIONS
Air Conditioning/HeatingRear control panel (if equipped)
Rear control switch
Rear passenger’s temperature control
Seat ventilators/Heaters (if equipped)
Push knob to pop the controller out.
Turn clockwise for heater, counter-clockwise for ventilator.
With ventilator
Type A
Type B
127476_AvalonHybrid_TEXT.indd 1810/24/12 10:46 PM
