Page 381 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3816-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriat

Page 382 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3826-3. Do-it-yourself maintenance
AVALON_HV_U (OM41451U)■
Engine compartment (type A fuse box)
Fuse block
Fuse block on the back of the cover
Fuse layout and amperage ratings
FuseAmpereCircui

Page 383 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3836-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)7 HTR 50 A Air conditioning system
8 DC/DC 120 A Hybrid system
9 ABS NO.1 30 A Electronically controlled brake system
10

Page 384 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3846-3. Do-it-yourself maintenance
AVALON_HV_U (OM41451U)
*1:Vehicles with halogen headlight
*2:Vehicles with discharge headlight
29 AMP 15 A Audio system
30 H-LP LH-LO
15 A*1
Left-hand headlight (low

Page 385 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3856-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)■
Engine compartment (type B fuse box)
FuseAmpereCircuit
1 PM IGCT 7.5 A Hybrid system, electronic controlled
transmis

Page 386 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3866-3. Do-it-yourself maintenance
AVALON_HV_U (OM41451U)■

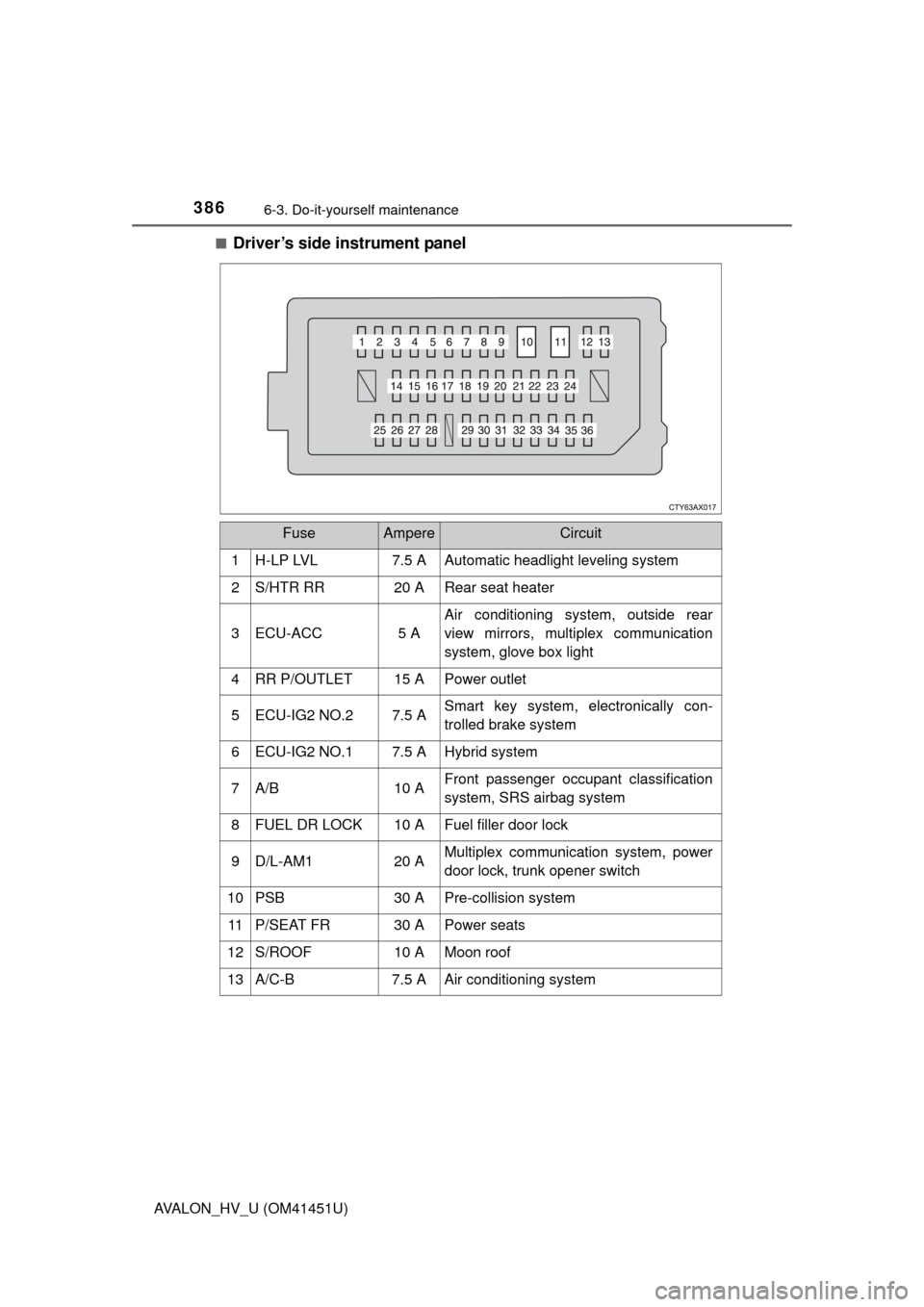

Driver’s side instrument panel
FuseAmpereCircuit
1 H-LP LVL 7.5 A Automatic headlight leveling system
2 S/HTR RR 20 A Rear seat heater
3

Page 387 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3876-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)14 STOP 7.5 A
Stop/tail lights, electronically controlled
brake system, high mounted stoplight,
shift lock control syste

Page 388 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3886-3. Do-it-yourself maintenance
AVALON_HV_U (OM41451U)34 PANEL 10 A
Switch illumination, air conditioning sys-
tem, rear sunshade, seat heater, Blind
Spot Monitor, driving mode select switch,
steer

Page 389 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3896-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need repl

Page 390 of 512

TOYOTA AVALON HYBRID 2014 XX40 / 4.G Owners Manual 3906-3. Do-it-yourself maintenance
AVALON_HV_U (OM41451U)

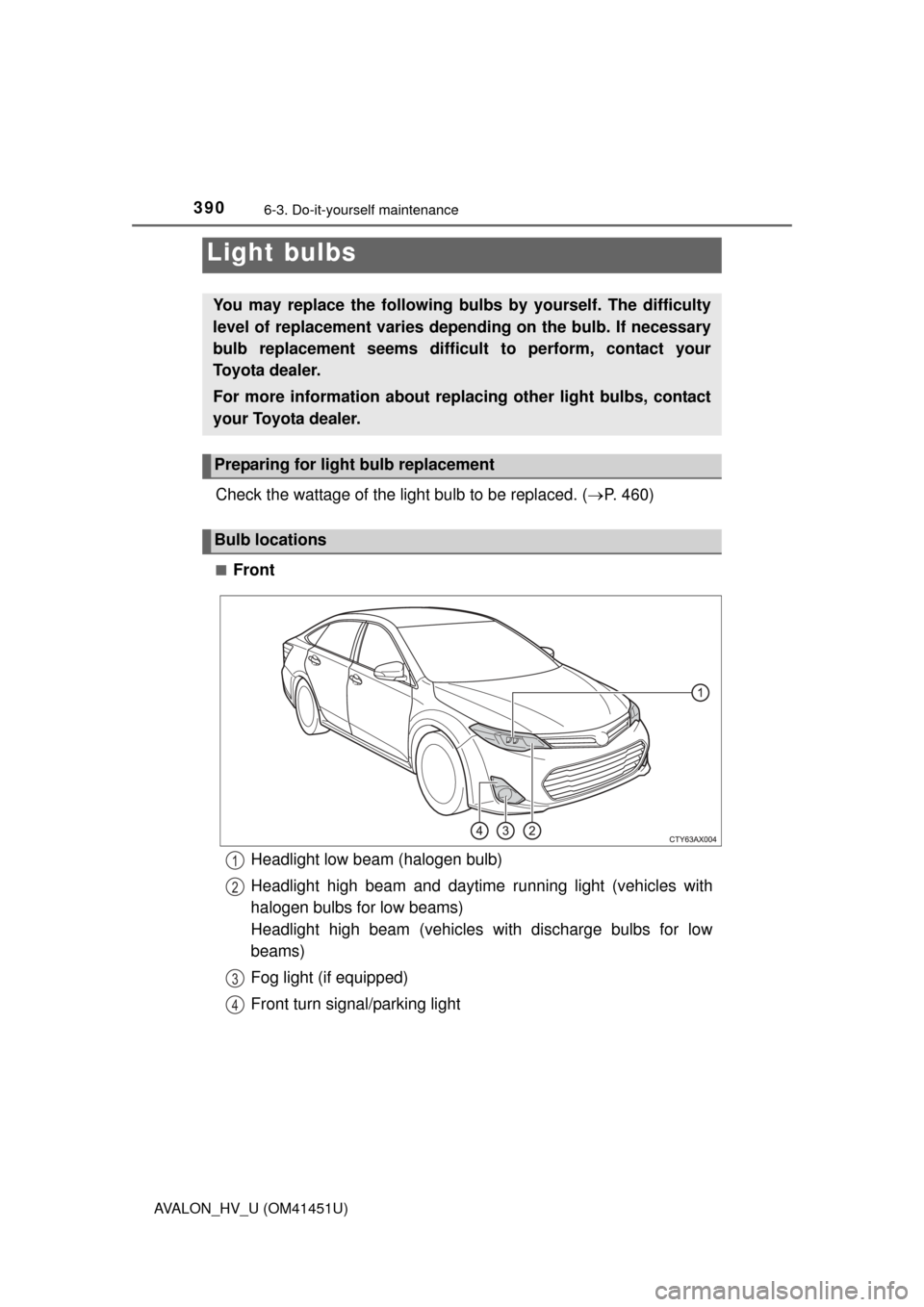

Check the wattage of the light bulb to be replaced. (P. 460)
■Front
Light bulbs
You may replace the following bulbs  by yourself. The dif
