3-2. Opening, closing and locking the doors and trunk
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket. (The driver
should always carry the electronic key.)
■ Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Smar t key system
Function summary
Locks and unlocks the doors ( P. 1 1 2 )
Unlocks the trunk ( P. 11 2 )
Starts the hybrid system ( P. 177)1
2
3

1123-2. Opening, closing and locking the doors and trunk
AVALON_HV_U (OM41457U)
Grip the driver’s door handle to
unlock the door. Some models,
grip the passenger’s door handle
to unlock all the doors.
*
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
*: The door unlock settings can bechanged. ( P. 1 1 8 )
Touch the lock sensor (the inden-
tation on the upper part of the
door handle) to lock all the doors.
Check that the door is securely
locked.
Press the button to unlock the
trunk.
Unlocking and locking the doors
Unlocking the trunk

1133-2. Opening, closing and locking the doors and trunk
3
Operation of each component
AVALON_HV_U (OM41457U)■
Antenna location
Right side antenna outside
the cabin (if equipped)
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk
Left side antenna outside the
cabin
Antenna location and effective range
1
2
3
34
35

1143-2. Opening, closing and locking the doors and trunk
AVALON_HV_U (OM41457U)■
Effective range (areas within which the electronic key is
detected)
■
When the door cannot be locked by the lock sensor on the upper part of
the door handle
Ty p e AType B
When locking or unlocking the doors
The system can be operated when the electronic key is within about 2.3
ft. (0.7 m) of an outside door handle. (Only the doors detecting the key
can be operated.)
When unlocking the trunk
The system can be operated when the electronic key is within about 2.3
ft. (0.7 m) of the trunk release button.
When starting the hybrid system or changing power switch
modes
The system can be operated when the electronic key is inside the vehi-
cle.
If the door will not lock even when the top-
side sensor area is touched, try touching
both the topside and underside sensor
areas at the same time.

1153-2. Opening, closing and locking the doors and trunk
3
Operation of each component
AVALON_HV_U (OM41457U)■
Alarms and warning indicators
An alarm sounds and warning message displays shown on the multi-informa-
tion display are used to protect against unexpected accidents or theft of the
vehicle resulting from erroneous operation. When a warning message is dis-
played, take appropriate measures based on the displayed message.
(P. 414)
When only an alarm sounds, circumstances and correction procedures are as
follows.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 5 seconds
An attempt was made
to lock the doors using
the smart key system
while the electronic key
was still inside the vehi-
cle.
Retrieve the electronic
key from the passenger
compartment and lock
the doors again.
The trunk was closed
while the electronic key
was still inside the trunk
and all the doors were
locked.
Retrieve the electronic
key from the trunk and
close the trunk lid.
An attempt was made
to lock the vehicle while
a door was open.Close all of the doors
and lock the doors
again.
Interior alarm pings
once and exterior alarm
sounds once for 5 sec-
onds
An attempt was made
to lock either front door
by opening a door and
putting the inside lock
button into the lock
position, then closing
the door with the elec-
tronic key still inside the
vehicle.
Retrieve the electronic
key from the vehicle
and lock the doors
again.

1163-2. Opening, closing and locking the doors and trunk
AVALON_HV_U (OM41457U)The following table describes circumstances and correction procedures when
alarms are sounded and a message or key icon is displayed.

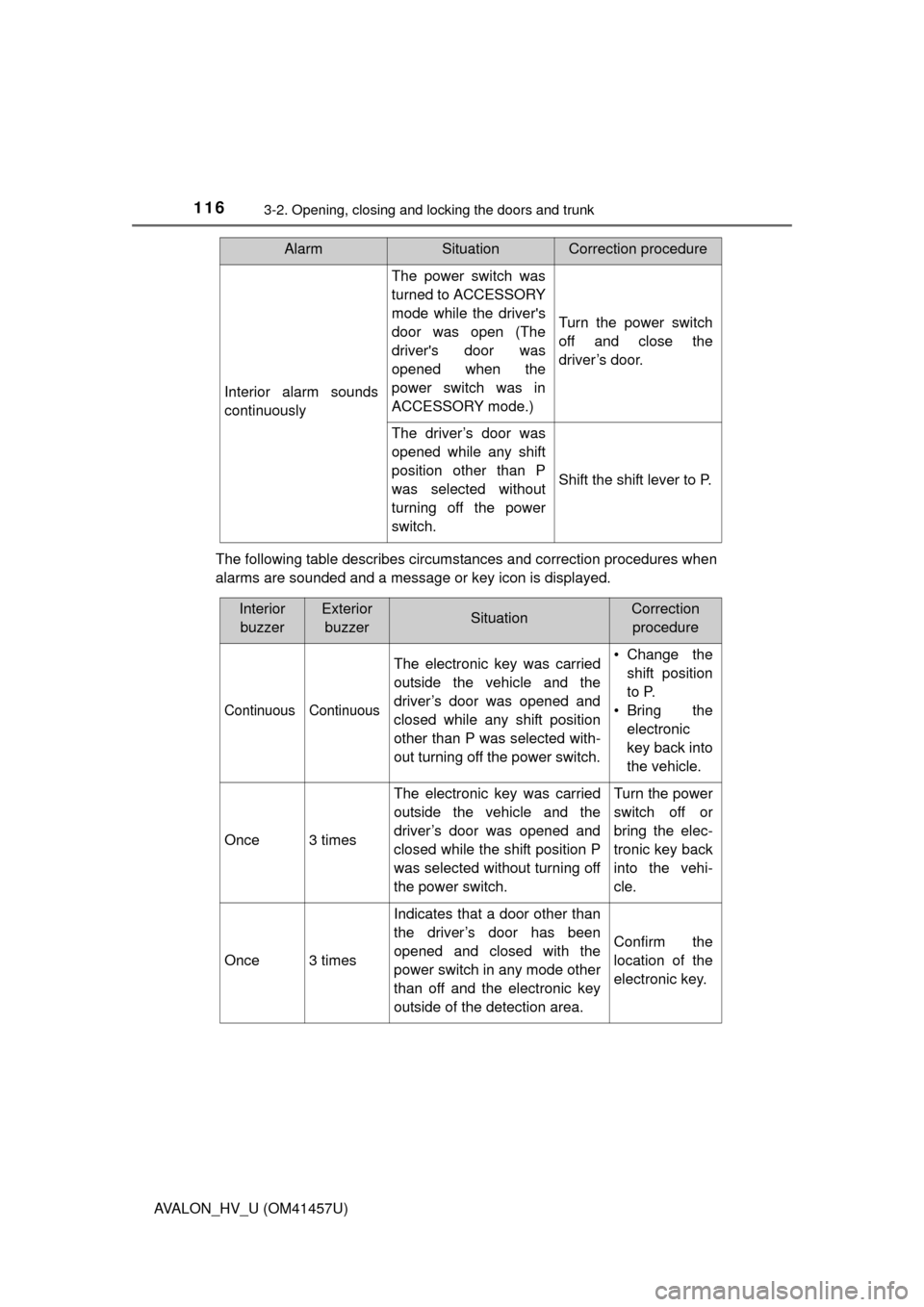

Interior alarm sounds
continuously
The power switch was
turned to ACCESSORY
mode while the driver's
door was open (The
driver's door was
opened when the
power switch was in
ACCESSORY mode.)
Turn the power switch
off and close the
driver’s door.
The driver’s door was
opened while any shift
position other than P
was selected without
turning off the power
switch.
Shift the shift lever to P.
AlarmSituationCorrection procedure
Interior
buzzerExterior buzzerSituationCorrection procedure
Continuous Continuous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while any shift position
other than P was selected with-
out turning off the power switch. • Change the
shift position
to P.
• Bring the electronic
key back into
the vehicle.
Once3 times
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while the shift position P
was selected without turning off
the power switch.Turn the power
switch off or
bring the elec-
tronic key back
into the vehi-
cle.
Once3 times
Indicates that a door other than
the driver’s door has been
opened and closed with the
power switch in any mode other
than off and the electronic key
outside of the detection area.
Confirm the
location of the
electronic key.

1173-2. Opening, closing and locking the doors and trunk
3
Operation of each component
AVALON_HV_U (OM41457U)

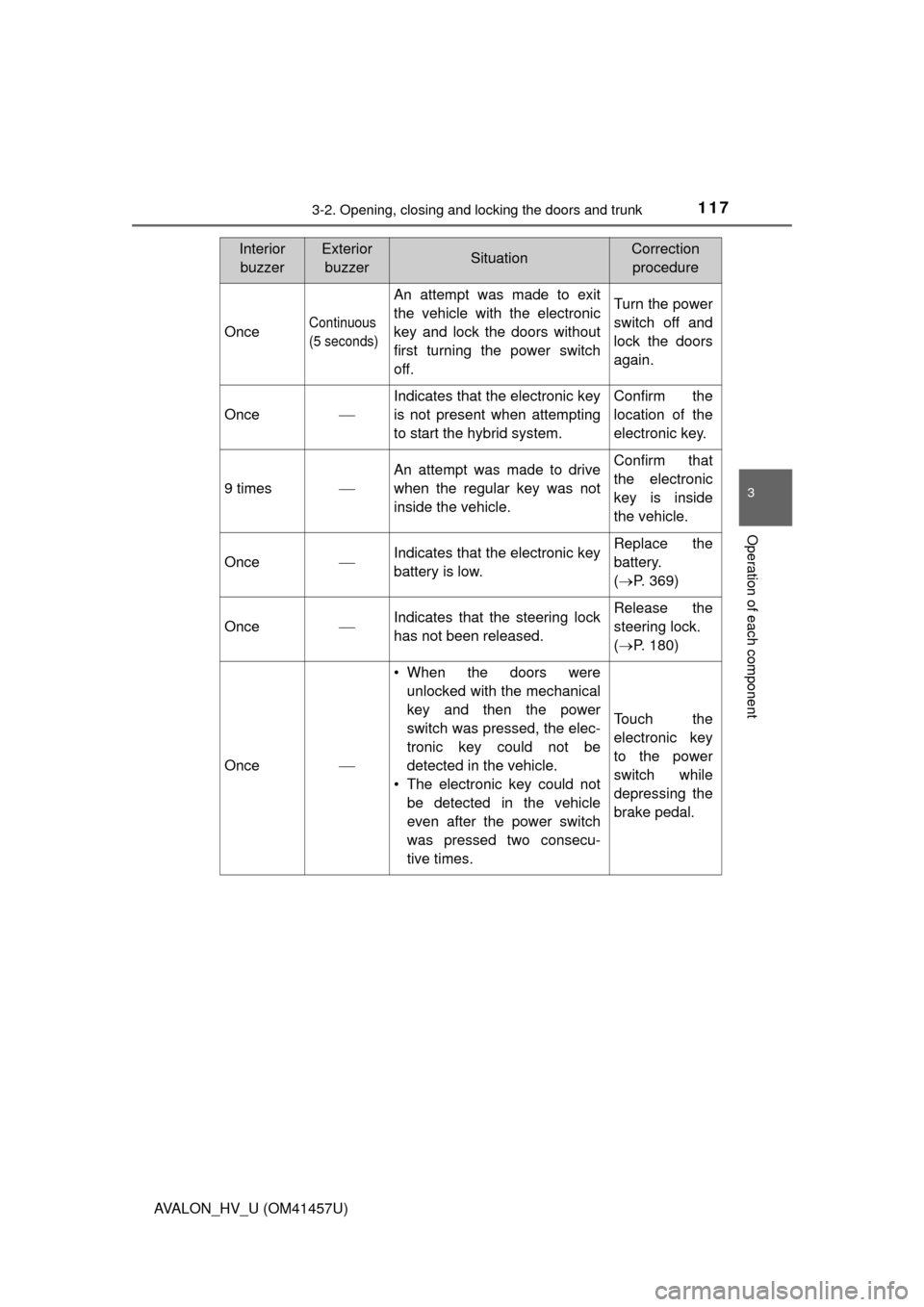

OnceContinuous
(5 seconds)
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the power switch
off.Turn the power
switch off and
lock the doors
again.
Once
 Indicates that the electronic key
is not present when attempting
to start the hybrid system. Confirm the
location of the
electronic key.
9 times
An attempt was made to drive
when the regular key was not
inside the vehicle.Confirm that
the electronic
key is inside
the vehicle.
OnceIndicates that the electronic key
battery is low.Replace the
battery.
(
P. 369)
OnceIndicates that the steering lock
has not been released.Release the
steering lock.
(P. 180)
Once
• When the doors were
unlocked with the mechanical
key and then the power
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not be detected in the vehicle
even after the power switch
was pressed two consecu-
tive times.
Touch the
electronic key
to the power
switch while
depressing the
brake pedal.
InteriorbuzzerExterior buzzerSituationCorrection procedure

1183-2. Opening, closing and locking the doors and trunk
AVALON_HV_U (OM41457U)■

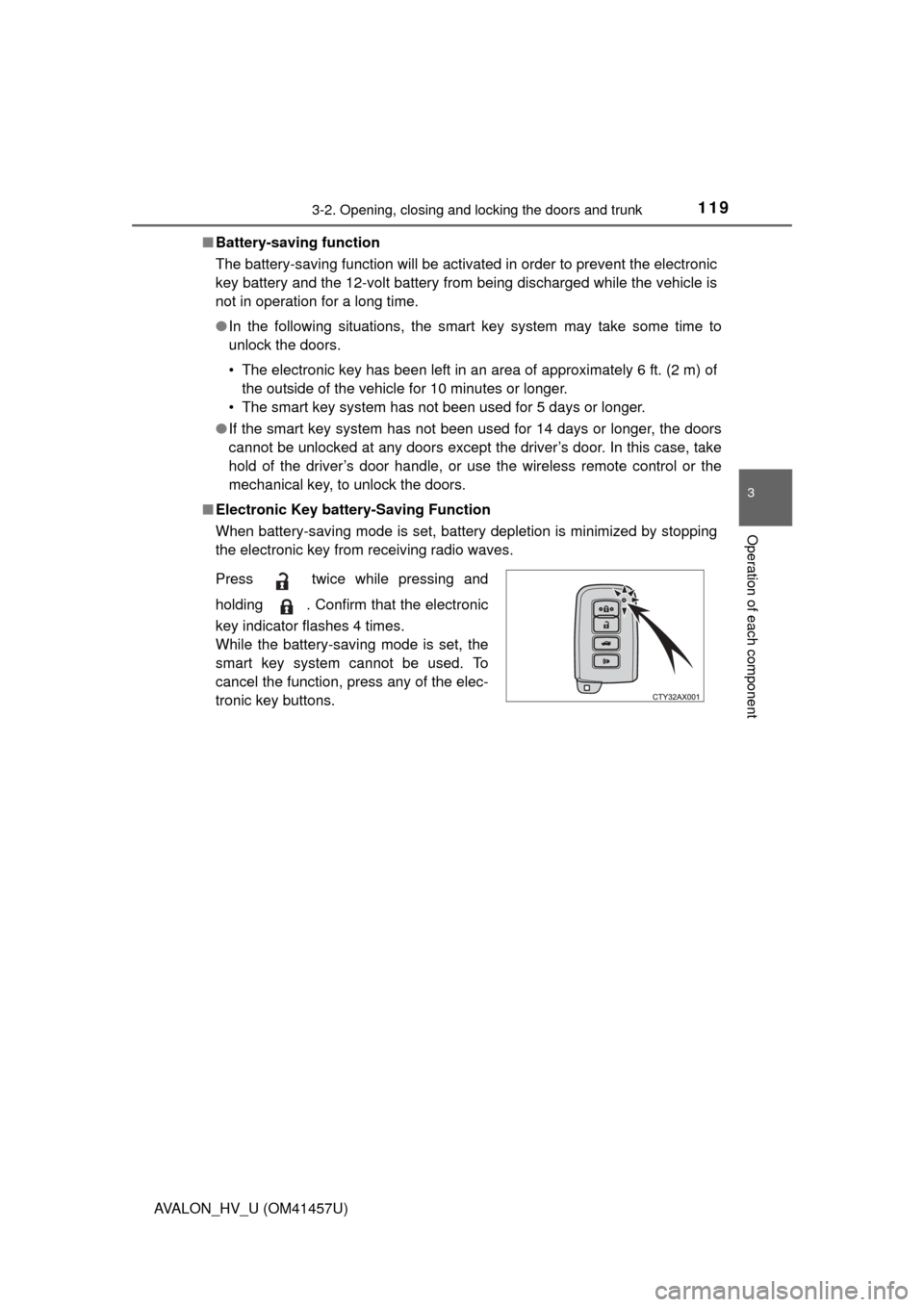

Switching the door unlock function (some models)
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the power switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding
.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the
wireless remote control and open and close a door once after the settings
have been changed. (If a door is not opened within 60 seconds after is
pressed, the doors will be locked again and the alarm will automatically be
set.)
In case that the alarm is triggered, immediately stop the alarm. ( P. 8 1 )
1
2
2
Multi-information

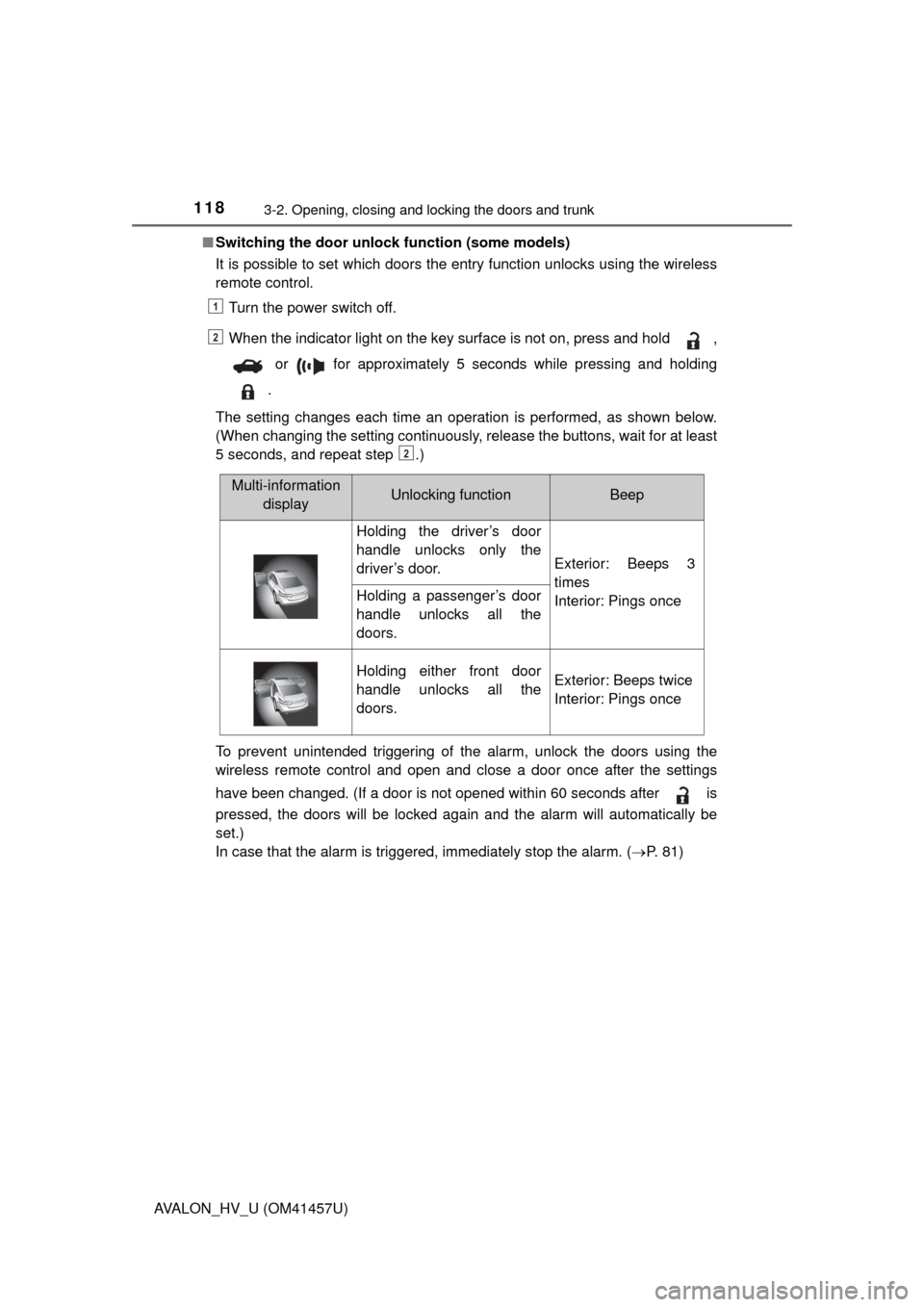

displayUnlocking functionBeep
Holding the driver’s door
handle unlocks only the
driver’s door.
Exterior: Beeps 3
times
Interior: Pings once
Holding a passenger’s door
handle unlocks all the
doors.
Holding either front door
handle unlocks all the
doors.Exterior: Beeps twice
Interior: Pings once

1193-2. Opening, closing and locking the doors and trunk
3
Operation of each component
AVALON_HV_U (OM41457U)■
Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the 12-volt battery from being discharged while the vehicle is
not in operation for a long time.
●In the following situations, the smart key system may take some time to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of
the outside of the vehicle for 10 minutes or longer.
• The smart key system has not been used for 5 days or longer.
● If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any doors except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.
■ Electronic Key battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart key system cannot be used. To
cancel the function, press any of the elec-
tronic key buttons.

1203-2. Opening, closing and locking the doors and trunk
AVALON_HV_U (OM41457U)■
Conditions affecting operation
The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and immobilizer
system from operating properly. (Ways of coping: P. 430)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
