3916-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41457U)

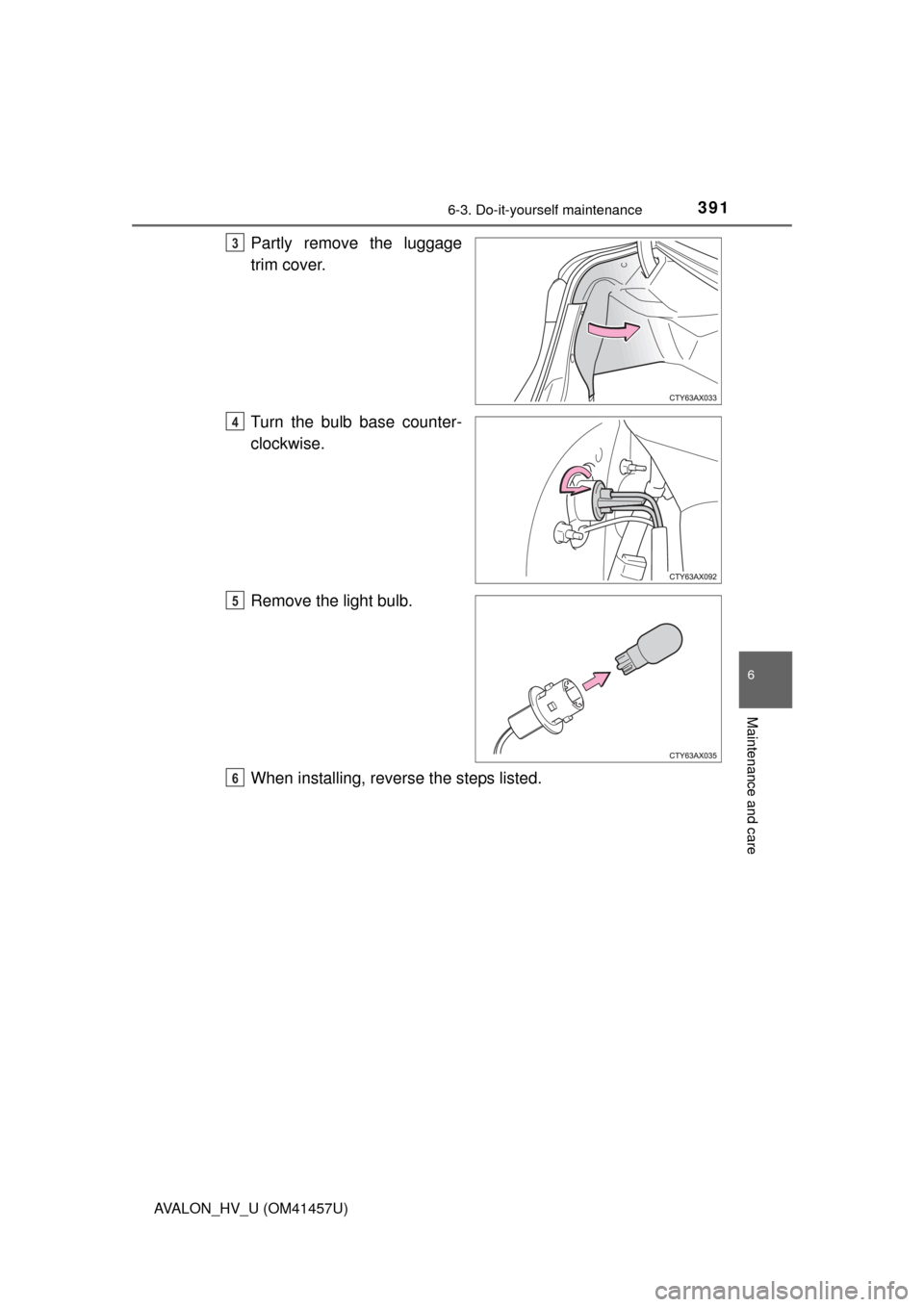

Partly remove the luggage
trim cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.3
4
5
6

3926-3. Do-it-yourself maintenance
AVALON_HV_U (OM41457U)■

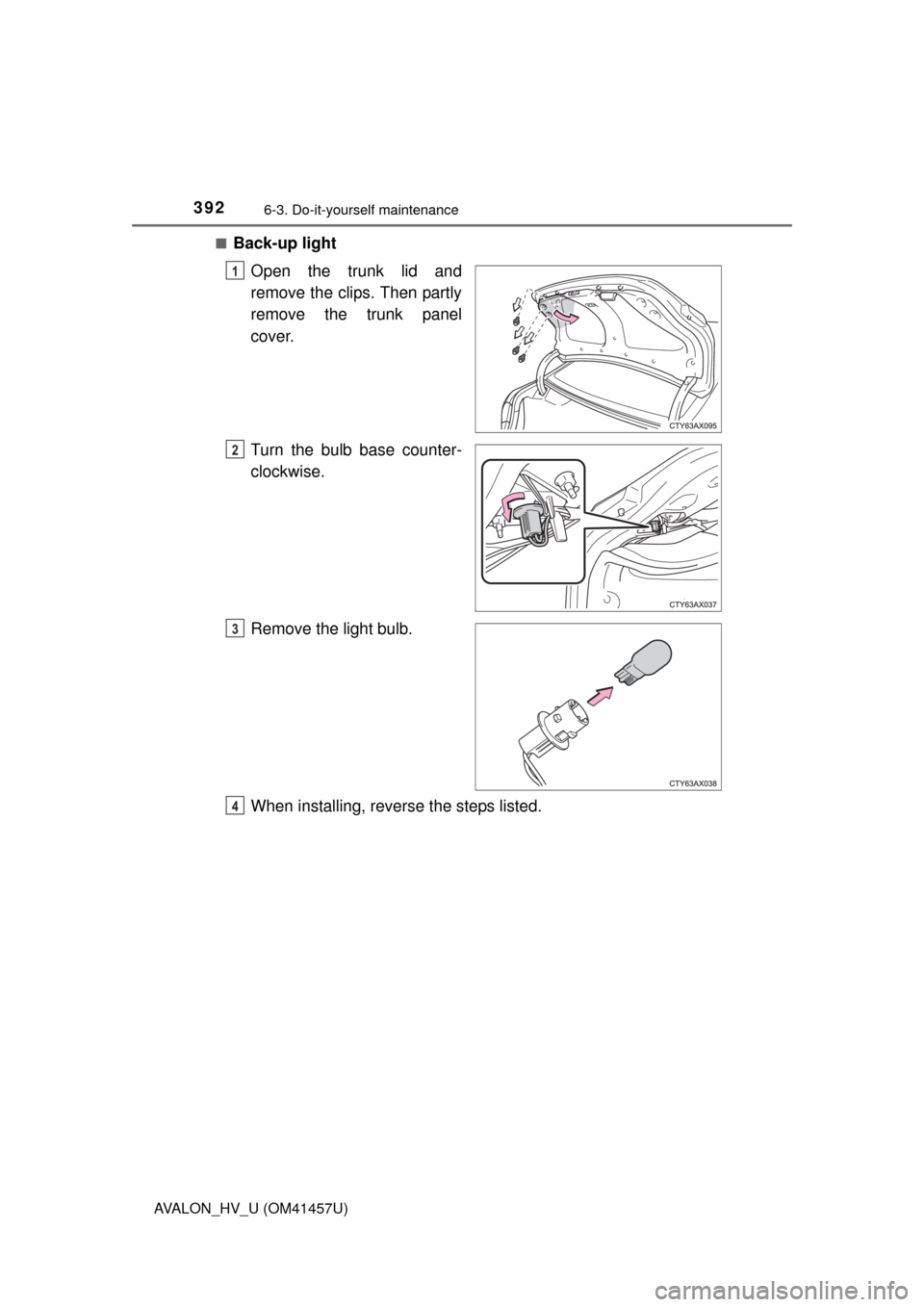

Back-up light
Open the trunk lid and
remove the clips. Then partly
remove the trunk panel
cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

3936-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41457U)■

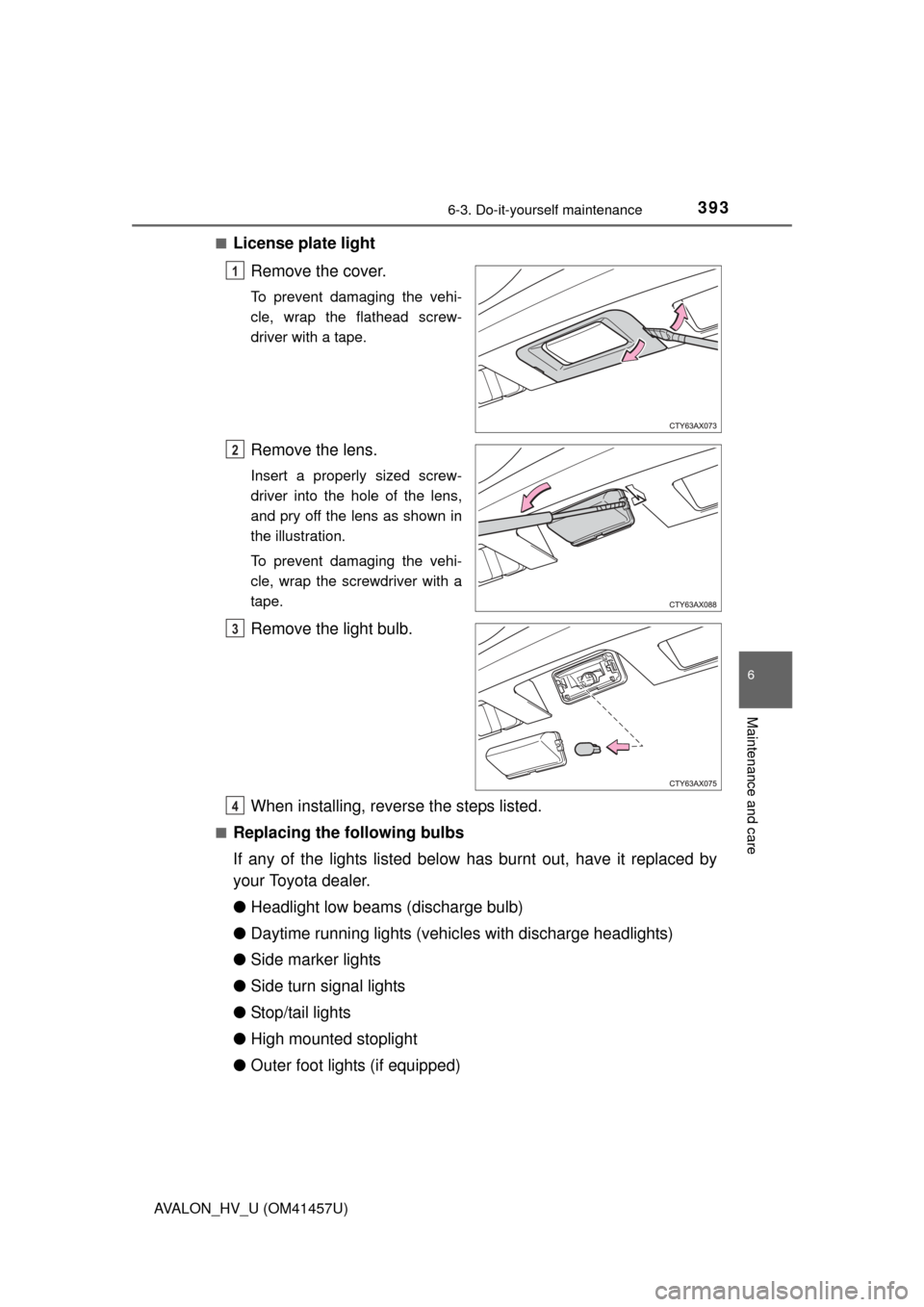

License plate light
Remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the lens.
Insert a properly sized screw-
driver into the hole of the lens,
and pry off the lens as shown in
the illustration.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the light bulb.
When installing, reverse the steps listed.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (discharge bulb)
● Daytime running lights (vehic les with discharge headlights)
● Side marker lights
● Side turn signal lights
● Stop/tail lights
● High mounted stoplight
● Outer foot lights (if equipped)
1
2
3
4

3946-3. Do-it-yourself maintenance
AVALON_HV_U (OM41457U)
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ LED light bulbs
The daytime running lights (vehicles with discharge headlights), stop/tail
lights, high mounted stoplight and outer foot lights each consist of a number
of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer
to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. Contact your Toyota dealer for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the lens.

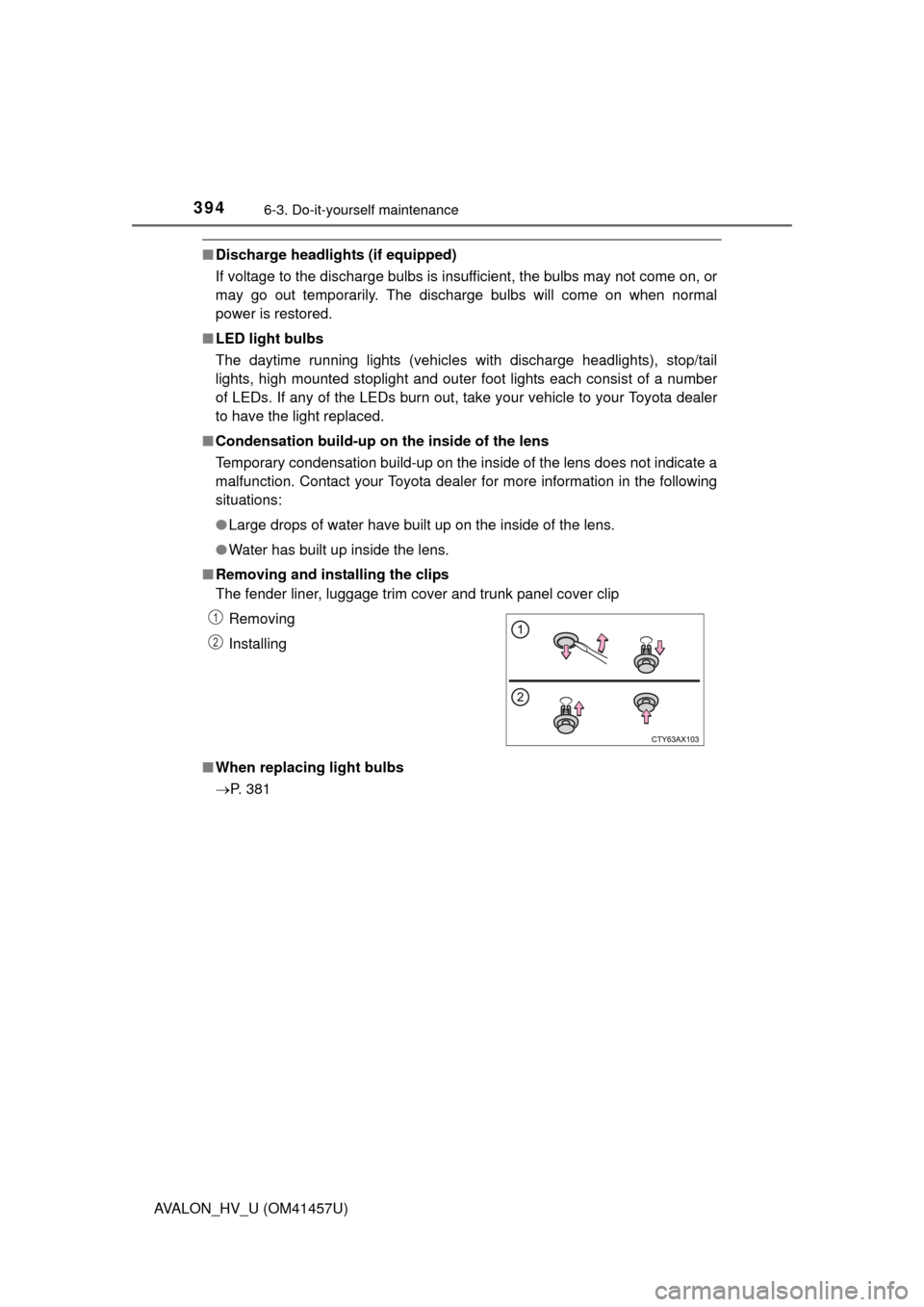

■ Removing and installing the clips
The fender liner, luggage trim cover and trunk panel cover clip
■ When replacing light bulbs
P. 381Removing
Installing
1
2

3956-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41457U)
CAUTION
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

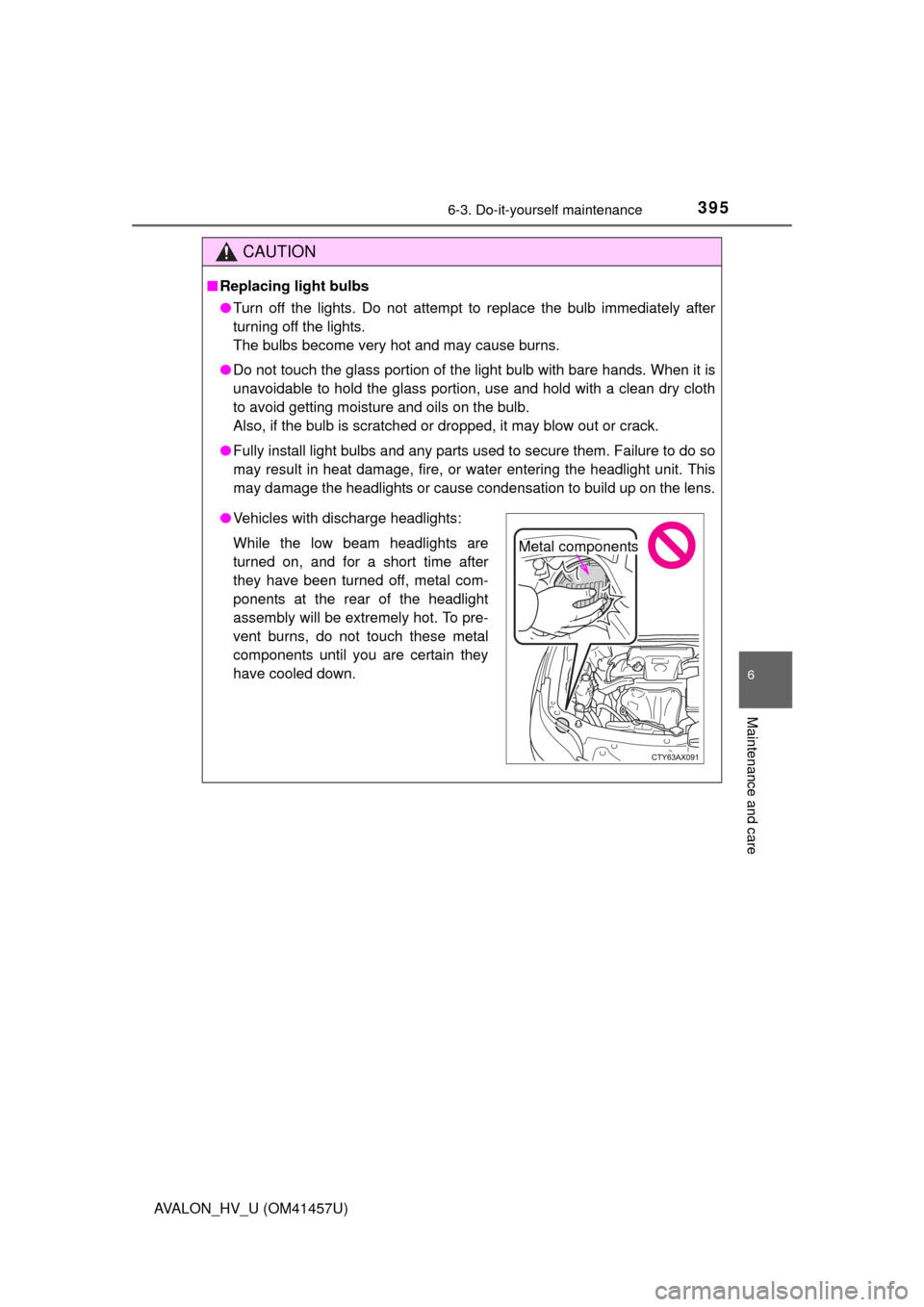

●Vehicles with discharge headlights:
While the low beam headlights are
turned on, and for a short time after
they have been turned off, metal com-
ponents at the rear of the headlight
assembly will be extremely hot. To pre-
vent burns, do not touch these metal
components until you are certain they
have cooled down.
Metal components

3966-3. Do-it-yourself maintenance
AVALON_HV_U (OM41457U)
CAUTION
■Discharge headlights (if equipped)
● Contact your Toyota dealer before replacing the discharge headlights
(including light bulbs).
● Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in death or serious injury by electric shock.
● Do not attempt to take apart or repair the headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

397
When trouble arises7
AVALON_HV_U (OM41457U)7-1. Essential information
Emergency flashers .......... 398
If your vehicle has to be stopped in an
emergency ...................... 399
7-2. Steps to take in an emergency
If your vehicle needs to be towed ......................... 400
If you think something is wrong .......................... 403
If a warning light turns on or a warning buzzer
sounds ............................ 404
If a warning message is displayed......................... 414
If you have a flat tire.......... 415
If the hybrid system will not start ........................... 427
If the shift lever cannot be shifted from P............. 429
If the electronic key does not operate properly........ 430
If the 12-volt battery is discharged ...................... 432
If your vehicle overheats ........................ 436
If the vehicle becomes stuck ............................... 440

398
AVALON_HV_U (OM41457U)
7-1. Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt \
bat-
tery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in th e road due to a breakdown, etc.

3997-1. Essential information
7
When trouble arises
AVALON_HV_U (OM41457U)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.

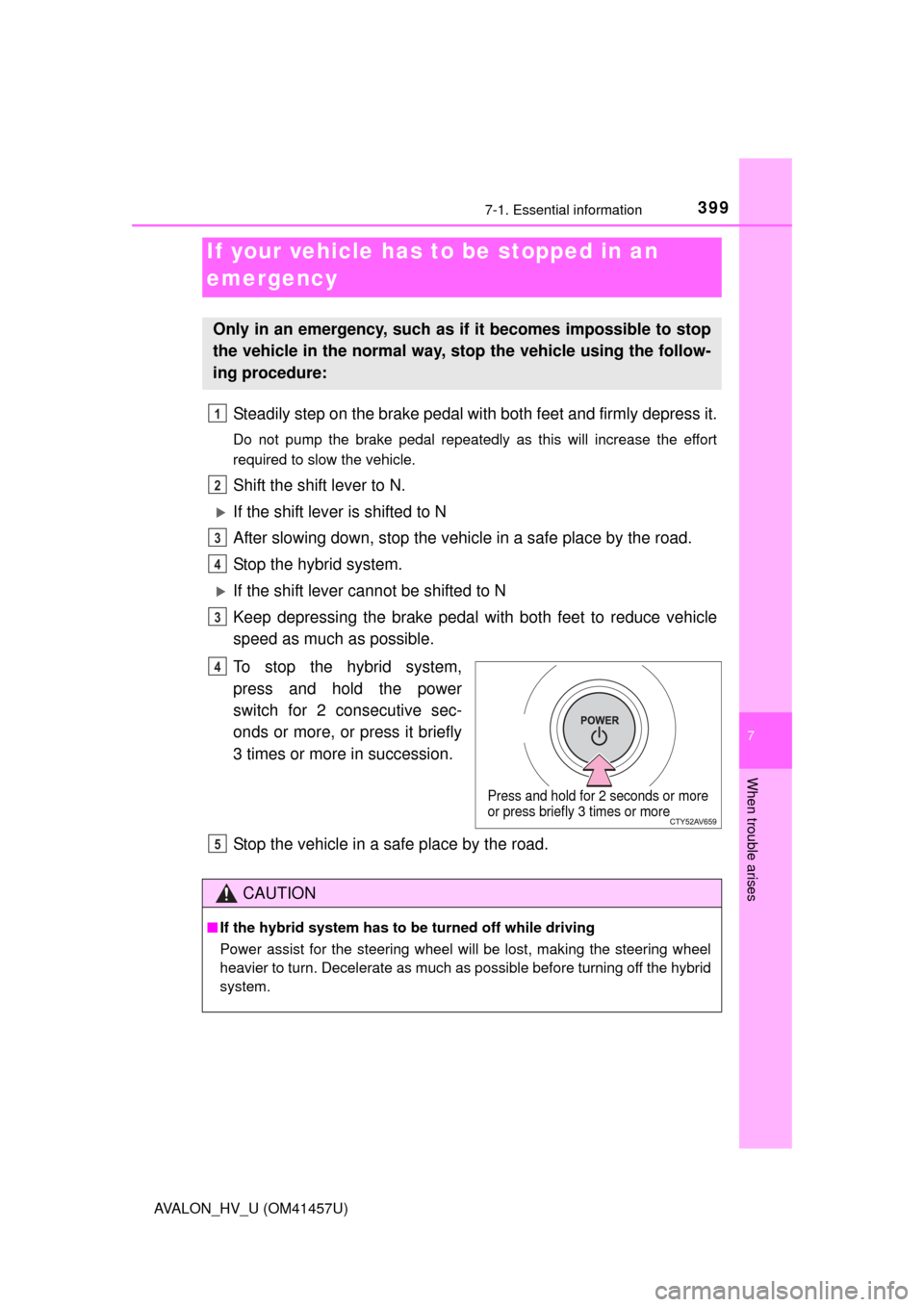

To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
CAUTION
■ If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.
5

400
AVALON_HV_U (OM41457U)
7-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
●A warning message for the hybrid system is shown on the multi-
information display and the vehicle does not move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If your vehicle needs to be towed
If towing is necessary, we re commend having your vehicle
towed by your Toyota dealer or commercial towing service,
using a lift-type truc k or flat bed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
If towing your vehicle with a wheel-lift type truck from the front,
the vehicle’s rear wheels and axles must be in good conditions.
(  P. 400, 402)
If they are damaged, use a towing dolly or flatbed truck.
Situations needs to contact dealers before towing

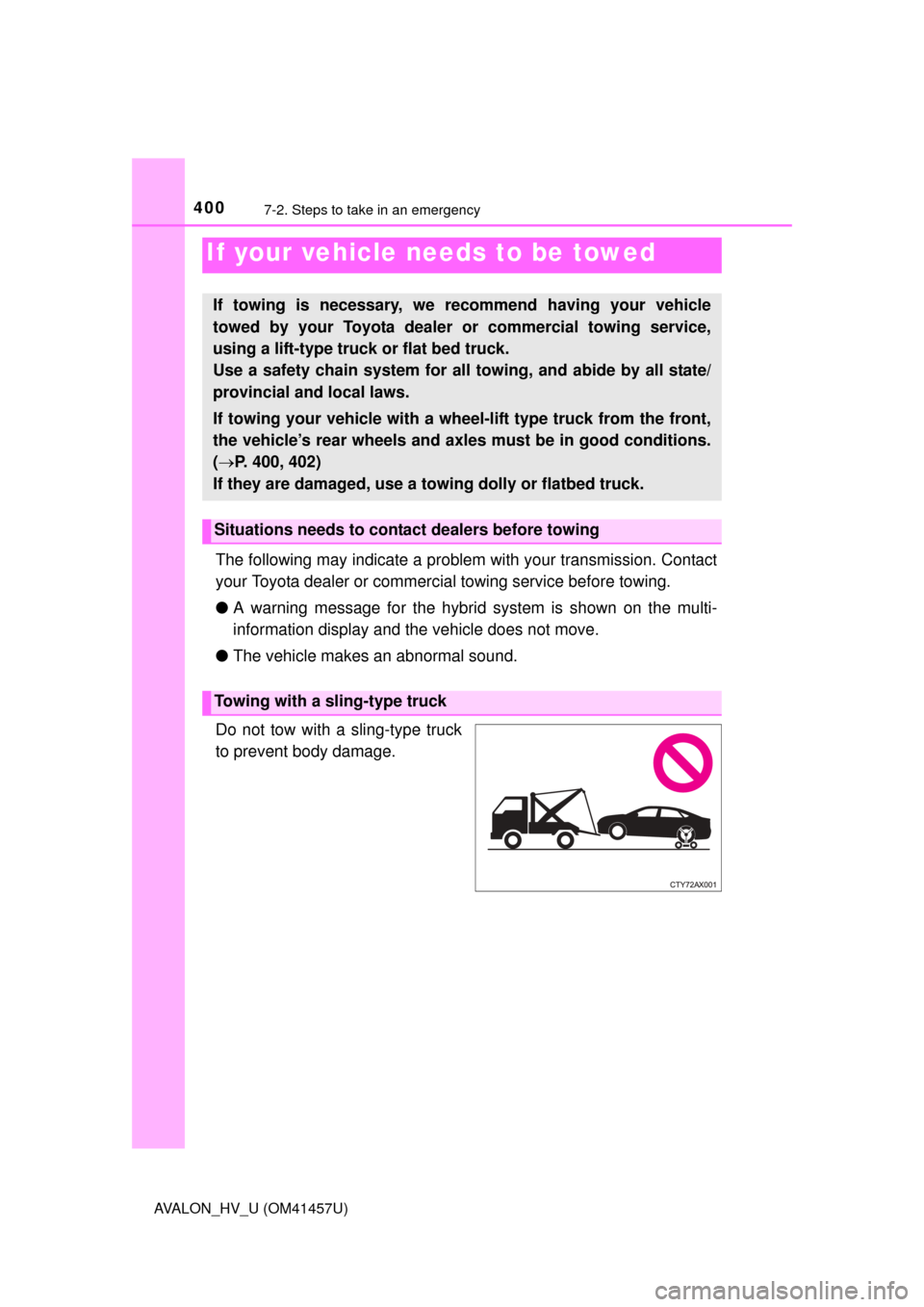

Towing with a sling-type truck
