Vehicle specifications
AVALON_HV_U (OM41457U)
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,50 kgf) while the hybrid system is operating
*2: Parking brake pedal travel when depressed with a force of 67 lbf (300 N,30.6 kgf).

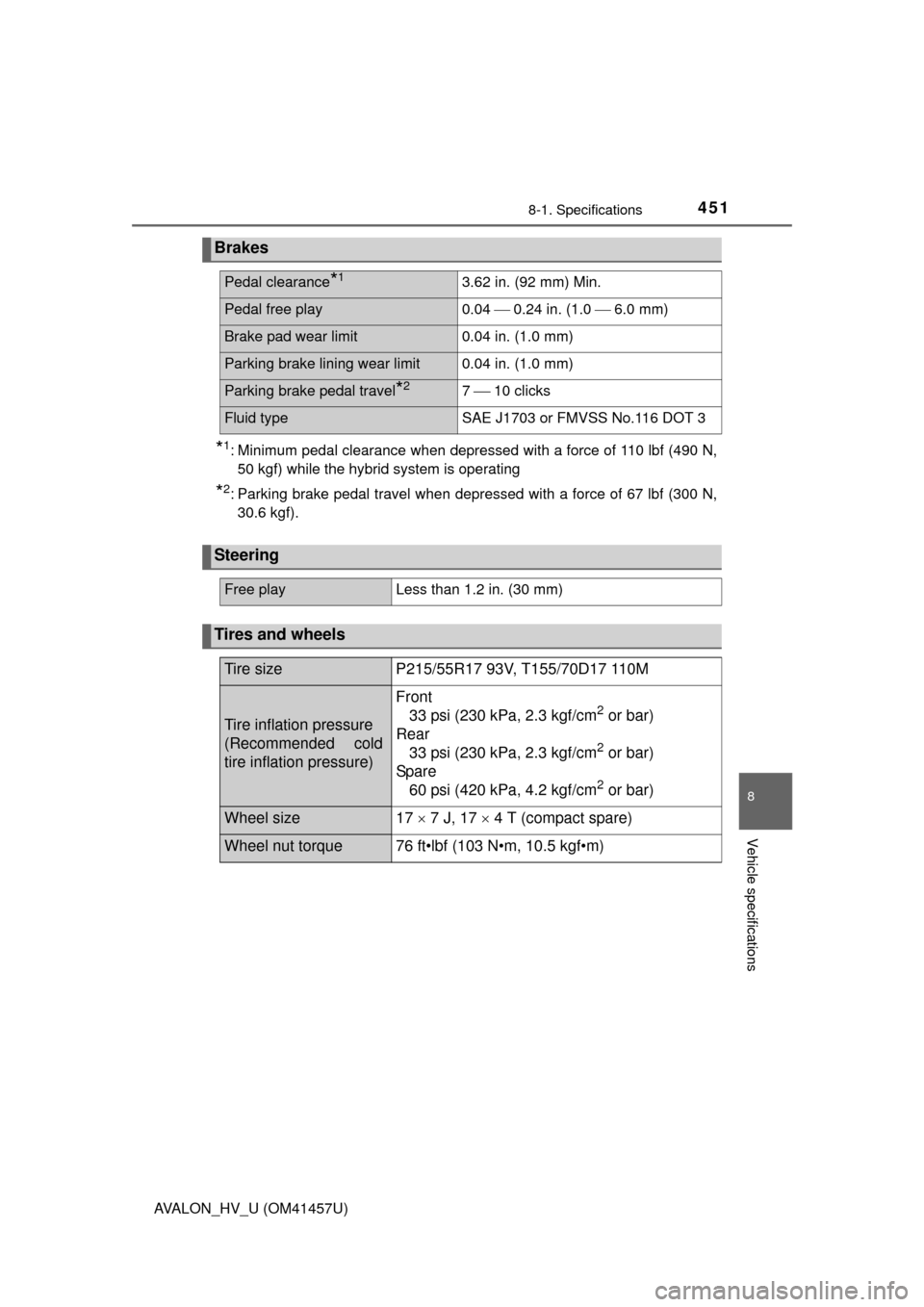

Brakes
Pedal clearance*13.62 in. (92 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*27  10 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire sizeP215/55R17 93V, T155/70D17 110M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spar e 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size17  7 J, 17  4 T (compact spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

4528-1. Specifications
AVALON_HV_U (OM41457U)A: D4S discharge bulbs
B: HB3L+ halogen bulbs
C: HB3 halogen bulbs
D: H11 halogen bulbs E: Wedge base bulbs (amber) F: Wedge base bulbs (clear)
G: Double end bulbs
*: If equipped
Light bulbs
Light bulbsBulb No.WTy p e
Exterior
Headlights Low beam (discharge bulbs)
Low beam (halogen bulbs)
High beam

9005
900535
60
60A
B
C
Fog lights*55D
Front turn signal/parking lights7444NA28/8E
Side marker lightsW5W5F
Side turn signal lightsWY5W5E
Rear turn signal lights92116F
Back-up lights92116F
License plate lightsW5W5F
Interior Interior/front personal lights W6W 6
F
Interior/rear personal lights 8
F
Vanity lights70651.4G
Door courtesy lights1685F
Trunk light1943.8F

4538-1. Specifications
8
Vehicle specifications
AVALON_HV_U (OM41457U)
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.

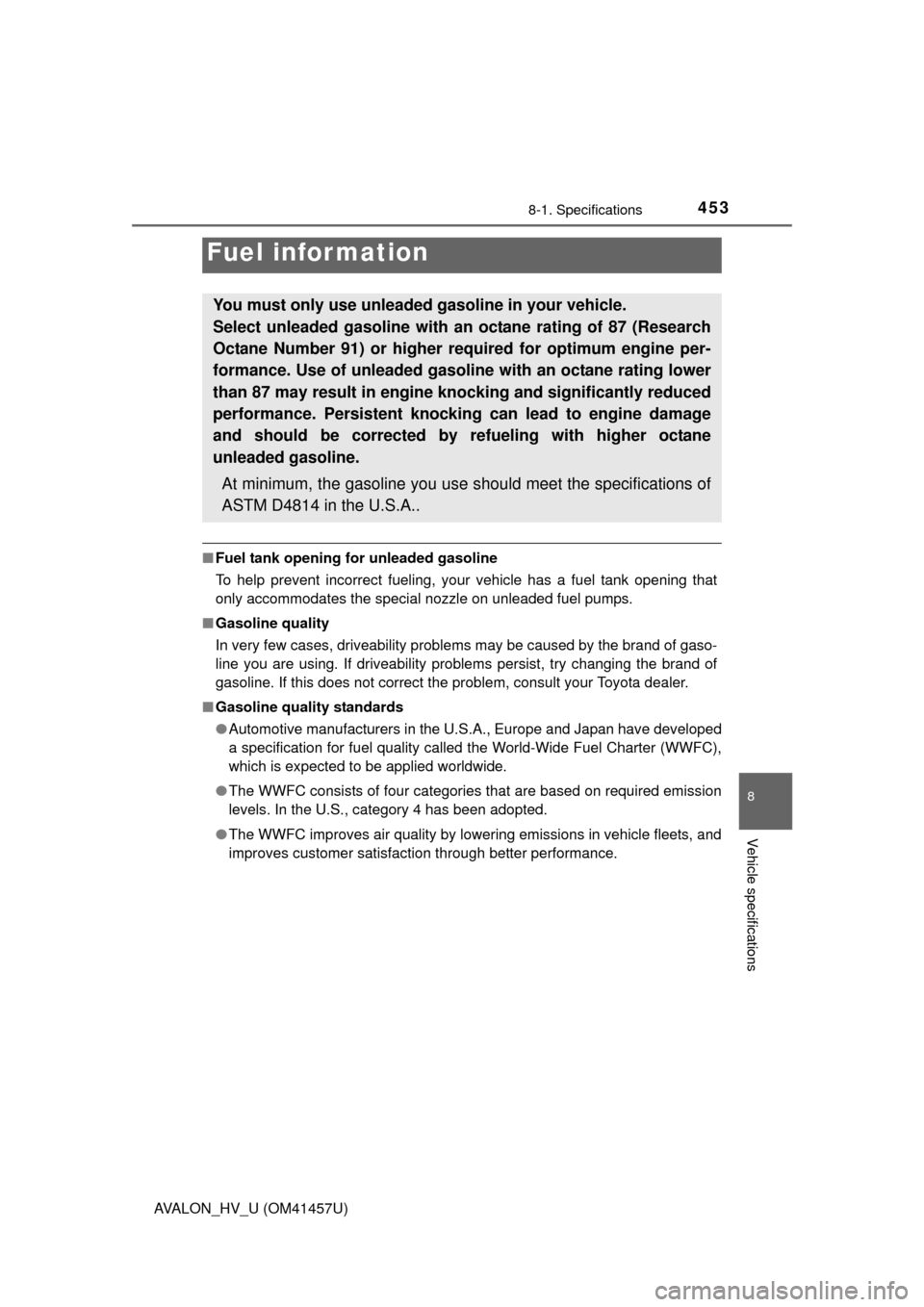

Fuel infor mation
You must only use unleaded gasoline in your vehicle.
Select unleaded gasoline with an octane rating of 87 (Research
Octane Number 91) or higher required for optimum engine per-
formance. Use of unleaded gasoline with an octane rating lower
than 87 may result in engine knocking and significantly reduced
performance. Persistent knocki ng can lead to engine damage
and should be corrected by refueling with higher octane
unleaded gasoline.
At minimum, the gasoline you use s hould meet the specifications of
ASTM D4814 in the U.S.A..

4548-1. Specifications
AVALON_HV_U (OM41457U)■
Recommendation of the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
●
Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gasoline contain-
ing more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

4558-1. Specifications
8
Vehicle specifications
AVALON_HV_U (OM41457U)■
Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability is encountered after using a different type of fuel (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

4568-1. Specifications
AVALON_HV_U (OM41457U)
Full-size tire
Compact spare tire
Tire infor mation

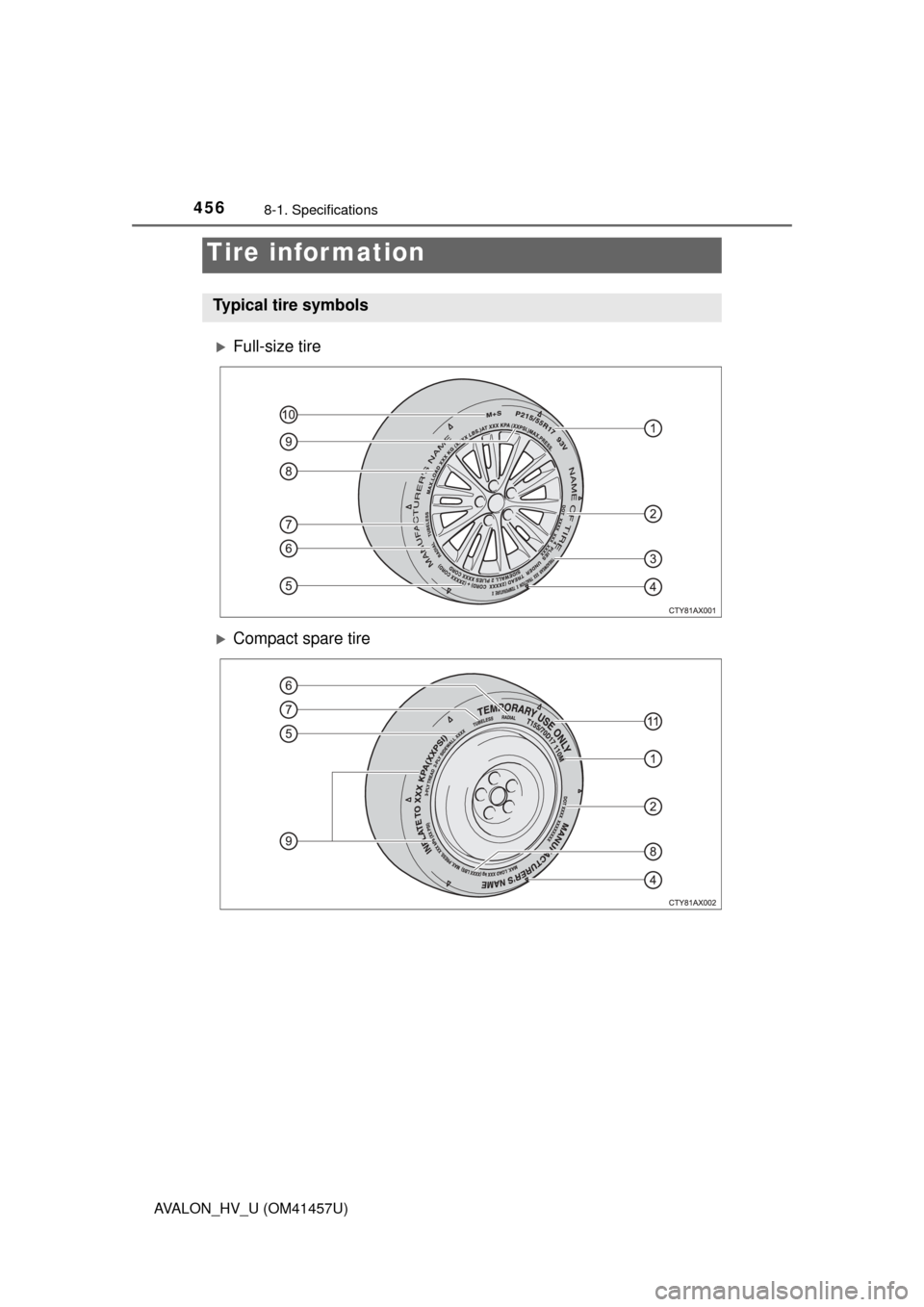

Typical tire symbols

4578-1. Specifications
8
Vehicle specifications
AVALON_HV_U (OM41457U)
Tire size (P. 459)
DOT and Tire Identification Number (TIN) ( P. 458)
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Location of treadwear indicators ( P. 354)
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”
is a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.
Load limit at maximum cold tire inflation pressure ( P. 463)
Maximum cold tire inflation pressure ( P. 463)
This means the pressure to which a tire may be inflated.
Summer tires or all season tires ( P. 358)
An all season tire has “M+S” on the sidewall. A tire not marked “M+S”
is a summer tire.
“TEMPORARY USE ONLY”
A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded on its sidewall. This tire is designed for temporary
emergency use only.
1
2
3
4
5
6
7
8
9
10
11

4588-1. Specifications
AVALON_HV_U (OM41457U)
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*: The DOT symbol certifies thatthe tire conforms to applicable
Federal Motor Vehicle Safety
Standards.
Typical DOT and Tire Identification Number (TIN)
1
2
3
4
5
6
7

4598-1. Specifications
8
Vehicle specifications
AVALON_HV_U (OM41457U)■
Typical tire size information
The illustration in
dicates typical
tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
■Tire dimensions
Section width
Tire height
Wheel diameter
Tire size
1
2
3
4
5
6
7
1
2
3

4608-1. Specifications
AVALON_HV_U (OM41457U)
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Tire section names
1
2
3
4
5
6
7
8
9
10
11
