navigation TOYOTA AVALON HYBRID 2016 XX40 / 4.G Owners Manual

TABLE OF CONTENTS6
AVALON_HV_U (01999-07002)8-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 436
Fuel information ................ 445
Tire information ................. 448
8-2. Customization Customizable features ...... 461
8-3. Items to initialize Items to initialize................ 468
Reporting safety defects for U.S. owners ........................ 470 What to do if...
(Troubleshooting) ..................... 472
Alphabetical index ...................... 476
8Vehicle specifications
9For owners
Index
For vehicles with a audio/navigati on system, refer to the “NAVIGA-
TION AND MULTIMEDIA SYSTEM OWNER’S MANUAL” for infor-
mation regarding the audio/navigation system.

19Pictorial index
AVALON_HV_U (01999-07002)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
When the warning messages are displayed . . . . . . . . . . . . . . P. 405
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Headlights/parking lights/tail lights/daytime running lights . . . . P. 185
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 192
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 349
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 141
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Audio/Navigation system
*
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 288
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
*: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12

21Pictorial index
AVALON_HV_U (01999-07002)Audio remote control switches
*2
Telephone switches*2
Talk switch*2
“DISP” button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 95
Vehicle-to-vehicle distance button
*1. . . . . . . . . . . . . . . . . . P. 232
LDA (Lane Departure Alert with steering control)
switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Cruise control switch
Cruise control
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Dynamic radar cruise control
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Back switch
*2
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8

23Pictorial index
AVALON_HV_U (01999-07002)Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 300
Power outlet
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 300
Wireless charger switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Air conditioning controls
*1. . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Rear seat heater switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 289
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . P. 258
Seat heater/ven tilator switches
*1. . . . . . . . . . . . . . . . . . . . . P. 281
AUX/USB port
*2
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9

922. Instrument cluster
AVALON_HV_U (01999-07002)
■The meters and display illuminate when
The power switch is in ON mode.
■ The brightness of the in strument panel lights
● When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control knob is turned fully clockwise.
● When the knob is turned fully clockwise, the display audio/navigation sys-
tem screen will always be in day mode regardless of the headlight switch
position.
■ Hybrid System Indicator
●Hybrid System Indicator is displayed when the driving mode is other than
the sport mode.
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4

942. Instrument cluster
AVALON_HV_U (01999-07002)

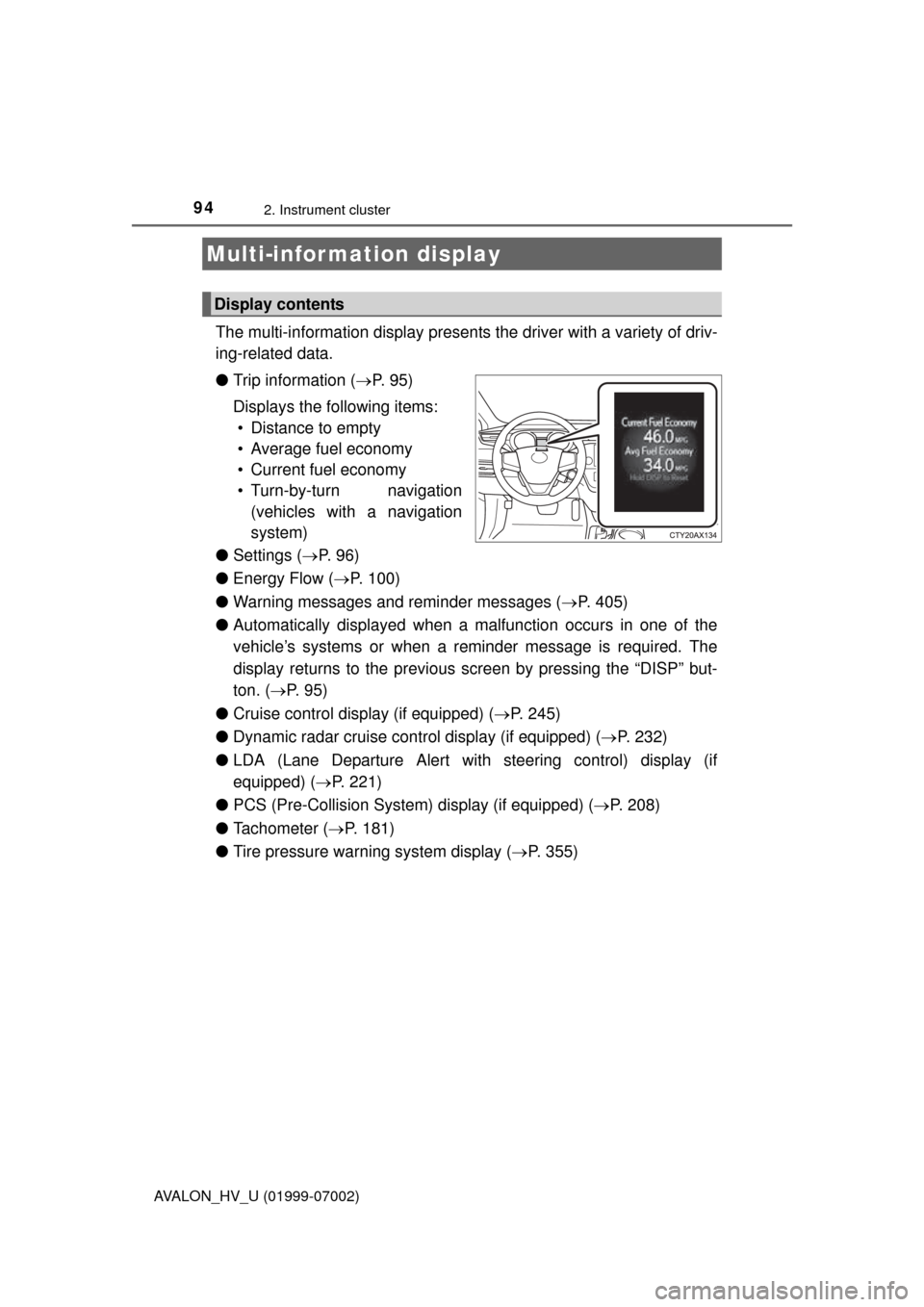

The multi-information display presents the driver with a variety of driv-
ing-related data.
● Trip information ( P. 9 5 )
Displays the following items: • Distance to empty
• Average fuel economy
• Current fuel economy
• Turn-by-turn navigation (vehicles with a navigation
system)
● Settings ( P. 9 6 )
● Energy Flow ( P. 100)
● Warning messages and reminder messages ( P. 405)
● Automatically displayed when a malfunction occurs in one of the
vehicle’s systems or when a reminder message is required. The
display returns to the previous screen by pressing the “DISP” but-
ton. ( P. 9 5 )
● Cruise control display (if equipped) ( P. 245)
● Dynamic radar cruise control display (if equipped) ( P. 232)
● LDA (Lane Departure Alert with steering control) display (if
equipped) ( P. 221)
● PCS (Pre-Collision System ) display (if equipped) (P. 208)
● Tachometer ( P. 181)
● Tire pressure warning system display ( P. 355)
Multi-infor mation display
Display contents

962. Instrument cluster
AVALON_HV_U (01999-07002)■
Turn-by-turn navigation (vehicl
es with a navigation system)
Displays information from the navi gation system about the next turn
on the guidance route.
◆Customizable items
■Meter settings
■LDA (Lane Departure Alert with steering control) (if
equipped) ( P. 221)
The following LDA system settings can be changed:
Setting up the displays
ItemSettingsDetails
Digital Speed ON
Select to enable/disable the digital
speedometer.
OFF
Units (vehicles without a
navigation system) English
Select to change the units of mea-
sure displayed.
Metric
Turn-by-Turn (vehicles
with a navigation system) ON
Select to enable/disable the Turn-
by-turn navigation.
OFF
EV Indicator OFF
Select to enable/disable the EV
indicator.
ON
ItemSettingsDetails
Steering Assist ON
Select to enable/disable steering
wheel assistance.
OFF
Sensitivity Standard
Select to set the warning sensitiv-
ity.
High
Alert ON
Select to enable/disable the vehi-
cle sway warning.
OFF
Sensitivity Standard
Select to set the vehicle sway
warning sensitivity.
Low
High

4167-2. Steps to take in an emergency
AVALON_HV_U (01999-07002)
WARNING
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
• ABS & Brake assist
• VSC
•TRAC
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)
• PCS (if equipped)
• EPS • LDA (Lane Departure Alert with
steering control) (if equipped)
• Automatic High Beam (if equipped)
• Tire pressure warning system
• Rear view monitor system
• Navigation system (if equipped)

471
Index
AVALON_HV_U (01999-07002)What to do if...
(Troubleshooting) .................... 472
Alphabetical index ..................... 476
For details of equipment rela ted to the audio/navigation
system, refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER'S MANUAL”.

477Alphabetical index
AVALON_HV_U (01999-07002)
Back-up lightsReplacing light bulbs............. 385
Wattage ................................ 444
Battery (12-volt battery) .......... 350 If the 12-volt battery is
discharged .......................... 423
Preparing and checking before winter .................................. 268
Warning light ......................... 396
Battery (traction battery)........... 74
Blind Spot Monitor (BSM) ....... 249
Brake Fluid ...................................... 348
Parking brake........................ 184
Regenerative braking.............. 72
Warning light ................. 396, 399
Brake assist ............................. 260
Break-in tips ............................. 157
Brightness control Instrument panel light
control................................... 91
BSM (Blind Spot Monitor) ....... 249 Care .................................. 324, 327
Aluminum wheels ................. 325
Exterior ................................. 324
Interior .................................. 327
Seat belts.............................. 328
Cargo capacity......................... 169
Cargo net.................................. 295
Caution label .............................. 74
Chains ...................................... 269
Child restraint system............... 55 Booster seats, definition ......... 56
Booster seats, installation....... 65
Convertible seats, definition ... 56
Convertible seats,
installation ............................ 62
Front passenger occupant classification syst em ............ 48
Infant seats, definition............. 56
Infant seats, installation .......... 62
Installing CRS with LATCH anchors ............ 60
Installing CRS with seat belts .............................. 62
Installing CRS with top tether strap.............. 66
BC
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
