engine TOYOTA AVALON HYBRID 2016 XX40 / 4.G Quick Reference Guide

25
OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES

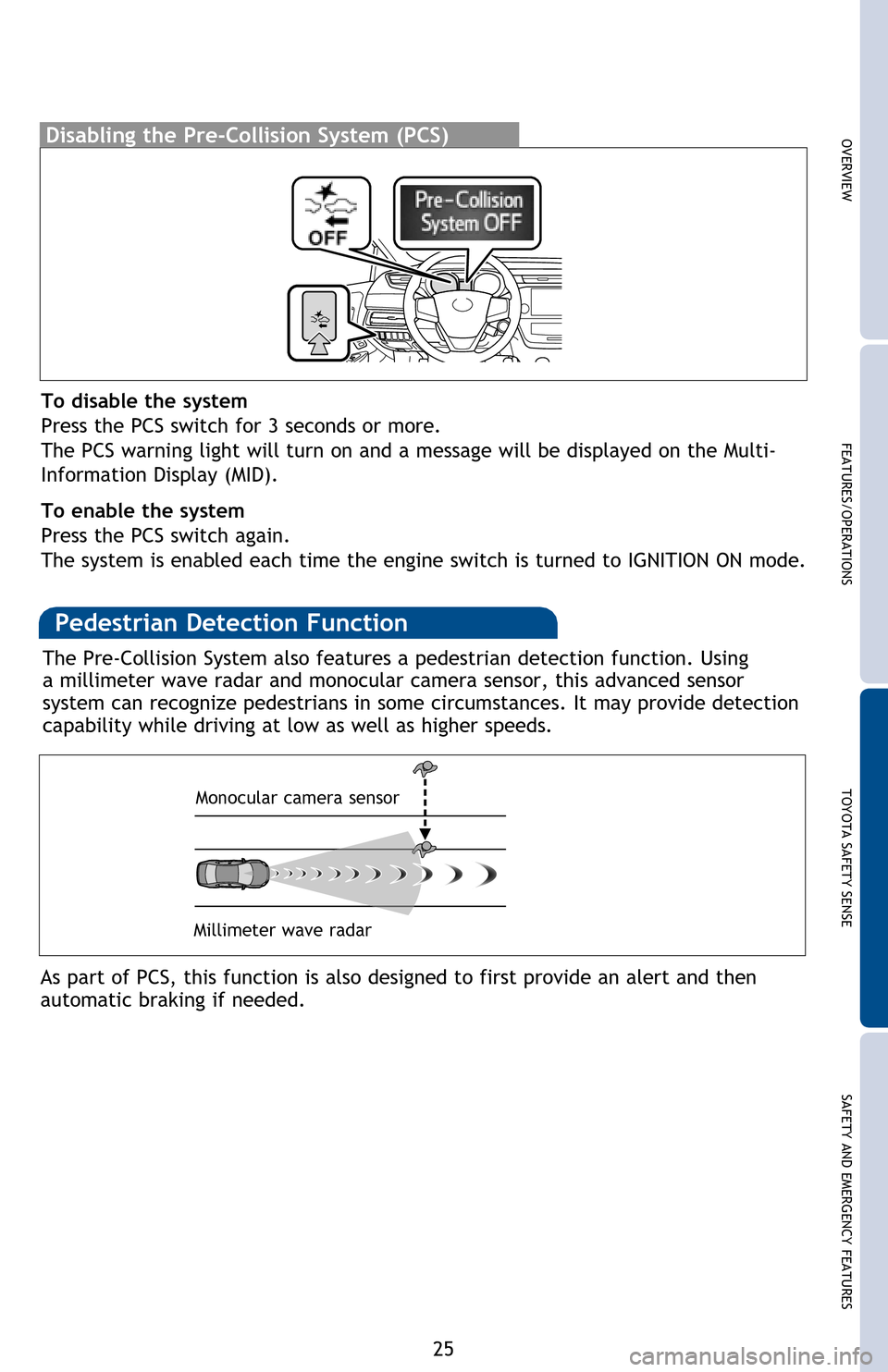

Disabling the Pre-Collision System (PCS)
To disable the system
Press the PCS switch for 3 seconds or more.
The PCS warning light will turn on and a message will be displayed on the Multi-
Information Display (MID).
To enable the system
Press the PCS switch again.
The system is enabled each time the engine switch is turned to IGNITION ON mode.
Monocular camera sensor
Millimeter wave radar
As part of PCS, this function is also designed to first provide an alert and then
automatic braking if needed.
Pedestrian Detection Function
The Pre-Collision System also features a pedestrian detection function. Using
a millimeter wave radar and monocular camera sensor, this advanced sensor
system can recognize pedestrians in some circumstances. It may provide detection
capability while driving at low as well as higher speeds.

26

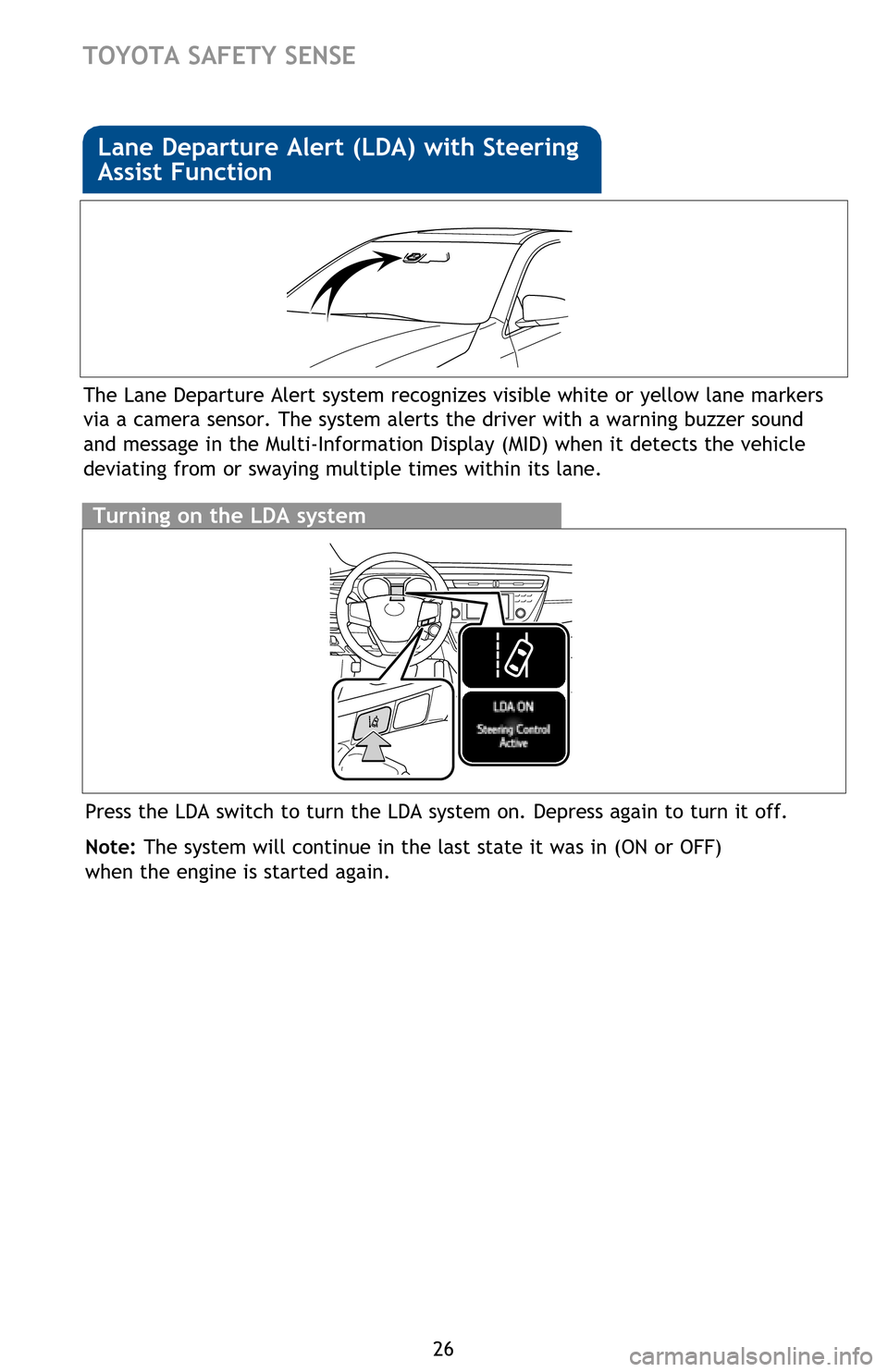

The Lane Departure Alert system recognizes visible white or yellow lane markers
via a camera sensor. The system alerts the driver with a warning buzzer sound
and message in the Multi-Information Display (MID) when it detects the vehicle
deviating from or swaying multiple times within its lane.
Lane Departure Alert (LDA) with Steering
Assist Function
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF)
when the engine is started again.
Turning on the LDA system
TOYOTA SAFETY SENSE

31
OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES

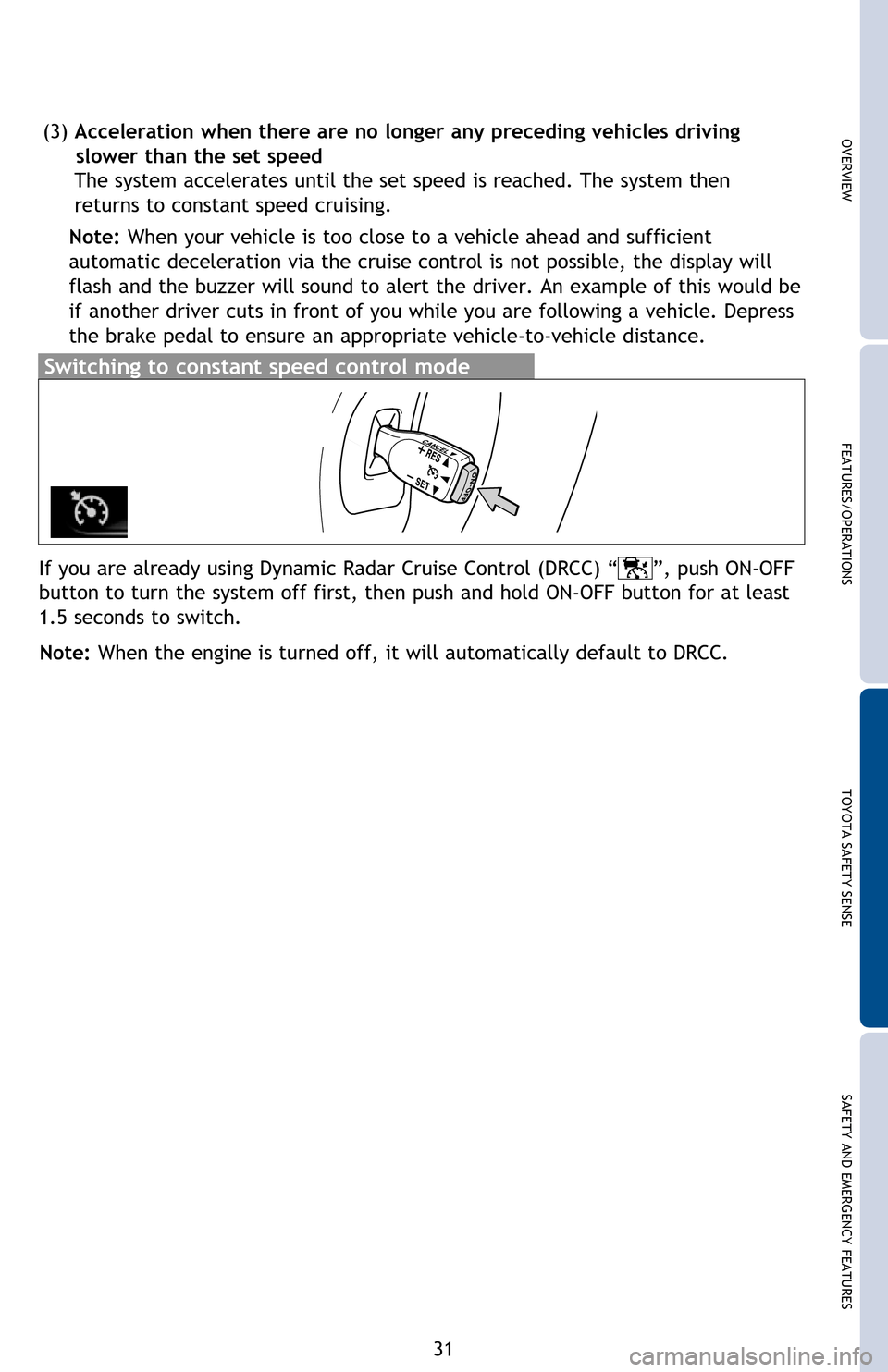

Switching to constant speed control mode
(3) Acceleration when there are no longer any preceding vehicles driving
slower than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Note: When your vehicle is too close to a vehicle ahead and sufficient
automatic deceleration via the cruise control is not possible, the display will
flash and the buzzer will sound to alert the driver. An example of this would be
if another driver cuts in front of you while you are following a vehicle. Depress
the brake pedal to ensure an appropriate vehicle-to-vehicle distance.
Note: When the engine is turned off, it will automatically default to DRCC. If you are already using Dynamic Radar Cruise Control (DRCC) “
”, push ON-OFF
button to turn the system off first, then push and hold ON-OFF button for at least
1.5 seconds to switch.

34
Push up, or squeeze
lock release to lower

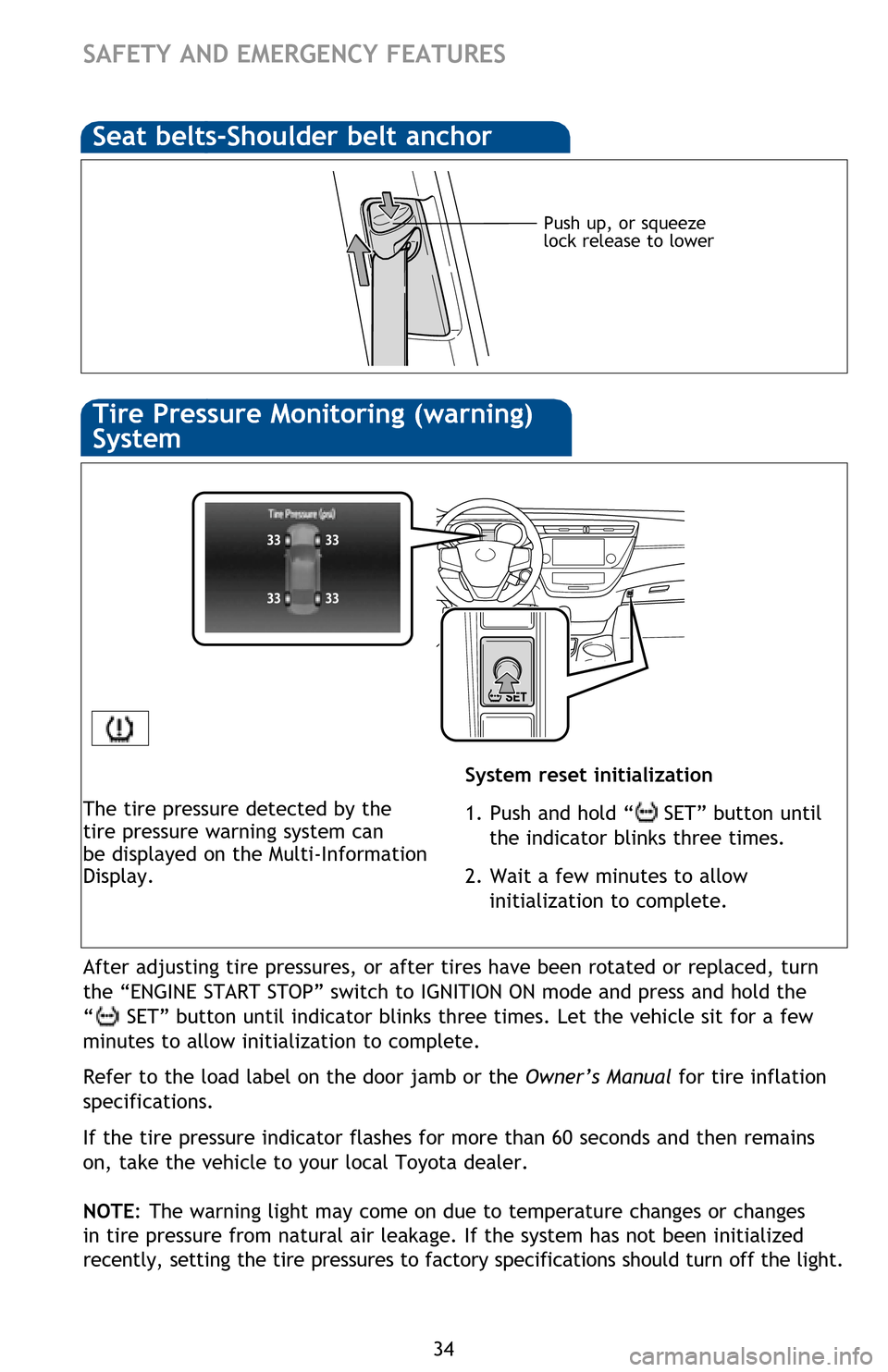

Seat belts-Shoulder belt anchor
System reset initialization
1. Push and hold “
SET” button until
the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete. The tire pressure detected by the
tire pressure warning system can
be displayed on the Multi-Information
Display.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the “ENGINE START STOP” switch to IGNITION ON mode and press and hold the
“
SET” button until indicator blinks three times. Let the vehicle sit for a few
minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the light.
SAFETY AND EMERGENCY FEATURES
