OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 8
Fuel tank door release and cap 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel/
Change trip meter display 8
Smart Key system
1,2 7
OVERVIEW
FEATURES/OPERATIONS
TOYOTA SAFETY SENSE
SAFETY AND EMERGENCY FEATURES
Air conditioning/heating 18-19
Audio 20
Auto lock/unlock
2 10
Bluetooth® Device
Pairing Section 39-48
Blind Spot Monitor (BSM) with
Rear Cross Traffic Alert function 17
Clock 22
Cruise control 16
Cup holders 22
Driving mode select 11
Garage door opener (HomeLink
®)3 16
Hybrid Synergy Drive System 9
Lights
1 & turn signals 14-15
Moon roof 12
Multi-Information Display (MID)
2 13
Parking brake 10
Power outlets-12V DC 15
Seat adjustments-Front 13
Seat ventilators/heaters 19
Seats-Head restraints 12
Steering lock release 11
Steering wheel switches 20
Tilt and telescopic steering wheel 11
Traction control (TRAC) OFF 16
Transmission 10
USB/AUX port 21
Windows-Power 12
Windshield wipers & washers 14
Wireless charger 21
Door locks 33
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 34
Spare tire & tools 35
Star Safety System
TM 36-37
Tire Pressure Monitoring
(warning) System 34
Trunk-Internal release 35
Auto High Beams (AHB) 32
Dynamic radar cruise control
(DRCC) 29-31
Lane Departure Alert (LDA)
with Steering Assist function 26-28
Pre-Collision System (PCS) 24-25
Pedestrian Detection Function 25
Quick overview-
Toyota Safety Sense P 23
Sensors 23
Page 7 of 52
OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
5
3 If this light flashes, refer to “Dynamic Radar Cruise Control,” Section 4-5, 2016 Owner’s Manual.4 The indicator flashes to indicate a malfunction.5 The indicator flashes faster than usual to indicate that the system is operating.6 If equipped
Headlight low/High beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Malfunction/Check Engine indicator1
Low fuel level warning
ECO drive mode indicator
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
SPORT mode indicator
EV indicator “READY” indicator
EV drive mode indicator
Pre-Collision System (PCS) indicator1,5
Automatic High Beam (AHB) indicator4
Dynamic Radar Cruise Control (DRCC) indicator3,4
Pre-Collision System (PCS) warning light1,6
Lane Departure Alert (LDA) indicator2,6
Fuel tank door position indicator
Page 16 of 52
14
Lights & turn signals
Headlights
High beam Headlights
Parking lightsHigh beam
flasher
Auto
OFF
Windshield wipers & washers
Adjust sensor sensitivity2
Pull to wash and wipe
Single wipe
Auto wipe
Slow
Fast
FEATURES/OPERATIONS
1 Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
With intermittent wiper (if equipped)
With AUTO rain-sensing wiper (if equipped)
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Low beam
Adjust frequency1
-Daytime Running Light system (DRL) Automatically turns on the headlights to make
vehicle more visible to other drivers. Not for use at night.
-Automatic light cut off system When the headlights are on: Automatically turns lights off
after 30-second delay, or lock switch on remote may be pushed after locking.
When the tail lights are on: Automatically turns lights off when driver’s door is opened.
Page 25 of 52
23
OVERVIEW FEATURES/OPERATIONS TOYOTA SAFETY SENSE SAFETY AND EMERGENCY FEATURES
Quick overview-Toyota Safety Sense P
(If equipped)
Toyota Safety Sense (TSS) P is a set of active safety technologies designed to
help prevent or mitigate collisions across a wide range of traffic situations. TSS
is designed to help support the driver’s awareness, decision making and vehicle
operation contributing to a safe and comfortable driving experience.
TOYOTA SAFETY SENSE
Pre-Collision System (PCS)
Provides collision avoidance or damage mitigation support in
speed ranges where rear end collisions are likely to occur.
Lane Departure Alert (LDA)
Provides notification regarding the risk of unintended
lane departure.
Auto High Beams (AHB)
Vehicle detects lights of leading or opposing vehicles and
automatically changes between high and low beam headlight
settings.
Pedestrian Detection Function
Advanced sensor system helps to recognize pedestrians and
provide collision avoidance support and/or damage mitigation.
Dynamic Radar Cruise Control (DRCC)
The distance control mode will cruise at a set speed, decelerate
to maintain a selected distance from a slower vehicle traveling in
front of you and accelerate back up to the selected speed if the
vehicle in front changes lanes or speeds up.
Refer to the Owner’s Manual for more details to understand these functions
and complete safety precautions before attempting to use any of TOYOTA
SAFETY SENSE P functions.
Sensors
Two types of sensors, located behind the front grille and windshield, detect
information necessary to operate the drive assist systems. The single-lens camera
in front of inside rear view mirror detects and recognizes shapes and white or
yellow lane markings.
Radar sensor
Camera sensor
Page 34 of 52
32
TOYOTA SAFETY SENSE

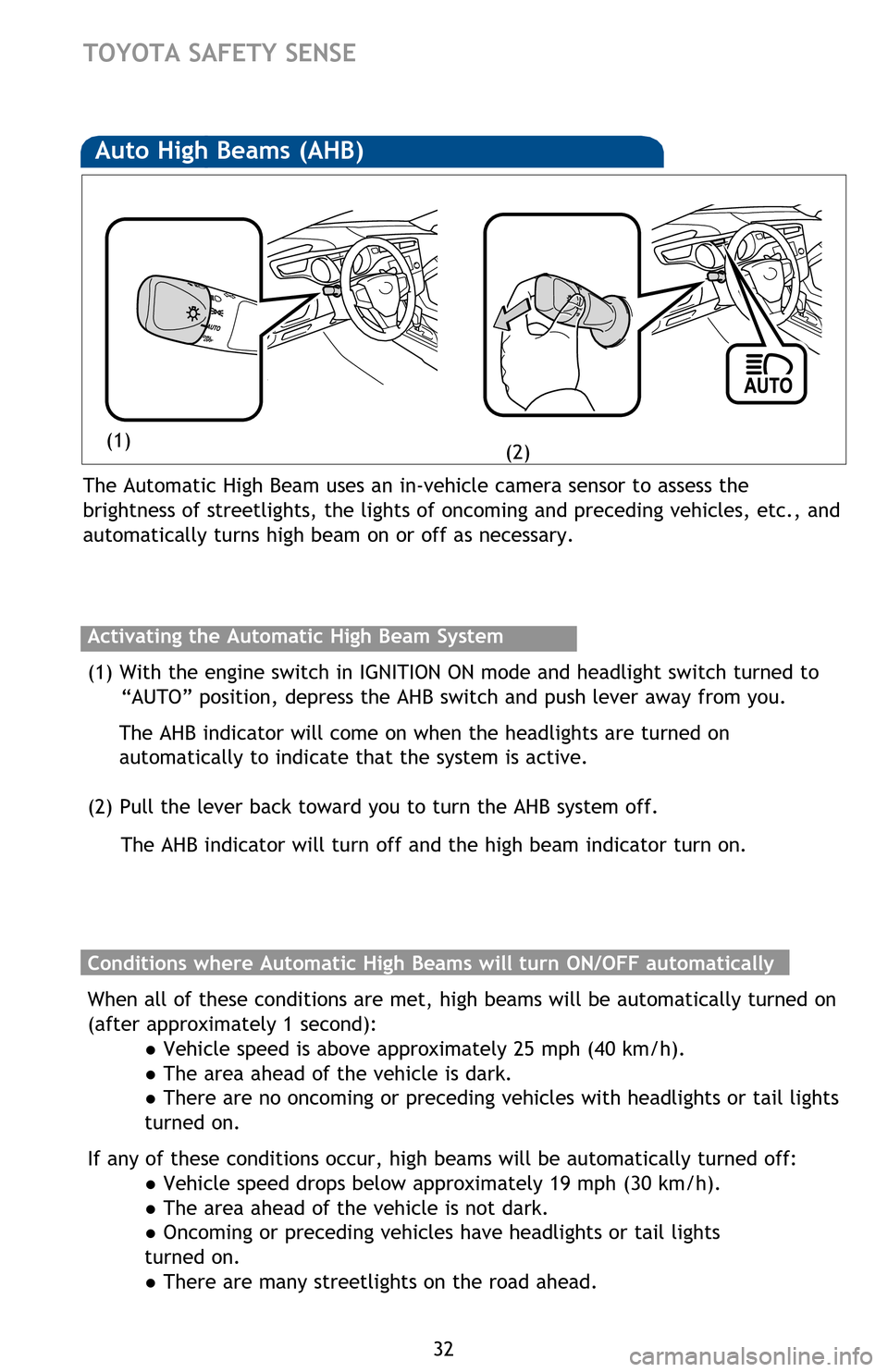

Conditions where Automatic High Beams will turn ON/OFF automatically
