912. Instrument cluster
2
Instrument cluster
Switches between trip meter “A”
and “B” displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter

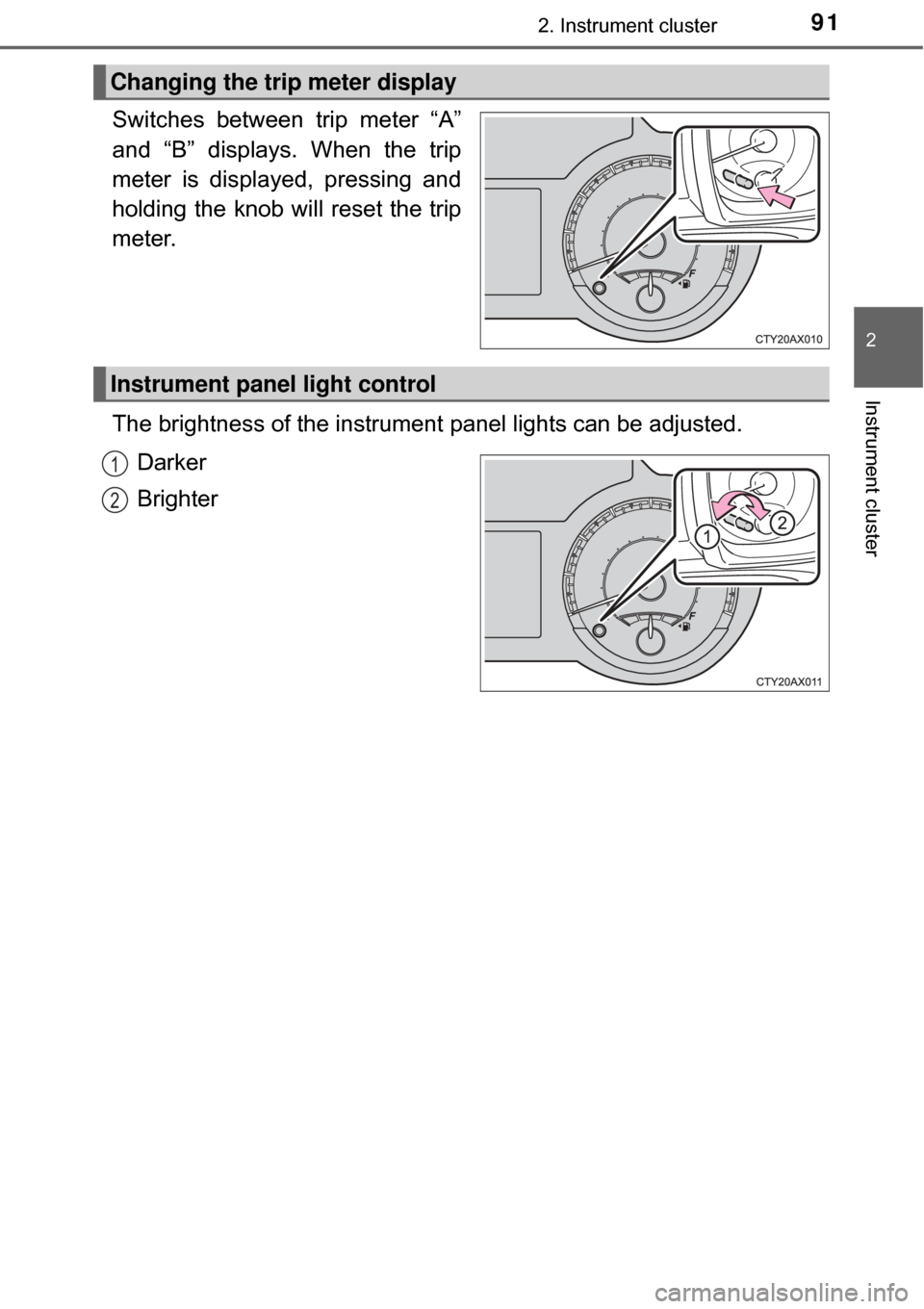

Changing the trip meter display
Instrument panel light control
1
2

922. Instrument cluster
■The meters and display illuminate when
The power switch is in ON mode.
■ The brightness of the in strument panel lights
● When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control knob is turned fully clockwise.
● When the knob is turned fully clockwise, the display audio/navigation sys-
tem screen will always be in day mode regardless of the headlight switch
position.
■ Hybrid System Indicator
●Hybrid System Indicator is displayed when the driving mode is other than
the sport mode.
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even

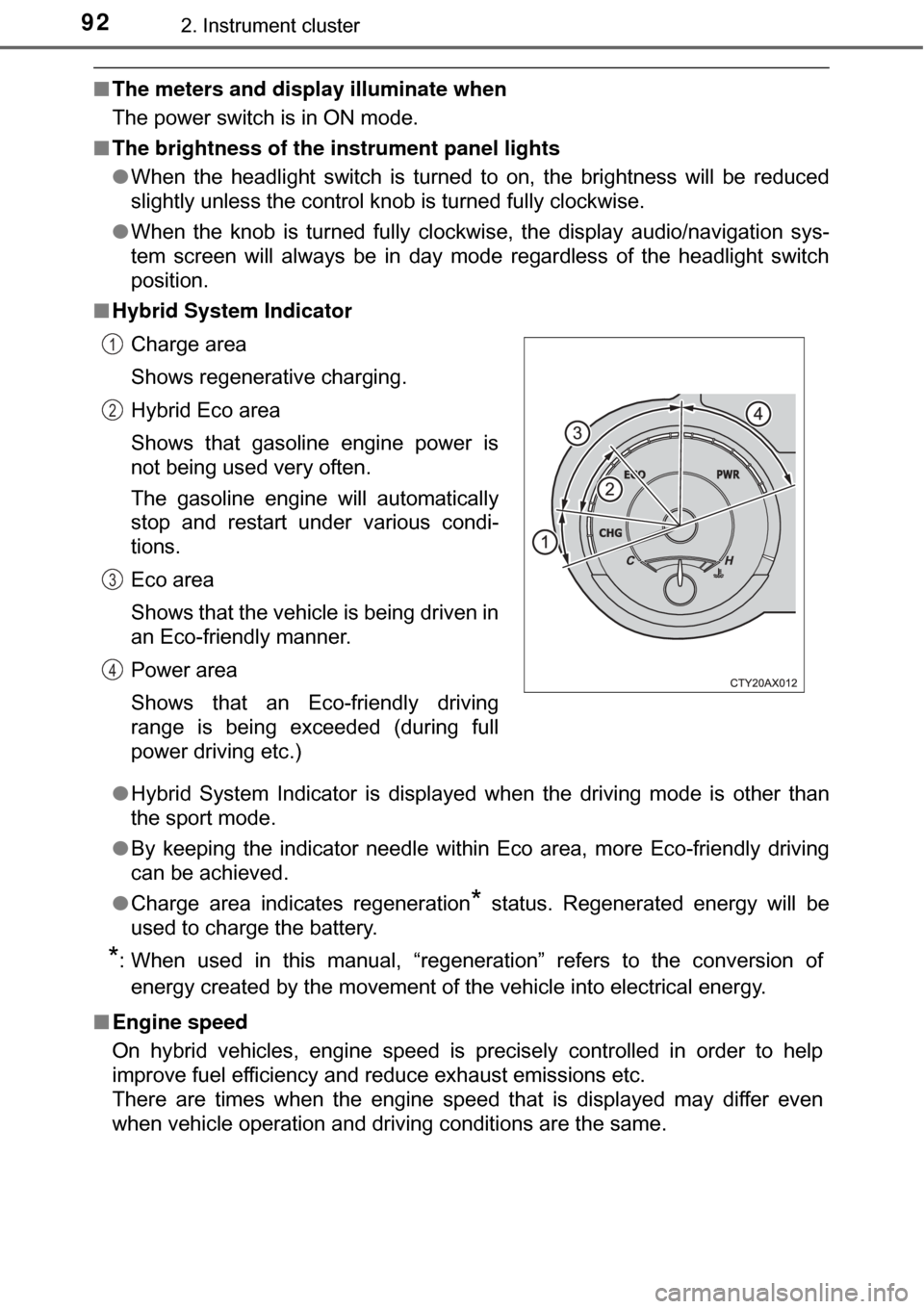

when vehicle operation and driving conditions are the same.Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4

932. Instrument cluster
2
Instrument cluster
■Customization
The instrument panel light auto dimmer control can be changed.
(Customizable feature: →P. 461)
NOTICE
■To prevent damage to the engine and its components
● When indicating the tachometer (Using the S mode driving): Do not let the
indicator of the tachometer enter the red zone, which indicates the maxi-
mum engine speed. ( →P. 181)
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (→ P. 429)

942. Instrument cluster
The multi-information display presents the driver with a variety of driv-
ing-related data.
● Trip information ( →P. 9 5 )
Displays the following items: • Distance to empty
• Average fuel economy
• Current fuel economy
• Turn-by-turn navigation (vehicles with a navigation
system)
● Settings ( →P. 9 6 )
● Energy Flow ( →P. 100)
● Warning messages and reminder messages ( →P. 407)
● Automatically displayed when a malfunction occurs in one of the
vehicle’s systems or when a remi nder message is required. The
display returns to the previous screen by pressing the “DISP” but-
ton. ( →P. 9 5 )
● Cruise control display (if equipped) ( →P. 246)
● Dynamic radar cruise control display (if equipped) ( →P. 233)
● LDA (Lane Departure Alert with steering control) display (if
equipped) ( →P. 222)
● PCS (Pre-Collision System ) display (if equipped) (→P. 209)
● Tachometer ( →P. 181)
● Tire pressure warning system display ( →P. 357)
Multi-information display
Display contents

952. Instrument cluster
2
Instrument cluster

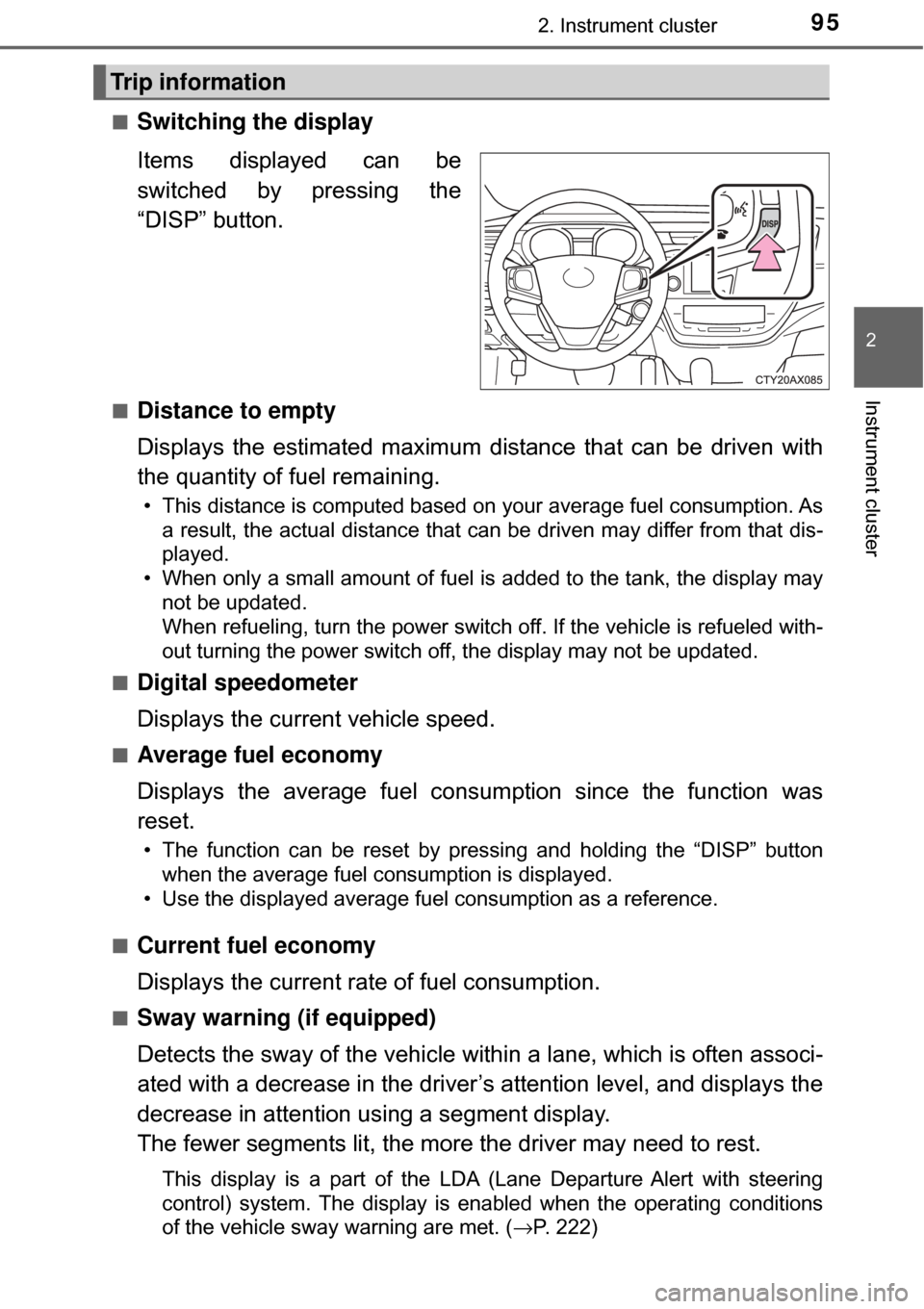

■Switching the display
Items displayed can be
switched by pressing the
“DISP” button.
■Distance to empty
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. Asa result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
■
Digital speedometer
Displays the current vehicle speed.
■Average fuel economy
Displays the average fuel consum ption since the function was
reset.
• The function can be reset by pressing and holding the “DISP” button\
when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■
Current fuel economy
Displays the current rate of fuel consumption.
■Sway warning (if equipped)
Detects the sway of the vehicle with in a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention us ing a segment display.
The fewer segments lit, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering
control) system. The display is enabled when the operating conditions
of the vehicle sway warning are met. ( →P. 222)
Trip information

962. Instrument cluster
■Turn-by-turn navigation (vehicles with a navigation system)
Displays information from the navi gation system about the next turn
on the guidance route.
◆Customizable items
■Meter settings
■LDA (Lane Departure Alert with steering control) (if
equipped) ( →P. 222)
The following LDA system settings can be changed:
Setting up the displays
ItemSettingsDetails
Digital Speed ON
Select to enable/disable the digital
speedometer.
OFF
Units (vehicles without a
navigation system) English
Select to change the units of mea-
sure displayed.
Metric
Turn-by-Turn (vehicles
with a navigation system) ON
Select to enable/disable the Turn-
by-turn navigation.
OFF
EV Indicator OFF
Select to enable/disable the EV
indicator.
ON
ItemSettingsDetails
Steering Assist ON
Select to enable/disable steering
wheel assistance.
OFF
Sensitivity Standard
Select to set the warning sensitiv-
ity.
High
Alert ON
Select to enable/disable the vehi-
cle sway warning.
OFF
Sensitivity Standard
Select to set the vehicle sway
warning sensitivity.
Low
High

972. Instrument cluster
2
Instrument cluster

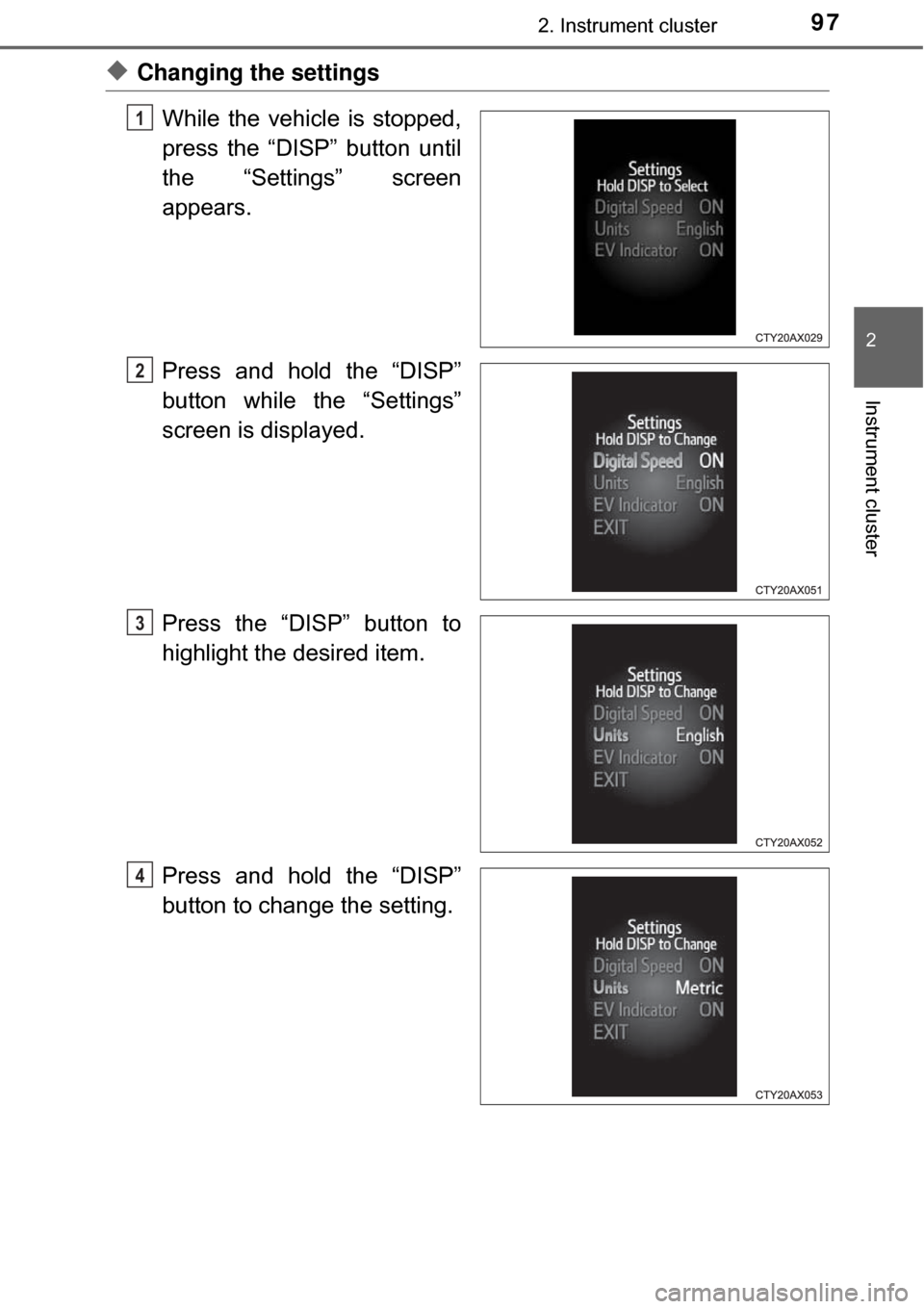

◆Changing the settingsWhile the vehicle is stopped,
press the “DISP” button until
the “Settings” screen
appears.
Press and hold the “DISP”
button while the “Settings”
screen is displayed.
Press the “DISP” button to
highlight the desired item.
Press and hold the “DISP”
button to change the setting.
1
2
3
4

982. Instrument cluster
To exit the “Settings” screen,
press the “DISP” button
repeatedly until “EXIT” is
highlighted and then press
and hold the “DISP” button.
If the Lane Departure settings
screen is displayed, press the
“DISP” button repeatedly until
“RETURN” is highlighted, then
press and hold the “DISP”
switch to return to the “Settings”
screen.
The display goes back to step.
■System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is displayed
while system operation is checked.

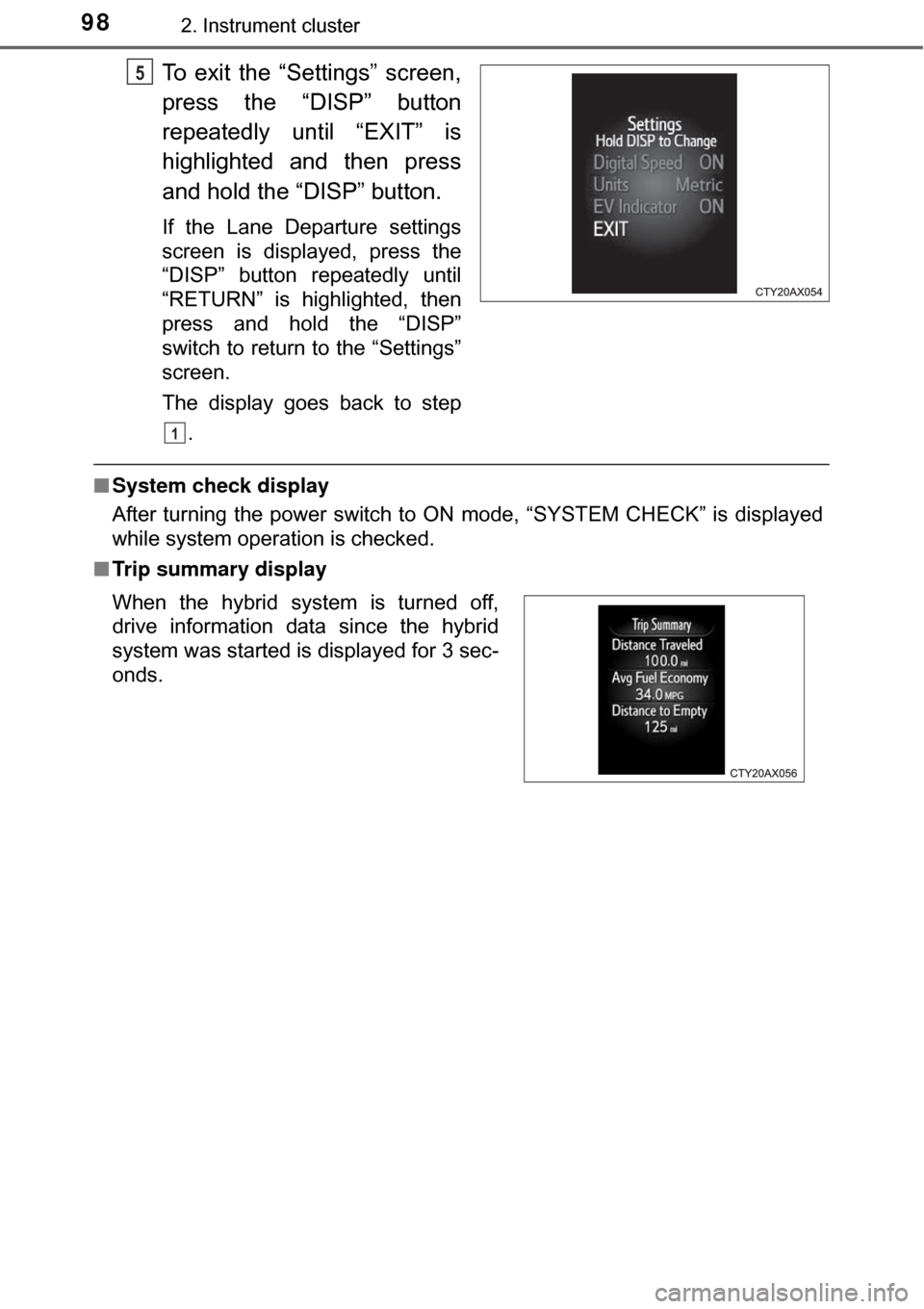

■ Trip summary display
5
1
When the hybrid system is turned off,
drive information data since the hybrid
system was started is displayed for 3 sec-
onds.

992. Instrument cluster
2
Instrument cluster
■Setting display automatic cancelation
In the following situations, setting display in which the settings can b\
e
changed through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■
Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to
display the tire inflation pressure after inflation pressure has been
adjusted
●“---” may be displayed if the tire information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values
may also be different from the values measured using a tire pressure
gauge.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

1002. Instrument cluster
Audio system
Multi-information display
■Audio systemPress “APPS”.
Select “Eco”.
If the “Trip Information” or “Past Record” screen is displayed, touch
“Energy”.

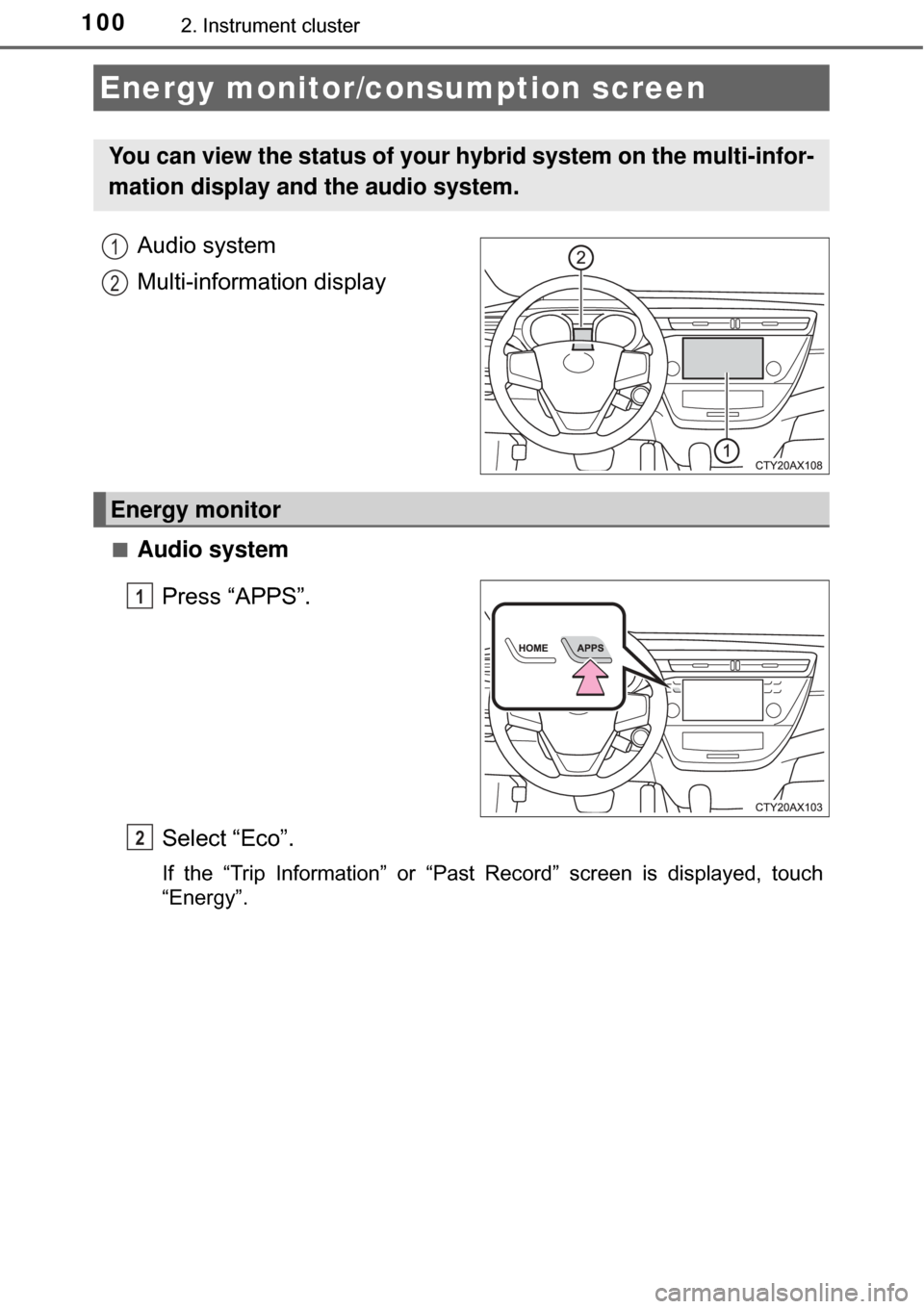

Energy monitor/c onsumption screen
