TOYOTA AVALON HYBRID 2017 XX40 / 4.G Owners Manual

461
8
Vehicle specifications
8-2. Customization
It is possible to customize certain vehicle features using the audio
system.Press the “APPS” button.
Select “Setup” on the “Apps” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
Vehicles with an audio system: Settings that can be changed using
the audio system
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your prefer ences. The settings of these fea-
tures can be changed on the audio system screen or at your
Toyota dealer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Customizing vehicle features
Customizable Features
1
2
1
2

4628-2. Customization
■Smart key system and wireless remote control (→P. 110, 121)
■Smart key system (→P. 121)
FunctionDefault settingCustomized
setting
Operation signal
(Emergency flashers) On Off O O
Operation signal
(Buzzer) On Off — O
Operation buzzer volume Level 5 Off to level 7 O O
Time elapsed before auto-
matic door lock function is acti-
vated if door is not opened
after being unlocked 60 secondsOff
OO
30 seconds
120 seconds
Open door warning buzzerOnOff —O
12
FunctionDefault settingCustomizedsetting
Smart key system OnOff — O
Number of permissible times
of continuous smart lock Twice Unlimited — O
12

4638-2. Customization
8
Vehicle specifications
■Wireless remote control (→P. 106, 110, 116)
■Door lock ( →P. 1 1 0 )
FunctionDefault settingCustomized
setting
Wireless remote control OnOff — O
Unlocking operation Driver's door
unlocked in one step, all doors
unlocked in two
steps All doors
unlocked in one step. OO
Panic function OnOff — O
Trunk unlocking operationPress and hold
(short)
Off
—O
Press twice
One short press
Press and hold (long)
12
FunctionDefault settingCustomizedsetting
Unlocking using a key Driver's door
unlocked in one step, all doors
unlocked in two
steps All doors
unlocked in one step. —O
Speed-detecting automatic
door lock function Off On O O
Opening driver's door unlocks
all doors Off On O O
Shifting gears to P unlocks all
doors. On Off O O
Shifting gears to position other
than P locks all doors. On Off O O
Locking/unlocking of the trunk
when all doors are locked/
unlocked
OnOff—O
12

4648-2. Customization
■Tr u n k (→P. 1 1 6 )
■Driving position memory* (→ P. 132, 136)
*: If equipped
■
Power switch ( →P. 172)
■Turn signal lever ( →P. 184)
FunctionDefault settingCustomized
setting
Trunk opener main switch Activated Deactivated — O
12
FunctionDefault settingCustomizedsetting
Driver’s seat movement when
exiting the vehicleFullOff OO
Partial
Doors linked to the driving
position memory recall func-
tion
Driver’s doorAll doors — O
12
FunctionDefault settingCustomized
setting
Time elapsed before the
power switch related mes-
sages on the multi-information
display turn off
60 seconds
30 seconds
—O
600 seconds
12
FunctionDefault settingCustomizedsetting
Times of flashing of the lane
change signal flashers3
4
—O
5
6
7
Off
12

4658-2. Customization
8
Vehicle specifications
■Automatic light control system (→P. 186)
■Lights (→ P. 186, 189)
*: If equipped
■
Illumination ( →P. 286)
FunctionDefault settingCustomized
setting
Light sensor sensitivity Level 3 Level 1 to 5 O O
Time elapsed before head-
lights automatically turn off
after doors are closed 30 seconds0 seconds
OO
60 seconds
90 seconds
12
FunctionDefault settingCustomized
setting
Daytime running light system On Off O O
Automatic high beam
*On Off—O
12
FunctionDefault settingCustomized
setting
Interior lights illumination con-
trol On Off—O
Time elapsed before interior
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Center console spot lightOnOff—O
Operation when the doors are
unlockedOnOff—O
Operation after the power
switch turned offOnOff—O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff—O
Ambient lights*OnOff—O
Outer foot lights*OnOff—O
12

4668-2. Customization
*: If equipped
■
Instrument panel ( →P. 9 2 )
■Automatic air condi tioning system (→P. 274)
■Touch switch (on the audio panel) ( →P. 100)
■Touch switch (on the air conditioning panel) ( →P. 274)
Time elapsed before the outer
foot lights turn off
*
15
seconds
Off
OO
7.5
seconds
30
seconds
Enable/disable operation of
the outer foot lights when you
approach the vehicle with the
electronic key on your person
*
OnOff—O
Enable/disable operation of
the outer foot lights when the
doors are unlocked with the
power door lock switch
*
OnOff—O
FunctionDefault settingCustomized setting12
FunctionDefault settingCustomized
setting
Instrument panel light auto
dimmer control Level 3 Level 1 to 5—O
12
FunctionDefault settingCustomized
setting
A/C auto switch operationAutoManualOO
12
FunctionDefault settingCustomizedsetting
Touch switch sensitivityLevel 3Level 1 to 3O—
12
FunctionDefault settingCustomizedsetting
Touch switch sensitivityLevel 1Level 1 to 3—O
12

4678-2. Customization
8
Vehicle specifications
■Rear sunshade* (→ P. 304)
*: If equipped
FunctionDefault settingCustomized
setting
Reverse operationOnOff—O
Time elapsed before the
reverse operation feature acti-
vates0.7
seconds
0 second
—O
0.9
seconds
1.2
seconds
WARNING
■ During customization
As the hybrid system needs to be oper ating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.
12

4688-3. Items to initialize

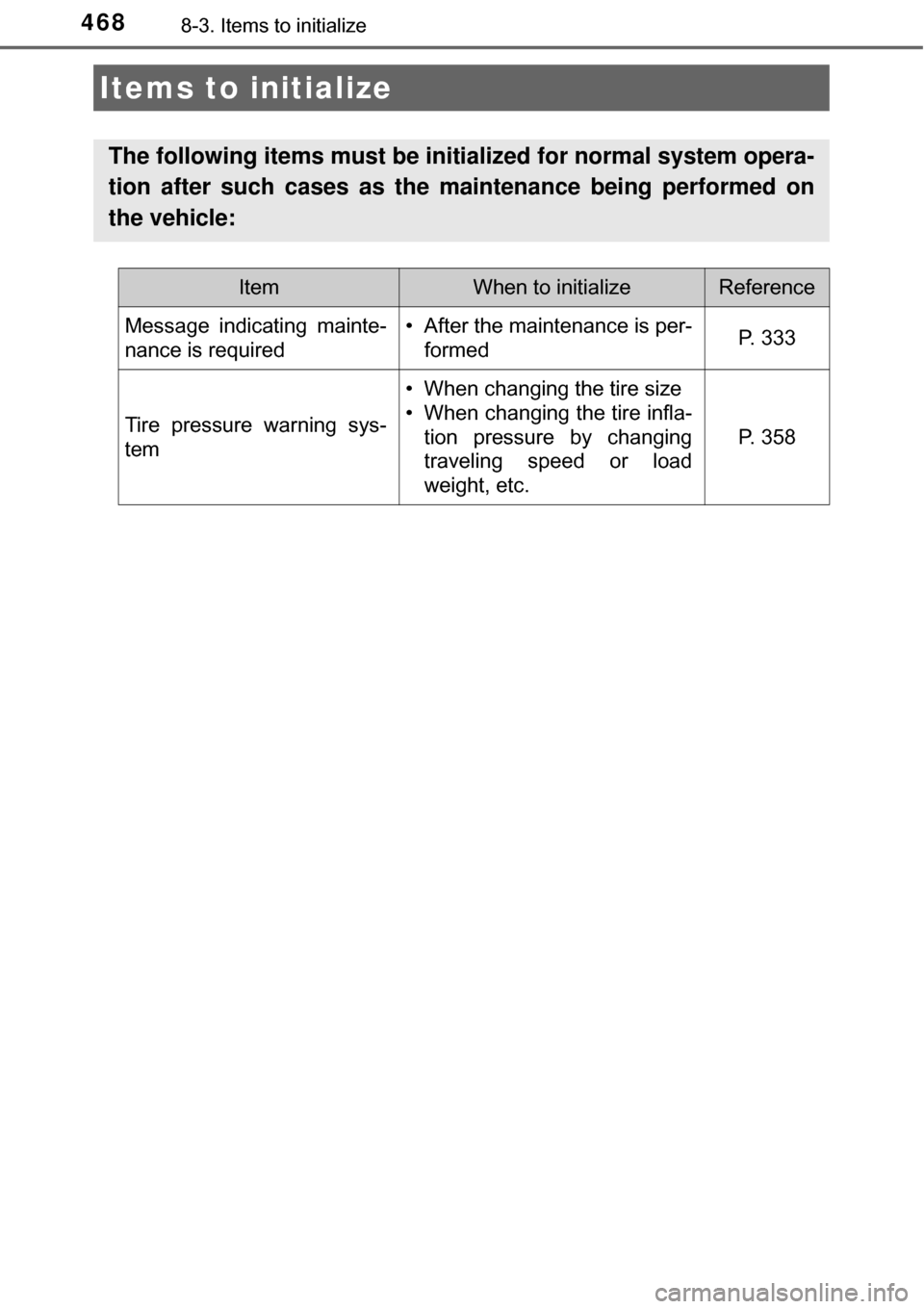

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required• After the maintenance is per- formedP. 333
Tire pressure warning sys-
tem
• When changing the tire size
• When changing the tire infla-tion pressure by changing
traveling speed or load
weight, etc.
P. 358

469
For owners9
Reporting safety defects for U.S. owners........................ 470

470

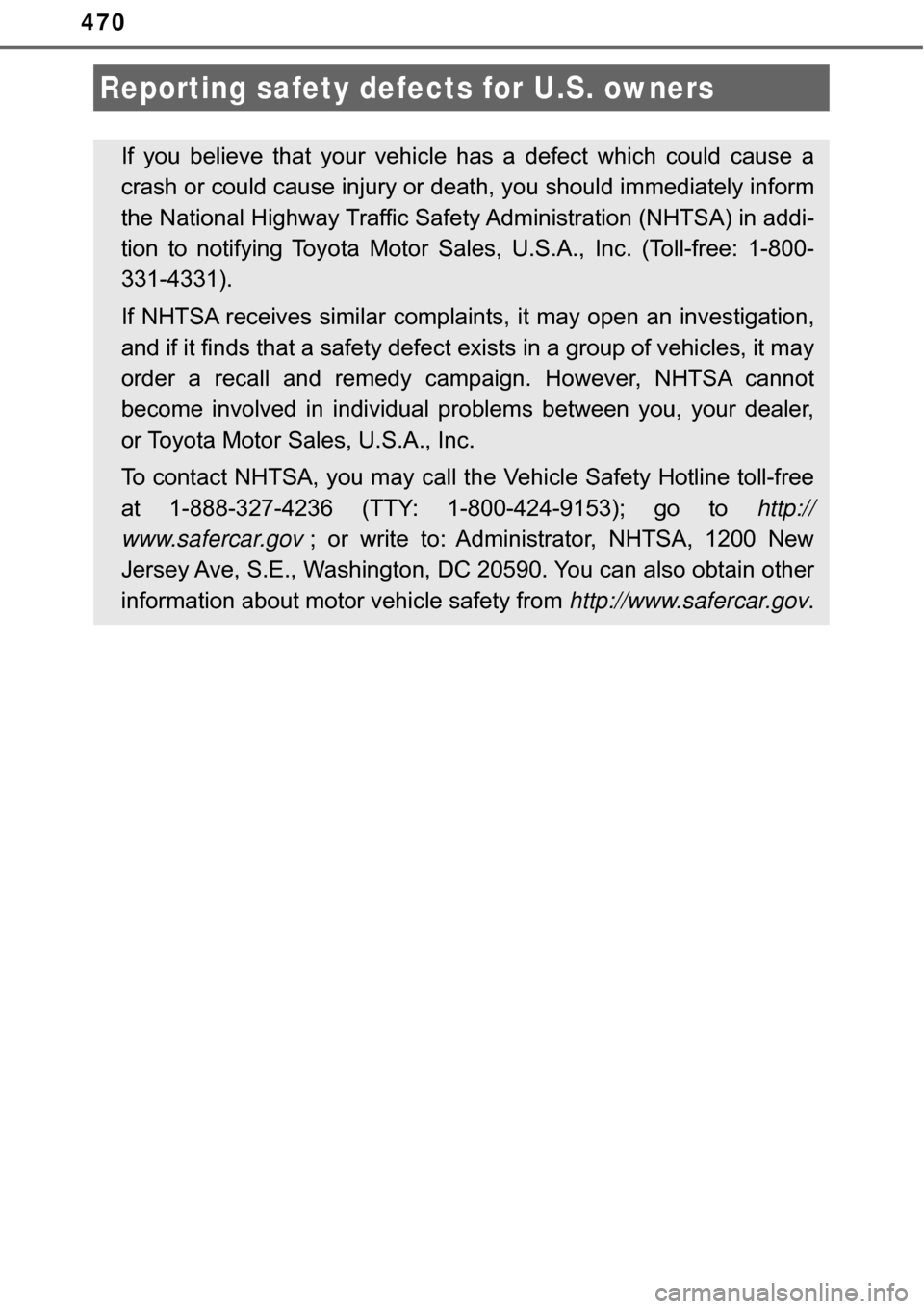

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complain ts, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.
