audio TOYOTA AVALON HYBRID 2017 XX40 / 4.G Quick Reference Guide

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument cluster/
Trip meter display 8
Smart Key system
1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 18-19
Audio
20
Auto lock/unlock
2 10
Blind Spot Monitor (BSM) with
Rear Cross Traffic Alert (RCTA) 17
Clock 22
Cruise control 16
Cup holders 22
Door locks 22
Driving mode select 11
Garage door opener (HomeLink
®)3 15
Hybrid Synergy Drive System 9
Hybrid transmission 10
Lights
1 & turn signals 15
Moon roof 12
Multi-Information Display (MID)
2 14
Parking brake 11
Power outlets-12V DC 17
Seat adjustments-Front 13
Seat ventilators/heaters 19
Seats-Head restraints 13
Steering lock release 11
Steering wheel switches 20
Tilt & telescopic steering wheel 11
Traction control (TRAC) OFF 16 USB/AUX port
21
Windows-Power 12
Windshield wipers & washers 14
Wireless charger 21
Doors-Child safety locks 34
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 35
Spare tire & tools 36
Star Safety System
™ 37-38
Tire Pressure Monitoring
(warning) System (TPMS) 35
Trunk-Internal release 36
AVALON HV 2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your new
Avalon HV.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Avalon HV operat\
ions.
Every Avalon HV owner should review the Owner’s Manual that accompani\
es
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.

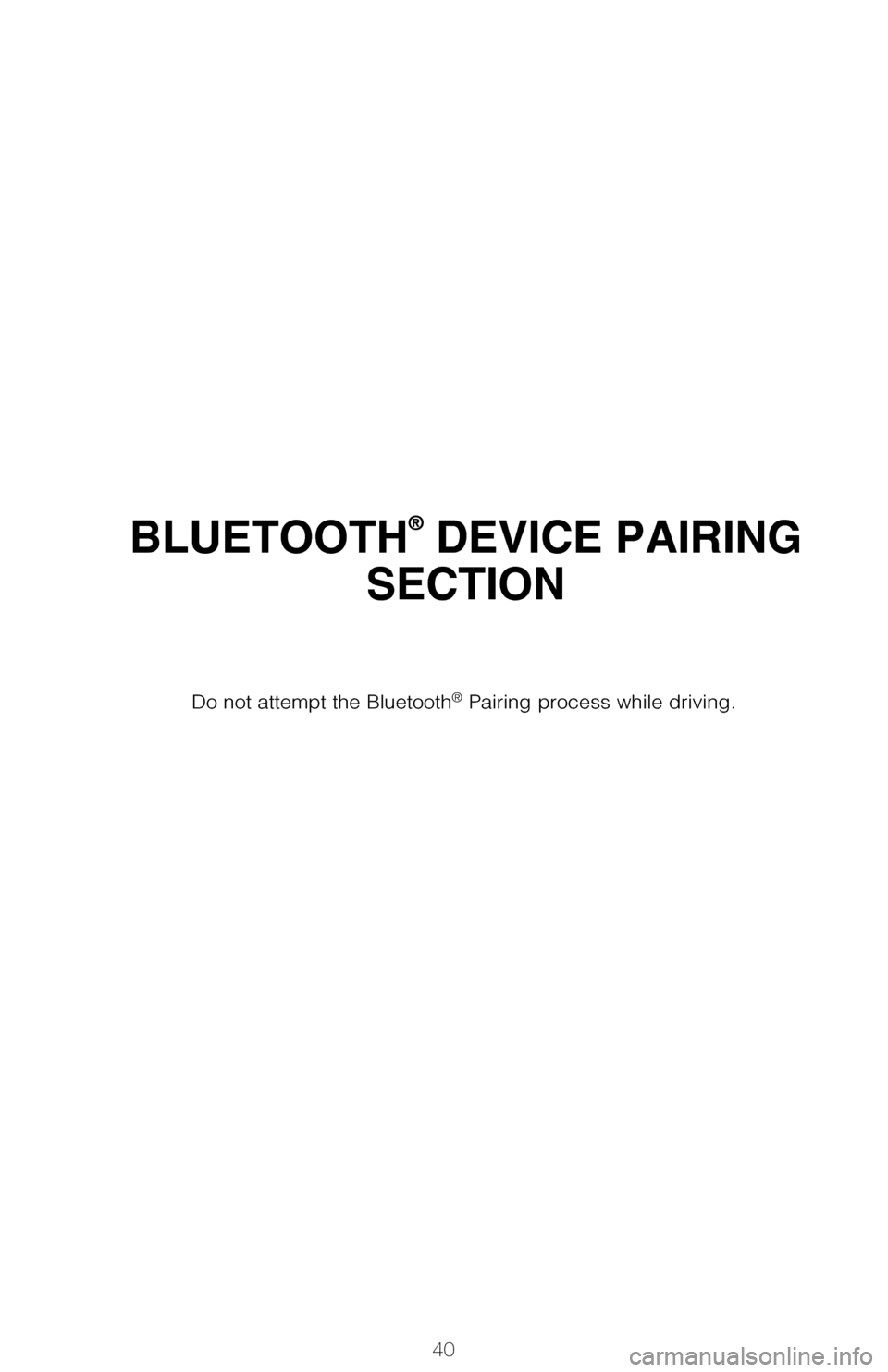

BLUETOOTH® DEVICE
PAIRING SECTION 40-49
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 33
Dynamic Radar
Cruise Control (DRCC) 30-32
Lane Departure Alert with Steering
Assist function (LDA w/SA) 26-29
Pre-Collision System Pedestrian
Detection function (PCS w/PD) 24-26
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 23
Sensors 23
2017_Avalon_HV_QRG_D4_1.indd 19/23/16 5:35 AM

2
OVERVIEWInstrument panel
Steering wheel controls
Audio control switches2Telephone switches2Voice command
switch2
DISP switch
Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle
distance switch
Tilt and telescopic
steering lock release
Blind Spot Monitor
(BSM) main switch
1
Hood lock release lever
Rear sunshade switch1
Pre-Collision System
(PCS) switch
VSC OFF switch
Trunk opener
Multi-Information Display (MID)
Wiper and washer controls
Emergency flasher button
Gauges and meters
“ENGINE START STOP” switch
AUX/USB port
1 If equipped.2 For details, refer to the “Navigation System Owner’s Manual” an\
d “2017 Entune™ Audio
Quick Reference Guide.”
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Dynamic Radar Cruise
Control (DRCC)switch or
Cruise control switch
Headlights, turn signals and
Automatic High Beam (AHB)
controls
2017_Avalon_HV_QRG_D4_1.indd 29/23/16 5:35 AM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
3
Voice command
switch2
DISP switch
Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle
distance switch
Rear sunshade switch1
Emergency flasher button
Audio system1,2/
Navigation system1,2
Air Conditioning controls
Tire Pressure Monitoring
(warning) System reset button
Trunk opener main switch
12V DC power outlet or wireless charger switch
Driving mode select switches
Seat heater/ventilator switches
1
AUX/USB port Clock
1
If equipped.2 For details, refer to the “Navigation System Owner’s Manual” an\
d “2017 Entune™ Audio
Quick Reference Guide.”
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Dynamic Radar Cruise
Control (DRCC)switch or
Cruise control switch
2017_Avalon_HV_QRG_D4_1.indd 39/23/16 5:35 AM

8
OVERVIEWFEATURES & OPERATIONS
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer t\
o the
“Warranty & Maintenance Guide.”
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. To conserve energy, when the brakes are applied the braking for\
ce
generates electricity which is then sent to the traction battery. In add\
ition, the
engine shuts off when the vehicle is stopped. The benefits are better fu\
el economy,
reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Multi-Information Display (MID) and/or display audio syst\
em/
navigation system screen (if equipped).
1. Ensure tire pressures are maintained at levels specified in the Owner\
’s Manual.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on\
the highway.
4. When possible, avoid sudden stops to maximize regenerative braking en\
ergy.
5. Minimize use of the air conditioning.
Pull up latch and
raise hood
Pull
Hood release
Engine maintenance
Turn
Brightness control
Engine oil filler cap Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank Push
Switch “A” and “B”
TIPS FOR IMPROVED FUEL ECONOMY
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and “” will be displayed on the Multi-Information
Display.
(3) Press the “POWER” switch briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light \
remains steady and a beep sounds, you may begin driving.
STARTING THE HYBRID SYSTEM
Light control-
Instrument cluster/Trip meter display
2017_Avalon_HV_QRG_D4_1.indd 89/23/16 5:35 AM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
9
FEATURES & OPERATIONS
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer t\
o the
“Warranty & Maintenance Guide.”
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. To conserve energy, when the brakes are applied the braking for\
ce
generates electricity which is then sent to the traction battery. In add\
ition, the
engine shuts off when the vehicle is stopped. The benefits are better fu\
el economy,
reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Multi-Information Display (MID) and/or display audio syst\
em/
navigation system screen (if equipped).
1. Ensure tire pressures are maintained at levels specified in the Owner\
’s Manual.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on\
the highway.
4. When possible, avoid sudden stops to maximize regenerative braking en\
ergy.
5. Minimize use of the air conditioning.
Pull up latch and
raise hood
Hood release
Hybrid Synergy Drive System
Engine maintenance
Push
Switch “A” and “B”
TIPS FOR IMPROVED FUEL ECONOMY
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display.
(3) Press the “POWER” switch briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light \
remains steady
and a beep sounds, you may begin driving.
STARTING THE HYBRID SYSTEM
2017_Avalon_HV_QRG_D4_1.indd 99/23/16 5:35 AM

20
Audio*
FEATURES & OPERATIONS
Volume controls
“MODE”
Push to turn audio ON and select
an audio mode. Push and hold to
turn the audio system OFF.Back button
Returns to the previous screen.
“vvvv”
Use to search within a selected
audio medium (radio, CD, etc.),
or to perform certain telephone
operations.
Touch screen display
Push to access
audio screen
Push to turn
ON/OFFEject CD
Turn to tune radio stations
manually or select tracks or
files
Push to access
Bluetooth hands-free system
Seek
station/CD
track select
Push to access
HOME screen
Push to access
APP screen
* For details, refer to the “Navigation System Owner’s Manual” a\
nd “2017 Entune™
Audio Quick Reference Guide.”
Only available for
Entune™ Premium (JBL
®) Audio
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB mem\
ory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a\
portable
audio device through the vehicle’s speaker system while in AUX mode.
A mobile device with the “” logo can be charged wirelessly. Charging can only
be performed with the “POWER” switch in ACCESSORY or ON mode. Place \
a
mobile device on the tray. One LED indicator is illuminated while charging and\
two
LED indicators are illuminated when the charging is complete.
ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP
ENTUNE™ PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION AND
APP SUITE
STEERING WHEEL SWITCHES
USB/AUX PORT
2017_Avalon_HV_QRG_D4_1.indd 209/23/16 5:35 AM

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Audio*
Wireless charger (if equipped)
Back button
Returns to the previous screen.
“vvvv”
Use to search within a selected
audio medium (radio, CD, etc.),
or to perform certain telephone
operations. Turn to tune radio stations
manually or select tracks or
files
Push to access
Bluetooth hands-free system
Seek
station/CD
track select
* For details, refer to the “Navigation System Owner’s Manual” \
and “2017 Entune™
Audio Quick Reference Guide.”
USB port
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
Open
A mobile device with the “” logo can be charged wirelessly. Charging can only
be performed with the “POWER” switch in ACCESSORY or ON mode. Plac\
e a
mobile device on the tray. One LED indicator is illuminated while chargi\
ng and two
LED indicators are illuminated when the charging is complete.
Push once
to closeOpen
System ON/OFF
ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP
ENTUNE™ PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION AND
APP SUITE
USB/AUX PORT
2017_Avalon_HV_QRG_D4_1.indd 219/23/16 5:35 AM

26
DISABLING THE PRE-COLLISION SYSTEM (PCS)
LDA in TSS-P uses an in-vehicle camera designed to detect visible white \
and yellow
lane markers in front of the vehicle and the vehicle’s position on th\
e road. If the
system determines that the vehicle is starting to unintentionally deviat\
e from its lane,
the system alerts the driver with an audio and visual alert. When the al\
erts occur, the
driver must check the surrounding road situation and carefully operate t\
he steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher \
on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering ass\
ist
function. When enabled, if the system determines that the vehicle is on \
a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the\
vehicle in its
lane.
Lane Departure Alert with
Steering Assist function (LDA w/SA)
TOYOTA SAFETY SENSE™
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it\
off.
Note: Operation of the LDA system and setting adjustments continues in t\
he
same condition regardless of Ignition cycle until changed by the driver \
or the
system is reset.
Refer to a Toyota Owner’s Manual for additional information on LDA op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
FUNCTIONS
LDA function display
Steering assist indicator
(1)
Lane Departure Alert (LDA) indicator flashes orange when operating.
Press the PCS switch for 3 seconds or more to turn it off. The warning l\
ight and
message displays in the MID. Depress it again to turn it back on.
Note: The system is enabled each time the power switch is turned to ON
mode.
Refer to a Toyota Owner’s Manual for additional information on PCS op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
2017_Avalon_HV_QRG_D4_1.indd 269/23/16 5:35 AM

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
LDA in TSS-P uses an in-vehicle camera designed to detect visible white \
and yellow
lane markers in front of the vehicle and the vehicle’s position on th\
e road. If the
system determines that the vehicle is starting to unintentionally deviat\
e from its lane,
the system alerts the driver with an audio and visual alert. When the al\
erts occur, the
driver must check the surrounding road situation and carefully operate t\
he steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher \
on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering ass\
ist
function. When enabled, if the system determines that the vehicle is on \
a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the\
vehicle in its
lane.
Lane Departure Alert with
Steering Assist function (LDA w/SA)
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it\
off.
Note: Operation of the LDA system and setting adjustments continues in t\
he
same condition regardless of Ignition cycle until changed by the driver \
or the
system is reset.
Refer to a Toyota Owner’s Manual for additional information on LDA op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
FUNCTIONS
LDA function display
Steering assist indicator LDA indicator
LDA function display
Lane
(2)
(1)
Lane Departure Alert (LDA) indicator flashes orange when operating.
Press the PCS switch for 3 seconds or more to turn it off. The warning l\
ight and
message displays in the MID. Depress it again to turn it back on.
Note: The system is enabled each time the power switch is turned to ON
mode.
Refer to a Toyota Owner’s Manual for additional information on PCS op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
2017_Avalon_HV_QRG_D4_1.indd 279/23/16 5:35 AM

40
BLUETOOTH® DEVICE PAIRING
SECTION
Pairing your phone is the first step in connecting with your Toyota for hands-f\
ree
calling and for audio streaming via Bluetooth. This pairing process is quick an\
d
easy: all Android mobile digital devices have Bluetooth integrated; all you h\
ave to
do is setup the phone and multimedia system to “talk” to each other \
and form a
connection.2
Initiate Bluetooth® on your Android®
STEP 1
From your APPS
SCREEN, select
SETTINGS.
1 To determine which head unit is installed in your vehicle, refer to the Au\
dio section in this guide.
Entune™ Premium Audio screens are shown in this section. Screens and features \
may vary by
Entune™ system. 2 Some Android devices may have slightly different SETTINGS screen layout\
depending on manu- facturer of device and Android OS version.
To begin the Bluetooth® Pairing process, press the HOME button on the faceplate of
your Toyota Vehicle Entune™ Multimedia Head Unit.1
Do not attempt the Bluetooth® Pairing process while driving.
2017_Avalon_HV_QRG_D4_1.indd 409/23/16 5:35 AM
