5338-1. Specifications
8
Vehicle specifications
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fue ls are typically
acceptable for use, providing they meet other fuel requirements .
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
■ Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octa ne rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methan ol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adv ersely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time whi le accelerat-
ing or driving uphill. This is normal and there is no need for concern.
●
Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gasoline contain-
ing more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

5348-1. Specifications
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engi ne will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine k nocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

5428-1. Specifications

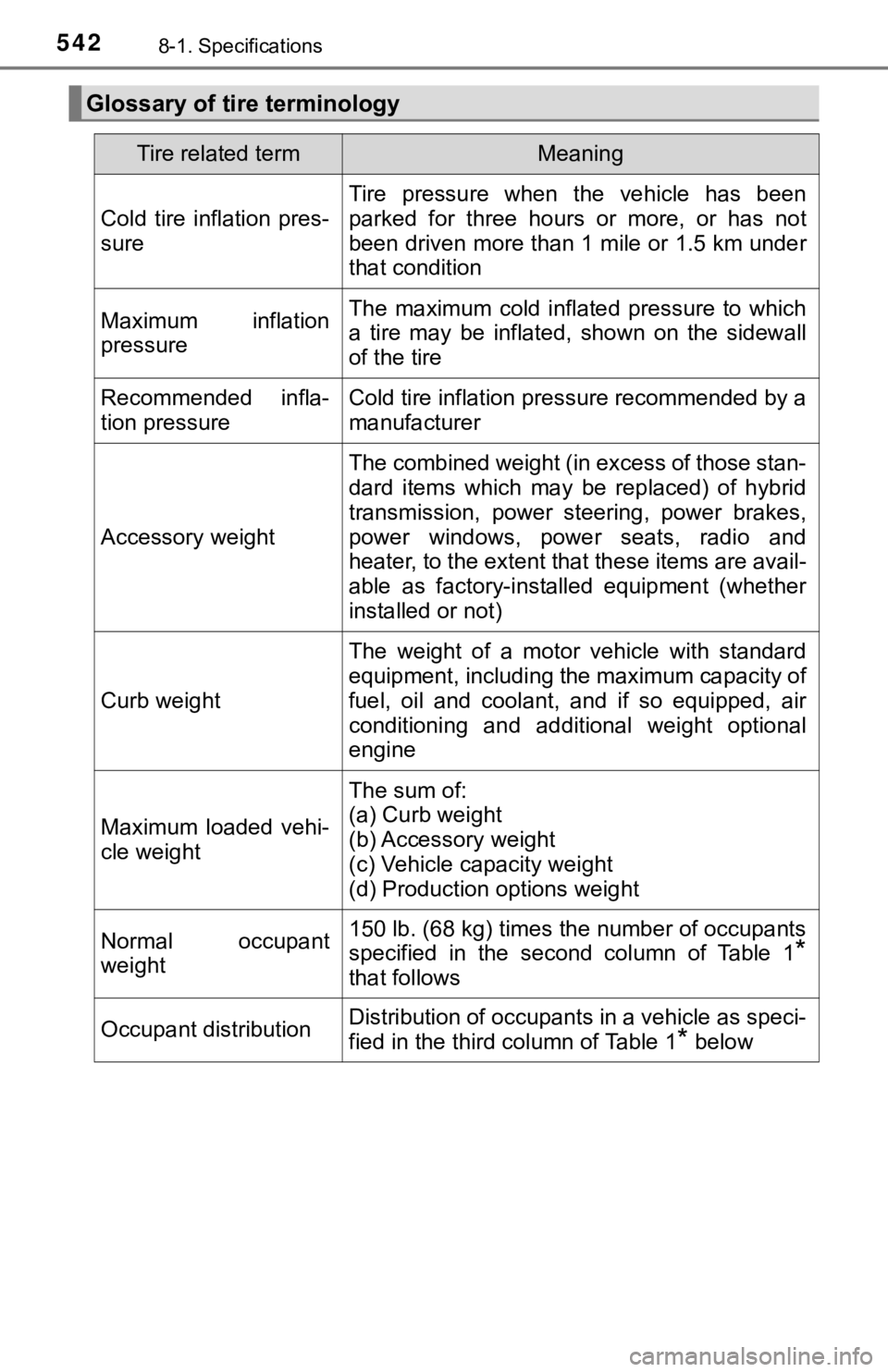

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of hybrid
transmission, power steering, power brakes,
power windows, power seats, radio and
heater, to the extent that these items are avail-
able as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

571Alphabetical index
EngineACCESSORY mode ............. 201
Compartment ........................ 425
Engine switch........................ 200
Hood ..................................... 423
How to start the hybrid system ......... ....................... 200
Identification number ............ 525
If your vehicle has to be stopped in an
emergency.......................... 471
Ignition switch (power switch) .................... 200
Overheating .......................... 517
Power switch......................... 200
Engine coolant
Capacity ................................ 528
Checking ............................... 429
Preparing and checking before winter....................... 354
Engine coolant temperature gauge........................................ 98
Engine oil Capacity ................................ 527
Checking ............................... 426
Preparing and checking before winter....................... 354
Engine switch .......................... 200
Enhanced VSC ......................... 344
EPS (Electric Power Steering)...... 345
Warning light ......................... 480
EV drive mode.......................... 206
Event data recorder (EDR) ........................................ 10
Exclusive jump starting terminal .................................. 510 Flat tire ..................................... 494
Floor mats .................................. 24
Fluid
Brake .................................... 529
Hybrid transmission .............. 529
Washer ................................. 432
Front interior light ................... 375
Front passenger occupant
classification system .............. 48
Front passenger’s seat belt
reminder light ........................ 481
Front personal lights............... 375
Front seat heaters ................... 371
Front seats ............................... 159 Adjustment............................ 159
Cleaning ............................... 411
Correct driving posture ........... 26
Driving position memory ....... 163
Head restraints ..................... 168
Power easy access system .......... ...................... 163
Seat heaters ......................... 371
Seat ventilators ..................... 371
Front side marker lights Light switch ........................... 222
Replacing light bulbs ............ 467
Front turn signal lights Replacing light bulbs ............ 467
Turn signal lever ................... 215
Fuel Capacity................................ 526
Fuel gauge.............................. 98
Information............................ 532
Refueling .............................. 234
Type.............................. 526, 532
Warning light......................... 481F

573Alphabetical index
I/M test ...................................... 420
ICS (Intelligent Clearance Sonar) ..................................... 321 Warning light ......................... 481
Warning messages ............... 332
Identification Engine................................... 525
Vehicle .................................. 525
Ignition switch (power switch) ....................... 200
Illuminated entry system ........ 376
Immobilizer system ................... 86
Indicators ................................... 95
Initialization Intelligent Clearance Sonar .................................. 332
Items to initialize ................... 557
Tire pressure warning system ... ............... 438
Inside rear view mirror ............ 172
Instrument panel light control ...................................... 99
Intelligent Clearance Sonar (ICS)............................. 321 Warning light ......................... 481
Warning messages ............... 332
Interior lights............................ 374 Switch ................................... 375
Intuitive parking assist............ 313 Jack
Positioning the jack............... 424
Vehicle-equipped jack .......... 494
Jack handle .............................. 494
Jam protection function
Moon roof ............................. 182
Power window ...................... 177
Keyless entry Smart key system ......... 142, 148
Wireless remote control ........................ 142, 149
Keys .......................................... 138 Battery-saving function ......... 154
Electronic key ....................... 138
Engine switch ....................... 200
If the electronic key does not operate properly ........... 507
If you lose your keys ..... 139, 141
Key number plate ................. 138
Keyless entry ........................ 138
Mechanical key ..................... 139
Power switch ........................ 200
Replacing the battery............ 461
Warning buzzer .................... 153
Wireless remote control ........ 138
Knee airbags .............................. 34
IJ
K

575Alphabetical index
Multi-information display ........ 102Driving information ................ 106
Dynamic radar cruise control with full-speed range .......... 281
Language .............................. 118
LTA (Lane Tracing Assist) .... 270
Outside temperature ............... 98
PCS (Pre-Collision System) .............................. 251
Settings ................................. 111
Suggestion function .............. 120
Warning messages ............... 488
Navigation system
*
Noise from under vehicle............ 6
Odometer.................................... 98
Oil Engine oil .............................. 527
Opener
Fuel filler door ....................... 237
Hood ..................................... 423
Trunk..................................... 148
Outside rear view mirrors ....... 174 Adjusting and folding ............ 174
Blind spot monitor (BSM) ...... 297
Linked mirror function when reversing ................... 175
Mirror position memory ......... 163
Outside rear view mirror
defoggers ........................... 365
Outside temperature
display ...................................... 98
Overheating, Hybrid system .................................... 517 Paddle shift switches .............. 212
Panic mode .............................. 139
Panoramic view monitor
*
Parking brake........................... 216
Parking brake engaged warning buzzer/
message............................. 219
Warning light......................... 480
Parking lights........................... 222 Light switch ........................... 222
Replacing light bulbs ............ 467
PCS (Pre-Collision System) .................................. 246
Warning light......................... 480
Personal lights......................... 375
Power control unit ..................... 79
Power control unit coolant ..... 429 Capacity................................ 528
Checking............................... 429
Preparing and checking before winter ...................... 354
Power outlet ............................. 385
Power steering
(Electric power steering
system) .................................. 345 Warning light......................... 480
Power switch ........................... 200
Power windows ....................... 177 Door lock linked window operation ............................ 179
Jam protection function ........ 177
Operation .............................. 177
Window lock switch .............. 177
Pre-Collision System
(PCS) ...................................... 246 Warning light......................... 480
Premium Audio
*
N
O
P
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

582Alphabetical index
Warning buzzersApproach warning ................. 290
Brake system ....... ................. 478
Downshifting ......................... 212
Electric power steering
system ......... ....................... 480
Intuitive parking assist .......... 316
Lane departure alert
function ............................... 266
Light reminder ....................... 224
Open door ............................. 146
Open hood ............................ 423
Open moon roof .................... 183
Open trunk ............................ 149
Parking brake........................ 480
Pre-collision warning............. 246
Seat belt reminder ................ 481
Vehicle sway warning ........... 268 Warning lights ........................... 93
ABS ...................................... 479
Brake hold operated indicator.............................. 480
Brake Override System ........ 479
Brake system ....... ................. 478
Charging system................... 478
Drive-Start Control ................ 479
Driver’s seat belt reminder ............................. 481
Electric power steering ......... 480
Front passenger’s seat belt reminder .............. 481
High coolant temperature ..... 478
ICS OFF indicator ................. 481
LTA indicator ........................ 480
Low engine oil pressure........ 478
Low fuel level ........................ 481
Malfunction indicator lamp .... 479
Master warning light ............. 481
Parking brake indicator ......... 480
PCS warning light ................. 480
Rear passengers’ seat belt reminder light ....... 481
Seat belt reminder light......... 481
Slip indicator ......................... 481
SRS ...................................... 479
Tire pressure ........................ 482
W

584
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 423 P. 148P. 234
Hood lock release
leverFuel filler
door openerTire inflation pressure
P. 423 P. 234P. 530
Fuel tank capacity
(Reference)13 gal. (49.3 L, 10.8 Imp. gal.)
Fuel type
P. 526, 532
Cold tire inflation
pressure P. 5 3 0
Engine oil capacity
(Drain and refill —
reference) P. 527
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 527
