ESP TOYOTA AVENSIS 2003 Service Repair Manual

Detection Item
Indicates the system or details of the
problem. Trouble Area
Indicates the suspect areas of
the problem.
Detection Item
DTC No.
(See page)
Trouble Area
SRS

Steering wheel pad (squib)

Spiral cable

Airbag sensor assembly

Wire harness
B0103/12
(05±132) B0102/11
(05±128)
DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit for that code liste\
d in the table
below (Proceed to the page given for that circuit).

Short in D squib circuit

Open in D squib circuit
B0101/14
(05±124)

Short in D squib circuit (to ground)

Short in D squib circuit (to B+)
Warning Light
ON
ON
ON
ON

Steering wheel pad (squib)

Spiral cable

Airbag sensor assembly

Wire harness

Steering wheel pad (squib)

Spiral cable

Airbag sensor assembly

Wire harness

Steering wheel pad (squib)

Spiral cable

Airbag sensor assembly

Wire harness
B0105/53
(05±136) ON

Airbag sensor assembly

Wire harness
B0106/54
Open in P squib circuit

Airbag sensor assembly

Wire harness

Short in P squib circuit (to Ground) ON
ON
B0100/13
(05±119)

Short in P squib circuit
Front passenger airbag assembly (squib)

Airbag sensor assembly

Wire harness

Front passenger airbag assembly (squib)

Front passenger airbag assembly (squib)
Page or Instructions
Indicates the page where the inspection proce-
dures for each circuit is to be found, or gives
instructions for checking and repairs.


DTC No.
Indicates the diagnostic trouble code.



±
INTRODUCTION HOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS01±29
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
The inspection procedures are shown in the table below. This table allows efficient and accurate trouble-
shooting using the diagnostic trouble codes displayed in the diagnostic trouble code chart. Proceed with
troubleshooting in accordance with the inspection procedures listed in the diagnostic c\
hart corresponding
to the diagnostic trouble codes displayed. The diagnostic trouble code chart for the Supplemental Restraint
System is shown below as an example.
http://vnx.su

F40024
A
B
G23166
32±60
±
BRAKESPEED SENSOR FRONT LH
AVENSIS REPAIR MANUAL (RM1018E)

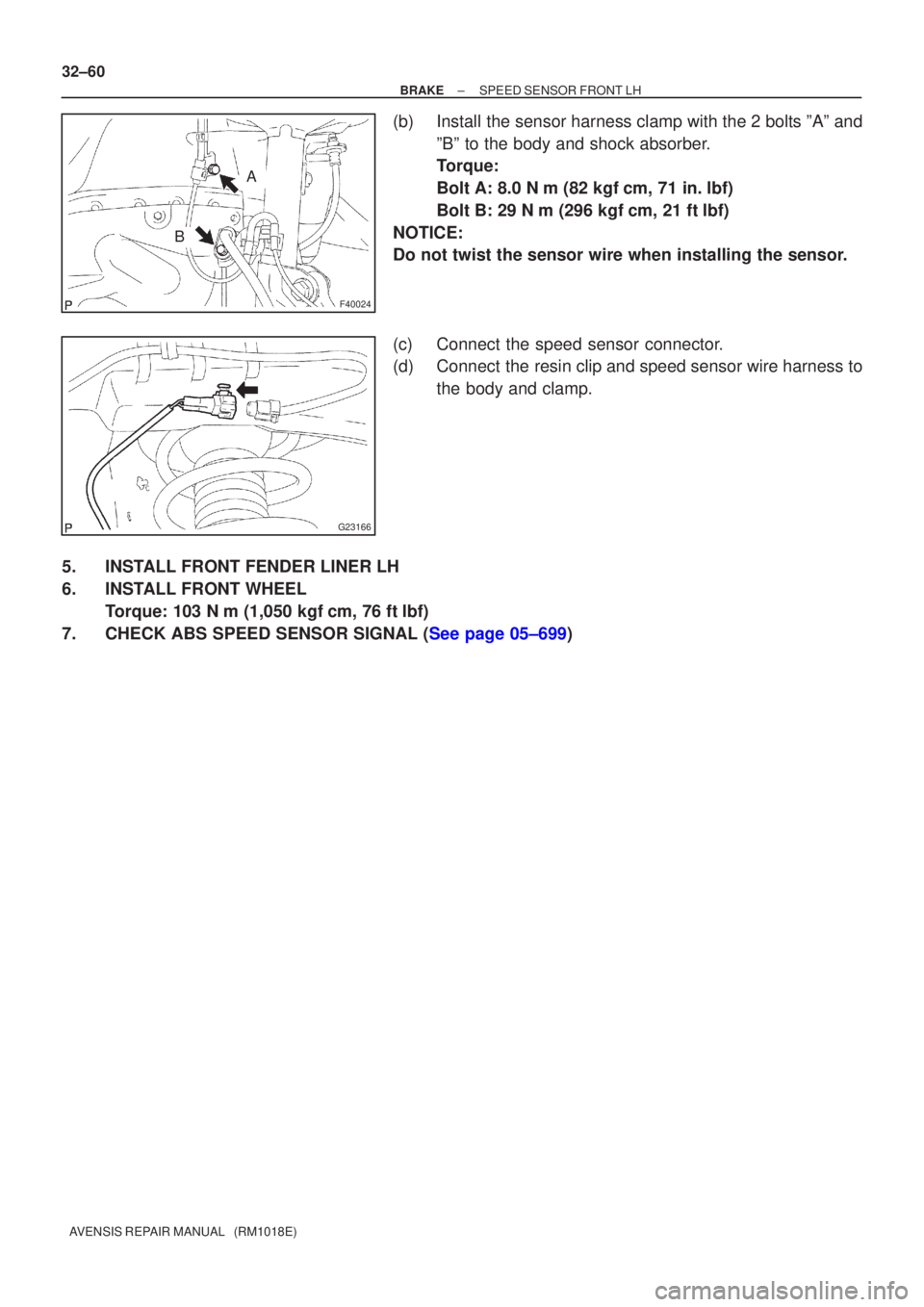

(b)Install the sensor harness clamp with the 2 bolts ºAº and ºBº to the body and shock absorber.
Torque:
Bolt A: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
Bolt B: 29 N
m (296 kgf
cm, 21 ft
lbf)
NOTICE:
Do not twist the sensor wire when installing the sensor.
(c)Connect the speed sensor connector.
(d)Connect the resin clip and speed sensor wire harness to the body and clamp.
5.INSTALL FRONT FENDER LINER LH
6.INSTALL FRONT WHEEL Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
7.CHECK ABS SPEED SENSOR SIGNAL (See page 05±699)
http://vnx.su

5000C±14
±

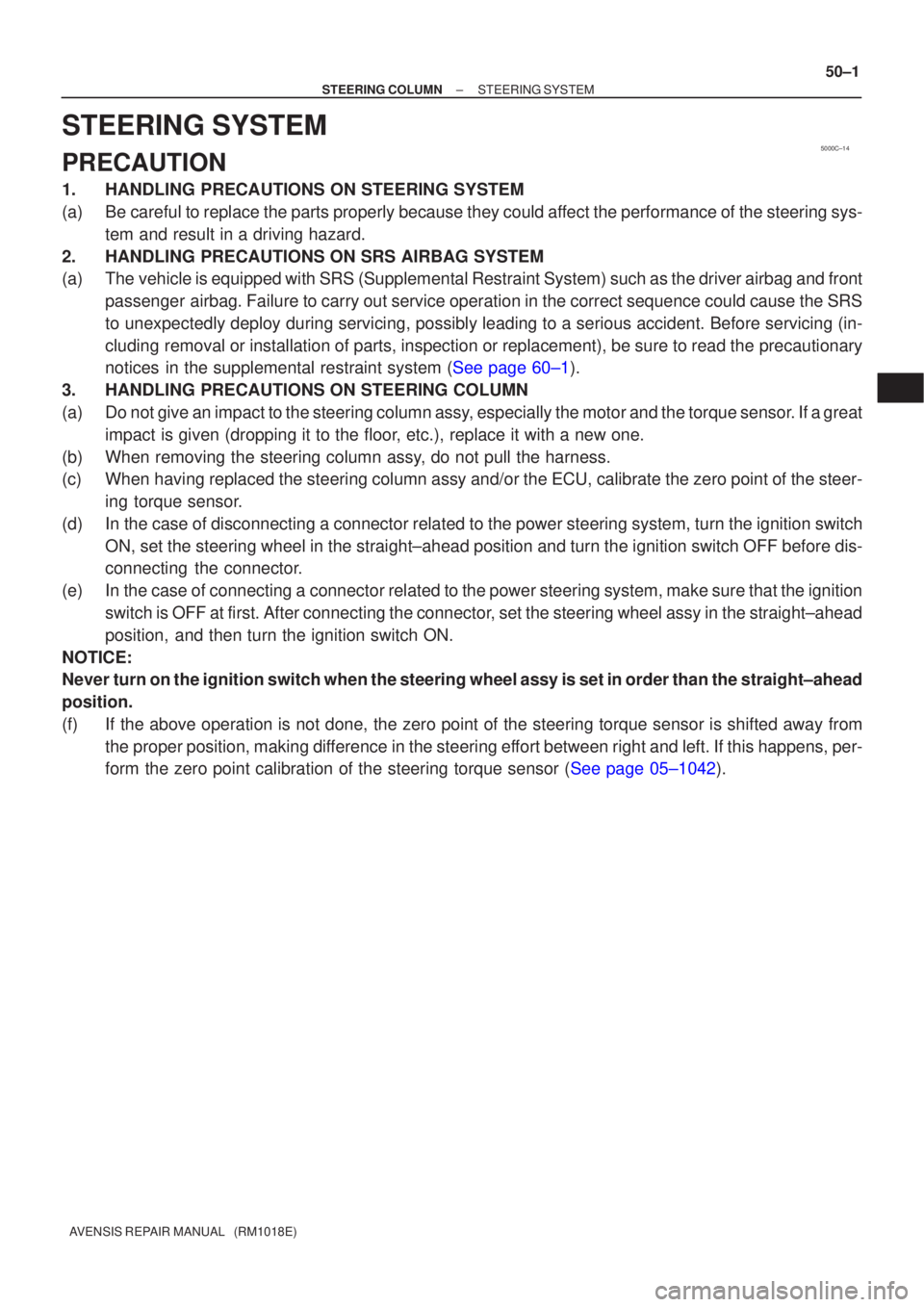

STEERING COLUMN STEERING SYSTEM
50±1
AVENSIS REPAIR MANUAL (RM1018E)
STEERING SYSTEM
PRECAUTION
1. HANDLING PRECAUTIONS ON STEERING SYSTEM
(a) Be careful to replace the parts properly because they could affect the performance of the steering sys-
tem and result in a driving hazard.
2. HANDLING PRECAUTIONS ON SRS AIRBAG SYSTEM
(a) The vehicle is equipped with SRS (Supplemental Restraint System) such as \
the driver airbag and front passenger airbag. Failure to carry out service operation in the correct sequence \
could cause the SRS
to unexpectedly deploy during servicing, possibly leading to a serious acc\
ident. Before servicing (in-
cluding removal or installation of parts, inspection or replacement), be sure \
to read the precautionary
notices in the supplemental restraint system (See page 60±1).
3. HANDLING PRECAUTIONS ON STEERING COLUMN
(a) Do not give an impact to the steering column assy, especially the motor and the torque sensor. If a great impact is given (dropping it to the floor, etc.), replace it with a new one.
(b) When removing the steering column assy, do not pull the harness.
(c) When having replaced the steering column assy and/or the ECU, calibrate the \
zero point of the steer- ing torque sensor.
(d) In the case of disconnecting a connector related to the power steering sys\
tem, turn the ignition switch ON, set the steering wheel in the straight±ahead position and turn th\
e ignition switch OFF before dis-
connecting the connector.
(e) In the case of connecting a connector related to the power steering system, make sure that the ignit\
ion switch is OFF at first. After connecting the connector, set the steering wheel assy in the straight±ahead
position, and then turn the ignition switch ON.
NOTICE:
Never turn on the ignition switch when the steering wheel assy is set in orde\
r than the straight±ahead
position.
(f) If the above operation is not done, the zero point of the steering torque \
sensor is shifted away from the proper position, making difference in the steering effort between right and left. If this happens, per-
form the zero point calibration of the steering torque sensor (See page 05±1042).
http://vnx.su

550RQ±02
55±6
±
HEATER & AIR CONDITIONER AIR CONDITIONING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers \
indicate the priority of the likely
cause of the problem. Check each part in order. If necessary, replace these parts.
SymptomSuspect AreaSee page
Whole functions of the A/C system does not operate.
4. ECU±B fuse
5. A/C amplifier assy
6. Wire harness or connector±
55±3 ±
Air Flow Control : No blower operation
1. Blower resistor
2. Heater relay
3. Blower w/ fan motor sub±assy
4. A/C amplifier assy
5. Wire harness or connector55±7
55±7
55±7
55±3±
Air Flow Control : No blower control
1. Blower w/fan motor sub±assy
2. Blower resistor
3. A/C amplifier assy
4. Wire harness or connector55±7
55±7
55±3
±
Air Flow Control : Insufficient air out
1. Blower w/fan motor sub±assy
2. Blower resistor
3. A/C amplifier assy
4. Wire harness or connector55±7
55±7
55±3±
Temperature Control : No cool air comes out
1. Volume of refrigerant
2. Drive belt tension
3. Refrigerant pressure
4. Cooler compressor assy
5. Pressure sensor
6. Condenser fan
7. Air mix damper servo sub±assy
8. A/C amplifier assy
9. Wire harness or connector55±24
55±46
55±2455±7
55±3 ±
55±7
55±3 ±
Temperature Control : No warm air comes out
1. Engine coolant volume
2. Cooler thermistor No.1
3. Air mix damper servo sub±assy
4. A/C amplifier assy
5. Heater radiator unit sub±assy
6. Wire harness or connector55±7
55±3
55±7
55±3±
±
Temperature Control : Output air is warmer or cooler than the set
temperature or response is slow.1. A/C amplifier assy
2. Air mix damper servo sub±assy
3. Air mix level55±3
55±7
±
Temperature Control : No temperature control
1. A/C amplifier assy
2. Air mix damper servo sub±assy
3. Air mix level55±3
55±7±
No air inlet control
1. Recirculation damper servo sub±assy
2. A/C amplifier assy
3. Wire harness or connector55±7
55±3±
No air outlet control
1. A/C amplifier assy
2. Mode damper servo sub±assy
3. Mode lever55±3
55±7±
Engine idle up does not occur, or is continuous
1. Idle up switch
2. Cooler compressor assy
3. A/C amplifier assy
4. Wire harness or connector55±7
55±7
55±3±
Brightness does not changes when rheostat volume or light con-
trol switch it turned.1. Illumination light system
2. A/C amplifier assy
3. Wire harness or connector±
55±3 ±
http://vnx.su

650NC±02
±

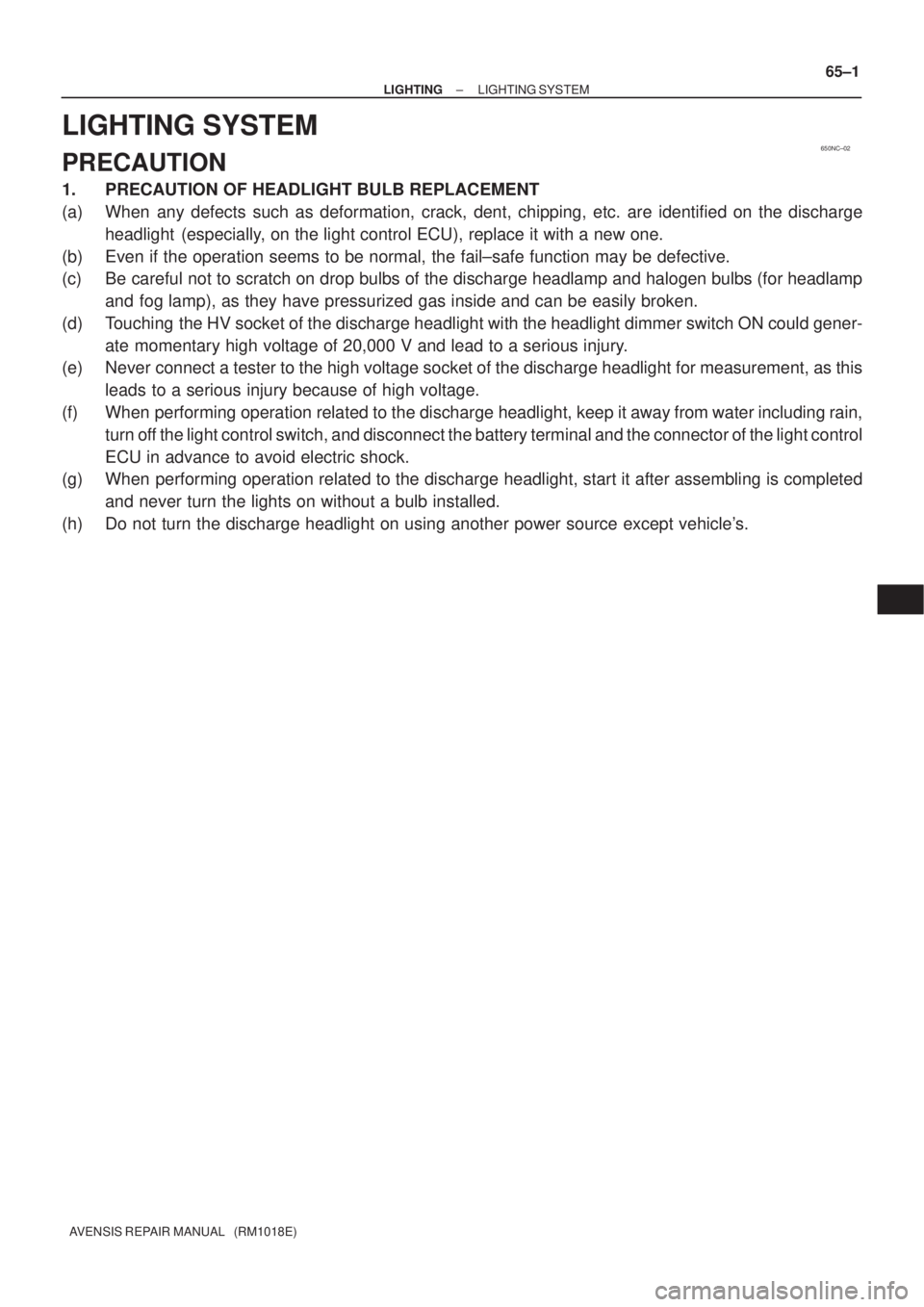

LIGHTING LIGHTING SYSTEM
65±1
AVENSIS REPAIR MANUAL (RM1018E)
LIGHTING SYSTEM
PRECAUTION
1. PRECAUTION OF HEADLIGHT BULB REPLACEMENT
(a) When any defects such as deformation, crack, dent, chipping, etc. are identi\
fied on the discharge
headlight (especially, on the light control ECU), replace it with a new one.
(b) Even if the operation seems to be normal, the fail±safe function may \
be defective.
(c) Be careful not to scratch on drop bulbs of the discharge headlamp and halo\
gen bulbs (for headlamp and fog lamp), as they have pressurized gas inside and can be easily broke\
n.
(d) Touching the HV socket of the discharge headlight with the headlight dimmer swit\
ch ON could gener- ate momentary high voltage of 20,000 V and lead to a serious injury.
(e) Never connect a tester to the high voltage socket of the discharge headlight \
for measurement, as this
leads to a serious injury because of high voltage.
(f) When performing operation related to the discharge headlight, keep it away from water including rain, turn off the light control switch, and disconnect the battery terminal and the \
connector of the light control
ECU in advance to avoid electric shock.
(g) When performing operation related to the discharge headlight, start it after\
assembling is completed
and never turn the lights on without a bulb installed.
(h) Do not turn the discharge headlight on using another power source except\
vehicle's.
http://vnx.su

700TJ±01
B56435
Slide
B61414
Slide
B66957
Butyl TapeMirror Base
a
b
c
d
70±64
±
WINDSHIELD/WINDOWGLASS/MIRROR INNER REAR VIEW MIRROR ASSY
AVENSIS REPAIR MANUAL (RM1018E)
INNER REAR VIEW MIRROR ASSY
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated. 1. REMOVE INNER REAR VIEW MIRROR ASSY(EC MIRROR)
(a) Remove the inner rear view mirror cover.
(b) Remove the rain sensor covers (See page XX±XXX).
(c) Remove the screw.
(d) Disconnect the connector.
(e) Remove the rear view inner mirror.
2. REMOVE INNER REAR VIEW MIRROR ASSY (NORMAL MIRROR)
(a) Remove the inner rear view mirror, as shown in the il- lustration.
3. INSTALL INNER REAR VIEW MIRROR ASSY (NORMAL MIRROR)
(a) Prepare 2 pieces of butyl tape having the dimensions, as
shown in the illustration.
(b) While extending them until they fit the length of the mirror base (24 mm, (0.944 in.)), apply them to both side of the
mirror base respectively.
(c) Install inner rear view mirror.
NOTICE:
If butyl tape spreads out of the inside groove when applied,
remove the excessive amount of tape so that it will not stick
to the glass. Dimension:
a10 mm (0.393 in.)
b4 mm (0.157 in.)
c6 mm (0.236 in.)
d24 mm (0.944 in.)
http://vnx.su

710FY±01
71±10
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)
INSTRUMENT PANEL SUB±ASSY LOWER
PRECAUTION
1. PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER
(a) Some operations in this section may affect the SRS airbags. Prior to performing the corresponding operations, read the SRS airbag NOTICE.
http://vnx.su

I34797
Lead
I34798
73±20±
THEFT DETERRENT & DOOR LOCK TRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL
AVENSIS REPAIR MANUAL (RM1018E)
(2) Connect the lead to the negative (±) terminal of the transmitter and install the battery.
(3) Connect the tester positive (+) probe to the (+) bat- tery (lithium battery) and the tester negative (±)
probe to the lead respectively.
(4) Press one of the transmission switches on the transmitter for approx. 1 second.
(5) Press the transmission switch on the transmitter
again to check the voltage.
Standard: 2.2 V or higher
HINT:

When the temperature of the battery is low, the inspection can not be made correctly.
When the outcome of the test is less than 2.2 V, conduct the test again after leaving the battery in a
place with a temperature of 18
C (64F) for more than 30 minutes.

The automatic power±off function causes the voltage of the battery to be 2.5 V or more (a vol\
tage with
no resistance applied to the battery) when 0.8 seconds have passed after \
the switch is pressed. There-
fore, make sure to read the voltage just after the switch is pressed.

Because high voltage might be shown once or twice after the battery returns to \
the specified tempera-
ture, the inspection should be made with the voltage shown after the swi\
tch is pressed at least 3 times.
(6) Disconnect the lead.
(7) Set the battery (lithium battery) in the transmitter.
http://vnx.su

Within 40 sec.
ON
LOCK
ON±LOCK operation: 1 time
Add Mode
Rewrite Mode
ON±LOCK operation: 2 times
Confirmation Mode
ON±LOCK operation: 3 times
All Clear Mode
ON±LOCK operation: 5 times
Number of ON±LOCK operations of ignition switch:
Turn ignition switch from LOCK to ON and back to LOCK at approximately
1 second intervals according to the number of times shown below.
Mode Selection:
If the number of the ON±LOCK operations of the ignition switch
is 0, 4 or 6 or more, there will be no response (power door lock and
unlock operation) to inform which mode has been selected.
Remove key from ignition key cylinder.
8.
7.
Within 3 sec.
T1
T1: Approx. 1 sec.
Continued from previous page
Continued on next page
ON
LOCK T1 T1
ON
LOCK T1 T1
ON
LOCK T1 T1
±
THEFT DETERRENT & DOOR LOCK TRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL73±23
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su

Continued from previous page
Integration relay automatically performs power door LOCK±UNLOCK opera\
tion to inform
which mode has been selected.
Response to selected mode (Power door lock operation):
UNLOCKLOCK
LOCK±UNLOCK operation: 1 time
Add Mode
Rewrite Mode Confirmation Mode
All Clear Mode
T1 T1: Approx. 1 sec.
T1 T1
T2
T2
T1 T1
LOCK±UNLOCK operation: 2 times
LOCK±UNLOCK operation: The number of registered codes (1 ± 5 times)
LOCK±UNLOCK operation: 5 times UNLOCK
LOCK
UNLOCK LOCK
UNLOCK LOCK
Continued on next page
Registration procedures are completed.
HINT:

In the confirmation mode, when LOCK±UNLOCK operation is performed twice,\
the
number of registered recognition codes is 2.

In the confirmation mode, when 0 codes are registered, LOCK±UNLOCK o\
peration
is automatically performed 5 times. T2: Approx. 2 sec.
Confirmation Mode and
All Clear ModeAdd Mode or
Rewrite Mode
Within
3 sec.
Within
40 sec.
1st time 2nd time
73±24±
THEFT DETERRENT & DOOR LOCK TRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su
