TOYOTA AVENSIS 2003 Service Repair Manual
Manufacturer: TOYOTA, Model Year: 2003, Model line: AVENSIS, Model: TOYOTA AVENSIS 2003Pages: 2234, PDF Size: 56.95 MB

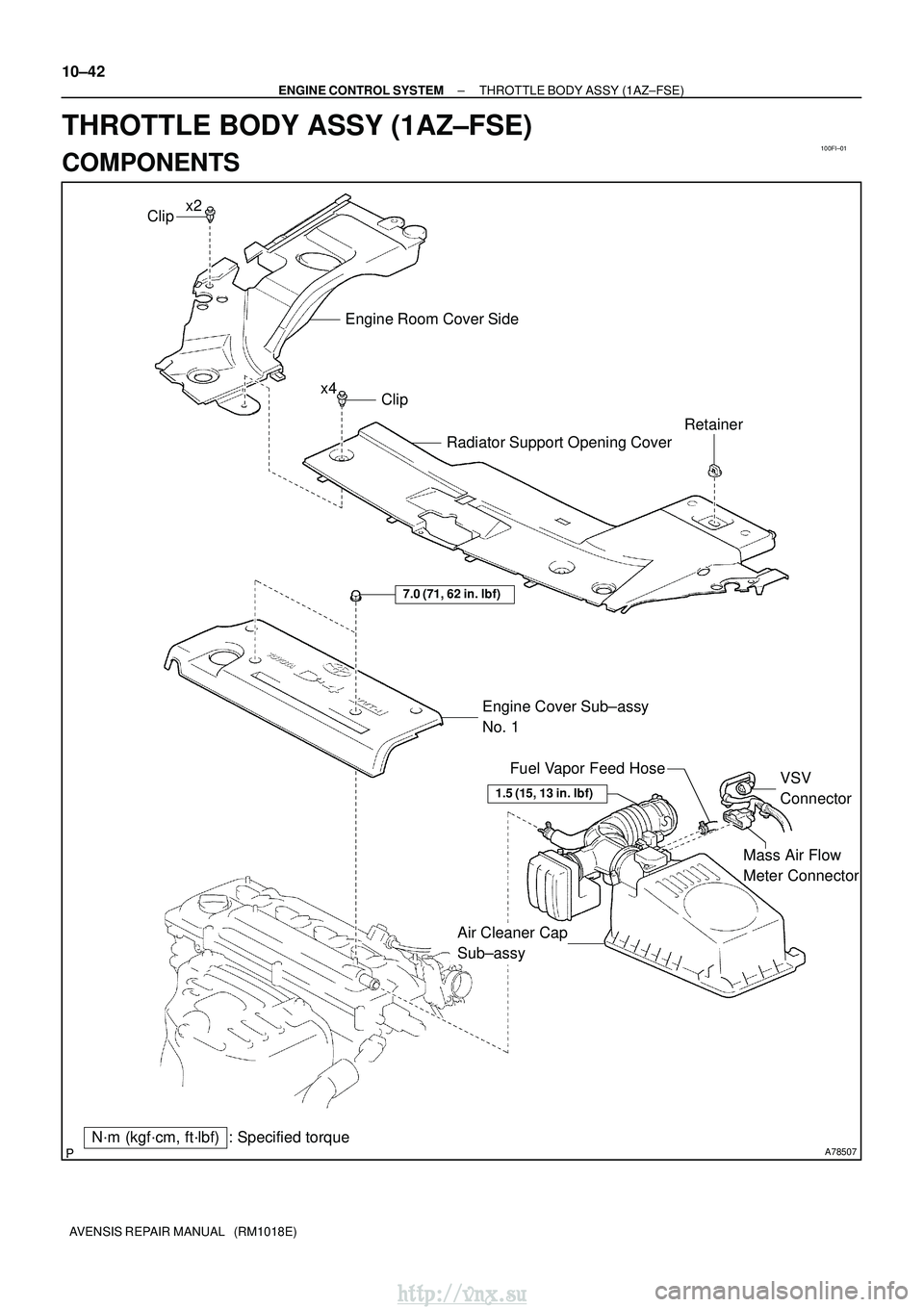

Page 291 of 2234
100FI±01
A78507
Mass Air Flow
Meter Connector
N´m (kgf´cm, ft´lbf) : Specified torqueEngine Cover Sub±assy
No. 1
7.0 (71, 62 in.
lbf)
Air Cleaner Cap
Sub±assy VSV
Connector
Fuel Vapor Feed Hose
Clip
Engine Room Cover Side
Radiator Support Opening Cover
Clip Retainer
x2
x4
1.5 (15, 13 in.lbf)
10±42
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
THROTTLE BODY ASSY (1AZ±FSE)
COMPONENTS
http://vnx.su

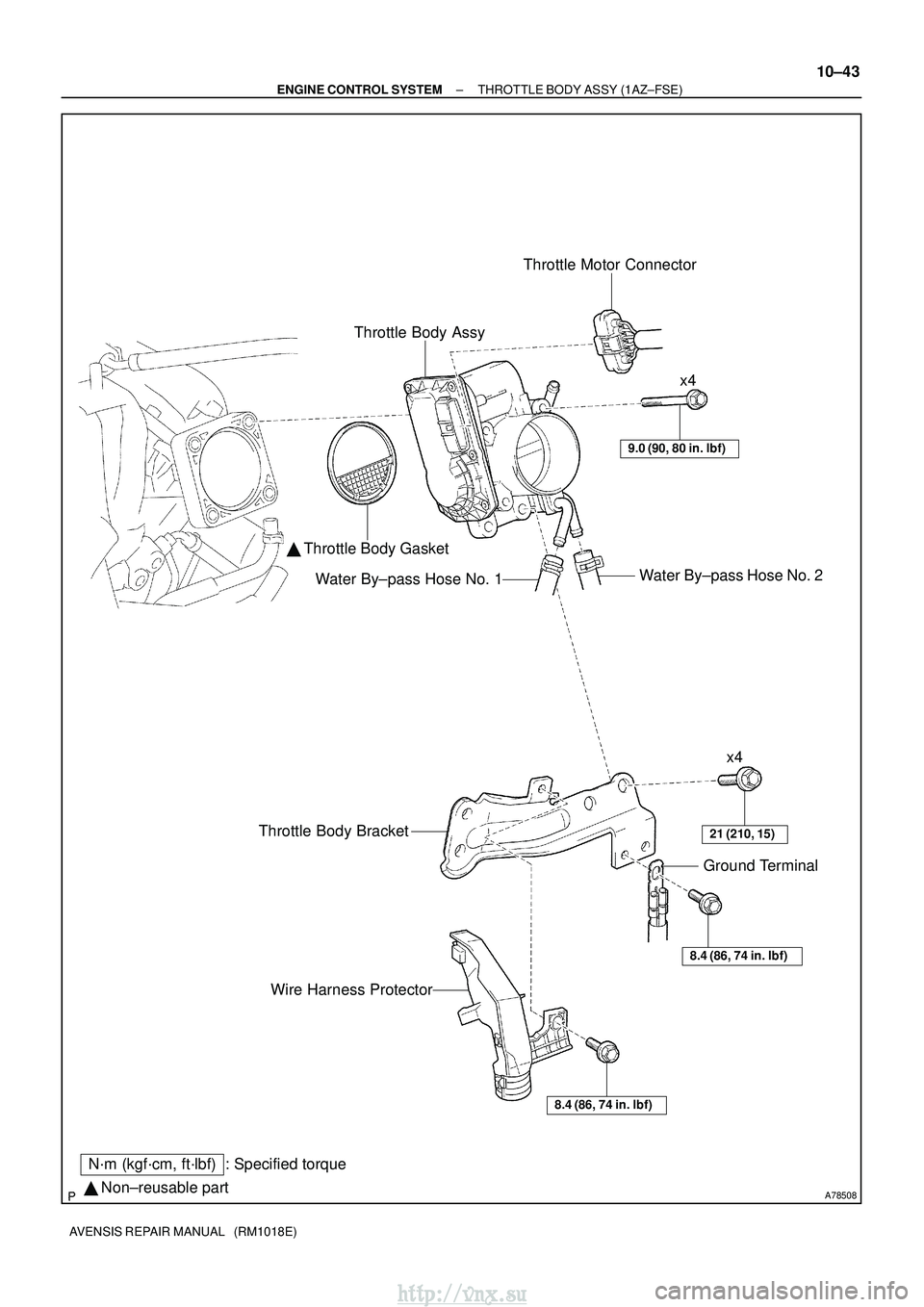

Page 292 of 2234
A78508 Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque Throttle Body Assy
Throttle Motor Connector
Throttle Body Gasket
Water By±pass Hose No. 2
Water By±pass Hose No. 1
9.0 (90, 80 in. lbf)
x4
x4
21 (210, 15)Throttle Body Bracket
8.4 (86, 74 in. lbf)
Ground Terminal
Wire Harness Protector
8.4 (86, 74 in.lbf)
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1AZ±FSE)
10±43
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su

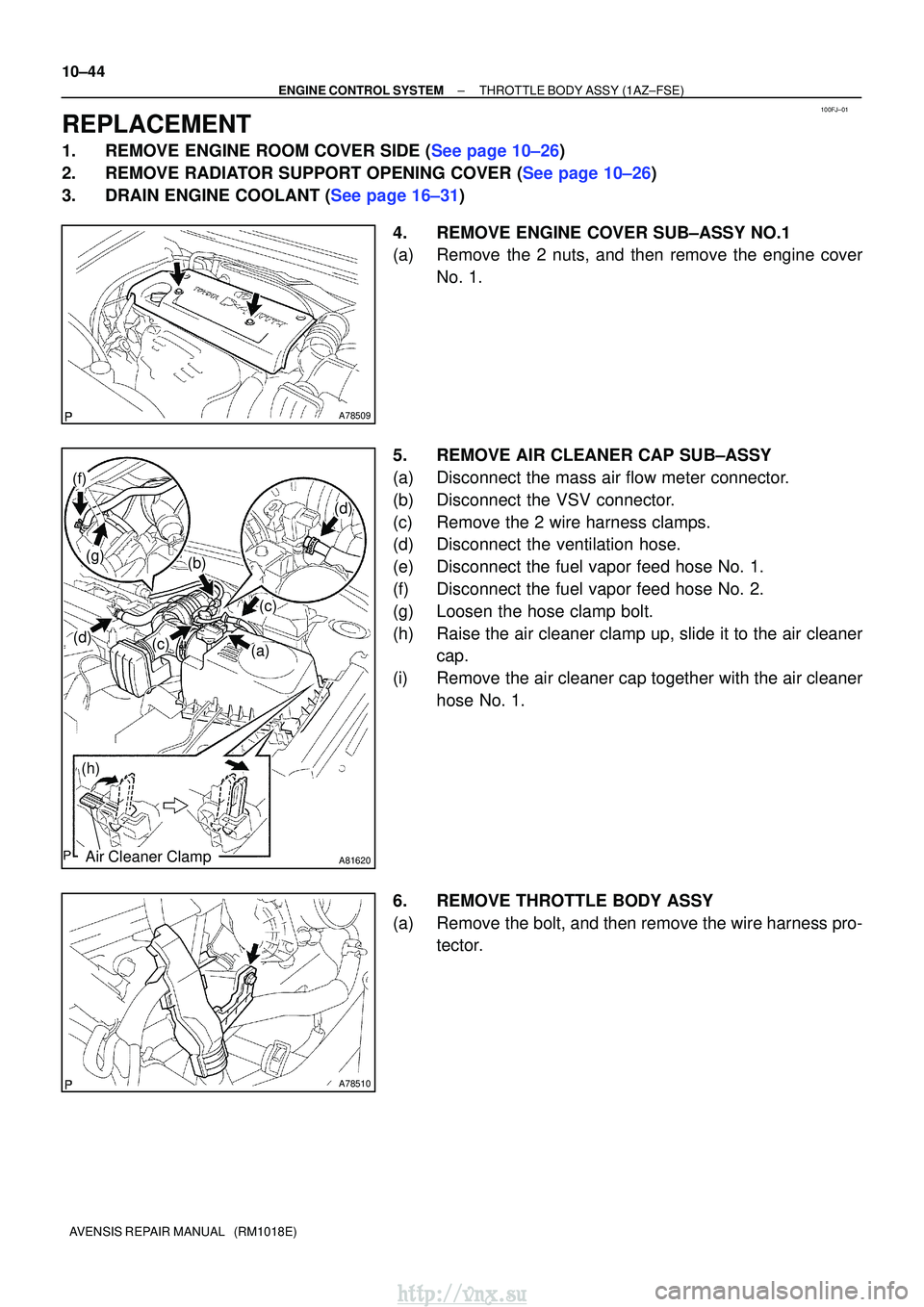

Page 293 of 2234
100FJ±01
A78509
A81620
(a)(c)
(c)
(b)
(d)
(f)
(g)
(d)
(h)
Air Cleaner Clamp
A78510
10±44
±
ENGINE CONTROL SYSTEMTHROTTLE BODY ASSY(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE ENGINE ROOM COVER SIDE (See page 10±26)
2.REMOVE RADIATOR SUPPORT OPENING COVER (See page 10±26)
3.DRAIN ENGINE COOLANT (See page 16±31) 4. REMOVE ENGINE COVER SUB±ASSY NO.1
(a) Remove the 2 nuts, and then remove the engine coverNo. 1.
5. REMOVE AIR CLEANER CAP SUB±ASSY
(a) Disconnect the mass air flow meter connector.
(b) Disconnect the VSV connector.
(c) Remove the 2 wire harness clamps.
(d) Disconnect the ventilation hose.
(e) Disconnect the fuel vapor feed hose No. 1.
(f) Disconnect the fuel vapor feed hose No. 2.
(g) Loosen the hose clamp bolt.
(h) Raise the air cleaner clamp up, slide it to the air cleaner cap.
(i) Remove the air cleaner cap together with the air cleaner hose No. 1.
6. REMOVE THROTTLE BODY ASSY
(a) Remove the bolt, and then remove the wire harness pro- tector.
http://vnx.su

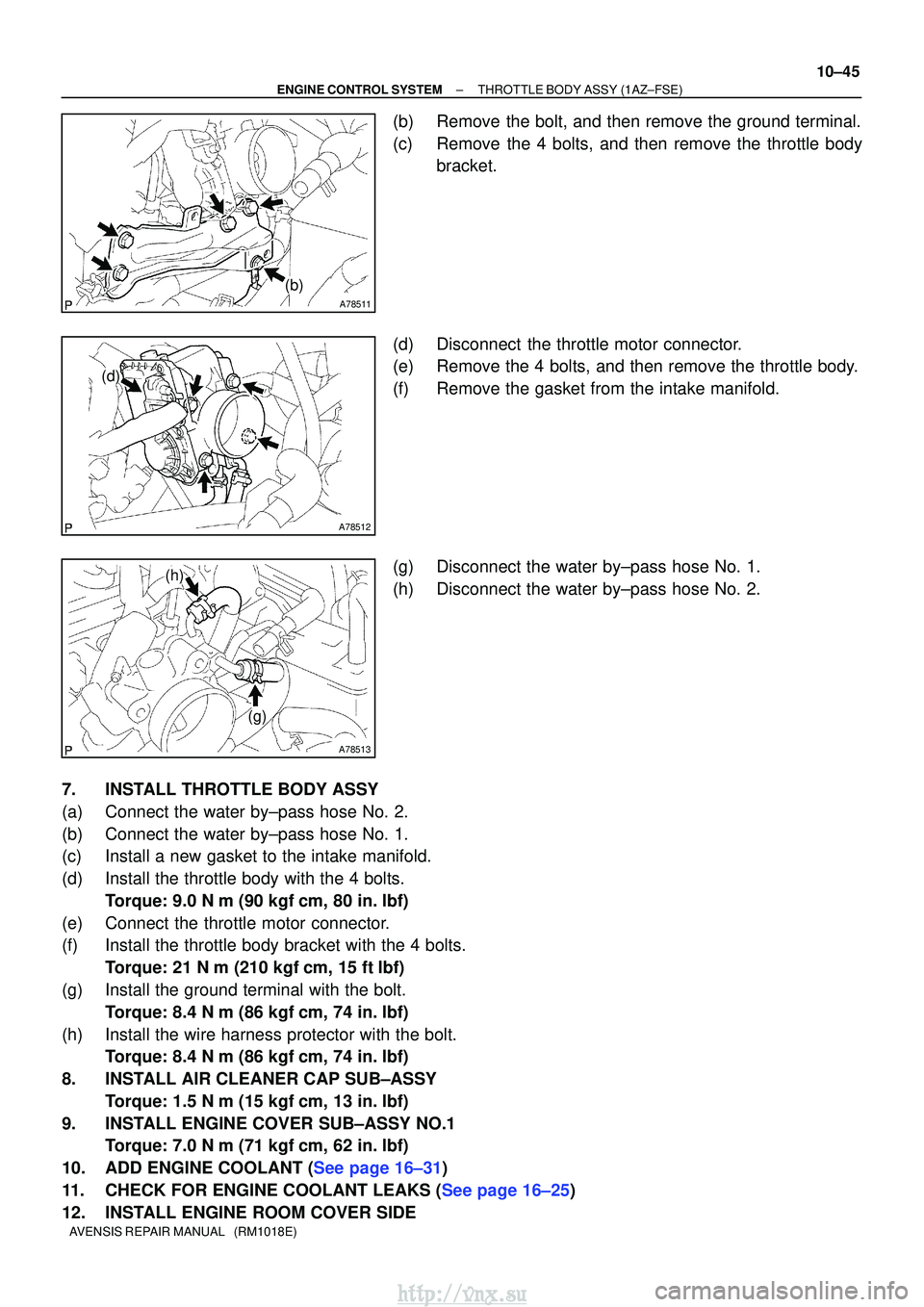

Page 294 of 2234
A78511
(b)
A78512
(d)
A78513
(g)
(h)
±
ENGINE CONTROL SYSTEMTHROTTLE BODY ASSY(1AZ±FSE)
10±45
AVENSIS REPAIR MANUAL (RM1018E)
(b)Remove the bolt, and then remove the ground terminal.
(c)Remove the 4 bolts, and then remove the throttle body
bracket.
(d)Disconnect the throttle motor connector.
(e)Remove the 4 bolts, and then remove the throttle body.
(f)Remove the gasket from the intake manifold.
(g)Disconnect the water by±pass hose No. 1.
(h)Disconnect the water by±pass hose No. 2.
7.INSTALL THROTTLE BODY ASSY
(a)Connect the water by±pass hose No. 2.
(b)Connect the water by±pass hose No. 1.
(c)Install a new gasket to the intake manifold.
(d)Install the throttle body with the 4 bolts. Torque: 9.0 N m (90 kgfcm, 80 in. lbf)
(e)Connect the throttle motor connector.
(f)Install the throttle body bracket with the 4 bolts. Torque: 21 N m (210 kgfcm, 15 ftlbf)
(g)Install the ground terminal with the bolt. Torque: 8.4 N m (86 kgfcm, 74 in. lbf)
(h)Install the wire harness protector with the bolt. Torque: 8.4 N m (86 kgfcm, 74 in. lbf)
8.INSTALL AIR CLEANER CAP SUB±ASSY Torque: 1.5 N m (15 kgfcm, 13 in. lbf)
9.INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N m (71 kgfcm, 62 in. lbf)
10.ADD ENGINE COOLANT (See page 16±31)
11.CHECK FOR ENGINE COOLANT LEAKS (See page 16±25)
12. INSTALL ENGINE ROOM COVER SIDE
http://vnx.su

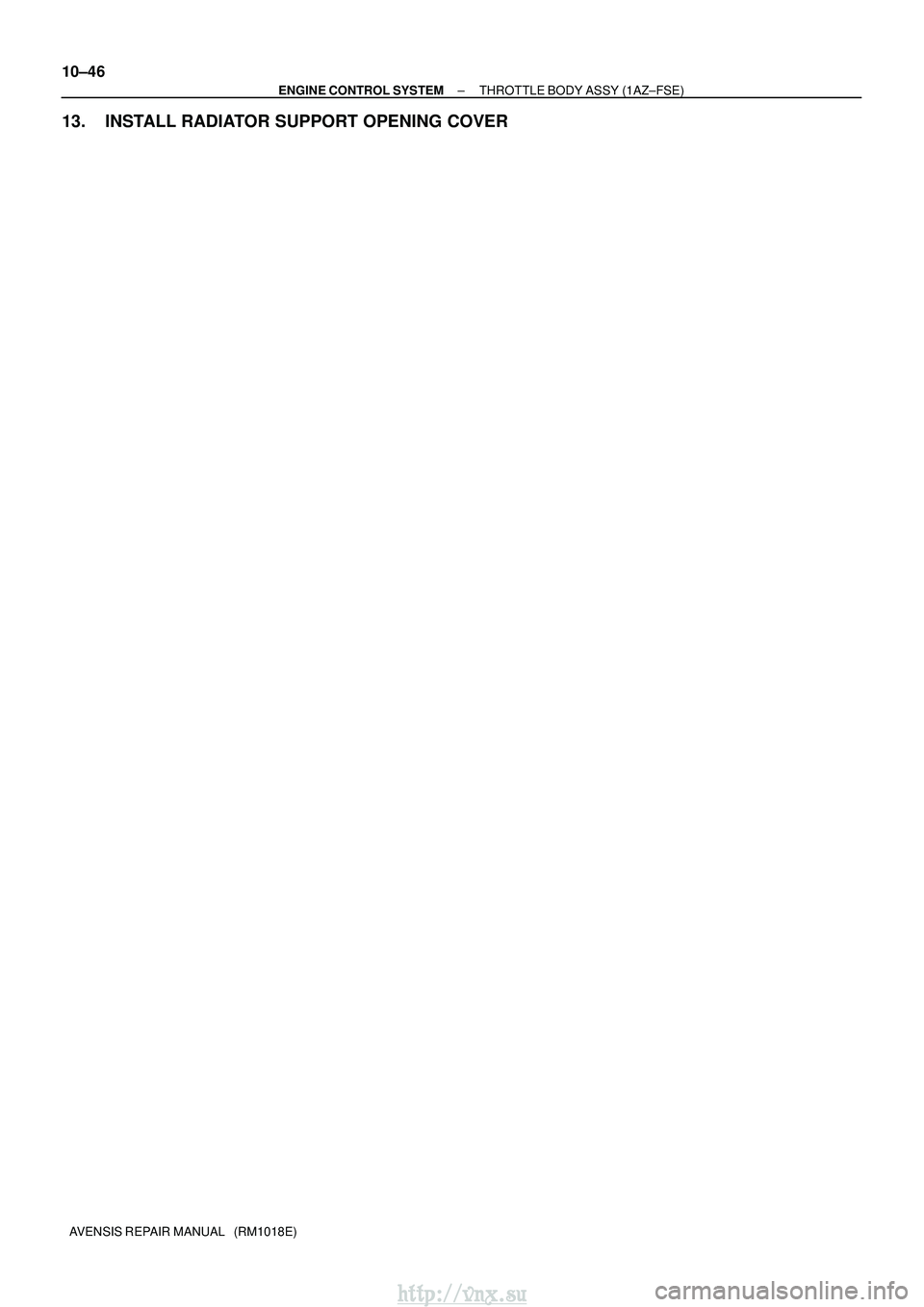

Page 295 of 2234
10±46
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
13. INSTALL RADIATOR SUPPORT OPENING COVER
http://vnx.su

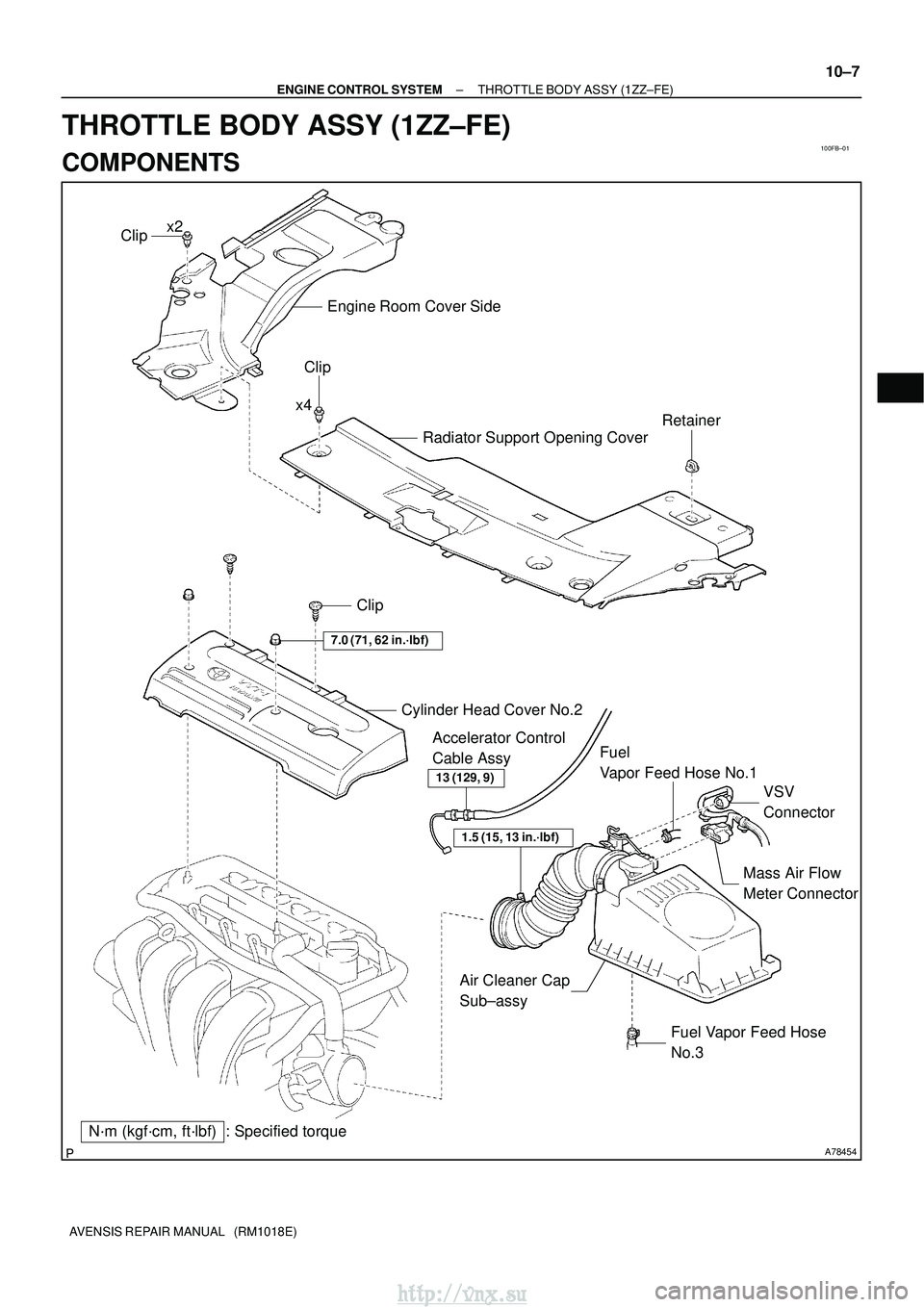

Page 296 of 2234
100FB±01
A78454
N´m (kgf´cm, ft´lbf) : Specified torqueClip
Cylinder Head Cover No.2Fuel
Vapor Feed Hose No.1VSV
Connector
Mass Air Flow
Meter Connector
Accelerator Control
Cable Assy
Fuel Vapor Feed Hose
No.3
Engine Room Cover Side
Radiator Support Opening Cover
Clip Retainer
7.0 (71, 62 in.´lbf)
Clip
1.5 (15, 13 in.´lbf)
13 (129, 9)
Air Cleaner Cap
Sub±assy
x2
x4
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1ZZ±FE)
10±7
AVENSIS REPAIR MANUAL (RM1018E)
THROTTLE BODY ASSY (1ZZ±FE)
COMPONENTS
http://vnx.su

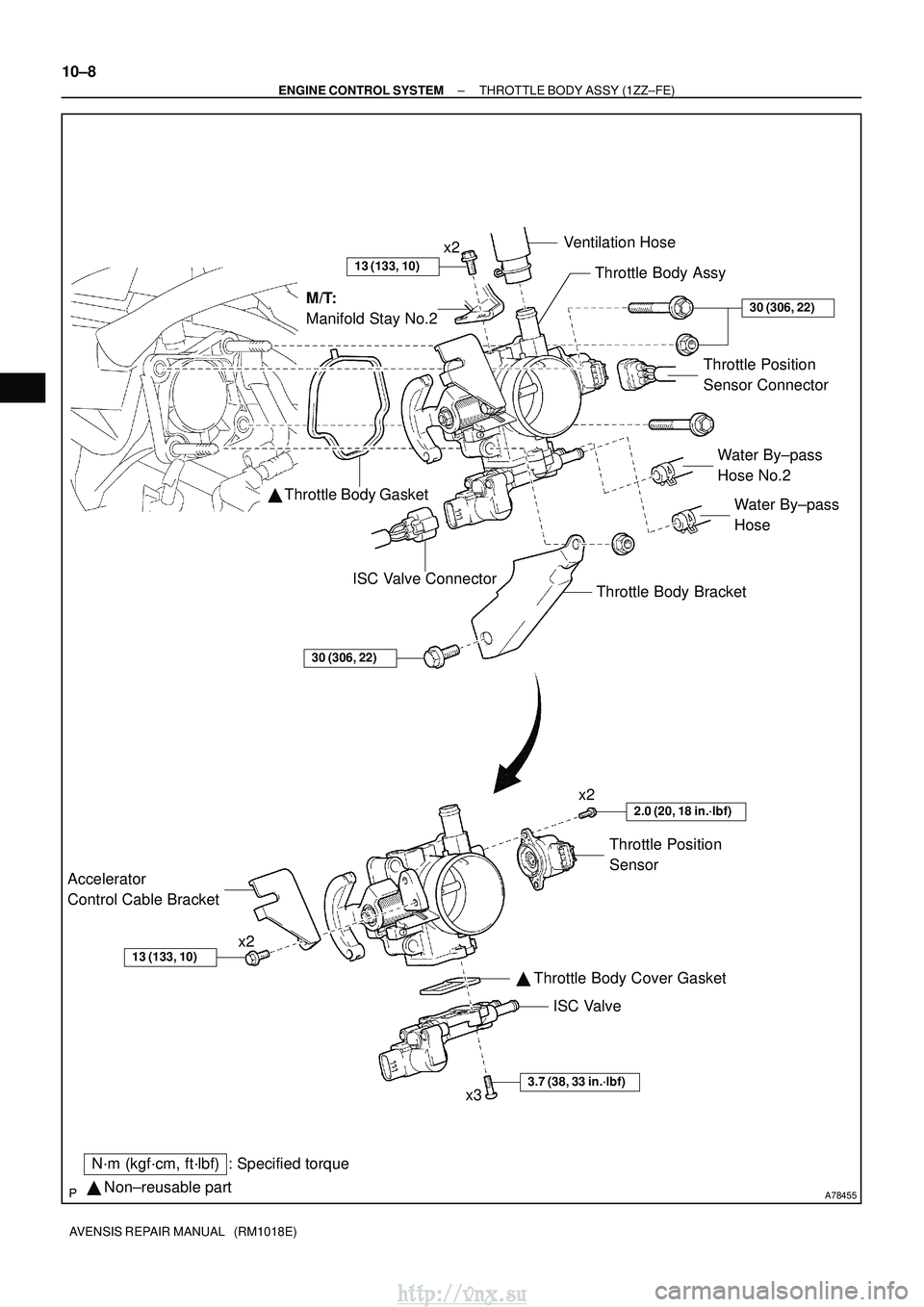

Page 297 of 2234
A78455
Throttle Body Gasket
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque ISC Valve
Throttle Body Cover Gasket
Accelerator
Control Cable Bracket
Throttle Position
SensorWater By±pass
Hose
Water By±pass
Hose No.2
Throttle Body Bracket
ISC Valve Connector Throttle Body Assy
M/T:
Manifold Stay No.2 Ventilation Hose
Throttle Position
Sensor Connector
13 (133, 10)
30 (306, 22)
30 (306, 22)
3.7 (38, 33 in.´lbf)
2.0 (20, 18 in.´lbf)
13 (133, 10)
x3
x2
x2
x2
10±8
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su

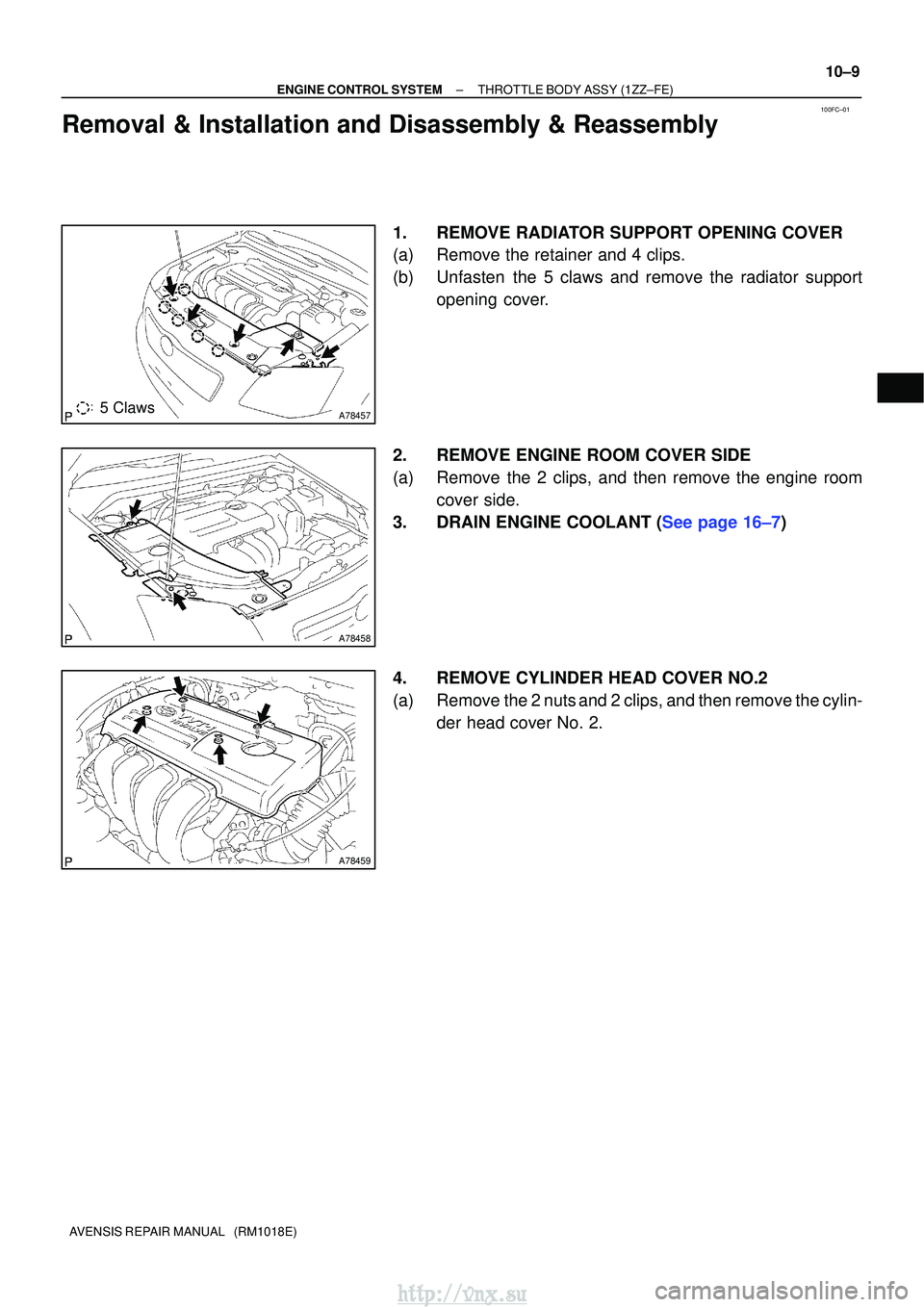

Page 298 of 2234
100FC±01
A784575 Claws
A78458
A78459
±
ENGINE CONTROL SYSTEMTHROTTLE BODY ASSY(1ZZ±FE)
10±9
AVENSIS REPAIR MANUAL (RM1018E)
Removal & Installation and Disassembly & Reassembly
1.REMOVE RADIATOR SUPPORT OPENING COVER
(a)Remove the retainer and 4 clips.
(b)Unfasten the 5 claws and remove the radiator support
opening cover.
2.REMOVE ENGINE ROOM COVER SIDE
(a)Remove the 2 clips, and then remove the engine room cover side.
3.DRAIN ENGINE COOLANT (See page 16±7)
4. REMOVE CYLINDER HEAD COVER NO.2
(a) Remove the 2 nuts and 2 clips, and then remove the cylin- der head cover No. 2.
http://vnx.su
Page 299 of 2234
A78460
(a)
(b)(c)
(c)
(d)
(e)
(f)
(g)
(h)
Air Cleaner clamp
A78461
A78462
(a)
(b)
(c)
A78463
(d)
(e)
(M/T)
10±10
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
5. REMOVE AIR CLEANER CAP SUB±ASSY
(a) Disconnect the mass air flow meter connector.
(b) Disconnect the VSV connector.
(c) Remove the 2 wire harness clamps.
(d) Disconnect the fuel vapor feed hose No. 1.
(e) Disconnect the fuel vapor feed hose No. 3.
(f) Remove the accelerator control cable from the accelera- tor control cable support No. 2.
(g) Loosen the hose clamp.
(h) Raise the air cleaner clamp up, slide it to the air cleaner cap.
(i) Remove the air cleaner cap together with the air cleaner
hose No. 1.
6. SEPARATE ACCELERATOR CONTROL CABLE ASSY
(a) Loosen the nut and separate the accelerator control cable.
7. REMOVE THROTTLE BODY ASSY
(a) Disconnect the water by±pass hose.
(b) Disconnect the water by±pass hose No. 2.
(c) Disconnect the ventilation hose.
(d) Disconnect the throttle position sensor connector.
(e) Disconnect the ISC valve connector.
(f) Remove the 3 bolts and 2 nuts, and then remove the throttle body bracket and the throttle body. (A/T)
(g) Remove the 5 bolts and 2 nuts, and then remove the throttle body bracket and the throttle body. (M/T)
(h) Remove the gasket from the intake manifold.
http://vnx.su

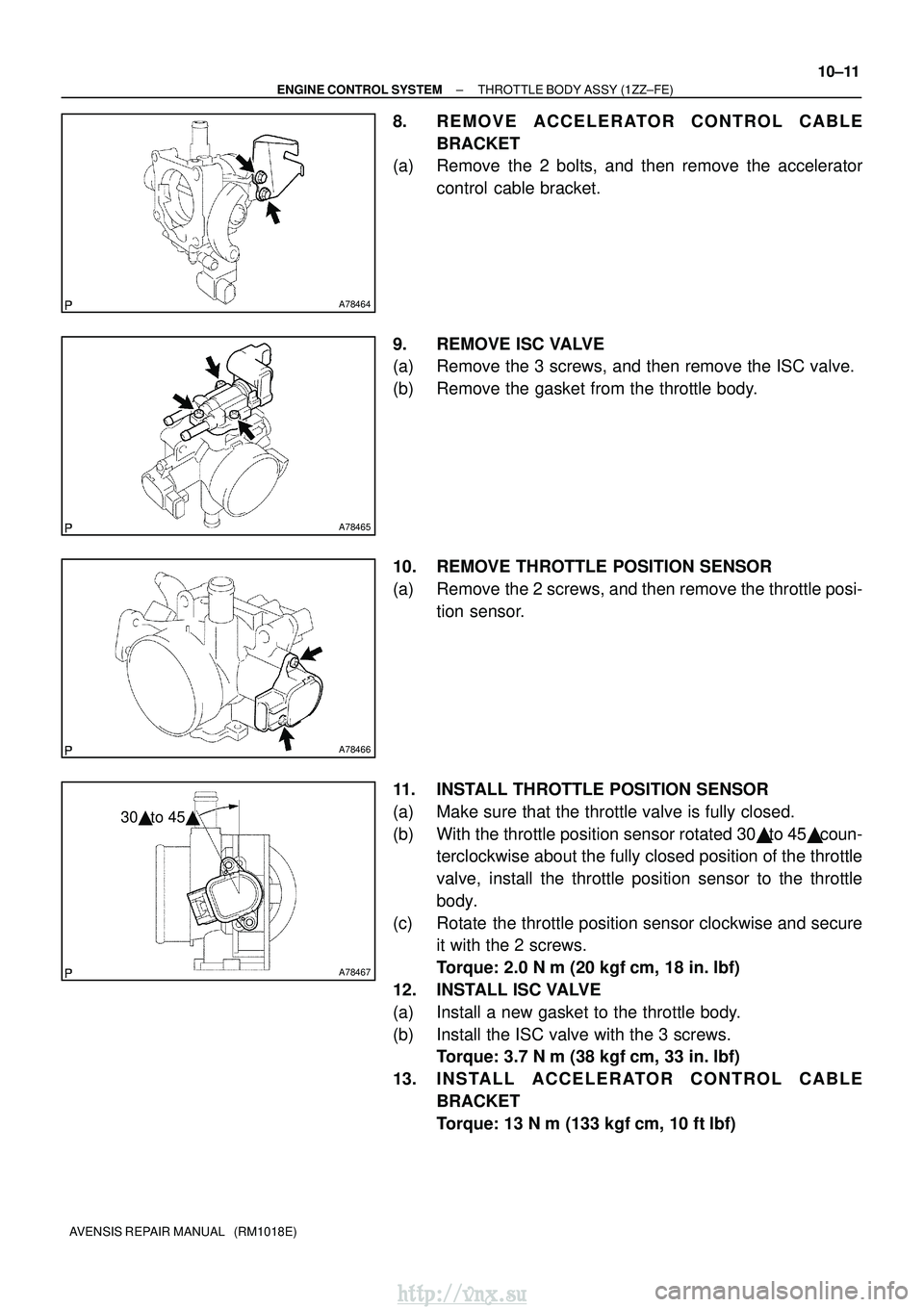

Page 300 of 2234
A78464
A78465
A78466
A78467
30 to 45
±
ENGINE CONTROL SYSTEM THROTTLE BODY ASSY (1ZZ±FE)
10±11
AVENSIS REPAIR MANUAL (RM1018E)
8. REMOVE ACCELERATOR CONTROL CABLE
BRACKET
(a) Remove the 2 bolts, and then remove the accelerator
control cable bracket.
9. REMOVE ISC VALVE
(a) Remove the 3 screws, and then remove the ISC valve.
(b) Remove the gasket from the throttle body.
10. REMOVE THROTTLE POSITION SENSOR
(a) Remove the 2 screws, and then remove the throttle posi- tion sensor.
11. INSTALL THROTTLE POSITION SENSOR
(a) Make sure that the throttle valve is fully closed.
(b) With the throttle position sensor rotated 30 to 45 coun-
terclockwise about the fully closed position of the throttle
valve, install the throttle position sensor to the throttle
body.
(c) Rotate the throttle position sensor clockwise and secure it with the 2 screws.
Torque: 2.0 N m (20 kgf cm, 18 in. lbf)
12. INSTALL ISC VALVE
(a) Install a new gasket to the throttle body.
(b) Install the ISC valve with the 3 screws. Torque: 3.7 N m (38 kgf cm, 33 in. lbf)
13. INSTALL ACCELERATOR CONTROL CABLE BRACKET
Torque: 13 N m (133 kgfcm, 10 ftlbf)
