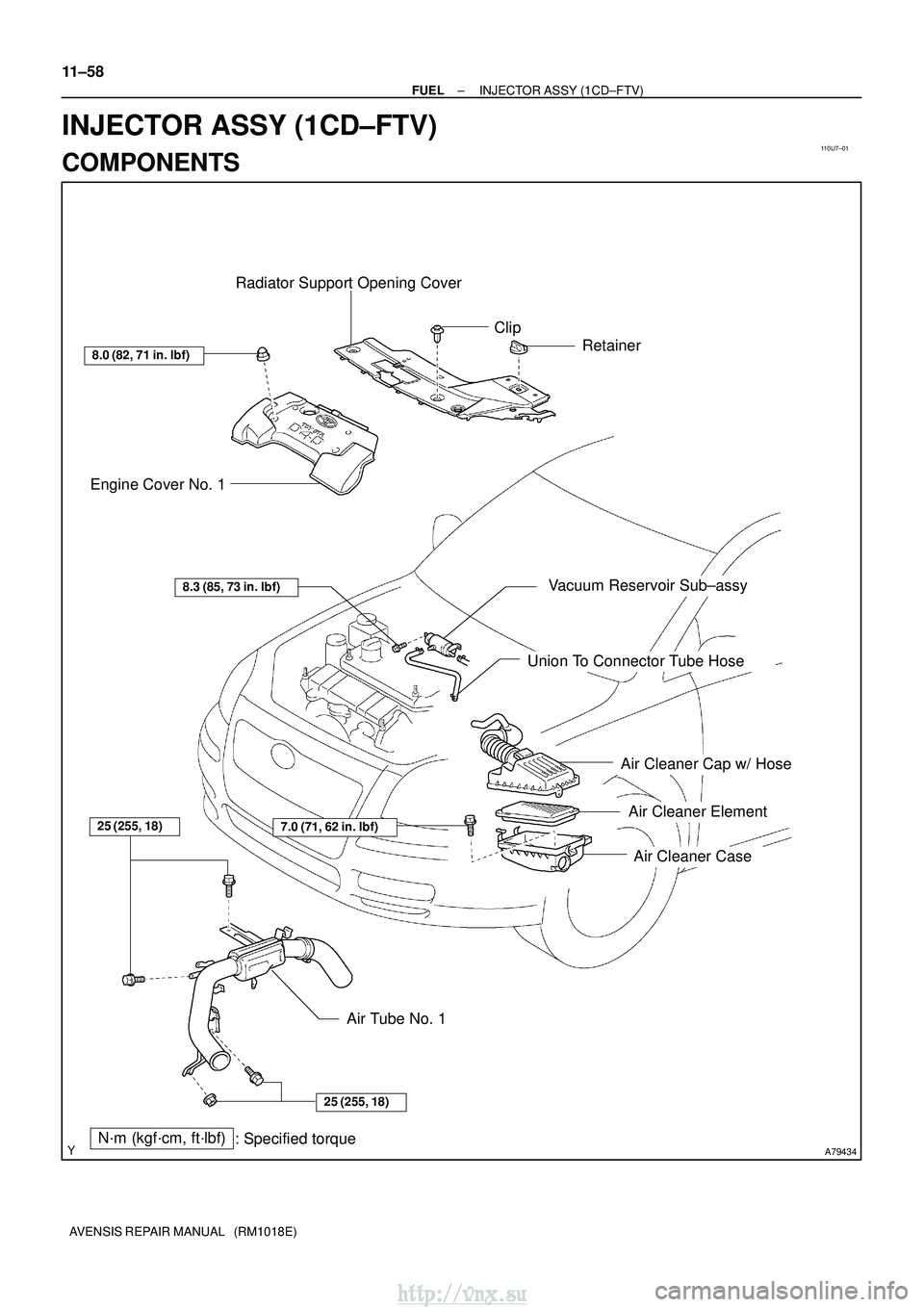

TOYOTA AVENSIS 2003 Service Repair Manual

110U7±01
A79434
Radiator Support Opening Cover
Engine Cover No. 1
Vacuum Reservoir Sub±assy
Union To Connector Tube Hose
Air Cleaner Cap w/ Hose
Air Cleaner Element
Air Cleaner Case
N´m (kgf´cm, ft´lbf) : Specified torque
8.0 (82, 71 in.
lbf)
8.3 (85, 73 in.
lbf)
7.0 (71, 62 in.
lbf)
Clip
Retainer
25 (255, 18)
Air Tube No. 1
25 (255, 18)
11±58
±
FUEL INJECTOR ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

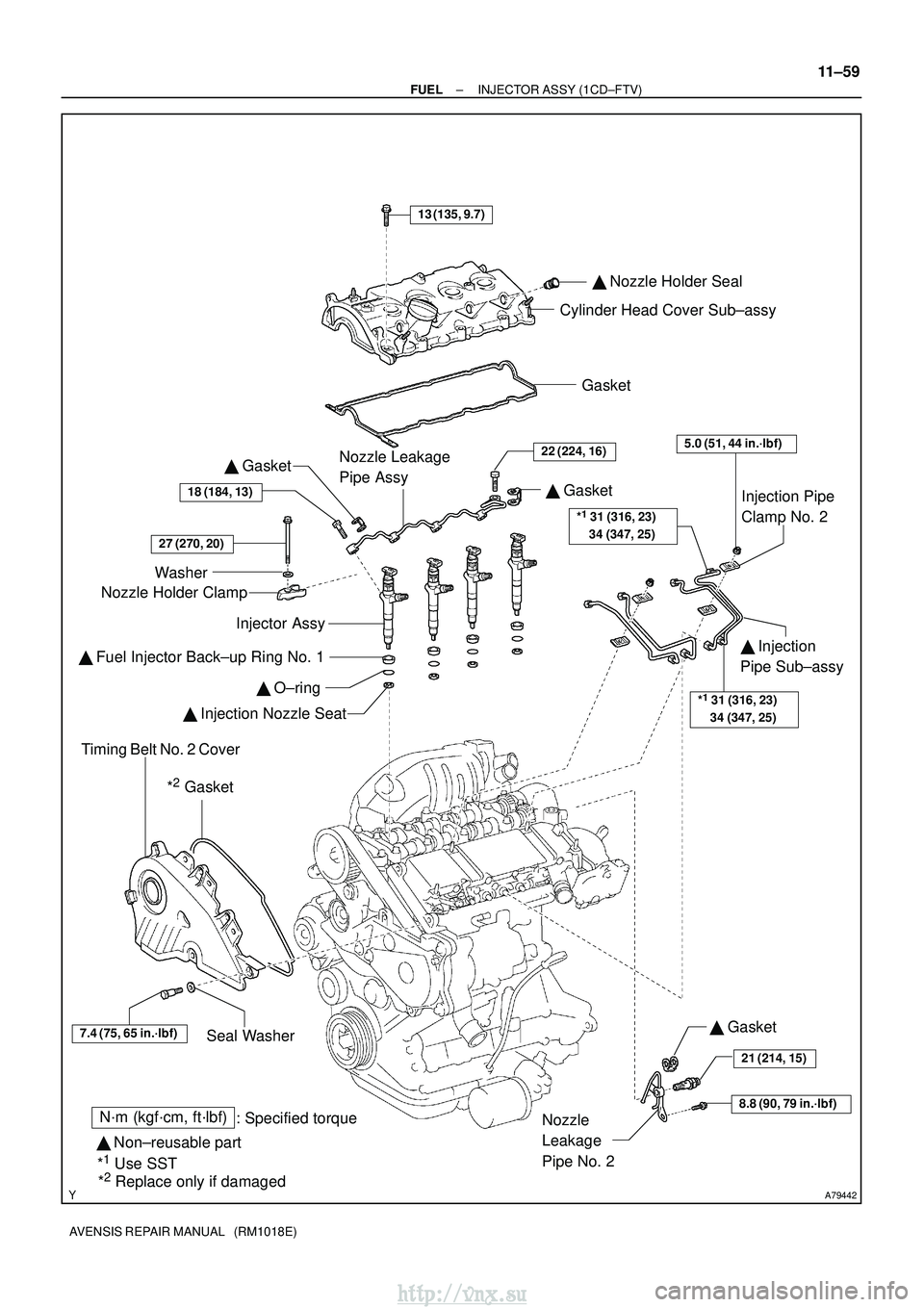

INJECTOR ASSY (1CD±FTV)
COMPONENTS
http://vnx.su

A79442
Timing Belt No. 2 CoverSeal Washer
*
2 Gasket
Injection Pipe
Clamp No. 2

Injection
Pipe Sub±assy
13 (135, 9.7)
Cylinder Head Cover Sub±assy
Gasket

Nozzle Holder Seal

Gasket

O±ring


Fuel Injector Back±up Ring No. 1

Injection Nozzle Seat
Washer
Nozzle Holder Clamp Nozzle Leakage
Pipe Assy
Injector Assy
N´m (kgf´cm, ft´lbf) : Specified torque

Non±reusable part
7.4 (75, 65 in.´lbf)
*1 31 (316, 23)
34 (347, 25)

Gasket
22 (224, 16)
18 (184, 13)
27 (270, 20)
Nozzle
Leakage
Pipe No. 2
*1 Use SST
*2 Replace only if damaged
*1 31 (316, 23)
34 (347, 25)
5.0 (51, 44 in.´lbf)

Gasket
21 (214, 15)
8.8 (90, 79 in.´lbf)
±
FUEL INJECTOR ASSY (1CD±FTV)
11±59
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su

110U8±01
A79143
SST

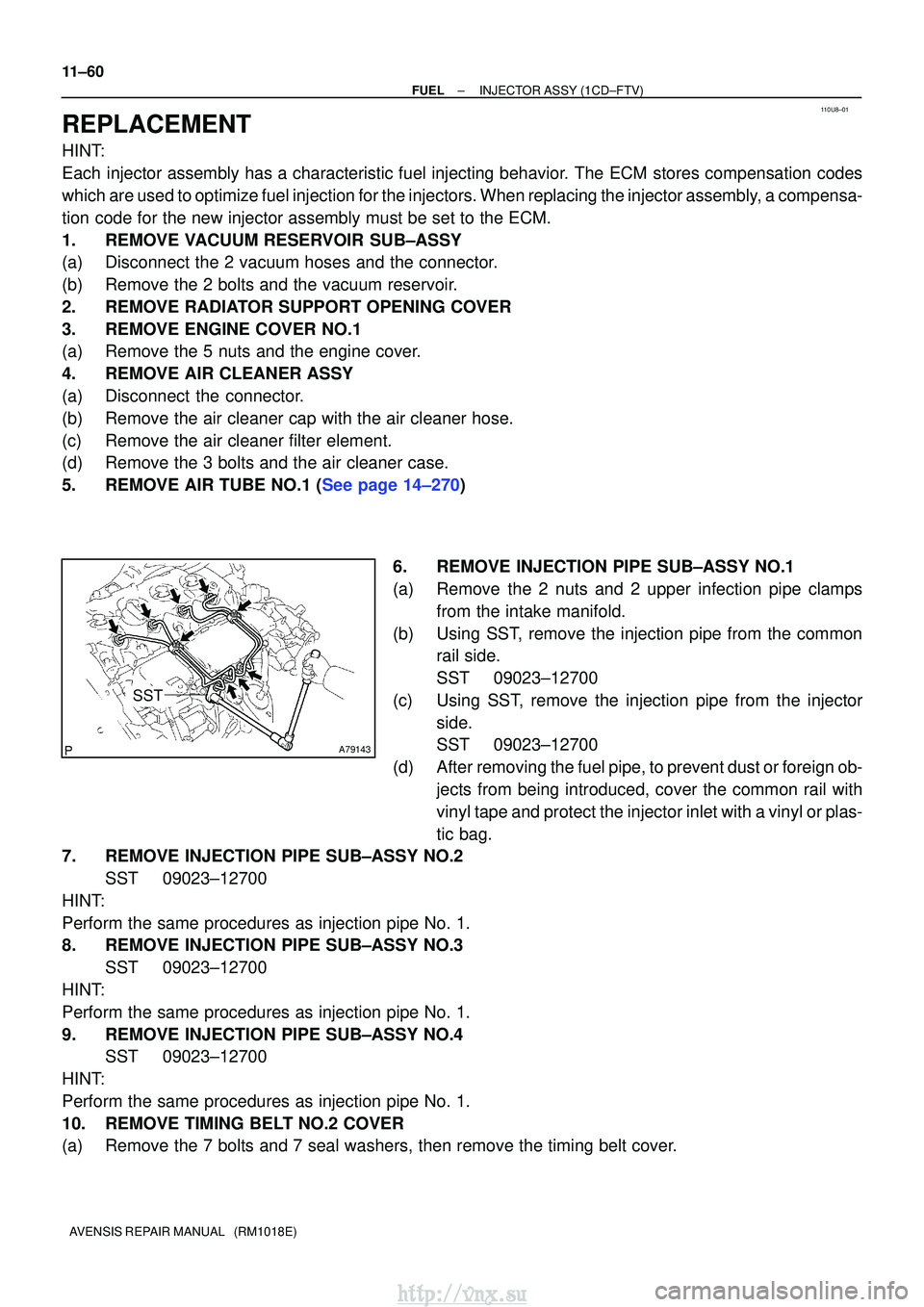

11±60
±
FUELINJECTOR ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
Each injector assembly has a characteristic fuel injecting behavior. The ECM stores compensation codes
which are used to optimize fuel injection for the injectors. When replacing t\
he injector assembly, a compensa-
tion code for the new injector assembly must be set to the ECM.
1.REMOVE VACUUM RESERVOIR SUB±ASSY
(a)Disconnect the 2 vacuum hoses and the connector.
(b)Remove the 2 bolts and the vacuum reservoir.
2.REMOVE RADIATOR SUPPORT OPENING COVER
3.REMOVE ENGINE COVER NO.1
(a)Remove the 5 nuts and the engine cover.
4.REMOVE AIR CLEANER ASSY
(a)Disconnect the connector.
(b)Remove the air cleaner cap with the air cleaner hose.
(c)Remove the air cleaner filter element.
(d)Remove the 3 bolts and the air cleaner case.
5.REMOVE AIR TUBE NO.1 (See page 14±270) 6. REMOVE INJECTION PIPE SUB±ASSY NO.1
(a) Remove the 2 nuts and 2 upper infection pipe clampsfrom the intake manifold.
(b) Using SST, remove the injection pipe from the common rail side.
SST 09023±12700
(c) Using SST, remove the injection pipe from the injector side.
SST 09023±12700
(d) After removing the fuel pipe, to prevent dust or foreign ob- jects from being introduced, cover the common rail with
vinyl tape and protect the injector inlet with a vinyl or plas-
tic bag.
7. REMOVE INJECTION PIPE SUB±ASSY NO.2
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
8. REMOVE INJECTION PIPE SUB±ASSY NO.3 SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
9. REMOVE INJECTION PIPE SUB±ASSY NO.4 SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
10. REMOVE TIMING BELT NO.2 COVER
(a) Remove the 7 bolts and 7 seal washers, then remove the timing belt cover\
.
http://vnx.su

A09656
A79144
A80110
±
FUELINJECTOR ASSY(1CD±FTV)
11±61
AVENSIS REPAIR MANUAL (RM1018E)

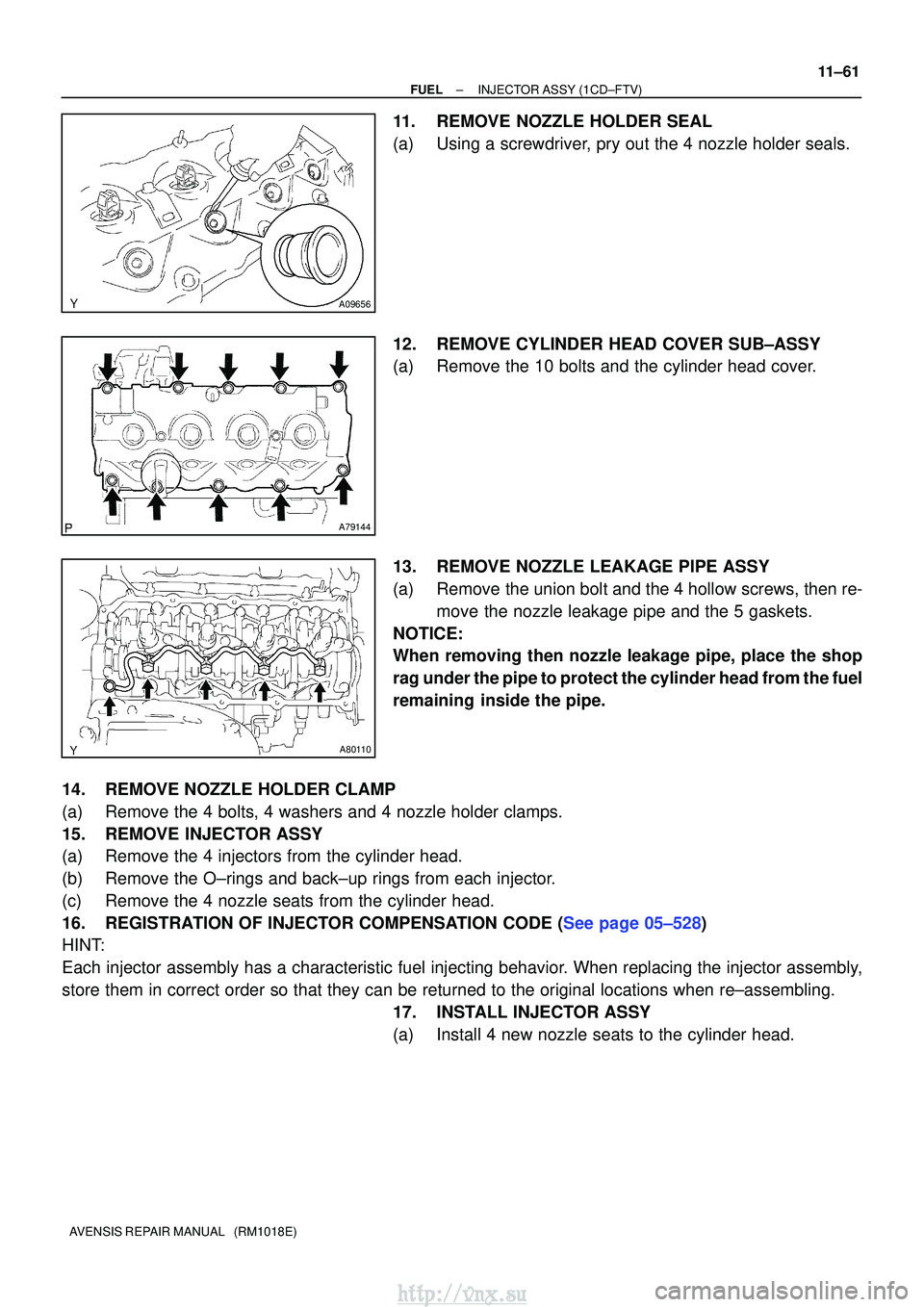

11.REMOVE NOZZLE HOLDER SEAL
(a)Using a screwdriver, pry out the 4 nozzle holder seals.
12.REMOVE CYLINDER HEAD COVER SUB±ASSY
(a)Remove the 10 bolts and the cylinder head cover.
13.REMOVE NOZZLE LEAKAGE PIPE ASSY
(a)Remove the union bolt and the 4 hollow screws, then re-
move the nozzle leakage pipe and the 5 gaskets.
NOTICE:
When removing then nozzle leakage pipe, place the shop
rag under the pipe to protect the cylinder head from the fuel
remaining inside the pipe.
14.REMOVE NOZZLE HOLDER CLAMP
(a)Remove the 4 bolts, 4 washers and 4 nozzle holder clamps.
15.REMOVE INJECTOR ASSY
(a)Remove the 4 injectors from the cylinder head.
(b)Remove the O±rings and back±up rings from each injector.
(c)Remove the 4 nozzle seats from the cylinder head.
16.REGISTRATION OF INJECTOR COMPENSATION CODE (See page 05±528)
HINT:
Each injector assembly has a characteristic fuel injecting behavior. When replacing the injector assembly,
store them in correct order so that they can be returned to the original\
locations when re±assembling. 17. INSTALL INJECTOR ASSY
(a) Install 4 new nozzle seats to the cylinder head.
http://vnx.su

A79187
O±ringBack±up ring
B08249
A80111
180

90
11±62
±
FUEL INJECTOR ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

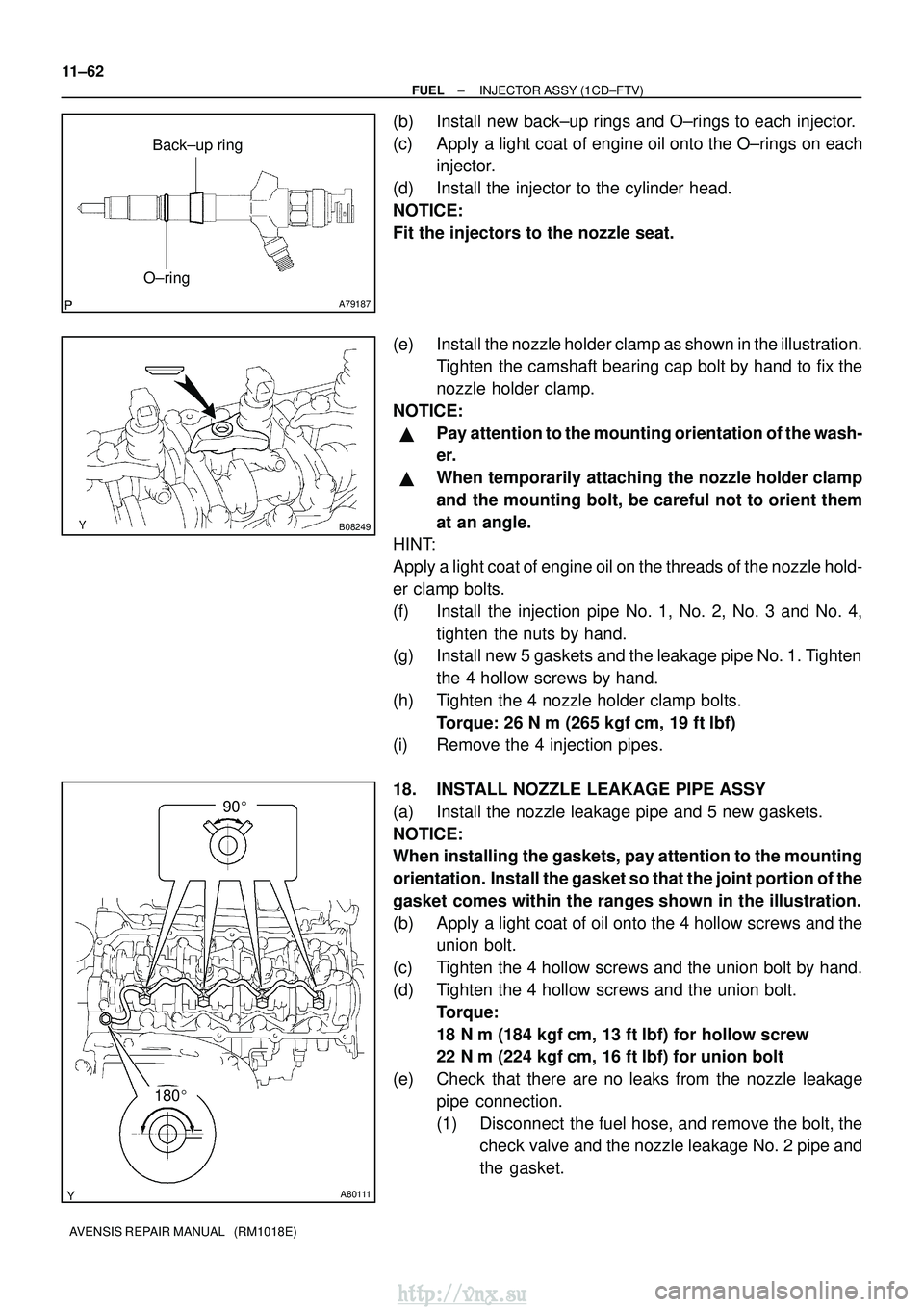

(b) Install new back±up rings and O±rings to each injector.
(c) Apply a light coat of engine oil onto the O±rings on each injector.
(d) Install the injector to the cylinder head.
NOTICE:
Fit the injectors to the nozzle seat.
(e) Install the nozzle holder clamp as shown in the illustration. Tighten the camshaft bearing cap bolt by hand to fix the
nozzle holder clamp.
NOTICE:

Pay attention to the mounting orientation of the wash-
er.

When temporarily attaching the nozzle holder clamp
and the mounting bolt, be careful not to orient them
at an angle.
HINT:
Apply a light coat of engine oil on the threads of the nozzle hold-
er clamp bolts.
(f) Install the injection pipe No. 1, No. 2, No. 3 and No. 4,
tighten the nuts by hand.
(g) Install new 5 gaskets and the leakage pipe No. 1. Tighten
the 4 hollow screws by hand.
(h) Tighten the 4 nozzle holder clamp bolts. Torque: 26 N
m (265 kgf
cm, 19 ft
lbf)
(i) Remove the 4 injection pipes.
18. INSTALL NOZZLE LEAKAGE PIPE ASSY
(a) Install the nozzle leakage pipe and 5 new gaskets.
NOTICE:
When installing the gaskets, pay attention to the mounting
orientation. Install the gasket so that the joint portion of the
gasket comes within the ranges shown in the illustration.
(b) Apply a light coat of oil onto the 4 hollow screws and the union bolt.
(c) Tighten the 4 hollow screws and the union bolt by hand.
(d) Tighten the 4 hollow screws and the union bolt. Torque:
18 N
m (184 kgf
cm, 13 ft
lbf) for hollow screw
22 N
m (224 kgf
cm, 16 ft
lbf) for union bolt
(e) Check that there are no leaks from the nozzle leakage pipe connection.
(1) Disconnect the fuel hose, and remove the bolt, thecheck valve and the nozzle leakage No. 2 pipe and
the gasket.
http://vnx.su

A80119
New Gasket
Hollow
Screw
Union
BoltSST
Nozzle Leakage
No. 2 Pipe
New Gasket
SST
A79146
Check
Valve
Nozzle Leakage
No. 2 Pipe
New Gasket
A09663
:Seal Packing
±
FUEL INJECTOR ASSY (1CD±FTV)
11±63
AVENSIS REPAIR MANUAL (RM1018E)

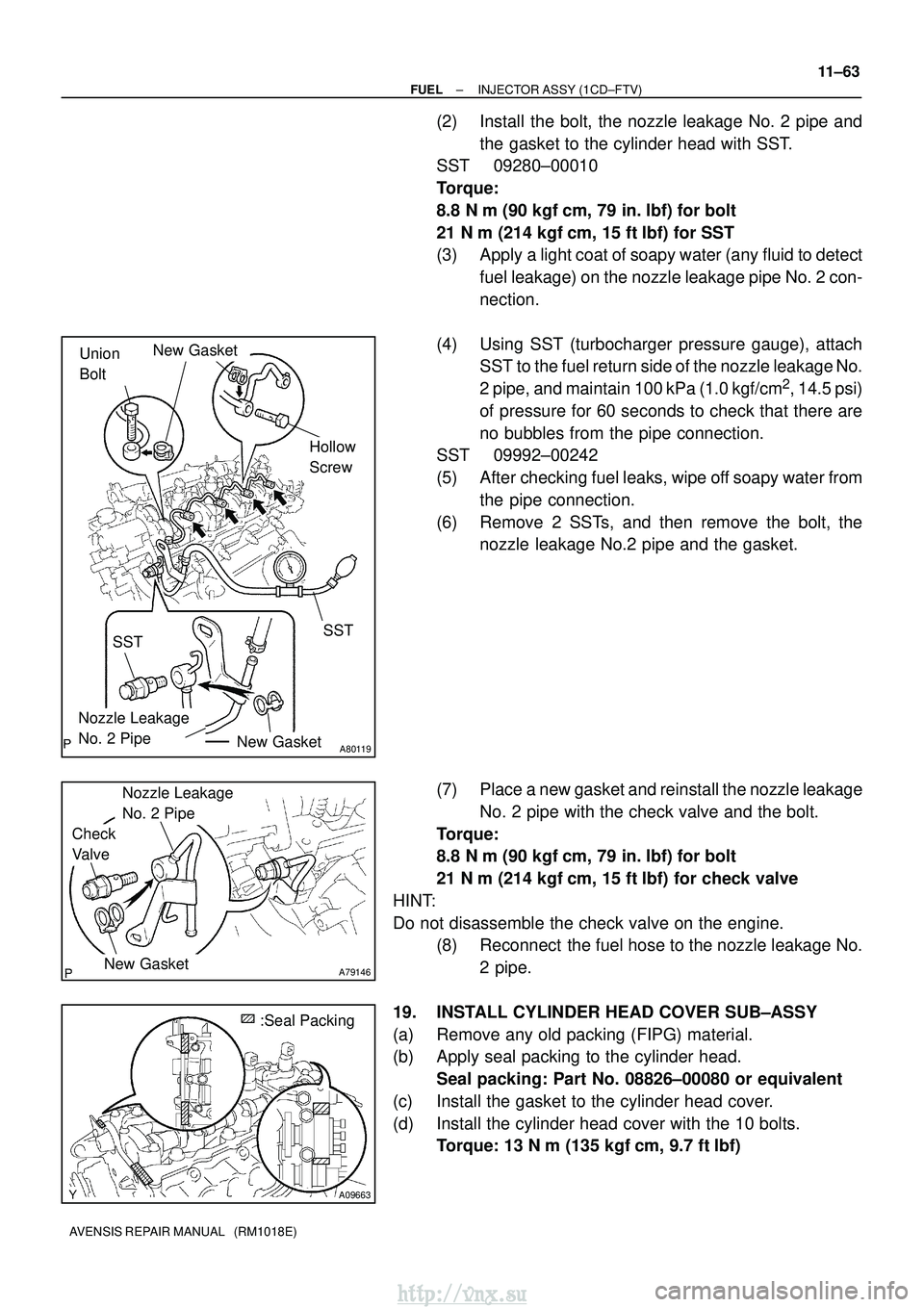

(2) Install the bolt, the nozzle leakage No. 2 pipe and
the gasket to the cylinder head with SST.
SST 09280±00010
Torque:
8.8 N
m (90 kgf
cm, 79 in.
lbf) for bolt
21 N
m (214 kgf
cm, 15 ft
lbf) for SST
(3) Apply a light coat of soapy water (any fluid to detect
fuel leakage) on the nozzle leakage pipe No. 2 con-
nection.
(4) Using SST (turbocharger pressure gauge), attach SST to the fuel return side of the nozzle leakage No.
2 pipe, and maintain 100 kPa (1.0 kgf/cm
2, 14.5 psi)
of pressure for 60 seconds to check that there are
no bubbles from the pipe connection.
SST 09992±00242
(5) After checking fuel leaks, wipe off soapy water from
the pipe connection.
(6) Remove 2 SSTs, and then remove the bolt, the nozzle leakage No.2 pipe and the gasket.
(7) Place a new gasket and reinstall the nozzle leakage No. 2 pipe with the check valve and the bolt.
Torque:
8.8 N
m (90 kgf
cm, 79 in.
lbf) for bolt
21 N
m (214 kgf
cm, 15 ft
lbf) for check valve
HINT:
Do not disassemble the check valve on the engine. (8) Reconnect the fuel hose to the nozzle leakage No.
2 pipe.
19. INSTALL CYLINDER HEAD COVER SUB±ASSY
(a) Remove any old packing (FIPG) material.
(b) Apply seal packing to the cylinder head. Seal packing: Part No. 08826±00080 or equivalent
(c) Install the gasket to the cylinder head cover.
(d) Install the cylinder head cover with the 10 bolts. Torque: 13 N
m (135 kgf
cm, 9.7 ft
lbf)
http://vnx.su

A79147
SST
30 cm
(11.81 in.)
11±64
±
FUELINJECTOR ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
20.INSTALL NOZZLE HOLDER SEAL
(a)Install new 4 nozzle holder seals.
21.INSTALL TIMING BELT NO.2 COVER(See page 14±307) 22. INSTALL INJECTION PIPE SUB±ASSY NO.1
NOTICE:

In case of having the injectors replaced, must replace
the injection pipes, too.

When assembling the pipes, perform the operation
with the engine cold under room temperature.
(a) Remove the vinyl or the plastic bag from the injector and
vinyl tape from the common rail.
(b) Temporarily install the injection pipe.
(c) Using SST, tighten the nut of the injection pipe to the com- mon rail.
SST 09023±12700
Torque:
42 N
m (428 kgf
cm, 31 ft
lbf) for a used pipe using SST
46 N
m (469 kgf
cm, 34 ft
lbf) for a used pipe not using
SST
31 N
m (316 kgf
cm, 23 ft
lbf) for a new pipe using SST
34 N
m (347 kgf
cm, 25 ft
lbf) for a new pipe not using
SST
HINT:

Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)

Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.
(d) Using SST, tighten the nut of the injection pipe to the injec- tor.
SST 09023±12700
Torque:
42 N
m (428 kgf
cm, 31 ft
lbf) for a used pipe using SST
46 N
m (469 kgf
cm, 34 ft
lbf) for a used pipe not using
SST
31 N
m (316 kgf
cm, 23 ft
lbf) for a new pipe using SST
34 N
m (347 kgf
cm, 25 ft
lbf) for a new pipe not using
SST
HINT:

Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)

Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.
(e) Install the 2 upper injection pipe clamps with the 2 nuts. Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
http://vnx.su

±
FUELINJECTOR ASSY(1CD±FTV)
11±65
AVENSIS REPAIR MANUAL (RM1018E)

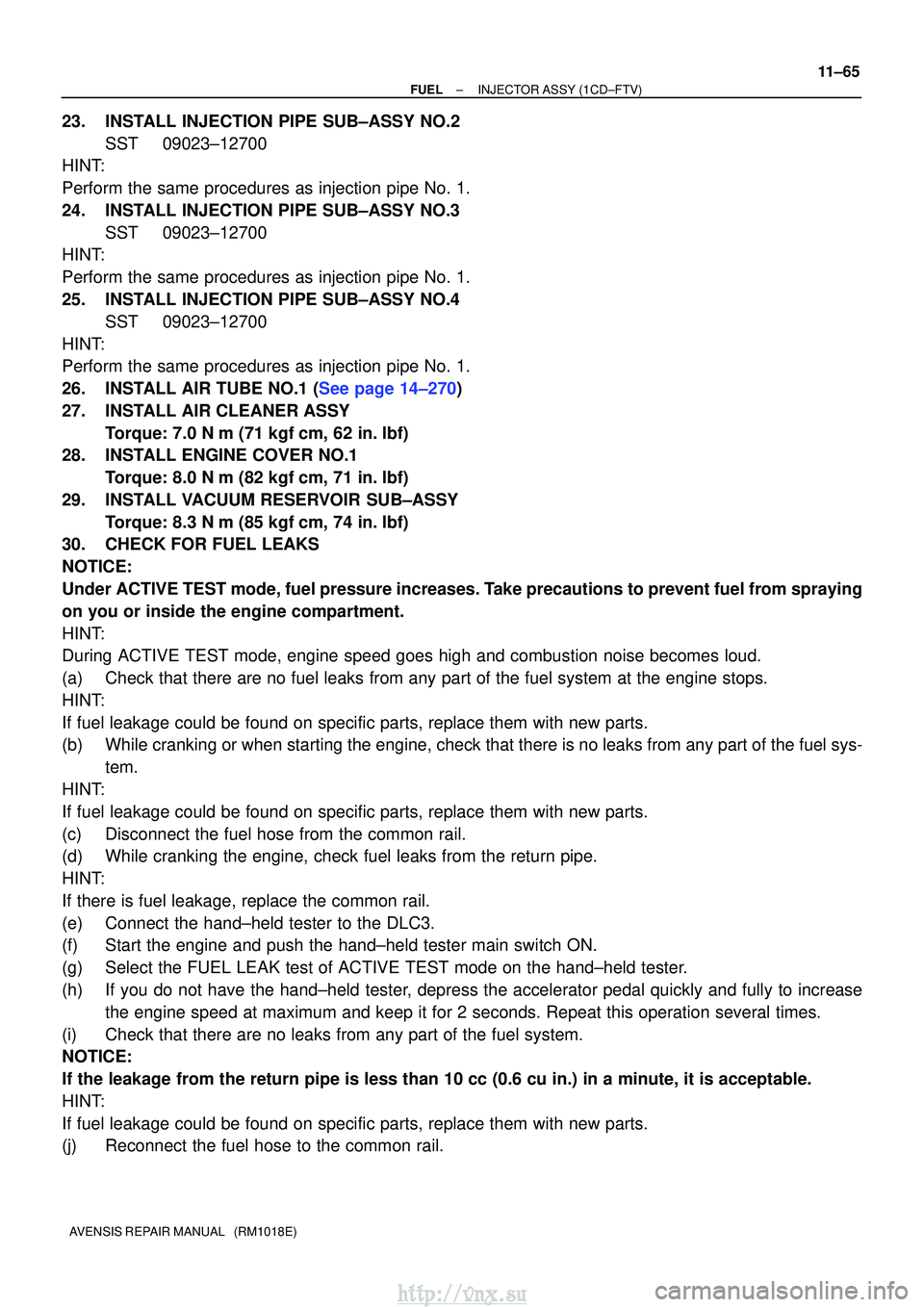

23.INSTALL INJECTION PIPE SUB±ASSY NO.2
SST09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
24.INSTALL INJECTION PIPE SUB±ASSY NO.3
SST09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
25.INSTALL INJECTION PIPE SUB±ASSY NO.4
SST09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
26.INSTALL AIR TUBE NO.1 (See page 14±270)
27. INSTALL AIR CLEANER ASSY Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
28. INSTALL ENGINE COVER NO.1
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
29. INSTALL VACUUM RESERVOIR SUB±ASSY Torque: 8.3 N
m (85 kgf
cm, 74 in.
lbf)
30. CHECK FOR FUEL LEAKS
NOTICE:
Under ACTIVE TEST mode, fuel pressure increases. Take precautions to prevent fuel from spraying
on you or inside the engine compartment.
HINT:
During ACTIVE TEST mode, engine speed goes high and combustion noise bec\
omes loud.
(a) Check that there are no fuel leaks from any part of the fuel system at t\
he engine stops.
HINT:
If fuel leakage could be found on specific parts, replace them with new \
parts.
(b) While cranking or when starting the engine, check that there is no leaks from\
any part of the fuel sys-
tem.
HINT:
If fuel leakage could be found on specific parts, replace them with new pa\
rts.
(c) Disconnect the fuel hose from the common rail.
(d) While cranking the engine, check fuel leaks from the return pipe.
HINT:
If there is fuel leakage, replace the common rail.
(e) Connect the hand±held tester to the DLC3.
(f) Start the engine and push the hand±held tester main switch ON.
(g) Select the FUEL LEAK test of ACTIVE TEST mode on the hand±held tester\
.
(h) If you do not have the hand±held tester, depress the accelerator pedal quickly and fully to increase the engine speed at maximum and keep it for 2 seconds. Repeat this opera\
tion several times.
(i) Check that there are no leaks from any part of the fuel system.
NOTICE:
If the leakage from the return pipe is less than 10 cc (0.6 cu in.) in\
a minute, it is acceptable.
HINT:
If fuel leakage could be found on specific parts, replace them with new \
parts.
(j) Reconnect the fuel hose to the common rail.
http://vnx.su

1209J±02
A77127
Ohmmeter
Resistance
A77128No Continuity Ohmmeter
A77129
Vacuum
A77130
6V
Vacuum
12±18
±
EMISSION CONTROL EGR SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

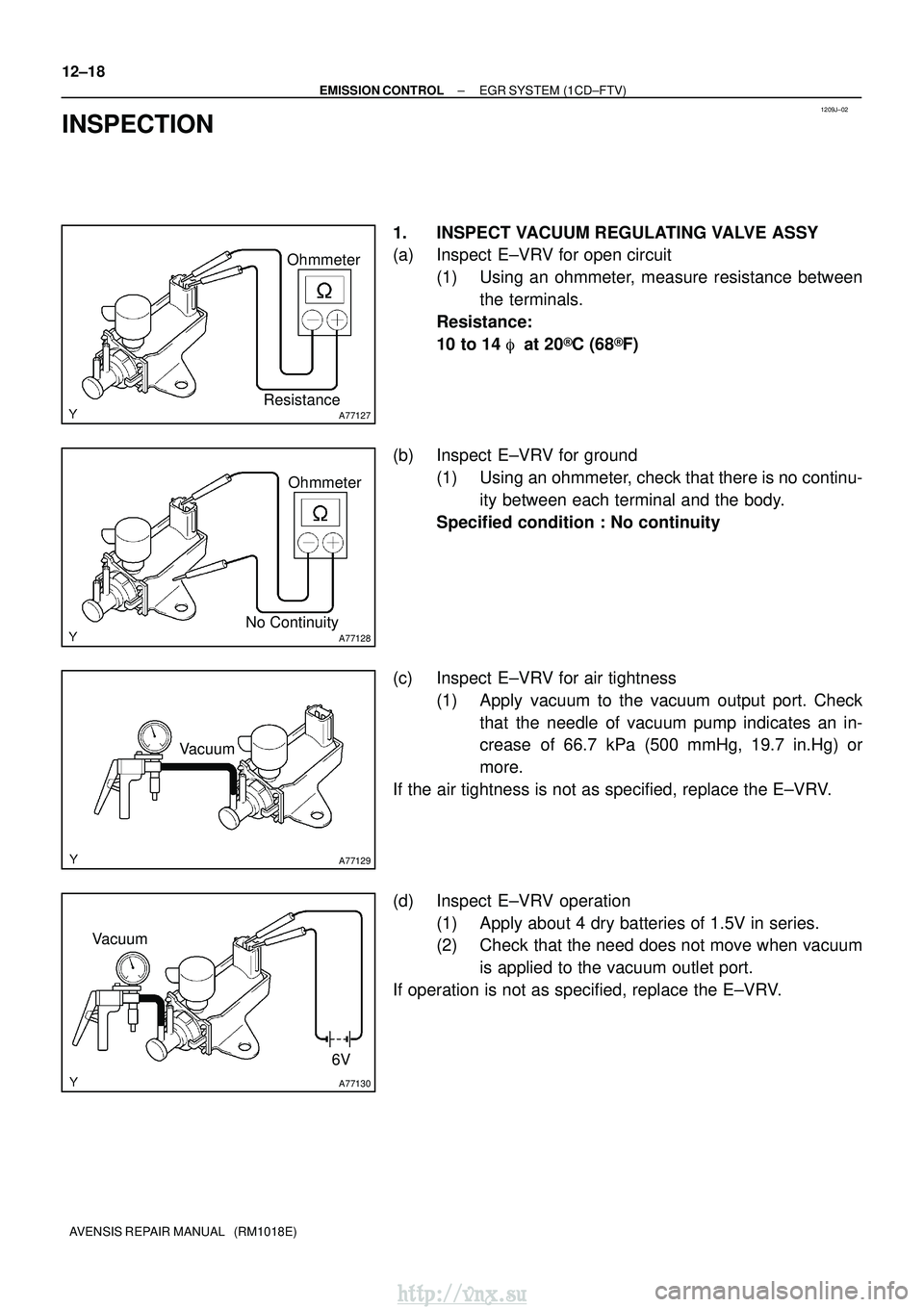

INSPECTION
1. INSPECT VACUUM REGULATING VALVE ASSY
(a) Inspect E±VRV for open circuit (1) Using an ohmmeter, measure resistance betweenthe terminals.
Resistance:
10 to 14
at 20
C (68
F)
(b) Inspect E±VRV for ground (1) Using an ohmmeter, check that there is no continu-ity between each terminal and the body.
Specified condition : No continuity
(c) Inspect E±VRV for air tightness (1) Apply vacuum to the vacuum output port. Checkthat the needle of vacuum pump indicates an in-
crease of 66.7 kPa (500 mmHg, 19.7 in.Hg) or
more.
If the air tightness is not as specified, replace the E±VRV.
(d) Inspect E±VRV operation (1) Apply about 4 dry batteries of 1.5V in series.
(2) Check that the need does not move when vacuumis applied to the vacuum outlet port.
If operation is not as specified, replace the E±VRV.
http://vnx.su

A82348
+B2
+B1EGR2
EGR1 EGR4
EGR3
±
EMISSION CONTROL EGR SYSTEM (1CD±FTV)
12±19
AVENSIS REPAIR MANUAL (RM1018E)

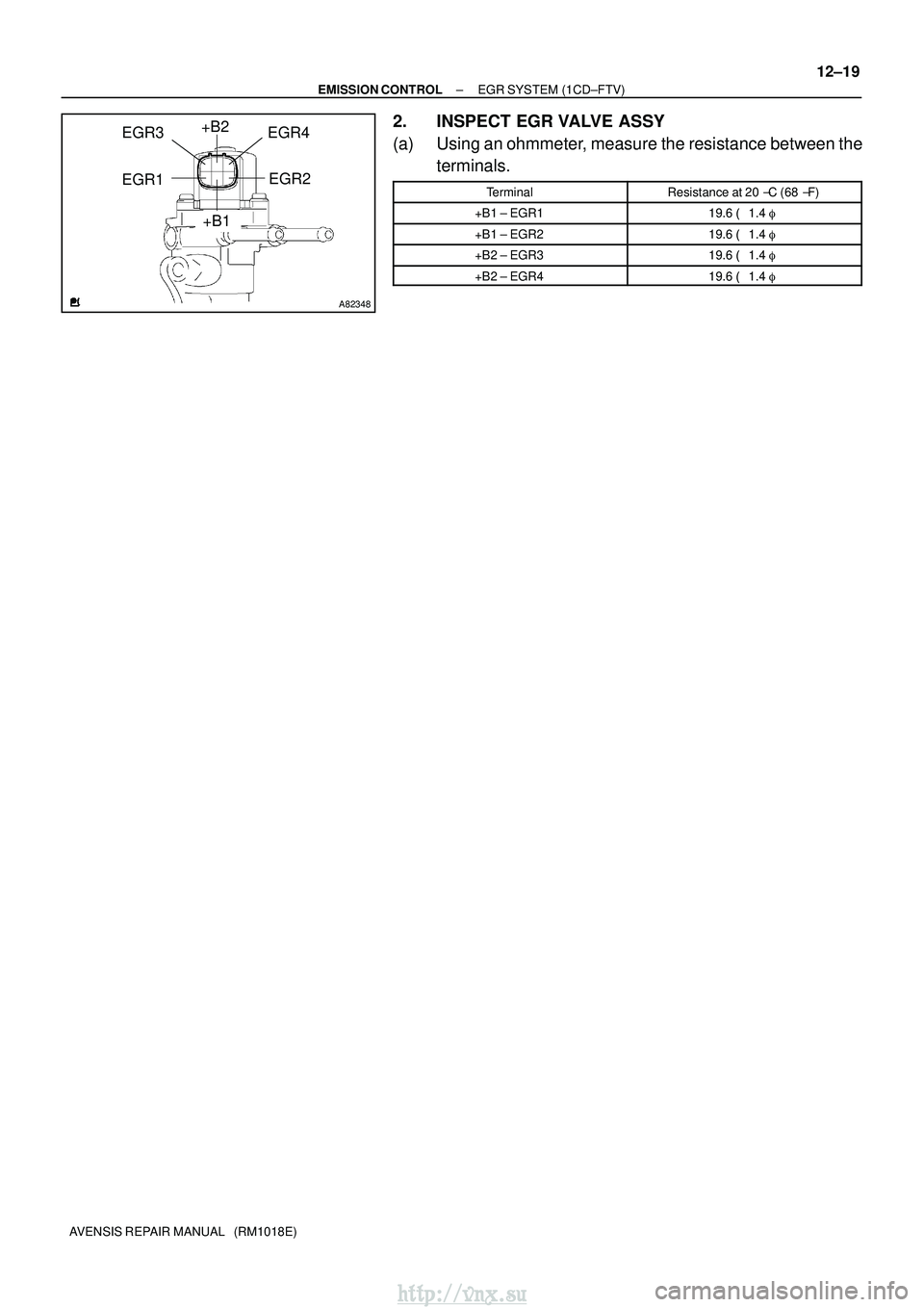

2. INSPECT EGR VALVE ASSY
(a) Using an ohmmeter, measure the resistance between the
terminals.
TerminalResistance at 20
C (68
F)
+B1 ± EGR119.6  1.4

+B1 ± EGR219.6  1.4

+B2 ± EGR319.6  1.4

+B2 ± EGR419.6  1.4

http://vnx.su
