TOYOTA AVENSIS 2012 Owners Manual

131 1-5. Refueling
1
Before driving
AVENSIS_EE (OM20B44E)

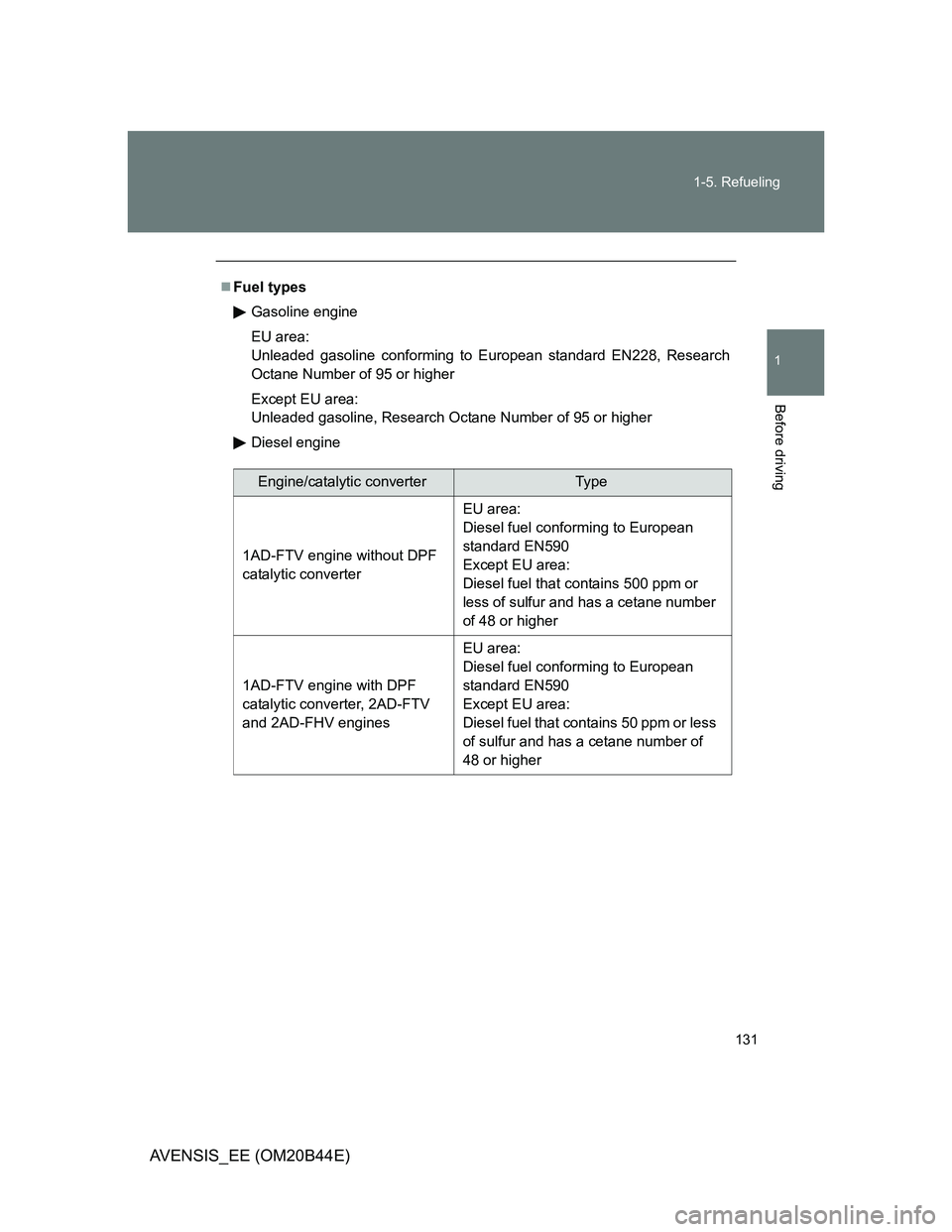

Fuel types
Gasoline engine
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Diesel engine
Engine/catalytic converterTy p e
1AD-FTV engine without DPF
catalytic converterEU area:
Diesel fuel conforming to European
standard EN590
Except EU area:
Diesel fuel that contains 500 ppm or
less of sulfur and has a cetane number
of 48 or higher
1AD-FTV engine with DPF
catalytic converter, 2AD-FTV
and 2AD-FHV enginesEU area:
Diesel fuel conforming to European
standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less
of sulfur and has a cetane number of
48 or higher

132 1-5. Refueling
AVENSIS_EE (OM20B44E)
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Fuel tank capacity
Approximately 60 L (15.9 gal., 13.2 Imp.gal.)
When the fuel filler door opener switch is inoperable
Pull the lever slowly rearward (not side-
ways) as shown in the illustration.
The lever can be used to open the fuel
filler door if the fuel filler door cannot be
opened using the inside switch because
the battery discharged or for any other
reason.

133 1-5. Refueling
1
Before driving
AVENSIS_EE (OM20B44E)
CAUTION
Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
Touch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.

134 1-5. Refueling
AVENSIS_EE (OM20B44E)
CAUTION
When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.
NOTICE
Refueling
Do not spill fuel during refueling.
Failure to do so may damage the vehicle, such as causing the exhaust sys-
tems to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
Fuel filler door emergency release lever
Do not pull the lever strongly.
Do not use the lever except in an emergency.

135
1
Before driving
AVENSIS_EE (OM20B44E)
1-6. Theft deterrent system

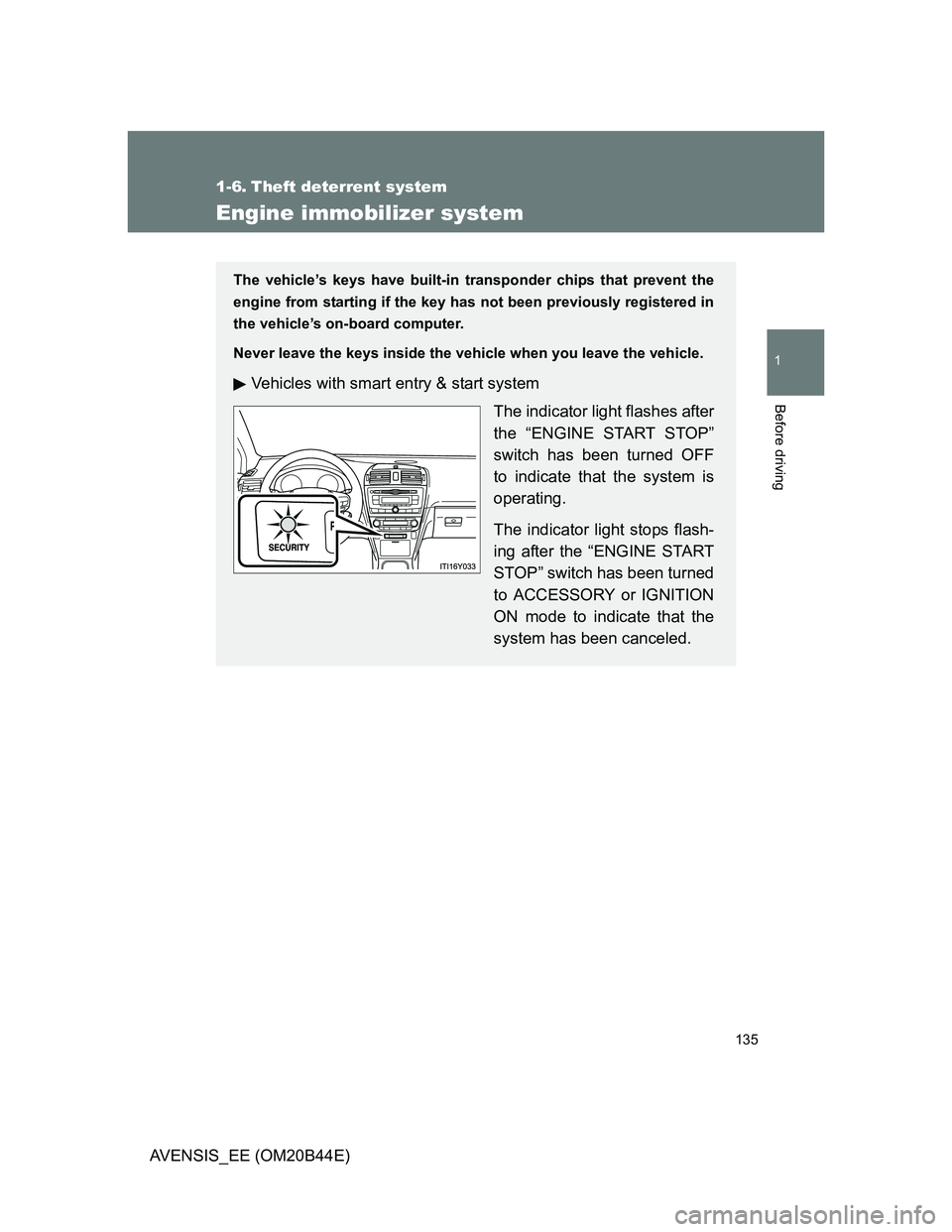

Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
Vehicles with smart entry & start system
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF
to indicate that the system is
operating.
The indicator light stops flash-
ing after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.

136 1-6. Theft deterrent system
AVENSIS_EE (OM20B44E)

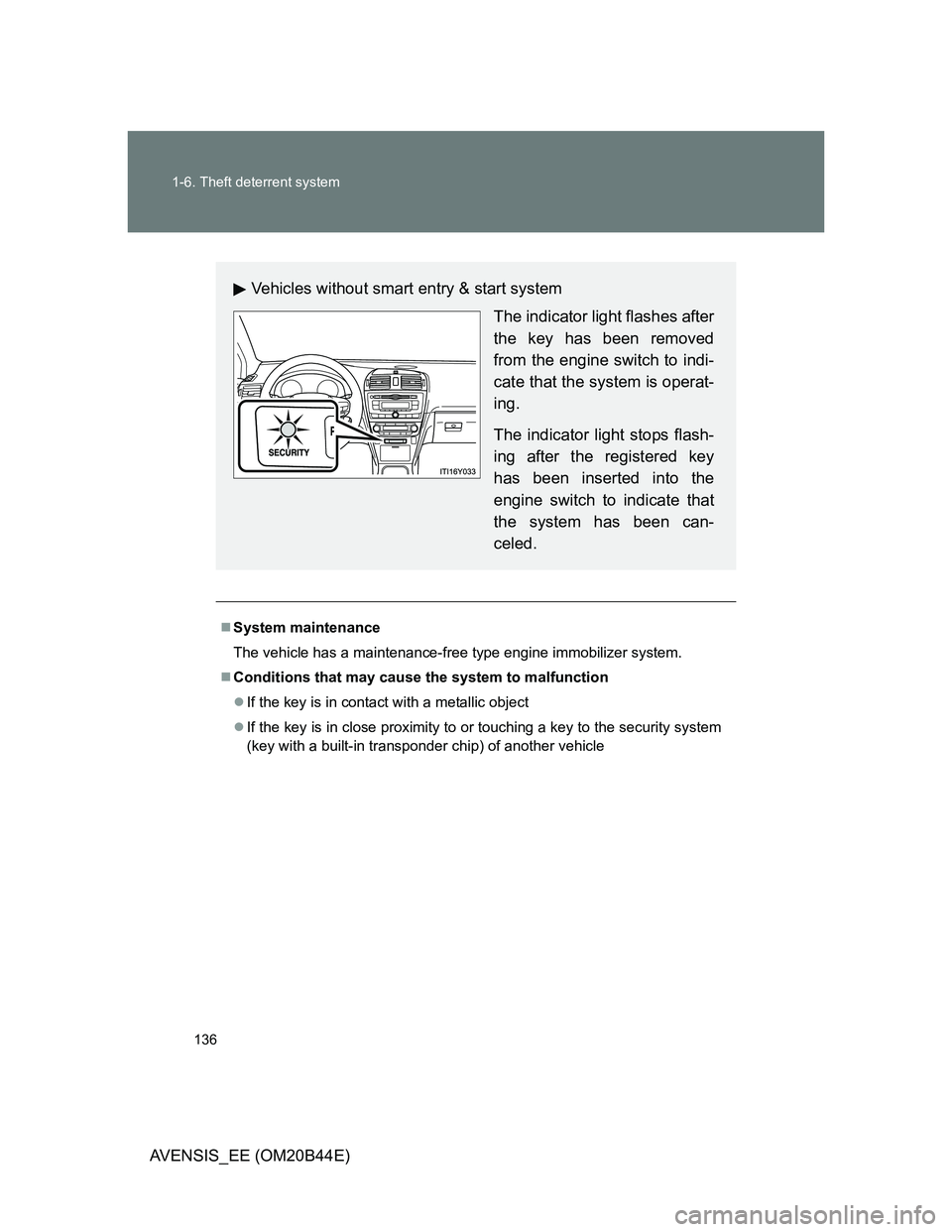

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Conditions that may cause the system to malfunction
If the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
Vehicles without smart entry & start system
The indicator light flashes after
the key has been removed
from the engine switch to indi-
cate that the system is operat-
ing.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.

137 1-6. Theft deterrent system
1
Before driving
AVENSIS_EE (OM20B44E)

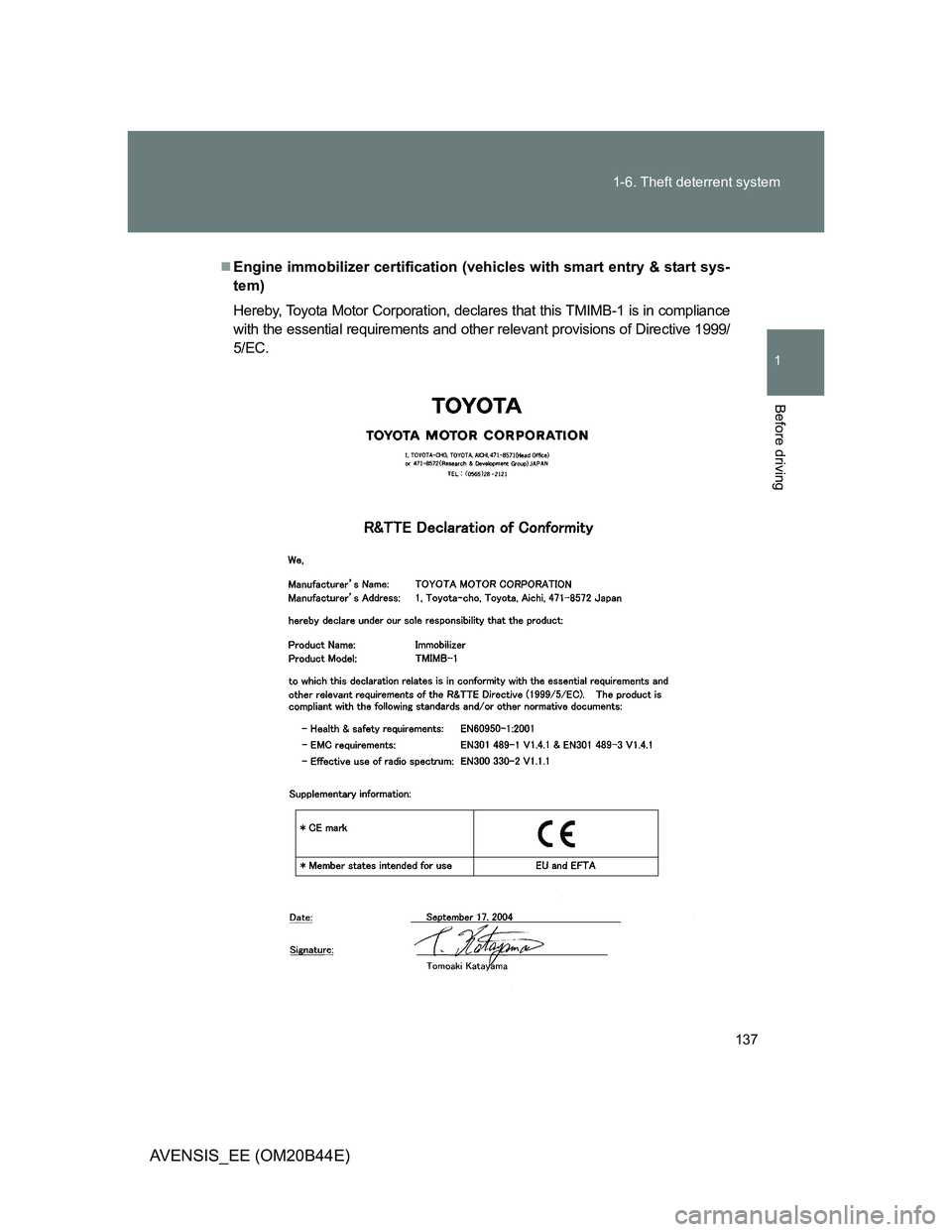

Engine immobilizer certification (vehicles with smart entry & start sys-
tem)
Hereby, Toyota Motor Corporation, declares that this TMIMB-1 is in compliance
with the essential requirements and other relevant provisions of Directive 1999/
5/EC.

138 1-6. Theft deterrent system
AVENSIS_EE (OM20B44E)

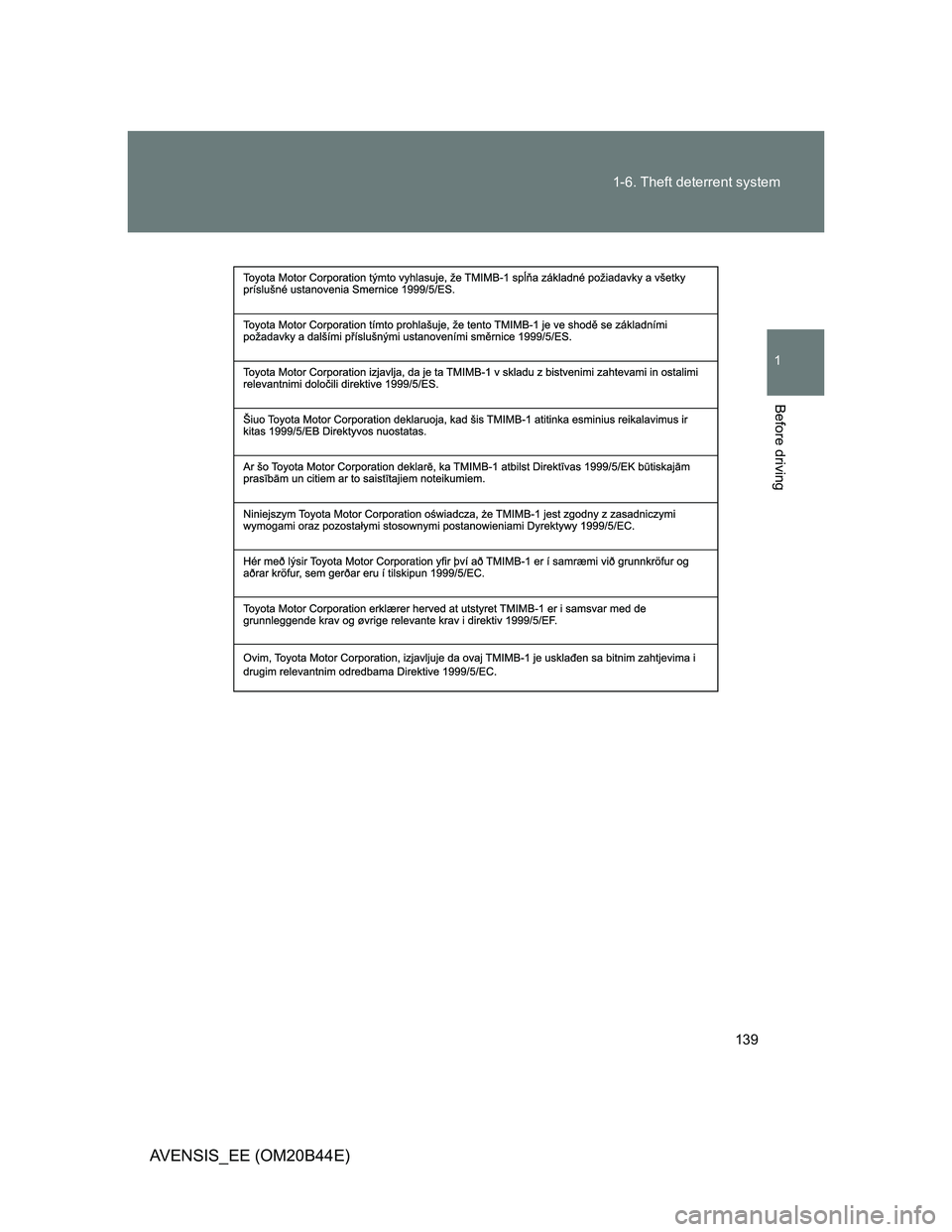

139 1-6. Theft deterrent system
1
Before driving
AVENSIS_EE (OM20B44E)

140 1-6. Theft deterrent system
AVENSIS_EE (OM20B44E)

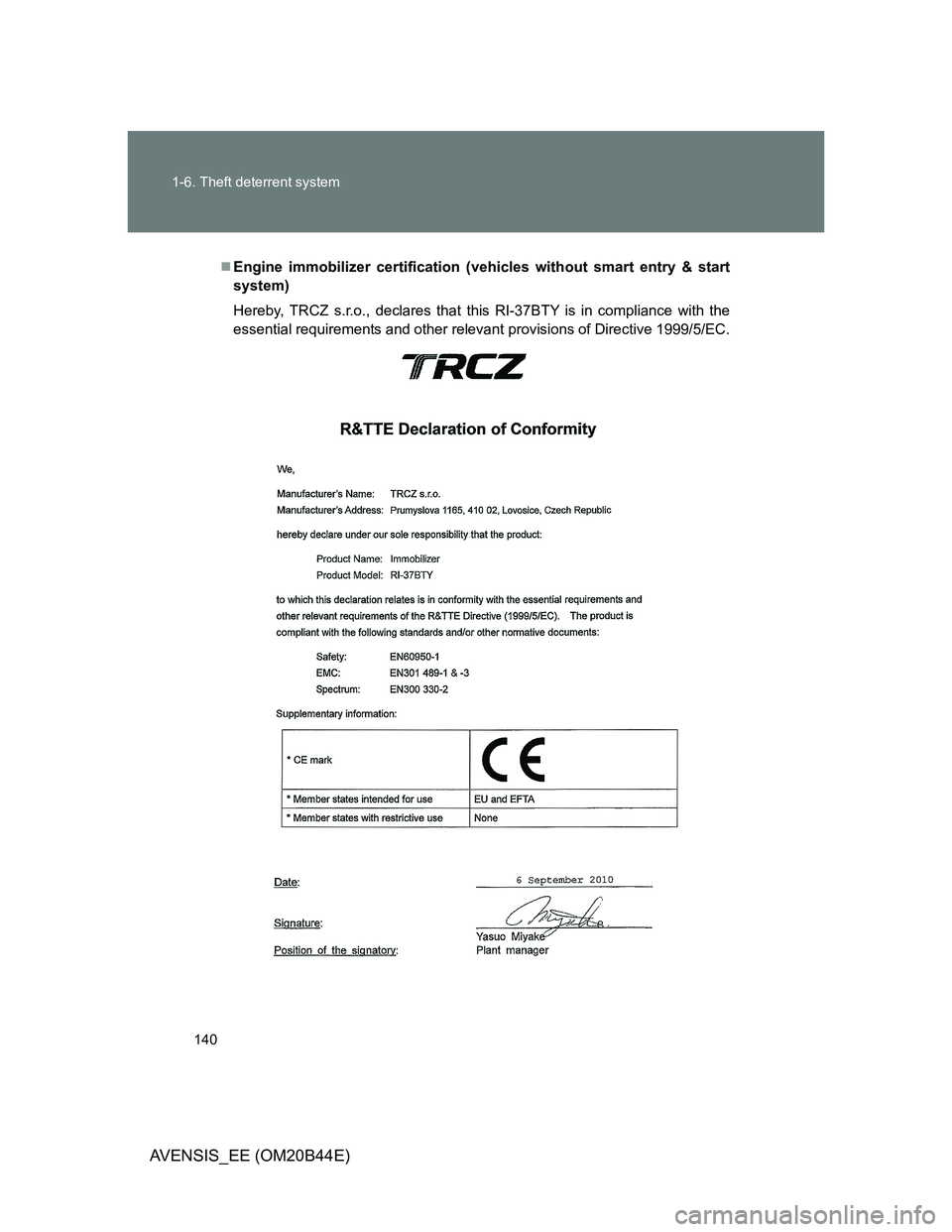

Engine immobilizer certification (vehicles without smart entry & start
system)
Hereby, TRCZ s.r.o., declares that this RI-37BTY is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
