TOYOTA AVENSIS 2012 Owners Manual

251 2-2. Instrument cluster
2
When driving
AVENSIS_EE (OM20B44E)

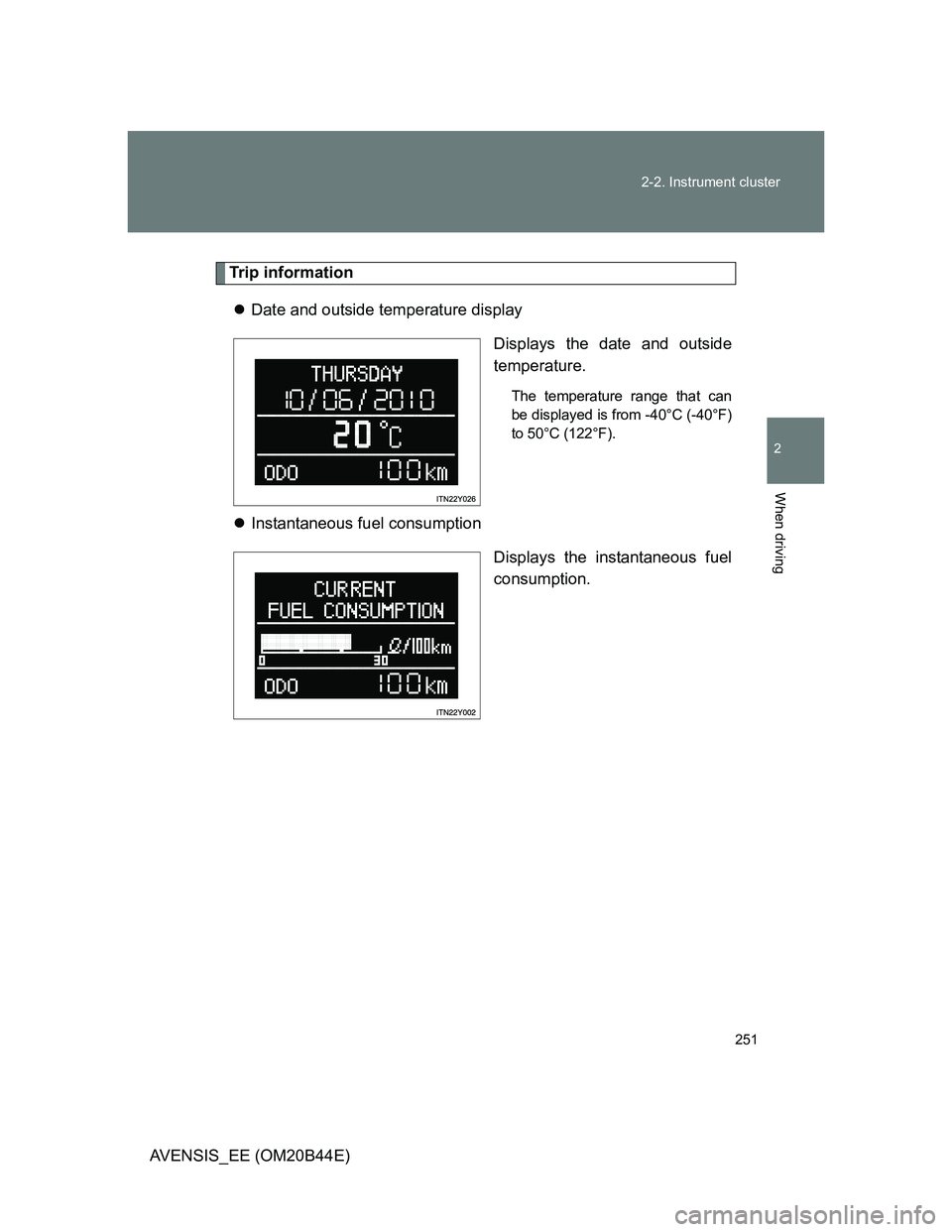

Trip information
Date and outside temperature display
Displays the date and outside
temperature.
The temperature range that can
be displayed is from -40°C (-40°F)
to 50°C (122°F).
Instantaneous fuel consumption
Displays the instantaneous fuel
consumption.

252 2-2. Instrument cluster

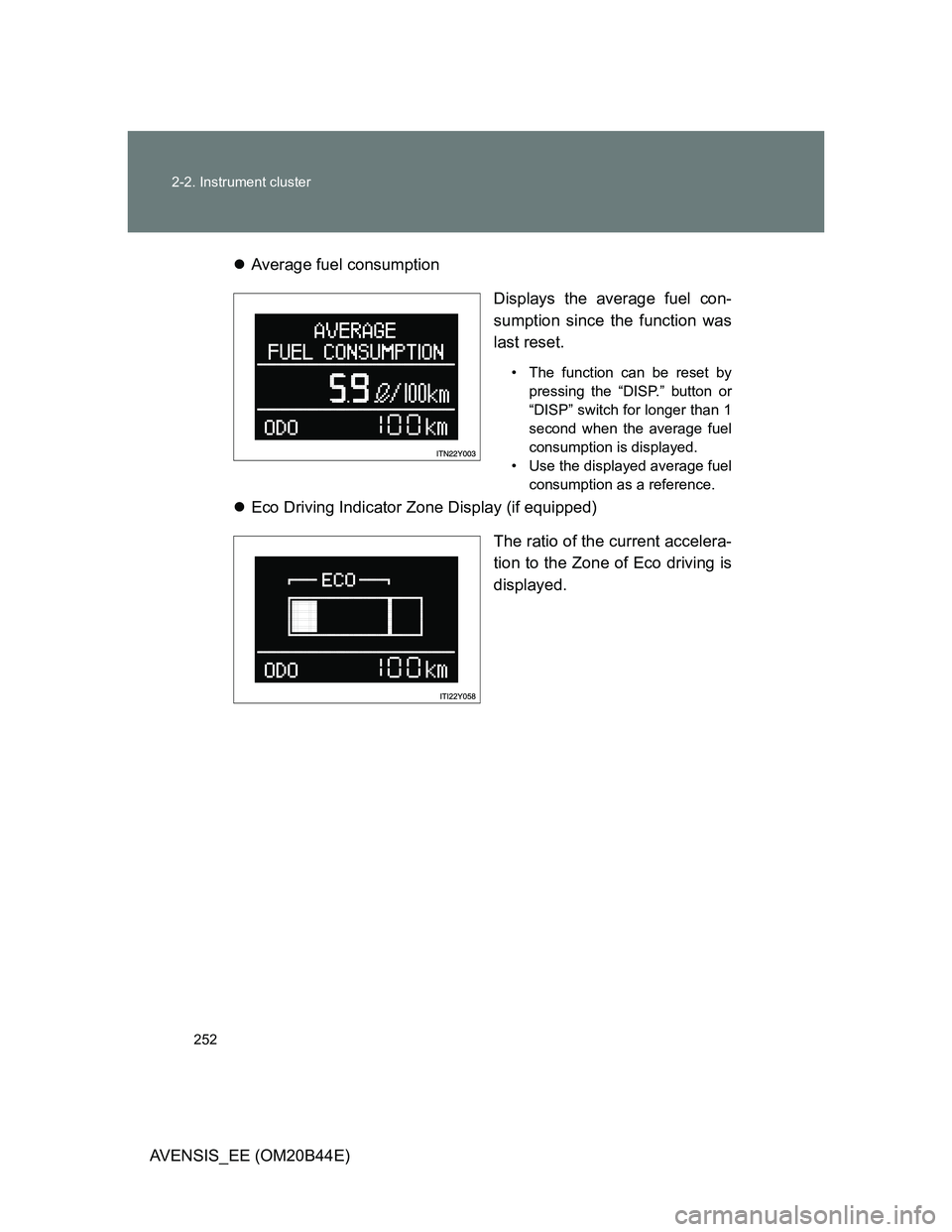

AVENSIS_EE (OM20B44E)Average fuel consumption
Displays the average fuel con-
sumption since the function was
last reset.
• The function can be reset by
pressing the “DISP.” button or
“DISP” switch for longer than 1
second when the average fuel
consumption is displayed.
• Use the displayed average fuel
consumption as a reference.
Eco Driving Indicator Zone Display (if equipped)
The ratio of the current accelera-
tion to the Zone of Eco driving is
displayed.

253 2-2. Instrument cluster
2
When driving

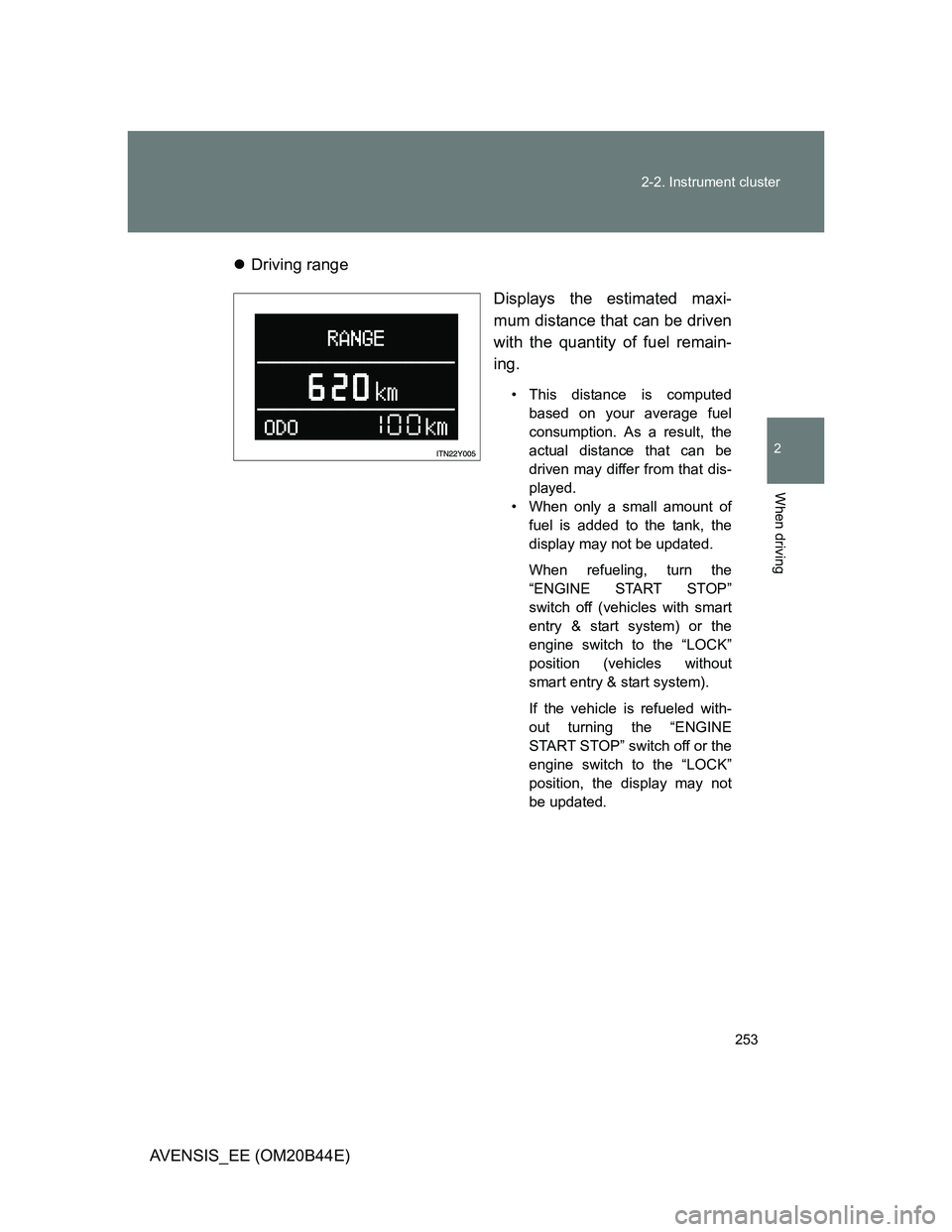

AVENSIS_EE (OM20B44E)Driving range
Displays the estimated maxi-
mum distance that can be driven
with the quantity of fuel remain-
ing.
• This distance is computed
based on your average fuel
consumption. As a result, the
actual distance that can be
driven may differ from that dis-
played.
• When only a small amount of
fuel is added to the tank, the
display may not be updated.
When refueling, turn the
“ENGINE START STOP”
switch off (vehicles with smart
entry & start system) or the
engine switch to the “LOCK”
position (vehicles without
smart entry & start system).
If the vehicle is refueled with-
out turning the “ENGINE
START STOP” switch off or the
engine switch to the “LOCK”
position, the display may not
be updated.

254 2-2. Instrument cluster

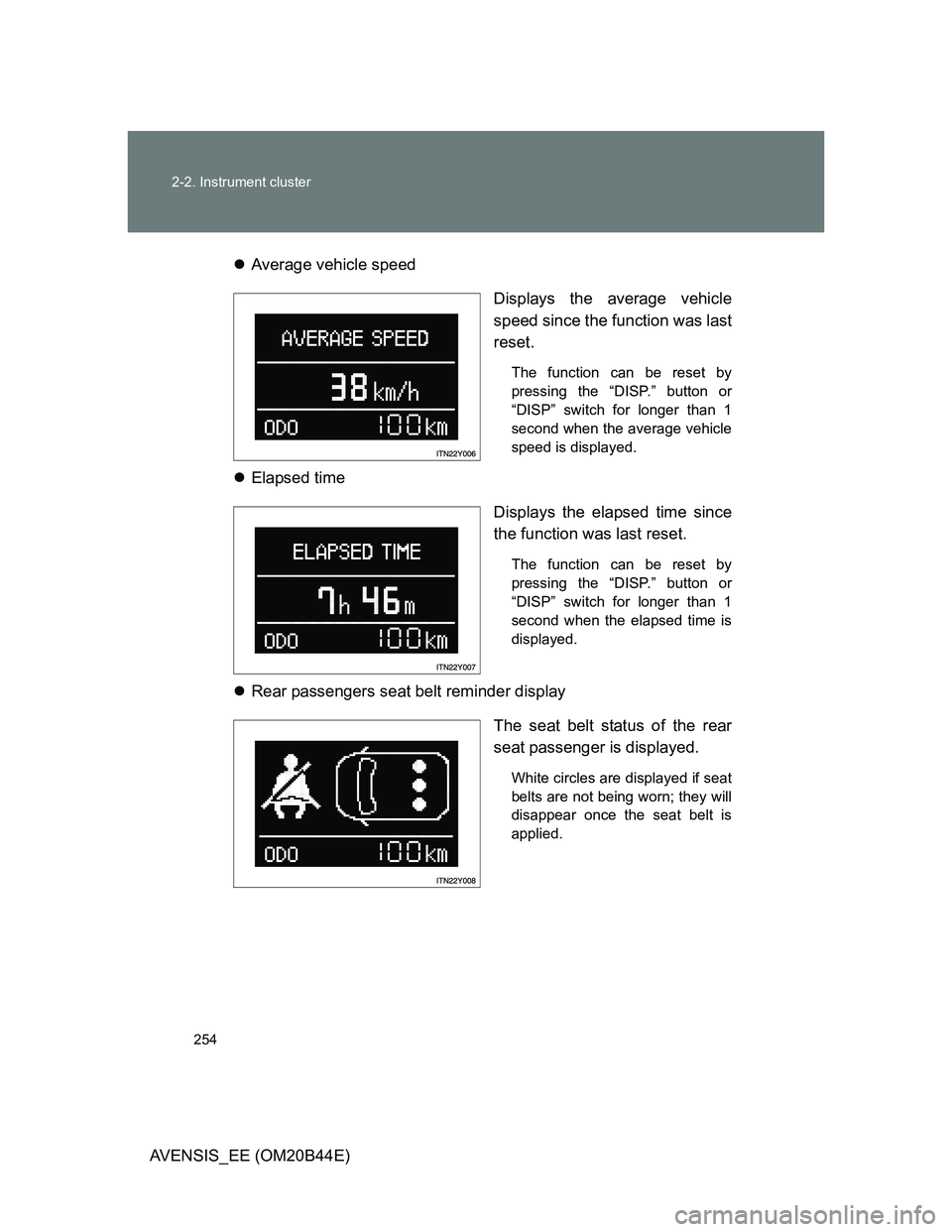

AVENSIS_EE (OM20B44E)Average vehicle speed
Displays the average vehicle
speed since the function was last
reset.
The function can be reset by
pressing the “DISP.” button or
“DISP” switch for longer than 1
second when the average vehicle
speed is displayed.
Elapsed time
Displays the elapsed time since
the function was last reset.
The function can be reset by
pressing the “DISP.” button or
“DISP” switch for longer than 1
second when the elapsed time is
displayed.
Rear passengers seat belt reminder display
The seat belt status of the rear
seat passenger is displayed.
White circles are displayed if seat
belts are not being worn; they will
disappear once the seat belt is
applied.

255 2-2. Instrument cluster
2
When driving
AVENSIS_EE (OM20B44E)

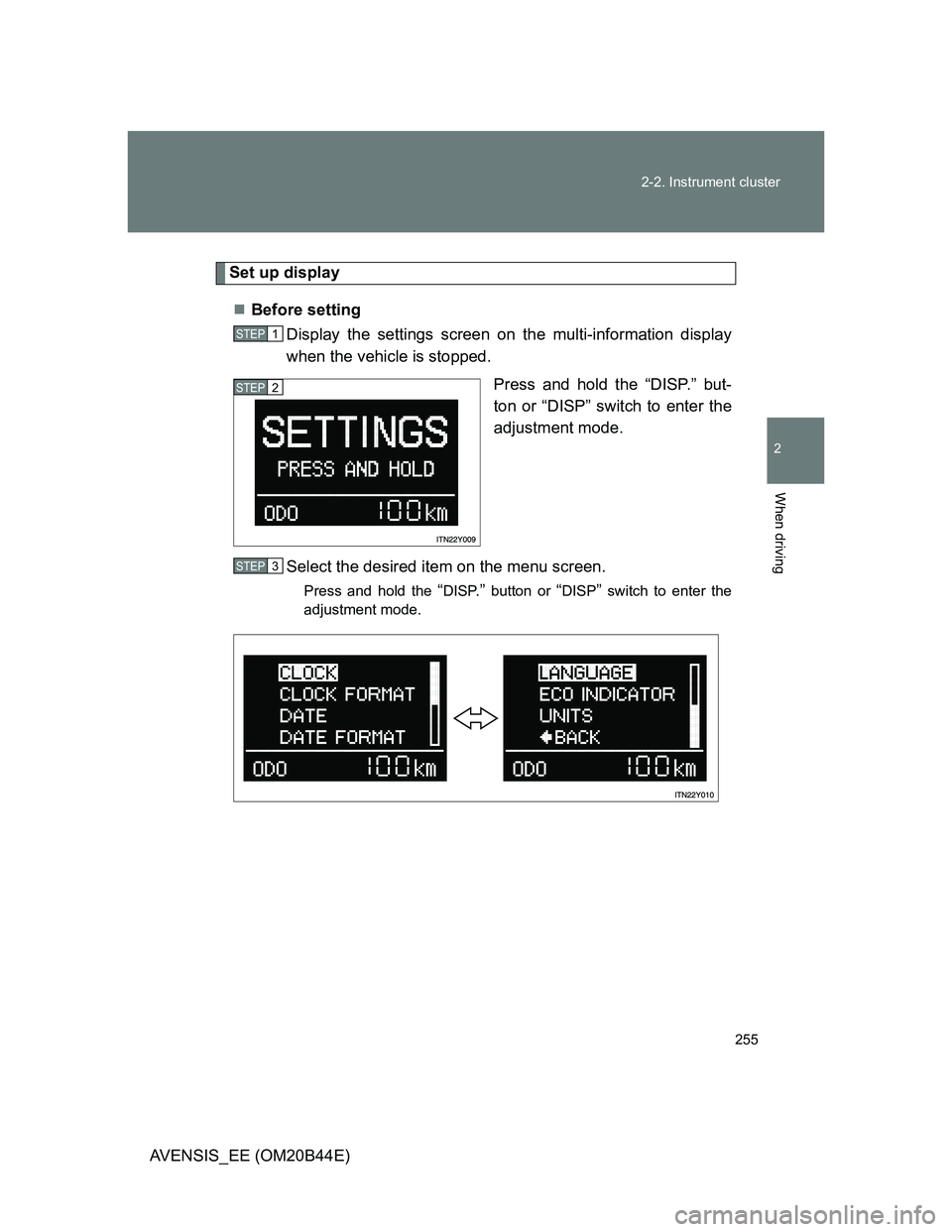

Set up display
Before setting
Display the settings screen on the multi-information display
when the vehicle is stopped.
Press and hold the “DISP.” but-
ton or “DISP” switch to enter the
adjustment mode.
Select the desired item on the menu screen.
Press and hold the “DISP.” button or “DISP” switch to enter the
adjustment mode.
STEP1
STEP2
STEP3

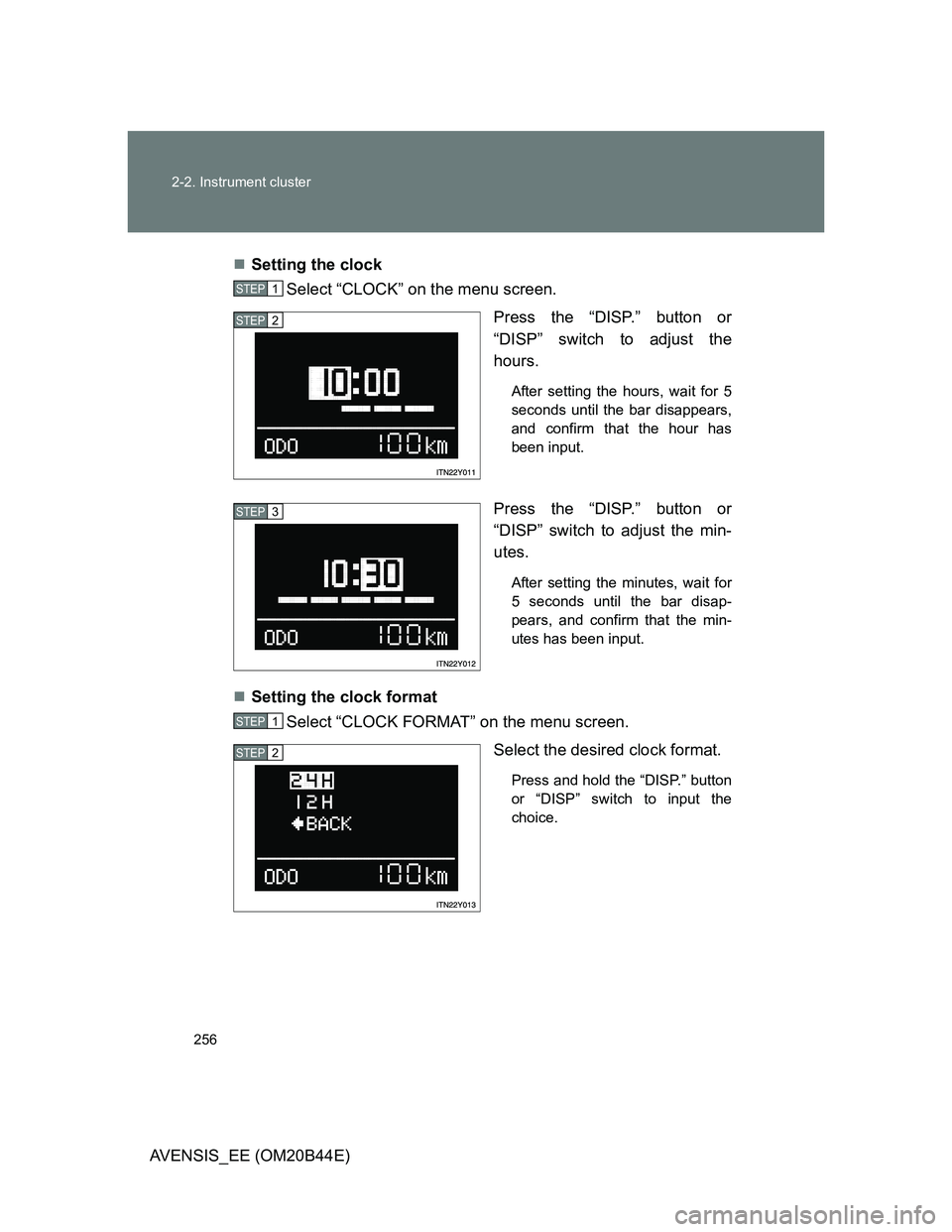

256 2-2. Instrument cluster
AVENSIS_EE (OM20B44E)Setting the clock
Select “CLOCK” on the menu screen.
Press the “DISP.” button or
“DISP” switch to adjust the
hours.
After setting the hours, wait for 5
seconds until the bar disappears,
and confirm that the hour has
been input.
Press the “DISP.” button or
“DISP” switch to adjust the min-
utes.
After setting the minutes, wait for
5 seconds until the bar disap-
pears, and confirm that the min-
utes has been input.
Setting the clock format
Select “CLOCK FORMAT” on the menu screen.
Select the desired clock format.
Press and hold the “DISP.” button
or “DISP” switch to input the
choice.
STEP1
STEP2
STEP3
STEP1
STEP2

257 2-2. Instrument cluster
2
When driving

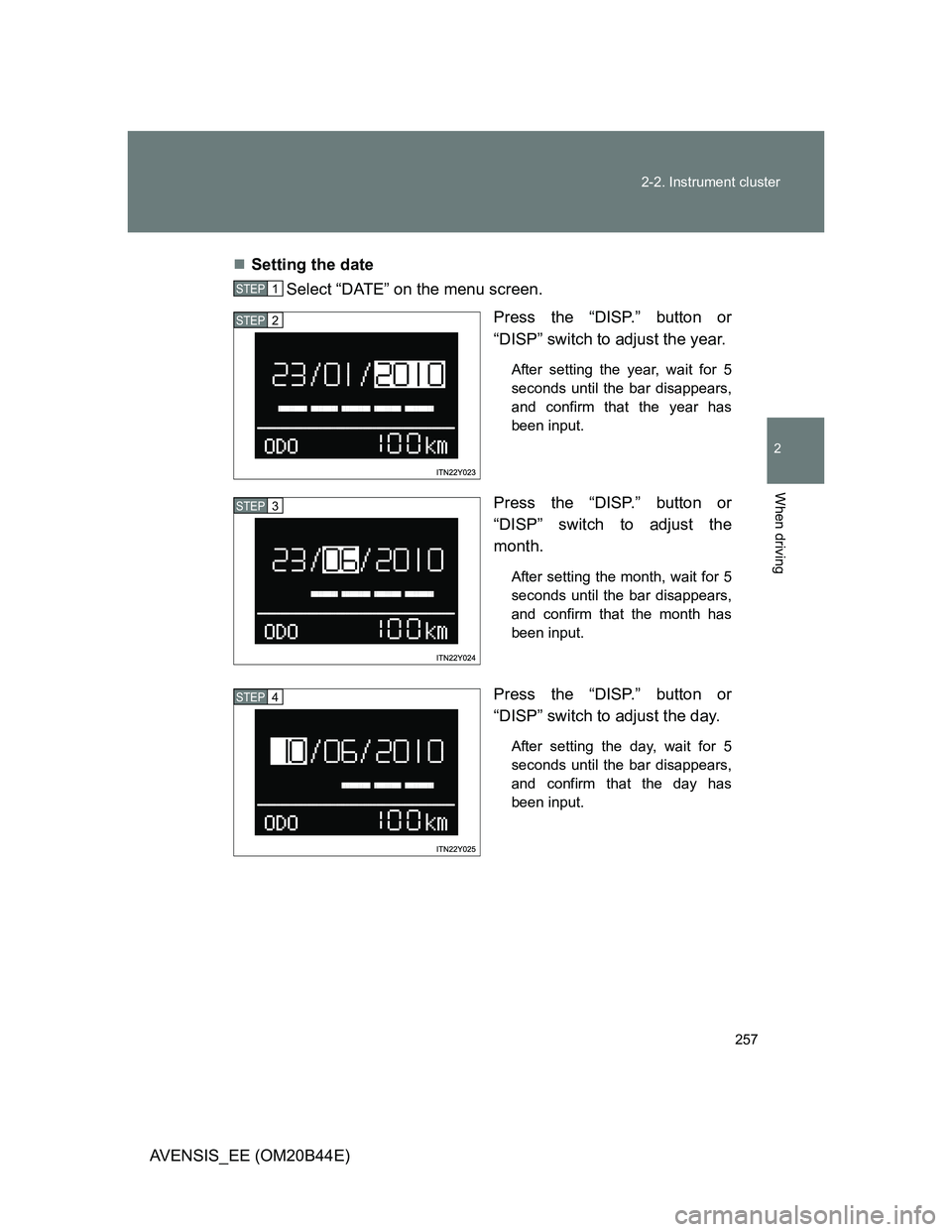

AVENSIS_EE (OM20B44E)Setting the date
Select “DATE” on the menu screen.
Press the “DISP.” button or
“DISP” switch to adjust the year.
After setting the year, wait for 5
seconds until the bar disappears,
and confirm that the year has
been input.
Press the “DISP.” button or
“DISP” switch to adjust the
month.
After setting the month, wait for 5
seconds until the bar disappears,
and confirm that the month has
been input.
Press the “DISP.” button or
“DISP” switch to adjust the day.
After setting the day, wait for 5
seconds until the bar disappears,
and confirm that the day has
been input.
STEP1
STEP2
STEP3
STEP4

258 2-2. Instrument cluster

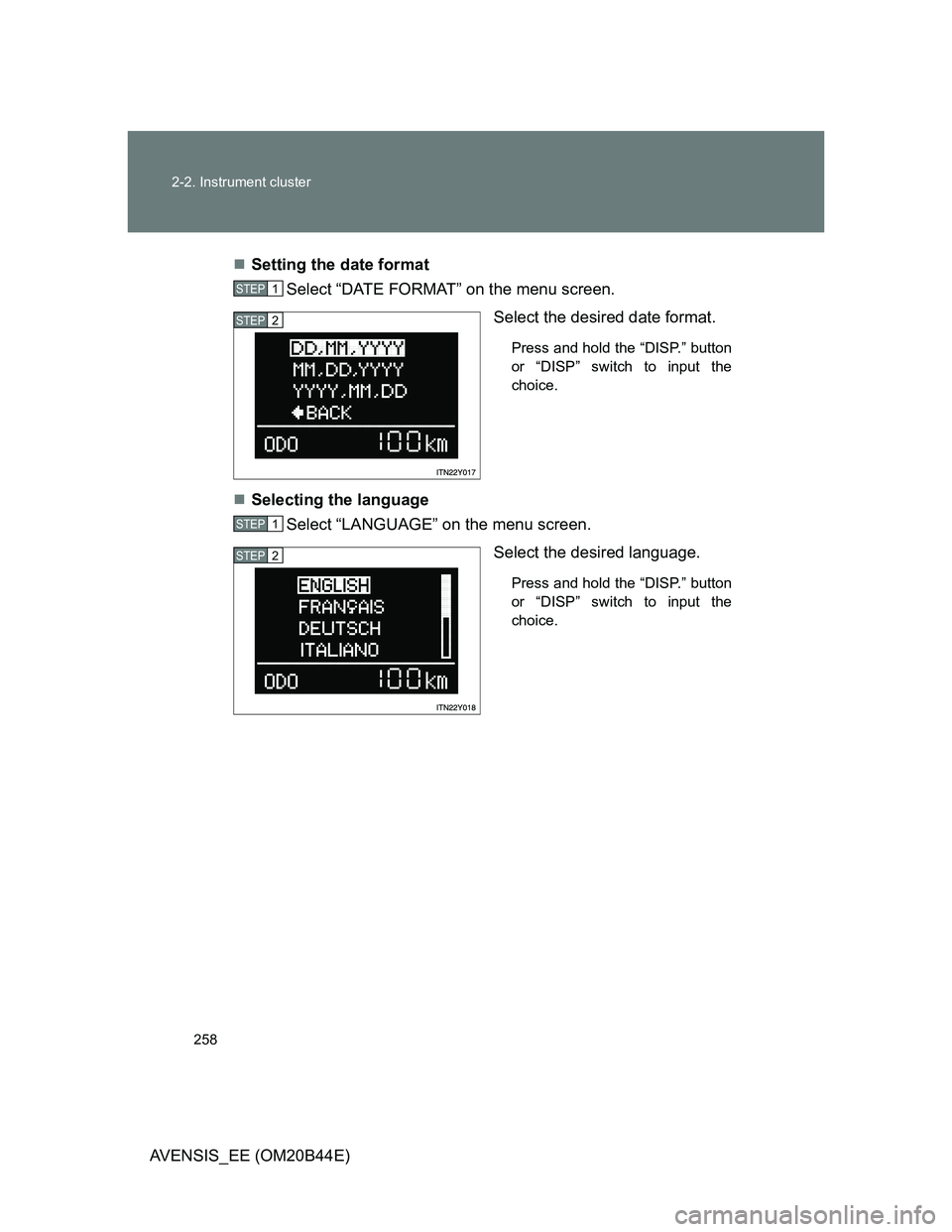

AVENSIS_EE (OM20B44E)Setting the date format
Select “DATE FORMAT” on the menu screen.
Select the desired date format.
Press and hold the “DISP.” button
or “DISP” switch to input the
choice.
Selecting the language
Select “LANGUAGE” on the menu screen.
Select the desired language.
Press and hold the “DISP.” button
or “DISP” switch to input the
choice.
STEP1
STEP2
STEP1
STEP2

259 2-2. Instrument cluster
2
When driving

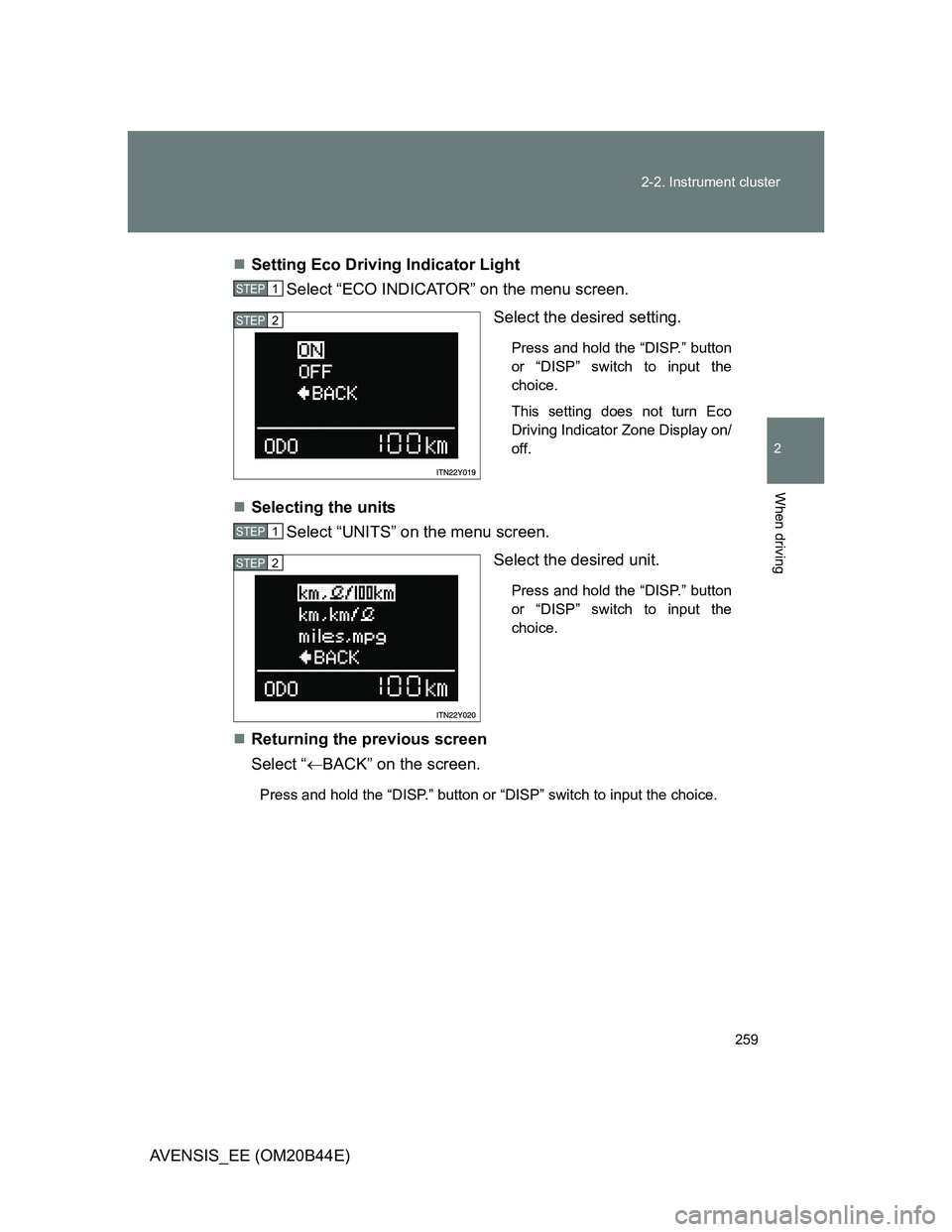

AVENSIS_EE (OM20B44E)Setting Eco Driving Indicator Light
Select “ECO INDICATOR” on the menu screen.
Select the desired setting.
Press and hold the “DISP.” button
or “DISP” switch to input the
choice.
This setting does not turn Eco
Driving Indicator Zone Display on/
off.
Selecting the units
Select “UNITS” on the menu screen.
Select the desired unit.
Press and hold the “DISP.” button
or “DISP” switch to input the
choice.
Returning the previous screen
Select “BACK” on the screen.
Press and hold the “DISP.” button or “DISP” switch to input the choice.
STEP1
STEP2
STEP1
STEP2

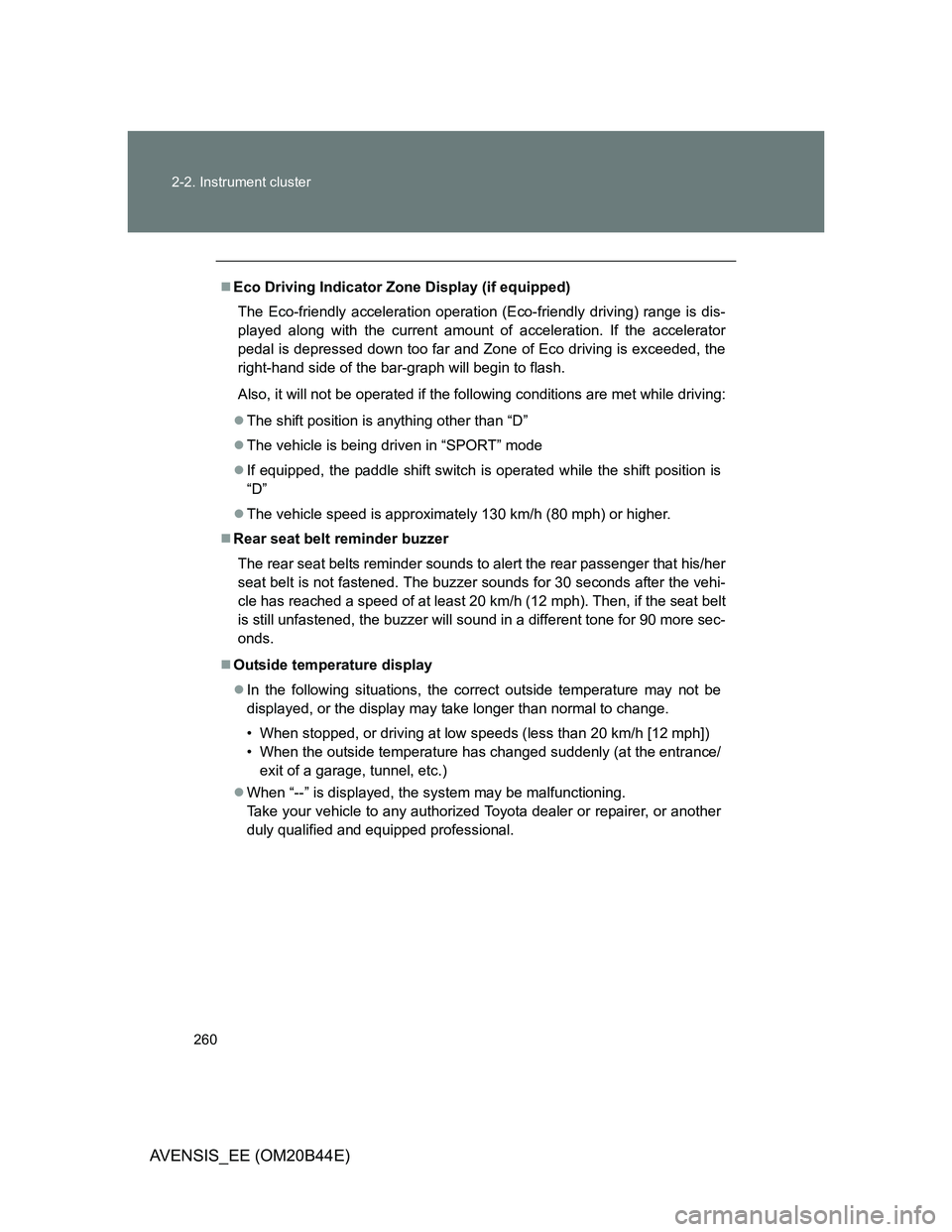

260 2-2. Instrument cluster
AVENSIS_EE (OM20B44E)
Eco Driving Indicator Zone Display (if equipped)
The Eco-friendly acceleration operation (Eco-friendly driving) range is dis-
played along with the current amount of acceleration. If the accelerator
pedal is depressed down too far and Zone of Eco driving is exceeded, the
right-hand side of the bar-graph will begin to flash.
Also, it will not be operated if the following conditions are met while driving:
The shift position is anything other than “D”
The vehicle is being driven in “SPORT” mode
If equipped, the paddle shift switch is operated while the shift position is
“D”
The vehicle speed is approximately 130 km/h (80 mph) or higher.
Rear seat belt reminder buzzer
The rear seat belts reminder sounds to alert the rear passenger that his/her
seat belt is not fastened. The buzzer sounds for 30 seconds after the vehi-
cle has reached a speed of at least 20 km/h (12 mph). Then, if the seat belt
is still unfastened, the buzzer will sound in a different tone for 90 more sec-
onds.
Outside temperature display
In the following situations, the correct outside temperature may not be
displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
