TOYOTA AVENSIS 2012 Repair Manual

61 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

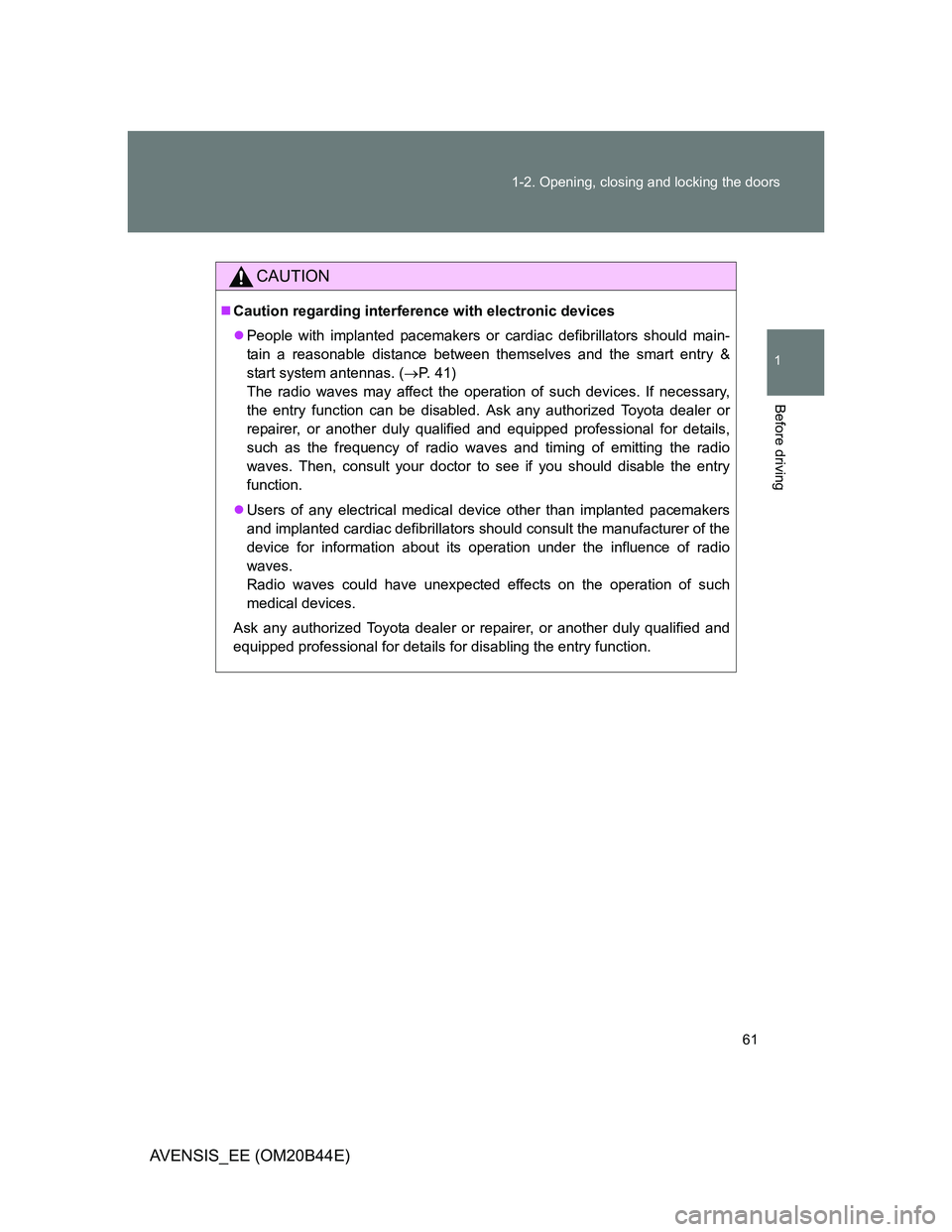

CAUTION
Caution regarding interference with electronic devices
People with implanted pacemakers or cardiac defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (P. 41)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of emitting the radio
waves. Then, consult your doctor to see if you should disable the entry
function.
Users of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling the entry function.

62
1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)

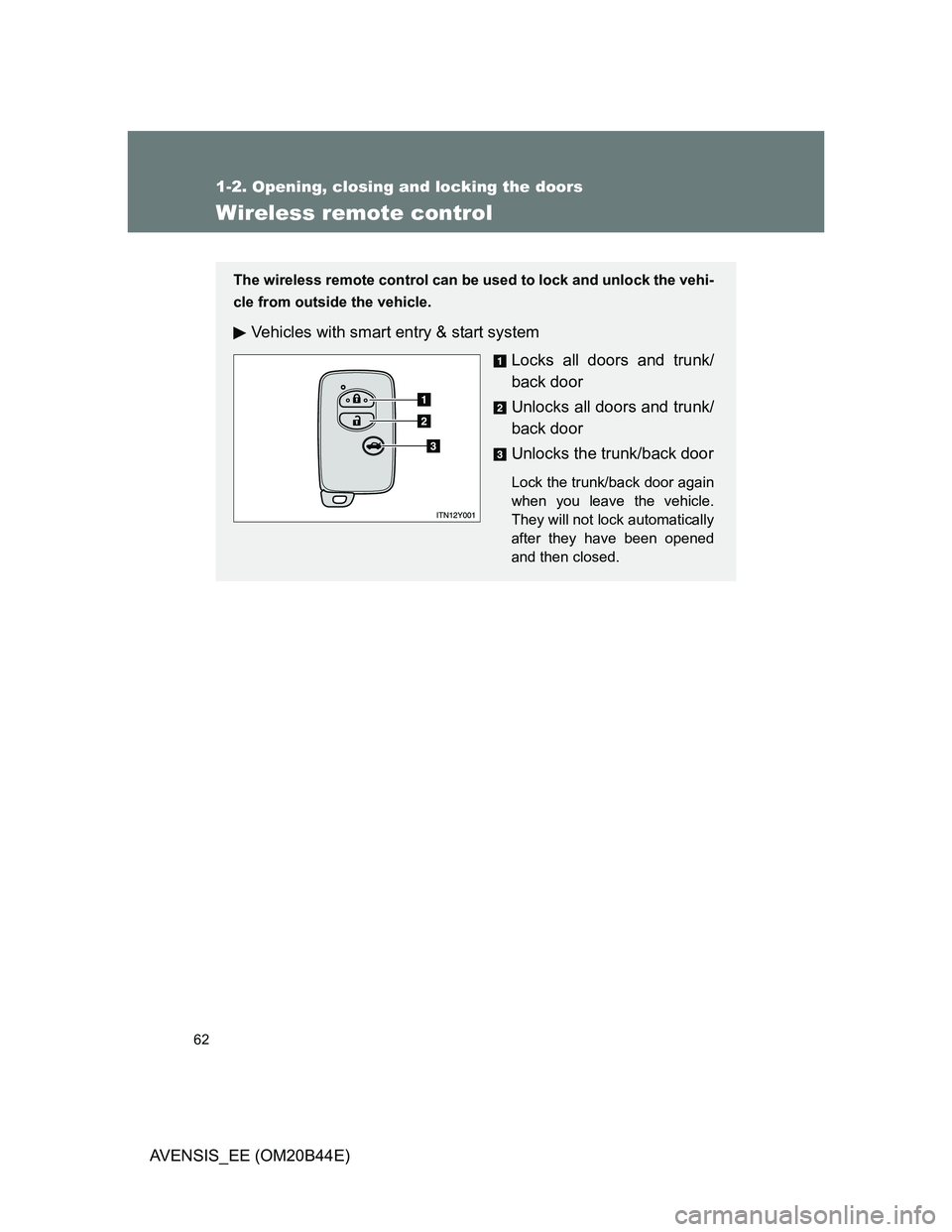

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle from outside the vehicle.
Vehicles with smart entry & start system
Locks all doors and trunk/
back door
Unlocks all doors and trunk/
back door
Unlocks the trunk/back door
Lock the trunk/back door again
when you leave the vehicle.
They will not lock automatically
after they have been opened
and then closed.

63 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

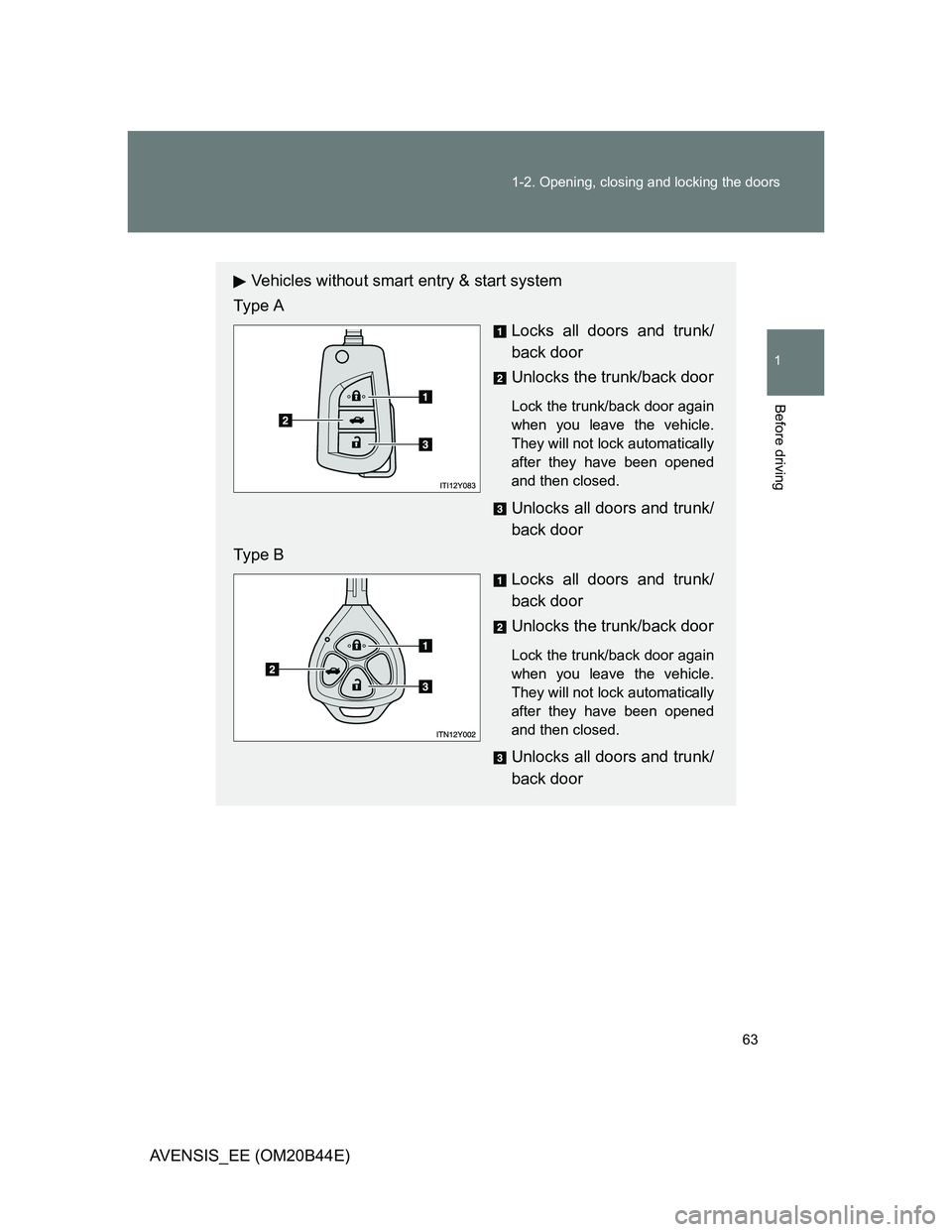

Vehicles without smart entry & start system
Type A
Locks all doors and trunk/
back door
Unlocks the trunk/back door
Lock the trunk/back door again
when you leave the vehicle.
They will not lock automatically
after they have been opened
and then closed.
Unlocks all doors and trunk/
back door
Type B
Locks all doors and trunk/
back door
Unlocks the trunk/back door
Lock the trunk/back door again
when you leave the vehicle.
They will not lock automatically
after they have been opened
and then closed.
Unlocks all doors and trunk/
back door

64 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
Operation signals
The emergency flashers flash to indicate that the doors and trunk/back door
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Door lock buzzer (vehicles with smart entry & start system)
If the door, trunk or back door is not fully closed, a buzzer sounds continu-
ously for 10 seconds if an attempt to lock the door is made. Fully close the
door to stop the buzzer, and lock the vehicle once more.
Alarm
Using the wireless remote control to lock the doors will set the alarm system.
Key battery depletion
Vehicles with smart entry & start system
P. 4 6
Vehicles without smart entry & start system
If the wireless remote control function does not operate, the battery may
be depleted. Replace the battery when necessary. (P. 565)
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
If the wireless remote control does not operate properly
Vehicles with smart entry & start system
Locking and unlocking the doors: Use the key. (P. 702)
Starting the engine: P. 703
Vehicles without smart entry & start system
Locking and unlocking the doors: Use the key. (P. 78)
When the electronic key battery is fully depleted
P. 564

65 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

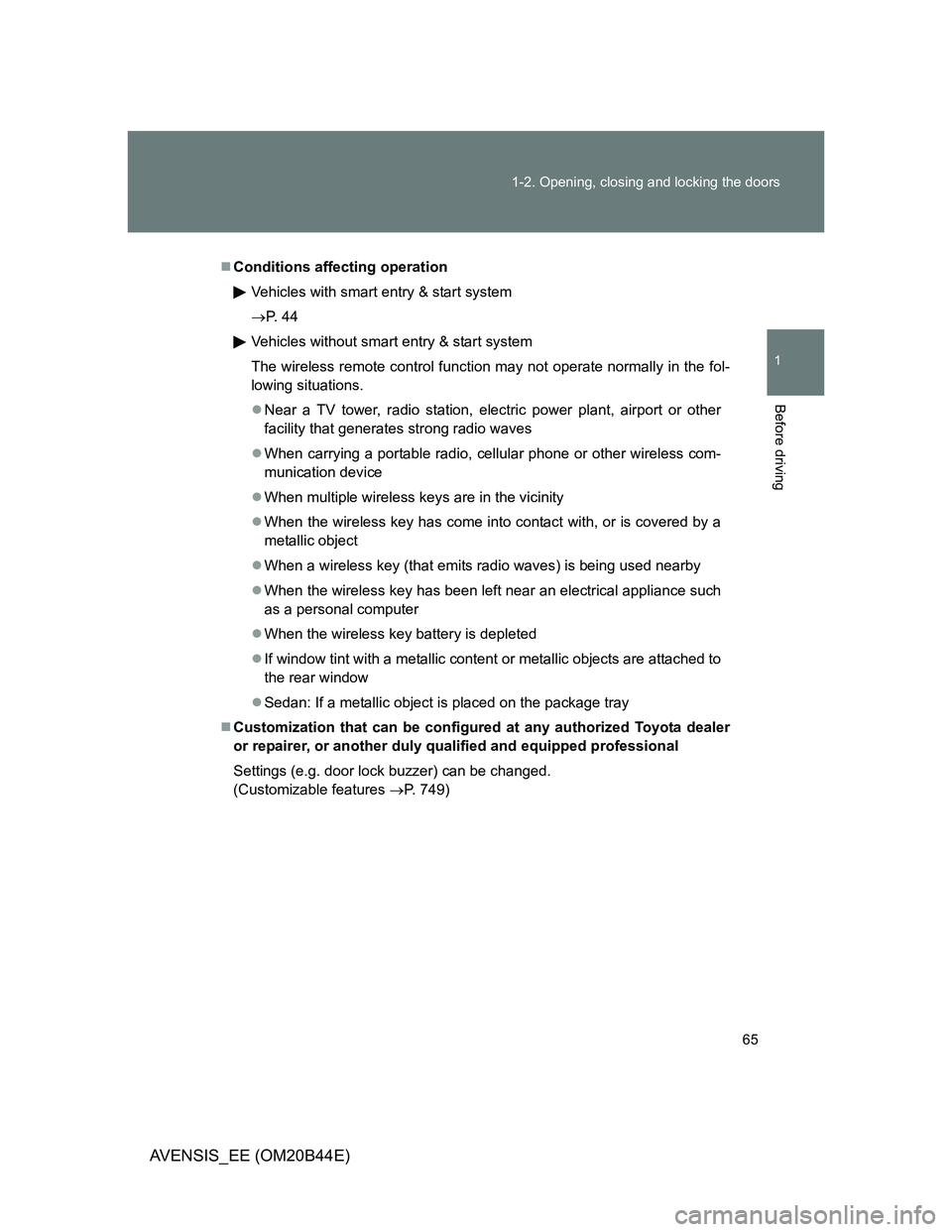

Conditions affecting operation
Vehicles with smart entry & start system
P. 4 4
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the fol-
lowing situations.
Near a TV tower, radio station, electric power plant, airport or other
facility that generates strong radio waves
When carrying a portable radio, cellular phone or other wireless com-
munication device
When multiple wireless keys are in the vicinity
When the wireless key has come into contact with, or is covered by a
metallic object
When a wireless key (that emits radio waves) is being used nearby
When the wireless key has been left near an electrical appliance such
as a personal computer
When the wireless key battery is depleted
If window tint with a metallic content or metallic objects are attached to
the rear window
Sedan: If a metallic object is placed on the package tray
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. door lock buzzer) can be changed.
(Customizable features P. 749)

66 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)

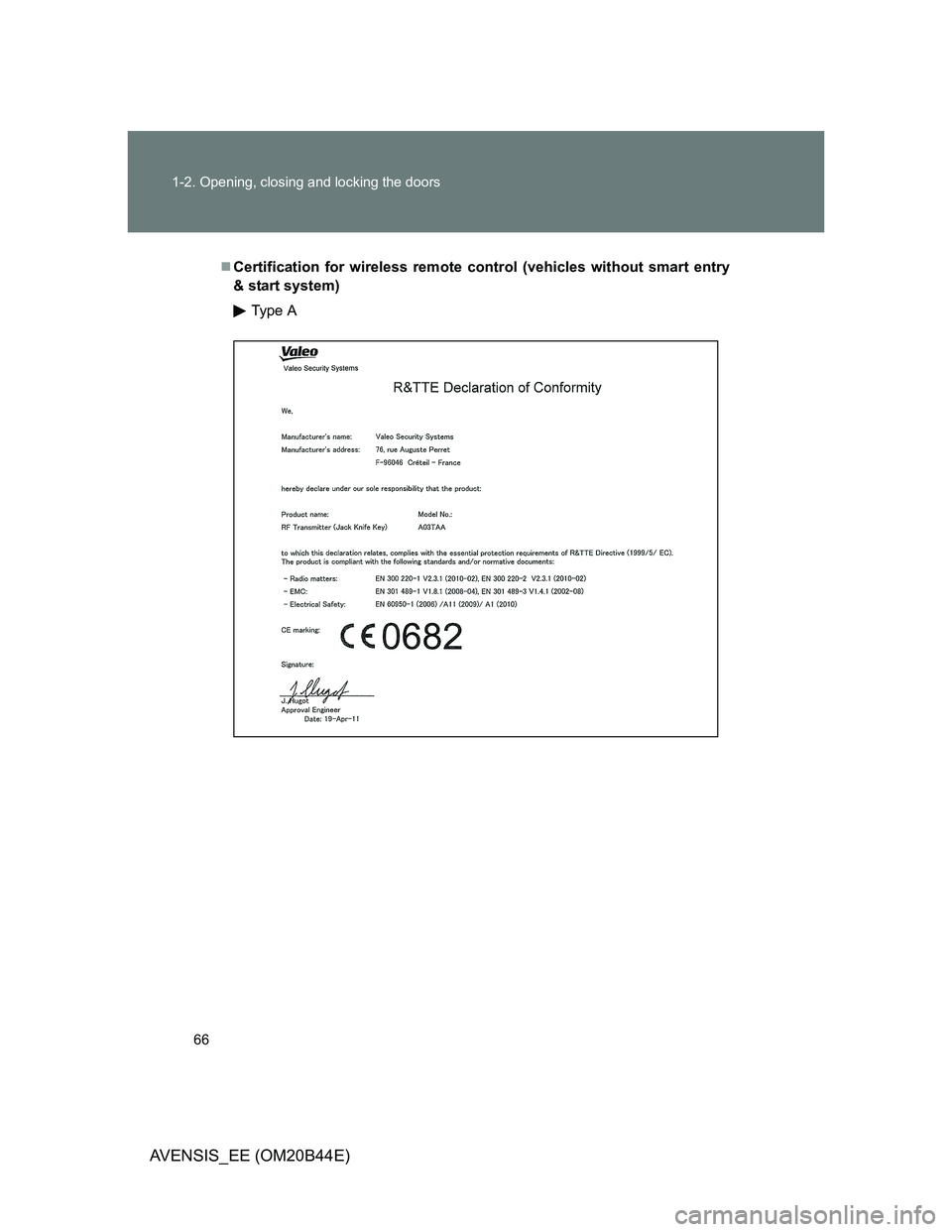

Certification for wireless remote control (vehicles without smart entry
& start system)
Type A

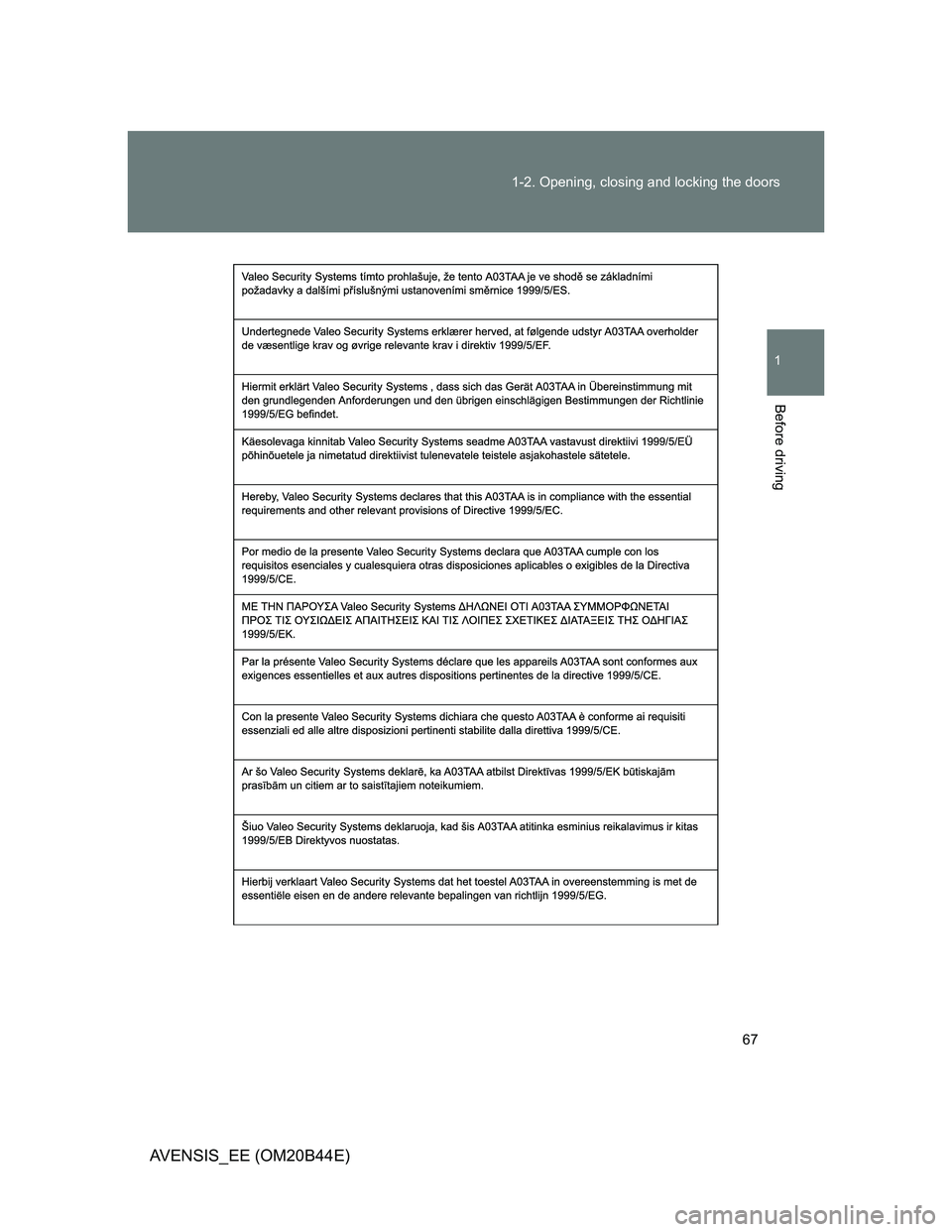

67 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

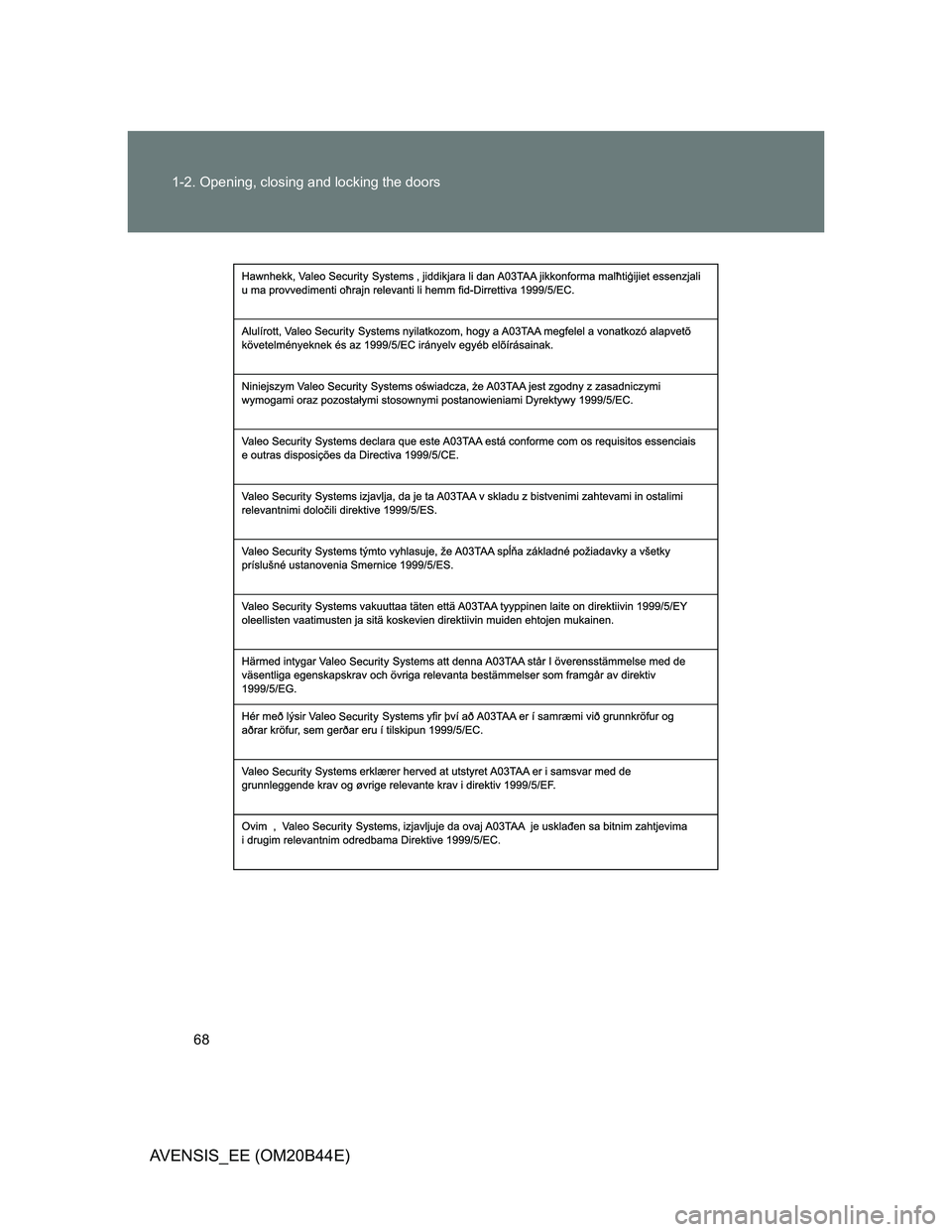

68 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)

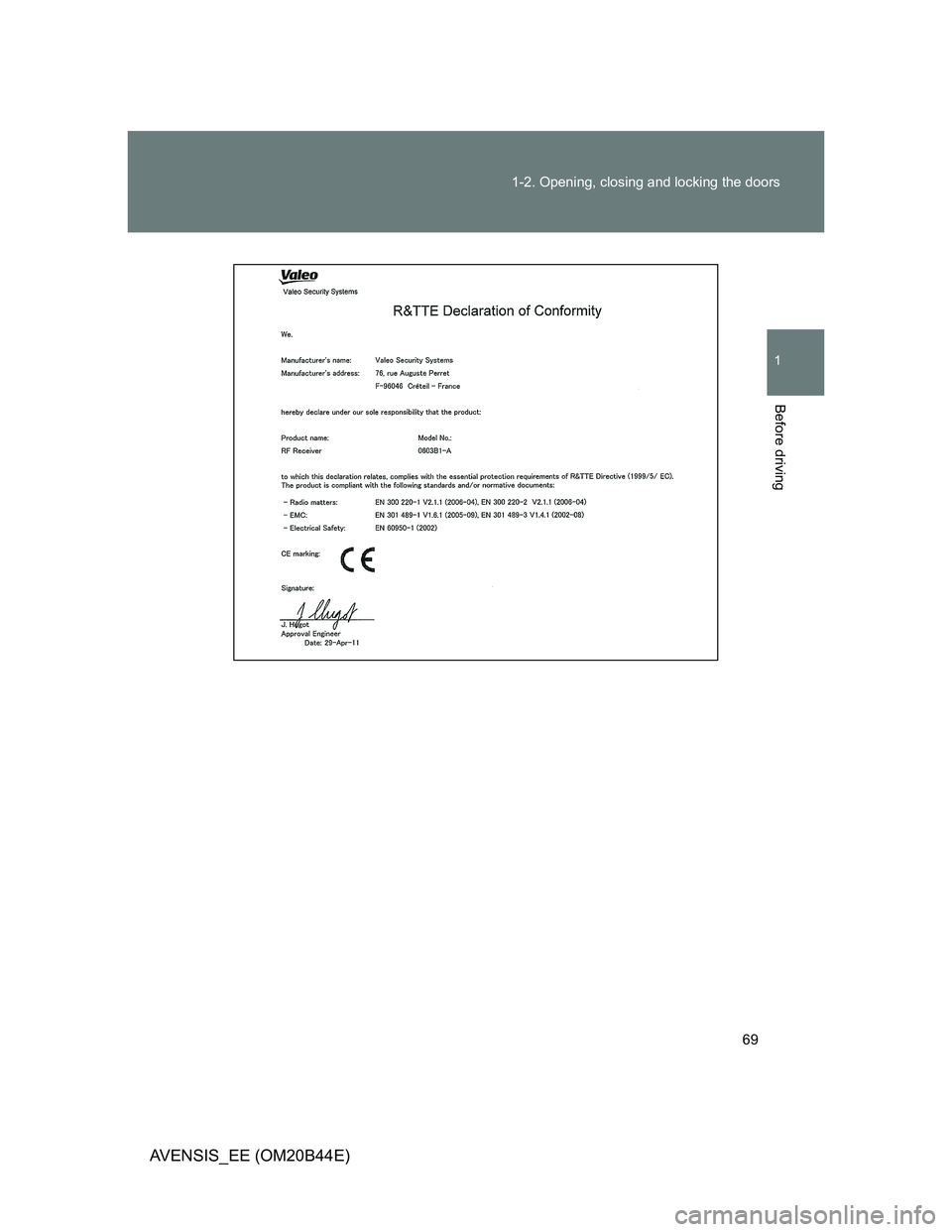

69 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

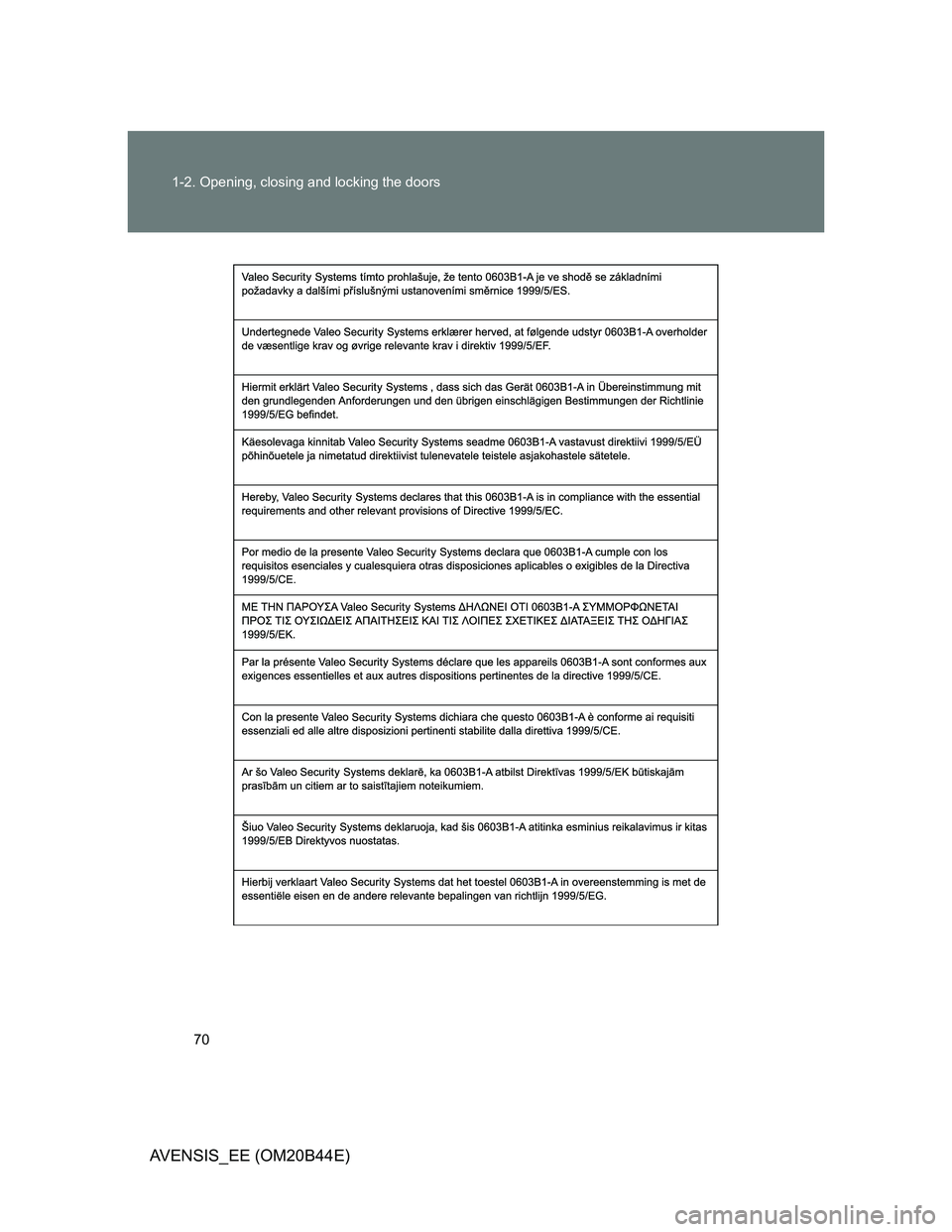

70 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
