Page 575 of 772
![TOYOTA AVENSIS 2012 Owners Manual 575 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
6ALT120 A
*2
RDI FAN, CDS FAN, H-LP CLN,
PWR SEAT LH, FUEL OPN, ABS
NO.1, ABS NO.2, FR DEICER,
PSB, HTR, STV HTR, PW TOYOTA AVENSIS 2012 Owners Manual 575 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
6ALT120 A
*2
RDI FAN, CDS FAN, H-LP CLN,
PWR SEAT LH, FUEL OPN, ABS
NO.1, ABS NO.2, FR DEICER,
PSB, HTR, STV HTR, PW](/img/14/59673/w960_59673-574.png)

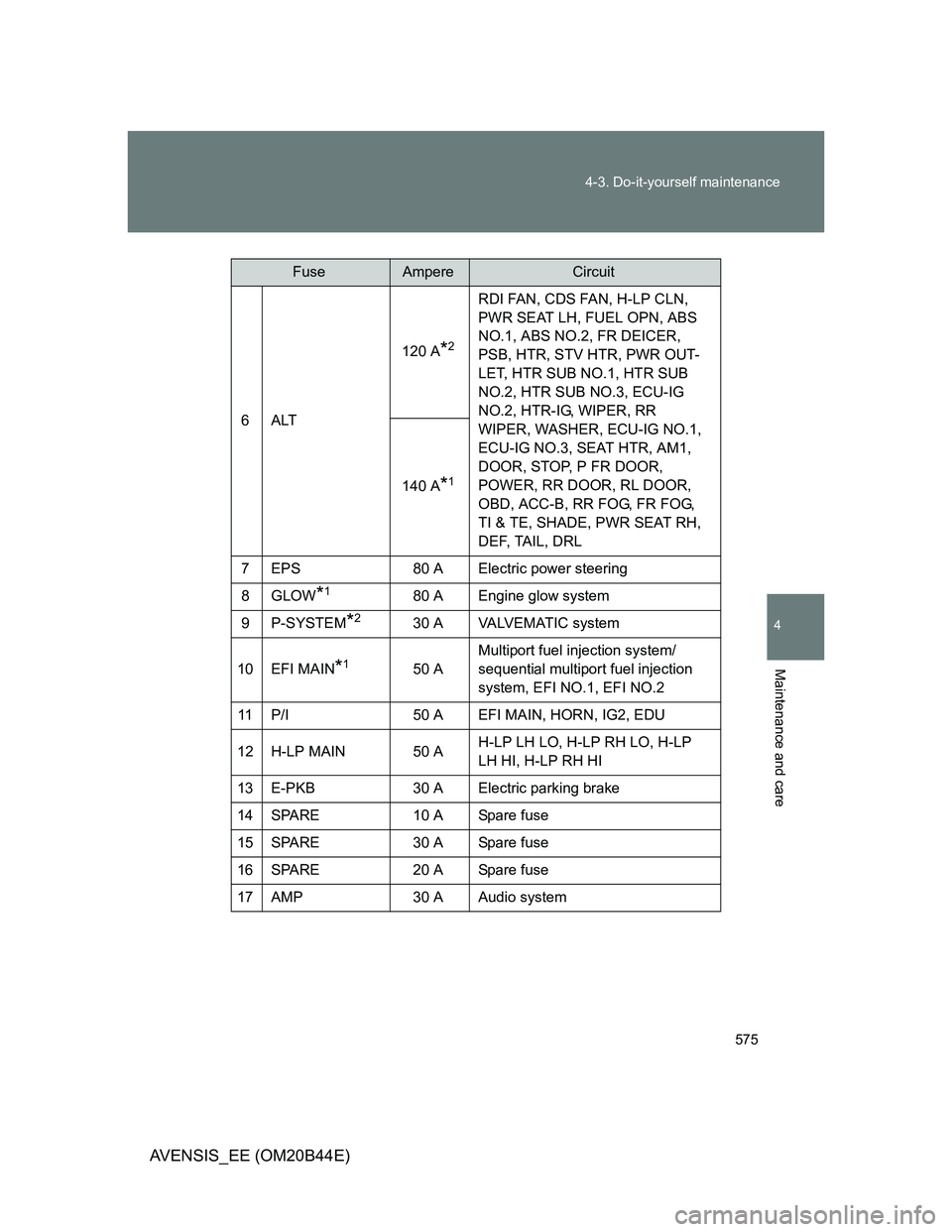

575 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
6ALT120 A
*2
RDI FAN, CDS FAN, H-LP CLN,
PWR SEAT LH, FUEL OPN, ABS
NO.1, ABS NO.2, FR DEICER,
PSB, HTR, STV HTR, PWR OUT-
LET, HTR SUB NO.1, HTR SUB
NO.2, HTR SUB NO.3, ECU-IG
NO.2, HTR-IG, WIPER, RR
WIPER, WASHER, ECU-IG NO.1,
ECU-IG NO.3, SEAT HTR, AM1,
DOOR, STOP, P FR DOOR,
POWER, RR DOOR, RL DOOR,
OBD, ACC-B, RR FOG, FR FOG,
TI & TE, SHADE, PWR SEAT RH,
DEF, TAIL, DRL 140 A
*1
7 EPS 80 A Electric power steering
8GLOW
*180 A Engine glow system
9P-SYSTEM
*230 A VALVEMATIC system
10 EFI MAIN
*150 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
11 P/I 50 A EFI MAIN, HORN, IG2, EDU
12 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
13 E-PKB 30 A Electric parking brake
14 SPARE 10 A Spare fuse
15 SPARE 30 A Spare fuse
16 SPARE 20 A Spare fuse
17 AMP 30 A Audio system
FuseAmpereCircuit
Page 581 of 772
![TOYOTA AVENSIS 2012 Owners Manual 581 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
13 METER 7.5 A Gauges and meters
14 SEAT HTR 15 A Seat heaters
15 HTR-IG 10 A Air conditioning system
16 WIPER 30 AW TOYOTA AVENSIS 2012 Owners Manual 581 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
13 METER 7.5 A Gauges and meters
14 SEAT HTR 15 A Seat heaters
15 HTR-IG 10 A Air conditioning system
16 WIPER 30 AW](/img/14/59673/w960_59673-580.png)

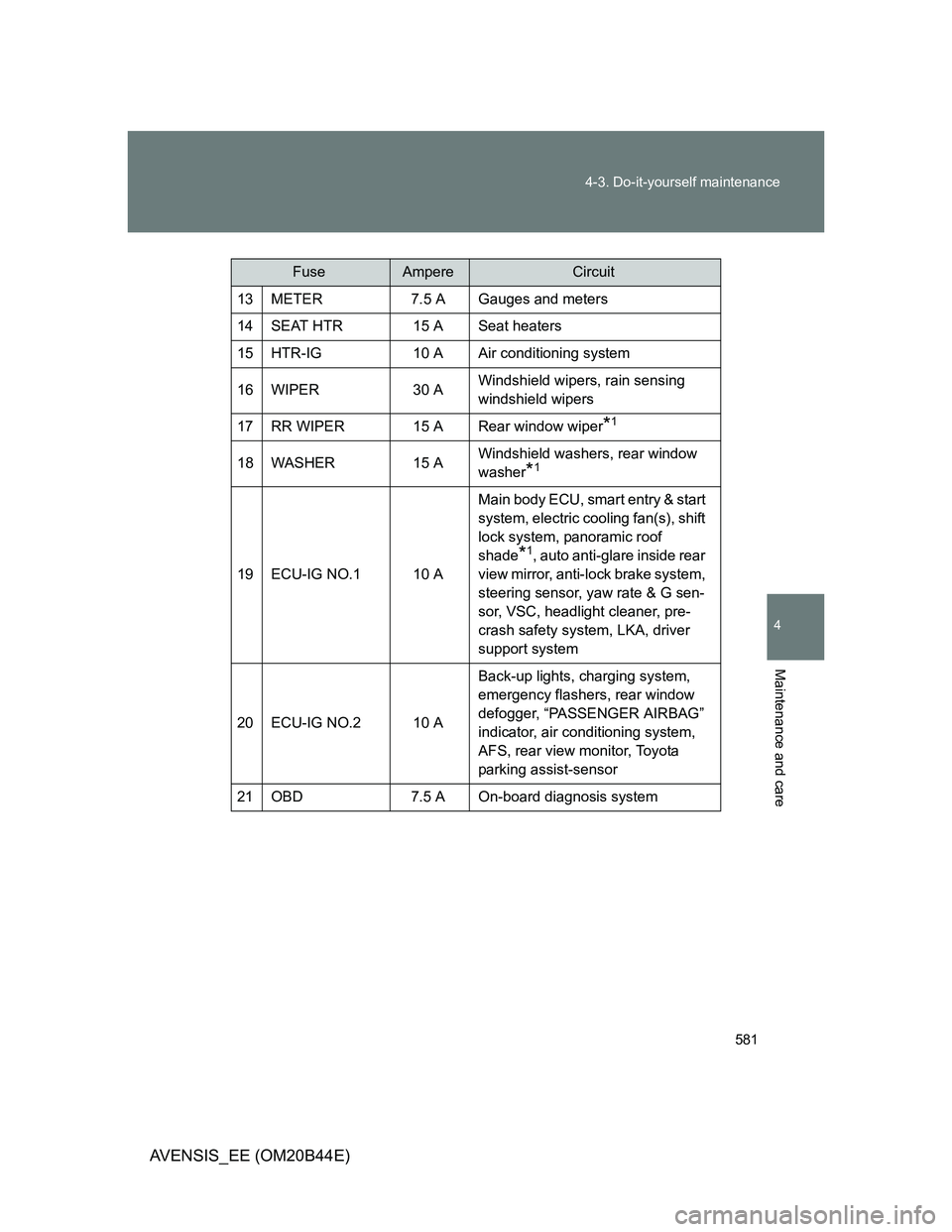

581 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
13 METER 7.5 A Gauges and meters
14 SEAT HTR 15 A Seat heaters
15 HTR-IG 10 A Air conditioning system
16 WIPER 30 AWindshield wipers, rain sensing
windshield wipers
17 RR WIPER 15 A Rear window wiper
*1
18 WASHER 15 AWindshield washers, rear window
washer*1
19 ECU-IG NO.1 10 AMain body ECU, smart entry & start
system, electric cooling fan(s), shift
lock system, panoramic roof
shade
*1, auto anti-glare inside rear
view mirror, anti-lock brake system,
steering sensor, yaw rate & G sen-
sor, VSC, headlight cleaner, pre-
crash safety system, LKA, driver
support system
20 ECU-IG NO.2 10 ABack-up lights, charging system,
emergency flashers, rear window
defogger, “PASSENGER AIRBAG”
indicator, air conditioning system,
AFS, rear view monitor, Toyota
parking assist-sensor
21 OBD 7.5 A On-board diagnosis system
FuseAmpereCircuit
