TOYOTA AVENSIS 2014 Owners Manual (in English)

161 1-7. Safety information
1
Before driving

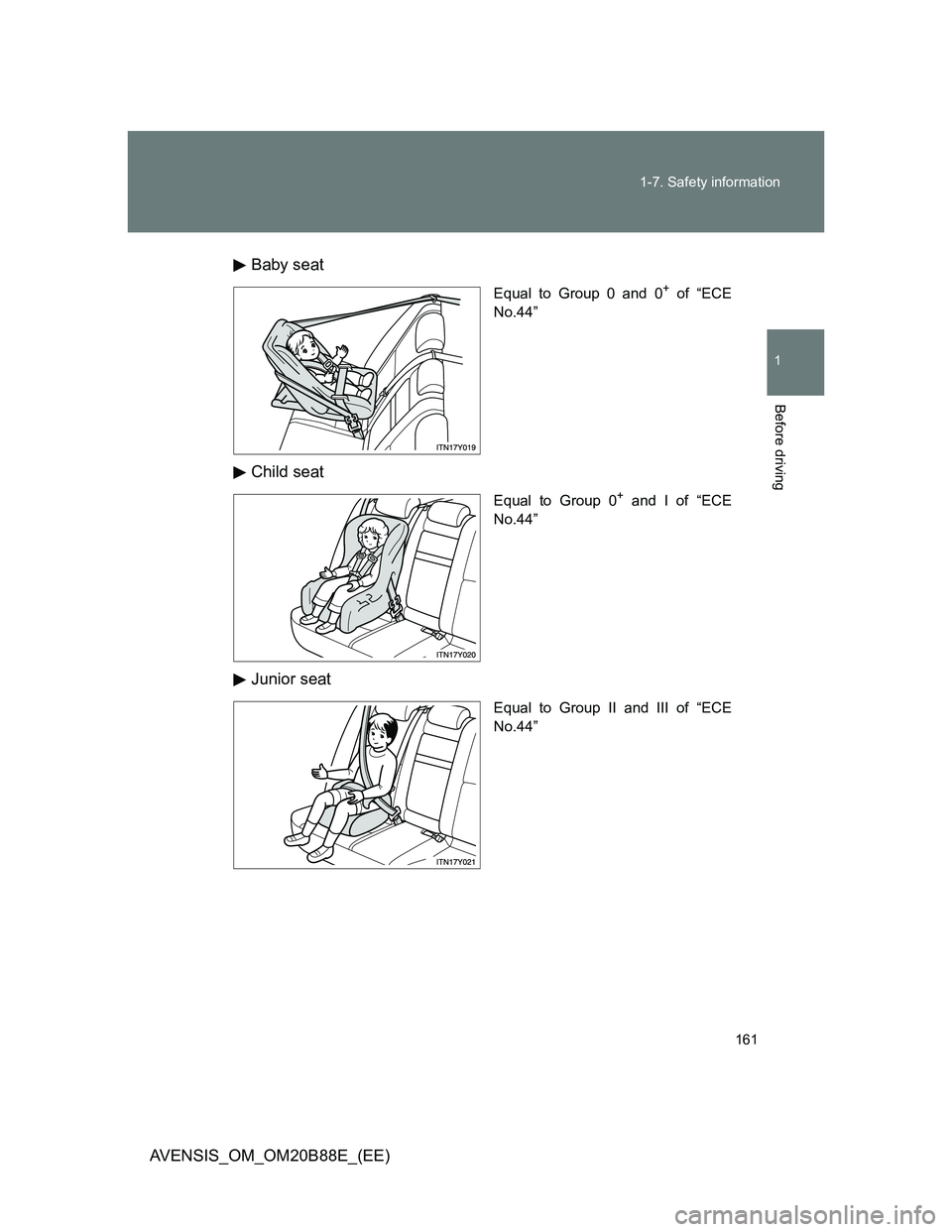

AVENSIS_OM_OM20B88E_(EE)Baby seat
Equal to Group 0 and 0+ of “ECE
No.44”
Child seat
Equal to Group 0+ and I of “ECE
No.44”
Junior seat
Equal to Group II and III of “ECE
No.44”

162 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)

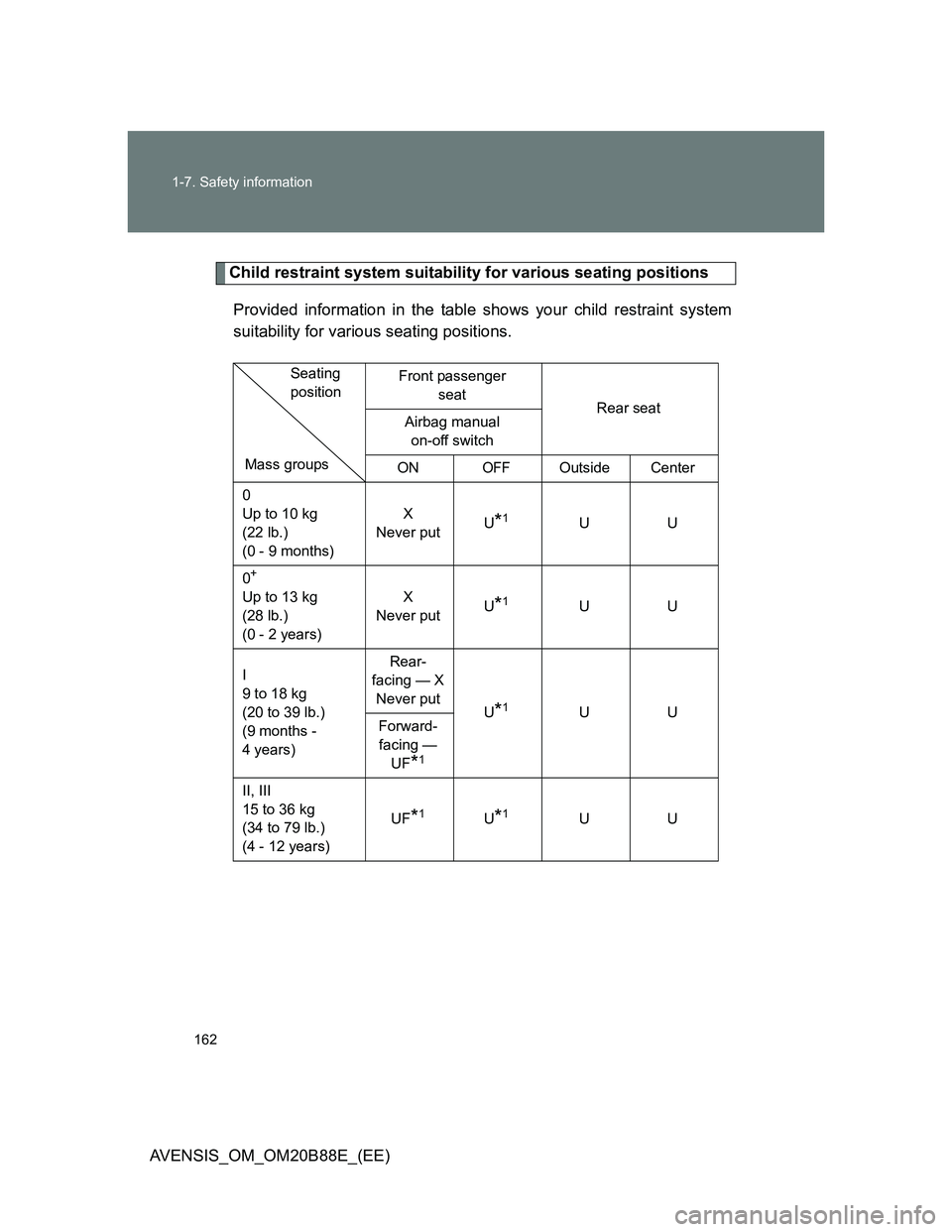

Child restraint system suitability for various seating positions
Provided information in the table shows your child restraint system
suitability for various seating positions.
Front passenger
seat
Rear seat
Airbag manual
on-off switch
ON
OFFOutside Center
0
Up to 10 kg
(22 lb.)
(0 - 9 months)X
Never putU
*1UU
0
+
Up to 13 kg
(28 lb.)
(0 - 2 years)X
Never putU*1UU
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years)Rear-
facing — X
Never put
U
*1UU
Forward-
facing —
UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*1U*1UU
Mass groupsSeating
position

163 1-7. Safety information
1
Before driving

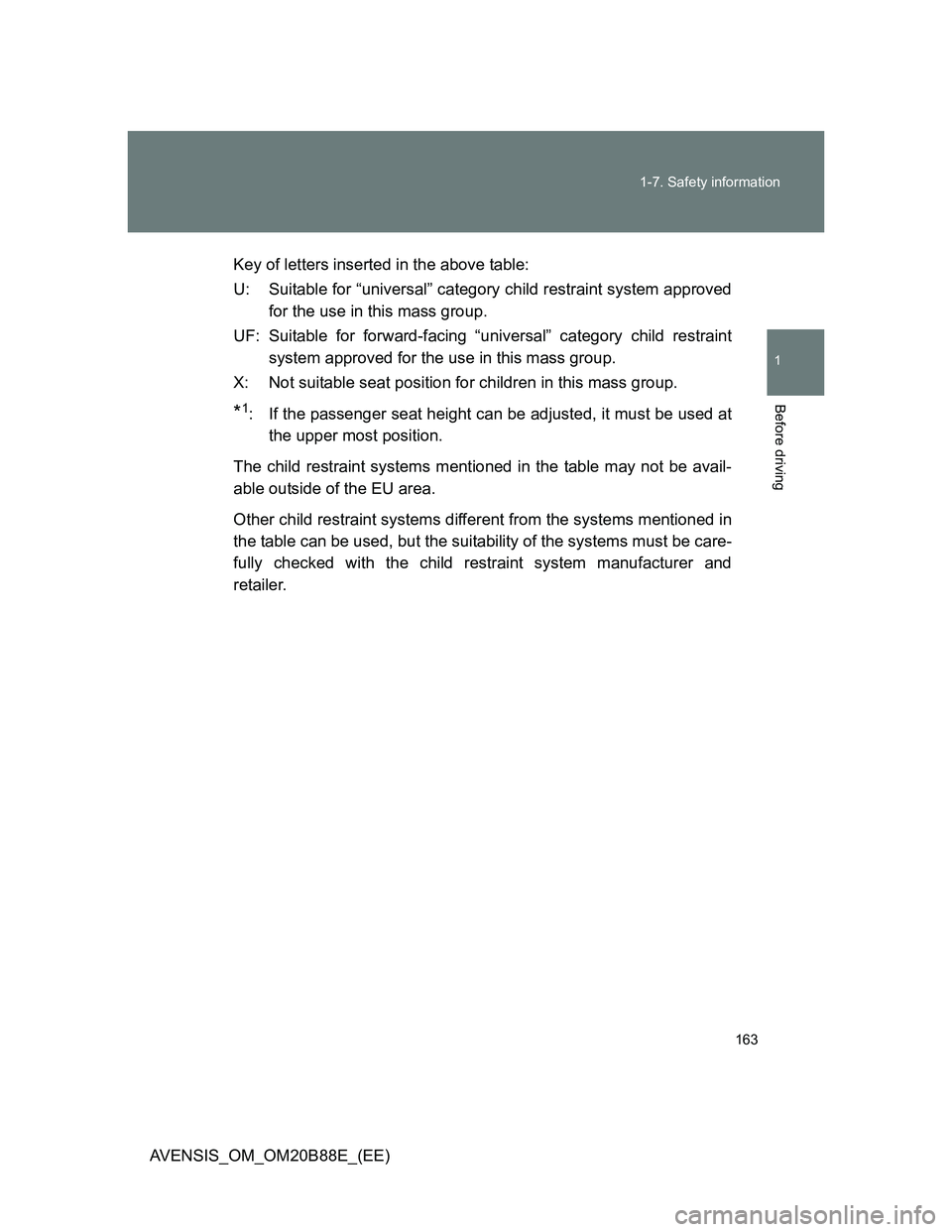

AVENSIS_OM_OM20B88E_(EE)Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
*1: If the passenger seat height can be adjusted, it must be used at
the upper most position.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

164 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)

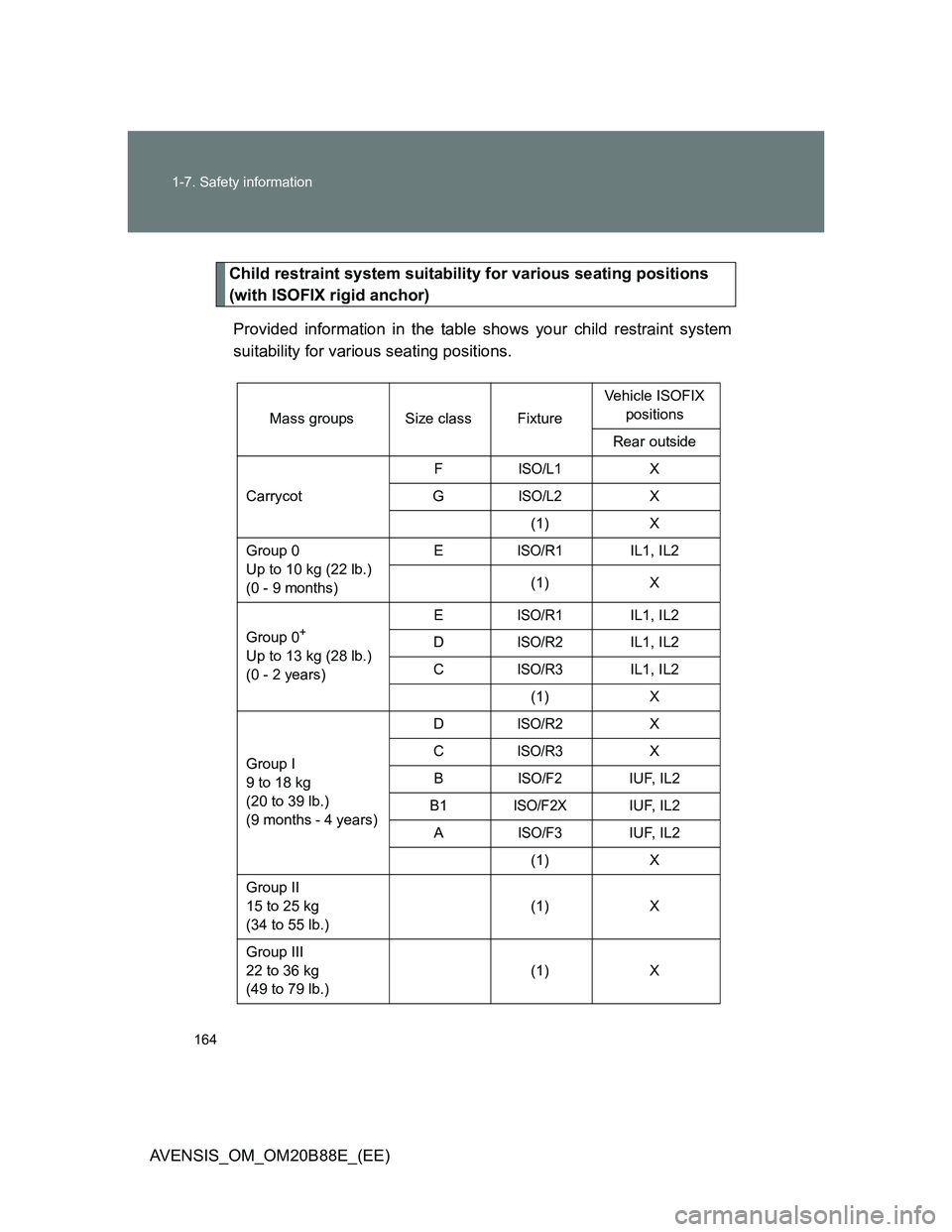

Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Mass groups Size class FixtureVehicle ISOFIX
positions
Rear outside
CarrycotF
ISO/L1X
G
ISO/L2X
(1) X
Group 0
Up to 10 kg (22 lb.)
(0 - 9 months)E
ISO/R1IL1, IL2
(1) X
Group 0
+
Up to 13 kg (28 lb.)
(0 - 2 years)E
ISO/R1IL1, IL2
D
ISO/R2IL1, IL2
C
ISO/R3IL1, IL2
(1) X
Group I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)D
ISO/R2X
C
ISO/R3X
B
ISO/F2IUF, IL2
B1
ISO/F2XIUF, IL2
A
ISO/F3IUF, IL2
(1) X
Group II
15 to 25 kg
(34 to 55 lb.)(1) X
Group III
22 to 36 kg
(49 to 79 lb.)(1) X

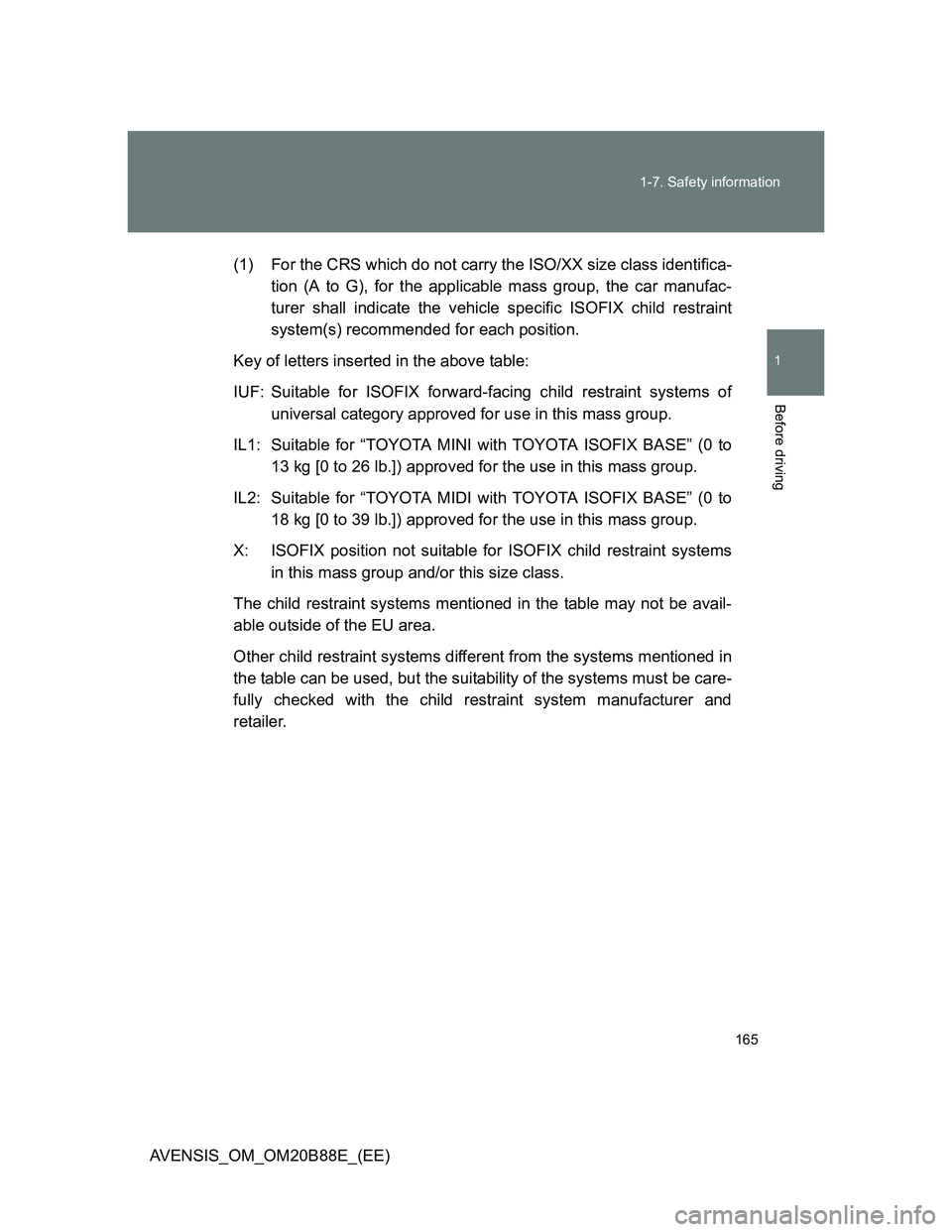

165 1-7. Safety information
1
Before driving
AVENSIS_OM_OM20B88E_(EE)(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufac-
turer shall indicate the vehicle specific ISOFIX child restraint
system(s) recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of
universal category approved for use in this mass group.
IL1: Suitable for “TOYOTA MINI with TOYOTA ISOFIX BASE” (0 to
13 kg [0 to 26 lb.]) approved for the use in this mass group.
IL2: Suitable for “TOYOTA MIDI with TOYOTA ISOFIX BASE” (0 to
18 kg [0 to 39 lb.]) approved for the use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in this mass group and/or this size class.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

166 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)

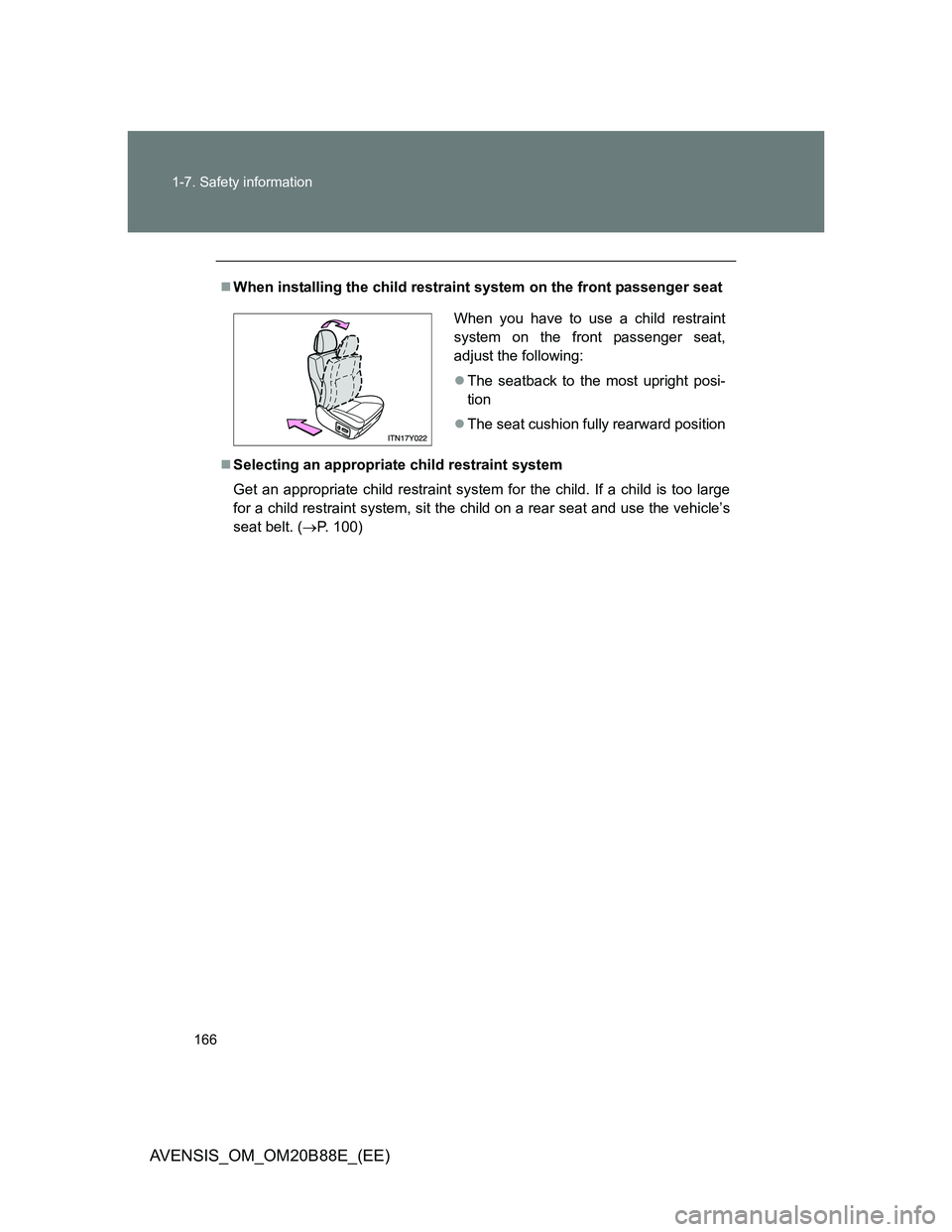

When installing the child restraint system on the front passenger seat
Selecting an appropriate child restraint system
Get an appropriate child restraint system for the child. If a child is too large
for a child restraint system, sit the child on a rear seat and use the vehicle’s
seat belt. (P. 100)
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
The seatback to the most upright posi-
tion
The seat cushion fully rearward position

167 1-7. Safety information
1
Before driving
AVENSIS_OM_OM20B88E_(EE)

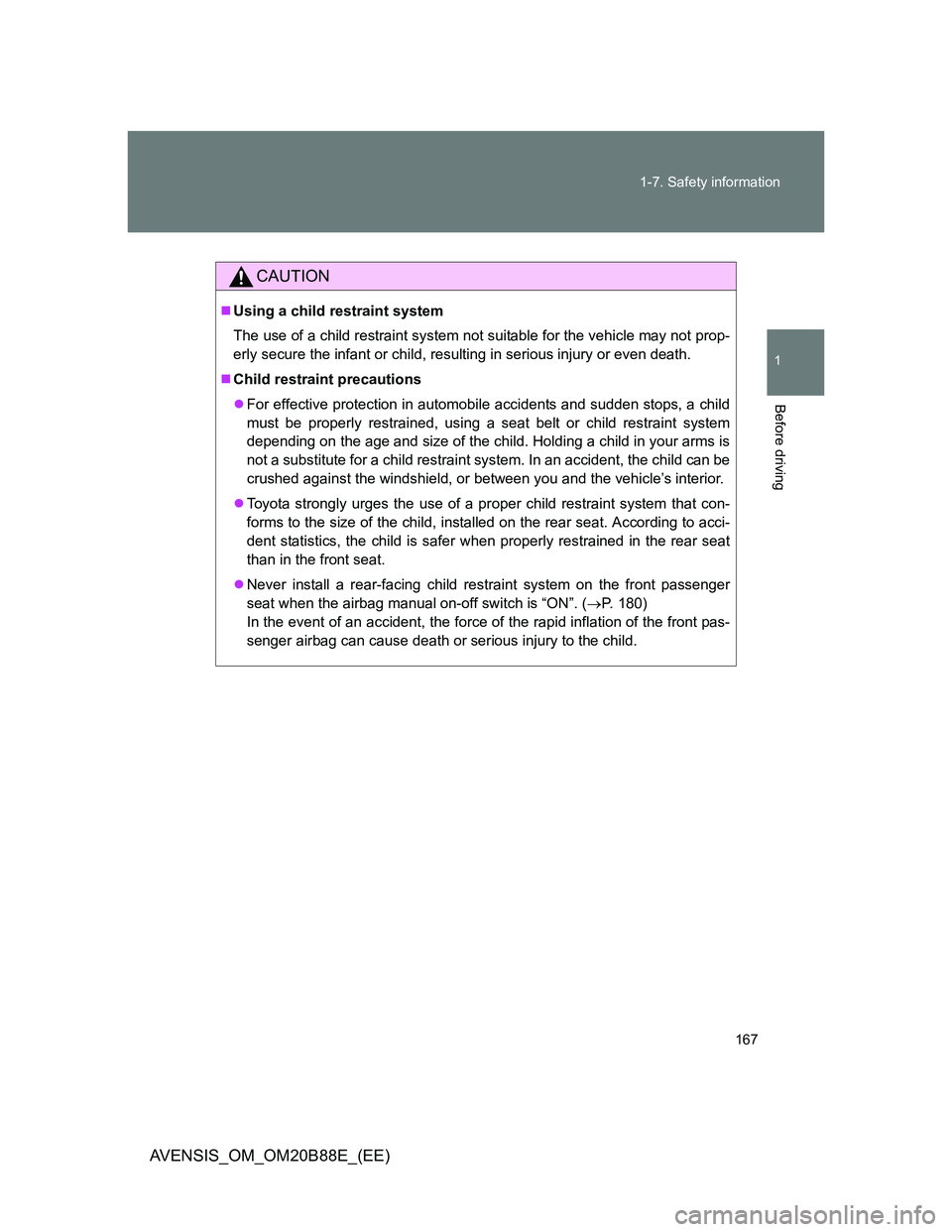

CAUTION
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child, resulting in serious injury or even death.
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
Never install a rear-facing child restraint system on the front passenger
seat when the airbag manual on-off switch is “ON”. (P. 180)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.

168 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)

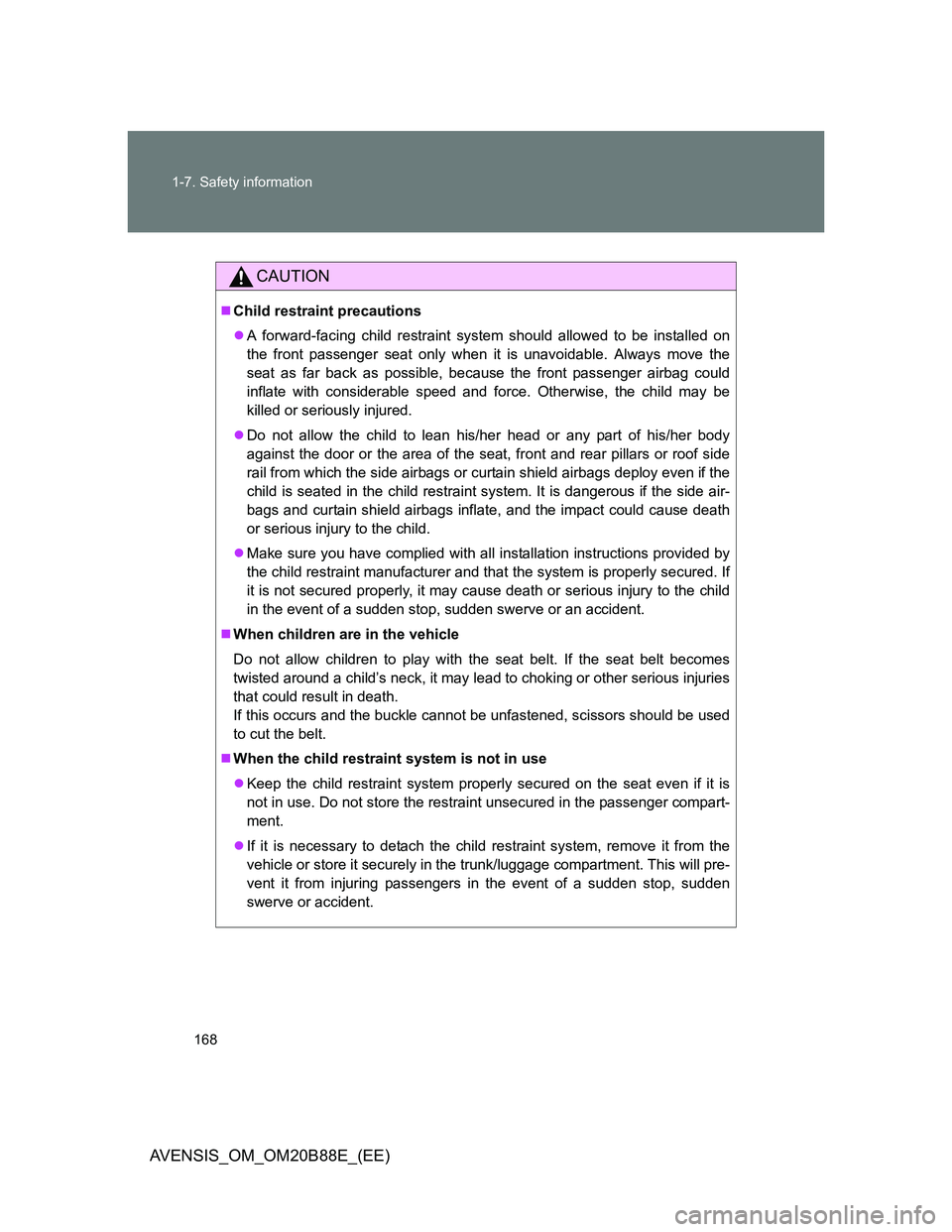

CAUTION
Child restraint precautions
A forward-facing child restraint system should allowed to be installed on
the front passenger seat only when it is unavoidable. Always move the
seat as far back as possible, because the front passenger airbag could
inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rail from which the side airbags or curtain shield airbags deploy even if the
child is seated in the child restraint system. It is dangerous if the side air-
bags and curtain shield airbags inflate, and the impact could cause death
or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk/luggage compartment. This will pre-
vent it from injuring passengers in the event of a sudden stop, sudden
swerve or accident.

169
1
1-7. Safety information
Before driving
AVENSIS_OM_OM20B88E_(EE)
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure the child restraints to the seats using a seat belt or a ISOFIX
rigid anchor (ISOFIX child restraint system). Attach the top strap
when installing a child restraint system.
Seat belts (An ELR belt
requires a locking clip.)
ISOFIX rigid anchor (ISOFIX
child restraint system)
These exclusive fixing bars are
provided for the outside rear
seats. (Tags displaying the
location of the anchors are
attached to the seats.)

170 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)

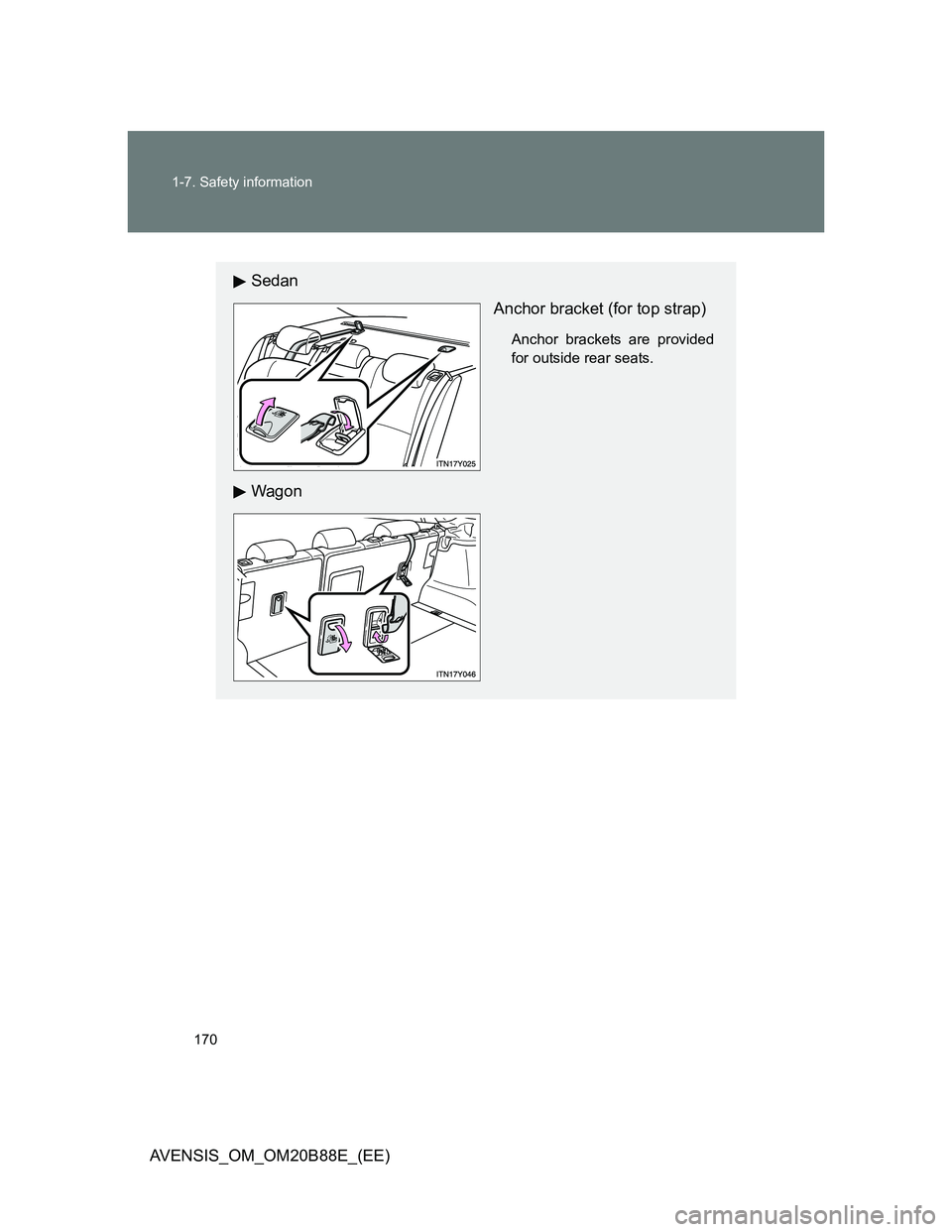

Sedan
Anchor bracket (for top strap)
Anchor brackets are provided
for outside rear seats.
Wagon
