air conditioning TOYOTA AVENSIS 2014 Owners Manual (in English)

TABLE OF CONTENTS
1
AVENSIS_OM_OM20B88E_(EE)
1Before DrivingAdjusting and operating features such as door locks,
mirrors, and steering column
2When DrivingDriving, stopping and safe-driving information
3Interior featuresAir conditioning and audio systems, as well as other in-
terior features for a comfortable driving experience
4Maintenance and
care Cleaning and protecting your vehicle, performing do-it-
yourself maintenance, and maintenance information
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident
6Vehicle specifi-
cationsDetailed vehicle information
IndexAlphabetical listing of information contained in this man-
ual

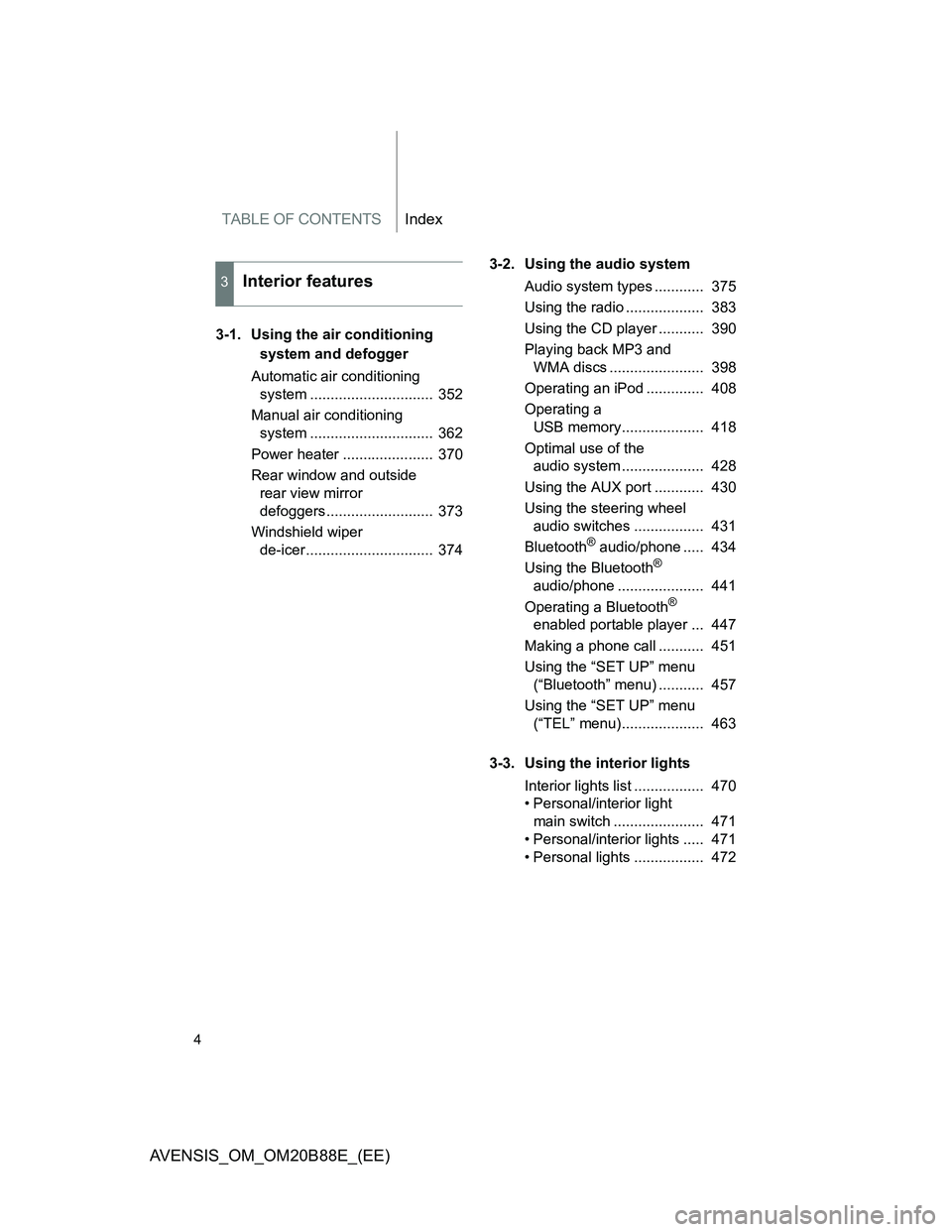

TABLE OF CONTENTSIndex
4
AVENSIS_OM_OM20B88E_(EE)
3-1. Using the air conditioning
system and defogger
Automatic air conditioning
system .............................. 352
Manual air conditioning
system .............................. 362
Power heater ...................... 370
Rear window and outside
rear view mirror
defoggers.......................... 373
Windshield wiper
de-icer............................... 3743-2. Using the audio system
Audio system types ............ 375
Using the radio ................... 383
Using the CD player ........... 390
Playing back MP3 and
WMA discs ....................... 398
Operating an iPod .............. 408
Operating a
USB memory.................... 418
Optimal use of the
audio system .................... 428
Using the AUX port ............ 430
Using the steering wheel
audio switches ................. 431
Bluetooth
® audio/phone ..... 434
Using the Bluetooth®
audio/phone ..................... 441
Operating a Bluetooth
®
enabled portable player ... 447
Making a phone call ........... 451
Using the “SET UP” menu
(“Bluetooth” menu) ........... 457
Using the “SET UP” menu
(“TEL” menu).................... 463
3-3. Using the interior lights
Interior lights list ................. 470
• Personal/interior light
main switch ...................... 471
• Personal/interior lights ..... 471
• Personal lights ................. 472
3Interior features

1
2
3
4
5
6
5
AVENSIS_OM_OM20B88E_(EE)

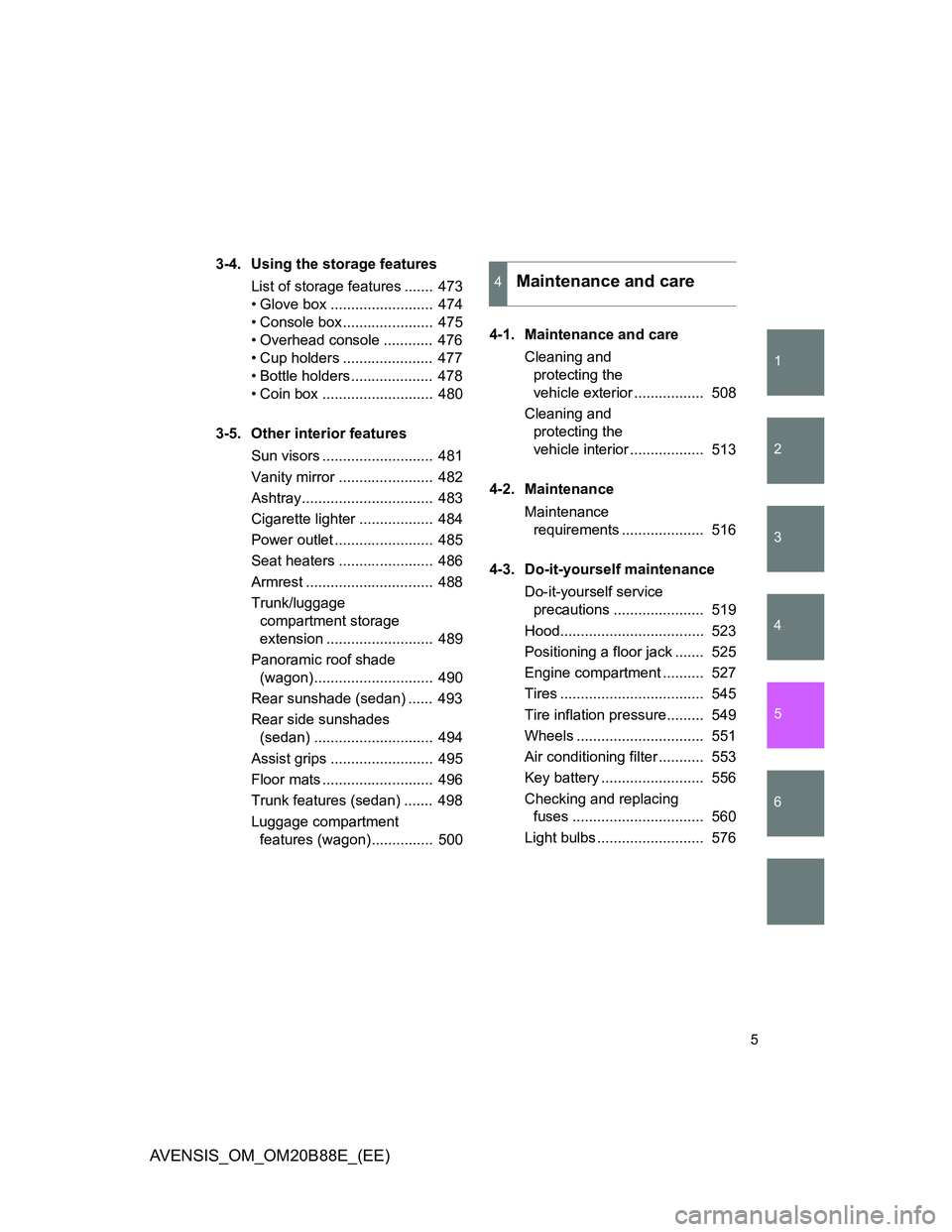

3-4. Using the storage features
List of storage features ....... 473
• Glove box ......................... 474
• Console box...................... 475
• Overhead console ............ 476
• Cup holders ...................... 477
• Bottle holders.................... 478
• Coin box ........................... 480
3-5. Other interior features
Sun visors ........................... 481
Vanity mirror ....................... 482
Ashtray................................ 483
Cigarette lighter .................. 484
Power outlet ........................ 485
Seat heaters ....................... 486
Armrest ............................... 488
Trunk/luggage
compartment storage
extension .......................... 489
Panoramic roof shade
(wagon)............................. 490
Rear sunshade (sedan) ...... 493
Rear side sunshades
(sedan) ............................. 494
Assist grips ......................... 495
Floor mats ........................... 496
Trunk features (sedan) ....... 498
Luggage compartment
features (wagon)............... 5004-1. Maintenance and care
Cleaning and
protecting the
vehicle exterior ................. 508
Cleaning and
protecting the
vehicle interior .................. 513
4-2. Maintenance
Maintenance
requirements .................... 516
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 519
Hood................................... 523
Positioning a floor jack ....... 525
Engine compartment .......... 527
Tires ................................... 545
Tire inflation pressure......... 549
Wheels ............................... 551
Air conditioning filter ........... 553
Key battery ......................... 556
Checking and replacing
fuses ................................ 560
Light bulbs .......................... 576
4Maintenance and care

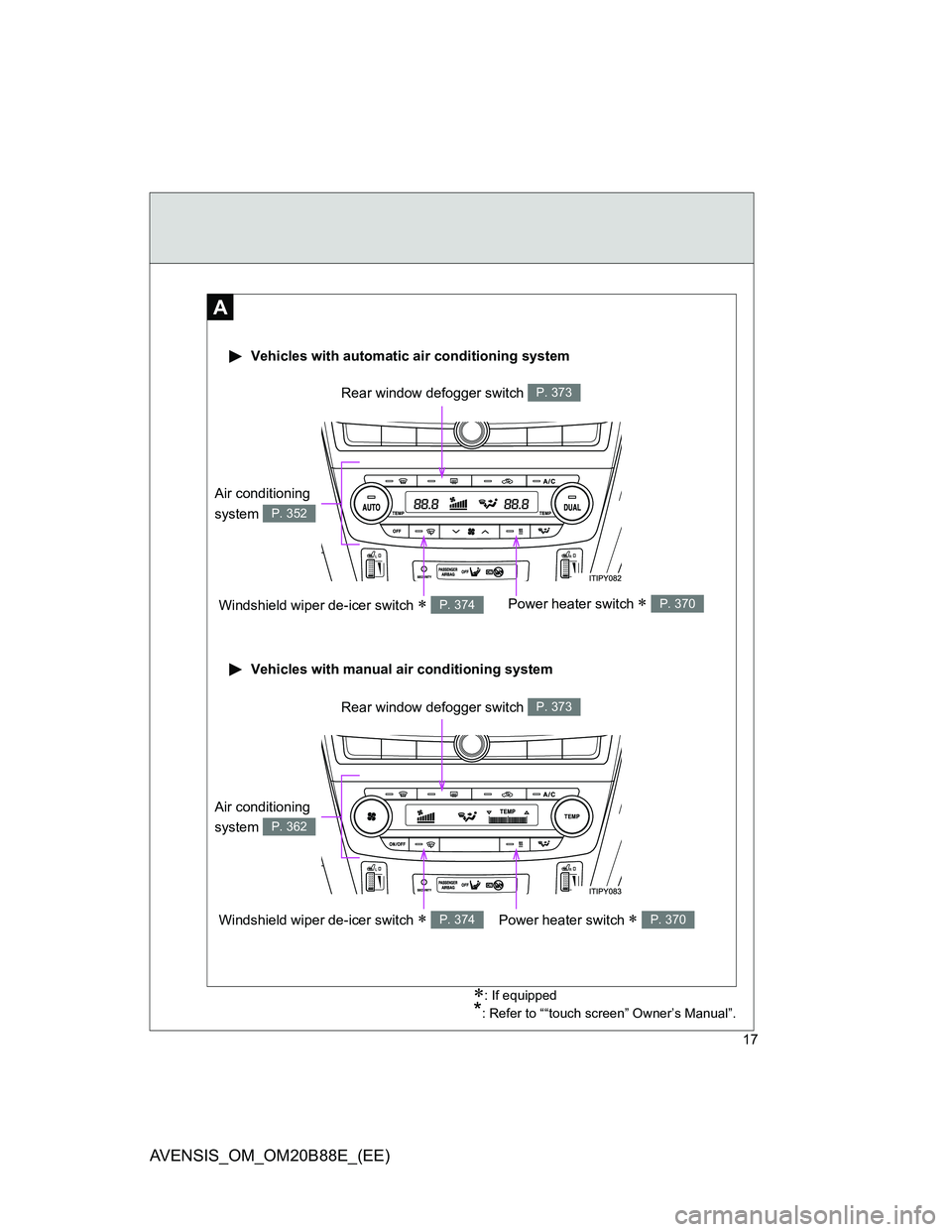

17
AVENSIS_OM_OM20B88E_(EE)
A
Vehicles with automatic air conditioning system
Windshield wiper de-icer switch  P. 374
Rear window defogger switch P. 373
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.
Vehicles with manual air conditioning system
Power heater switch  P. 370
Windshield wiper de-icer switch  P. 374
Rear window defogger switch P. 373
Power heater switch  P. 370
Air conditioning
system
P. 352
Air conditioning
system
P. 362

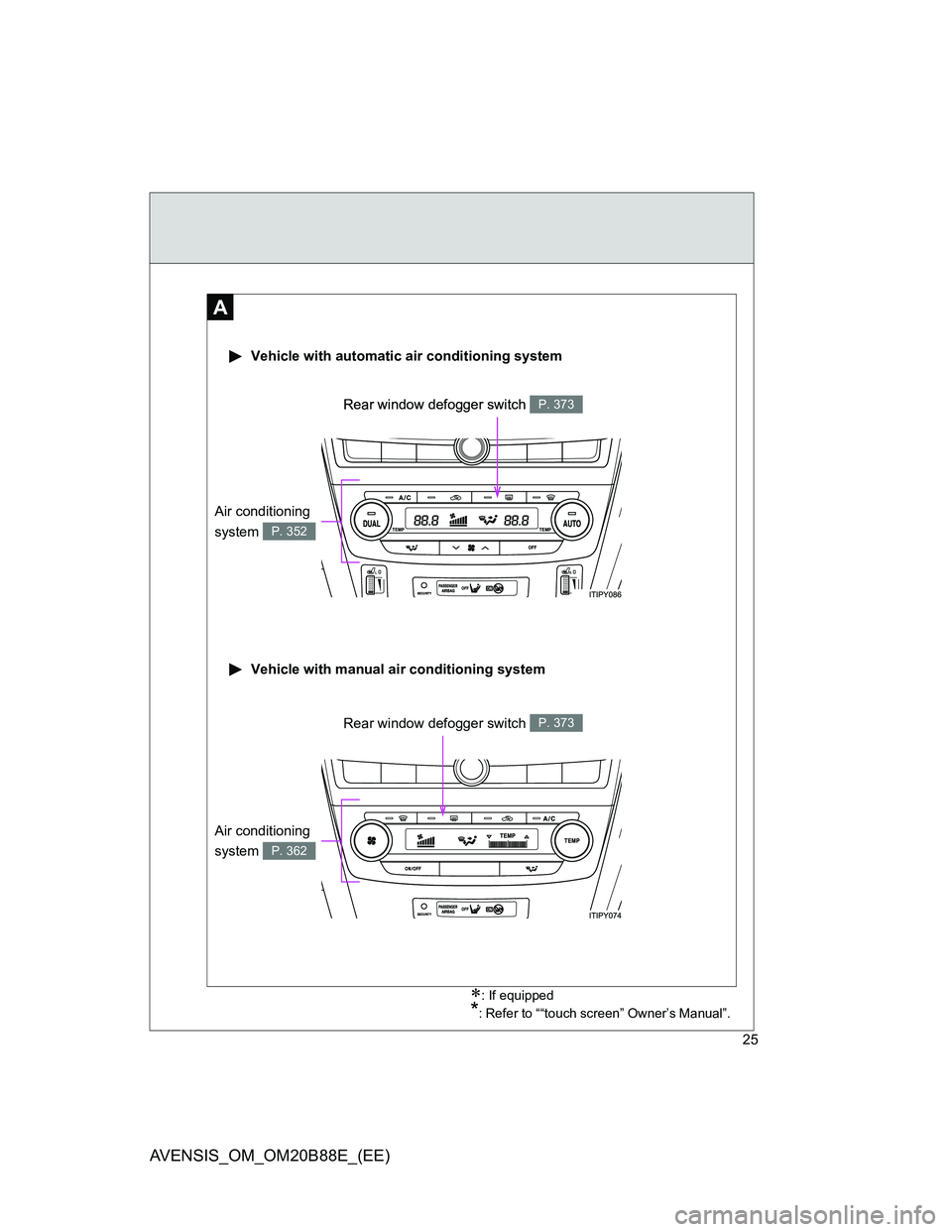

25
AVENSIS_OM_OM20B88E_(EE)
A
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.
Rear window defogger switch P. 373
Vehicle with automatic air conditioning system
Vehicle with manual air conditioning system
Rear window defogger switch P. 373
Rear window defogger switch P. 373
Air conditioning
system
P. 352
Air conditioning
system
P. 362

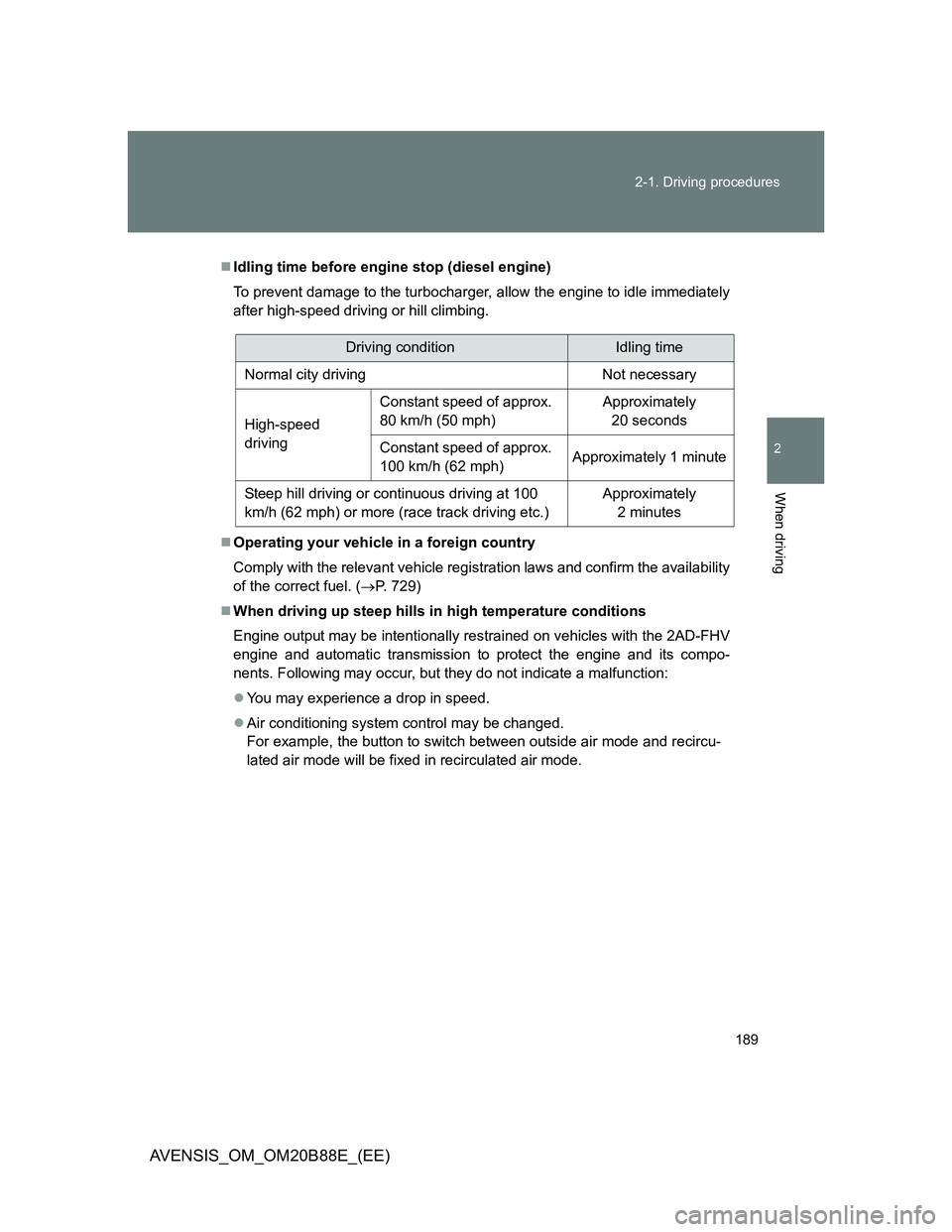

189 2-1. Driving procedures
2
When driving
AVENSIS_OM_OM20B88E_(EE)
Idling time before engine stop (diesel engine)
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or hill climbing.
Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 729)
When driving up steep hills in high temperature conditions
Engine output may be intentionally restrained on vehicles with the 2AD-FHV
engine and automatic transmission to protect the engine and its compo-
nents. Following may occur, but they do not indicate a malfunction:
You may experience a drop in speed.
Air conditioning system control may be changed.
For example, the button to switch between outside air mode and recircu-
lated air mode will be fixed in recirculated air mode.
Driving conditionIdling time
Normal city driving Not necessary
High-speed
drivingConstant speed of approx.
80 km/h (50 mph)Approximately
20 seconds
Constant speed of approx.
100 km/h (62 mph)Approximately 1 minute
Steep hill driving or continuous driving at 100
km/h (62 mph) or more (race track driving etc.)Approximately
2 minutes

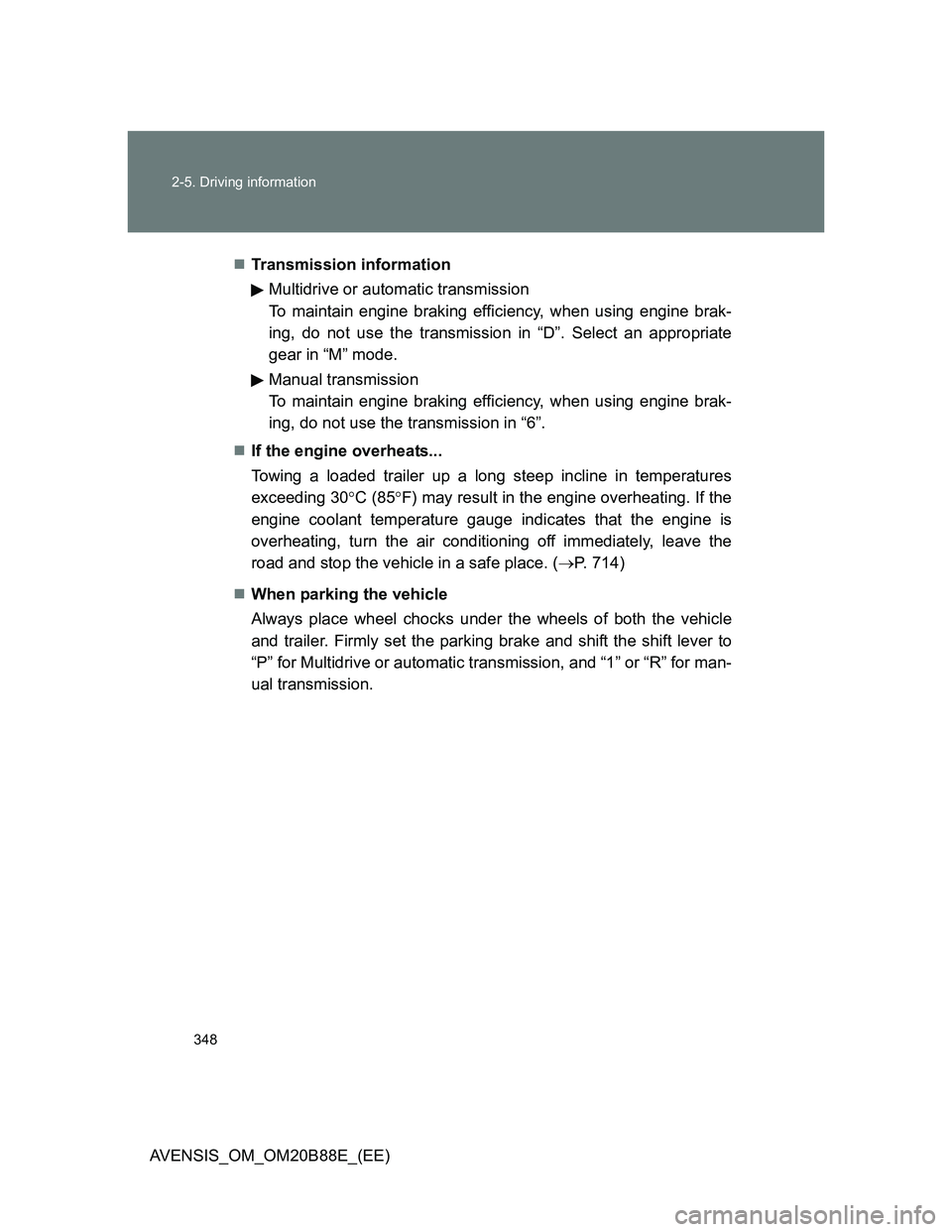

348 2-5. Driving information
AVENSIS_OM_OM20B88E_(EE)Transmission information
Multidrive or automatic transmission
To maintain engine braking efficiency, when using engine brak-
ing, do not use the transmission in “D”. Select an appropriate
gear in “M” mode.
Manual transmission
To maintain engine braking efficiency, when using engine brak-
ing, do not use the transmission in “6”.
If the engine overheats...
Towing a loaded trailer up a long steep incline in temperatures
exceeding 30C (85F) may result in the engine overheating. If the
engine coolant temperature gauge indicates that the engine is
overheating, turn the air conditioning off immediately, leave the
road and stop the vehicle in a safe place. (P. 714)
When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to
“P” for Multidrive or automatic transmission, and “1” or “R” for man-
ual transmission.

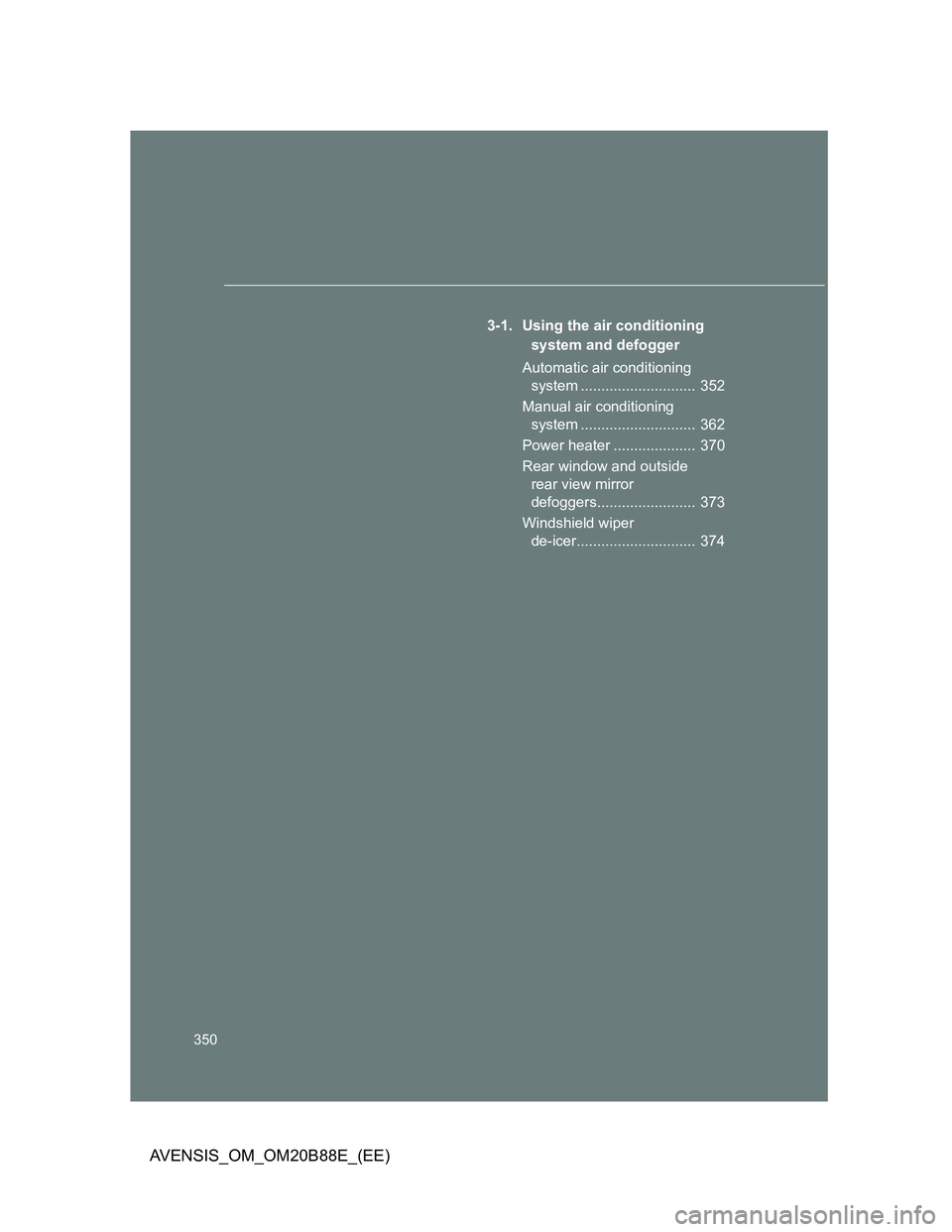

350
AVENSIS_OM_OM20B88E_(EE)
3-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ............................ 352
Manual air conditioning
system ............................ 362
Power heater .................... 370
Rear window and outside
rear view mirror
defoggers........................ 373
Windshield wiper
de-icer............................. 374

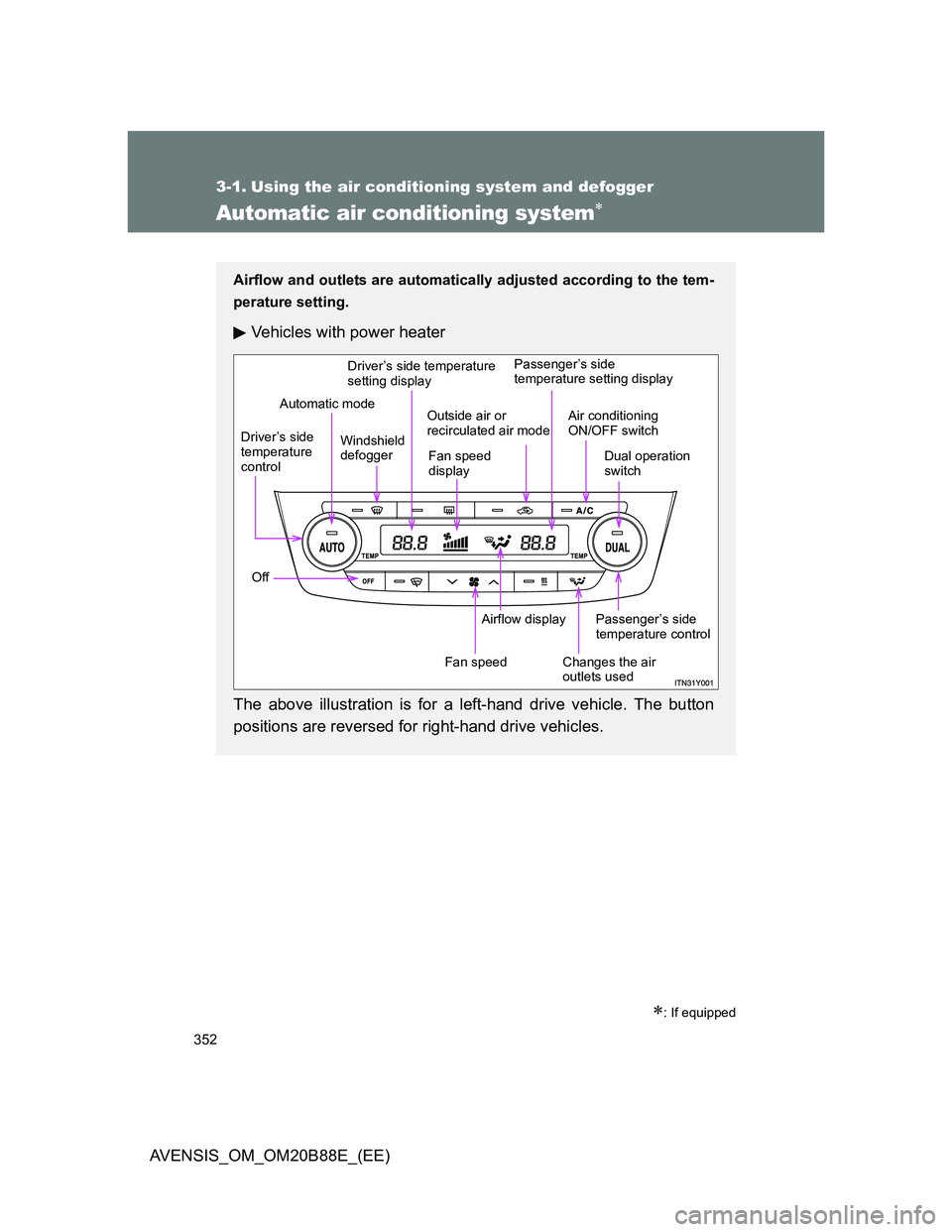

352
AVENSIS_OM_OM20B88E_(EE)
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
: If equipped
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Vehicles with power heater
The above illustration is for a left-hand drive vehicle. The button
positions are reversed for right-hand drive vehicles.
Driver’s side temperature
setting display
Driver’s side
temperature
control
Off
Fan speedAirflow display Windshield
defoggerOutside air or
recirculated air mode
Fan speed
displayPassenger’s side
temperature setting display
Dual operation
switch
Passenger’s side
temperature control
Changes the air
outlets usedAir conditioning
ON/OFF switch Automatic mode

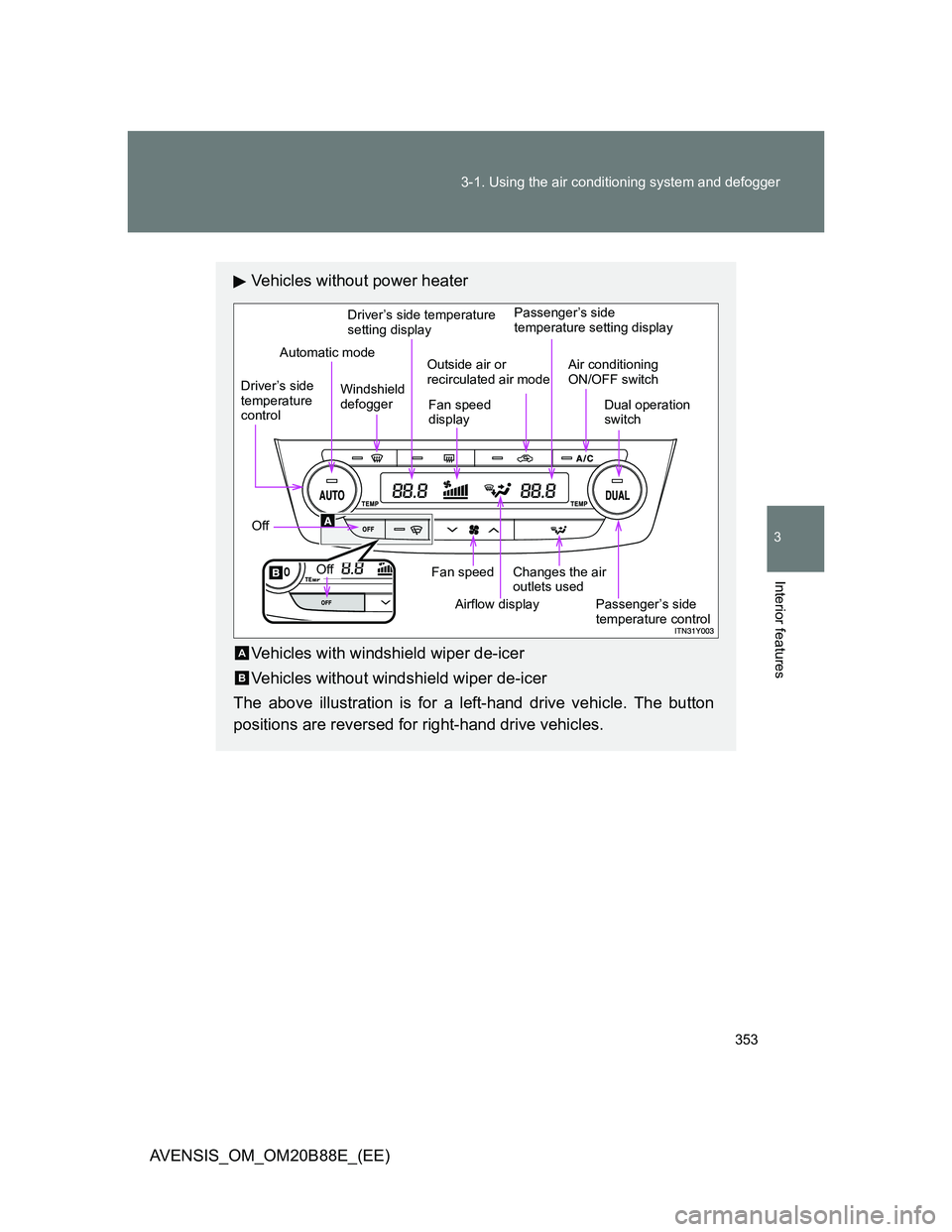

353 3-1. Using the air conditioning system and defogger
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Vehicles without power heater
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
The above illustration is for a left-hand drive vehicle. The button
positions are reversed for right-hand drive vehicles.
Driver’s side temperature
setting display
Driver’s side
temperature
control
Off
Fan speed
Airflow display Windshield
defoggerOutside air or
recirculated air mode
Fan speed
displayPassenger’s side
temperature setting display
Dual operation
switch
Passenger’s side
temperature control Off
Changes the air
outlets usedAir conditioning
ON/OFF switch Automatic mode
A
B
