child lock TOYOTA AVENSIS 2014 Owners Manual (in English)

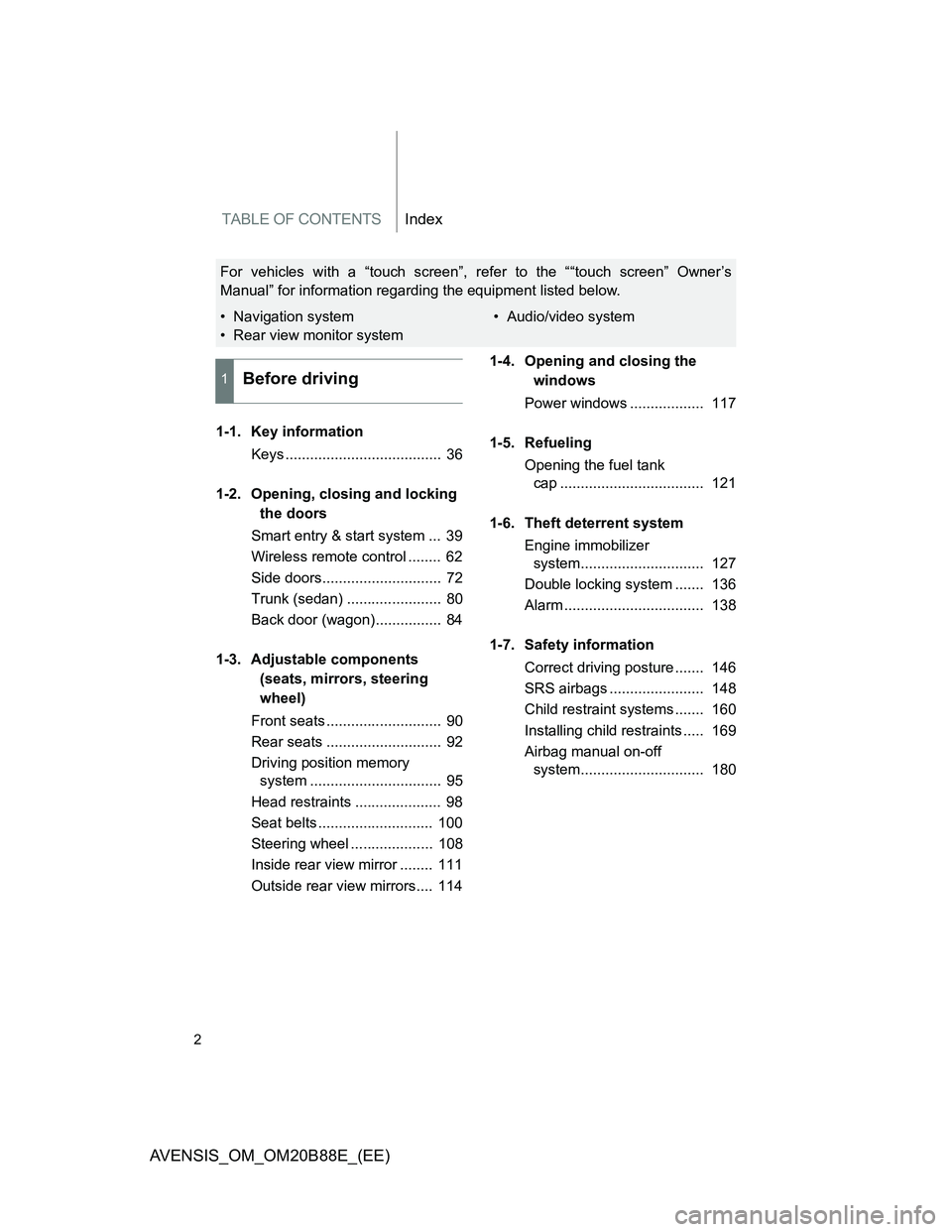

TABLE OF CONTENTSIndex
2
AVENSIS_OM_OM20B88E_(EE)
1-1. Key information
Keys ...................................... 36
1-2. Opening, closing and locking
the doors
Smart entry & start system ... 39
Wireless remote control ........ 62
Side doors............................. 72
Trunk (sedan) ....................... 80
Back door (wagon)................ 84
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats ............................ 90
Rear seats ............................ 92
Driving position memory
system ................................ 95
Head restraints ..................... 98
Seat belts ............................ 100
Steering wheel .................... 108
Inside rear view mirror ........ 111
Outside rear view mirrors.... 1141-4. Opening and closing the
windows
Power windows .................. 117
1-5. Refueling
Opening the fuel tank
cap ................................... 121
1-6. Theft deterrent system
Engine immobilizer
system.............................. 127
Double locking system ....... 136
Alarm .................................. 138
1-7. Safety information
Correct driving posture ....... 146
SRS airbags ....................... 148
Child restraint systems ....... 160
Installing child restraints ..... 169
Airbag manual on-off
system.............................. 180
1Before driving
For vehicles with a “touch screen”, refer to the ““touch screen” Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Rear view monitor system• Audio/video system

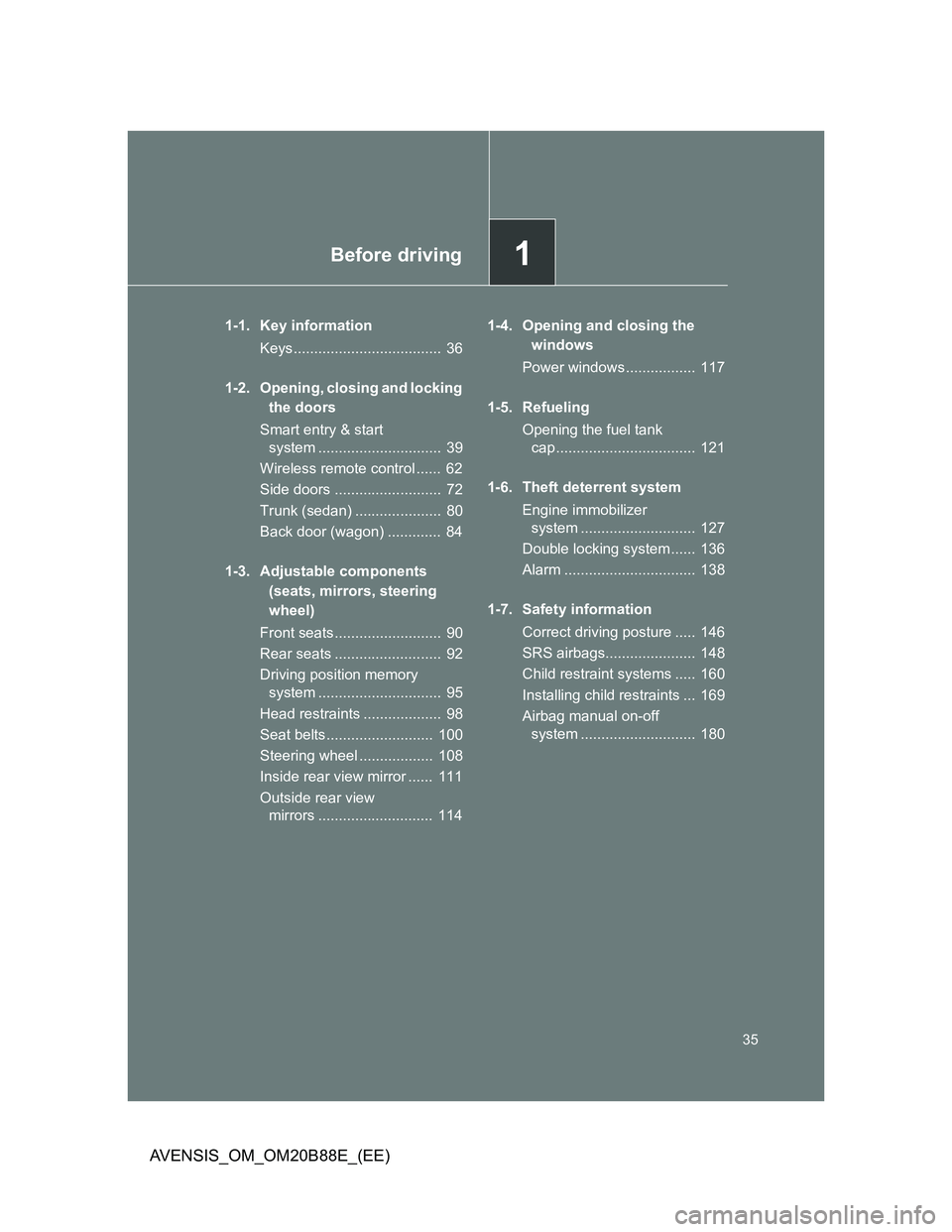

1Before driving
35
AVENSIS_OM_OM20B88E_(EE)
1-1. Key information
Keys.................................... 36
1-2. Opening, closing and locking
the doors
Smart entry & start
system .............................. 39
Wireless remote control ...... 62
Side doors .......................... 72
Trunk (sedan) ..................... 80
Back door (wagon) ............. 84
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 90
Rear seats .......................... 92
Driving position memory
system .............................. 95
Head restraints ................... 98
Seat belts.......................... 100
Steering wheel .................. 108
Inside rear view mirror ...... 111
Outside rear view
mirrors ............................ 1141-4. Opening and closing the
windows
Power windows ................. 117
1-5. Refueling
Opening the fuel tank
cap .................................. 121
1-6. Theft deterrent system
Engine immobilizer
system ............................ 127
Double locking system ...... 136
Alarm ................................ 138
1-7. Safety information
Correct driving posture ..... 146
SRS airbags...................... 148
Child restraint systems ..... 160
Installing child restraints ... 169
Airbag manual on-off
system ............................ 180

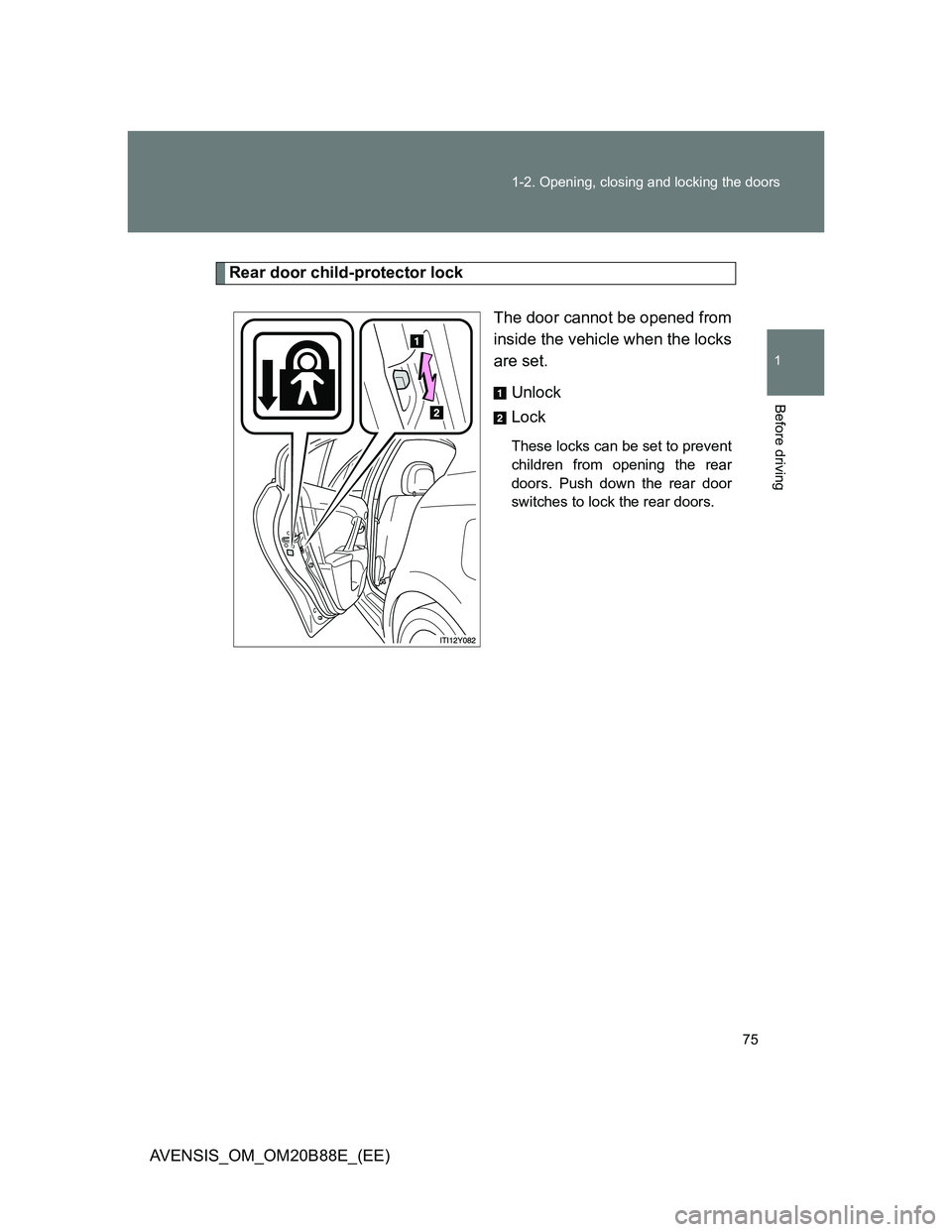

75 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down the rear door
switches to lock the rear doors.

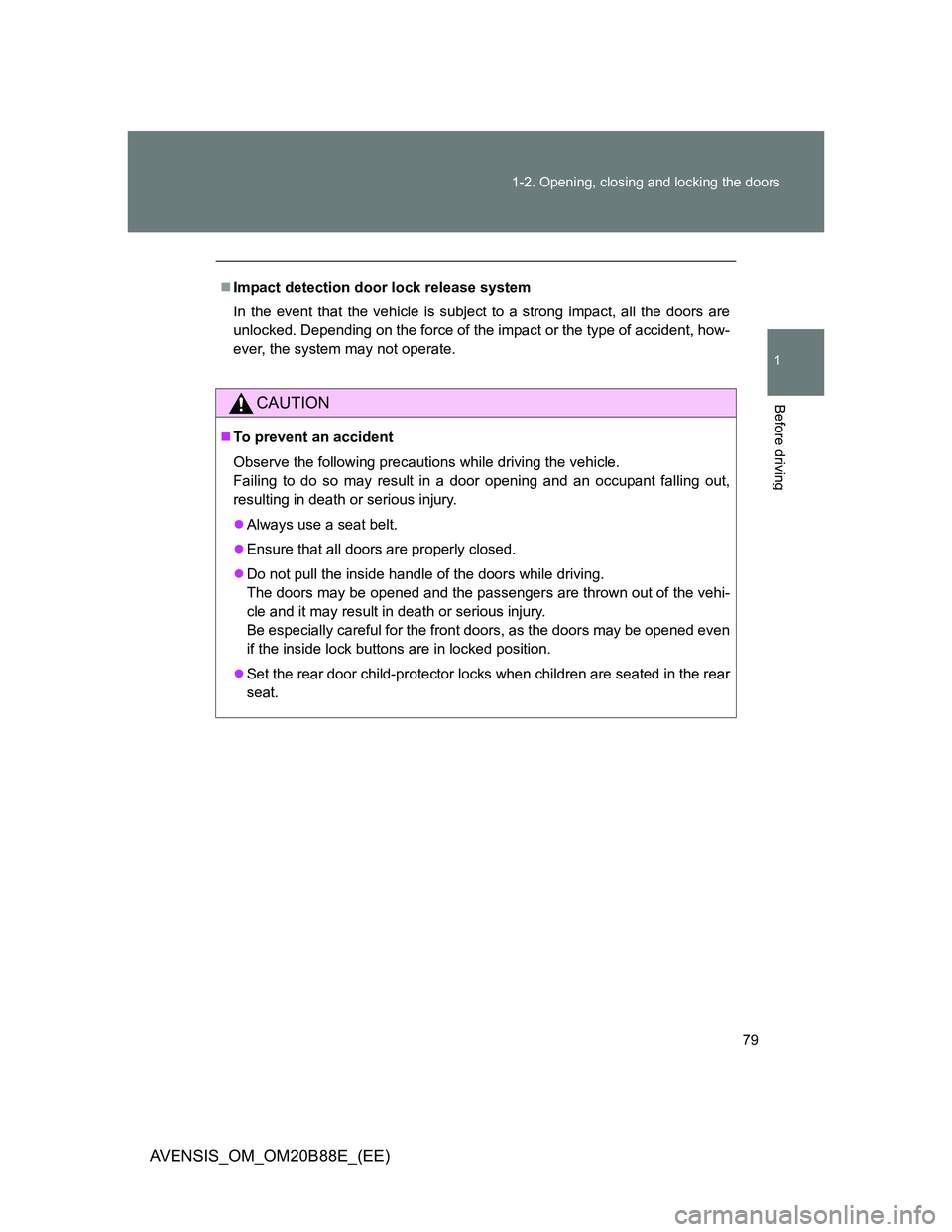

79 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in death or serious injury.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
Set the rear door child-protector locks when children are seated in the rear
seat.

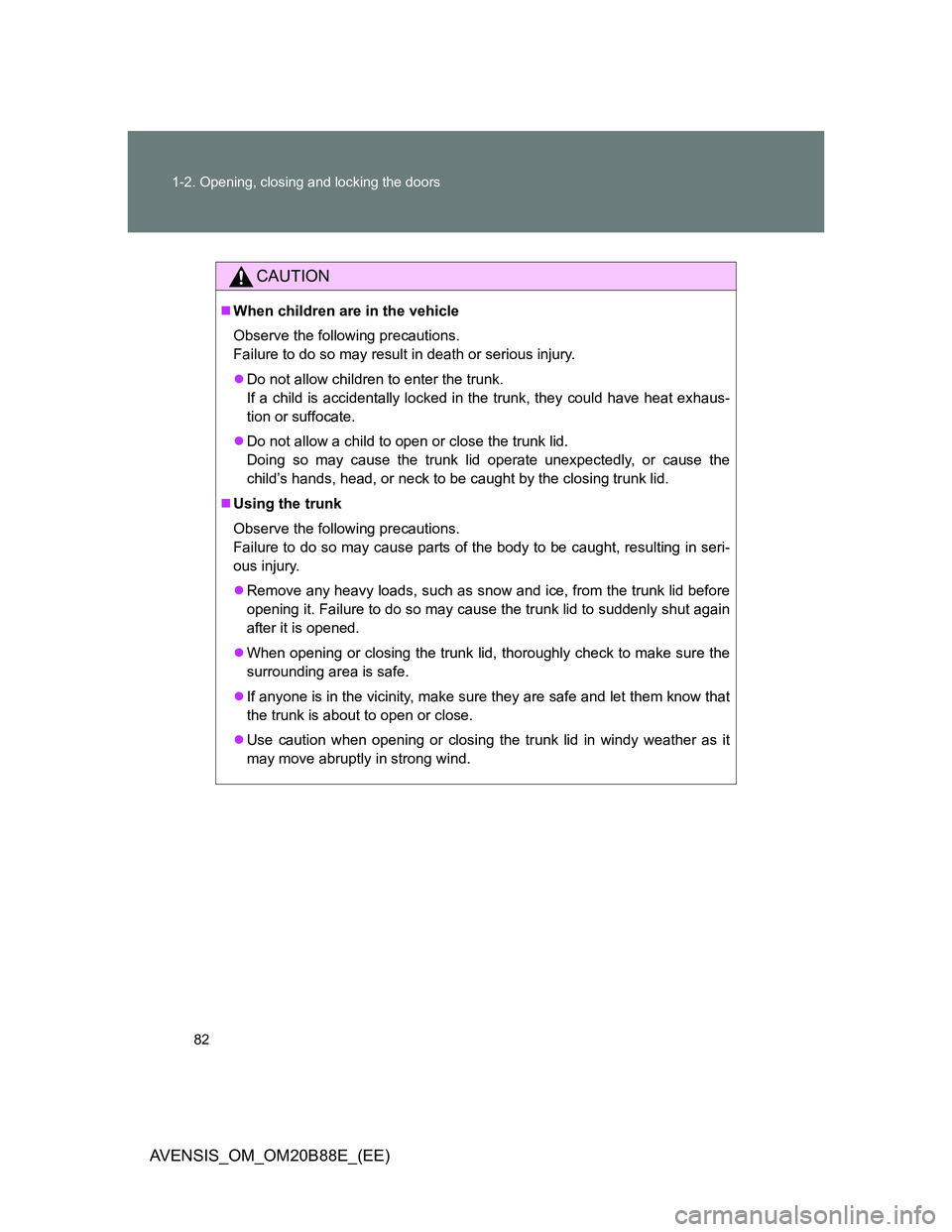

82 1-2. Opening, closing and locking the doors
AVENSIS_OM_OM20B88E_(EE)
CAUTION
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could have heat exhaus-
tion or suffocate.
Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing trunk lid.
Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.
Remove any heavy loads, such as snow and ice, from the trunk lid before
opening it. Failure to do so may cause the trunk lid to suddenly shut again
after it is opened.
When opening or closing the trunk lid, thoroughly check to make sure the
surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the trunk is about to open or close.
Use caution when opening or closing the trunk lid in windy weather as it
may move abruptly in strong wind.

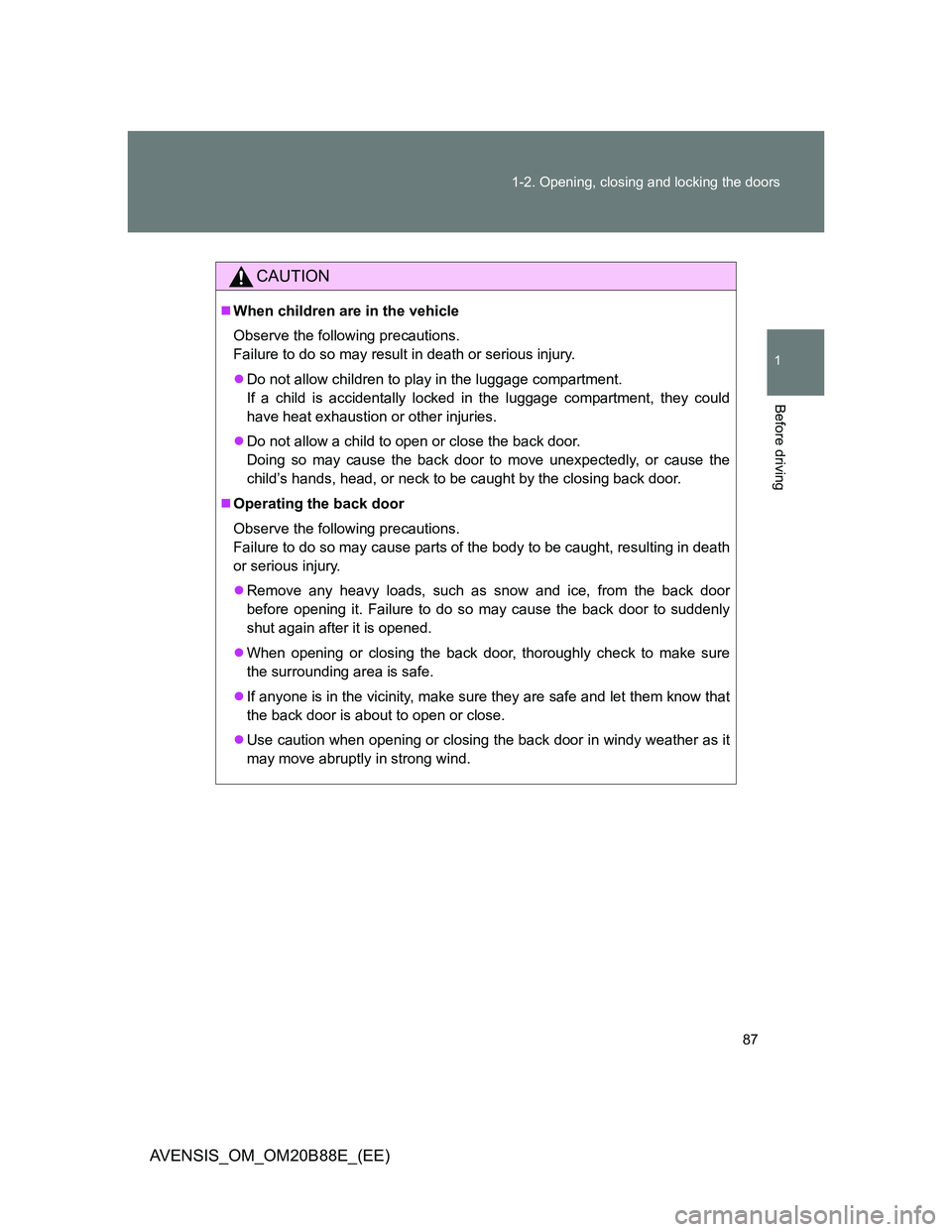

87 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
CAUTION
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

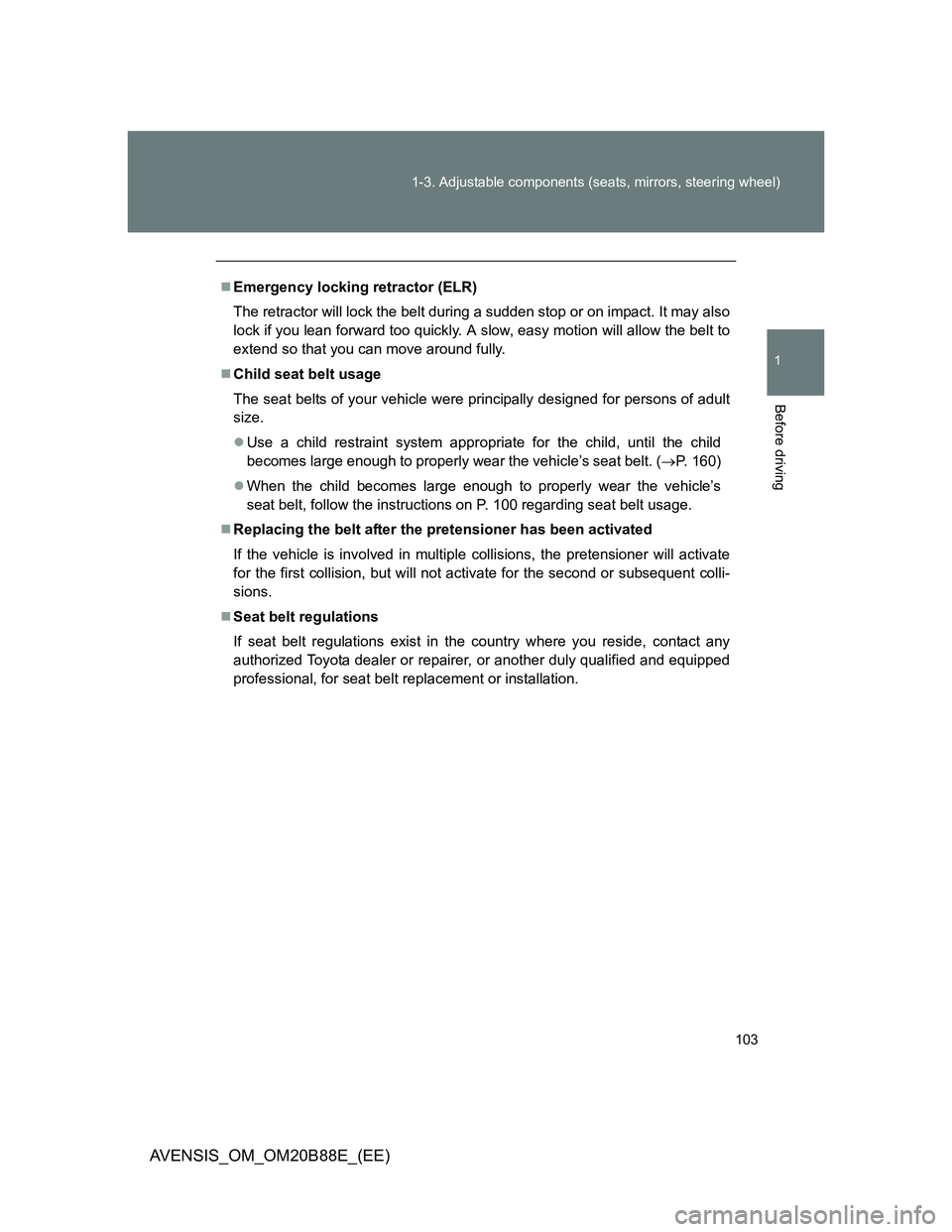

103 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 160)
When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 100 regarding seat belt usage.
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, for seat belt replacement or installation.

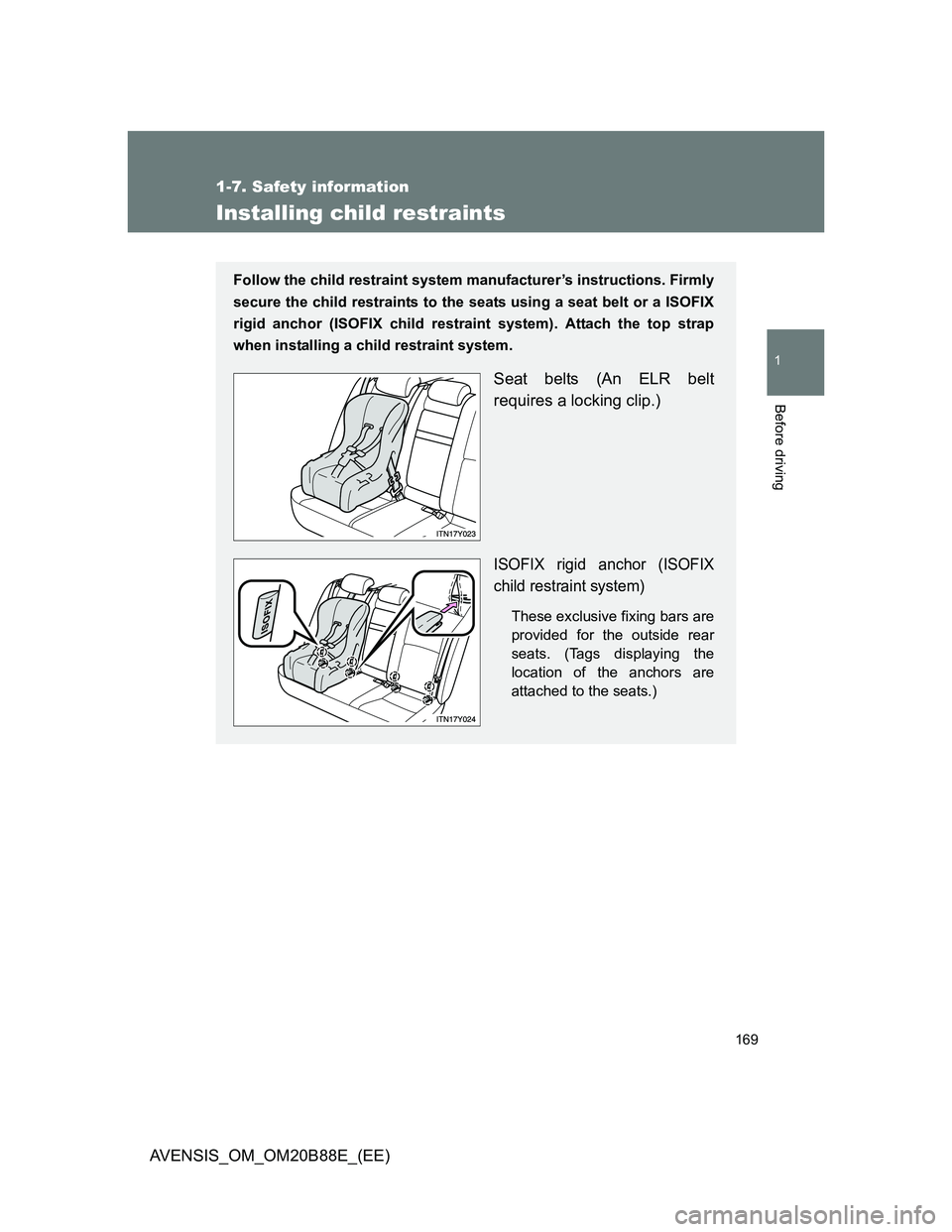

169
1
1-7. Safety information
Before driving
AVENSIS_OM_OM20B88E_(EE)
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure the child restraints to the seats using a seat belt or a ISOFIX
rigid anchor (ISOFIX child restraint system). Attach the top strap
when installing a child restraint system.
Seat belts (An ELR belt
requires a locking clip.)
ISOFIX rigid anchor (ISOFIX
child restraint system)
These exclusive fixing bars are
provided for the outside rear
seats. (Tags displaying the
location of the anchors are
attached to the seats.)

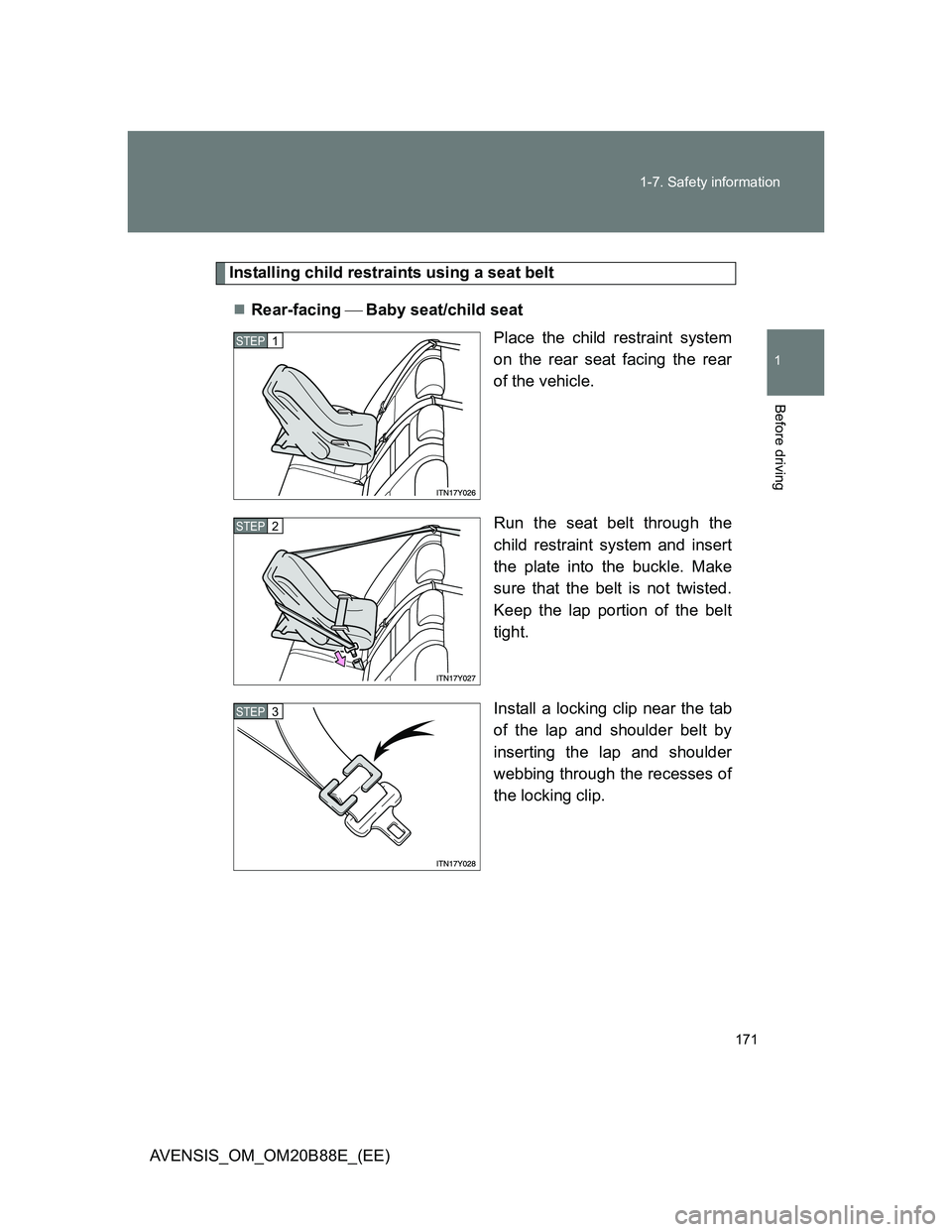

171 1-7. Safety information
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
Installing child restraints using a seat belt
Rear-facing Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP1
STEP2
STEP3

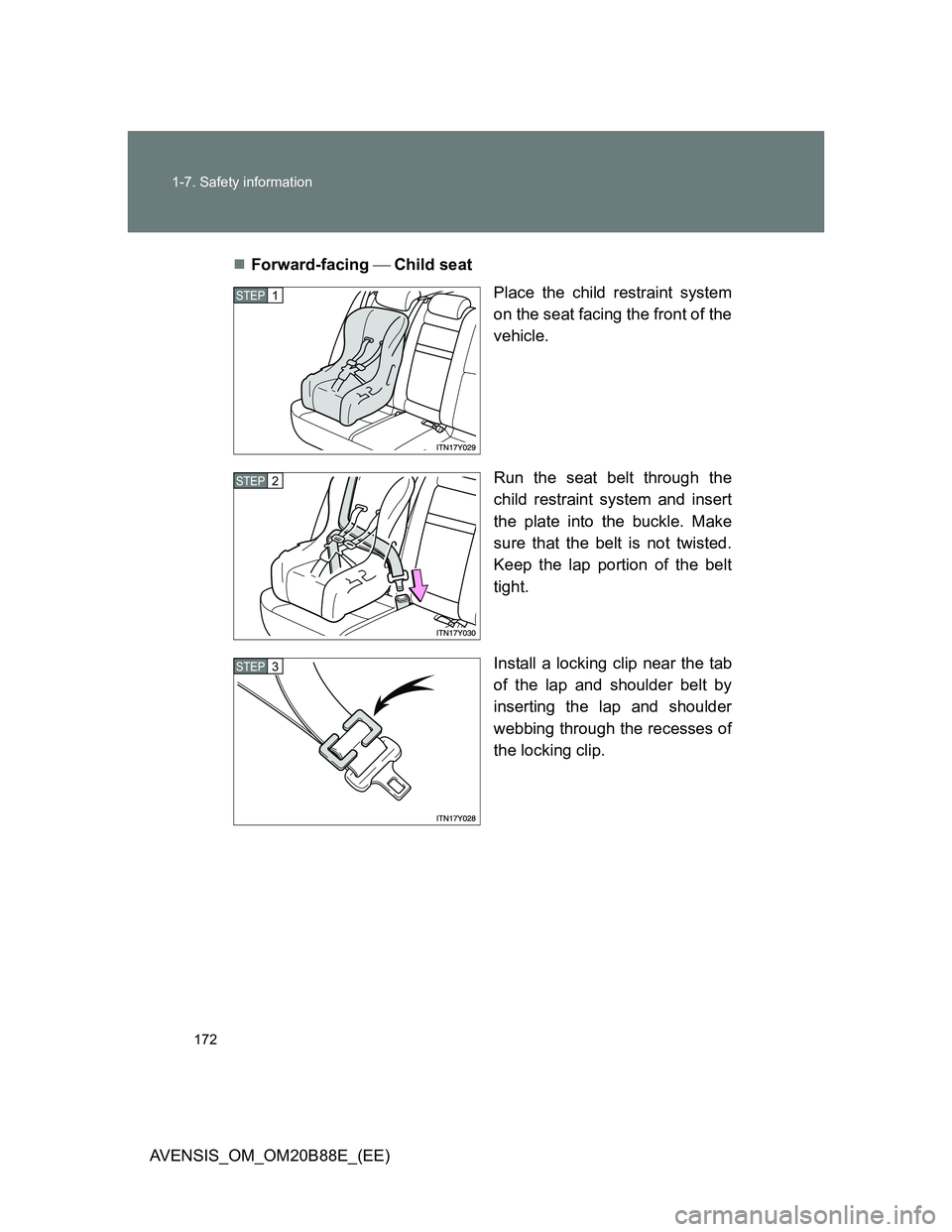

172 1-7. Safety information
AVENSIS_OM_OM20B88E_(EE)Forward-facing Child seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP1
STEP2
STEP3
