2-1. Driving procedures
Driving the vehicle .............. 184
Engine (ignition) switch
(vehicles with smart
entry & start system)......... 200
Engine (ignition) switch
(vehicles without smart
entry & start system)......... 205
Multidrive ............................ 209
Automatic transmission....... 215
Manual transmission ........... 222
Turn signal lever ................. 226
Parking brake...................... 227
Horn .................................... 231
2-2. Instrument cluster
Gauges and meters ............ 232
Indicators and warning
lights ................................. 235
Multi-information display ..... 2392-3. Operating the
lights and wipers
Headlight switch ................. 252
Fog light switch .................. 259
Windshield wipers and
washer ............................. 261
Rear window wiper and
washer (wagon) ............... 266
2-4. Using other driving systems
Cruise control ..................... 267
Dynamic radar cruise
control .............................. 273
Speed limiter ...................... 292
Toyota parking
assist-sensor .................... 295
Rear view monitor
system.............................. 300
LKA (Lane-Keeping
Assist) .............................. 310
Driving assist systems........ 319
PCS (Pre-Crash Safety) ..... 325
2-5. Driving information
Cargo and luggage............. 334
Winter driving tips............... 336
Trailer towing...................... 340
2When driving
Page 13 of 776

13
AVENSIS_OM_OM20B88E_(EE)

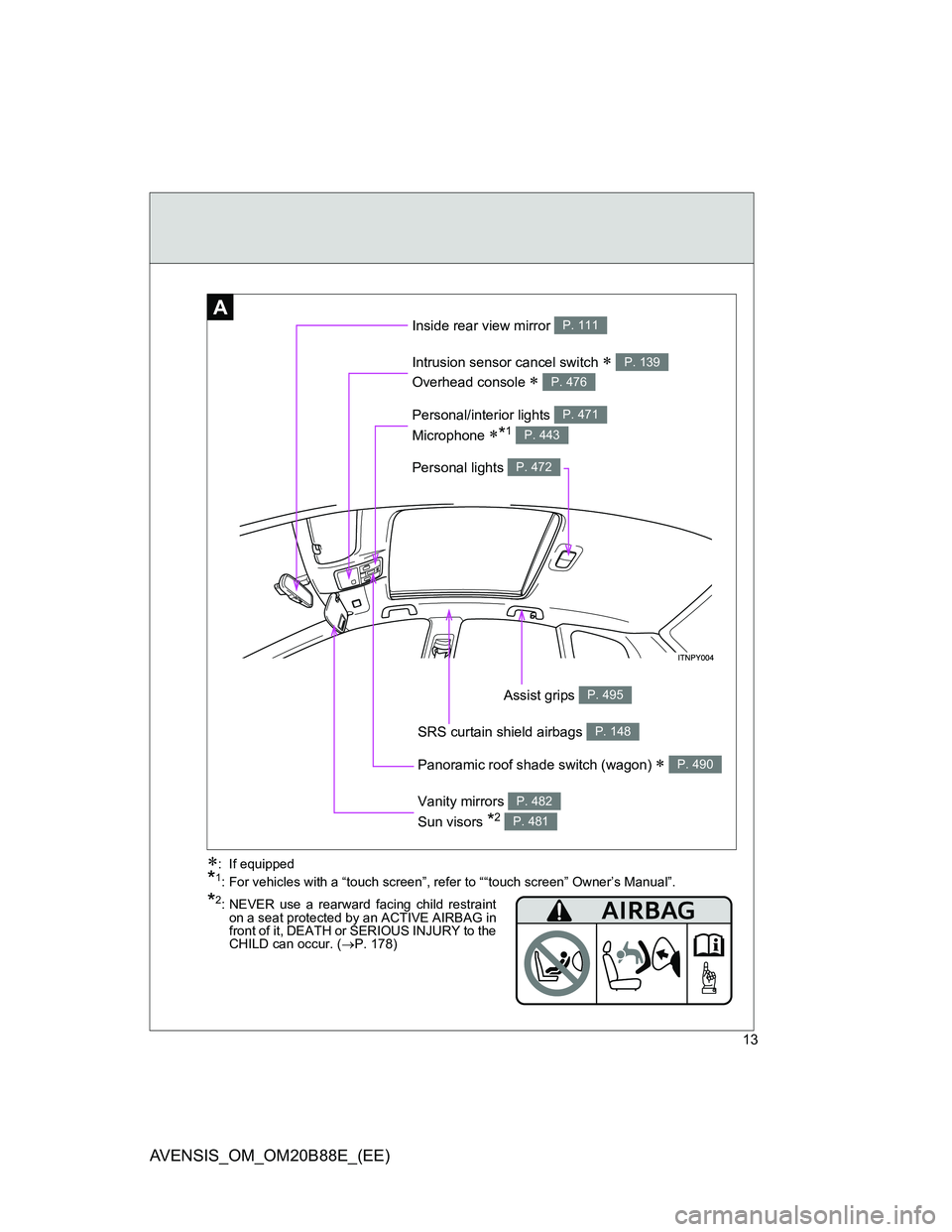

Inside rear view mirror P. 111
Panoramic roof shade switch (wagon) P. 490
Vanity mirrors P. 482
Sun visors *2 P. 481
SRS curtain shield airbags P. 148
A
Overhead console P. 476
Personal lights P. 472
Personal/interior lights P. 471
Intrusion sensor cancel switch P. 139
Microphone *1 P. 443
: If equipped
*1: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s Manual”.
*2: NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG in
front of it, DEATH or SERIOUS INJURY to the
CHILD can occur. (P. 178)
Assist grips P. 495
Page 19 of 776

19
AVENSIS_OM_OM20B88E_(EE)

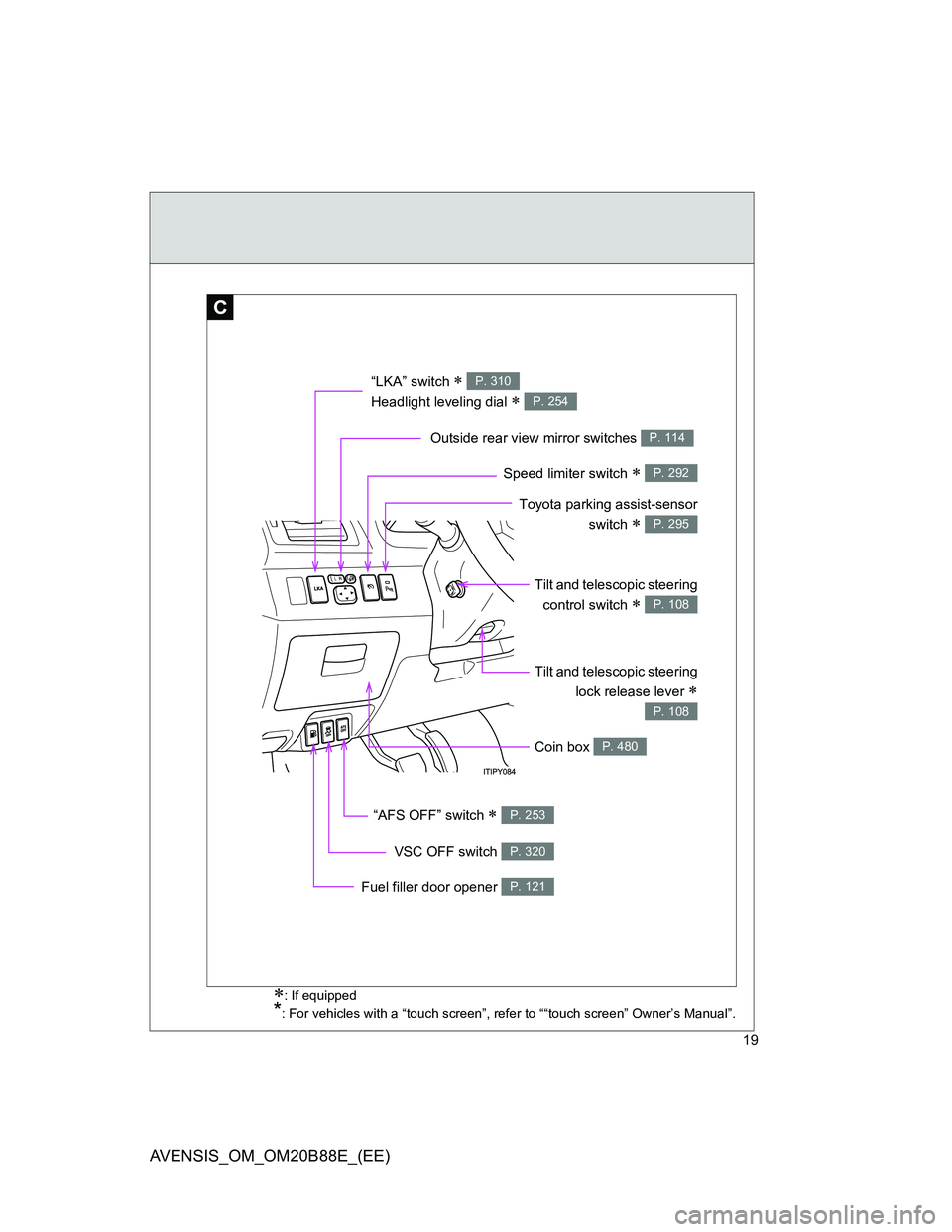

C
“LKA” switch
Headlight leveling dial
P. 310
P. 254
Outside rear view mirror switches P. 114
Speed limiter switch P. 292
Toyota parking assist-sensor
switch
P. 295
Tilt and telescopic steering
control switch
P. 108
Tilt and telescopic steering
lock release lever
P. 108
“AFS OFF” switch P. 253
VSC OFF switch P. 320
Coin box P. 480
Fuel filler door opener P. 121
: If equipped
*: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s Manual”.
Page 21 of 776

21
AVENSIS_OM_OM20B88E_(EE)

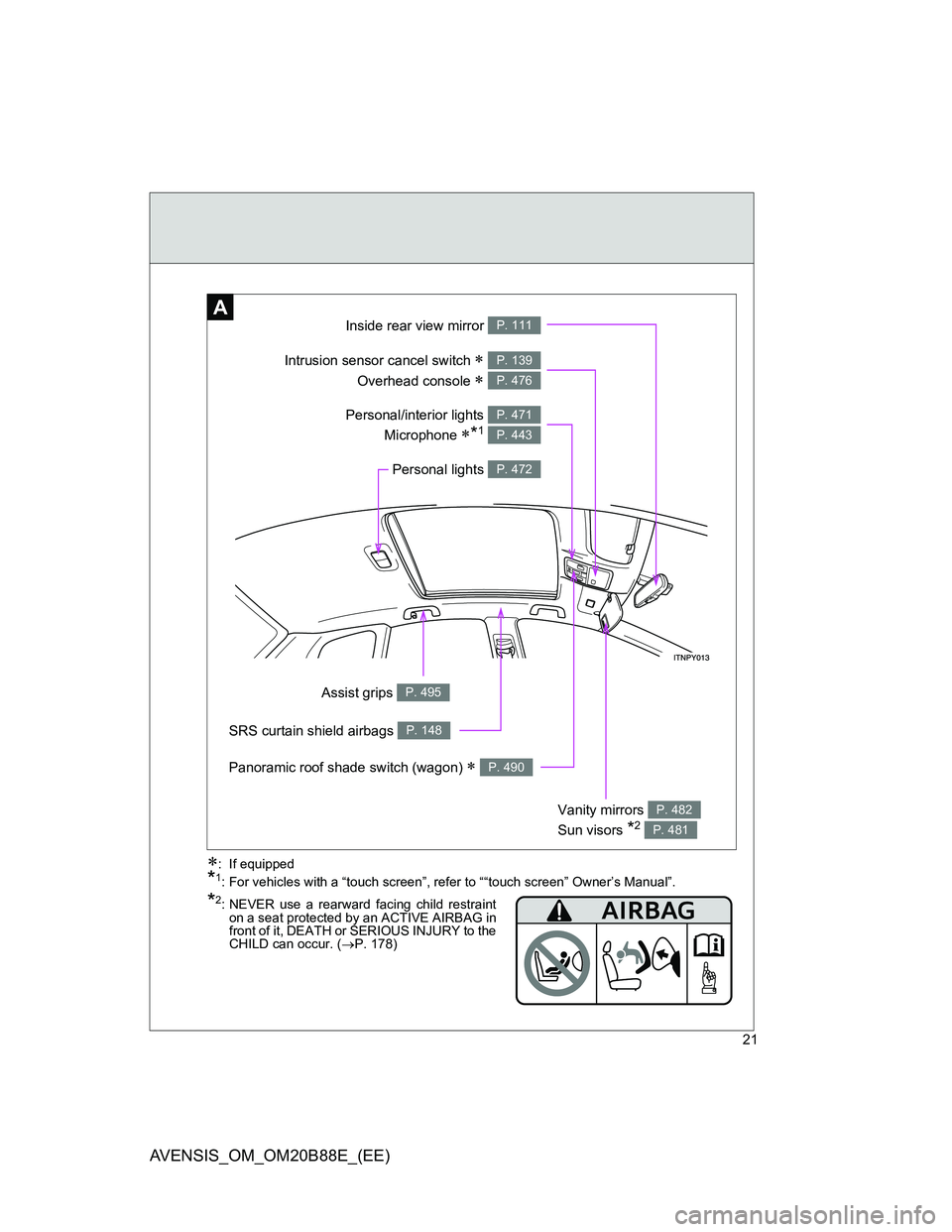

A
Inside rear view mirror P. 111
Panoramic roof shade switch (wagon) P. 490
Vanity mirrors
Sun visors
*2
P. 482
P. 481
SRS curtain shield airbags P. 148
Personal lights P. 472
Personal/interior lights
Microphone
*1
P. 471
P. 443
Intrusion sensor cancel switch
Overhead console
P. 139
P. 476
: If equipped
*1: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s Manual”.
*2: NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG in
front of it, DEATH or SERIOUS INJURY to the
CHILD can occur. (P. 178)
Assist grips P. 495
Page 26 of 776

26
AVENSIS_OM_OM20B88E_(EE)

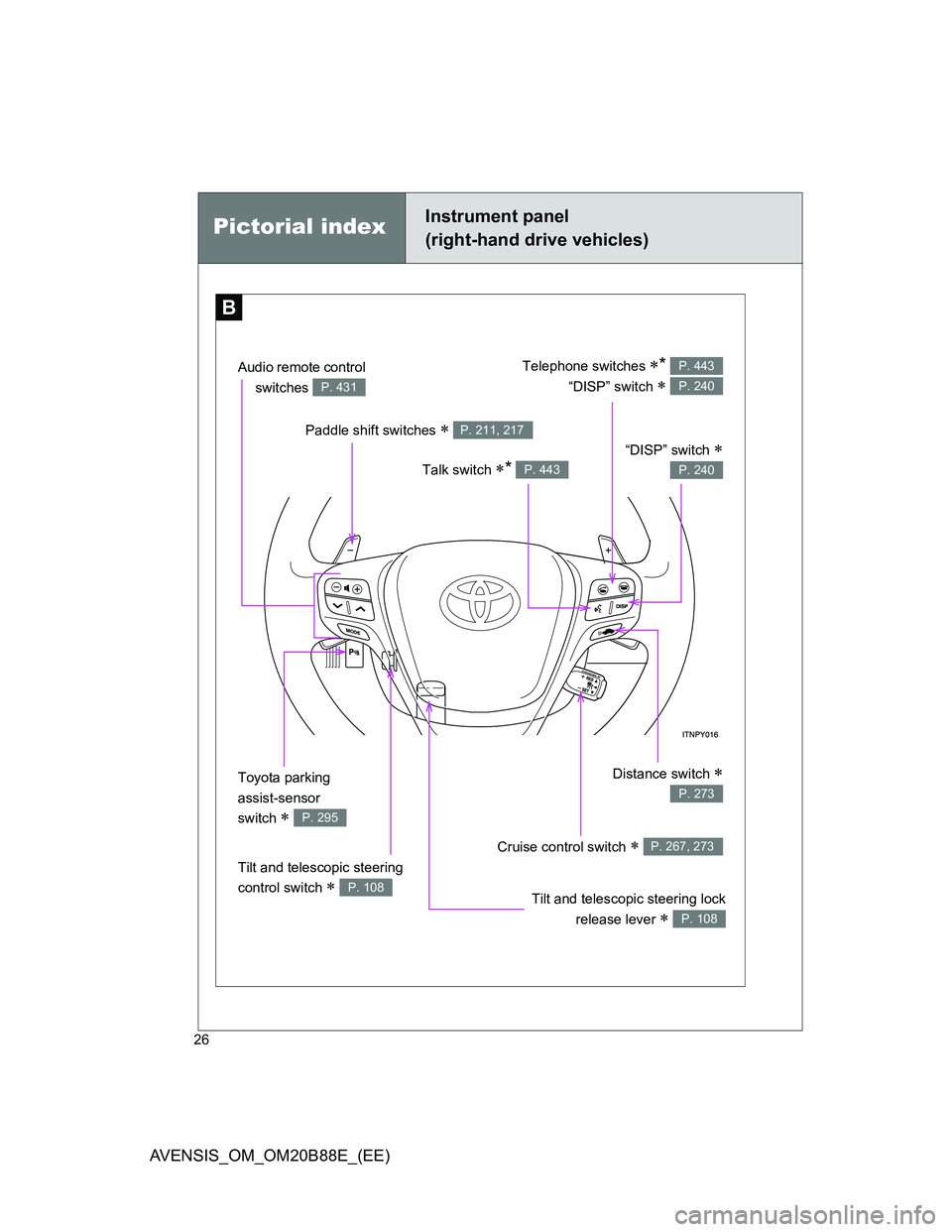

B
Pictorial indexInstrument panel
(right-hand drive vehicles)
Paddle shift switches P. 211, 217
Talk switch * P. 443
“DISP” switch
P. 240
Cruise control switch P. 267, 273
Audio remote control
switches
P. 431
Telephone switches *
“DISP” switch
P. 443
P. 240
Toyota parking
assist-sensor
switch
P. 295
Distance switch
P. 273
Tilt and telescopic steering
control switch
P. 108Tilt and telescopic steering lock
release lever
P. 108
Page 40 of 776

40 1-2. Opening, closing and locking the doors
AVENSIS_OM_OM20B88E_(EE)

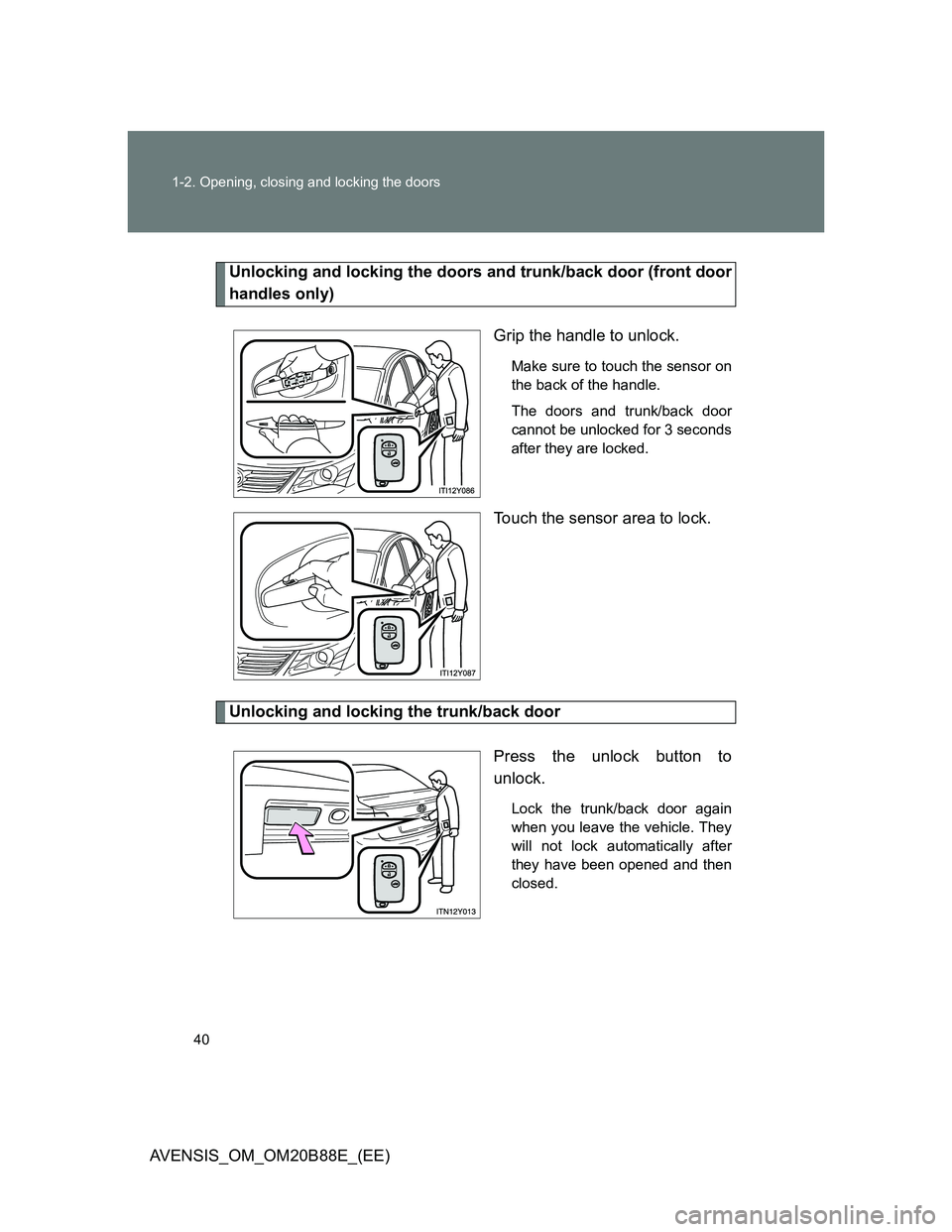

Unlocking and locking the doors and trunk/back door (front door
handles only)
Grip the handle to unlock.
Make sure to touch the sensor on
the back of the handle.
The doors and trunk/back door
cannot be unlocked for 3 seconds
after they are locked.
Touch the sensor area to lock.
Unlocking and locking the trunk/back door
Press the unlock button to
unlock.
Lock the trunk/back door again
when you leave the vehicle. They
will not lock automatically after
they have been opened and then
closed.
Page 44 of 776

44 1-2. Opening, closing and locking the doors
AVENSIS_OM_OM20B88E_(EE)

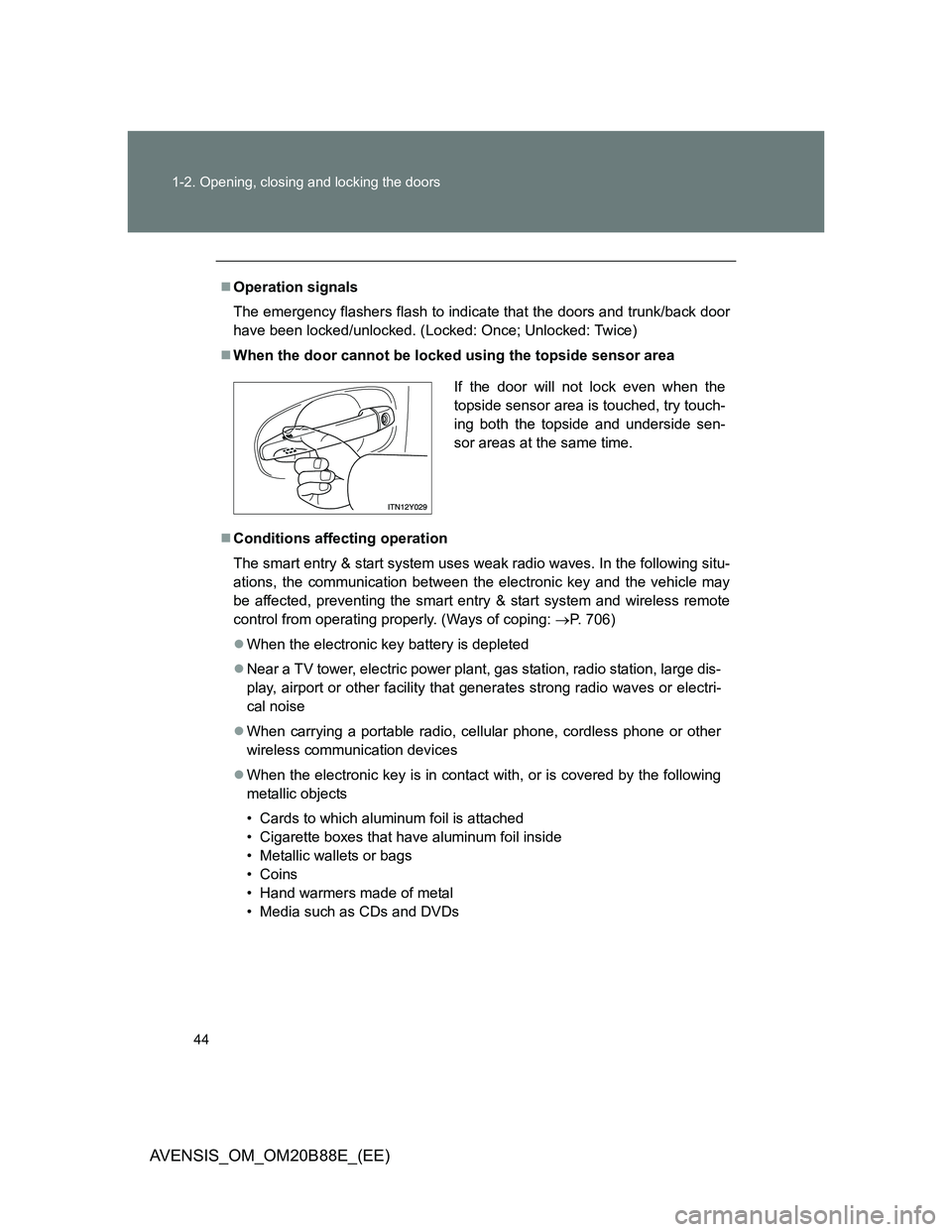

Operation signals
The emergency flashers flash to indicate that the doors and trunk/back door
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
When the door cannot be locked using the topside sensor area
Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situ-
ations, the communication between the electronic key and the vehicle may
be affected, preventing the smart entry & start system and wireless remote
control from operating properly. (Ways of coping: P. 706)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
If the door will not lock even when the
topside sensor area is touched, try touch-
ing both the topside and underside sen-
sor areas at the same time.
Page 45 of 776

45 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_OM_OM20B88E_(EE)

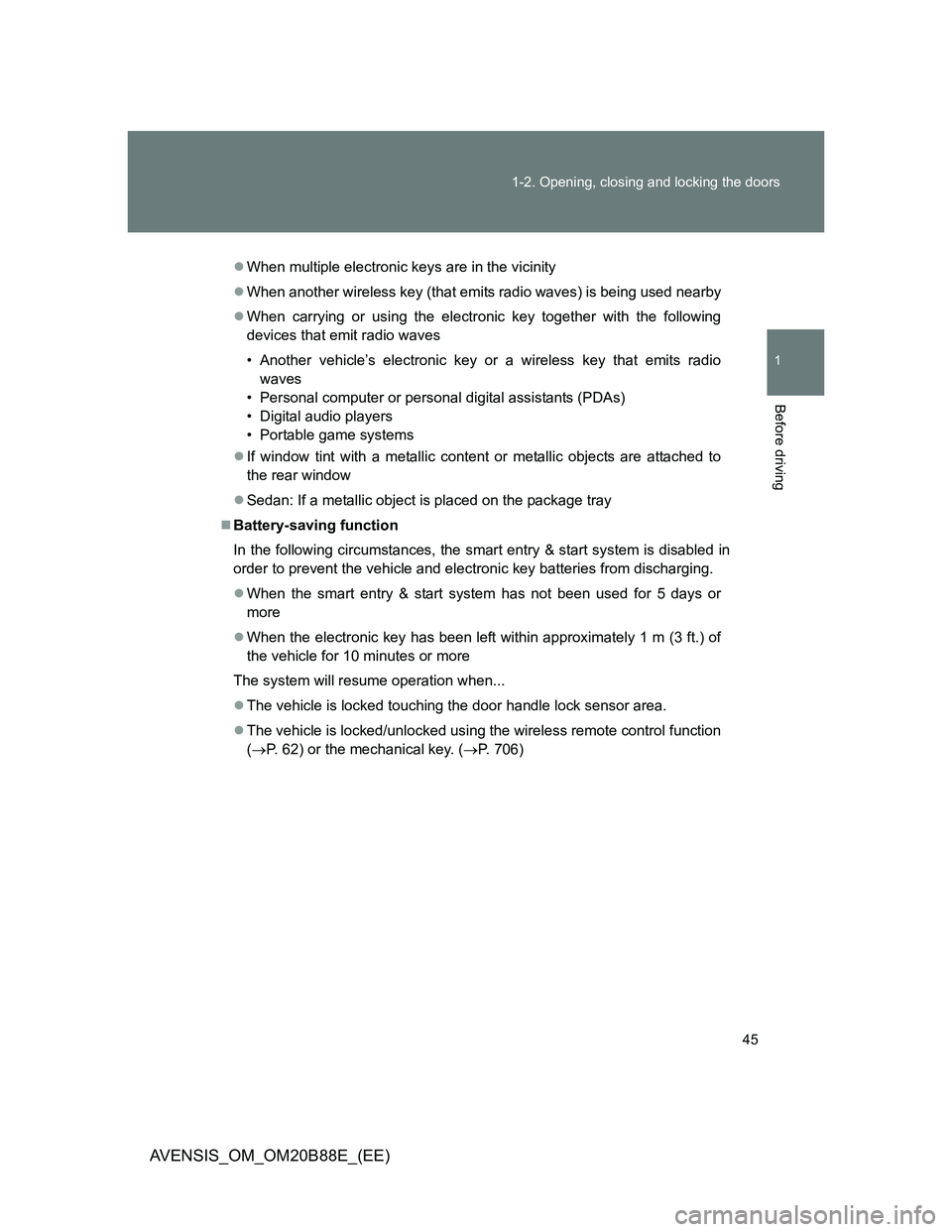

When multiple electronic keys are in the vicinity
When another wireless key (that emits radio waves) is being used nearby
When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio
waves
• Personal computer or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to
the rear window
Sedan: If a metallic object is placed on the package tray
Battery-saving function
In the following circumstances, the smart entry & start system is disabled in
order to prevent the vehicle and electronic key batteries from discharging.
When the smart entry & start system has not been used for 5 days or
more
When the electronic key has been left within approximately 1 m (3 ft.) of
the vehicle for 10 minutes or more
The system will resume operation when...
The vehicle is locked touching the door handle lock sensor area.
The vehicle is locked/unlocked using the wireless remote control function
(P. 62) or the mechanical key. (P. 706)
Page 48 of 776

48 1-2. Opening, closing and locking the doors
AVENSIS_OM_OM20B88E_(EE)

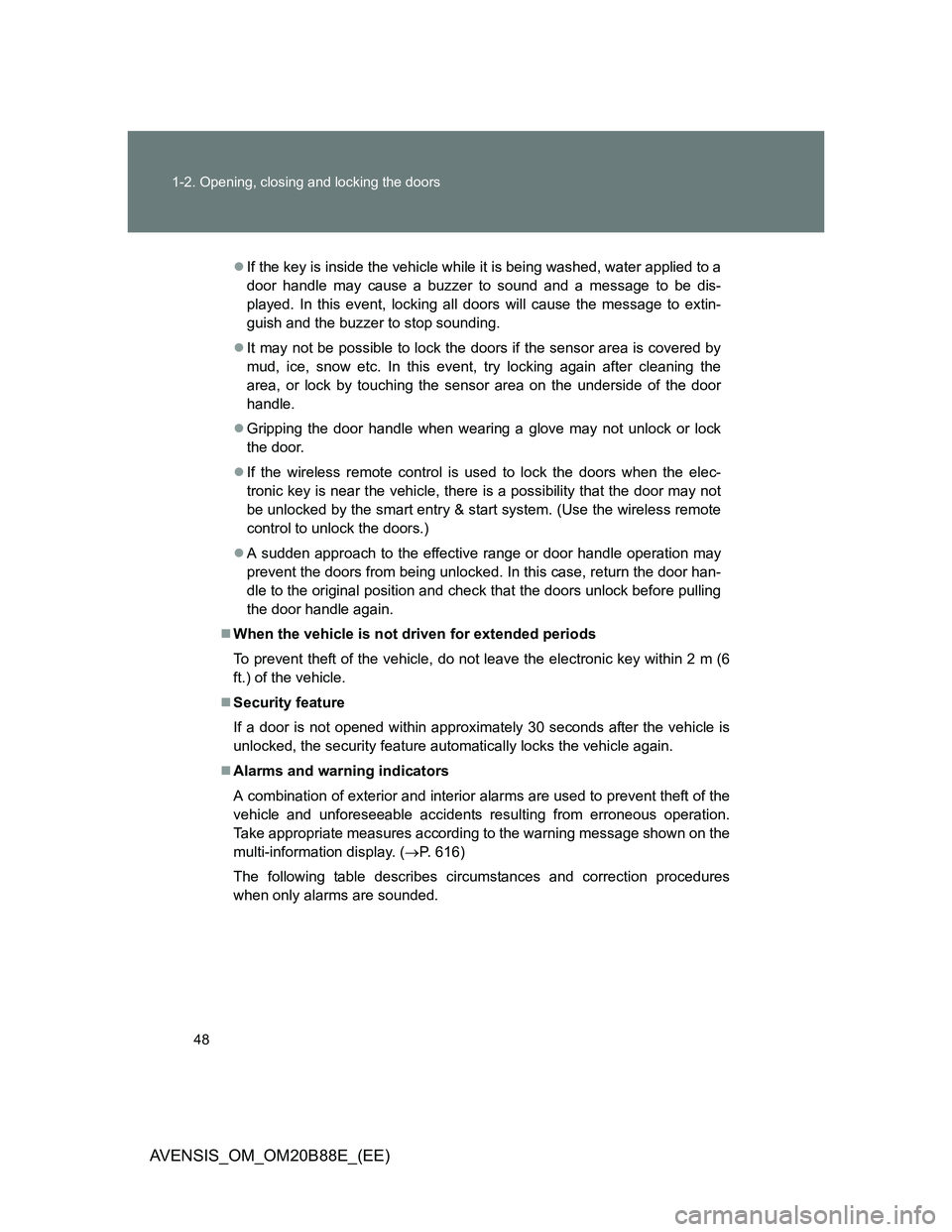

If the key is inside the vehicle while it is being washed, water applied to a
door handle may cause a buzzer to sound and a message to be dis-
played. In this event, locking all doors will cause the message to extin-
guish and the buzzer to stop sounding.
It may not be possible to lock the doors if the sensor area is covered by
mud, ice, snow etc. In this event, try locking again after cleaning the
area, or lock by touching the sensor area on the underside of the door
handle.
Gripping the door handle when wearing a glove may not unlock or lock
the door.
If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the smart entry & start system. (Use the wireless remote
control to unlock the doors.)
A sudden approach to the effective range or door handle operation may
prevent the doors from being unlocked. In this case, return the door han-
dle to the original position and check that the doors unlock before pulling
the door handle again.
When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 2 m (6
ft.) of the vehicle.
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Alarms and warning indicators
A combination of exterior and interior alarms are used to prevent theft of the
vehicle and unforeseeable accidents resulting from erroneous operation.
Take appropriate measures according to the warning message shown on the
multi-information display. (P. 616)
The following table describes circumstances and correction procedures
when only alarms are sounded.
Page 106 of 776

106 1-3. Adjustable components (seats, mirrors, steering wheel)
AVENSIS_OM_OM20B88E_(EE)

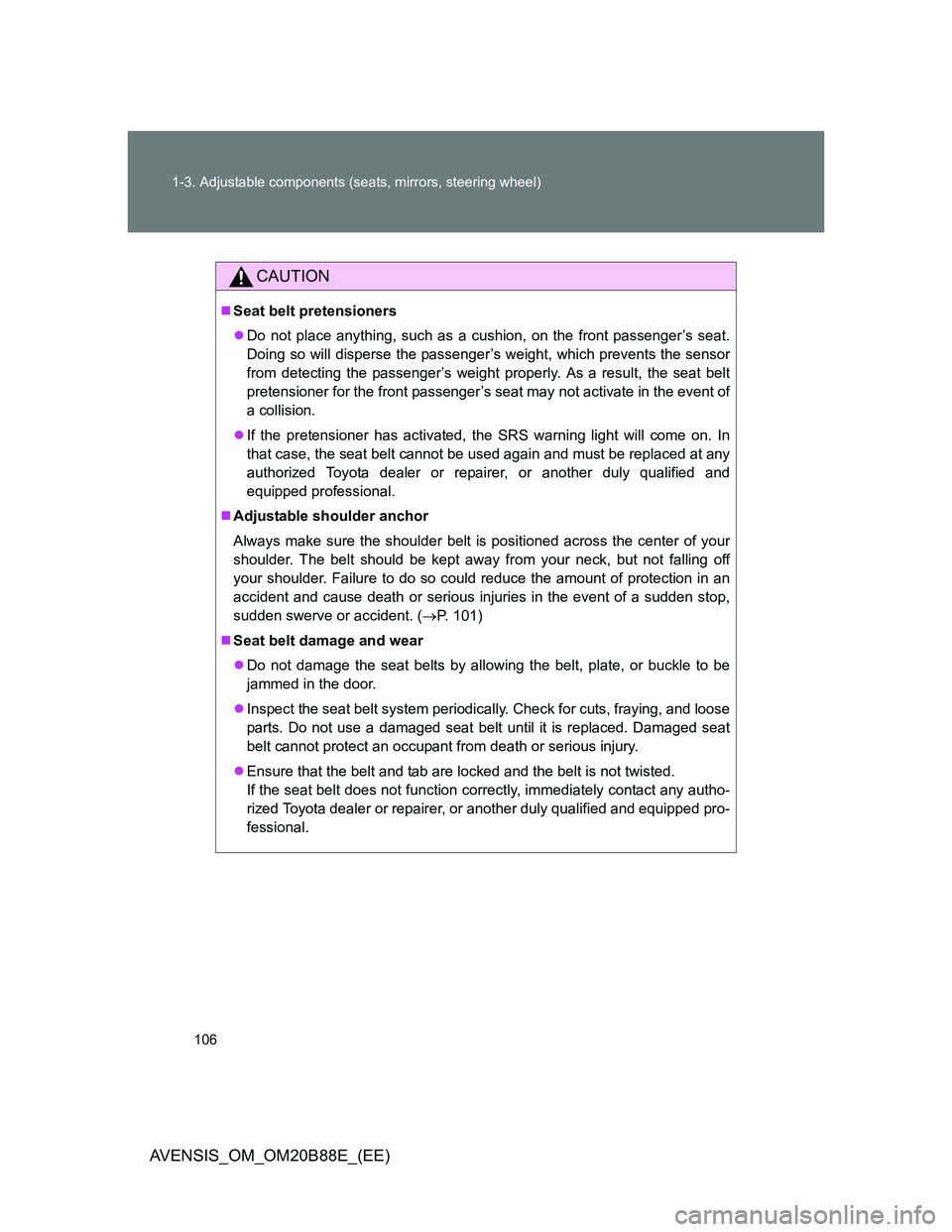

CAUTION
Seat belt pretensioners
Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (P. 101)
Seat belt damage and wear
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
