TOYOTA AVENSIS 2015 Owners Manual

4116-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
XFront
Lift the front deck board.
XRear
Pull the lever upwards when lift-
ing the rear deck board.
Press down the rear deck
board.
XSide
Lift the left or right side deck
board.

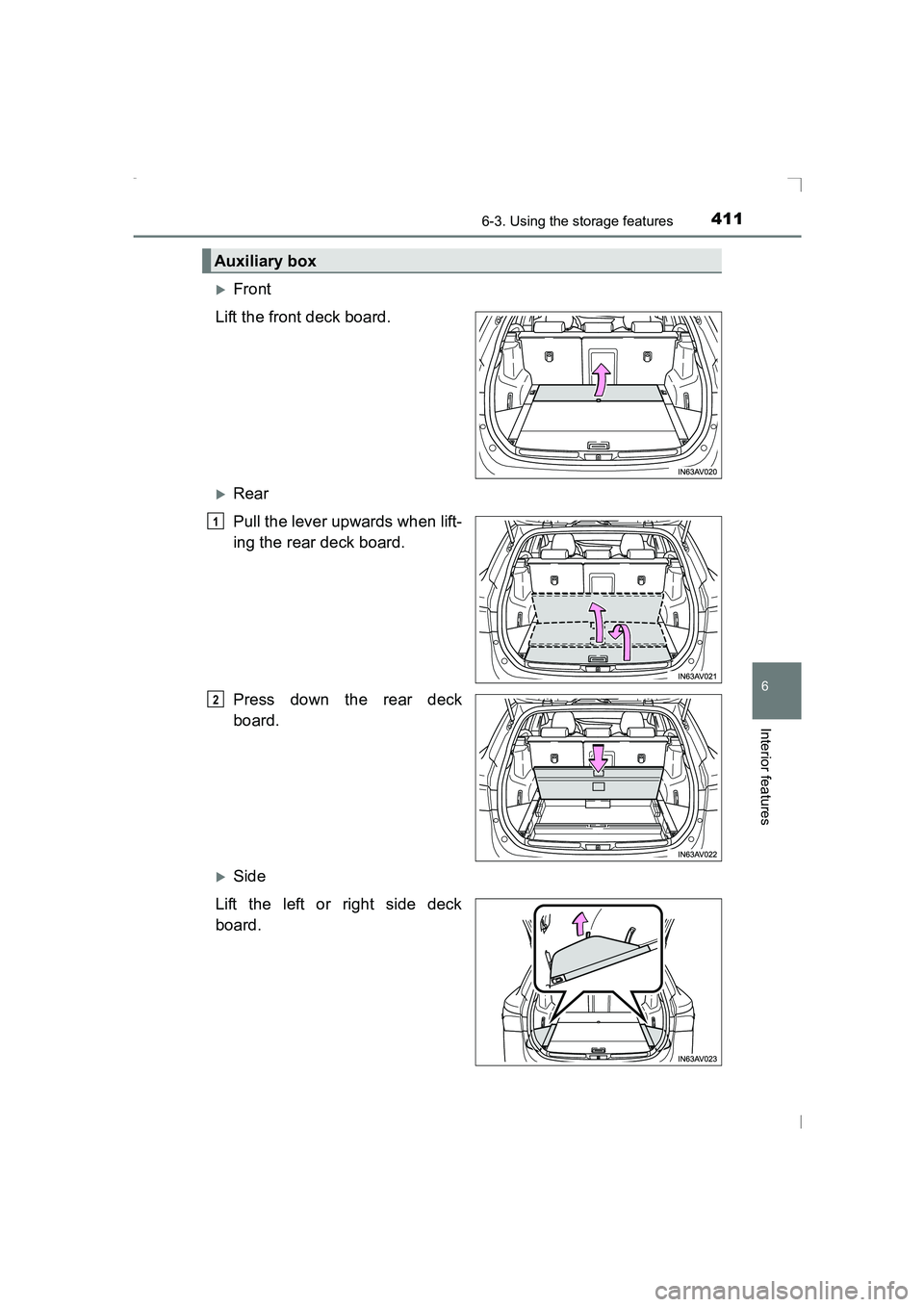

Auxiliary box
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 411 Thursday, January 29, 2015 1:47 PM

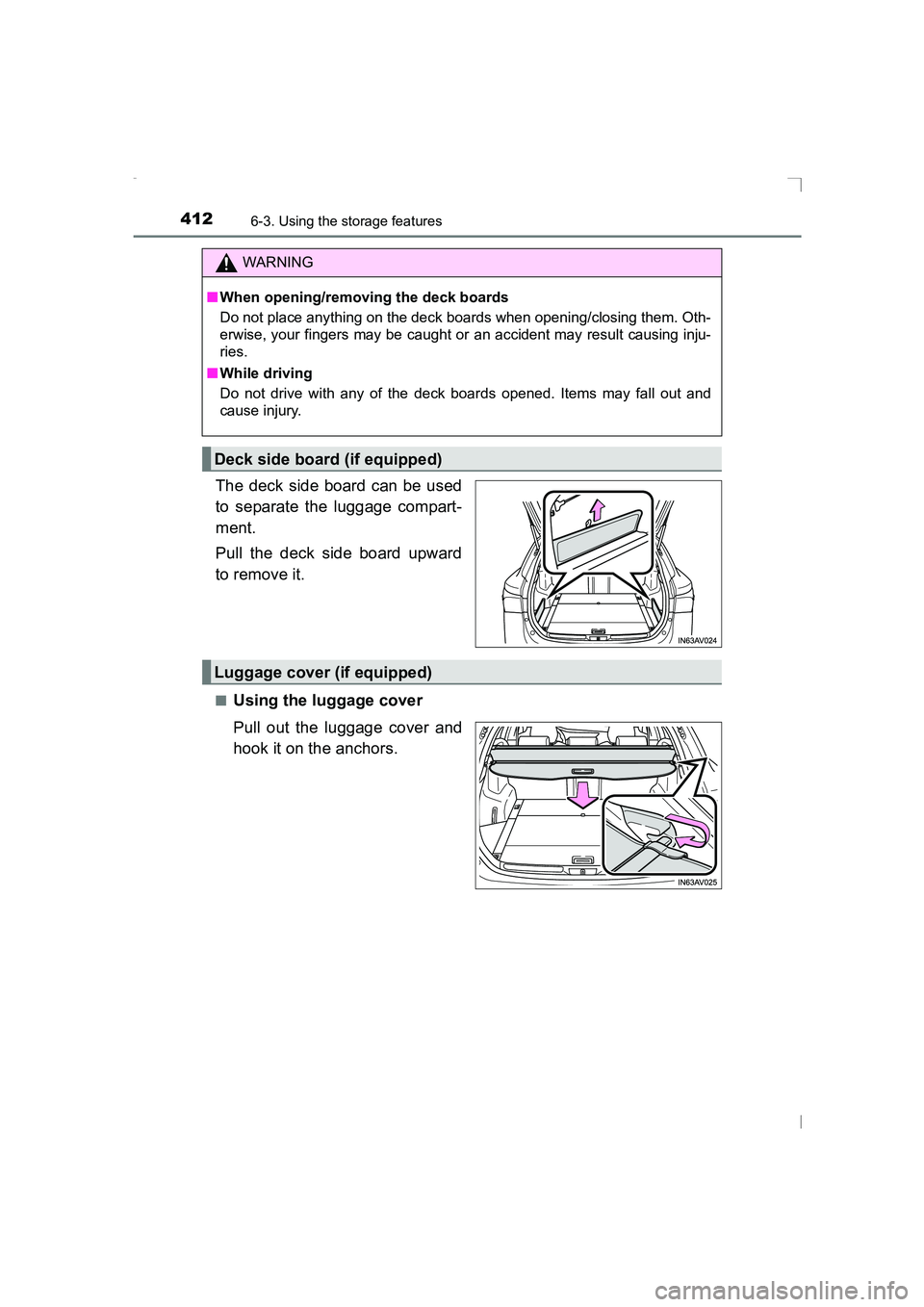

4126-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
The deck side board can be used
to separate the luggage compart-
ment.
Pull the deck side board upward
to remove it.
■Using the luggage cover
Pull out the luggage cover and
hook it on the anchors.
WARNING
■ When opening/removing the deck boards
Do not place anything on the deck boards when opening/closing them. Oth-
erwise, your fingers may be caught or an accident may result causing inju-
ries.
■ While driving
Do not drive with any of the deck boards opened. Items may fall out and
cause injury.
Deck side board (if equipped)
Luggage cover (if equipped)
AVENSIS_OM_OM20C20E_(EE).book Page 412 Thursday, January 29, 2015 1:47 PM

4136-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features

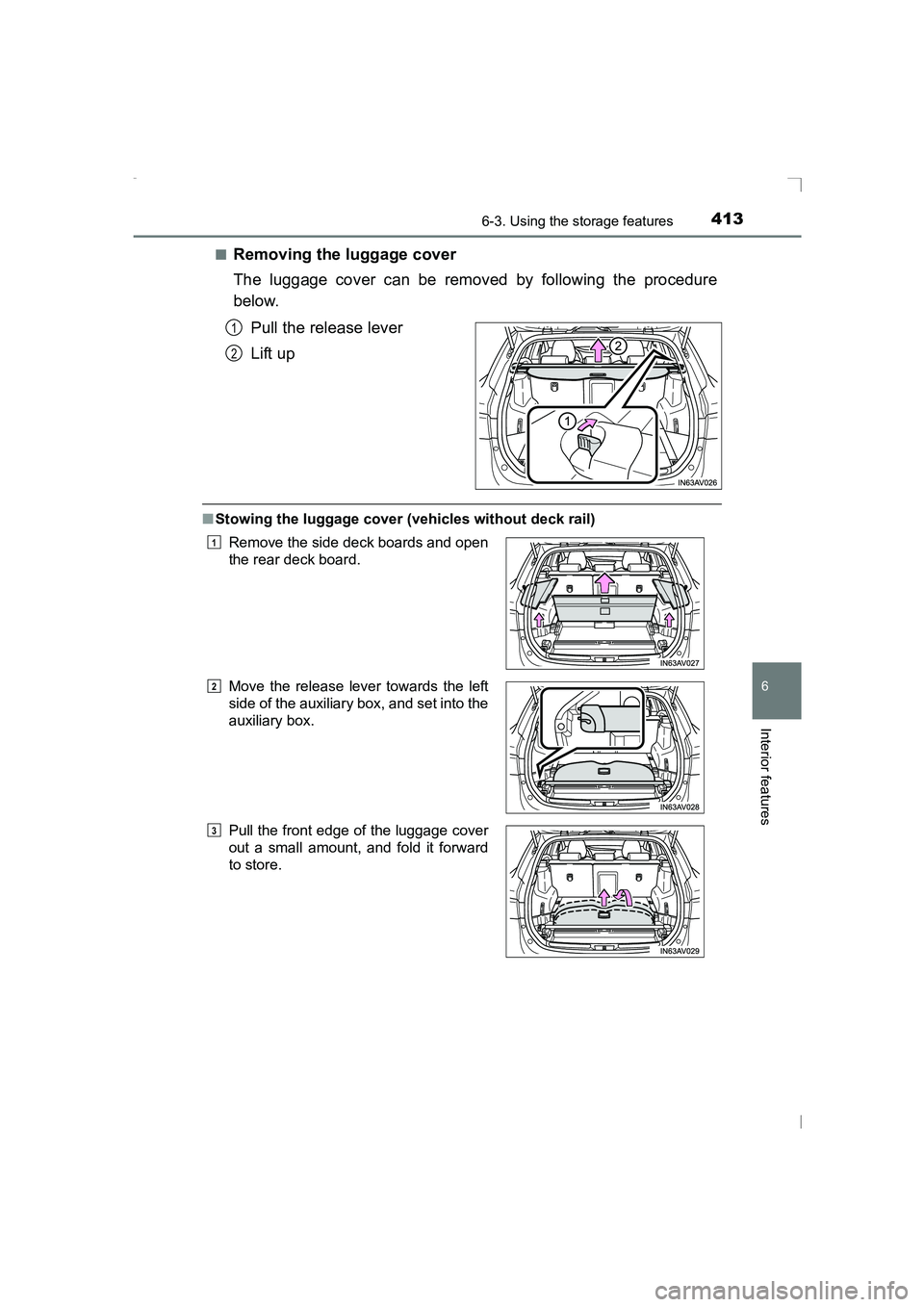

■Removing the luggage cover
The luggage cover can be removed by following the procedure
below.Pull the release lever
Lift up
■Stowing the luggage cover (vehicles without deck rail)
1
2
Remove the side deck boards and open
the rear deck board.
Move the release lever towards the left
side of the auxiliary box, and set into the
auxiliary box.
Pull the front edge of the luggage cover
out a small amount, and fold it forward
to store.1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 413 Thursday, January 29, 2015 1:47 PM

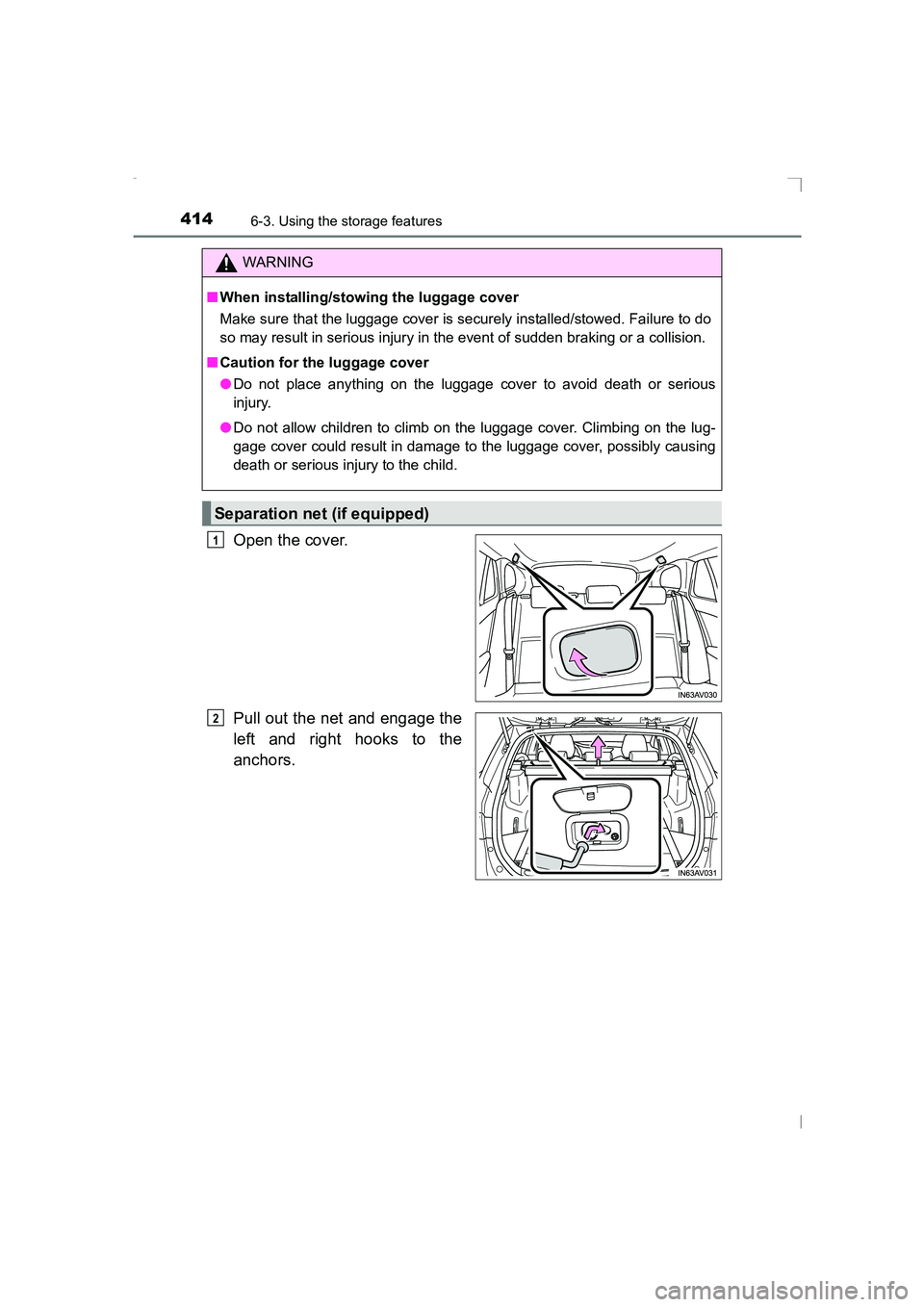

4146-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
Open the cover.
Pull out the net and engage the
left and right hooks to the
anchors.
WARNING
■ When installing/stowing the luggage cover
Make sure that the luggage cover is securely installed/stowed. Failure to do
so may result in serious injury in the event of sudden braking or a collision.
■ Caution for the luggage cover
●Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
Separation net (if equipped)
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 414 Thursday, January 29, 2015 1:47 PM

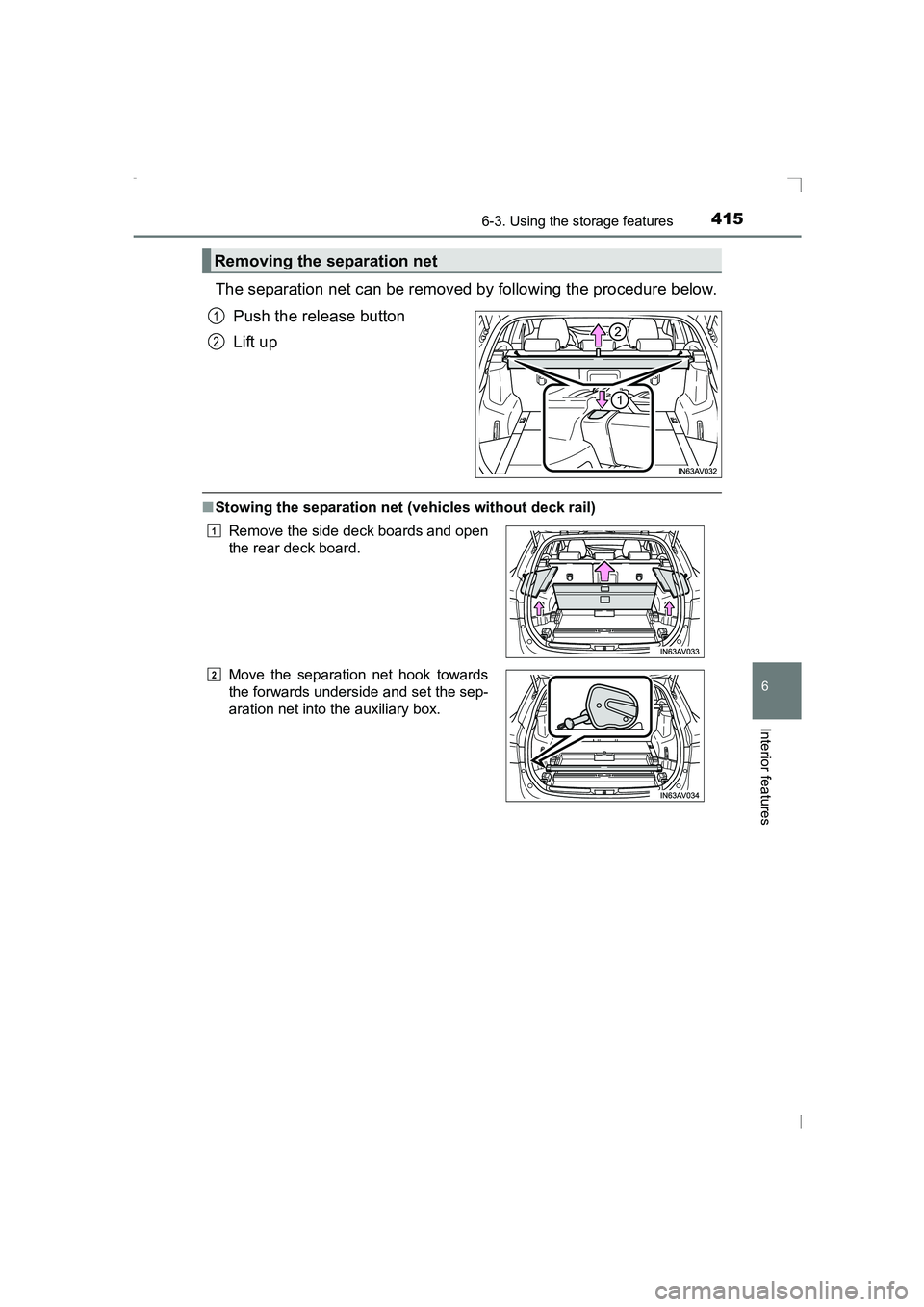

4156-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
The separation net can be removed by following the procedure below.Push the release button
Lift up
■Stowing the separation net (vehicles without deck rail)
Removing the separation net
1
2
Remove the side deck boards and open
the rear deck board.
Move the separation net hook towards
the forwards underside and set the sep-
aration net into the auxiliary box.1
2
AVENSIS_OM_OM20C20E_(EE).book Page 415 Thursday, January 29, 2015 1:47 PM

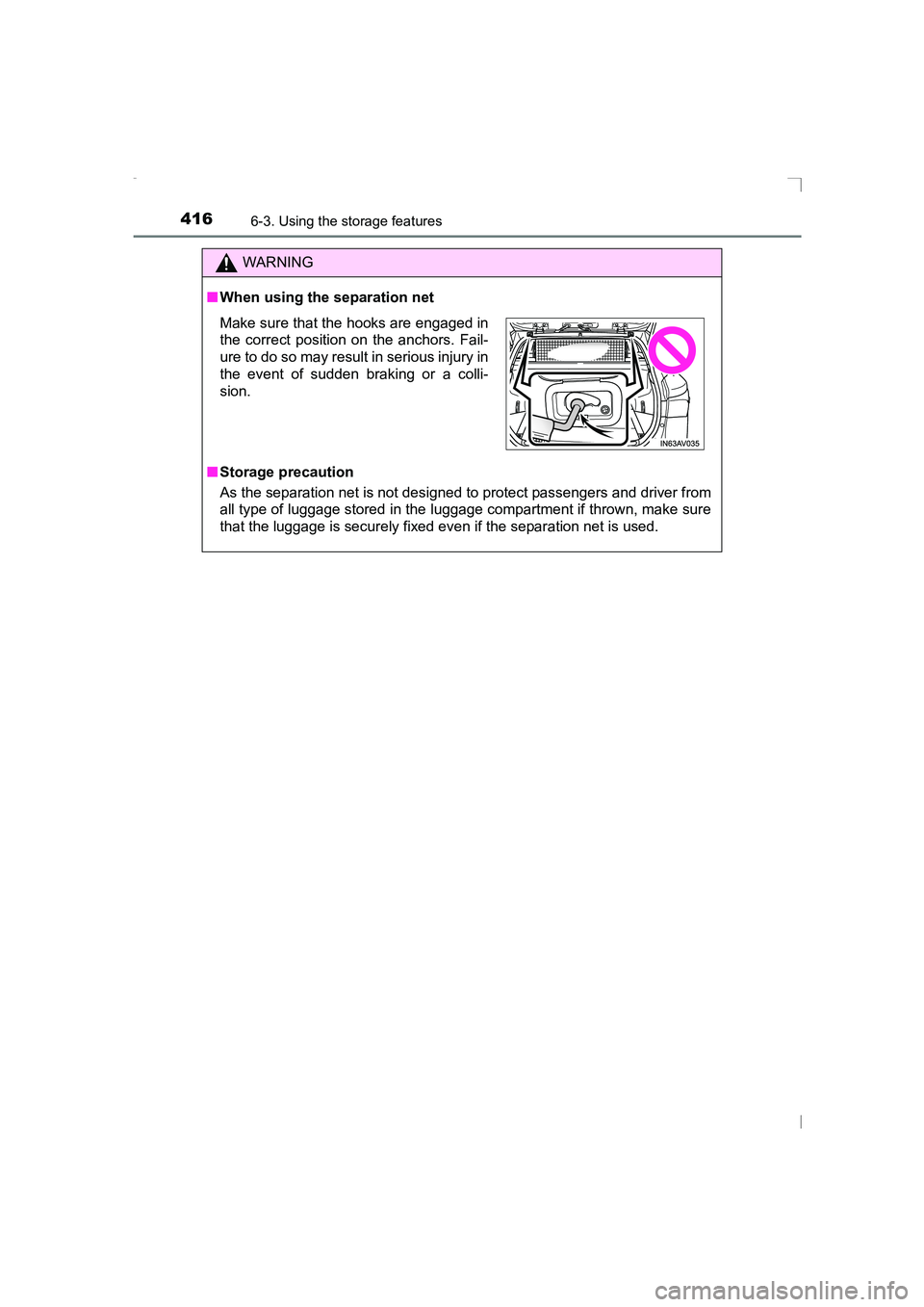

4166-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ When using the separation net
■ Storage precaution
As the separation net is not designed to protect passengers and driver from
all type of luggage stored in the luggage compartment if thrown, make sure
that the luggage is securely fixed even if the separation net is used.
Make sure that the hooks are engaged in
the correct position on the anchors. Fail-
ure to do so may result in serious injury in
the event of sudden braking or a colli-
sion.
AVENSIS_OM_OM20C20E_(EE).book Page 416 Thursday, January 29, 2015 1:47 PM

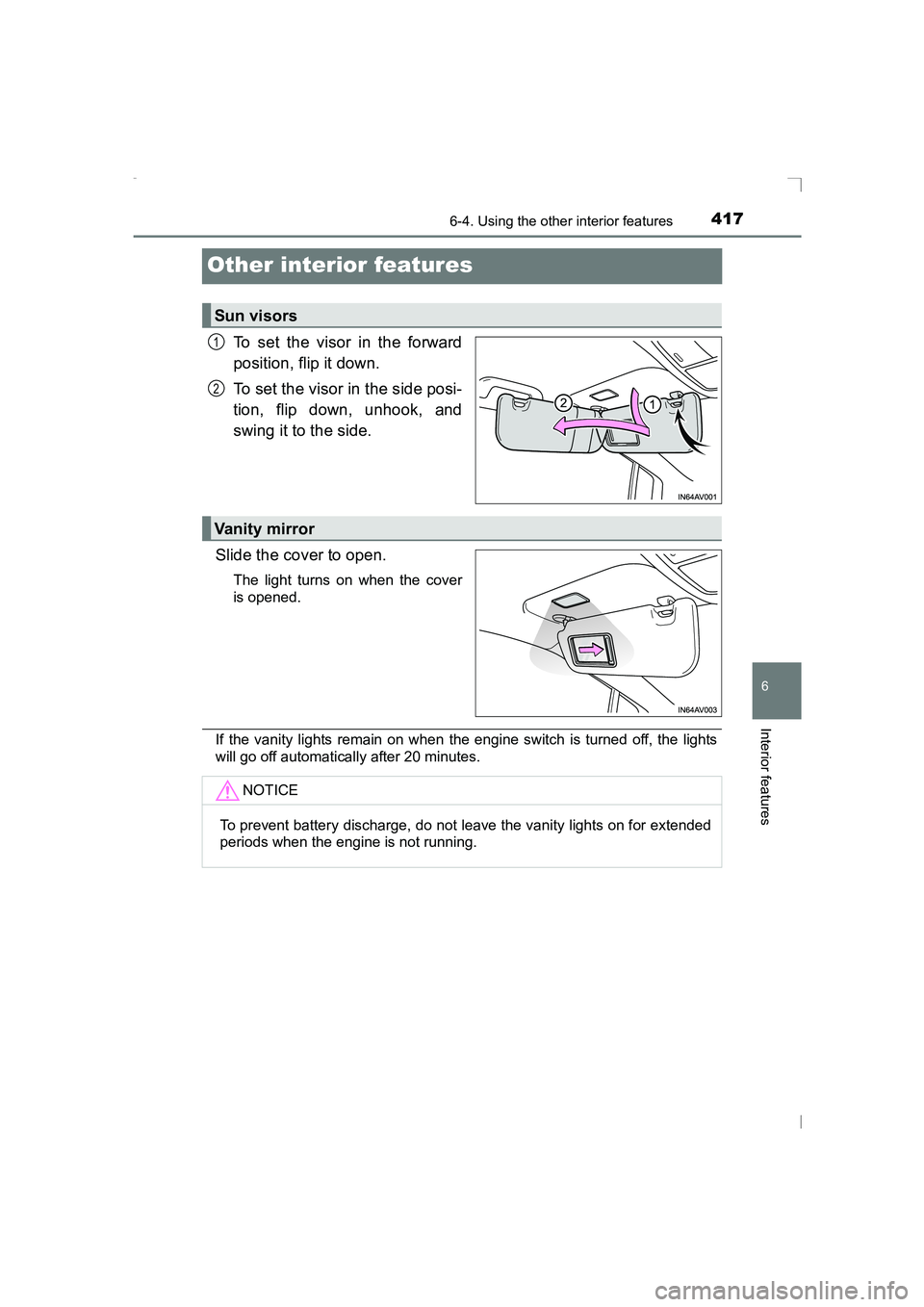

4176-4. Using the other interior features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity lights remain on when the engine switch is turned off, the lights
will go off automatically after 20 minutes.
Sun visors
1
2
Vanity mirror
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended
periods when the engine is not running.
AVENSIS_OM_OM20C20E_(EE).book Page 417 Thursday, January 29, 2015 1:47 PM

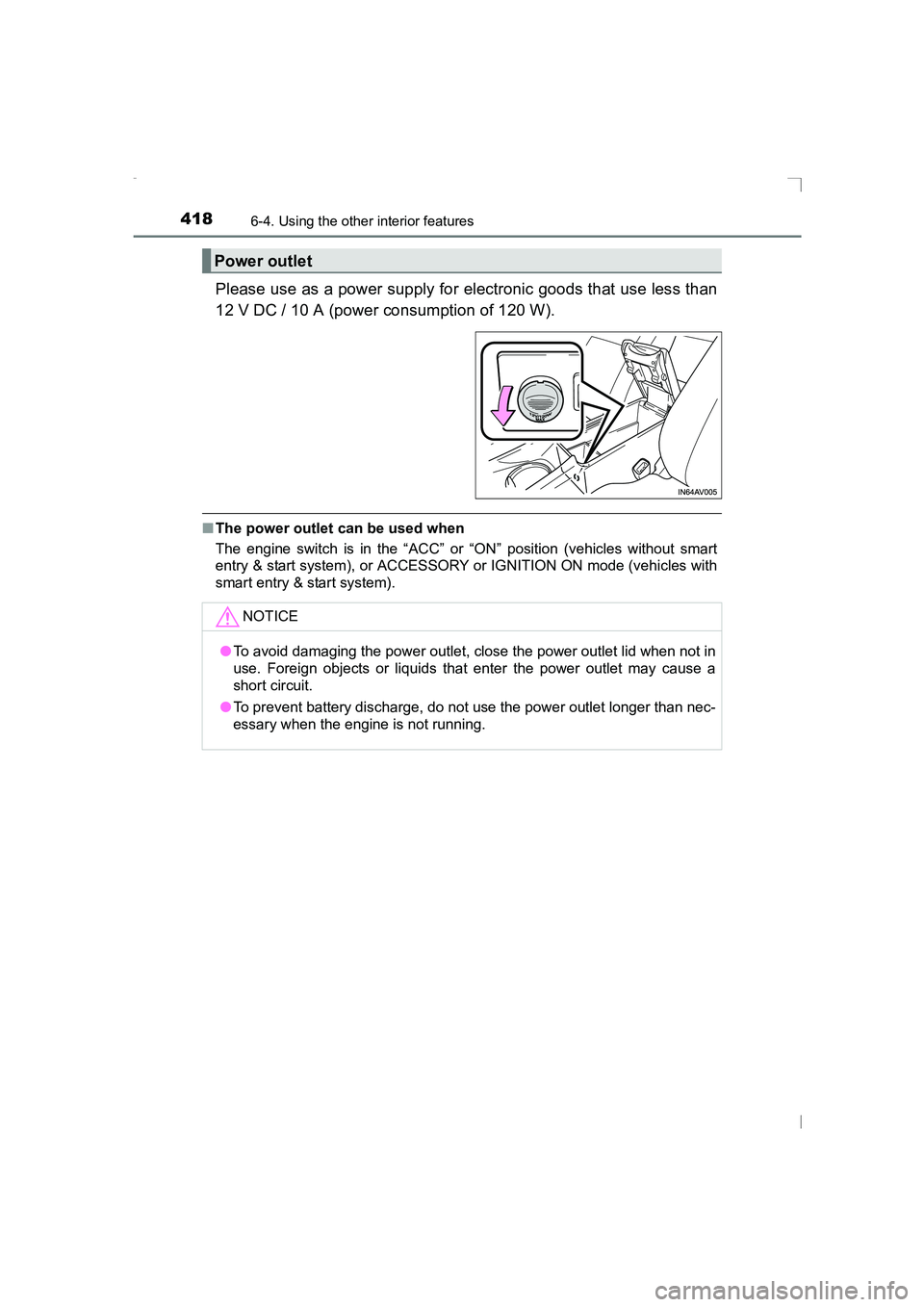

418
AVENSIS_OM_OM20C20E_(EE)
6-4. Using the other interior features
Please use as a power supply for electronic goods that use less than
12 V DC / 10 A (power consumption of 120 W).
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position (vehicles without smart
entry & start system), or ACCESSORY or IGNITION ON mode (vehicles with
smart entry & start system).
Power outlet
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when not in
use. Foreign objects or liquids that enter the power outlet may cause a
short circuit.
● To prevent battery discharge, do not use the power outlet longer than nec-
essary when the engine is not running.
AVENSIS_OM_OM20C20E_(EE).book Page 418 Thursday, January 29, 2015 1:47 PM

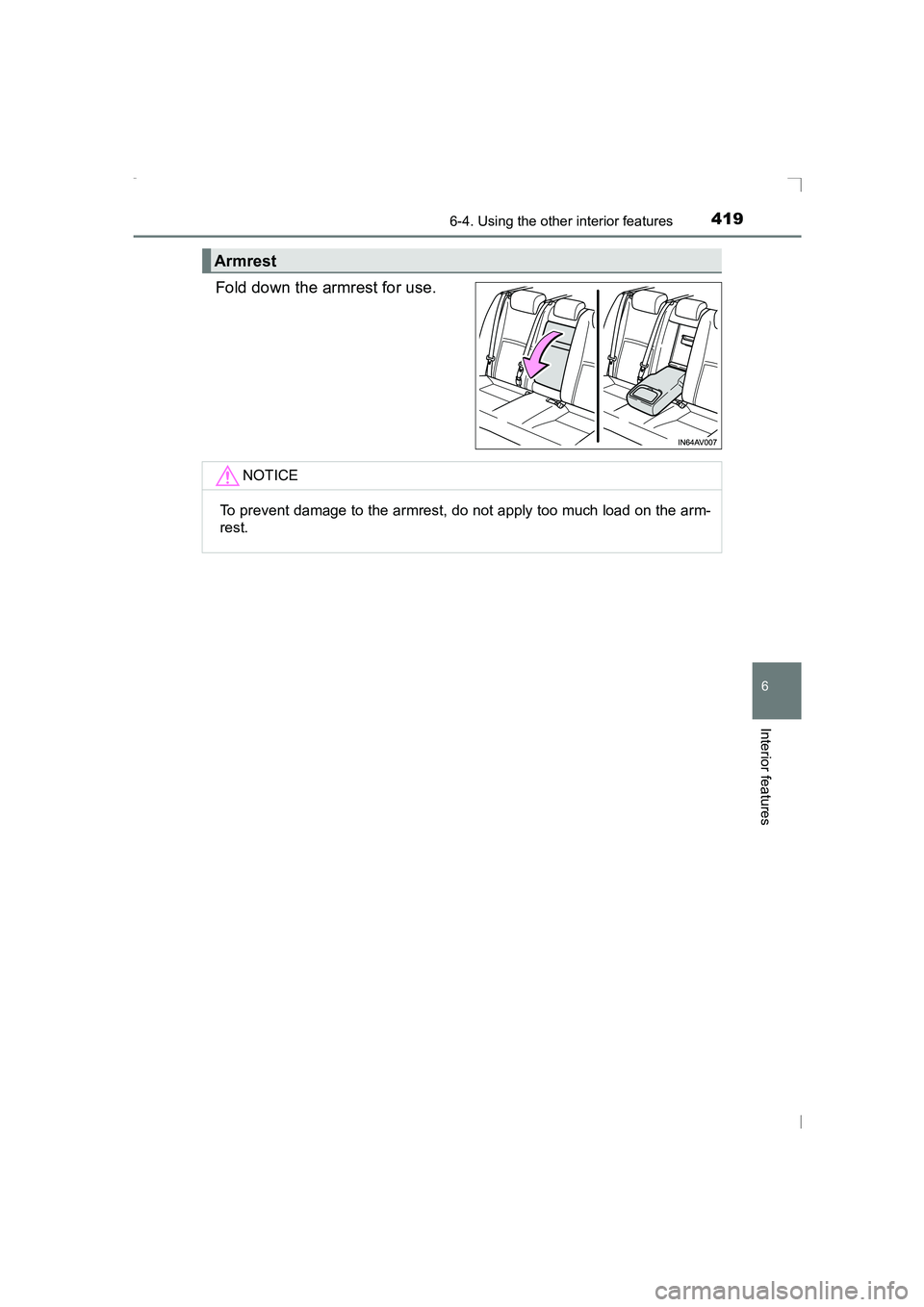

4196-4. Using the other interior features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Fold down the armrest for use.
Armrest
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.
AVENSIS_OM_OM20C20E_(EE).book Page 419 Thursday, January 29, 2015 1:47 PM

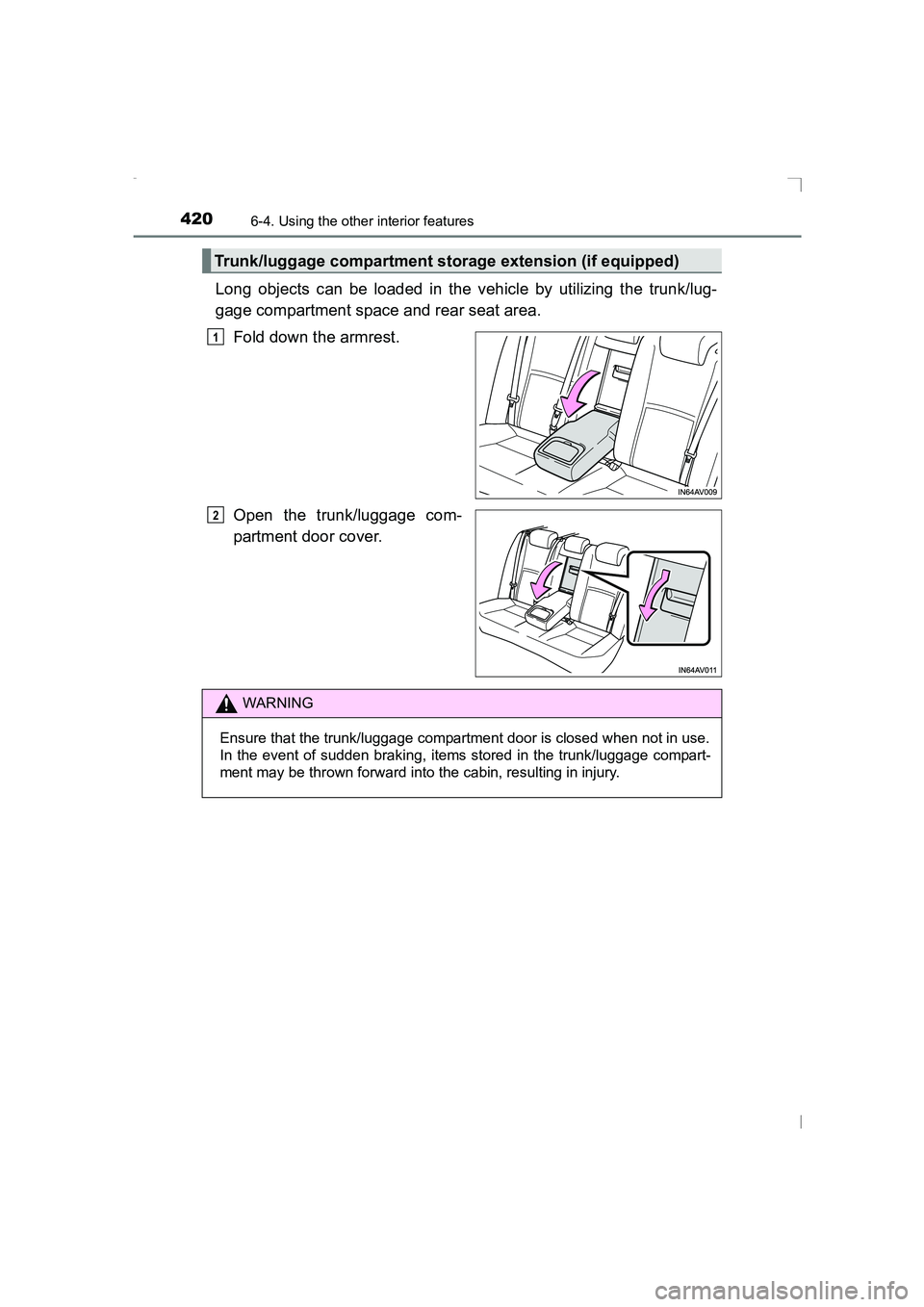

420
AVENSIS_OM_OM20C20E_(EE)
6-4. Using the other interior features
Long objects can be loaded in the vehicle by utilizing the trunk/lug-
gage compartment space and rear seat area.Fold down the armrest.
Open the trunk/luggage com-
partment door cover.
Trunk/luggage compartment storage extension (if equipped)
1
2
WARNING
Ensure that the trunk/luggage compartment door is closed when not in use.
In the event of sudden braking, items stored in the trunk/luggage compart-
ment may be thrown forward into the cabin, resulting in injury.
