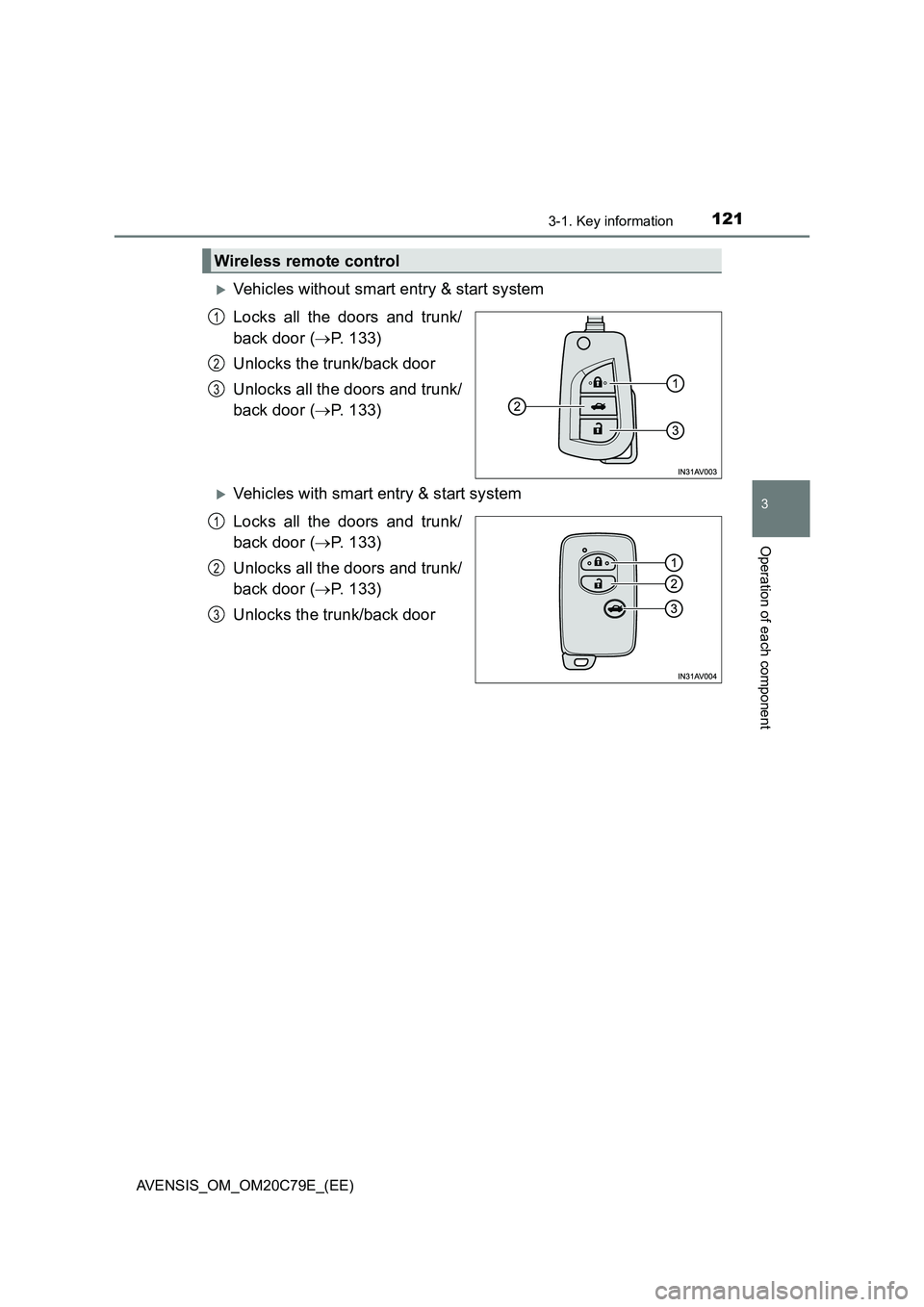

TOYOTA AVENSIS 2018 Owners Manual

1213-1. Key information
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)
Vehicles without smart entry & start system
Locks all the doors and trunk/
back door (P. 133)
Unlocks the trunk/back door
Unlocks all the doors and trunk/
back door (P. 133)
Vehicles with smart entry & start system
Locks all the doors and trunk/
back door (P. 133)
Unlocks all the doors and trunk/
back door (P. 133)
Unlocks the trunk/back door
Wireless remote control
1
2
3
1
2
3

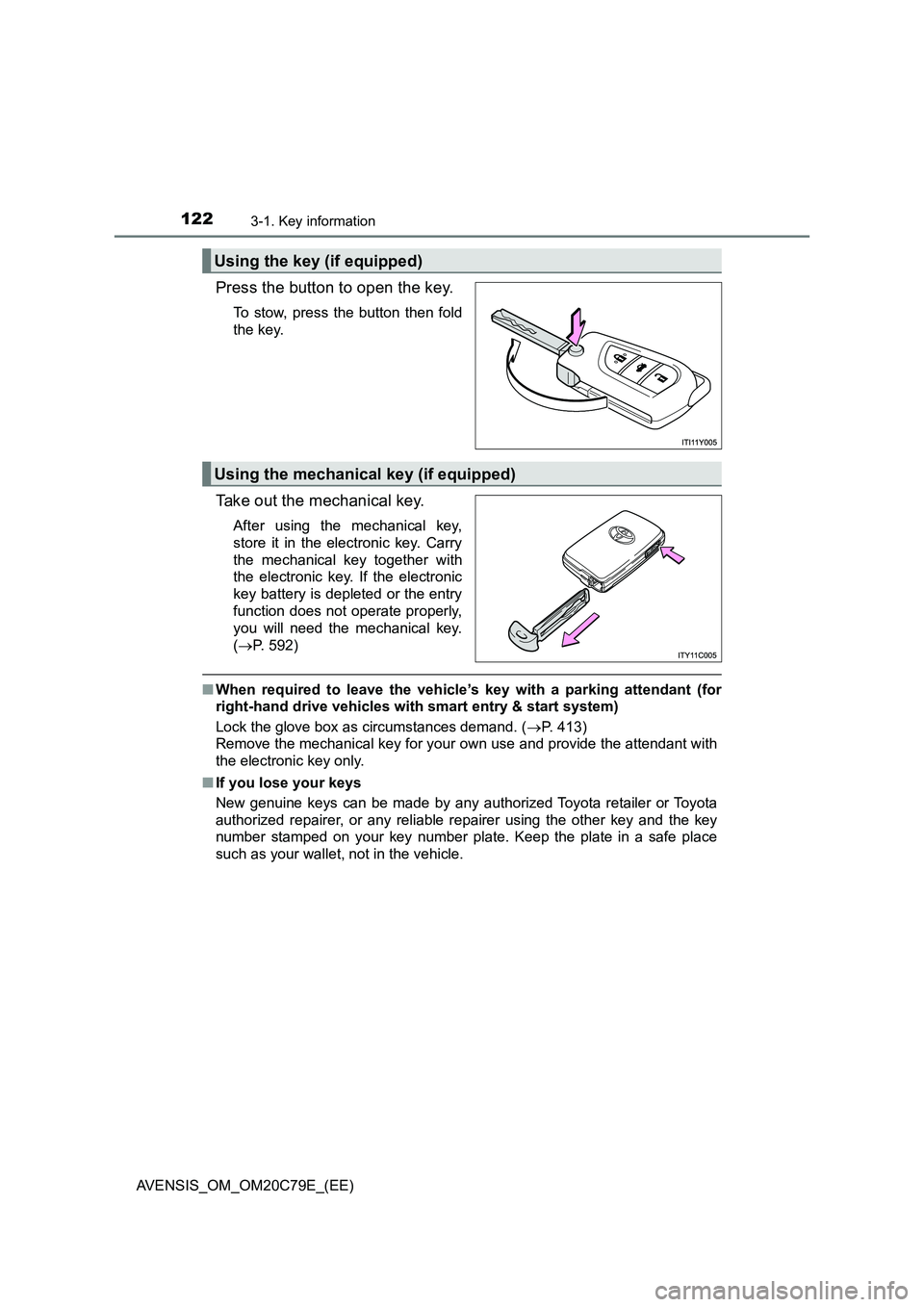

1223-1. Key information
AVENSIS_OM_OM20C79E_(EE)
Press the button to open the key.
To stow, press the button then fold
the key.
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(P. 592)
■When required to leave the vehicle’s key with a parking attendant (for
right-hand drive vehicles with smart entry & start system)
Lock the glove box as circumstances demand. (P. 413)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■If you lose your keys
New genuine keys can be made by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer using the other key and the key
number stamped on your key number plate. Keep the plate in a safe place
such as your wallet, not in the vehicle.
Using the key (if equipped)
Using the mechanical key (if equipped)

1233-1. Key information
3
Operation of each component

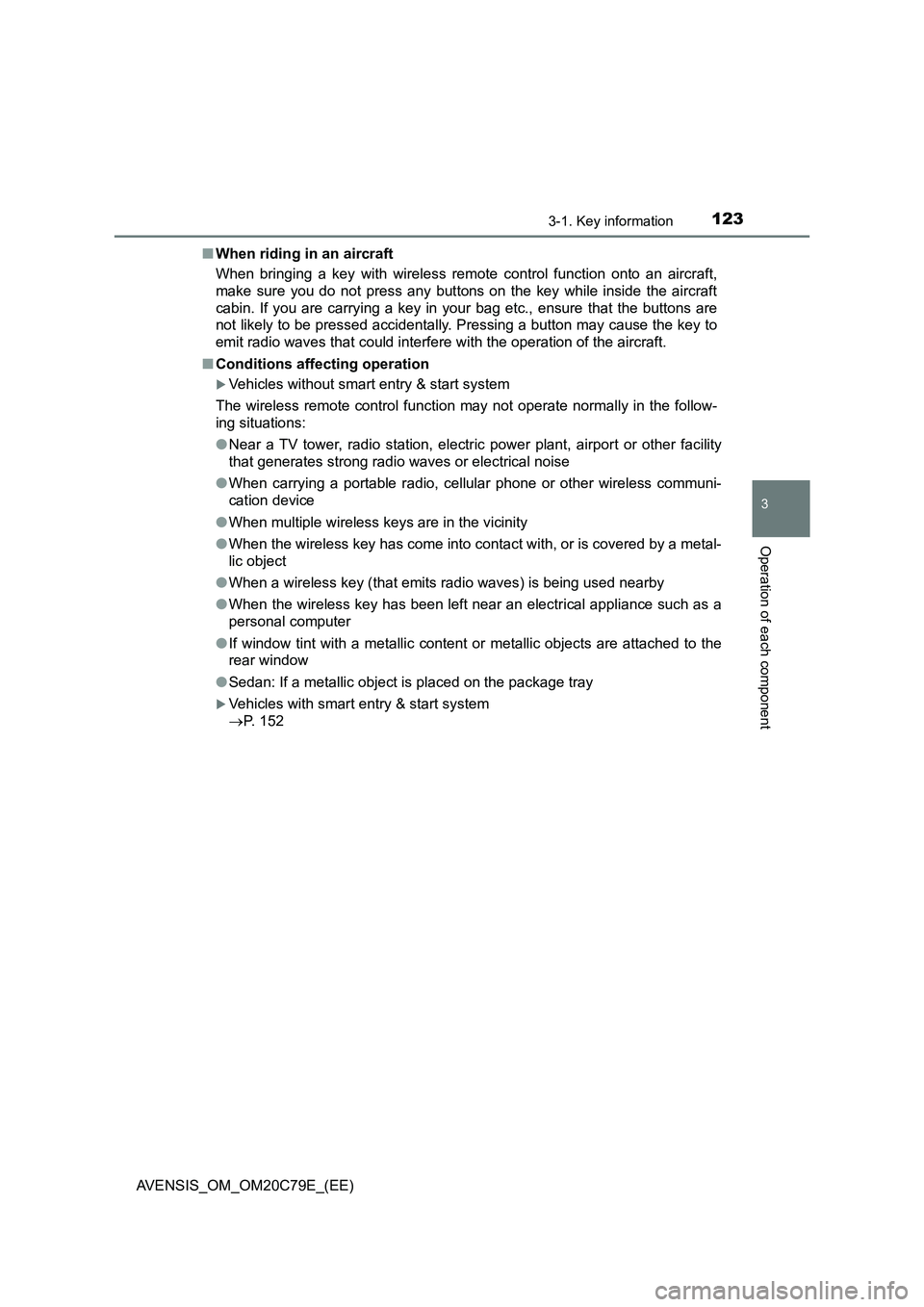

AVENSIS_OM_OM20C79E_(EE)■When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying a key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■Conditions affecting operation
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
●Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone or other wireless communi-
cation device
●When multiple wireless keys are in the vicinity
●When the wireless key has come into contact with, or is covered by a metal-
lic object
●When a wireless key (that emits radio waves) is being used nearby
●When the wireless key has been left near an electrical appliance such as a
personal computer
●If window tint with a metallic content or metallic objects are attached to the
rear window
●Sedan: If a metallic object is placed on the package tray
Vehicles with smart entry & start system
P. 152

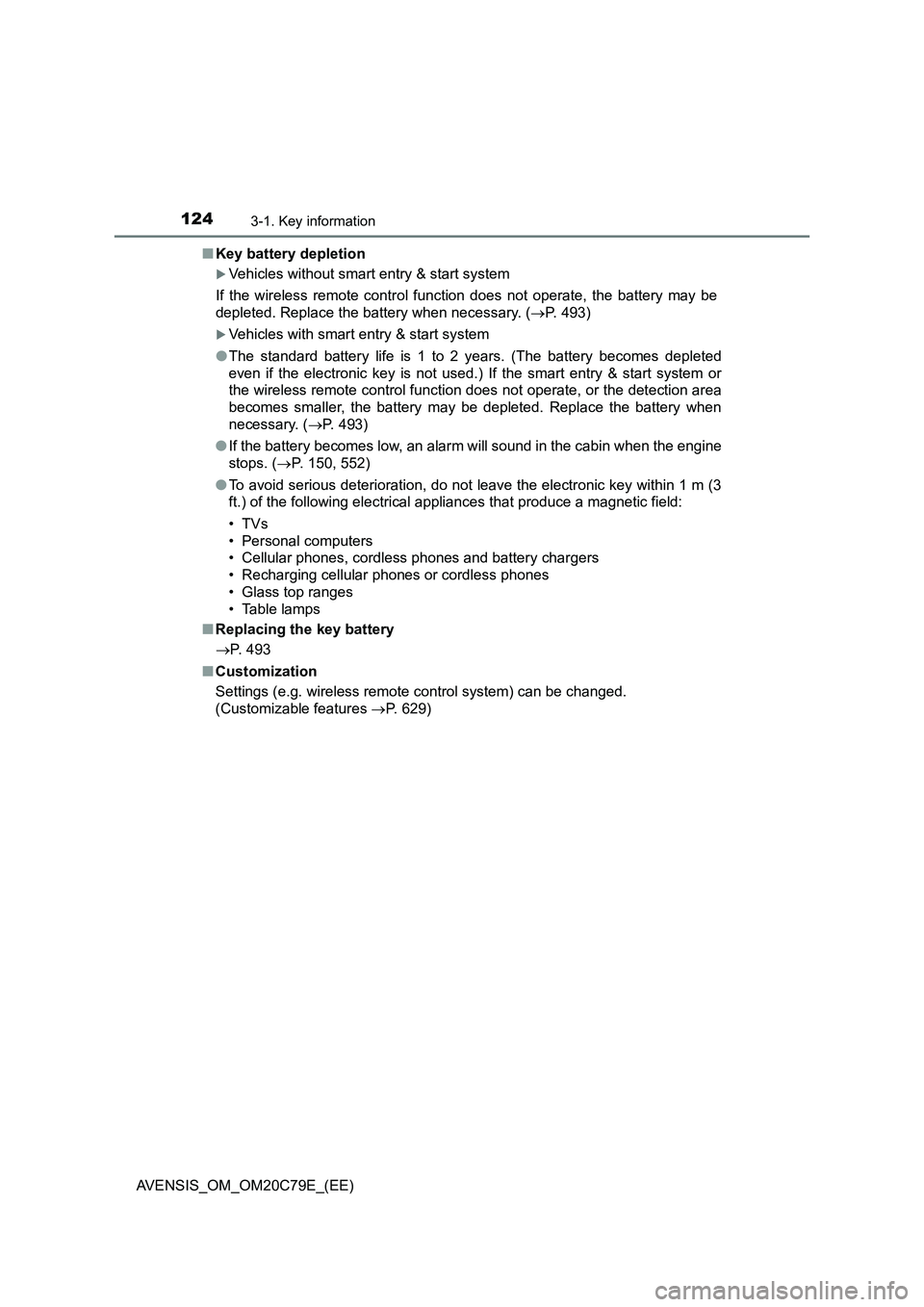

1243-1. Key information
AVENSIS_OM_OM20C79E_(EE)■Key battery depletion
Vehicles without smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 493)
Vehicles with smart entry & start system
●The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the electronic key is not used.) If the smart entry & start system or
the wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when
necessary. (P. 493)
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 150, 552)
●To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Glass top ranges
• Table lamps
■Replacing the
key battery
P. 493
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 629)

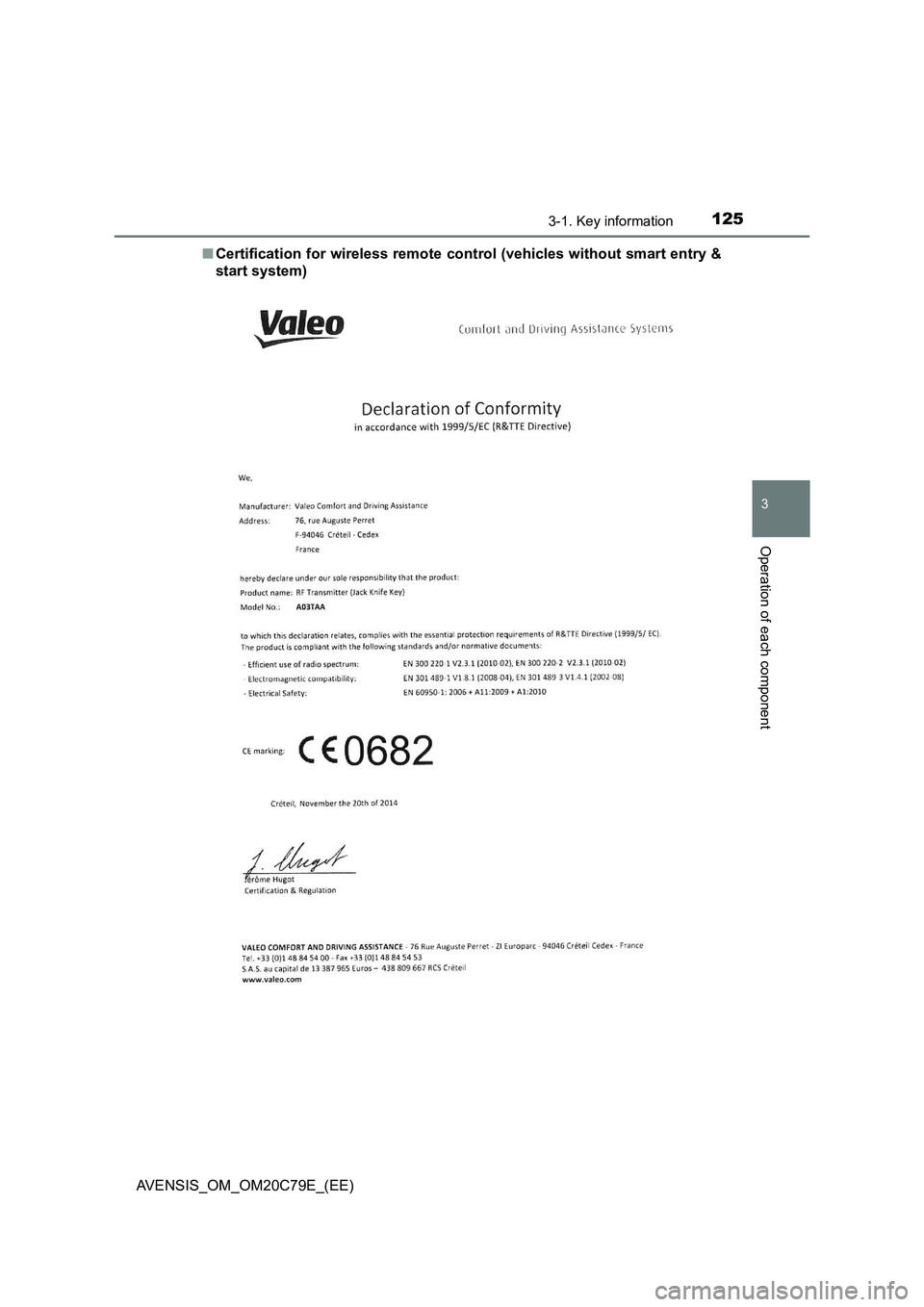

1253-1. Key information
3
Operation of each component

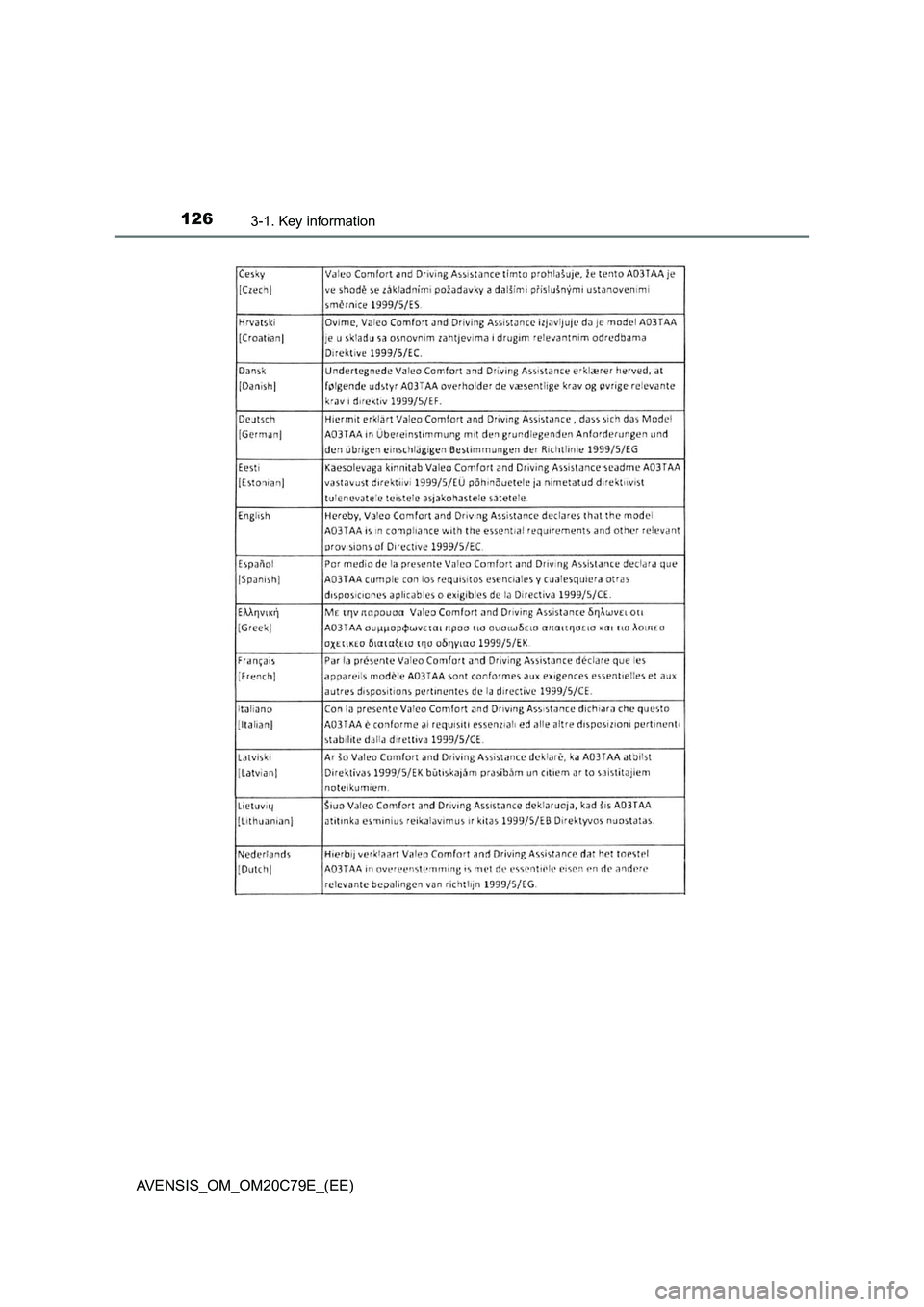

AVENSIS_OM_OM20C79E_(EE)■Certification for wireless remote control (vehicles without smart entry &
start system)

1263-1. Key information
AVENSIS_OM_OM20C79E_(EE)

1273-1. Key information
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)

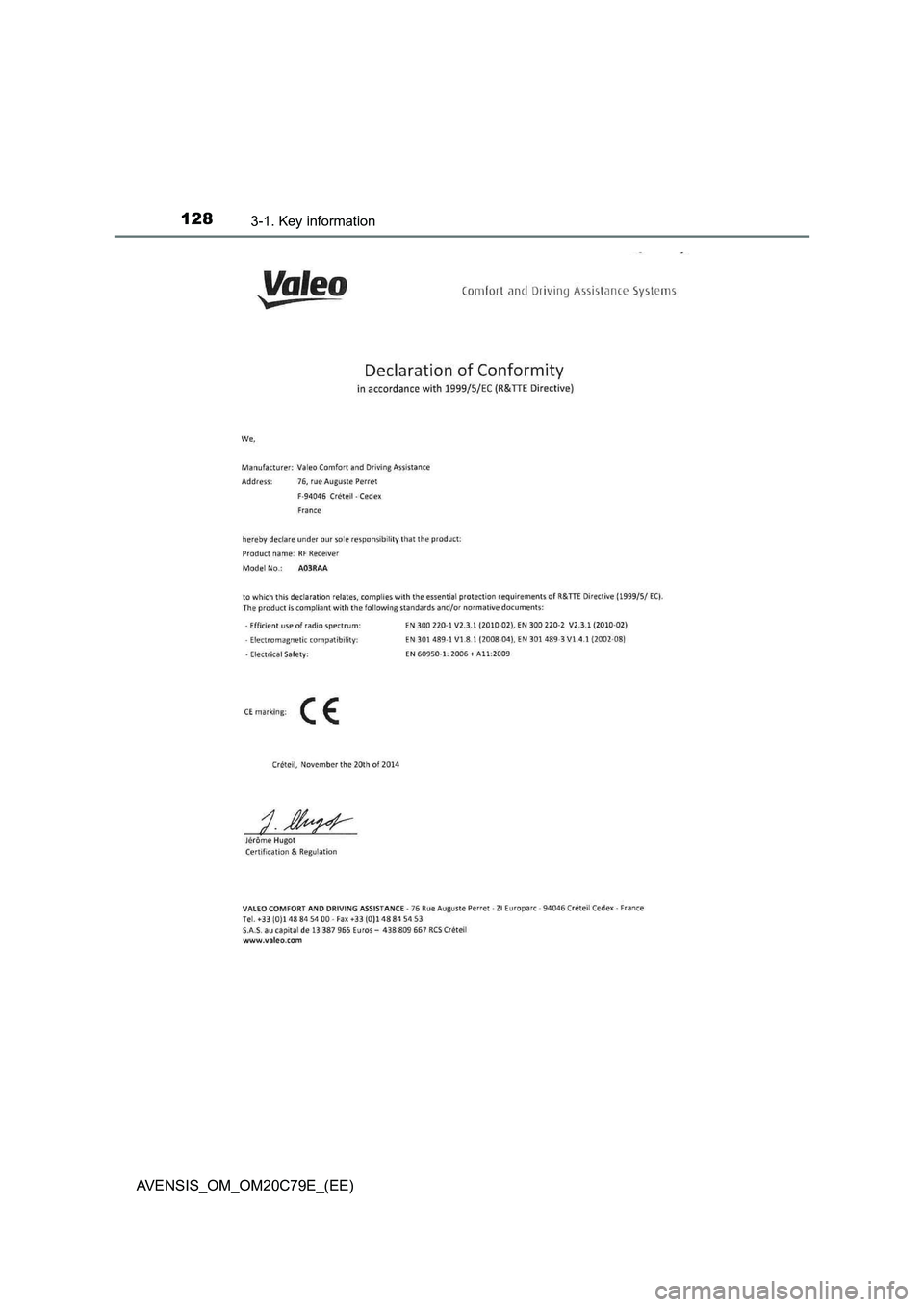

1283-1. Key information
AVENSIS_OM_OM20C79E_(EE)

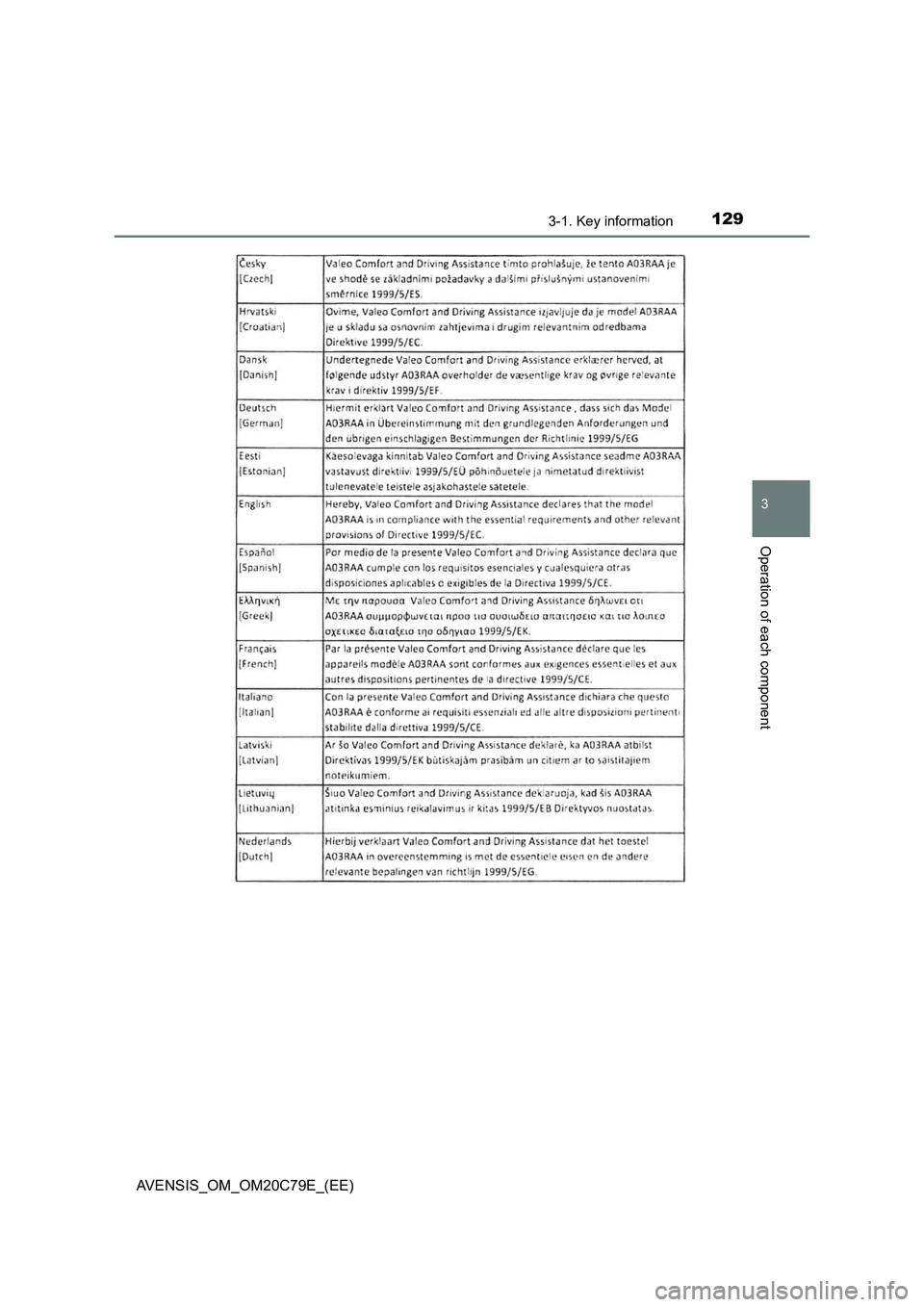

1293-1. Key information
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)

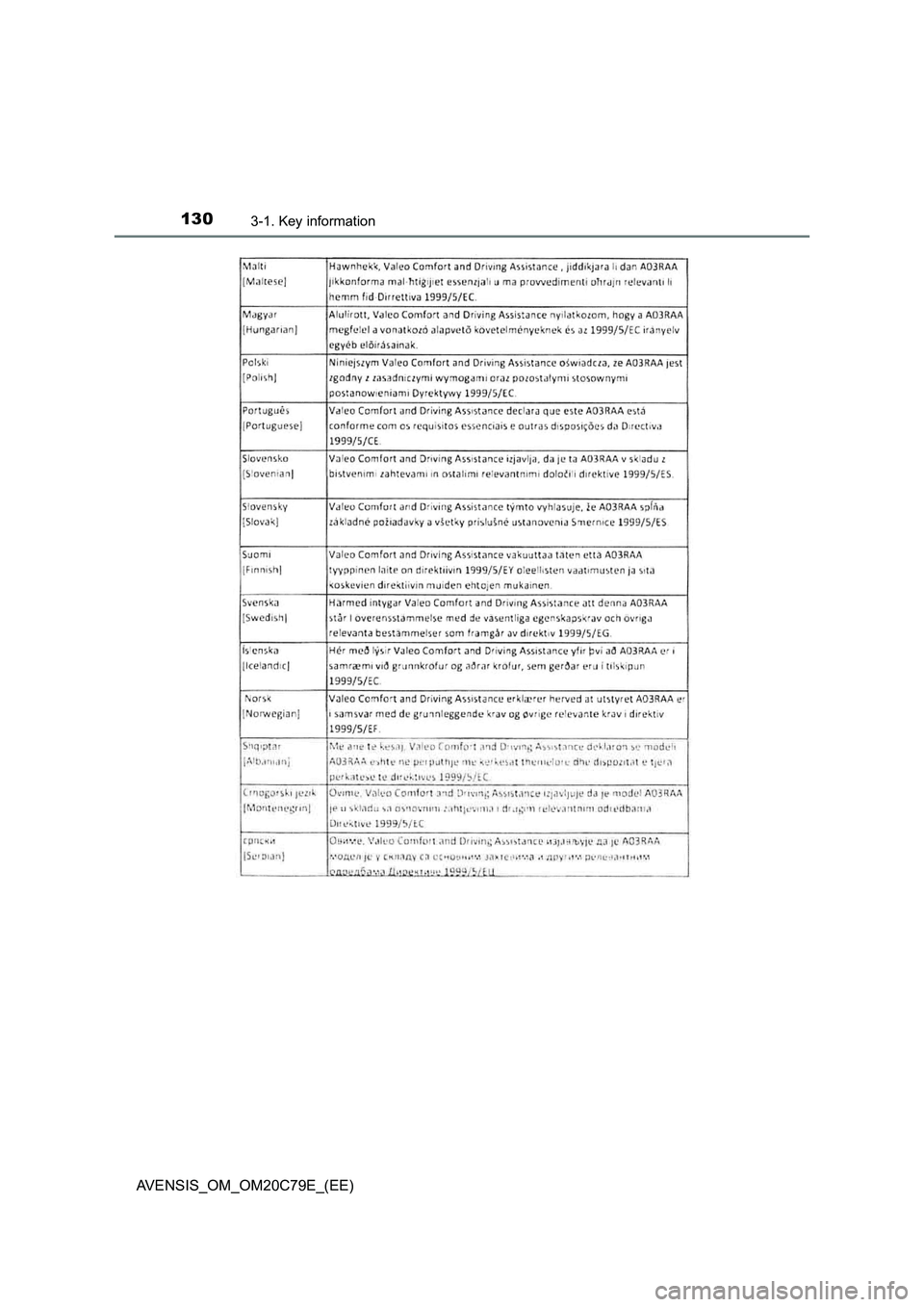

1303-1. Key information
AVENSIS_OM_OM20C79E_(EE)
