140 2-2. Instrument cluster
AYGO_WE_99G80E
Changing the display
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
The meters and display operate when
The engine switch is in the “ON” position.
NOTICE
To prevent damage to the engine and its components
Vehicles with a tachometer: Do not let the indicator needle of the tachome-
ter enter the red zone, which indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(
P. 336)

142 2-2. Instrument cluster
AYGO_WE_99G80E
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: The light flashes to indicate that the system is operating.
Turn signal indicator
(P. 136)Rear fog light indicator
(P. 148)
Headlight low beam
indicator (P. 144)Shift position and gear
position indicators
(P. 129)
Headlight high beam
indicator (P. 144)
(Vehicles with a multi-mode manual transmission)
*1,2
(If equipped)
Slip indicator
(P. 154)
(If equipped)
Front fog light indicator
(P. 149)

143 2-2. Instrument cluster
2
When driving
AYGO_WE_99G80E
CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 312)
*1: These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: The light comes on when the airbag manual on-off switch turned to
the “OFF” position.
(Flashes)(If equipped)(Flashes)
(If equipped)(If equipped)
*1*1*1*1*1*1*1*1,2
*1*1*1

150
2-3. Operating the lights and wipers
AYGO_WE_99G80E
Windshield wiper and washer
The windshield wiper and washer can be operated when
The engine switch is in the “ON” position.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
The wiper operation is selected by moving the lever as follows:
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Washer/wiper dual opera-
tion
The wiper will automatically
operate a couple of times after
the washer squirts.

152
2-3. Operating the lights and wipers
AYGO_WE_99G80E
Rear window wiper and washer
The rear window wiper and washer can be operated when
The engine switch is in the “ON” position.
If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.
CAUTION
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
The wiper operation is selected by moving the lever as follows:
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer operation

159
2-5. Driving information
2
When driving
AYGO_WE_99G80E
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.
Pre-winter preparations
Use fluids that are appropriate to the prevailing outside tem-
peratures.
• Engine oil
• Engine coolant
• Washer fluid
Have a service technician inspect the condition of the battery.
Have the vehicle fitted with four snow tires or purchase a set
of tire chains for the front tires.
Ensure that all tires are the same size and brand and that their wear
level is not noticeably different with each other. Also make sure that
chains match the size of the tires.
Before driving the vehicle
Perform the following according to the driving conditions:
Do not try to forcibly open a window or move a wiper that is
frozen. Pour warm water over the frozen area to melt the ice.
Wipe away the water immediately to prevent it from freezing.
To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
Check for and remove any excess ice or snow that may have
accumulated on the exterior lights, vehicle’s roof, chassis,
around the tires or on the brakes.
Remove any snow or mud from the bottom of your shoes
before getting in the vehicle.

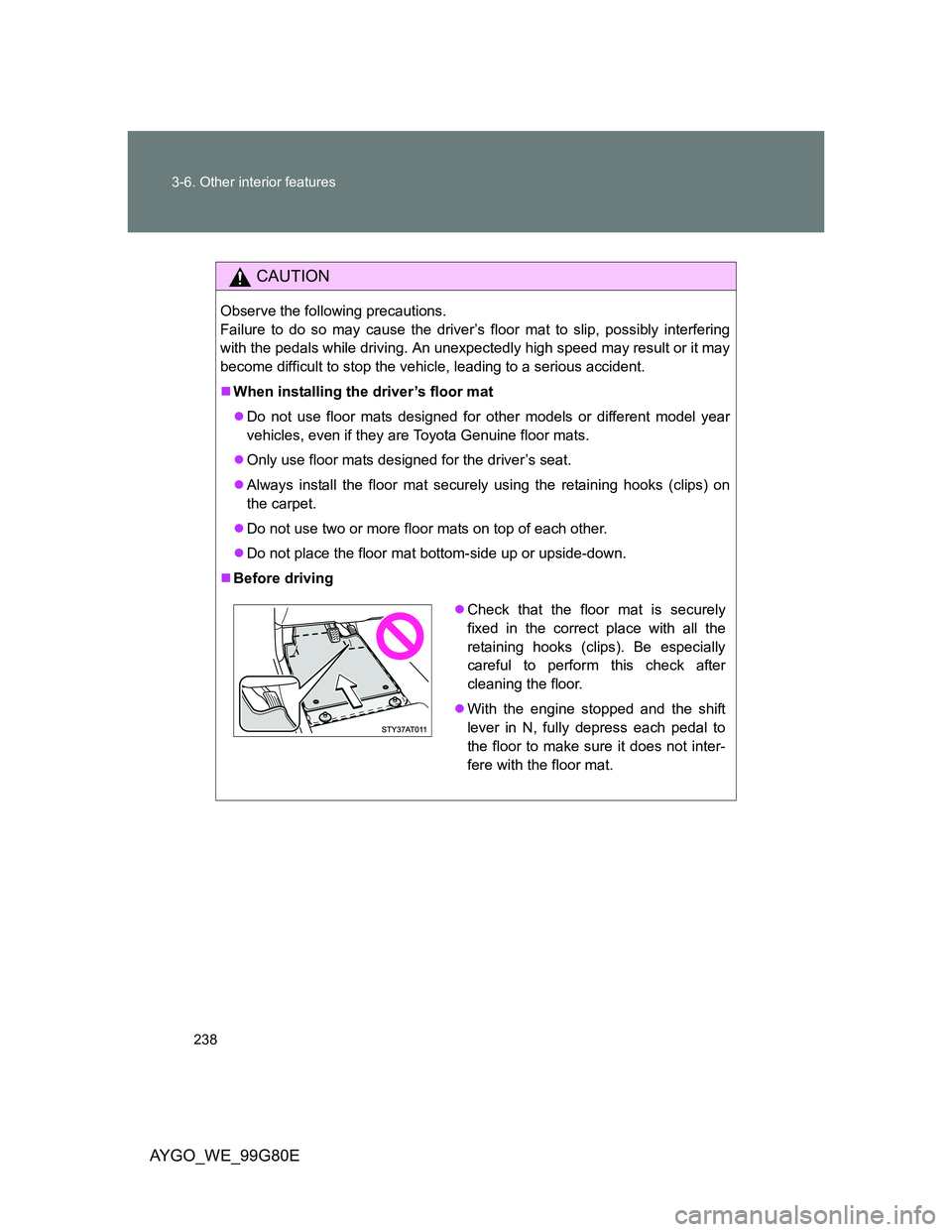

238 3-6. Other interior features
AYGO_WE_99G80E
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) on
the carpet.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
retaining hooks (clips). Be especially
careful to perform this check after
cleaning the floor.
With the engine stopped and the shift
lever in N, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

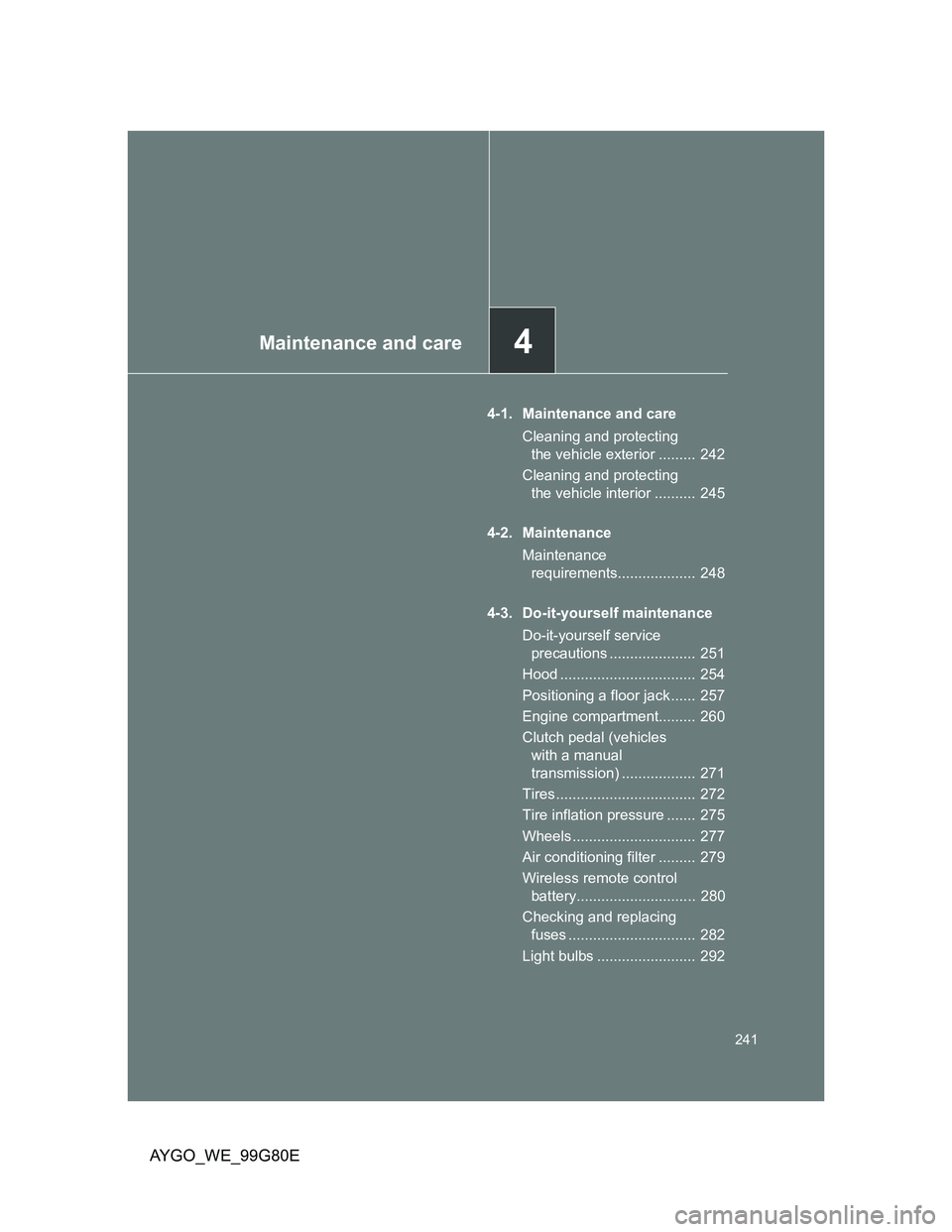

4Maintenance and care
241
AYGO_WE_99G80E
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 242
Cleaning and protecting
the vehicle interior .......... 245
4-2. Maintenance
Maintenance
requirements................... 248
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 251
Hood ................................. 254
Positioning a floor jack ...... 257
Engine compartment......... 260
Clutch pedal (vehicles
with a manual
transmission) .................. 271
Tires .................................. 272
Tire inflation pressure ....... 275
Wheels .............................. 277
Air conditioning filter ......... 279
Wireless remote control
battery............................. 280
Checking and replacing
fuses ............................... 282
Light bulbs ........................ 292

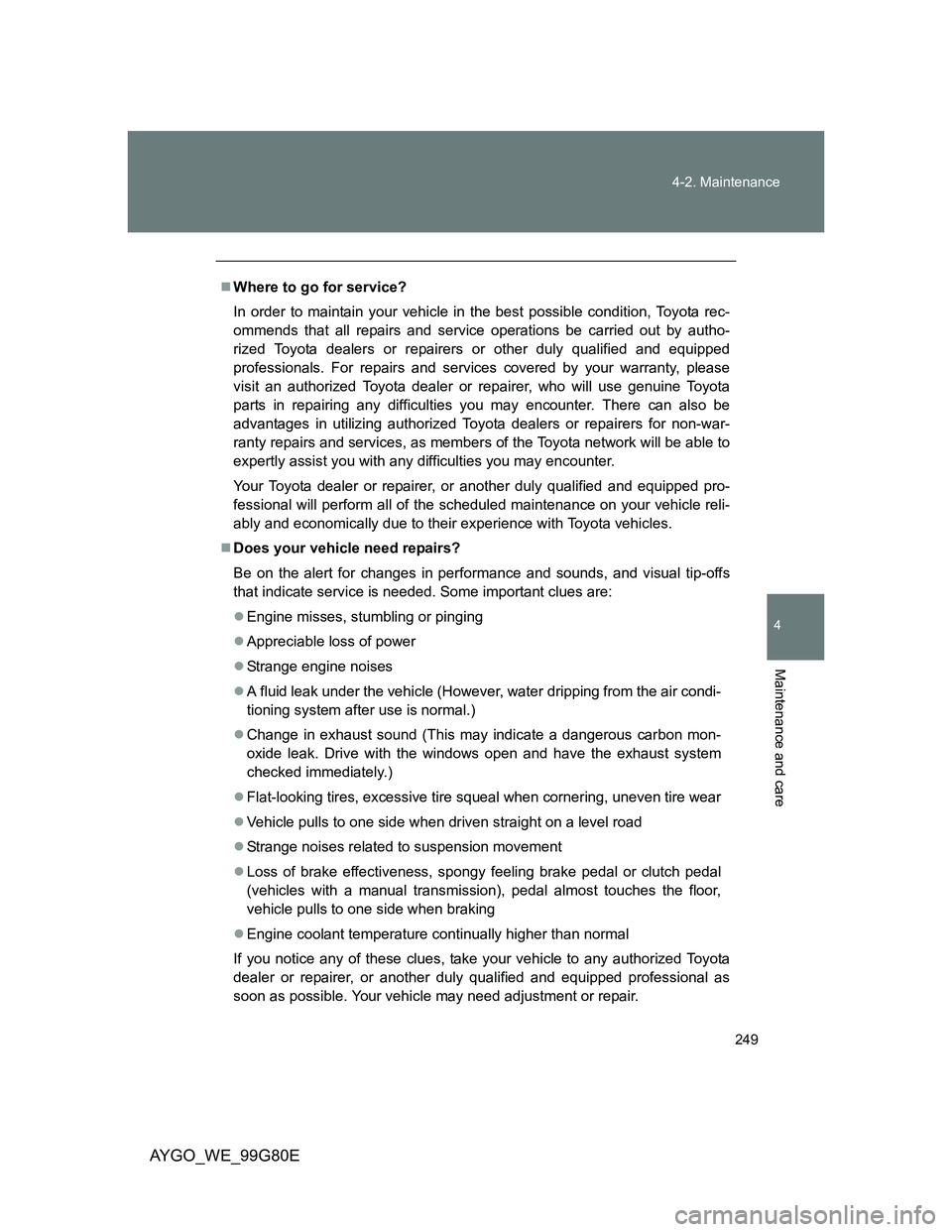

249 4-2. Maintenance
4
Maintenance and care
AYGO_WE_99G80E
Where to go for service?
In order to maintain your vehicle in the best possible condition, Toyota rec-
ommends that all repairs and service operations be carried out by autho-
rized Toyota dealers or repairers or other duly qualified and equipped
professionals. For repairs and services covered by your warranty, please
visit an authorized Toyota dealer or repairer, who will use genuine Toyota
parts in repairing any difficulties you may encounter. There can also be
advantages in utilizing authorized Toyota dealers or repairers for non-war-
ranty repairs and services, as members of the Toyota network will be able to
expertly assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional will perform all of the scheduled maintenance on your vehicle reli-
ably and economically due to their experience with Toyota vehicles.
Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
Engine misses, stumbling or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air condi-
tioning system after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon mon-
oxide leak. Drive with the windows open and have the exhaust system
checked immediately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
Vehicle pulls to one side when driven straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal
(vehicles with a manual transmission), pedal almost touches the floor,
vehicle pulls to one side when braking
Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional as
soon as possible. Your vehicle may need adjustment or repair.

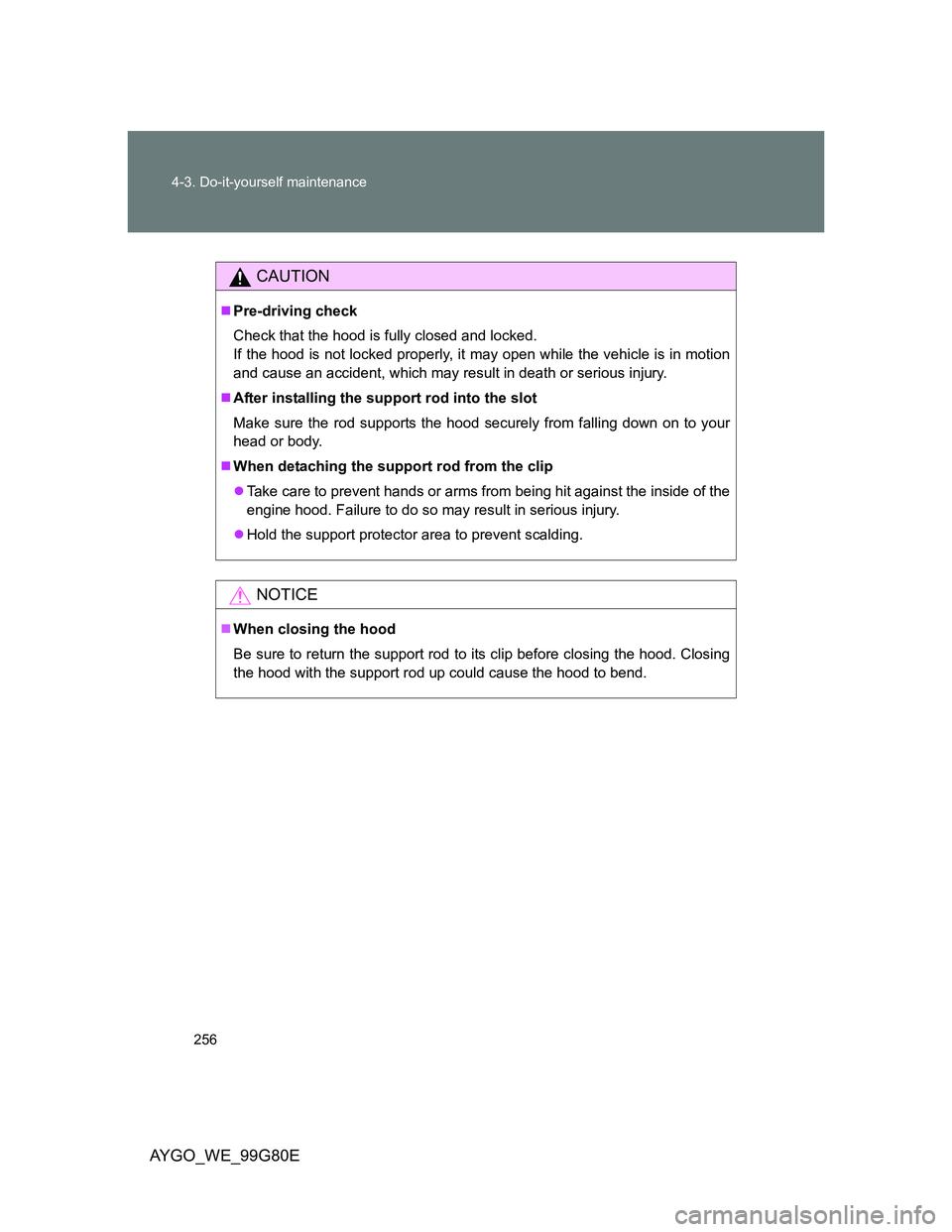

256 4-3. Do-it-yourself maintenance
AYGO_WE_99G80E
CAUTION
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
When detaching the support rod from the clip
Take care to prevent hands or arms from being hit against the inside of the
engine hood. Failure to do so may result in serious injury.
Hold the support protector area to prevent scalding.
NOTICE
When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.
