371 What to do if...

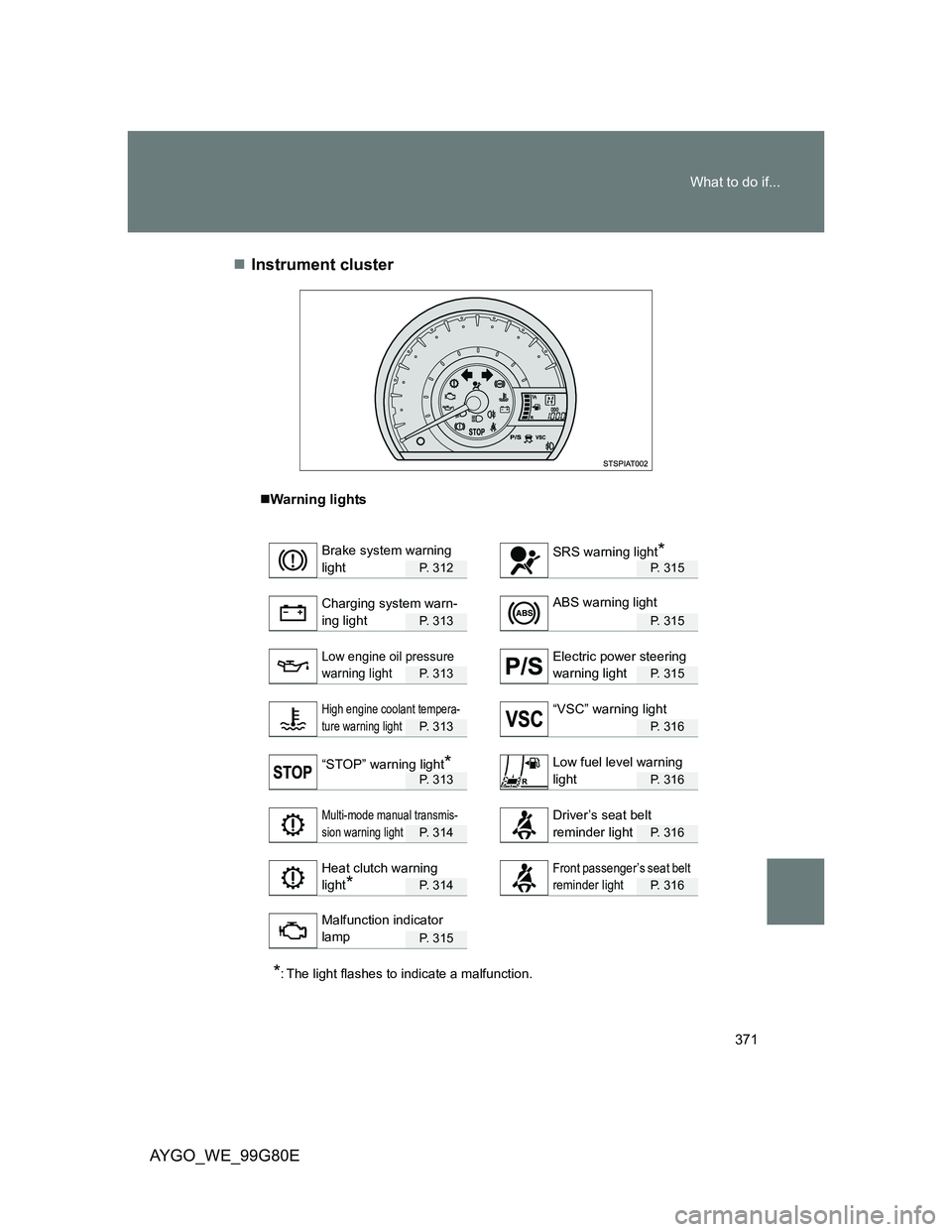

AYGO_WE_99G80EInstrument cluster
Warning lights
P. 3 1 2P. 315
P. 3 1 3P. 315
P. 3 1 3P. 315
P. 3 1 3P. 316
P. 3 1 3P. 316
P. 3 1 4P. 316
P. 3 1 4P. 316
P. 3 1 5
*: The light flashes to indicate a malfunction.
Brake system warning
lightSRS warning light*
Charging system warn-
ing lightABS warning light
Low engine oil pressure
warning lightElectric power steering
warning light
High engine coolant tempera-
ture warning light“VSC” warning light
“STOP” warning light*Low fuel level warning
light
Multi-mode manual transmis-
sion warning lightDriver’s seat belt
reminder light
Heat clutch warning
light
*
Front passenger’s seat belt
reminder light
Malfunction indicator
lamp

372
AYGO_WE_99G80E

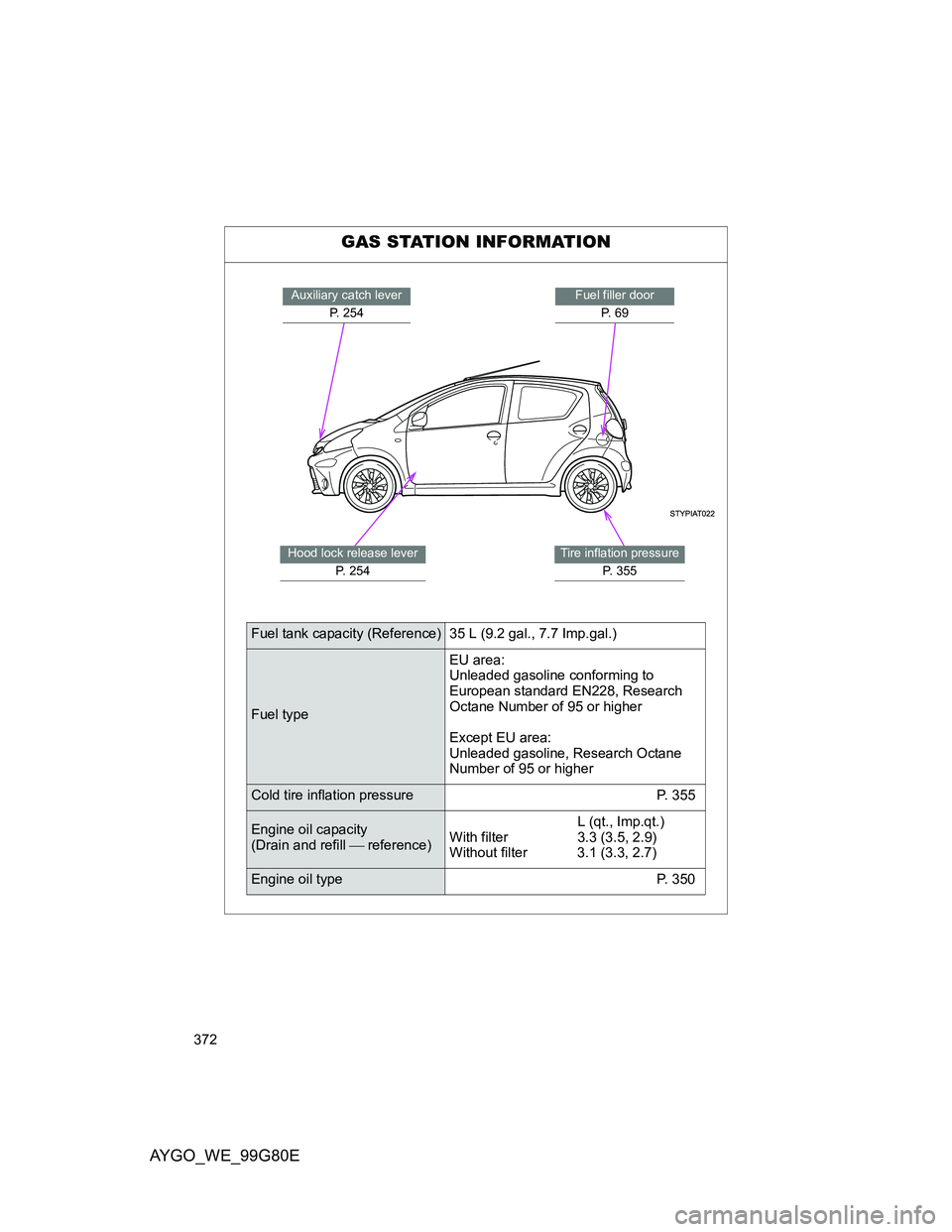

GAS STATION INFORMATION
Auxiliary catch lever
P. 254Fuel filler door
P. 6 9
Hood lock release lever
P. 254Tire inflation pressure
P. 355
Fuel tank capacity (Reference) 35 L (9.2 gal., 7.7 Imp.gal.)
Fuel typeEU area:
Unleaded gasoline conforming to
European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane
Number of 95 or higher
Cold tire inflation pressure P. 355
Engine oil capacity
(Drain and refill  reference)L (qt., Imp.qt.)
With filter 3.3 (3.5, 2.9)
Without filter 3.1 (3.3, 2.7)
Engine oil type P. 350
