3928-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

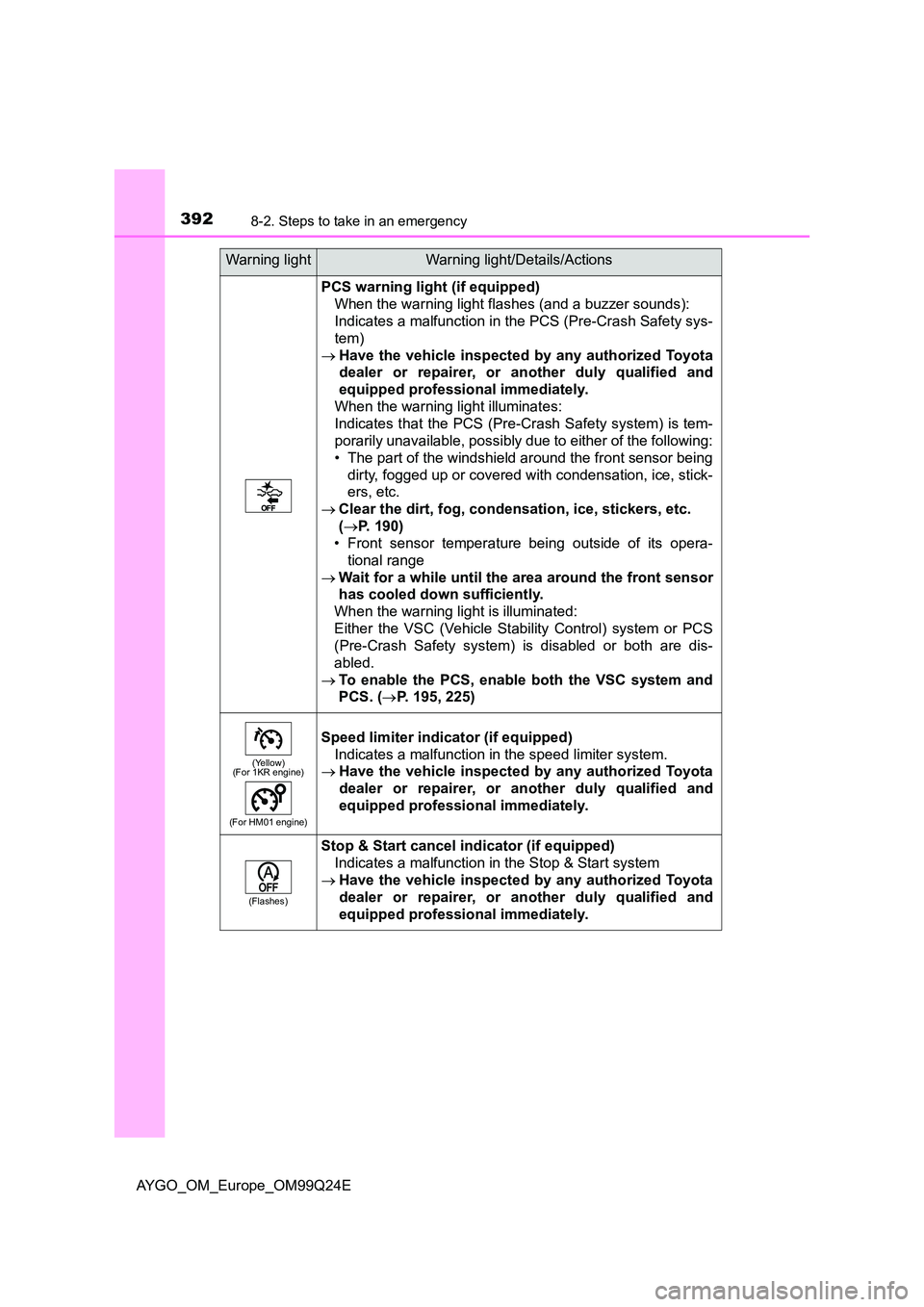

PCS warning light (if equipped)
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Crash Safety sys-
tem)
 Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
When the warning light illuminates:
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailable, possibly due to either of the following:
• The part of the windshield around the front sensor being
dirty, fogged up or covered with condensation, ice, stick-
ers, etc.
 Clear the dirt, fog, condensation, ice, stickers, etc.
( P. 190)
• Front sensor temperature being outside of its opera-
tional range
 Wait for a while until the area around the front sensor
has cooled down sufficiently.
When the warning light is illuminated:
Either the VSC (Vehicle Stability Control) system or PCS
(Pre-Crash Safety system) is disabled or both are dis-
abled.
 To enable the PCS, enable both the VSC system and
PCS. ( P. 195, 225)
(Yellow) (For 1KR engine)
(For HM01 engine)
Speed limiter indicator (if equipped)
Indicates a malfunction in the speed limiter system.
 Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
(Flashes)
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system
 Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Warning lightWarning light/Details/Actions

3948-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E
*1: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately
5 km/h (3 mph) or more.
*2: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*3: Driver’s and passenger’s seat belt buzzer:
The driver’s and passenger’s seat belt buzzer sounds to alert the driver
and passenger that his or her seat belt is not fastened. The buzzer sounds
for 30 seconds after the vehicle reaches a speed of 20 km/h (12 mph).
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 90 more seconds.
■ To prevent the clutch from overheating (vehicles with a multi-mode man-
ual transmission)
● Do not use the accelerator pedal or starting assist system to hold the vehicle
on a hill.
● On an uphill incline, observe the following whenever possible:
• Maintain a safe distance from the vehicle ahead and avoid unnecessary
starting off and stopping.
• Avoid using E mode on an uphill slope. This will help to avoid unneces-
sary gear changes.
Tire pressure warning light (if equipped)
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 395)
• Flat tire ( P. 399, 412)
 Adjust the tire inflation pressure to the specified level
and carry out initialization.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
Warning lightWarning light/Details/Actions

4018-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E

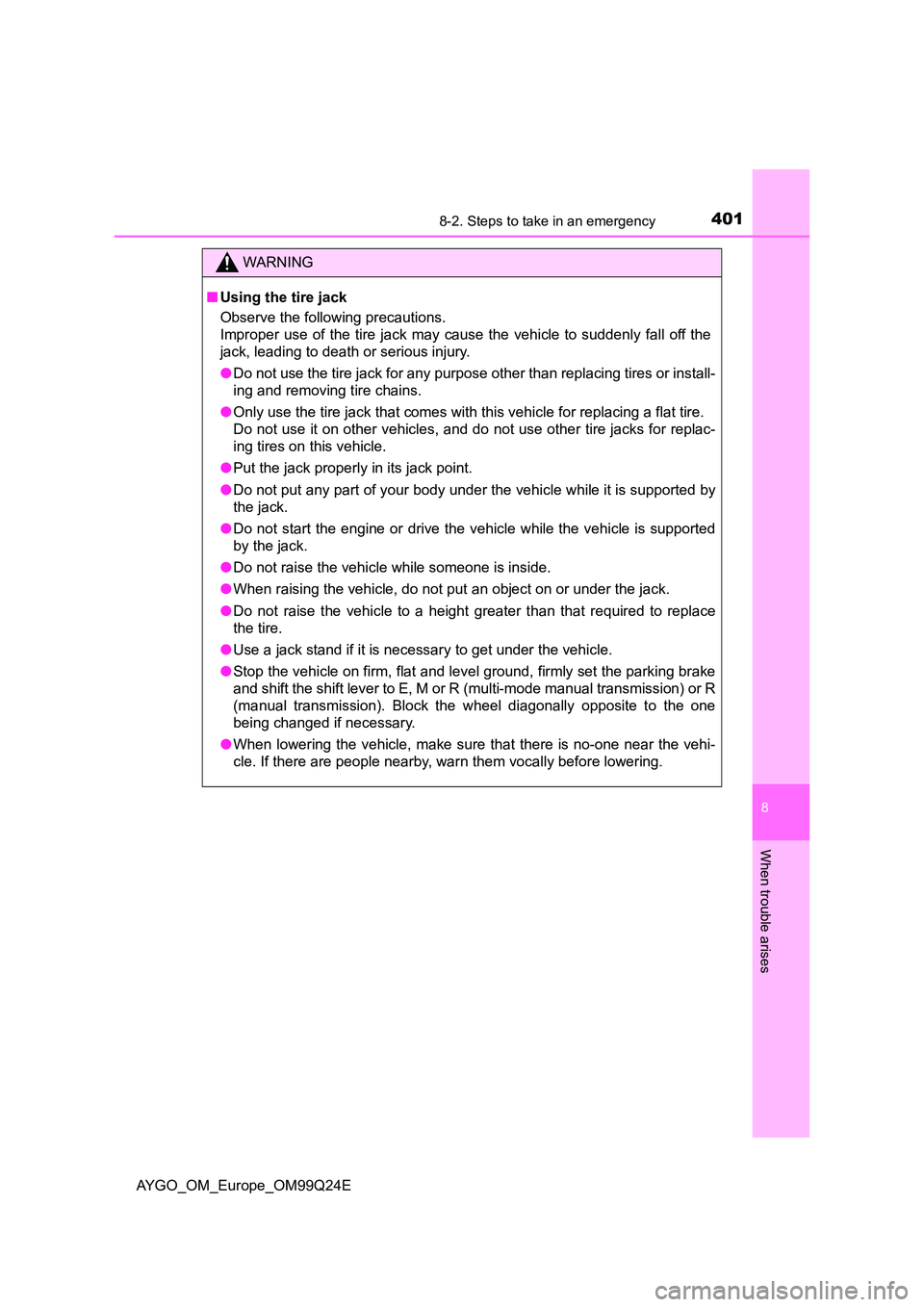

WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Put the jack properly in its jack point.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start the engine or drive the vehicle while the vehicle is supported
by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● Stop the vehicle on firm, flat and level ground, firmly set the parking brake
and shift the shift lever to E, M or R (multi-mode manual transmission) or R
(manual transmission). Block the wheel diagonally opposite to the one
being changed if necessary.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.

4318-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E

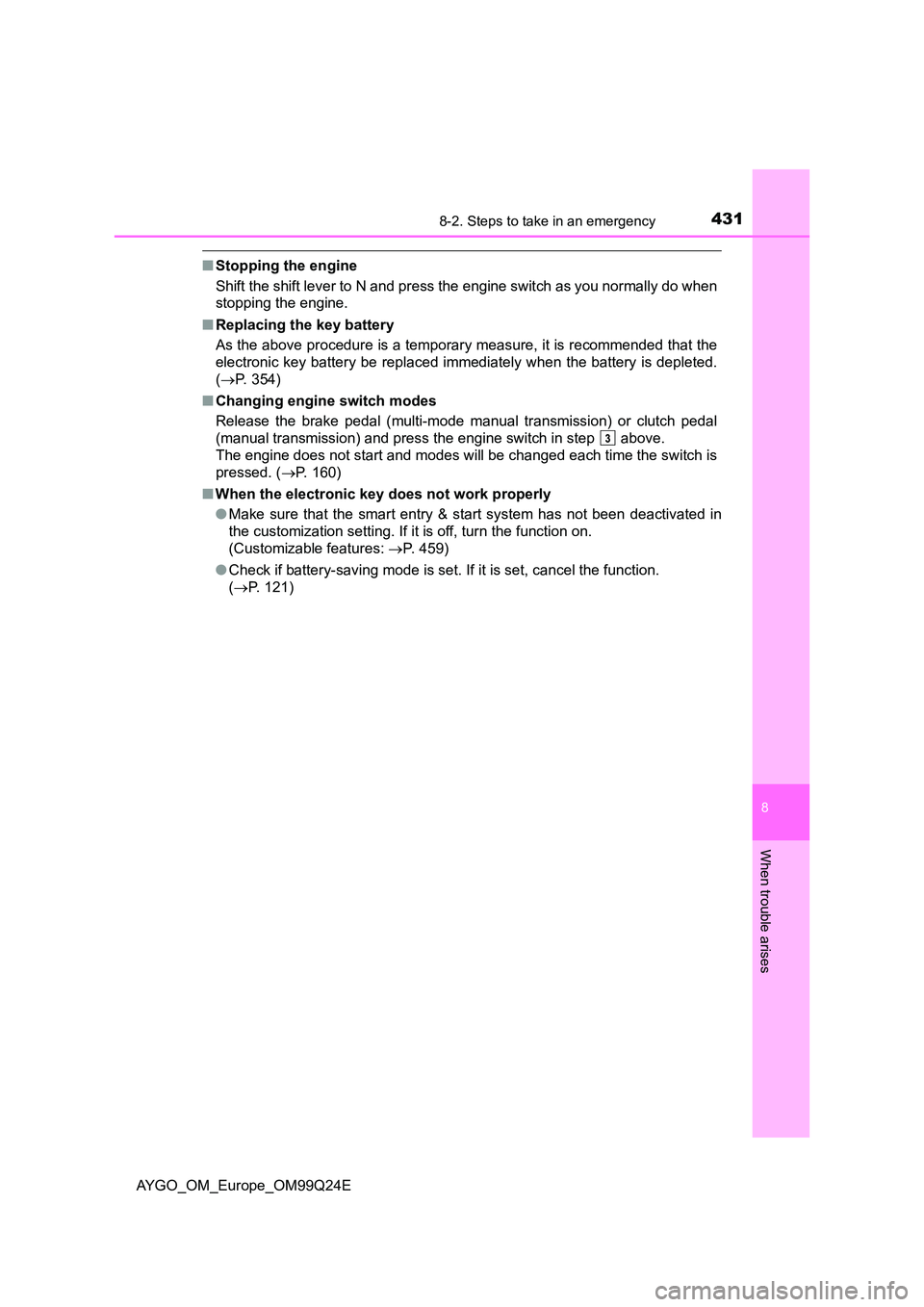

■Stopping the engine
Shift the shift lever to N and press the engine switch as you normally do when
stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
( P. 354)
■ Changing engine switch modes
Release the brake pedal (multi-mode m anual transmission) or clutch pedal
(manual transmission) and press t he engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. ( P. 160)
■ When the electronic key does not work properly
● Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features: P. 459)
● Check if battery-saving mode is set. If it is set, cancel the function.
( P. 121)

4388-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

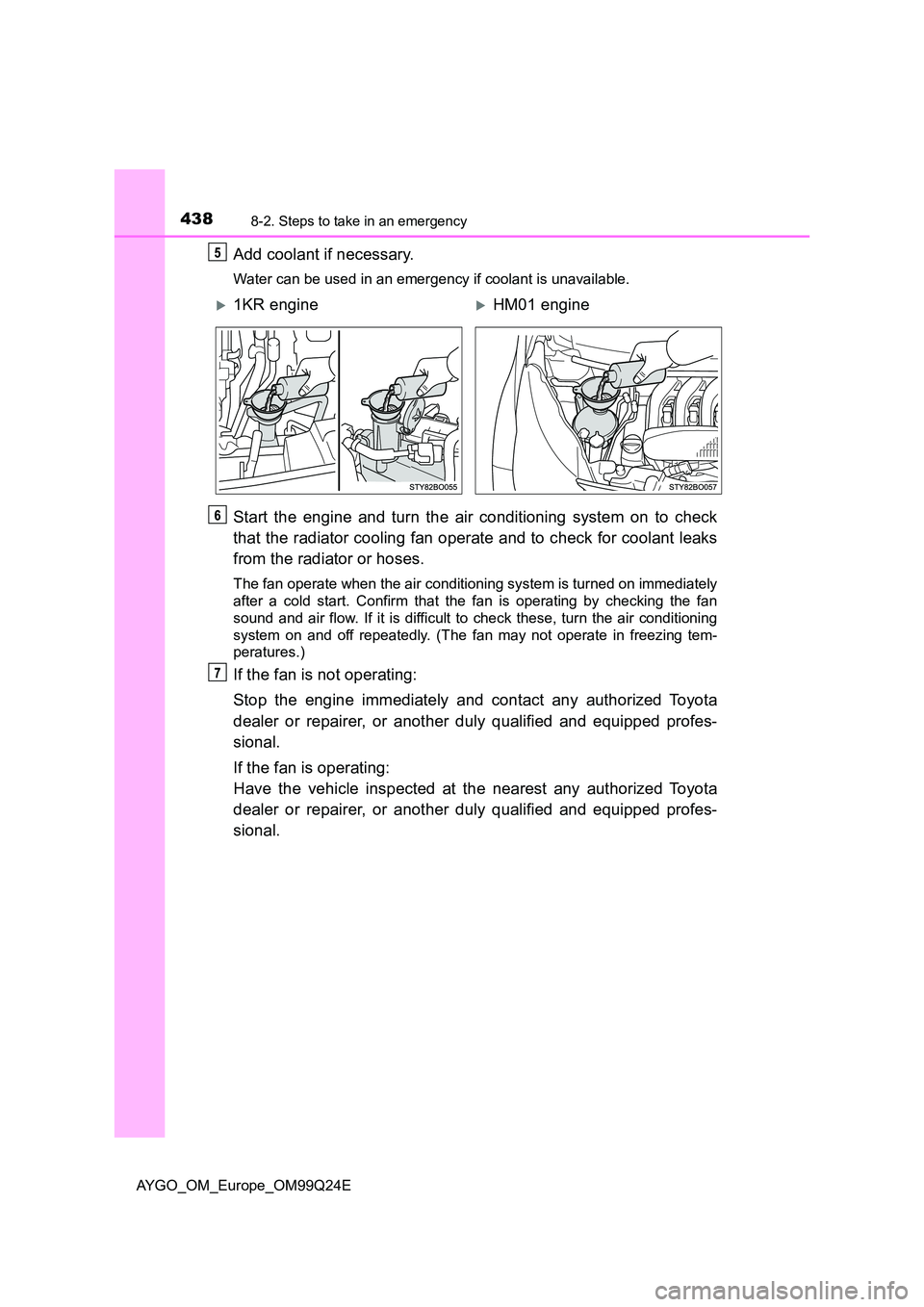

Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operate and to check for coolant leaks
from the radiator or hoses.
The fan operate when the air conditioning system is turned on immediately
after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
1KR engineHM01 engine

4408-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

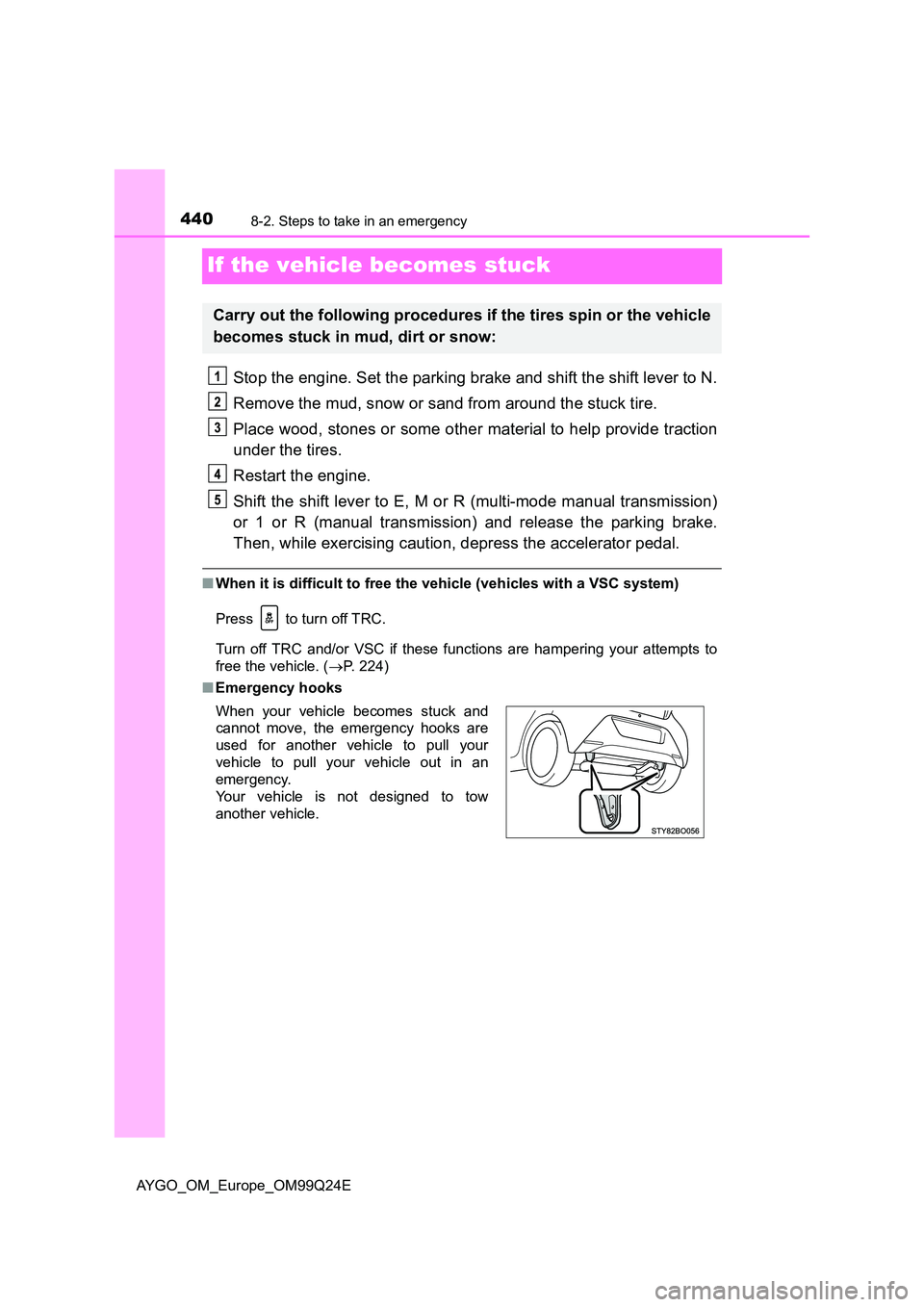

If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to N.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide traction
under the tires.
Restart the engine.
Shift the shift lever to E, M or R (multi-mode manual transmission)
or 1 or R (manual transmission) and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle (vehicles with a VSC system)
Press to turn off TRC.
Turn off TRC and/or VSC if these functions are hampering your attempts to
free the vehicle. ( P. 224)
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your
vehicle to pull your vehicle out in an
emergency.
Your vehicle is not designed to tow
another vehicle.

464What to do if... (Troubleshooting)
AYGO_OM_Europe_OM99Q24E

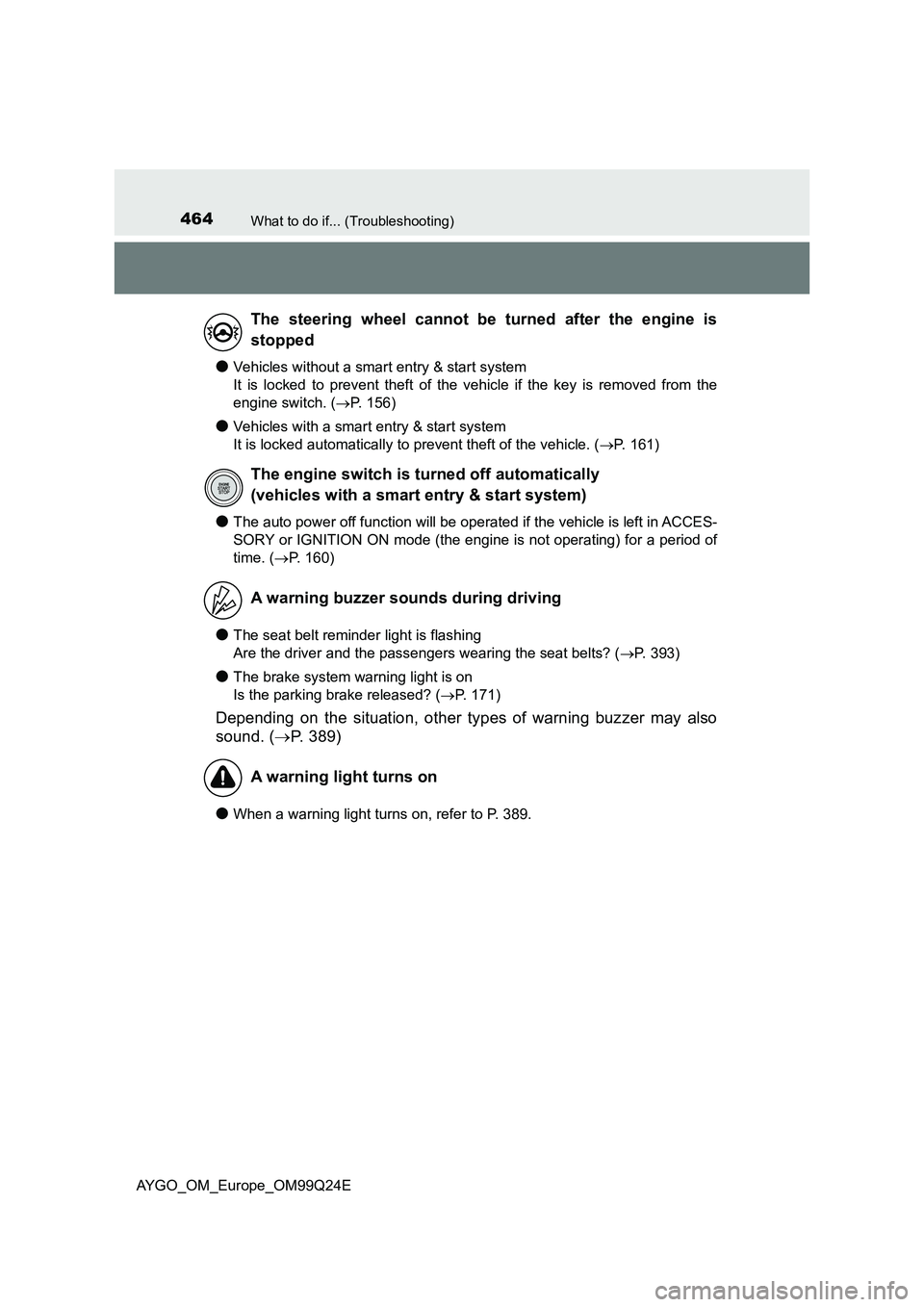

●Vehicles without a smart entry & start system
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. ( P. 1 5 6 )
●Vehicles with a smart entry & start system
It is locked automatically to prevent theft of the vehicle. ( P. 161)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( P. 160)
●The seat belt reminder light is flashing
Are the driver and the passengers wearing the seat belts? ( P. 393)
●The brake system warning light is on
Is the parking brake released? ( P. 171)
Depending on the situation, other types of warning buzzer may also
sound. ( P. 389)
●When a warning light turns on, refer to P. 389.
The steering wheel cannot be turned after the engine is
stopped
The engine switch is turned off automatically
(vehicles with a smart entry & start system)
A warning buzzer sounds during driving
A warning light turns on

475Alphabetical index
AYGO_OM_Europe_OM99Q24E
Specifications .......................... 444
Speed limiter ............................ 212
Speedometer .............................. 89
Steering lock .................... 156, 161
Steering lock system
warning light ....................... 398
Steering wheel ......................... 132
Adjustment ............................ 132
Audio switches ...................... 236
Stop & Start system................. 216
Stop/tail lights
Replacing light bulbs ............. 371
Wattage................................. 456
Storage feature ........................ 305
Stuck
If the vehicle becomes
stuck ................................... 440
Sun visors ................................ 311
Switch
Airbag manual on-off
switch.................................... 47
Audio remote control
switches.............................. 236
Canvas top switch ................. 140
“DISP” button .......................... 91
Emergency flashers
switch.................................. 378
Engine switch ................. 155,158
Fog light switch ..................... 176
Ignition switch ................ 155,158
LDA (Lane Departure Alert)
switch ................................. 206
Light switches ....................... 172
Outside rear view mirror
switches.............................. 135
Paddle shift switches ............ 164
PCS (Pre-Crash Safety
system) switch .................... 195
Power window switch............ 137
Rear window and outside
rear view mirror
defoggers switch ........ 292, 298
Rear window wiper and
washer switch ..................... 180
Seat heater switch ................ 302
Speed limiter ......................... 212
Stop & Start cancel switch .... 217
Telephone switches*.... 263, 267
Tire pressure warning
reset switch ........................ 344
VSC off switch ...................... 224
Windshield wipers and
washer switch ..................... 178
*: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.

477Alphabetical index
AYGO_OM_Europe_OM99Q24E
USB port*......................... 245, 253
Vanity mirrors .......................... 311
Vehicle identification
number ................................... 445
Vehicle Stability Control
(VSC)....................................... 223
VSC (Vehicle Stability
Control) .................................. 223
Warning buzzers ...................... 389
Brake system ........................ 389
Downshifting ......................... 165
Electric power steering
system ................................ 391
Key reminder......................... 120
Open back door .................... 393
Open door ............................. 393
PCS (Pre-Crash Safety
system) .............................. 192
Seat belt remainder............... 393
Smart entry & start
system ........................ 393, 397
Warning lights.......................... 389
ABS....................................... 391
Brake system ........................ 389
Charging system ................... 389
Electric power steering ......... 391
High engine coolant
temperature ................ 389, 390
LDA
(Lane Departure Alert) ....... 393
Low engine oil pressure ........ 389
Low fuel level ........................ 393
Malfunction indicator lamp .... 391
Multi-mode manual
transmission warning
light..................................... 390
Open door ............................. 393
PCS (Pre-Crash Safety
system) .............................. 392
Seat belt reminder light ......... 393
Slip indicator ......................... 393
Smart entry & start
system ........................ 393, 397
Speed limiter ......................... 392
SRS ...................................... 391
“STOP” warning light ............ 390
Stop & Start cancel
indicator.............................. 392
Tire pressure......................... 394
U
V
W
*: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.
