8-1. Essential information
Emergency flashers ...........378
If your vehicle has to
be stopped in an
emergency .......................379
8-2. Steps to take in
an emergency
If your vehicle needs
to be towed ......................381
If you think
something is wrong..........387
Fuel pump shut off
system ............................388
If a warning light turns
on or a warning buzzer
sounds .............................389
If you have a flat tire
(vehicles with
a spare tire) .....................399
If you have a flat tire
(vehicles without
a spare tire) .....................412
If the engine
will not start......................426
If the shift lever cannot
be shifted (vehicles
with a multi-mode
manual transmission) ......428
If the electronic key does
not operate properly
(vehicles with a smart
entry & start system) ....... 429
If the vehicle battery
is discharged ................... 432
If your vehicle overheats ... 436
If the vehicle becomes
stuck................................ 440
9-1. Specifications
Maintenance data
(fuel, oil level, etc.) .......... 444
Fuel information ................ 457
9-2. Customization
Customizable features ...... 459
9-3. Items to initialize
Items to initialize................ 460
What to do if...
(Troubleshooting) .................... 462
Alphabetical index...................... 466
8When trouble arises
9Vehicle specifications
Index
For vehicles with a multimedia system, refer to the “Multimedia
owner’s manual” for information regarding the equipment listed
below.
• Audio system• Rear view monitor system
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140 Brussels,
Belgium www.toyota-europe.com

11Pictorial index
AYGO_OM_Europe_OM99Q24E
Windshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 229
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 446
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Checking/rotation/tire pressure warning system*2 . . . . . . . . . P. 343
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 399, 412
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 446
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436
Camera*2, 3
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Front position lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Daytime running lights*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Front fog lights*2/rear fog lights . . . . . . . . . . . . . . . . . . . . . P. 176
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 170
Emergency brake signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 163, 168
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 365, Watts: P. 456)
*1: Vehicles with a smart entry & start system
*2: If equipped
*3: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.
9
10
11
12
13
14
15
16

852. Instrument cluster
2
Instrument cluster
AYGO_OM_Europe_OM99Q24E
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 389)
*1, 2, 6
PCS warning light
( P. 392)
*1
Charging system
warning light ( P. 389)
*2, 3, 4
(Yellow)
Speed limiter indicator
( P. 392)
*1
Low engine oil pressure
warning light ( P. 389)
*2, 5
Speed limiter indicator
( P. 392)
*1High engine coolant
temperature warning
light ( P. 389, 390)
*1, 2, 6
Stop & Start cancel
indicator ( P. 392)
*1“STOP” warning light
( P. 390)
*1, 2
Slip indicator (P. 393)
*1, 2Multi-mode manual
transmission
warning light ( P. 390)
*2
(Yellow)
LDA indicator (P. 393)
*1
Malfunction indicator
lamp ( P. 391)
*2, 9
(Yellow)
Lane marker indicators
( P. 393)
*1
SRS warning light
( P. 391)
*2, 7
(Yellow)
Smart entry & start
system indicator light
( P. 393, 397)
*1
ABS warning light
( P. 391)
Open door warning light
( P. 393)
*1Electric power steering
system warning light
( P. 391)
Driver’s and front pas-
senger’s seat belt
reminder light ( P. 393)

1213-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_OM_Europe_OM99Q24E
■ Electronic key battery-saving function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
■ Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the el ectronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: P. 429)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-
nication device
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or pers onal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

1524-1. Before driving
AYGO_OM_Europe_OM99Q24E

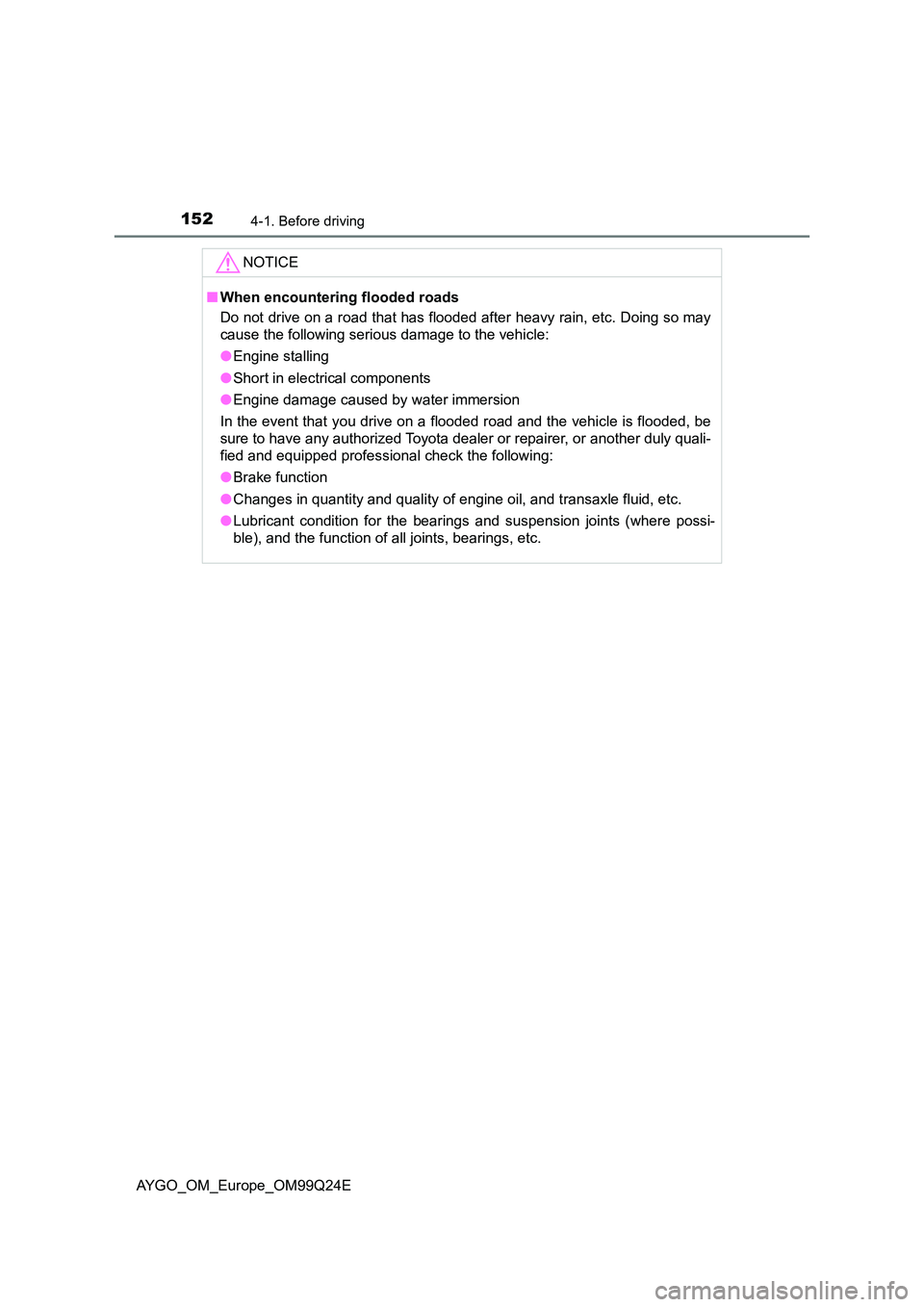

NOTICE
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain, etc. Doing so may
cause the following serious damage to the vehicle:
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional check the following:
● Brake function
● Changes in quantity and quality of engine oil, and transaxle fluid, etc.
● Lubricant condition for the bearings and suspension joints (where possi-
ble), and the function of all joints, bearings, etc.

229
4
4-7. Driving tips
Driving
AYGO_OM_Europe_OM99Q24E
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains* for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
*: Tire chains cannot be mounted on the 15-inch tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

3177-1. Maintenance and care
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
■Automatic car washes
● Vehicles with a canvas top: Do not use the automatic car washes.
● Fold the mirrors and remove the antenna before washing the vehicle. Start
washing from the front of the vehicle. Make sure to re-install the antenna
and extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
● Rear spoiler may not be washable in some automatic car washes. There
may also be an increased risk of damage to vehicle.
■ High pressure car washes
● Vehicles with a canvas top: Do not use the high pressure car washes.
● Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
■ Aluminum wheels (if equipped)
● Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical clean-
ers.
Use the same mild detergent and wax as used on the paint.
● Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
● Wash detergent from the wheels immediately after use.
■ Bumpers
Do not scrub with abrasive cleaners.

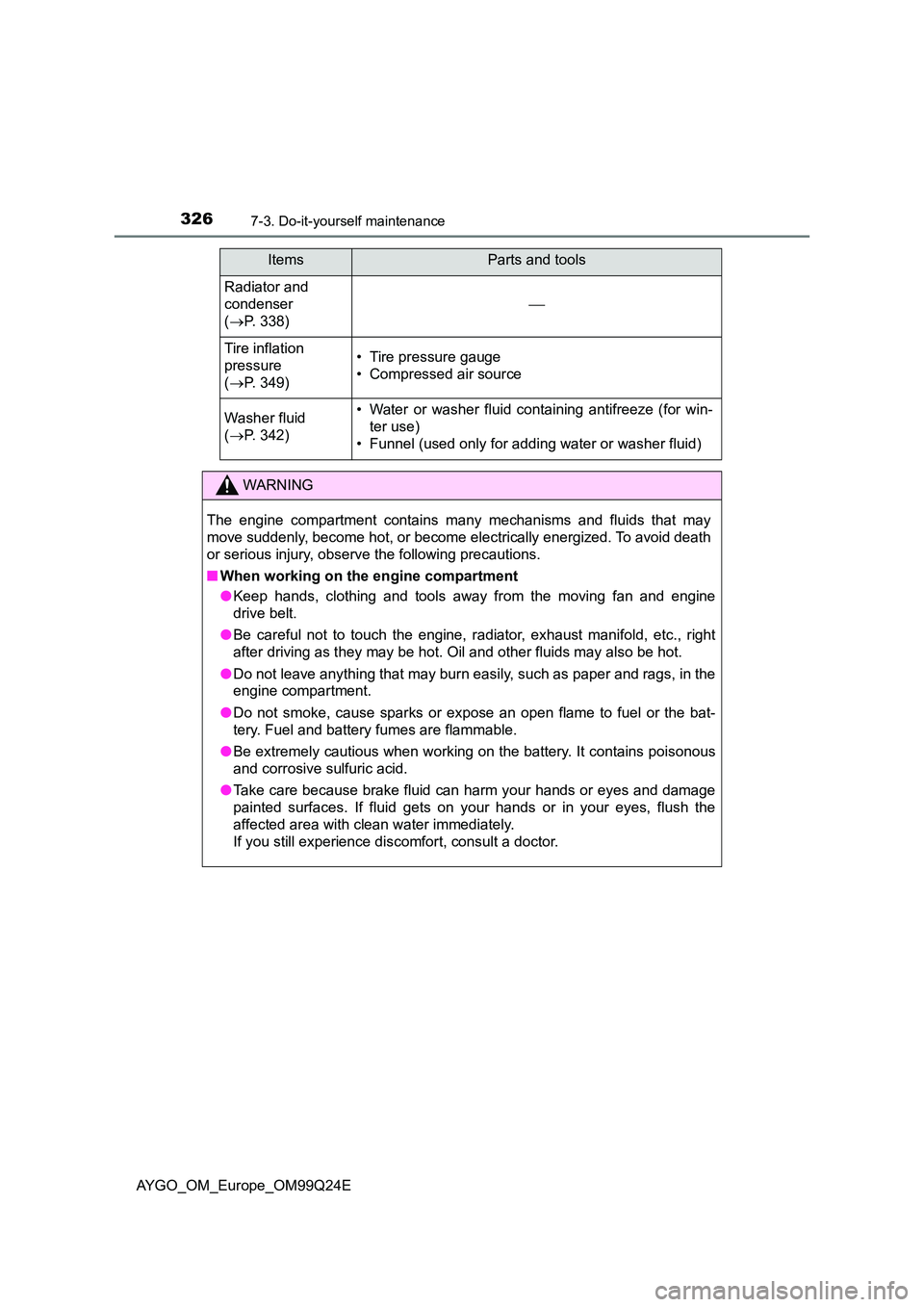

WARNING
■ When cleaning the windshield
Installation area of front sensor on windshield: P. 191
■ When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components, etc., to catch fire.
■ Precautions regarding the exhaust pipe
Exhaust gases cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has
cooled sufficiently, as touching hot exhaust pipe can cause burns.

3257-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E

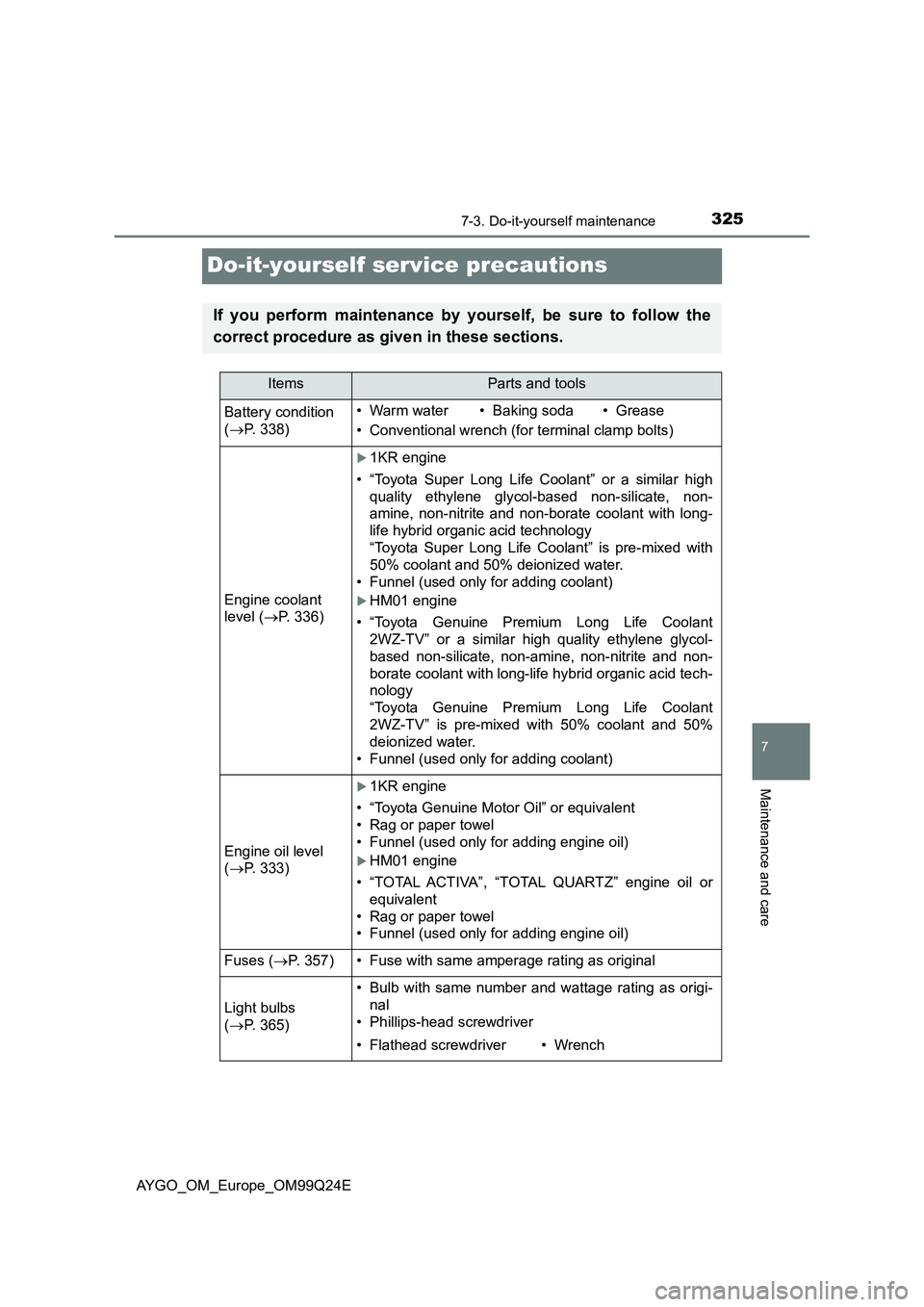

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
( P. 338)
•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
Engine coolant
level ( P. 336)
1KR engine
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
HM01 engine
• “Toyota Genuine Premium Long Life Coolant
2WZ-TV” or a similar hi gh quality ethylene glycol-
based non-silicate, non-amine, non-nitrite and non-
borate coolant with long-life hybrid organic acid tech-
nology
“Toyota Genuine Premium Long Life Coolant
2WZ-TV” is pre-mixed with 50% coolant and 50%
deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 333)
1KR engine
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
HM01 engine
• “TOTAL ACTIVA”, “TOTAL QUARTZ” engine oil or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 3 5 7 )• Fuse with same amperage rating as original
Light bulbs
( P. 365)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench

3267-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
Radiator and
condenser
( P. 338)

Tire inflation
pressure
( P. 349)
• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 342)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become el ectrically energized. To avoid death
or serious injury, observe the following precautions.
■ When working on the engine compartment
● Keep hands, clothing and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
● Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
ItemsParts and tools

3317-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E

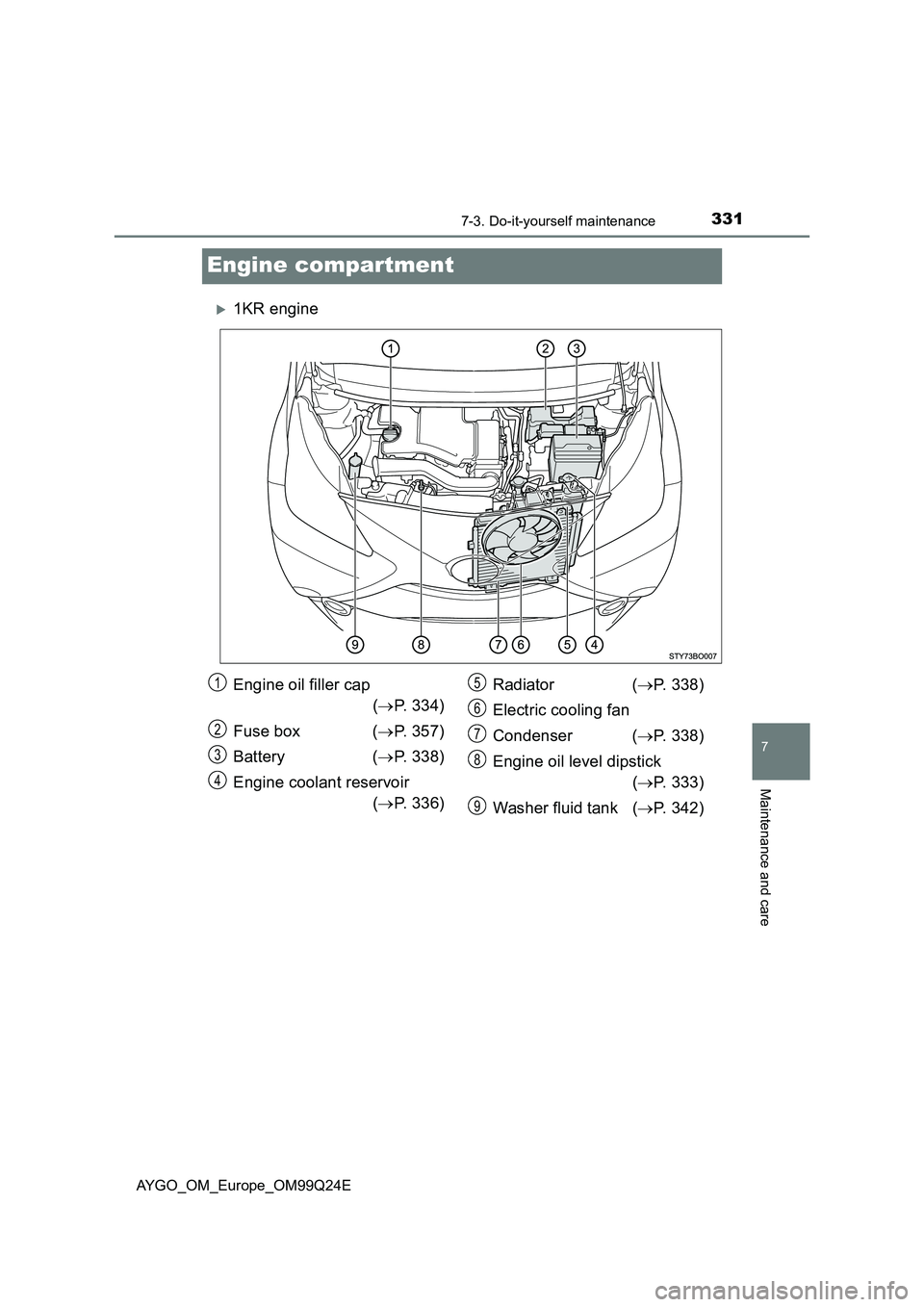

Engine compartment
1KR engine
Engine oil filler cap
( P. 334)
Fuse box ( P. 357)
Battery ( P. 338)
Engine coolant reservoir
( P. 336)
Radiator ( P. 338)
Electric cooling fan
Condenser ( P. 338)
Engine oil level dipstick
( P. 333)
Washer fluid tank ( P. 342)
1
2
3
4
5
6
7
8
9
