odometer TOYOTA AYGO 2017 Owners Manual (in English)

91
2
2. Instrument cluster
Instrument cluster
AYGO_OM_Europe_OM99Q24E

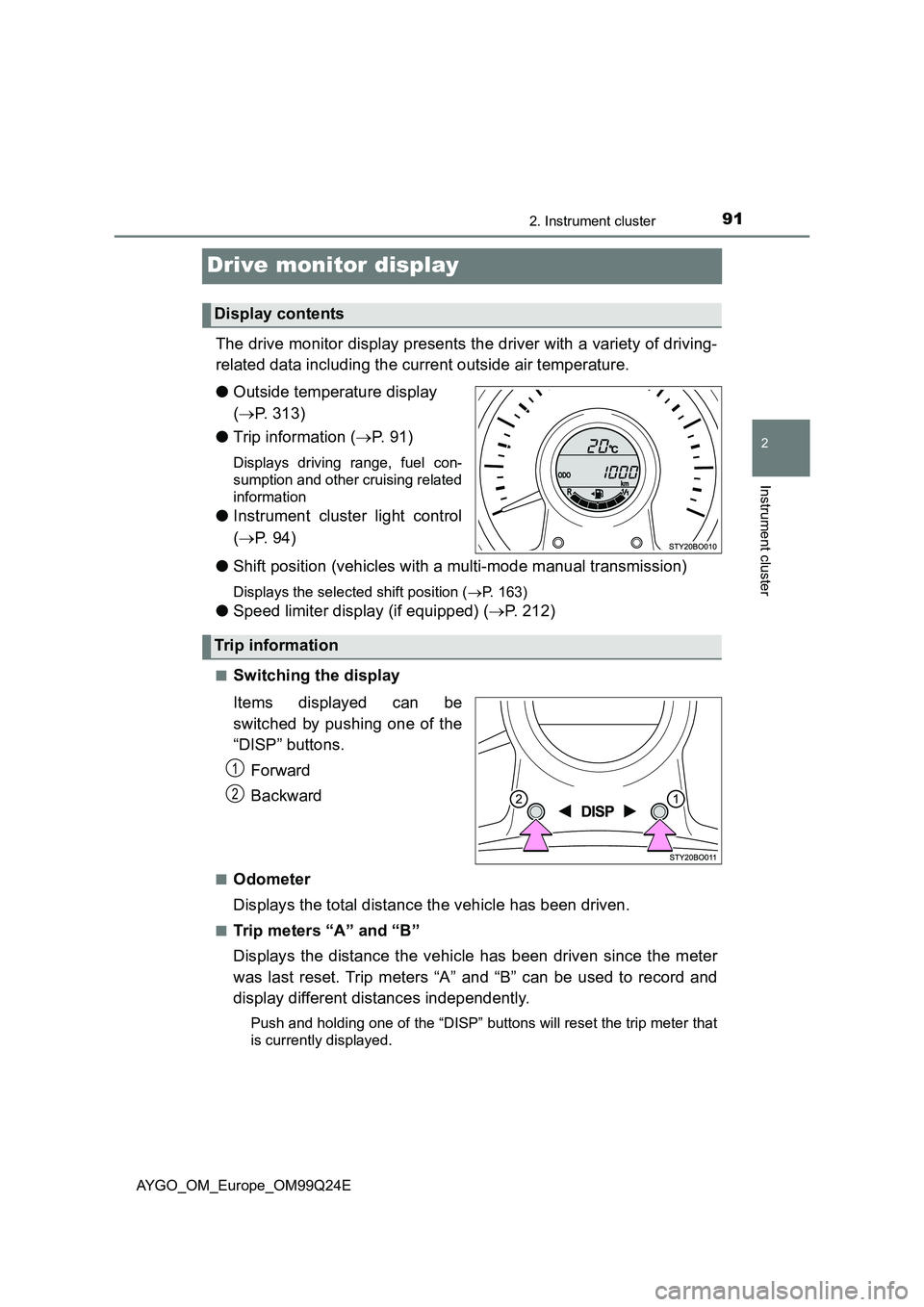

Drive monitor display
The drive monitor display presents the driver with a variety of driving-
related data including the current outside air temperature.
● Outside temperature display
( P. 313)
● Trip information (P. 91)
Displays driving range, fuel con-
sumption and other cruising related
information
● Instrument cluster light control
( P. 9 4 )
● Shift position (vehicles with a multi-mode manual transmission)
Displays the selected shift position (P. 163)
●Speed limiter display (if equipped) (P. 212)
■Switching the display
Items displayed can be
switched by pushing one of the
“DISP” buttons.
Forward
Backward
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meters “A” and “B”
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Push and holding one of the “DISP” buttons will reset the trip meter that
is currently displayed.
Display contents
Trip information
1
2

472Alphabetical index
AYGO_OM_Europe_OM99Q24E
Maintenance
Do-it-yourself maintenance ... 325
Maintenance requirements ... 323
Malfunction indicator lamp ..... 391
Manual headlight leveling
dial .......................................... 173
Manual transmission ............... 168
Meter ........................................... 89
Drive monitor display .............. 91
Indicators ................................ 84
Instrument cluster light
control................................... 94
Meters ..................................... 89
Warning lights ....................... 389
Mirrors
Inside rear view mirror .......... 134
Outside rear view mirror
defoggers.................... 292, 298
Outside rear view mirrors ...... 135
Vanity mirrors ........................ 311
Multimedia system*
Multi-mode manual
transmission
Easy (E) mode ...................... 164
If the shift lever cannot
be shifted ............................ 428
Manual (M) mode .................. 164
Multi-mode manual
transmission ....................... 163
Odometer.................................... 91
Oil
Engine oil .............................. 446
Manual transmission oil ........ 453
Opener
Back door.............................. 113
Fuel filler door ....................... 184
Hood ..................................... 328
Outside rear view mirrors ....... 135
Adjusting and folding ............ 135
Outside rear view mirror
defoggers ................... 292, 298
Outside temperature
display .................................... 313
Overheating, Engine................ 436
MO
