wheel TOYOTA AYGO 2017 Owners Manual (in English)

TABLE OF CONTENTS2
AYGO_OM_Europe_OM99Q24E
For your information .......................6
Reading this manual.......................8
How to search ................................9
Pictorial index ...............................10
1-1. For safe use
Before driving.......................26
For safety drive ....................28
Seat belts .............................30
SRS airbags.........................34
Exhaust gas precautions .....46
1-2. Child safety
Airbag manual on-off
system ...............................47
Riding with children..............49
Child restraint systems ........50
1-3. Theft deterrent system
Engine immobilizer
system ...............................76
2. Instrument cluster
Warning lights
and indicators ....................84
Gauges and meters .............89
Drive monitor display ...........91

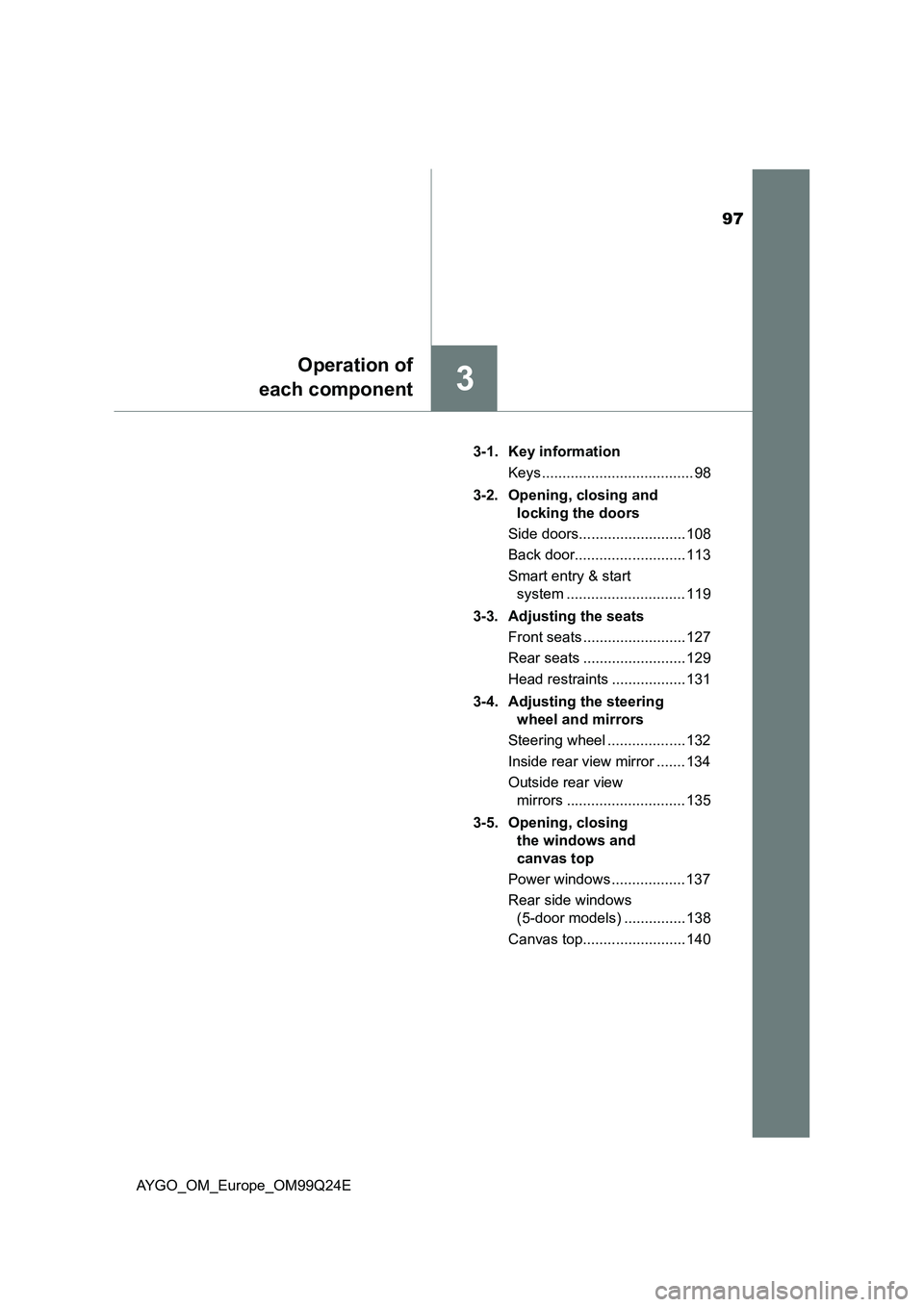

3-1. Key information
Keys .................................... 98
3-2. Opening, closing and
locking the doors
Side doors ......................... 108
Back door .......................... 113
Smart entry & start
system............................. 119
3-3. Adjusting the seats
Front seats ........................ 127
Rear seats ......................... 129
Head restraints .................. 131
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 132
Inside rear view mirror....... 134
Outside rear view
mirrors ............................. 135
3-5. Opening, closing
the windows and
canvas top
Power windows ................. 137
Rear side windows
(5-door models)............... 138
Canvas top ........................ 140
4-1. Before driving
Driving the vehicle ............. 144
Cargo and luggage............ 153
Trailer towing..................... 154
1For safety and security
2Instrument cluster
3Operation of
each component
4Driving

3
1
7
8
6
5
4
3
2
9
AYGO_OM_Europe_OM99Q24E
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a smart
entry & start system)........155
Engine (ignition) switch
(vehicles with a smart
entry & start system)........158
Multi-mode manual
transmission ....................163
Manual transmission ..........168
Turn signal lever ................170
Parking brake.....................171
4-3. Operating the lights
and wipers
Headlight switch.................172
Fog light switch ..................176
Windshield wiper
and washer ......................178
Rear window wiper
and washer ......................180
4-4. Refueling
Opening the fuel tank
cap ...................................182
4-5. Toyota Safety Sense
Toyota Safety Sense .........186
PCS (Pre-Crash Safety
system) ............................192
LDA (Lane Departure
Alert) ................................206
4-6. Using the driving support
systems
Speed limiter ......................212
Stop & Start system ...........216
Driving assist systems .......223
4-7. Driving tips
Winter driving tips ..............229
5-1. Basic Operations
Audio system types ........... 234
Steering wheel audio
switches .......................... 236
AUX port/USB port ............ 237
5-2. Using the audio system
Optimal use of the
audio system ................... 238
5-3. Using the radio
Radio operation ................. 240
5-4. Using an external device
Listening to an iPod........... 245
Listening USB memory
device.............................. 253
Using the AUX port ........... 260
5-5. Using Bluetooth® devices
Bluetooth® audio/phone .... 261
Using the steering
wheel switches ................ 267
Registering a
Bluetooth® device ........... 268
5-6. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth*” menu)......... 269
Using the “SETUP” menu
(“TEL” menu)................... 273
5-7. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player .............................. 276
5Audio system
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

TABLE OF CONTENTS4
AYGO_OM_Europe_OM99Q24E
5-8. Bluetooth® Phone
Making a phone call ...........278
Receiving a phone call.......280
Speaking on the phone ......281
5-9. Bluetooth®
Bluetooth®.........................283
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system .............................290
Automatic air conditioning
system .............................296
Seat heaters ......................302
6-2. Using the interior lights
Interior lights list .................304
• Interior light ....................304
6-3. Using the storage features
List of storage features ......305
• Glove box ......................306
• Card holders ..................306
• Cup holders ...................306
• Bottle holders ................307
Luggage compartment
features............................309
6-4. Other interior features
Other interior features ........311
• Sun visors ......................311
• Vanity mirrors ................311
• Clock .............................312
• Outside temperature
display ...........................313
• Power outlet ..................314
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 316
Cleaning and protecting
the vehicle interior ........... 320
7-2. Maintenance
Maintenance
requirements ................... 323
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 325
Hood.................................. 328
Positioning a floor jack ...... 330
Engine compartment ......... 331
Tires .................................. 343
Tire inflation pressure........ 349
Wheels .............................. 351
Air conditioning filter .......... 353
Wireless remote control/
electronic key battery ...... 354
Checking and replacing
fuses ............................... 357
Light bulbs ......................... 365
6Interior features
7Maintenance and care

281-1. For safe use
AYGO_OM_Europe_OM99Q24E
For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 127)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 127, 132)
Wear the seat belt correctly. ( P. 3 0 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 0 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 5 0 )
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 134, 135)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3

371-1. For safe use
1
For safety and security
AYGO_OM_Europe_OM99Q24E
WARNING
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devic es to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm ( 10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped-
als comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary,
many drivers can achieve the 250 mm (10 in.) distance, even with the
driver seat all the way forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes it hard to see the
road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the
airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintain-
ing control of the foot pedals, steering wheel, and your view of the instru-
ment panel controls.

391-1. For safe use
1
For safety and security
AYGO_OM_Europe_OM99Q24E
WARNING
■SRS airbag precautions
● Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags. Such
accessories may prevent the side airbags from activating correctly, disable
the system or cause the side airbags to inflate accidentally, resulting in
death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS
airbag components.
Doing so can cause the SRS airbags to malfunction.
● Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
● Do not attach anything to or lean any-
thing against areas such as the dash-
board, steering wheel pad.
These items can become projectiles
when the SRS driver and front passen-
ger airbags deploy.
● Vehicles without SRS curtain shield
airbags: Do not attach anything to areas
such as a door, windshield and side
window.
● Vehicles with SRS curtain shield
airbags: Do not attach anything to areas
such as a door, windshield, side win-
dow, front or rear pillar and roof side
rail. (Except for the speed limit label
 P. 416)

401-1. For safe use
AYGO_OM_Europe_OM99Q24E
WARNING
■SRS airbag precautions
● Do not touch any of the component parts immediately after the SRS
airbags have deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel
pad, and front and rear pillar garnishes (vehicles with SRS curtain shield
airbags), are damaged or cracked, have them replaced by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails
● Repairs or modifications of the front fender, front bumper or side of the
occupant compartment
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or
winches
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios (RF-trans-
mitter) and CD players

411-1. For safe use
1
For safety and security
AYGO_OM_Europe_OM99Q24E
■If the SRS airbags deploy (inflate)
● Bruising and slight abrasions may result from contact with a deploying
(inflating) SRS airbag.
● A loud noise and white powder will be emitted.
● Vehicles without SRS curtain shield airbags: Parts of the airbag module
(steering wheel hub, airbag cover and inflator) as well as the front seats may
be hot for several minutes. The airbag itself may also be hot.
● Vehicles with SRS curtain shield airbags: Parts of the airbag module (steer-
ing wheel hub, airbag cover and inflator) as well as the front seats, parts of
the front and rear pillars, and roof side rails, may be hot for several minutes.
The airbag itself may also be hot.
● The windshield may crack.
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an approximately
20 - 30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not
move or deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
● Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.
■ SRS airbag deployment conditions (SRS side airbags)
The SRS side airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to the impact force pro-
duced by an approximately 1500 kg [3300 lb.] vehicle colliding with the vehi-
cle cabin from a direction perpendicula r to the vehicle orientation at an
approximate speed of 20 - 30 km/h [12 - 18 mph]).

441-1. For safe use
AYGO_OM_Europe_OM99Q24E
■ When to contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional
In the following cases, the vehicle will require inspection and/or repair. Con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional as soon as possible.
● Any of the SRS airbags have been inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an acci-
dent that was not severe enough to
cause the SRS front airbags to inflate.
● A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the
SRS side airbags or SRS side and cur-
tain shield airbags to inflate.
● The pad section of the steering wheel or
dashboard near the front passenger
airbag is scratched, cracked, or other-
wise damaged.

97
3
Operation of
each component
AYGO_OM_Europe_OM99Q24E
3-1. Key information
Keys ..................................... 98
3-2. Opening, closing and
locking the doors
Side doors.......................... 108
Back door........................... 113
Smart entry & start
system ............................. 119
3-3. Adjusting the seats
Front seats ......................... 127
Rear seats ......................... 129
Head restraints .................. 131
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 132
Inside rear view mirror ....... 134
Outside rear view
mirrors ............................. 135
3-5. Opening, closing
the windows and
canvas top
Power windows .................. 137
Rear side windows
(5-door models) ............... 138
Canvas top......................... 140
