TOYOTA AYGO 2019 Owners Manual (in English)

3817-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99R19E
■When removing the wheel ornament (vehicles with steel wheels and
emergency tire puncture repair kit)
Remove the wheel ornament using the
wheel cap clip. ( P. 429)
WARNING
■When replacing wheels
● Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
● Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
■ Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.

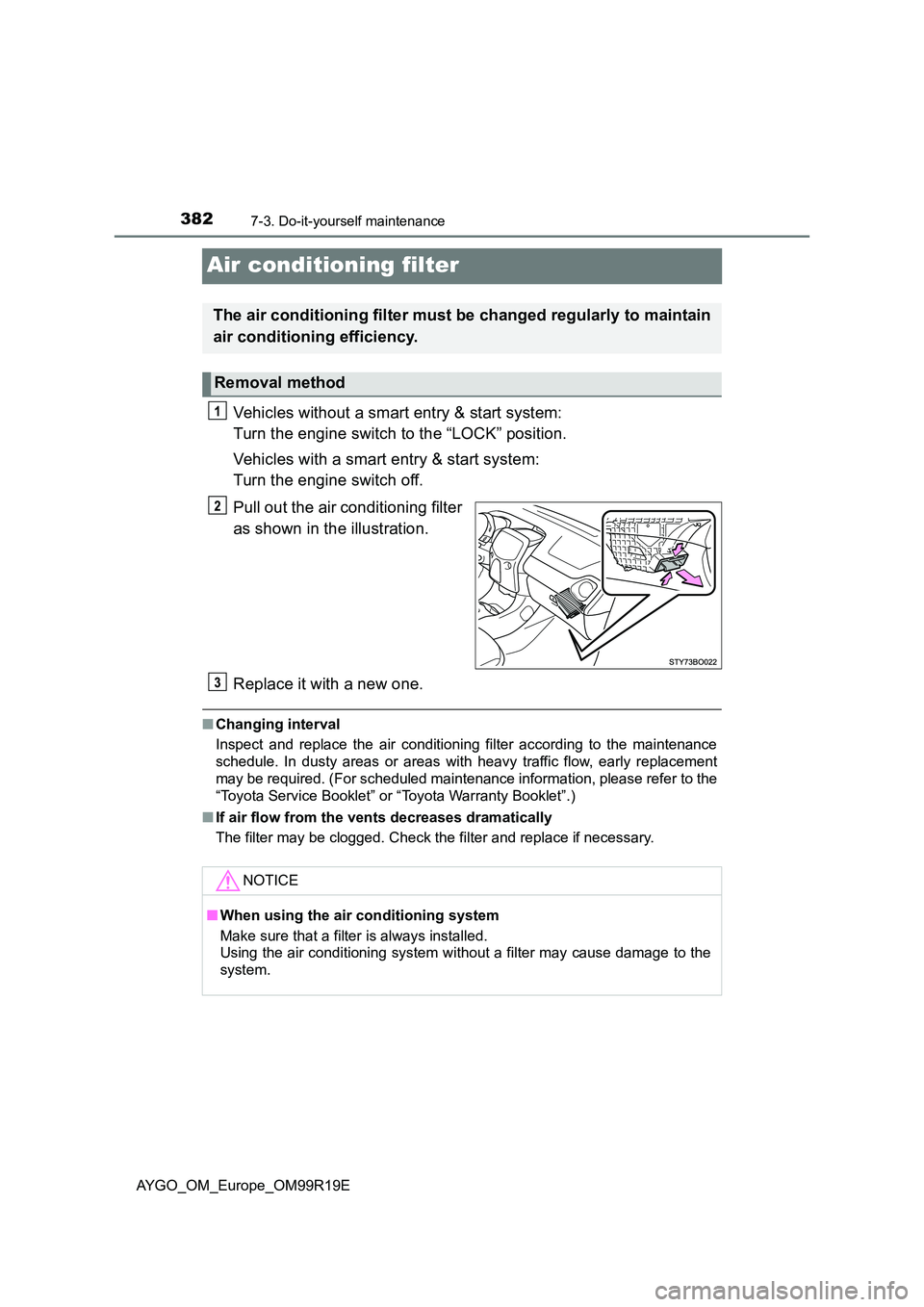

3827-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99R19E
Air conditioning filter
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with a smart entry & start system:
Turn the engine switch off.
Pull out the air conditioning filter
as shown in the illustration.
Replace it with a new one.
■ Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
NOTICE
■ When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditi oning system without a filter may cause damage to the
system.

3837-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99R19E
Wireless remote control/electronic key
battery
● Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2016 (vehicles without a smart entry & start sys-
tem), or CR2032 (vehicles with a smart entry & start system)
Vehicles without a smart entry & start system
Lift the cover.
Insert the flathead screwdriver in
the slot and push down.
To prevent damage to the key,
cover the tip of the flathead screw-
driver with a rag.
Remove the cover.
Insert the flathead screwdriver in
the bottom of key and push down.
: If equipped
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery

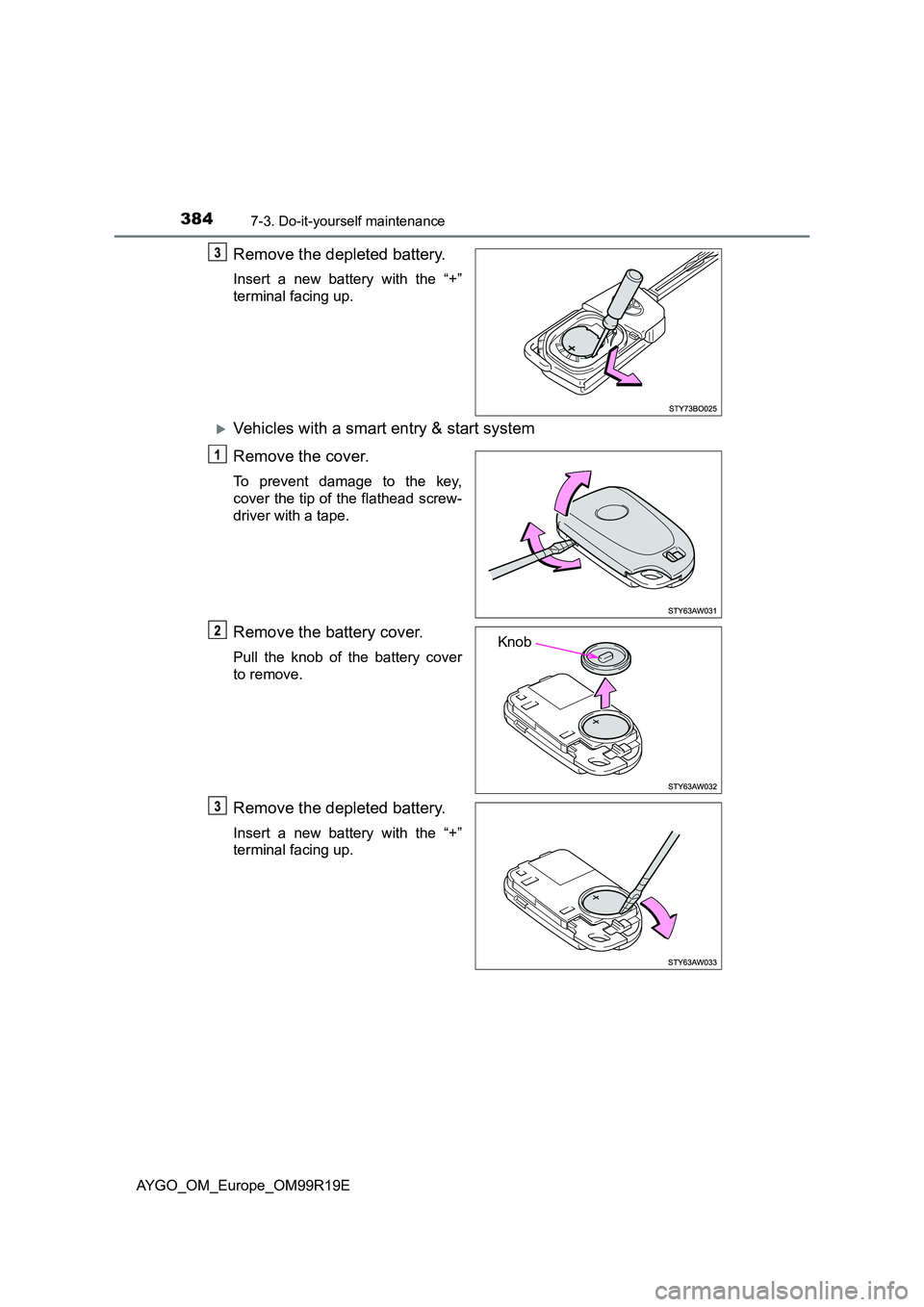

3847-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99R19E
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Vehicles with a smart entry & start system
Remove the cover.
To prevent damage to the key,
cover the tip of the flathead screw-
driver with a tape.
Remove the battery cover.
Pull the knob of the battery cover
to remove.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Knob

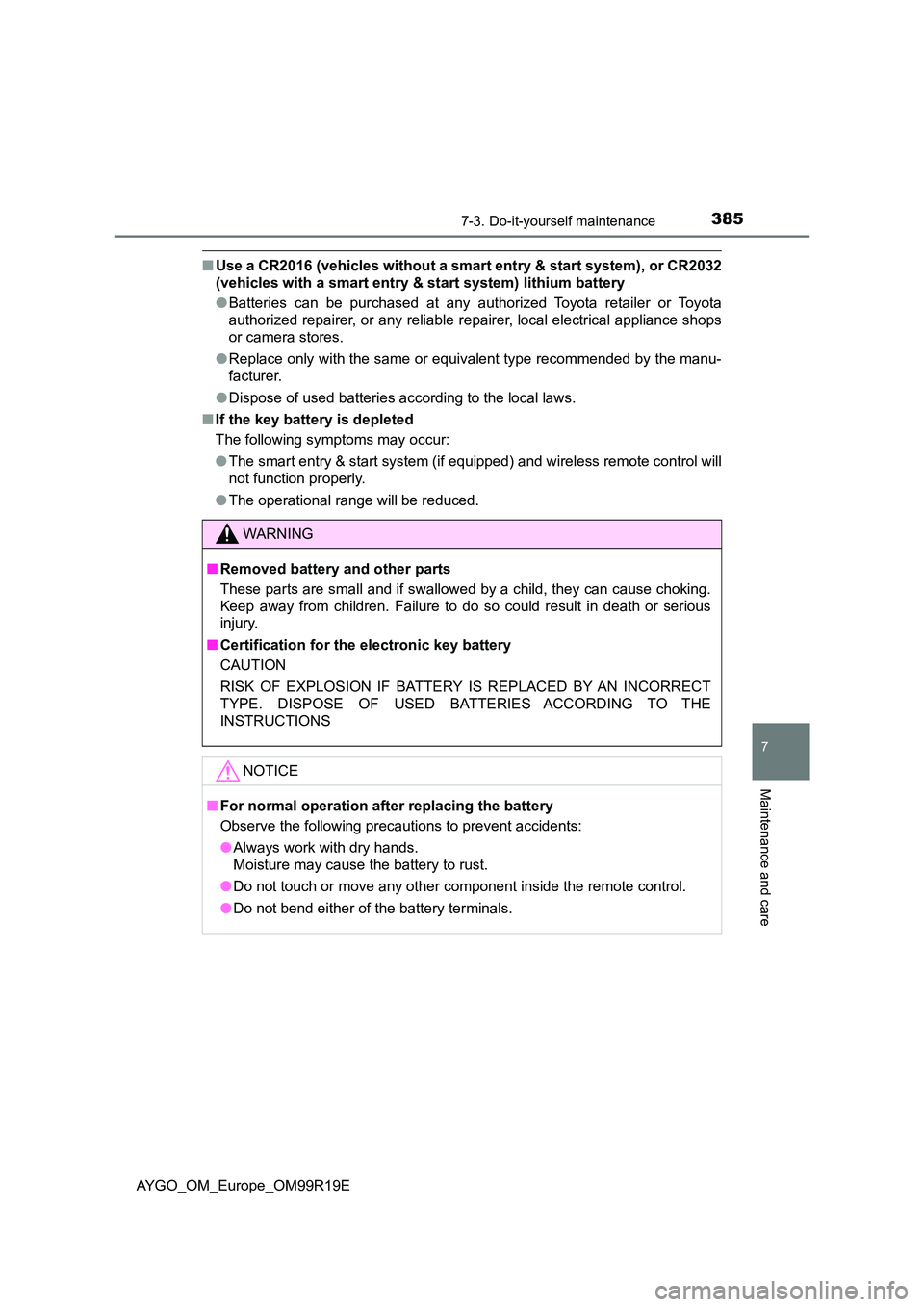

3857-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99R19E
■Use a CR2016 (vehicles without a smart entry & start system), or CR2032
(vehicles with a smart entry & start system) lithium battery
● Batteries can be purchased at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, local electrical appliance shops
or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to the local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the electronic key battery
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

3867-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99R19E
Checking and replacing fuses
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with a smart entry & start system:
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. ( P. 388)
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the
cover off.
Driver’s side instrument panel
Remove the cover.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

3877-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99R19E
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B and C:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing.
Type D:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
1
2
Ty pe AType B
Ty pe CType D

3887-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99R19E
■Engine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1H-LP RH-LO10Right-hand headlight (low beam)
2H-LP LH-LO10Left-hand headlight (low beam), manual
headlight leveling dial
3H-LP RH-HI7.5Right-hand headlight (high beam)
4H-LP LH-HI7.5Left-hand headlight (high beam), gauges
and meters
5A/C COMP7.5Air conditioning system
6IG2 NO.37.5
Multiport fuel injection system/sequential
multiport fuel injection system, stop
lights, high mounted stoplight
7DOME5Interior light, luggage compartment light
8HAZ10Turn signal lights, emergency flashers,
gauges and meters
9HORN10Horn
10D/C CUT30ECU-B NO.1, ECU-B NO.2, ECU-B NO.3

3897-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99R19E
11ECU-B NO.4*17.5Multi-mode manual transmission
12AM2 NO.27.5Multiport fuel injection system/sequential
multiport fuel injection system
13AM2 NO.37.5Smart entry & start system
14ICS*27.5Charging system
15ST30Starting system
16STRG LOCK7.5Steering lock system
17H-LP-MAIN25H-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI
18WIPER-S*27.5Multiport fuel injection system/sequential
multiport fuel injection system
19STA7.5
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, multi-mode manual transmis-
sion, Stop & Start system
20ECU-B NO.315Audio system, smart entry & start system
21ECU-B NO.17.5Gauges and meters
22ECU-B NO.27.5Vehicle stability control system
23J/B60Instrument fuse box
24ALT125
DEF, S/HTR F/R, S/HTR F/L, CANVAS
TOP, ABS NO.1, ABS NO.2, RDI NO.1,
FOG FR, DRL
25AMT*150Multi-mode manual transmission
BBC*240Stop & Start system
FuseAmpereCircuit

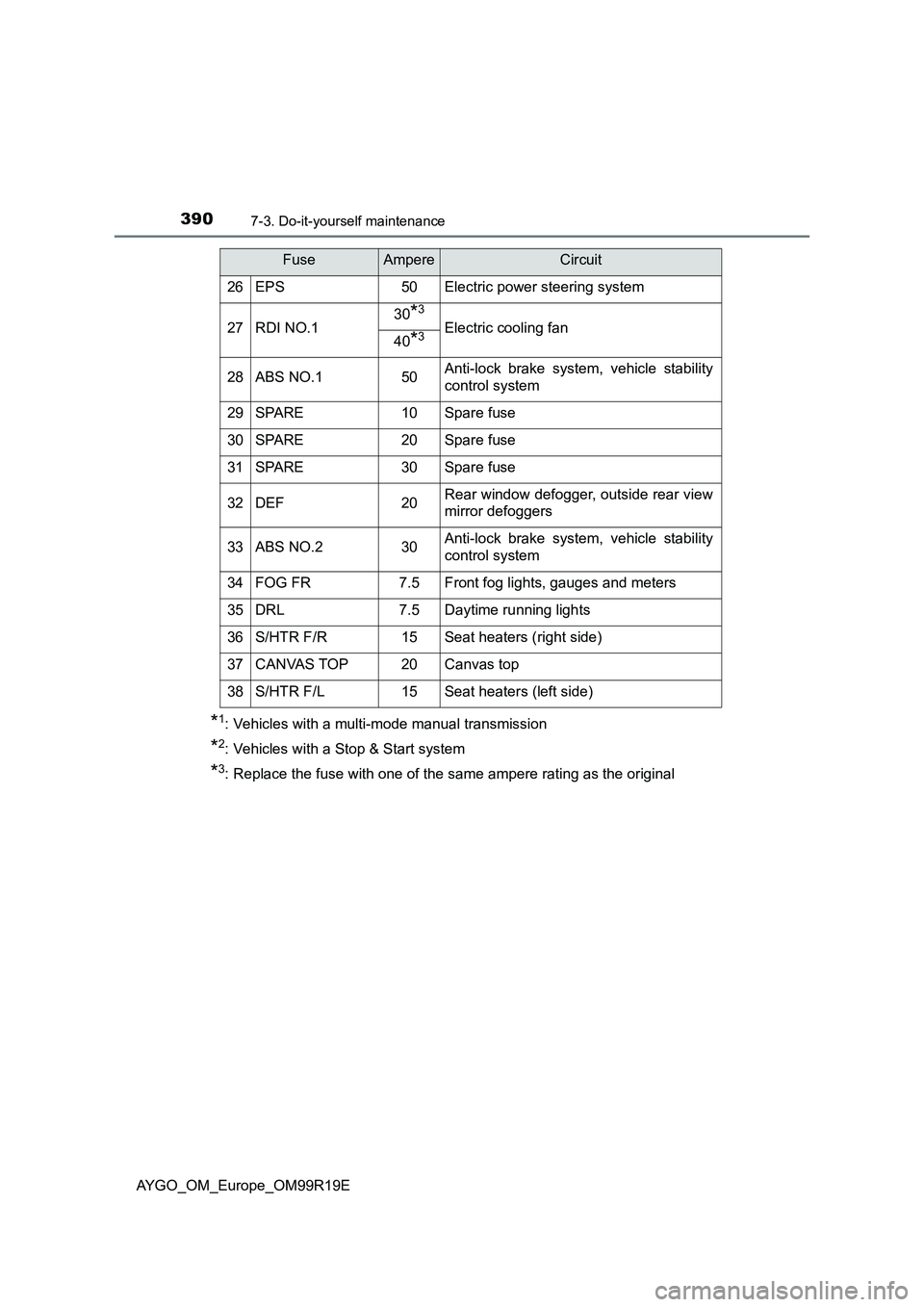

3907-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99R19E
*1: Vehicles with a multi-mode manual transmission
*2: Vehicles with a Stop & Start system
*3: Replace the fuse with one of the same ampere rating as the original
26EPS50Electric power steering system
27RDI NO.130*3
Electric cooling fan40*3
28ABS NO.150Anti-lock brake system, vehicle stability
control system
29SPARE10Spare fuse
30SPARE20Spare fuse
31SPARE30Spare fuse
32DEF20Rear window defogger, outside rear view
mirror defoggers
33ABS NO.230Anti-lock brake system, vehicle stability
control system
34FOG FR7.5Front fog lights, gauges and meters
35DRL7.5Daytime running lights
36S/HTR F/R15Seat heaters (right side)
37CANVAS TOP20Canvas top
38S/HTR F/L15Seat heaters (left side)
FuseAmpereCircuit
