TABLE OF CONTENTS6
C-HR_OM_Europe_OM10528E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........600
Cleaning and protecting
the vehicle interior ...........605
7-2. Maintenance
Maintenance
requirements....................609
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ......................612
Hood ..................................615
Positioning a floor jack .......617
Engine compartment..........618
Tires ...................................631
Tire inflation pressure ........644
Wheels ...............................646
Air conditioning filter ..........649
Wireless remote control/
electronic key battery.......652
Checking and
replacing fuses ................656
Light bulbs .........................661
8-1. Essential information
Emergency flashers .......... 680
If your vehicle has
to be stopped
in an emergency ............. 681
8-2. Steps to take
in an emergency
If your vehicle needs
to be towed ..................... 683
If you think something
is wrong ........................... 691
Fuel pump shut off
system............................. 692
If a warning light turns
on or a warning buzzer
sounds ............................ 693
If a warning message
is displayed ..................... 704
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit) .......... 710
If you have a flat tire
(vehicles with
a spare tire) ..................... 730
7Maintenance and care8When trouble arises

21Pictorial index
C-HR_OM_Europe_OM10528E

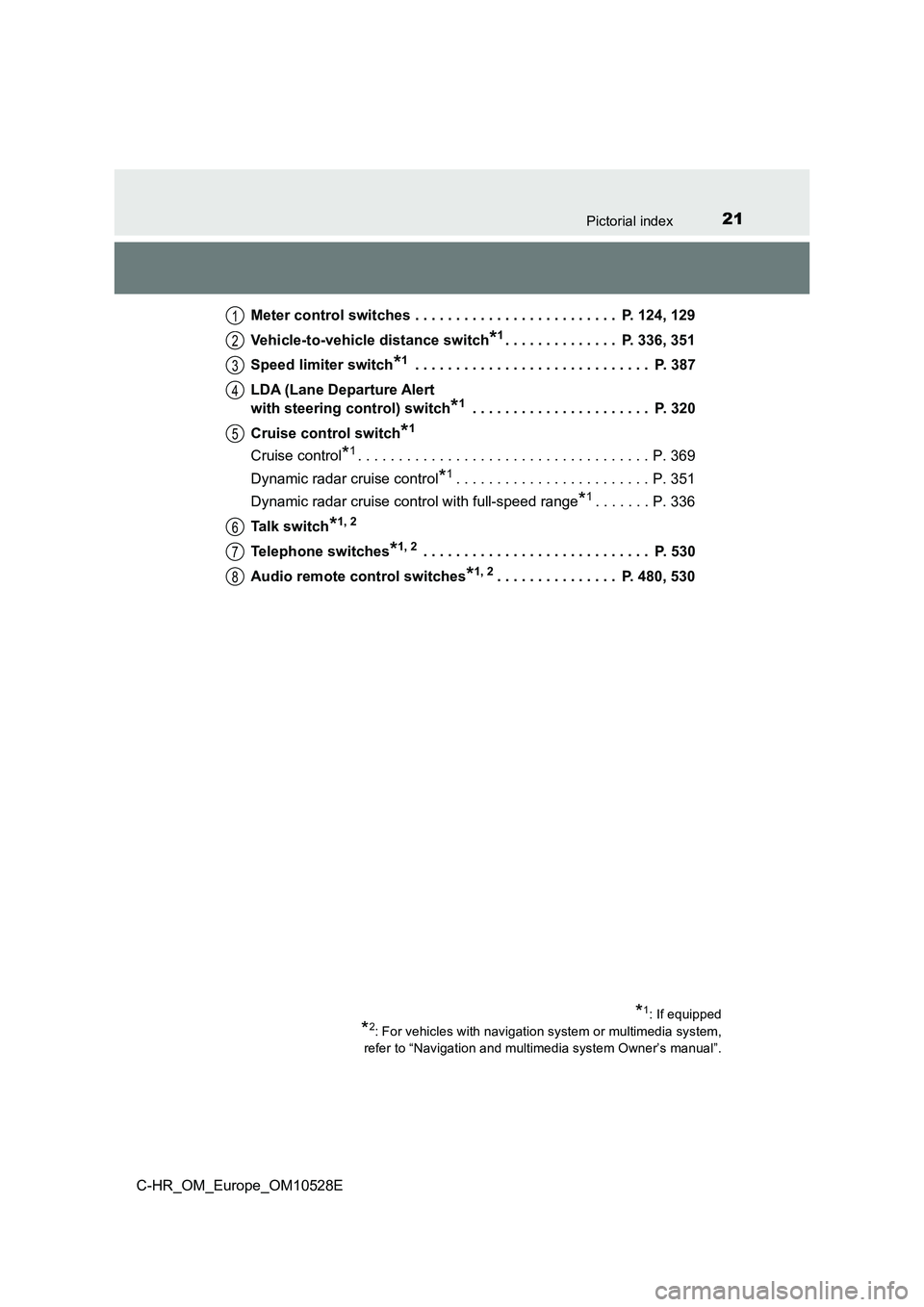

Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 124, 129
Vehicle-to-vehicle distance switch*1. . . . . . . . . . . . . . P. 336, 351
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
LDA (Lane Departure Alert
with steering control) switch*1 . . . . . . . . . . . . . . . . . . . . . . P. 320
Cruise control switch*1
Cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 369
Dynamic radar cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . P. 351
Dynamic radar cruise control with full-speed range*1. . . . . . . P. 336
Talk switch*1, 2
Telephone switches*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 530
Audio remote control switches*1, 2. . . . . . . . . . . . . . . P. 480, 530
*1: If equipped
*2: For vehicles with navigation system or multimedia system,
refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4
5
6
7
8

29Pictorial index
C-HR_OM_Europe_OM10528E
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 124, 129
Vehicle-to-vehicle distance switch*1. . . . . . . . . . . . . . P. 336, 351
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
LDA (Lane Departure Alert
with steering control) switch*1 . . . . . . . . . . . . . . . . . . . . . . P. 320
Cruise control switch
Cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 369
Dynamic radar cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . P. 351
Dynamic radar cruise control with full-speed range*1. . . . . . . P. 336
Talk switch*1, 2
Telephone switches*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 530
Audio remote control switches*1, 2. . . . . . . . . . . . . . . P. 480, 530
*1: If equipped
*2: For vehicles with navigation system or multimedia system,
refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4
5
6
7
8

951-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the front outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

961-3. Theft deterrent system
C-HR_OM_Europe_OM10528E

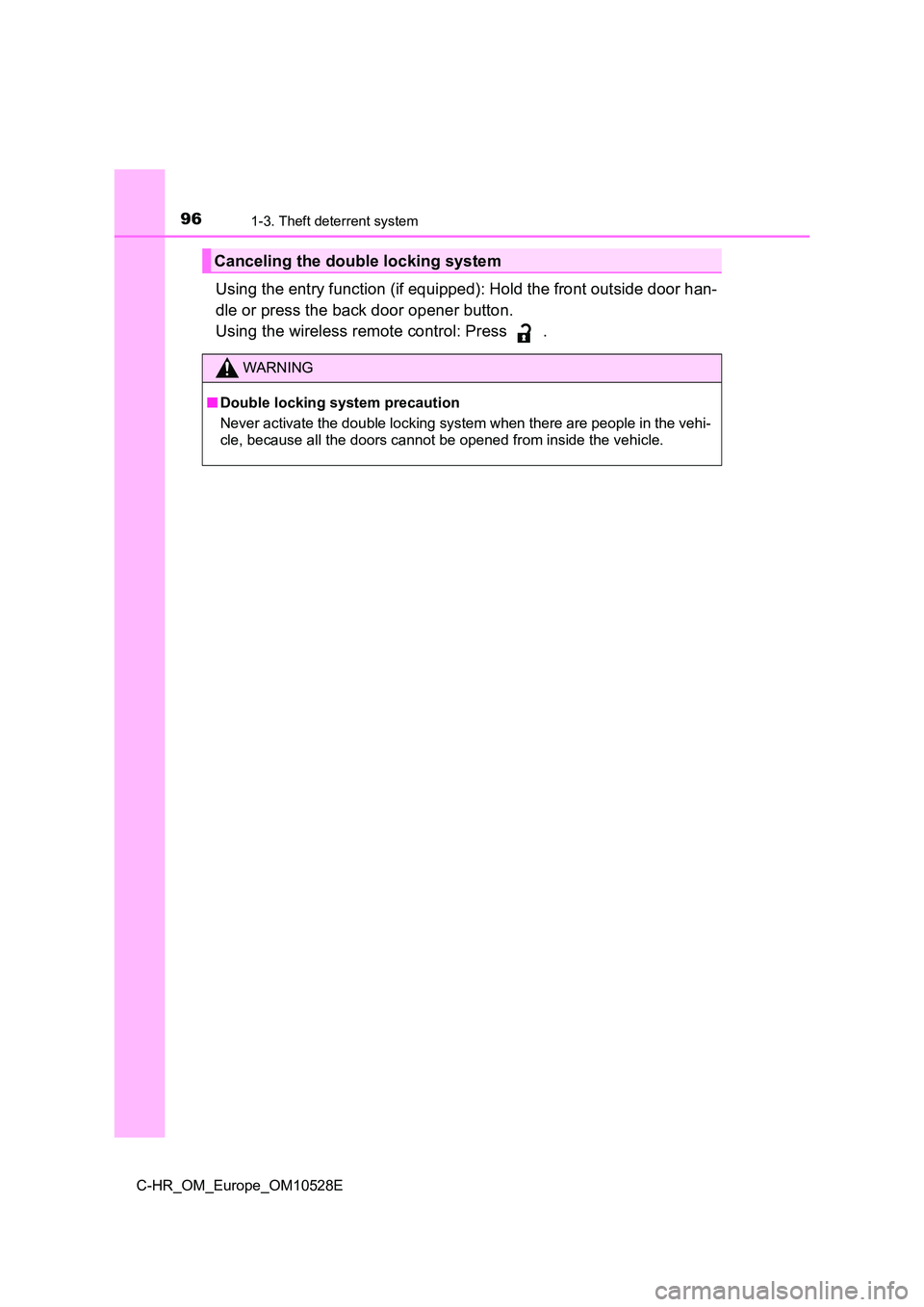

Using the entry function (if equipped): Hold the front outside door han-
dle or press the back door opener button.
Using the wireless remote control: Press .
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

971-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function (if equipped) or wireless remote control. (The
doors will lock again automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the vehi-
cle.)
● Vehicles with the glass breakage sensor: The back door window is
tapped or broken.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
The alarm
Setting the alarm system

981-3. Theft deterrent system
C-HR_OM_Europe_OM10528E

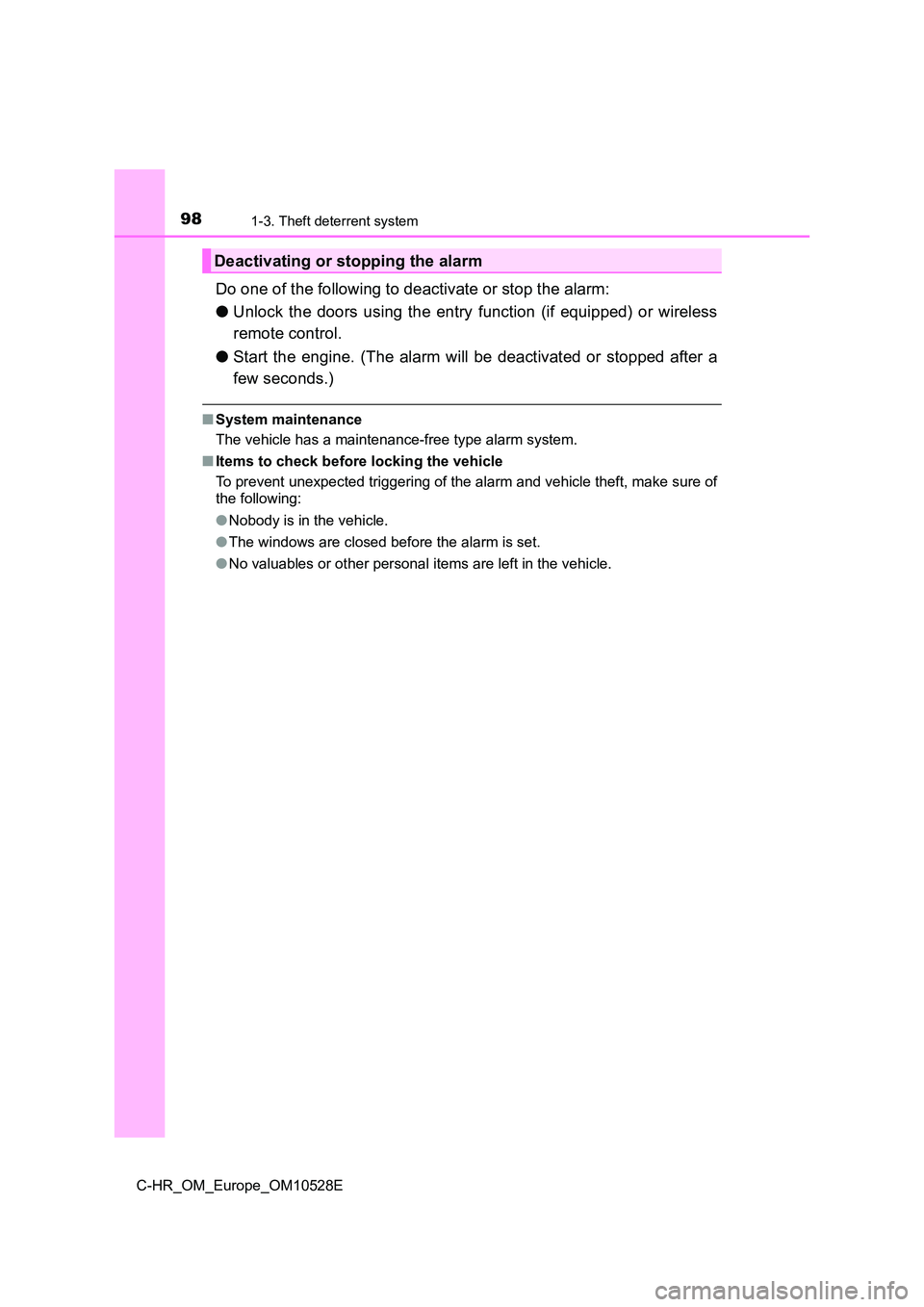

Do one of the following to deactivate or stop the alarm:
● Unlock the doors using the entry function (if equipped) or wireless
remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

1021-3. Theft deterrent system
C-HR_OM_Europe_OM10528E
■Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● Vehicles without a smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “LOCK” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sensor.
Vehicles with a smart entry & start system: After the intrusion sensor is can-
celed, pressing the engine switch or unlocking the doors using the entry
function or wireless remote control will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles

1443-1. Key information
C-HR_OM_Europe_OM10528E

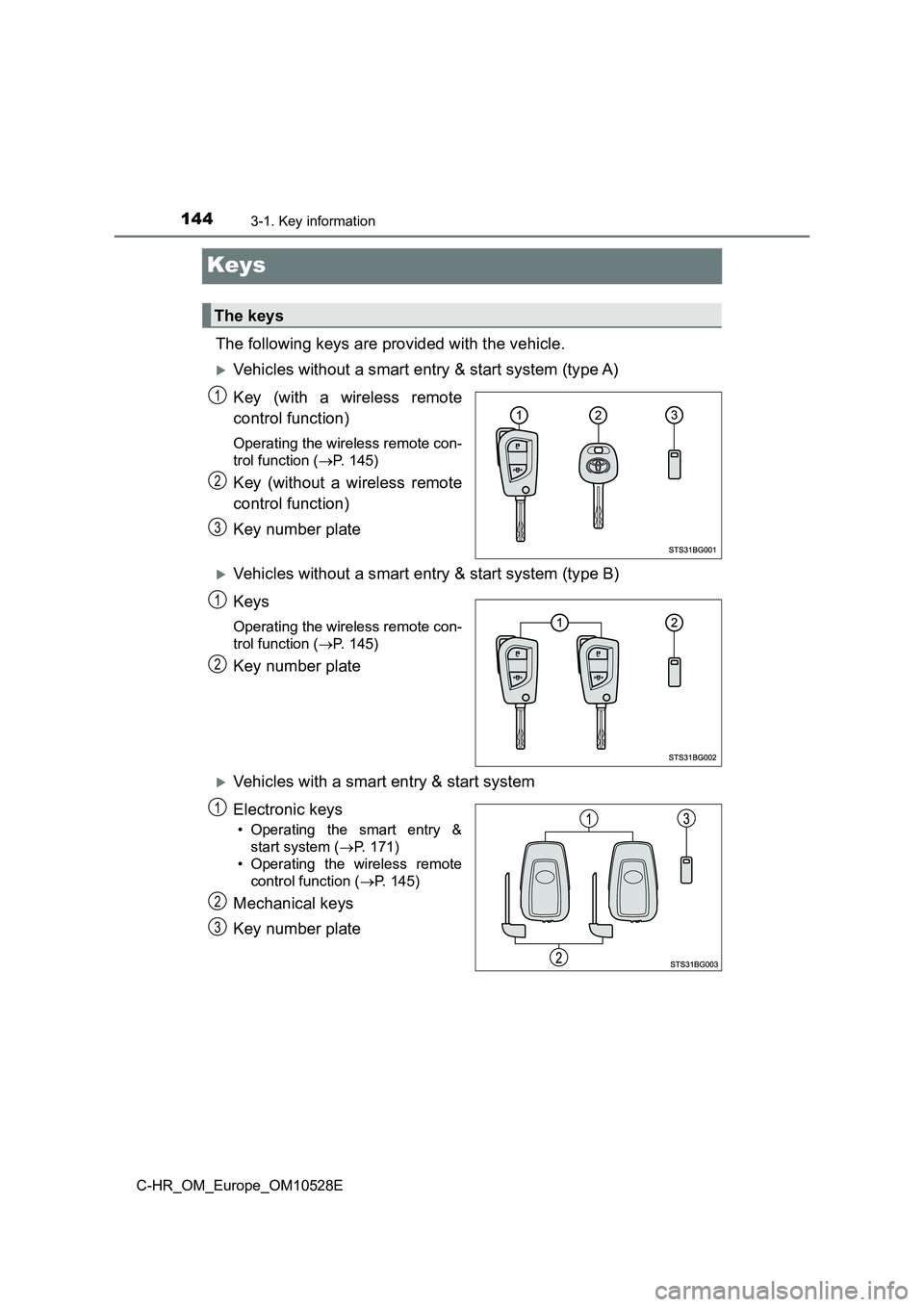

Keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function ( P. 145)
Key (without a wireless remote
control function)
Key number plate
Vehicles without a smart entry & start system (type B)
Keys
Operating the wireless remote con-
trol function ( P. 145)
Key number plate
Vehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system ( P. 171)
• Operating the wireless remote
control function ( P. 145)
Mechanical keys
Key number plate
The keys
1
2
3
1
2
1
2
3

1453-1. Key information
3
Operation of each component
C-HR_OM_Europe_OM10528E

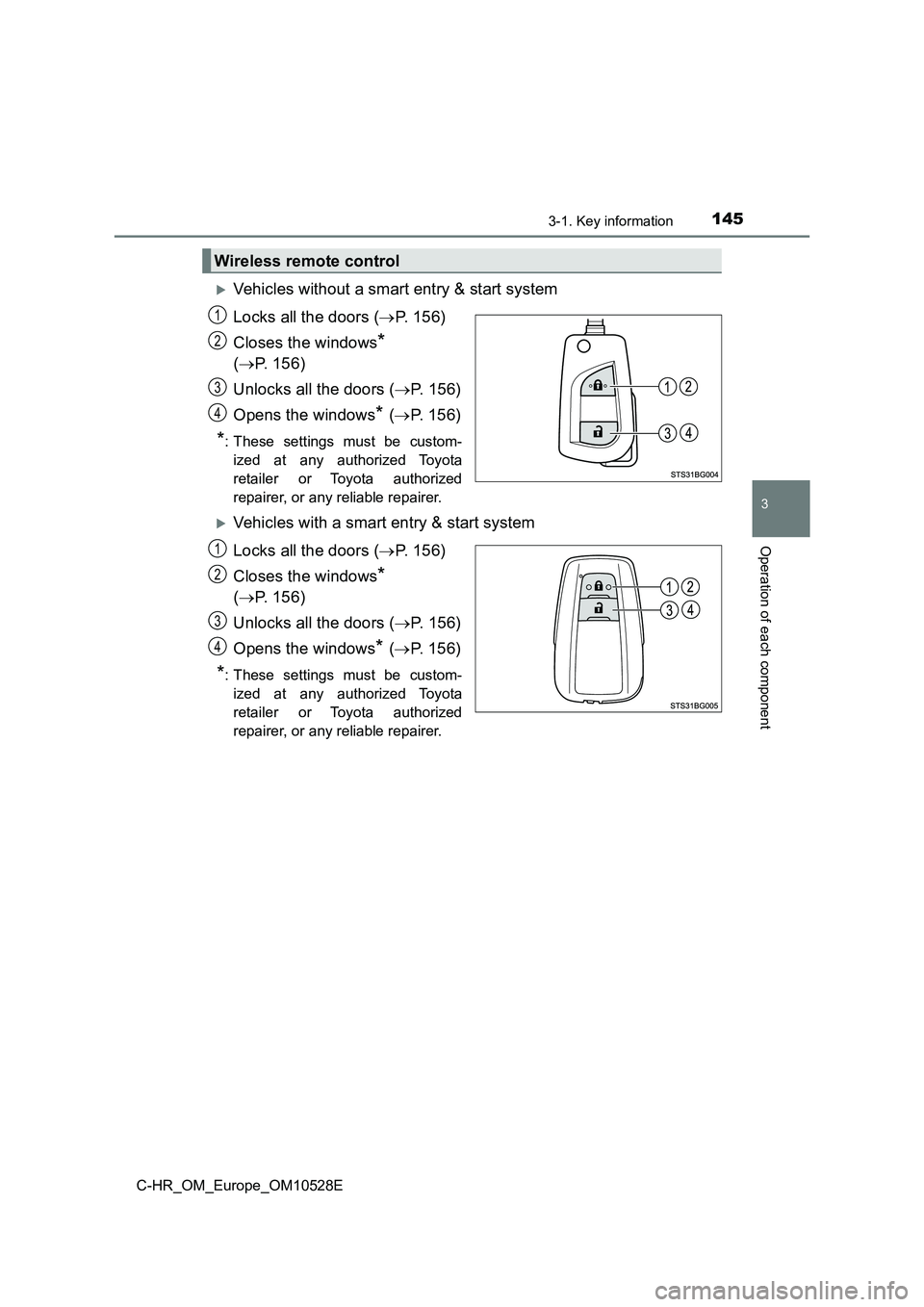

Vehicles without a smart entry & start system
Locks all the doors ( P. 156)
Closes the windows*
( P. 156)
Unlocks all the doors ( P. 156)
Opens the windows* ( P. 156)
*: These settings must be custom-
ized at any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
Vehicles with a smart entry & start system
Locks all the doors ( P. 156)
Closes the windows*
( P. 156)
Unlocks all the doors ( P. 156)
Opens the windows* ( P. 156)
*: These settings must be custom-
ized at any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
Wireless remote control
1
2
3
4
1
2
23
4
