4-5. Using the driving
support systems
Toyota Safety Sense .........290
PCS (Pre-Collision
System) ...........................298
LDA (Lane Departure
Alert with steering
control).............................315
RSA (Road Sign Assist).....330
Dynamic radar cruise
control with full-speed
range ...............................336
Dynamic radar cruise
control ..............................351
Cruise control.....................369
Stop & Start system ...........374
Driving mode select ...........385
Speed limiter ......................387
BSM
(Blind Spot Monitor) .........392
• BSM function .................398
• RCTA function ...............403
Toyota parking
assist-sensor ...................408
S-IPA (Simple Intelligent
Parking Assist System)....420
Driving assist systems .......462
4-6. Driving tips
Winter driving tips ..............470
5-1. Basic Operations
Audio system types ........... 478
Steering wheel audio
switches .......................... 480
AUX port/USB port ............ 481
5-2. Using the audio system
Optimal use of the audio
system............................. 482
5-3. Using the radio
Radio operation ................. 485
5-4. Playing an audio CD and
MP3/WMA discs
CD player operation .......... 490
5-5. Using an external device
Listening to an iPod........... 503
Listening USB
memory device ................ 512
Using the AUX port ........... 522
5Audio system

31Pictorial index
C-HR_OM_Europe_OM10528E

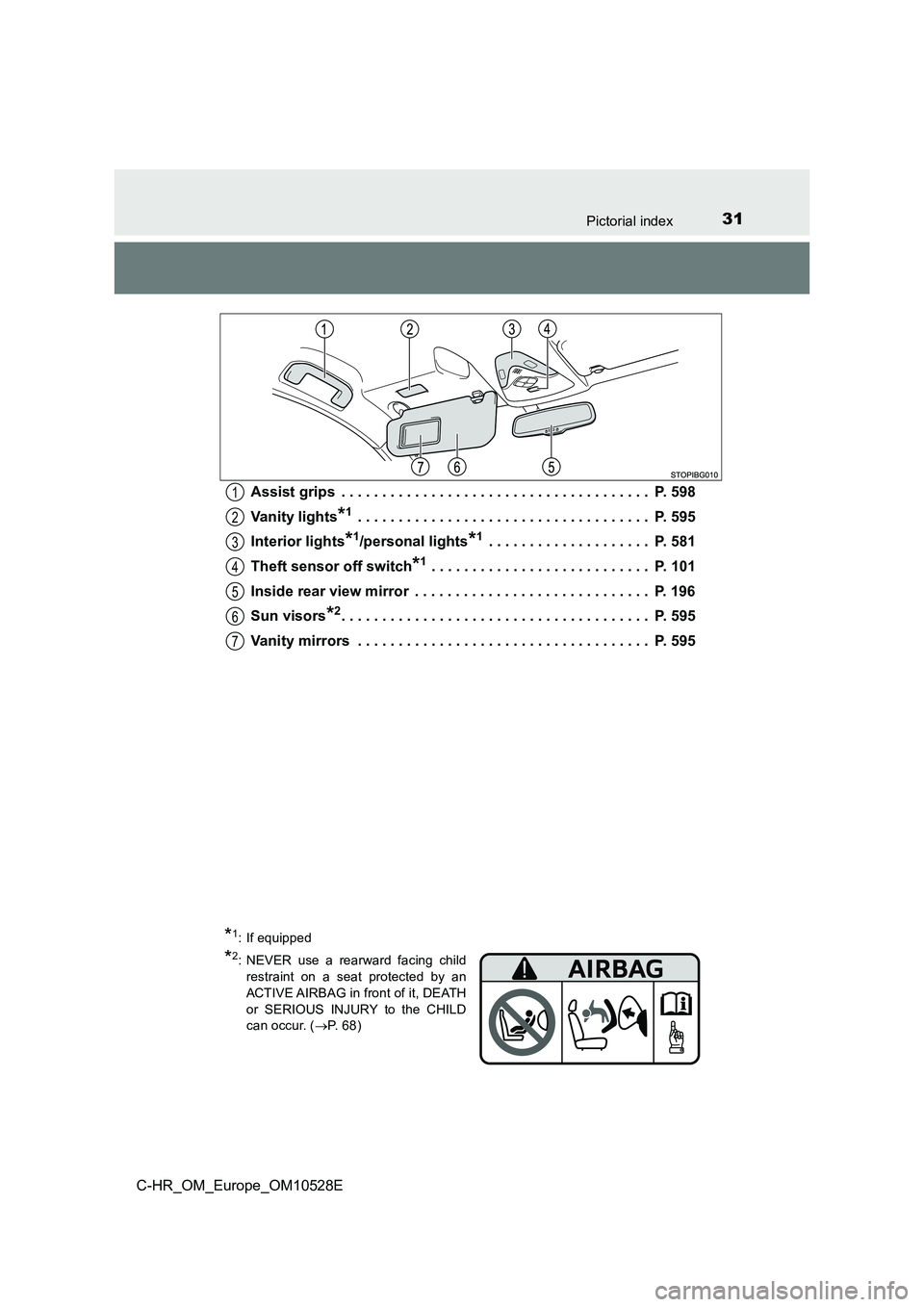

Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Vanity lights*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 595
Interior lights*1/personal lights*1 . . . . . . . . . . . . . . . . . . . . P. 581
Theft sensor off switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 101
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 595
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 595
1
2
3
4
5
6
7
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 6 8 )

451-1. For safe use
1
For safety and security
C-HR_OM_Europe_OM10528E

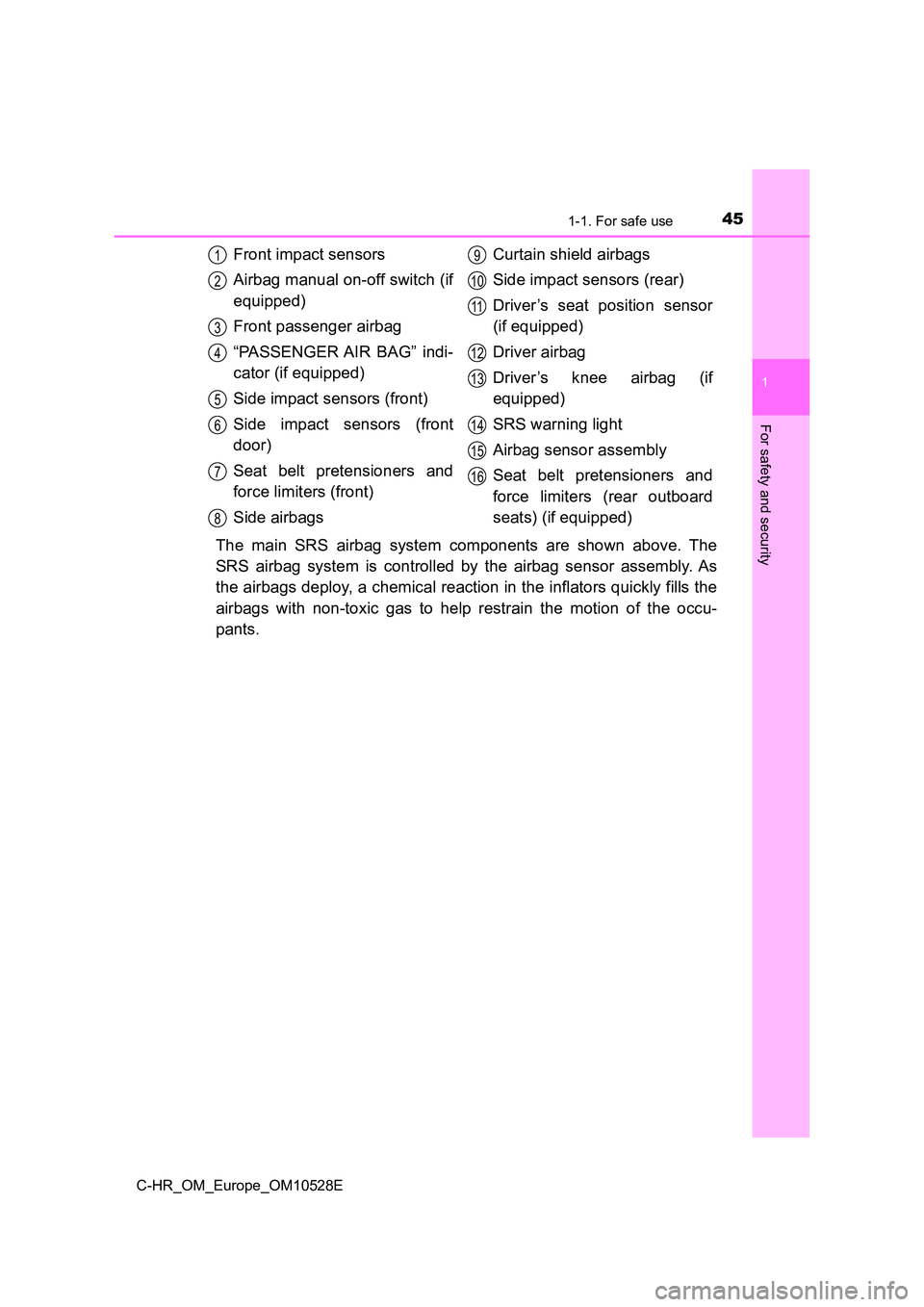

The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
Front impact sensors
Airbag manual on-off switch (if
equipped)
Front passenger airbag
“PASSENGER AIR BAG” indi-
cator (if equipped)
Side impact sensors (front)
Side impact sensors (front
door)
Seat belt pretensioners and
force limiters (front)
Side airbags
Curtain shield airbags
Side impact sensors (rear)
Driver’s seat position sensor
(if equipped)
Driver airbag
Driver’s knee airbag (if
equipped)
SRS warning light
Airbag sensor assembly
Seat belt pretensioners and
force limiters (rear outboard
seats) (if equipped)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

951-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E

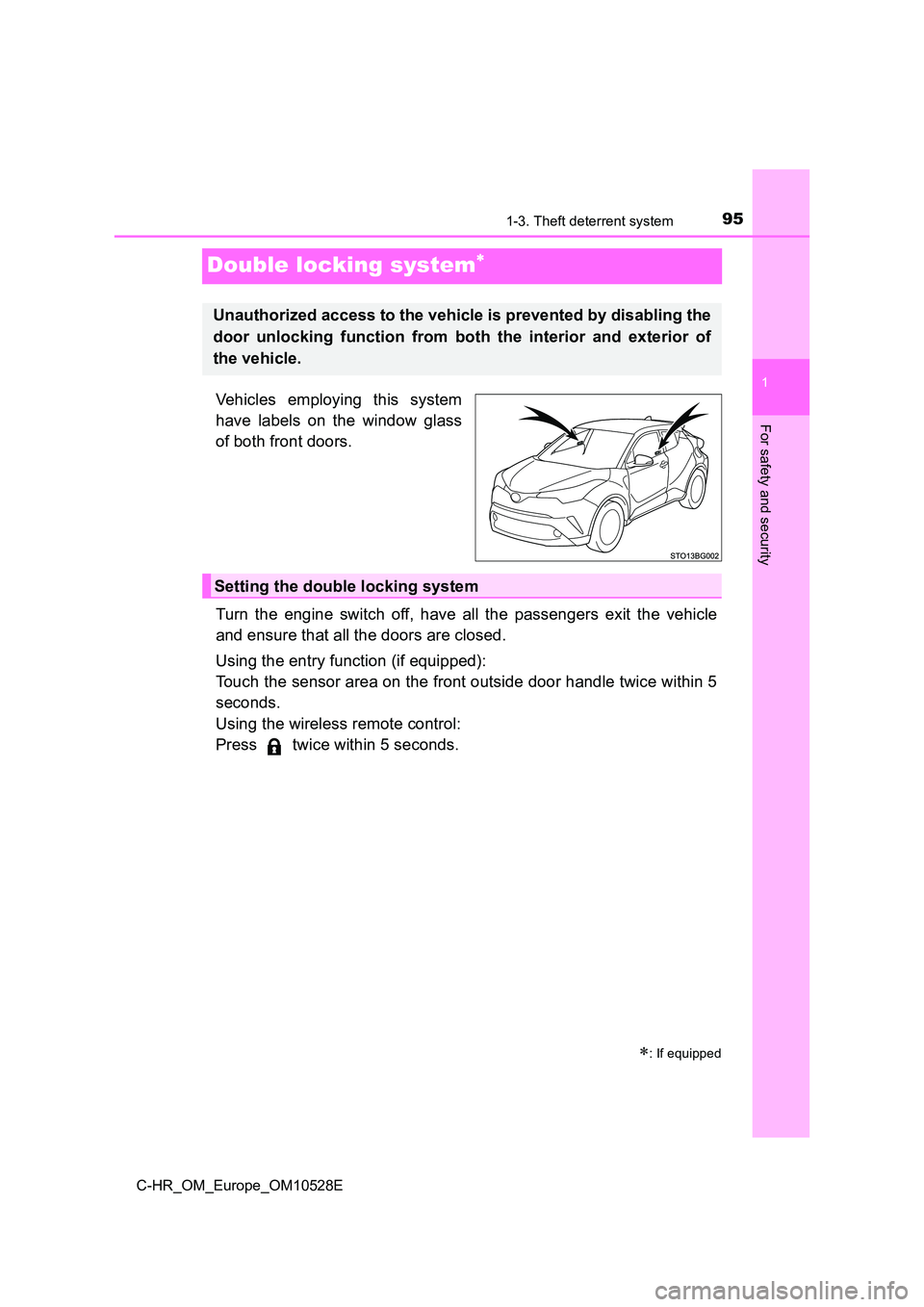

Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the front outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

971-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E
Alarm

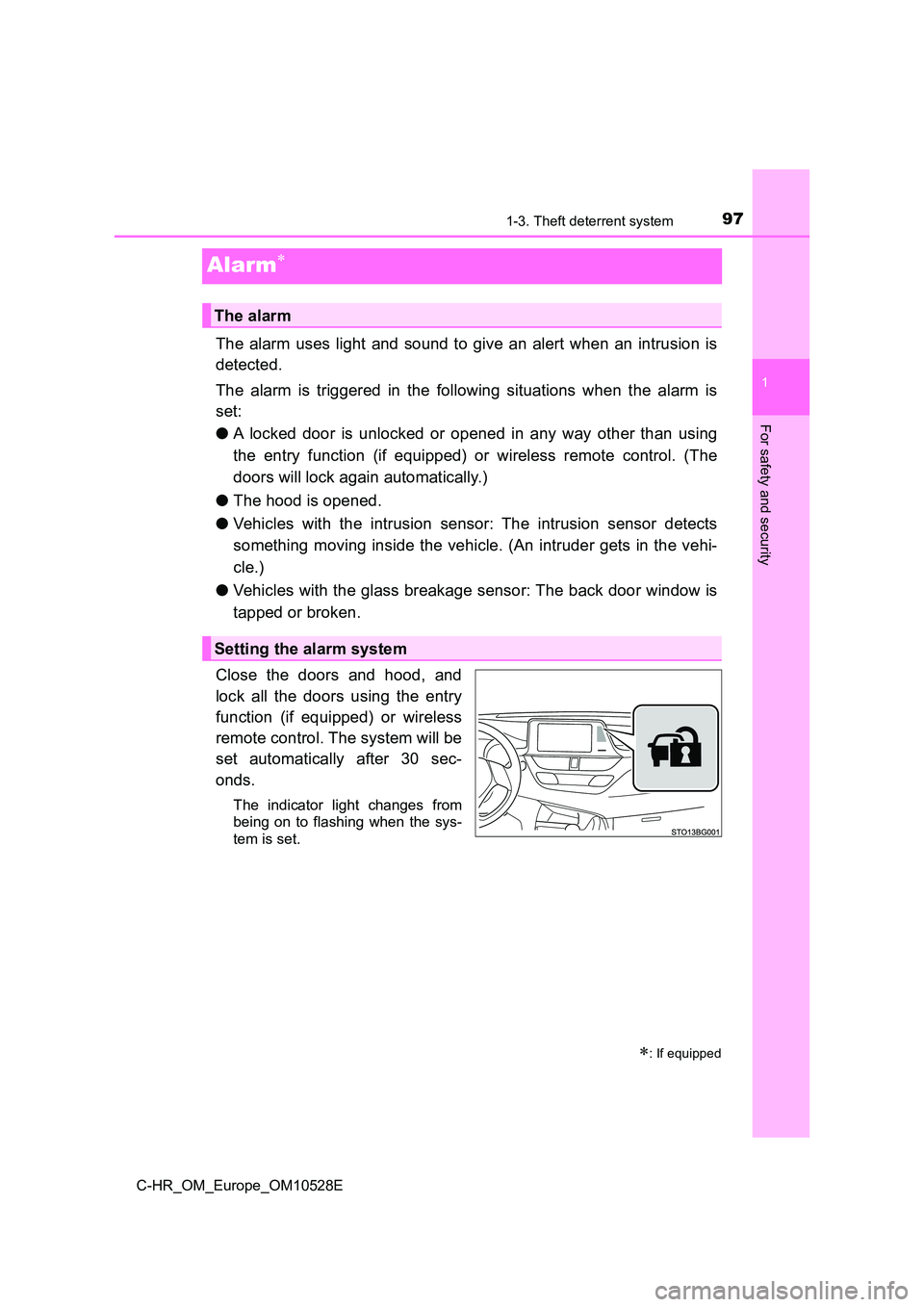

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function (if equipped) or wireless remote control. (The
doors will lock again automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the vehi-
cle.)
● Vehicles with the glass breakage sensor: The back door window is
tapped or broken.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
The alarm
Setting the alarm system

1011-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E

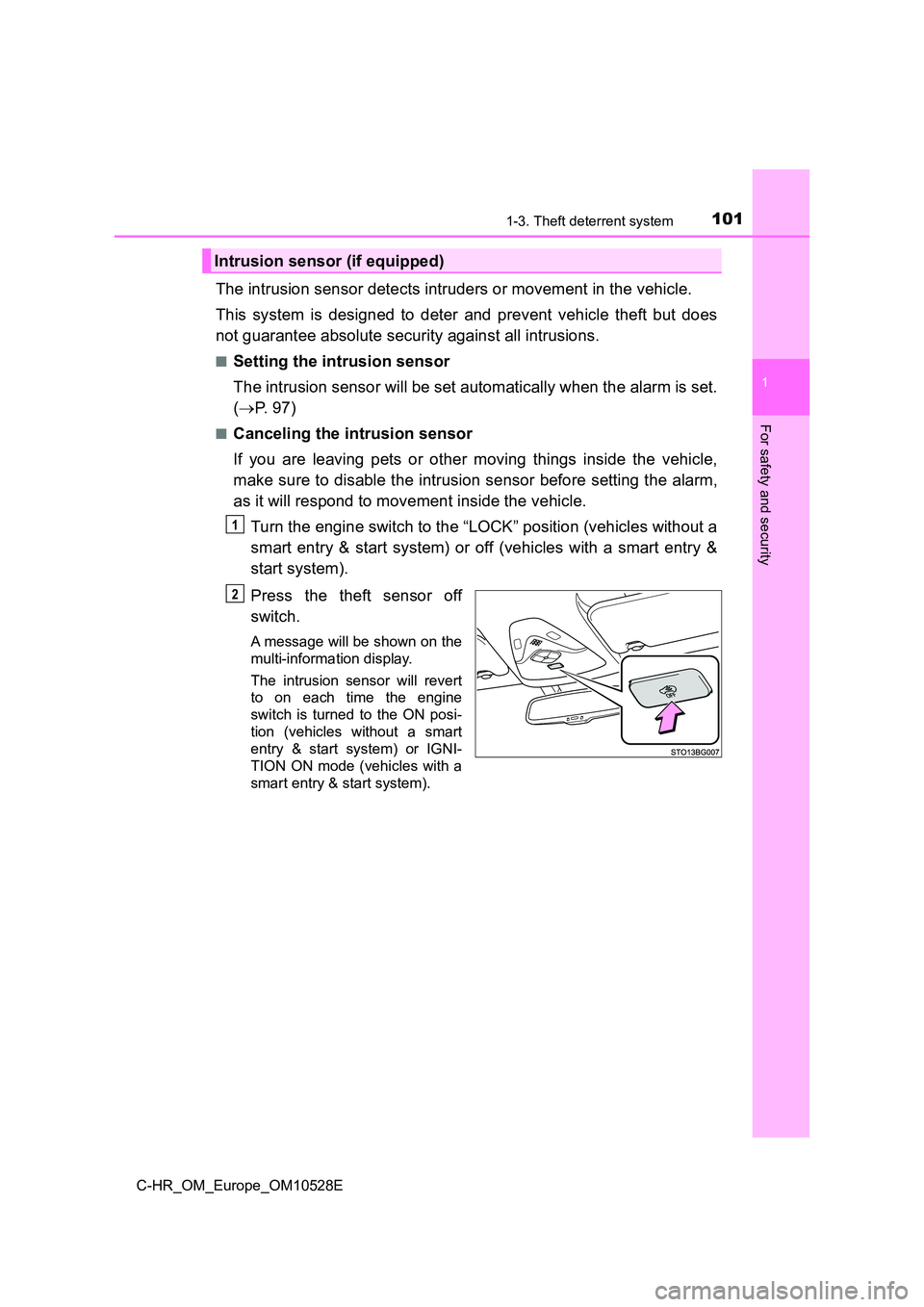

The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
( P. 9 7 )
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as it will respond to movement inside the vehicle.
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry &
start system).
Press the theft sensor off
switch.
A message will be shown on the
multi-information display.
The intrusion sensor will revert
to on each time the engine
switch is turned to the ON posi-
tion (vehicles without a smart
entry & start system) or IGNI-
TION ON mode (vehicles with a
smart entry & start system).
Intrusion sensor (if equipped)
1
2

1021-3. Theft deterrent system
C-HR_OM_Europe_OM10528E
■Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● Vehicles without a smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “LOCK” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sensor.
Vehicles with a smart entry & start system: After the intrusion sensor is can-
celed, pressing the engine switch or unlocking the doors using the entry
function or wireless remote control will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.

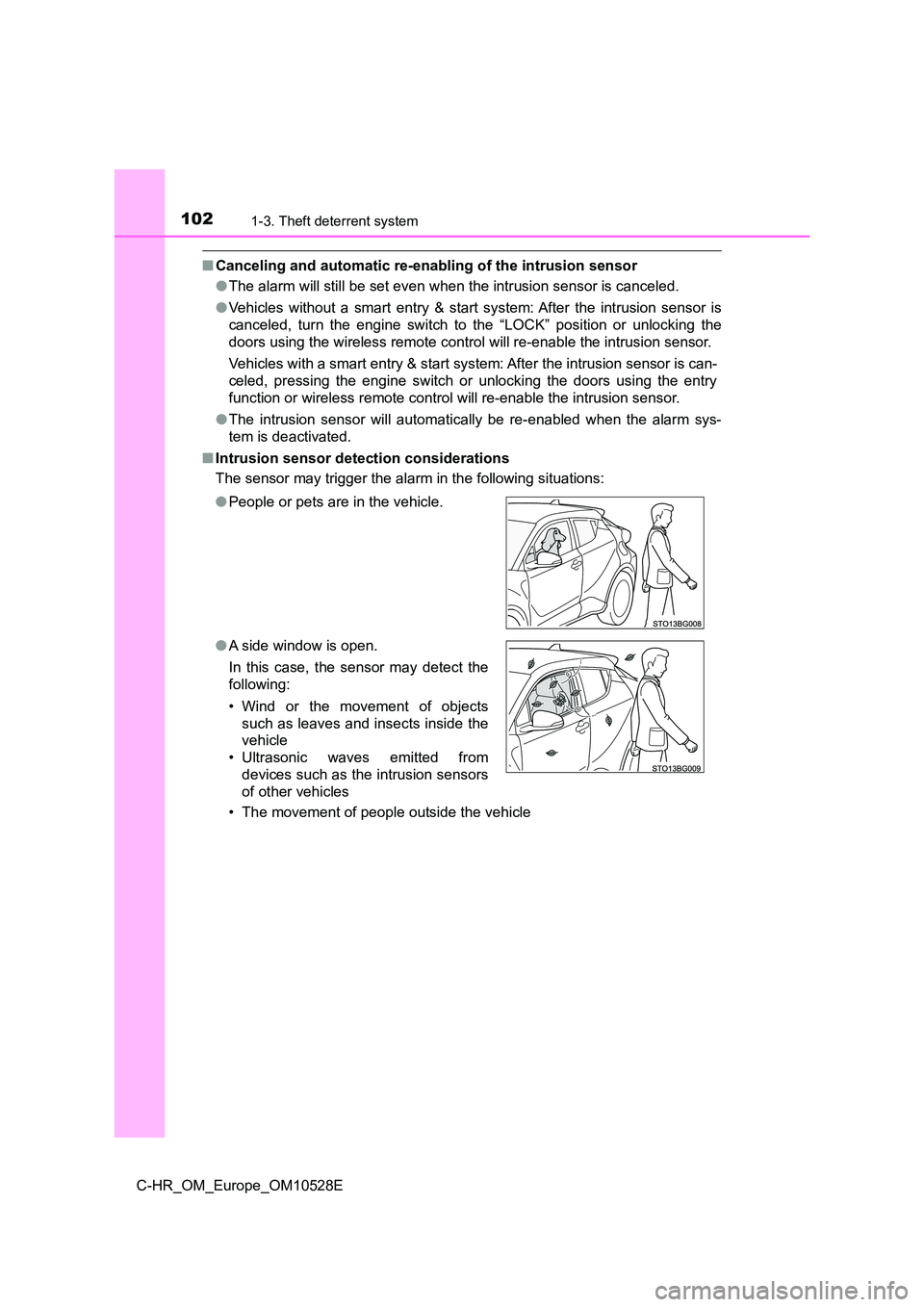

■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles

1041-3. Theft deterrent system
C-HR_OM_Europe_OM10528E
NOTICE

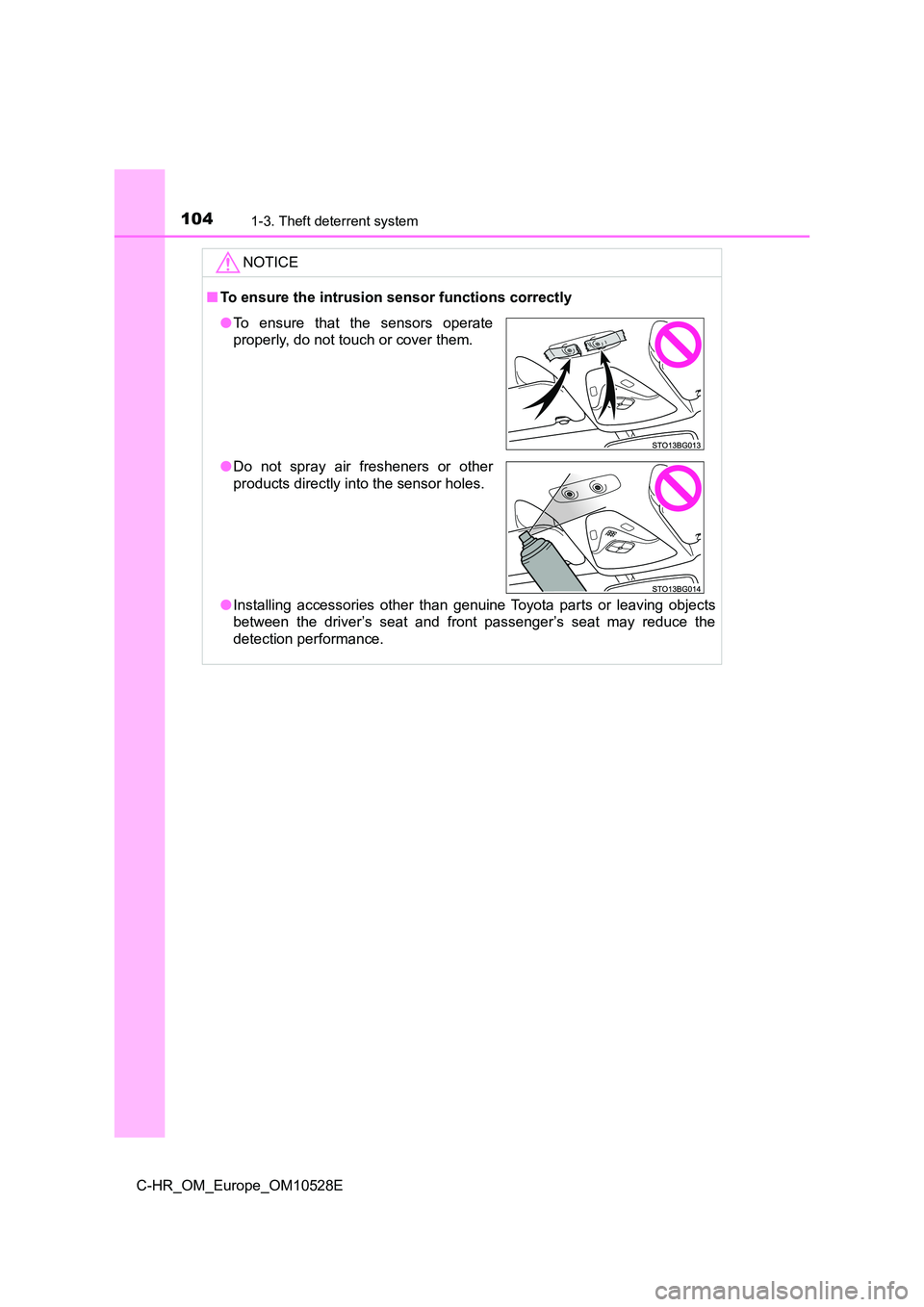

■To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
● To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.

1122. Instrument cluster
C-HR_OM_Europe_OM10528E

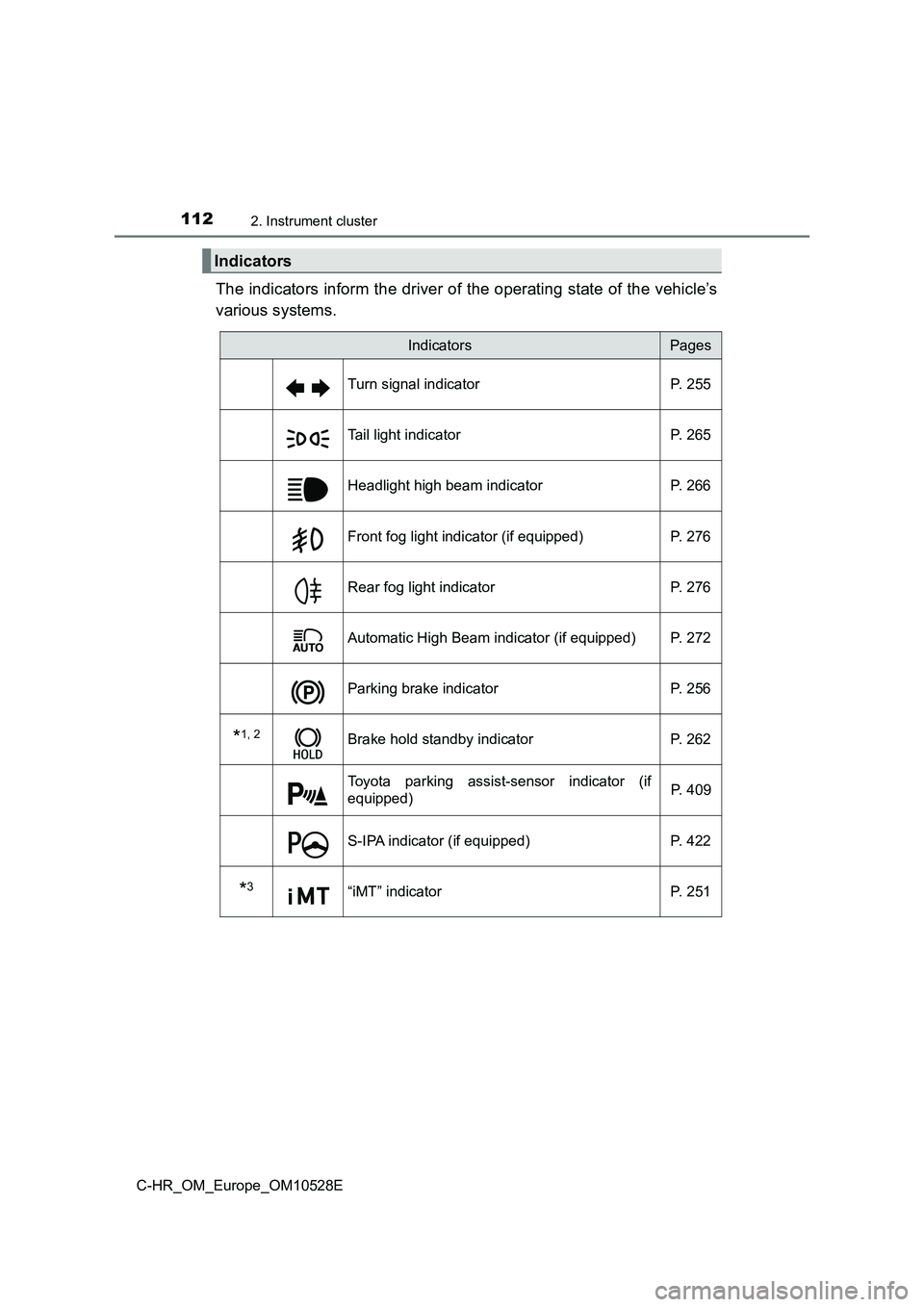

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 255
Tail light indicator P. 265
Headlight high beam indicator P. 266
Front fog light indicator (if equipped) P. 276
Rear fog light indicator P. 276
Automatic High Beam indi cator (if equipped) P. 272
Parking brake indicator P. 256
*1, 2Brake hold standby indicator P. 262
Toyota parking assist-sensor indicator (if
equipped) P. 4 0 9
S-IPA indicator (if equipped) P. 422
*3“iMT” indicator P. 251

1322. Instrument cluster
C-HR_OM_Europe_OM10528E

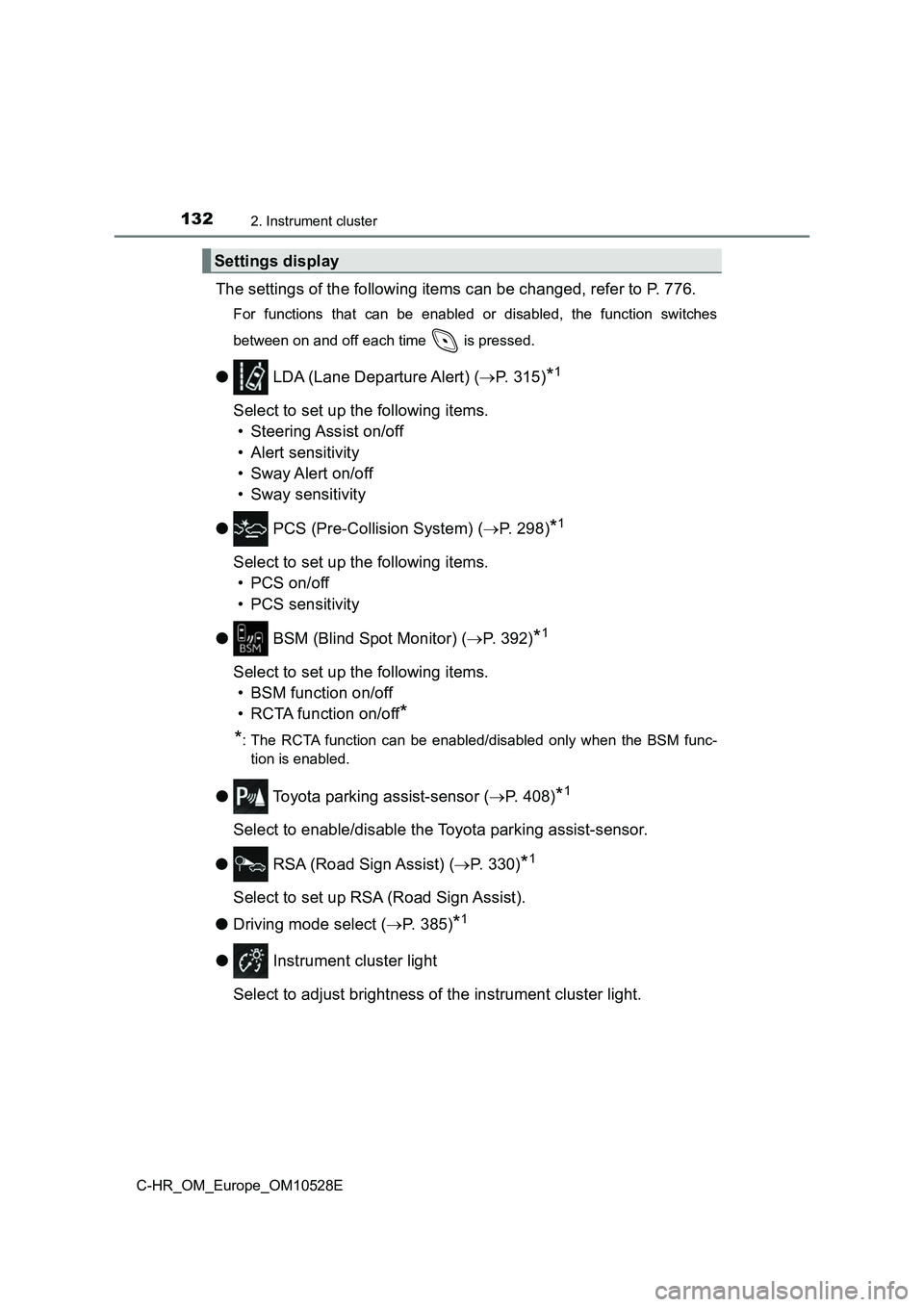

The settings of the following items can be changed, refer to P. 776.
For functions that can be enabled or disabled, the function switches
between on and off each time is pressed.
● LDA (Lane Departure Alert) (P. 315)*1
Select to set up the following items.
• Steering Assist on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity
● PCS (Pre-Collision System) (P. 298)*1
Select to set up the following items.
•PCS on/off
• PCS sensitivity
● BSM (Blind Spot Monitor) (P. 392)*1
Select to set up the following items.
• BSM function on/off
• RCTA function on/off*
*: The RCTA function can be enabled/disabled only when the BSM func-
tion is enabled.
● Toyota parking assist-sensor (P. 408)*1
Select to enable/disable the Toyota parking assist-sensor.
● RSA (Road Sign Assist) (P. 330)*1
Select to set up RSA (Road Sign Assist).
● Driving mode select (P. 385)*1
● Instrument cluster light
Select to adjust brightness of the instrument cluster light.
Settings display
