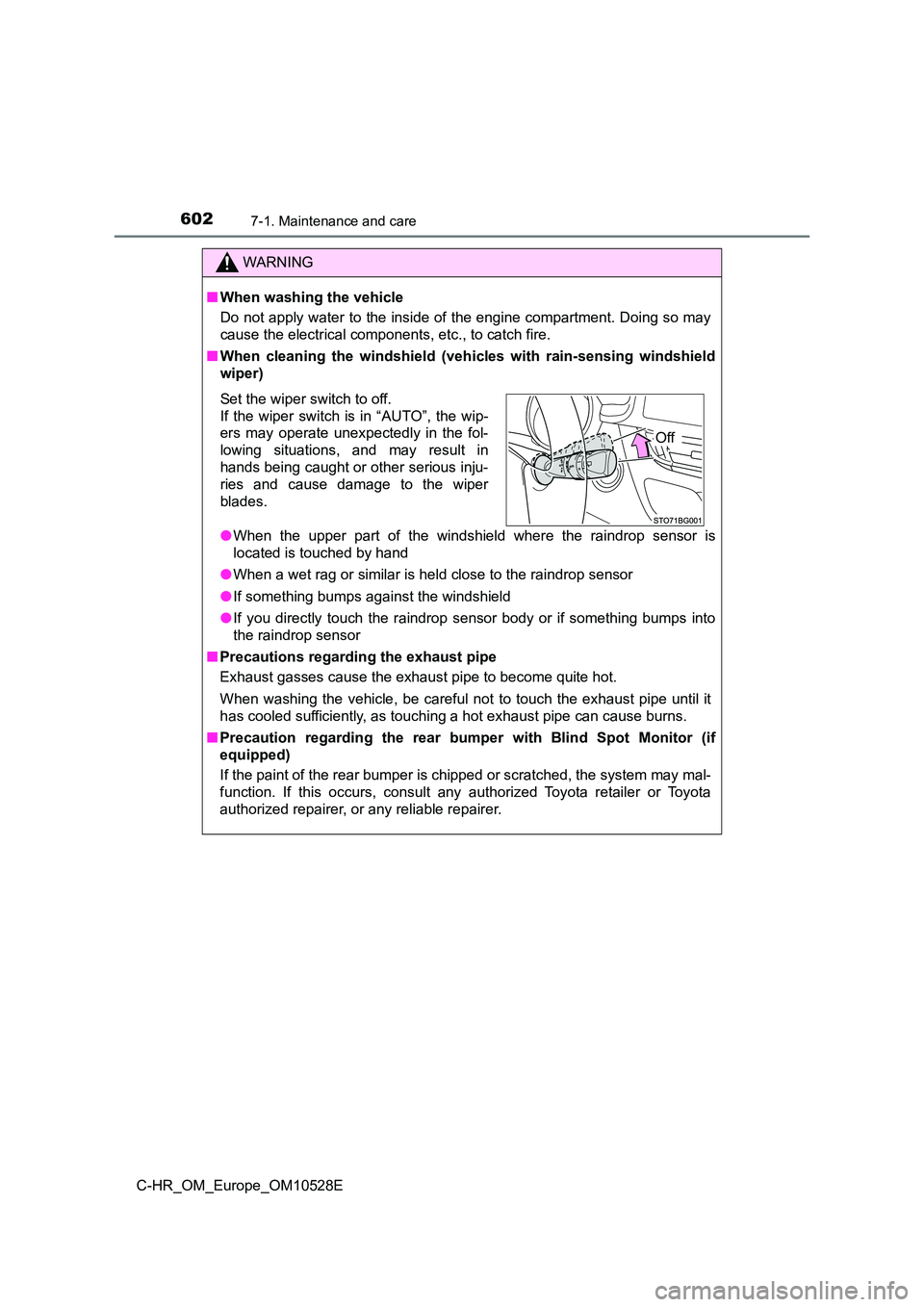

6027-1. Maintenance and care
C-HR_OM_Europe_OM10528E
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components, etc., to catch fire.
■ When cleaning the windshield (vehicles with rain-sensing windshield
wiper)
● When the upper part of the windshield where the raindrop sensor is
located is touched by hand
● When a wet rag or similar is held close to the raindrop sensor
● If something bumps against the windshield
● If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
■ Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the exhaust pipe until it
has cooled sufficiently, as touching a hot exhaust pipe can cause burns.
■ Precaution regarding the rear bumper with Blind Spot Monitor (if
equipped)
If the paint of the rear bumper is chipped or scratched, the system may mal-
function. If this occurs, consult any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in
hands being caught or other serious inju-
ries and cause damage to the wiper
blades.
Off

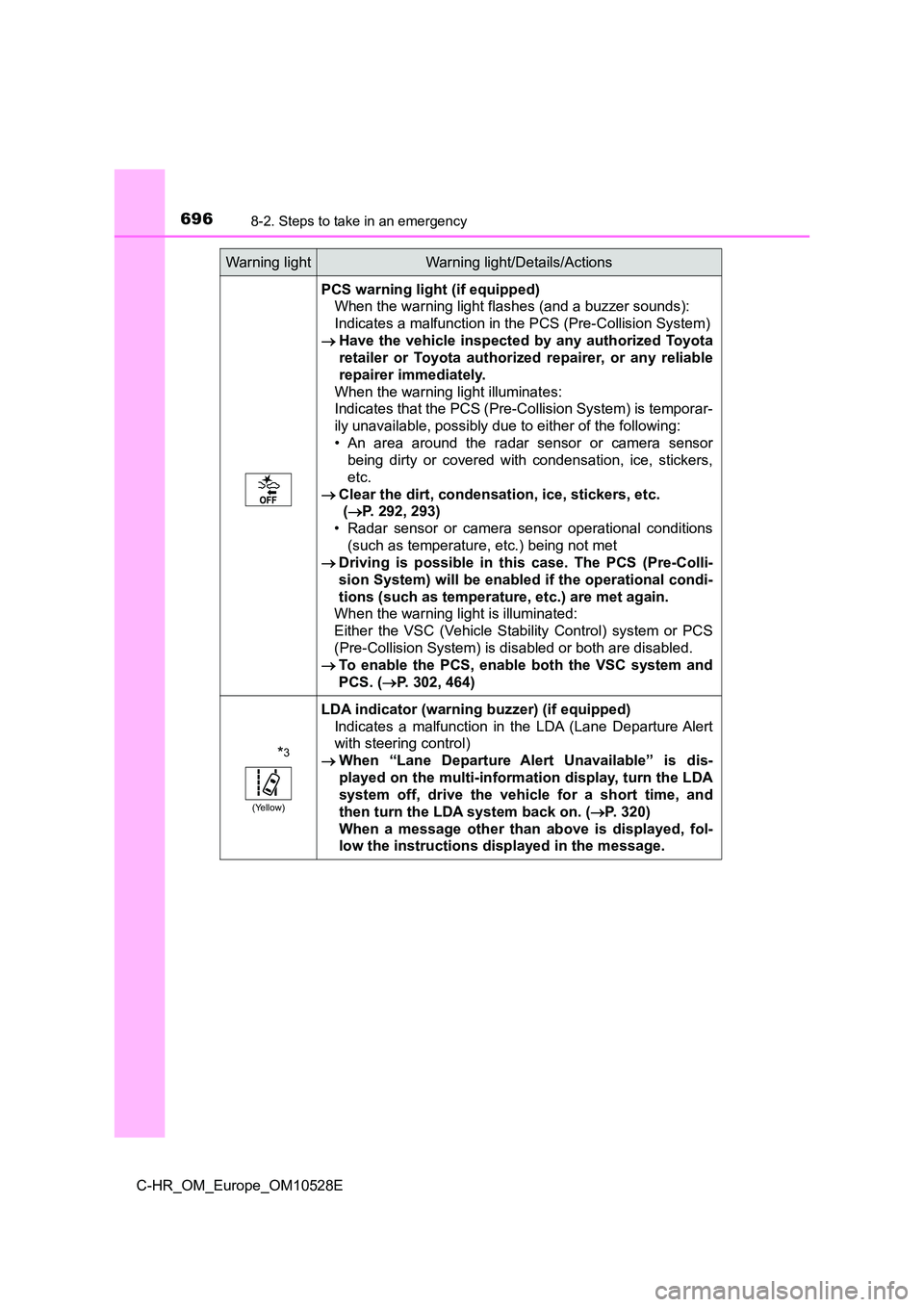

6968-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E
PCS warning light (if equipped)
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Collision System)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
When the warning light illuminates:
Indicates that the PCS (Pre-Collision System) is temporar-
ily unavailable, possibly due to either of the following:
• An area around the radar sensor or camera sensor
being dirty or covered with condensation, ice, stickers,
etc.
 Clear the dirt, condensation, ice, stickers, etc.
( P. 292, 293)
• Radar sensor or camera sensor operational conditions
(such as temperature, etc.) being not met
 Driving is possible in this case. The PCS (Pre-Colli-
sion System) will be enabled if the operational condi-
tions (such as temperature, etc.) are met again.
When the warning light is illuminated:
Either the VSC (Vehicle Stability Control) system or PCS
(Pre-Collision System) is disabled or both are disabled.
 To enable the PCS, enable both the VSC system and
PCS. ( P. 302, 464)
*3
(Yellow)
LDA indicator (warning buzzer) (if equipped)
Indicates a malfunction in the LDA (Lane Departure Alert
with steering control)
 When “Lane Departure Alert Unavailable” is dis-
played on the multi-information display, turn the LDA
system off, drive the vehicle for a short time, and
then turn the LDA system back on. ( P. 320)
When a message other than above is displayed, fol-
low the instructions di splayed in the message.
Warning lightWarning light/Details/Actions

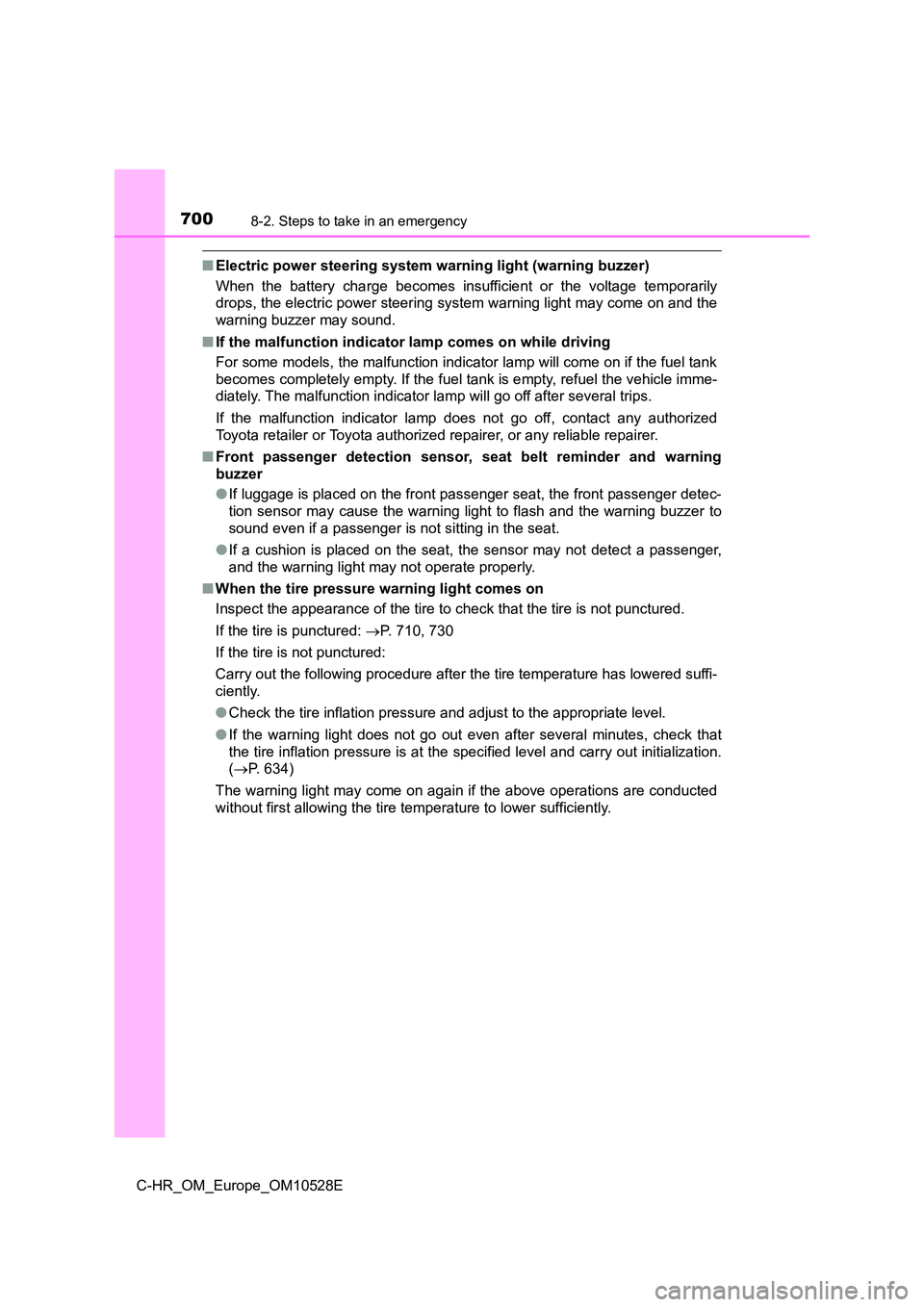

7008-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ When the tire pressure warning light comes on
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 710, 730
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
( P. 634)
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.

7438-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
WARNING
■When using the compact spare tire (if equipped)
● Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
● Do not use more than one compact spare tires simultaneously.
● Replace the compact spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■ When the compact spare tire is attached (if equipped)
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
Also, not only can the following system not be utilized fully, it may actually
negatively effect the drivetrain components:
• Dynamic Torque Control AWD system (AWD models)
■ Speed limit when using the compact spare tire (if equipped)
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
• ABS & Brake assist
• VSC
•TRC
• EPS
• Automatic High Beam*
• PCS (Pre-Collision System)*
• LDA (Lane Departure Alert with
steering control)*
• Dynamic radar cruise control with
full-speed range*
*: If equipped
• Dynamic radar cruise control*
• Cruise control*
• BSM (Blind Spot Monitor)*
• Toyota parking assist-sensor*
• S-IPA (Simple Intelligent Parking
Assist System)*
• Rear view monitor system*
• Navigation system*

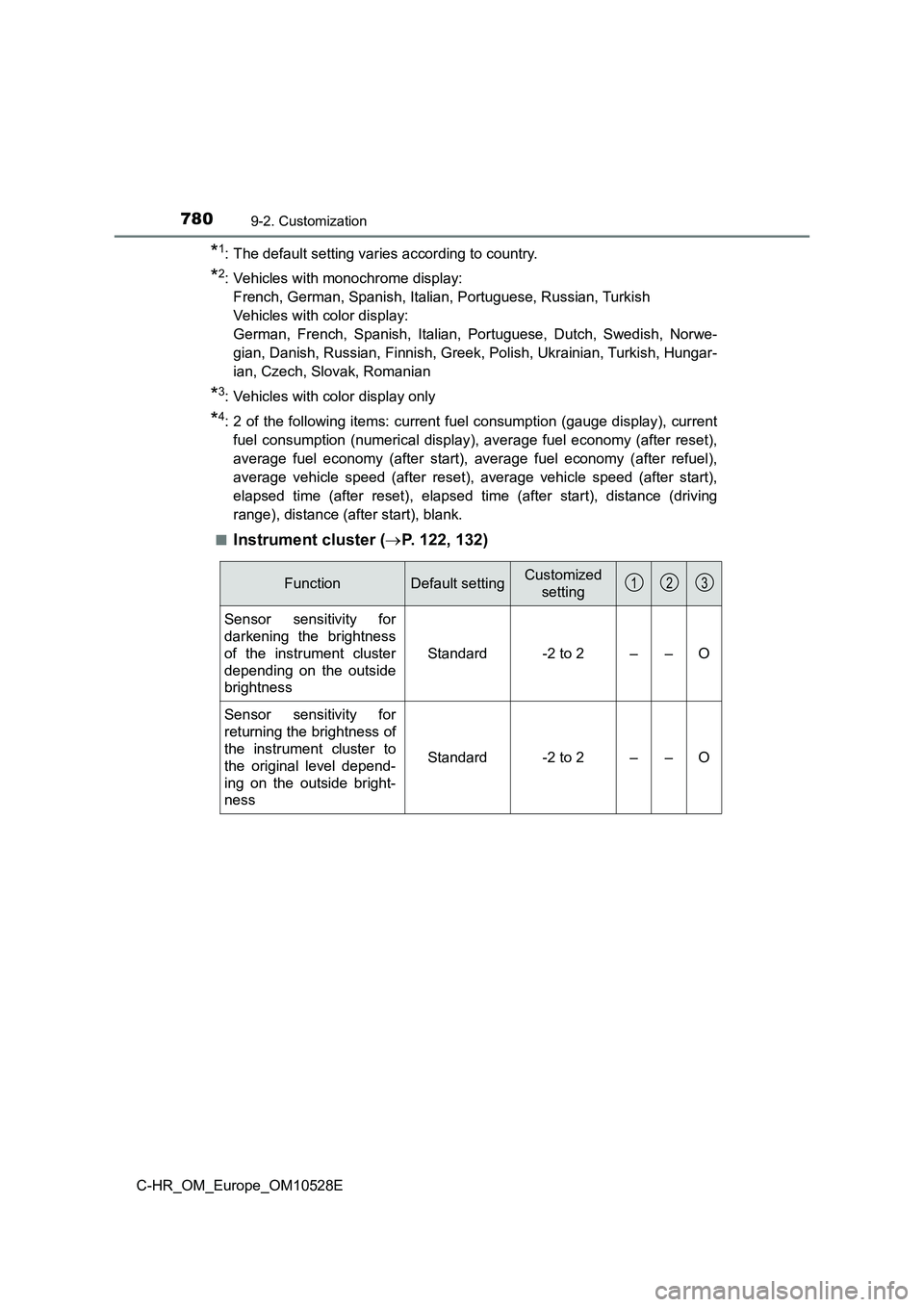

7809-2. Customization
C-HR_OM_Europe_OM10528E
*1: The default setting varies according to country.
*2: Vehicles with monochrome display:
French, German, Spanish, Italian, Portuguese, Russian, Turkish
Vehicles with color display:
German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwe-
gian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungar-
ian, Czech, Slovak, Romanian
*3: Vehicles with color display only
*4: 2 of the following items: current fuel consumption (gauge display), current
fuel consumption (numerical display), average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
average vehicle speed (after reset), average vehicle speed (after start),
elapsed time (after reset), elapsed ti me (after start), distance (driving
range), distance (after start), blank.
■Instrument cluster ( P. 122, 132)
FunctionDefault settingCustomized
setting
Sensor sensitivity for
darkening the brightness
of the instrument cluster
depending on the outside
brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2––O
123

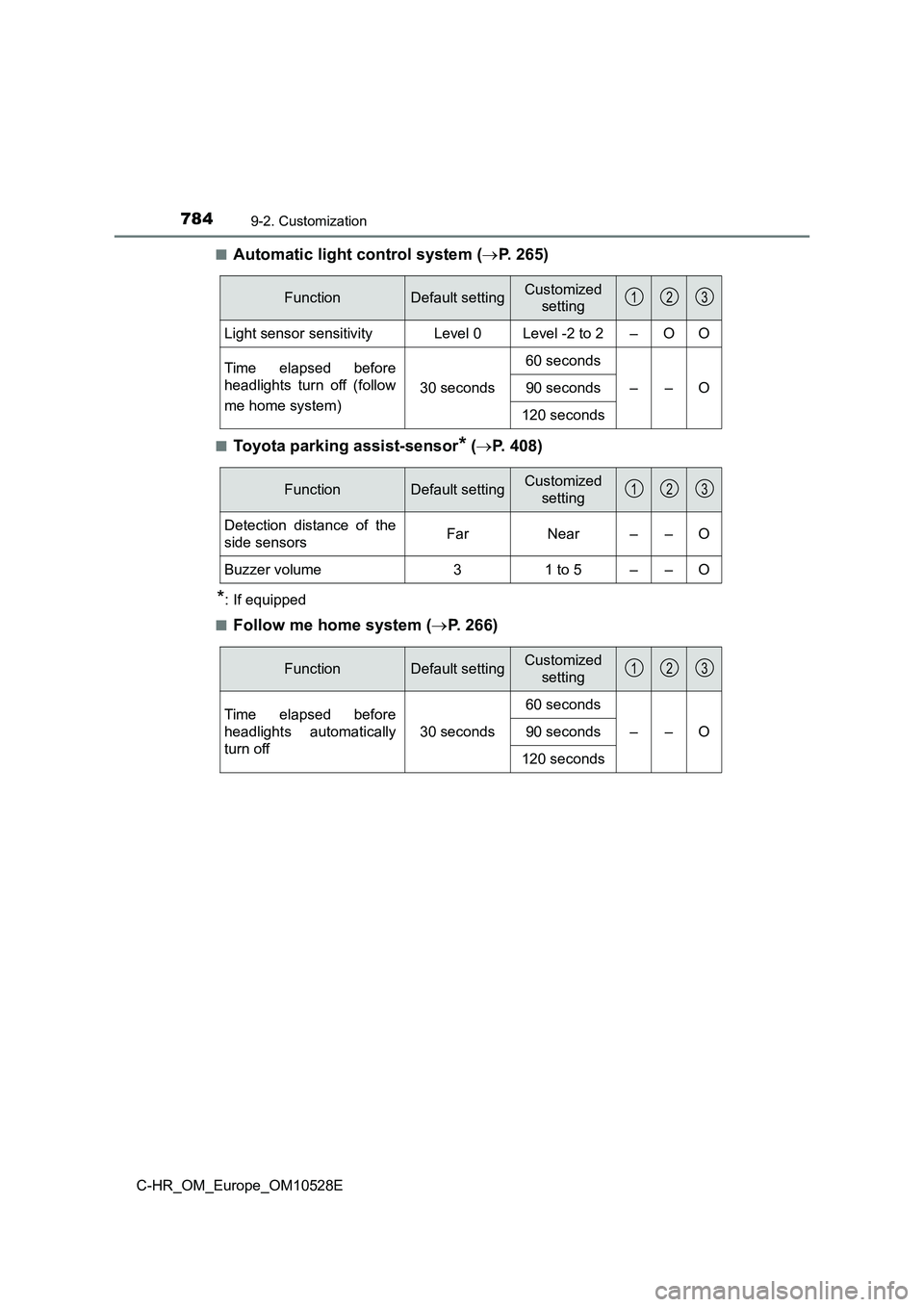

7849-2. Customization
C-HR_OM_Europe_OM10528E
■Automatic light control system ( P. 265)
■Toyota parking assist-sensor* (P. 408)
*: If equipped
■Follow me home system ( P. 266)
FunctionDefault settingCustomized
setting
Light sensor sensitivityLevel 0Level -2 to 2–OO
Time elapsed before
headlights turn off (follow
me home system)
30 seconds
60 seconds
––O90 seconds
120 seconds
123
FunctionDefault settingCustomized
setting
Detection distance of the
side sensorsFarNear––O
Buzzer volume31 to 5––O
123
FunctionDefault settingCustomized
setting
Time elapsed before
headlights automatically
turn off
30 seconds
60 seconds
––O90 seconds
120 seconds
123

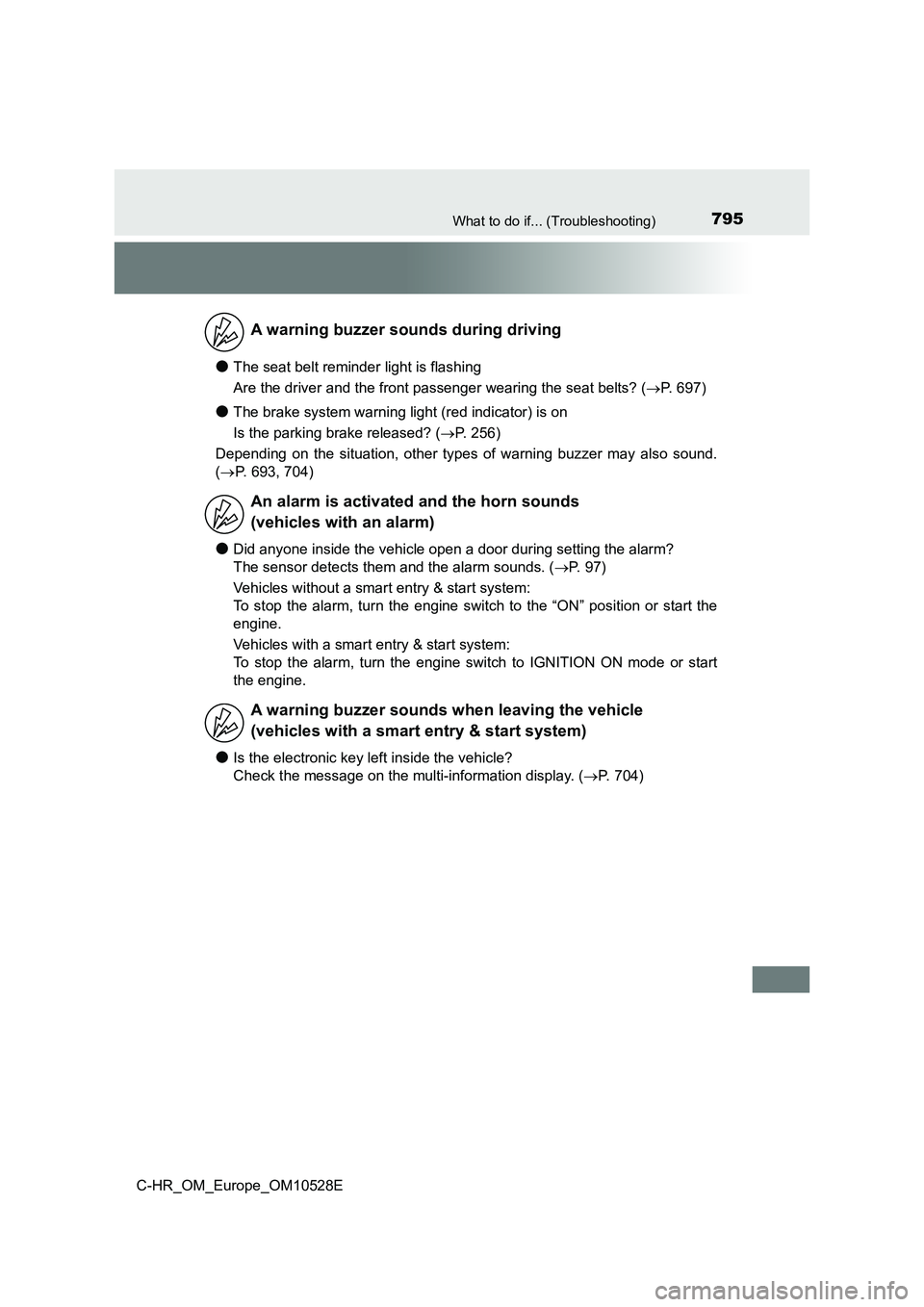

795What to do if... (Troubleshooting)
C-HR_OM_Europe_OM10528E
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 697)
●The brake system warning light (red indicator) is on
Is the parking brake released? ( P. 256)
Depending on the situation, other types of warning buzzer may also sound.
( P. 693, 704)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 97)
Vehicles without a smart entry & start system:
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
Vehicles with a smart entry & start system:
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( P. 704)
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)

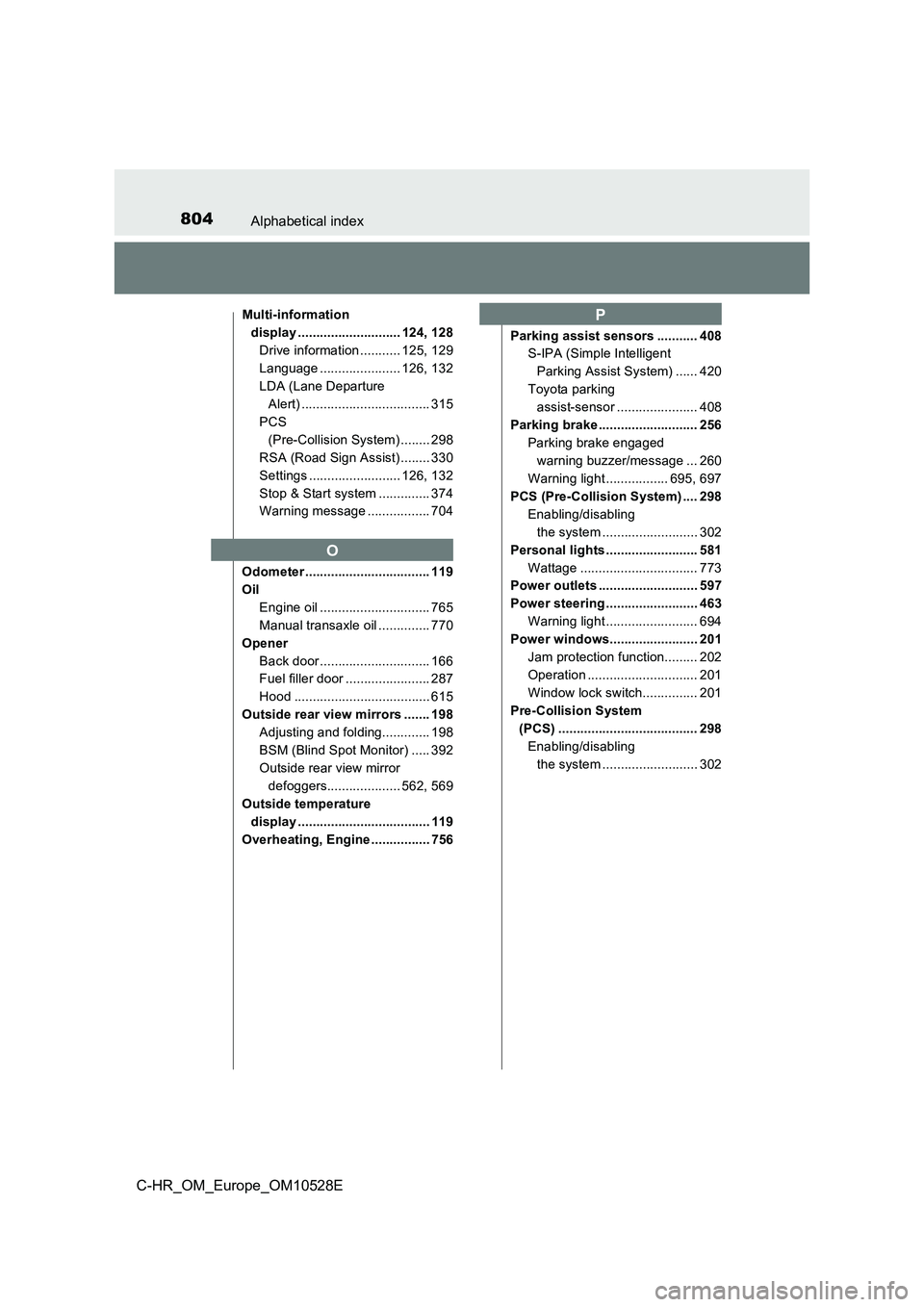

804Alphabetical index
C-HR_OM_Europe_OM10528E
Multi-information
display ............................ 124, 128
Drive information ........... 125, 129
Language ...................... 126, 132
LDA (Lane Departure
Alert) ................................... 315
PCS
(Pre-Collision System) ........ 298
RSA (Road Sign Assist) ........ 330
Settings ......................... 126, 132
Stop & Start system .............. 374
Warning message ................. 704
Odometer .................................. 119
Oil
Engine oil .............................. 765
Manual transaxle oil .............. 770
Opener
Back door .............................. 166
Fuel filler door ....................... 287
Hood ..................................... 615
Outside rear view mirrors ....... 198
Adjusting and folding............. 198
BSM (Blind Spot Monitor) ..... 392
Outside rear view mirror
defoggers.................... 562, 569
Outside temperature
display .................................... 119
Overheating, Engine ................ 756
Parking assist sensors ........... 408
S-IPA (Simple Intelligent
Parking Assist System) ...... 420
Toyota parking
assist-sensor ...................... 408
Parking brake ........................... 256
Parking brake engaged
warning buzzer/message ... 260
Warning light ................. 695, 697
PCS (Pre-Collision System) .... 298
Enabling/disabling
the system .......................... 302
Personal lights ......................... 581
Wattage ................................ 773
Power outlets ........................... 597
Power steering ......................... 463
Warning light ......................... 694
Power windows........................ 201
Jam protection function......... 202
Operation .............................. 201
Window lock switch............... 201
Pre-Collision System
(PCS) ...................................... 298
Enabling/disabling
the system .......................... 302
O
P

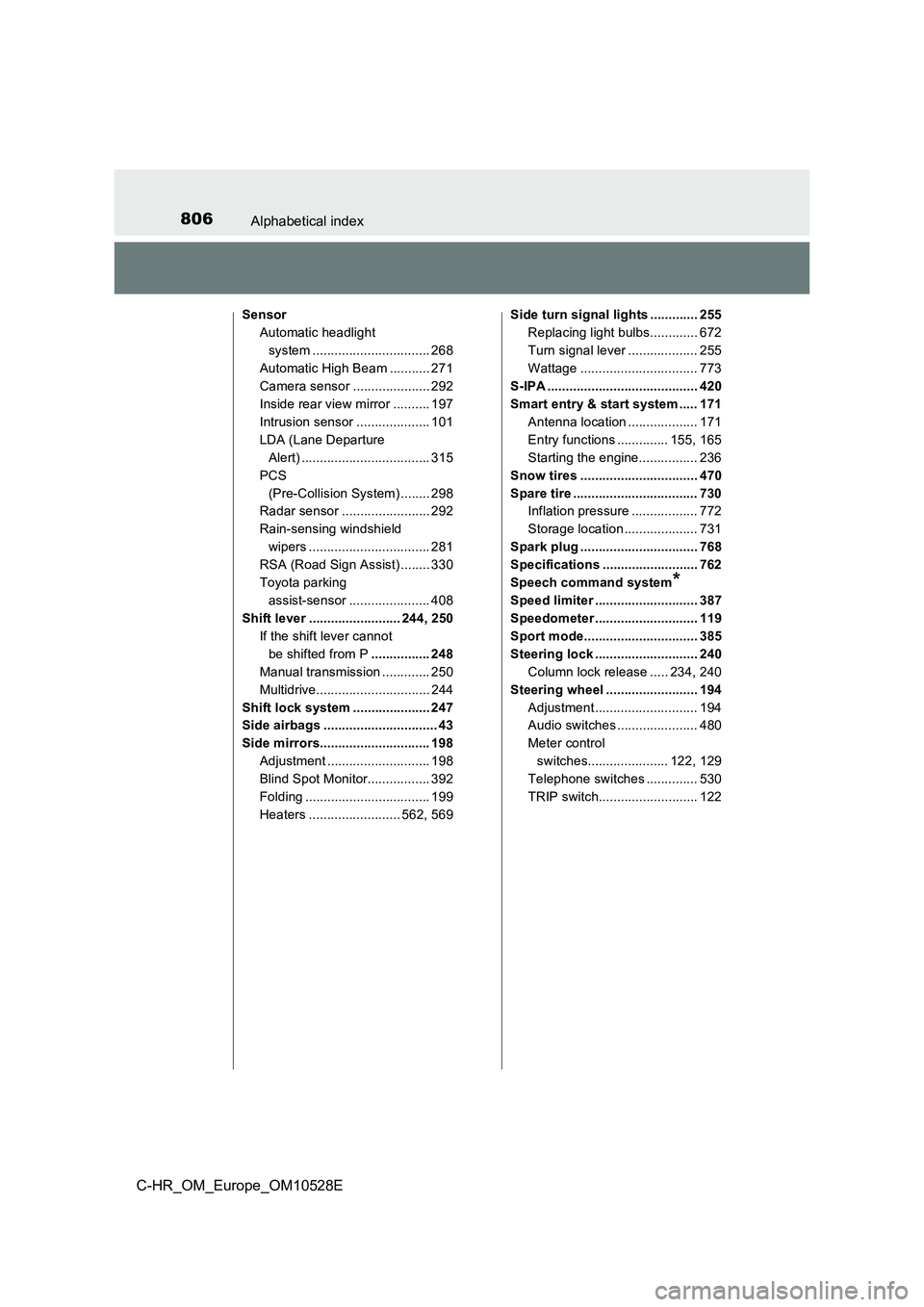

806Alphabetical index
C-HR_OM_Europe_OM10528E
Sensor
Automatic headlight
system ................................ 268
Automatic High Beam ........... 271
Camera sensor ..................... 292
Inside rear view mirror .......... 197
Intrusion sensor .................... 101
LDA (Lane Departure
Alert) ................................... 315
PCS
(Pre-Collision System) ........ 298
Radar sensor ........................ 292
Rain-sensing windshield
wipers ................................. 281
RSA (Road Sign Assist) ........ 330
Toyota parking
assist-sensor ...................... 408
Shift lever ......................... 244, 250
If the shift lever cannot
be shifted from P ................ 248
Manual transmission ............. 250
Multidrive............................... 244
Shift lock system ..................... 247
Side airbags ............................... 43
Side mirrors.............................. 198
Adjustment ............................ 198
Blind Spot Monitor................. 392
Folding .................................. 199
Heaters ......................... 562, 569
Side turn signal lights ............. 255
Replacing light bulbs............. 672
Turn signal lever ................... 255
Wattage ................................ 773
S-IPA ......................................... 420
Smart entry & start system ..... 171
Antenna location ................... 171
Entry functions .............. 155, 165
Starting the engine................ 236
Snow tires ................................ 470
Spare tire .................................. 730
Inflation pressure .................. 772
Storage location .................... 731
Spark plug ................................ 768
Specifications .......................... 762
Speech command system*
Speed limiter ............................ 387
Speedometer ............................ 119
Sport mode............................... 385
Steering lock ............................ 240
Column lock release ..... 234, 240
Steering wheel ......................... 194
Adjustment ............................ 194
Audio switches ...................... 480
Meter control
switches...................... 122, 129
Telephone switches .............. 530
TRIP switch........................... 122

808Alphabetical index
C-HR_OM_Europe_OM10528E
Tachometer .............................. 119
Tail lights .................................. 265
Light switch ........................... 265
Replacing light bulbs ............. 675
Talk switch*
Telephone switches*.............. 530
Theft deterrent system
Alarm....................................... 97
Double locking system ............ 95
Engine immobilizer system ..... 87
Tire inflation pressure ............. 644
Maintenance data ................. 772
Tire pressure warning
system .................................... 633
Initializing .............................. 633
Installing tire pressure
warning valves and
transmitters......................... 633
Registering ID codes............. 635
Warning light ......................... 698
Tires .......................................... 631
Chains ................................... 473
Checking ............................... 631
Emergency tire puncture
repair kit.............................. 710
If you have a flat tire...... 730, 710
Inflation pressure .................. 772
Replacing .............................. 730
Rotating tires ......................... 632
Size ....................................... 772
Snow tires ............................. 470
Spare tire .............................. 730
Tire pressure warning
system ................................ 633
Warning light ......................... 698
Tools ................................. 731, 713
Top strap .................................... 84
Towing
Emergency towing ................ 683
Towing capacity .................... 762
Towing eyelet........................ 686
Trailer towing ........................ 223
Toyota parking
assist-sensor ......................... 408
Toyota Safety Sense ............... 290
Automatic High Beam ........... 271
LDA (Lane Departure
Alert)................................... 315
PCS (Pre-Collision
System) .............................. 298
RSA (Road Sign Assist)........ 330
Traction Control (TRC) ............ 462
Trailer towing .......................... 223
Transmission ................... 244, 250
Gear Shift Indicator ............... 251
If the shift lever cannot be
shifted from P ..................... 248
M mode ................................. 246
Manual transmission ............. 250
Multidrive .............................. 244
TRC (Traction Control) ............ 462
Trip meters ............................... 119
Turn signal lights..................... 255
Replacing light
bulbs................... 666, 667, 672
Turn signal lever ................... 255
Wattage ................................ 773
T
