TOYOTA C-HR 2017 Owners Manual

1112. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
*2: The light comes on to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
*4: Vehicles with monochrome display
*4LDA indicator (yellow) (if equipped) P. 696
*3Stop & Start cancel indicator (if equipped) P. 697
*3Parking brake indicator P. 697
Low fuel level warning light P. 697
Driver’s and front passenger’s seat belt
reminder light P. 6 9 7
Rear passengers’ seat belt reminder lights (on
the center panel) P. 6 9 7
*1Tire pressure warning light P. 698
*1Master warning light P. 698
Warning lightsPages

1122. Instrument cluster
C-HR_OM_Europe_OM10528E
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 255
Tail light indicator P. 265
Headlight high beam indicator P. 266
Front fog light indicator (if equipped) P. 276
Rear fog light indicator P. 276
Automatic High Beam indi cator (if equipped) P. 272
Parking brake indicator P. 256
*1, 2Brake hold standby indicator P. 262
Toyota parking assist-sensor indicator (if
equipped) P. 4 0 9
S-IPA indicator (if equipped) P. 422
*3“iMT” indicator P. 251

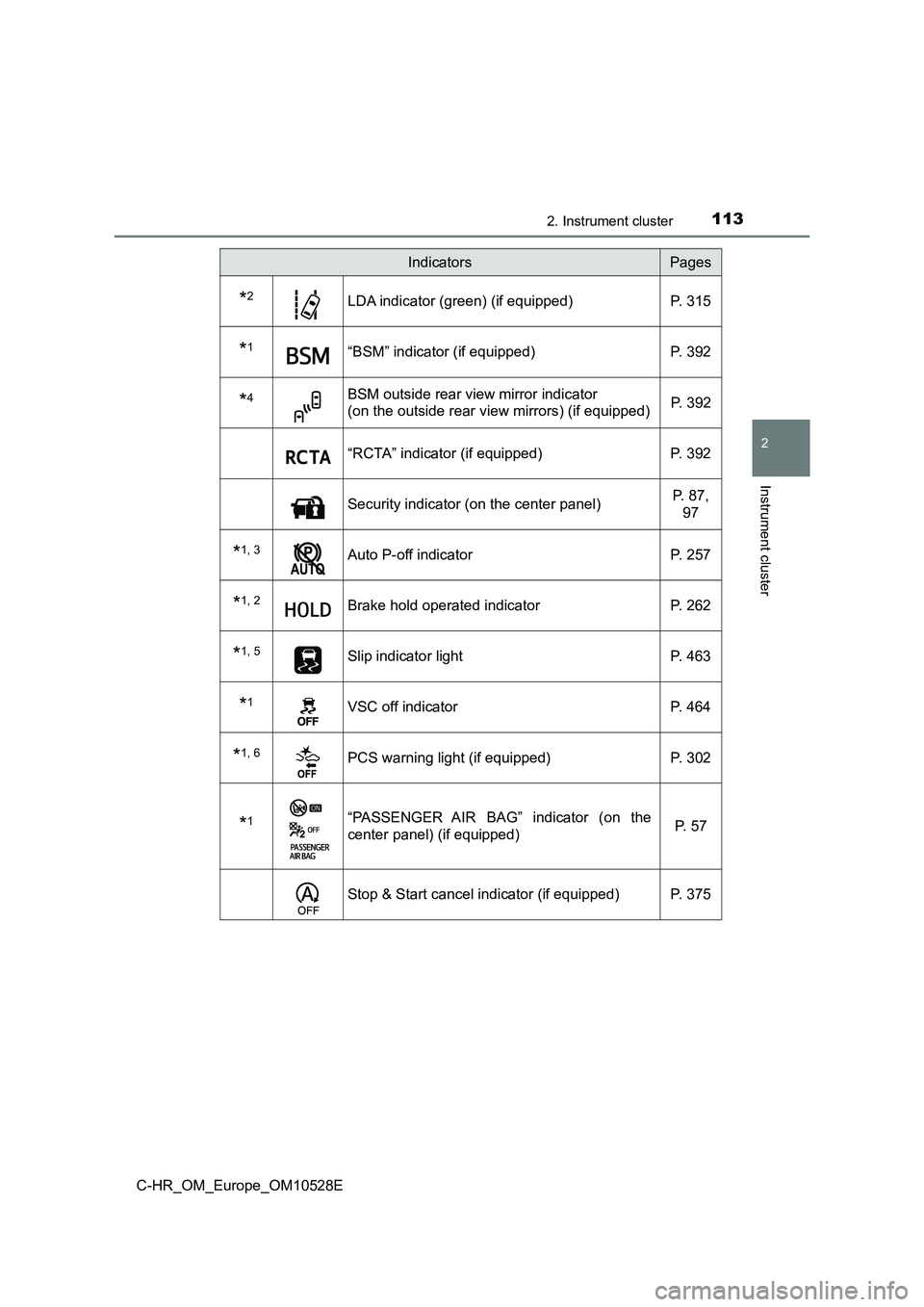

1132. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
*2LDA indicator (green) (if equipped) P. 315
*1“BSM” indicator (if equipped) P. 392
*4BSM outside rear view mirror indicator
(on the outside rear view mirrors) (if equipped) P. 3 9 2
“RCTA” indicator (if equipped) P. 392
Security indicator (on the center panel) P. 87,
97
*1, 3Auto P-off indicator P. 257
*1, 2Brake hold operated indicator P. 262
*1, 5Slip indicator light P. 463
*1VSC off indicator P. 464
*1, 6PCS warning light (if equipped) P. 302
*1“PASSENGER AIR BAG” indicator (on the
center panel) (if equipped) P. 5 7
Stop & Start cancel indicator (if equipped) P. 375
IndicatorsPages

1142. Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with monochrome display only
*3: Vehicles with a manual transmission
*4: In order to confirm operation, the BSM outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without
a smart entry & start system) or IGNITION ON mode (vehicles with a
smart entry & start system), the BSM function is enabled on the
screen of the multi-information display.
• When the BSM function is enabled on the screen of the multi-
information display, the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
*5: The light flashes to indicate that the system is operating.
*6: The light turns on when the system is off.

1152. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
Indicators and symbols displayed on the multi-information dis-
play
IndicatorsPages
*1, 2Brake hold operated indicator P. 262
*1, 2Brake hold standby indicator P. 262
*2LDA indicator (if equipped) P. 315
Speed limiter indicator (if equipped) P. 387
Cruise control indicator (if equipped)
P. 336,
351,
369
Cruise control “SET” indicator (if equipped)
P. 336,
351,
369
Radar cruise control indicator (if equipped) P. 336,
351
*2“SPORT” indicator P. 385
*2“ECO MODE” indicator P. 385
*3Eco Driving Indicator Light P. 118
*4Gear Shift Indicator P. 251

1162. Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with color display only
*3: Vehicles with a Multidrive
*4: Vehicles with a manual transmission
*2Stop & Start indicator (if equipped) P. 374
*2Speed limit sign (if equipped) P. 330
Low outside temperature indicator P. 120
IndicatorsPages

1172. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
*1: Vehicles with monochrome display
*2: Vehicles with color display
Symbols on multi-information displayPages
*1Open door warning light P. 697
Charging system warning light P. 693
Low engine oil pressure warning light P. 693
High engine coolant temperature warning light P. 698
LDA (Lane Departure Alert with steering con-
trol) (if equipped)
P. 698
P. 315
*2Smart entry & start system (if equipped) P. 236
*2Brake Override System/Drive-Start Control P. 699

1182. Instrument cluster
C-HR_OM_Europe_OM10528E
■Eco Driving Indicator Light (vehicles with a Multidrive)
Eco Driving Indicator Light will not operate in the following conditions:
● The shift lever is in anything other than D.
● The vehicle is being driven in “SPORT” mode (P. 385)
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
During Eco-Friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light availability can
be customized. The default setting is on.
( P. 779)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.

119
2
2. Instrument cluster
Instrument cluster
C-HR_OM_Europe_OM10528E

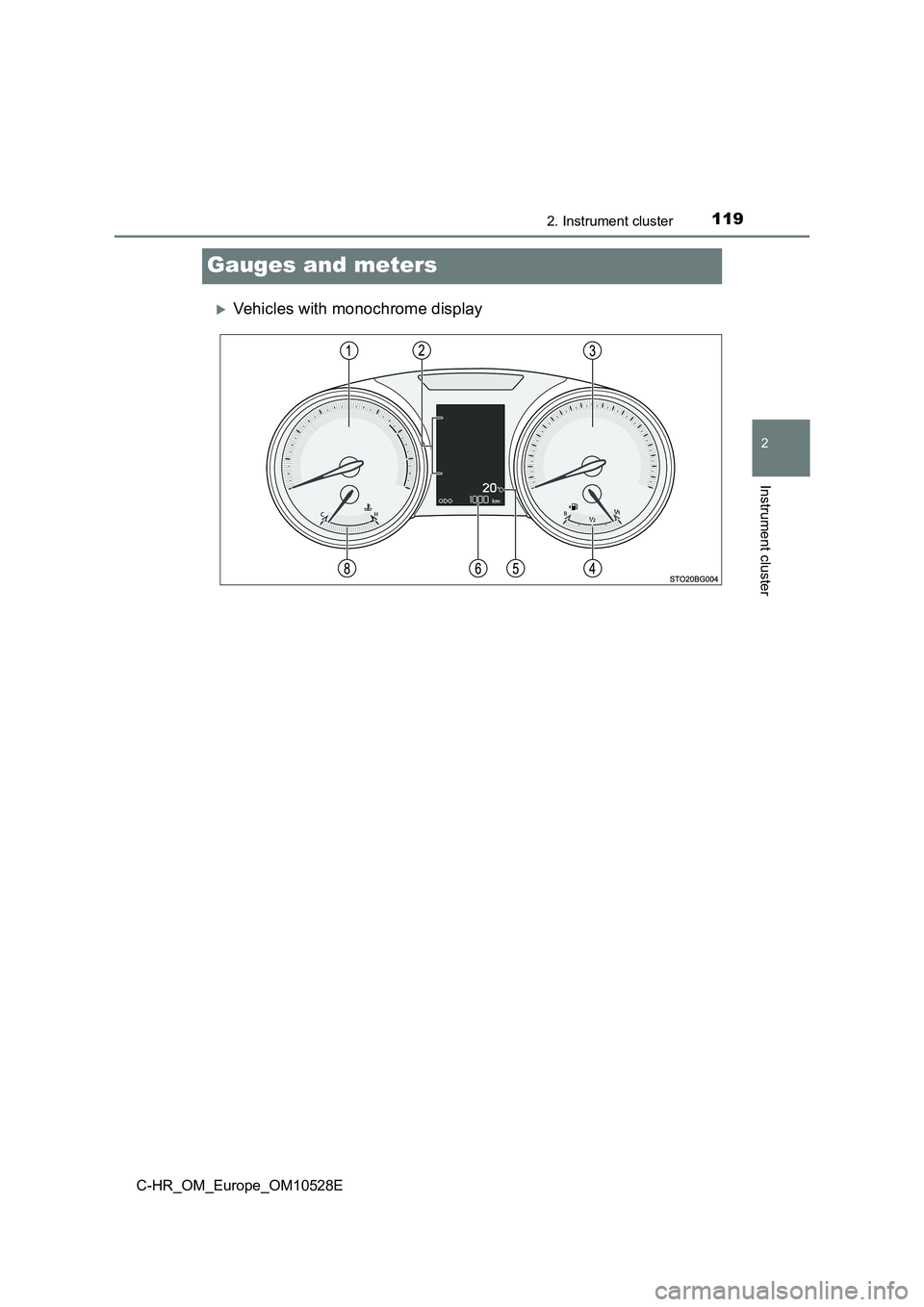

Gauges and meters
Vehicles with monochrome display

1202. Instrument cluster
C-HR_OM_Europe_OM10528E

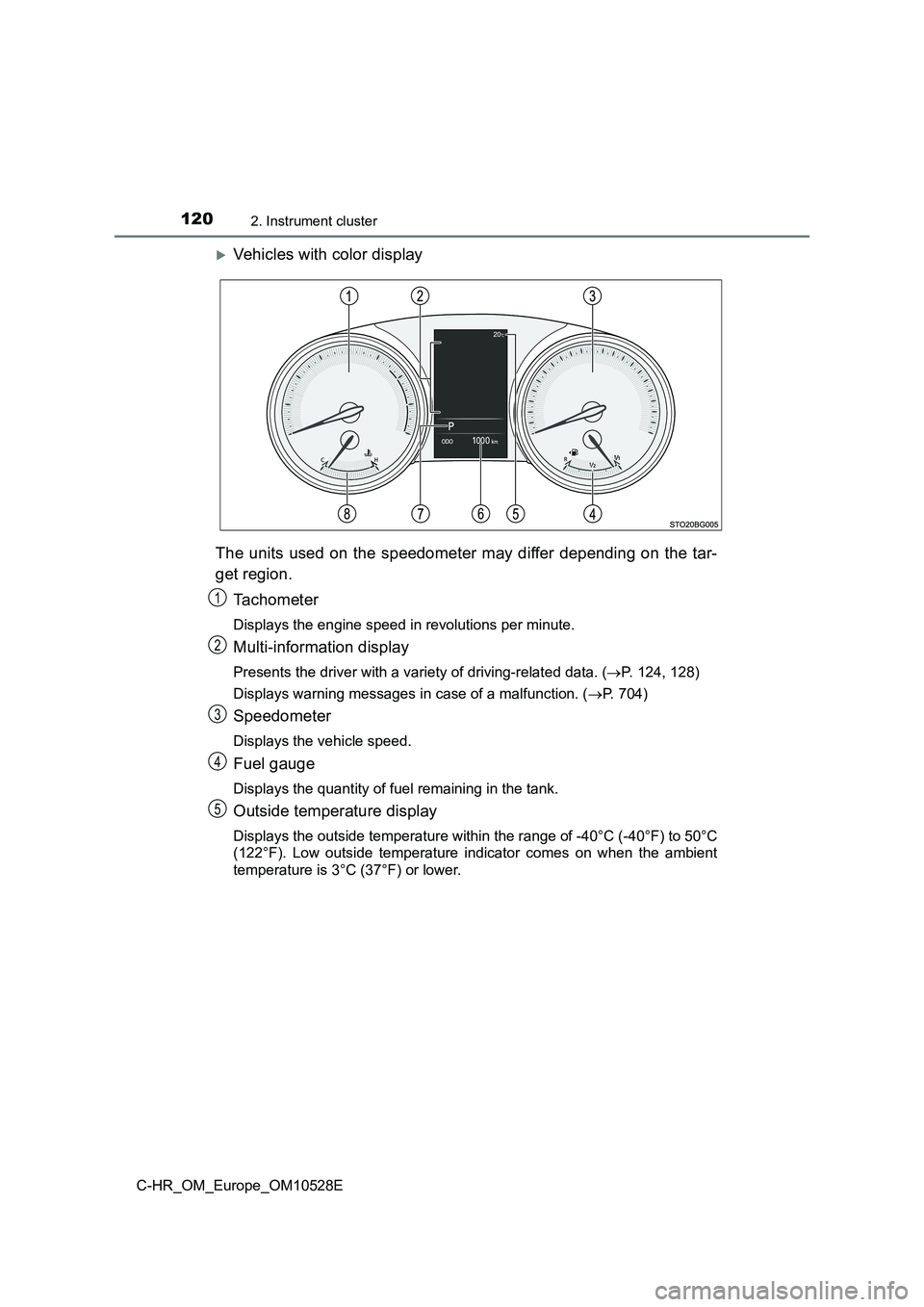

Vehicles with color display
The units used on the speedometer may differ depending on the tar-
get region.
Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 124, 128)
Displays warning messages in case of a malfunction. ( P. 704)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Outside temperature display
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient
temperature is 3°C (37°F) or lower.
1
2
3
4
5
