TOYOTA C-HR 2018 1.G Owners Manual

3716-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10526U

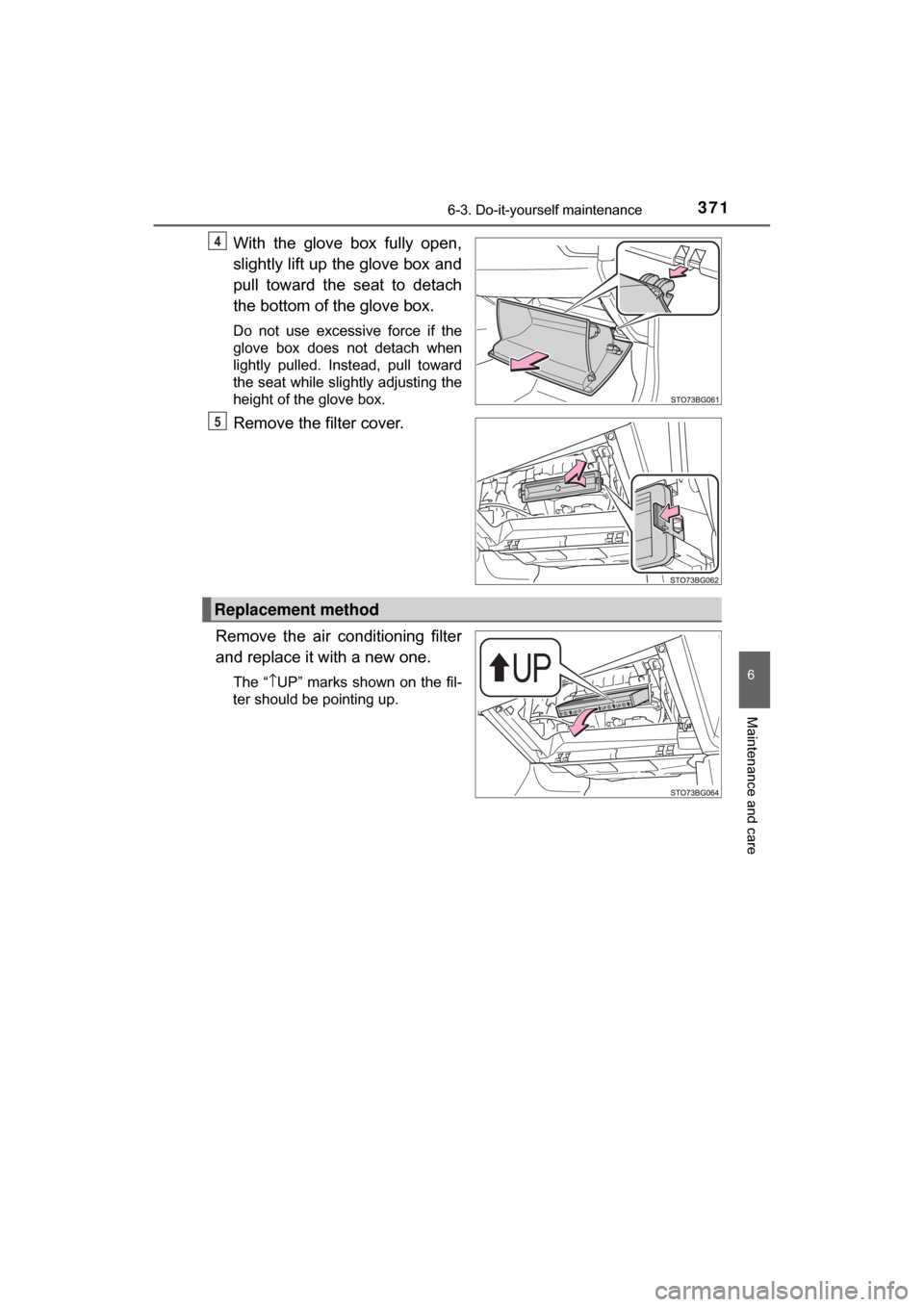

With the glove box fully open,
slightly lift up the glove box and
pull toward the seat to detach
the bottom of the glove box.
Do not use excessive force if the
glove box does not detach when
lightly pulled. Instead, pull toward
the seat while slightly adjusting the
height of the glove box.
Remove the filter cover.
Remove the air conditioning filter
and replace it with a new one.
The “ \bUP” marks shown on the fil-
ter should be pointing up.
4
5
Replacement method

3726-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10526U
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Schedule maintenance guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■When using the ai r conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
■ When removing the glove box
Always follow the specified procedure to remove the glove box ( →P. 370). If
the glove box is removed without following the specified procedure, the
hinge of the glove box may become damaged.

3736-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10526U

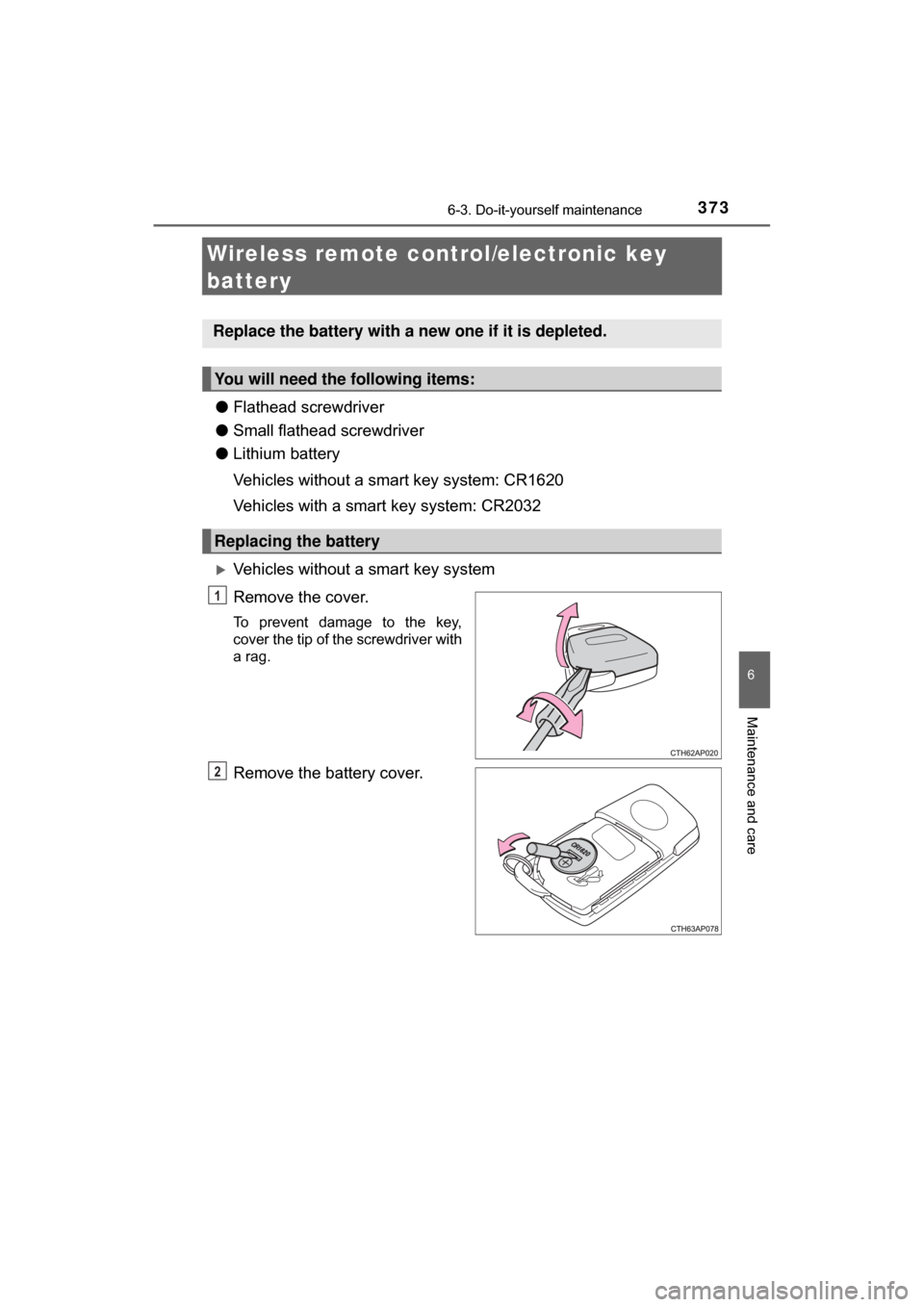

Wireless remote control/electronic key
battery
● Flathead screwdriver
● Small flathead screwdriver
● Lithium battery
Vehicles without a smart key system: CR1620
Vehicles with a smart key system: CR2032
Vehicles without a smart key system
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the battery cover.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2

3746-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10526U

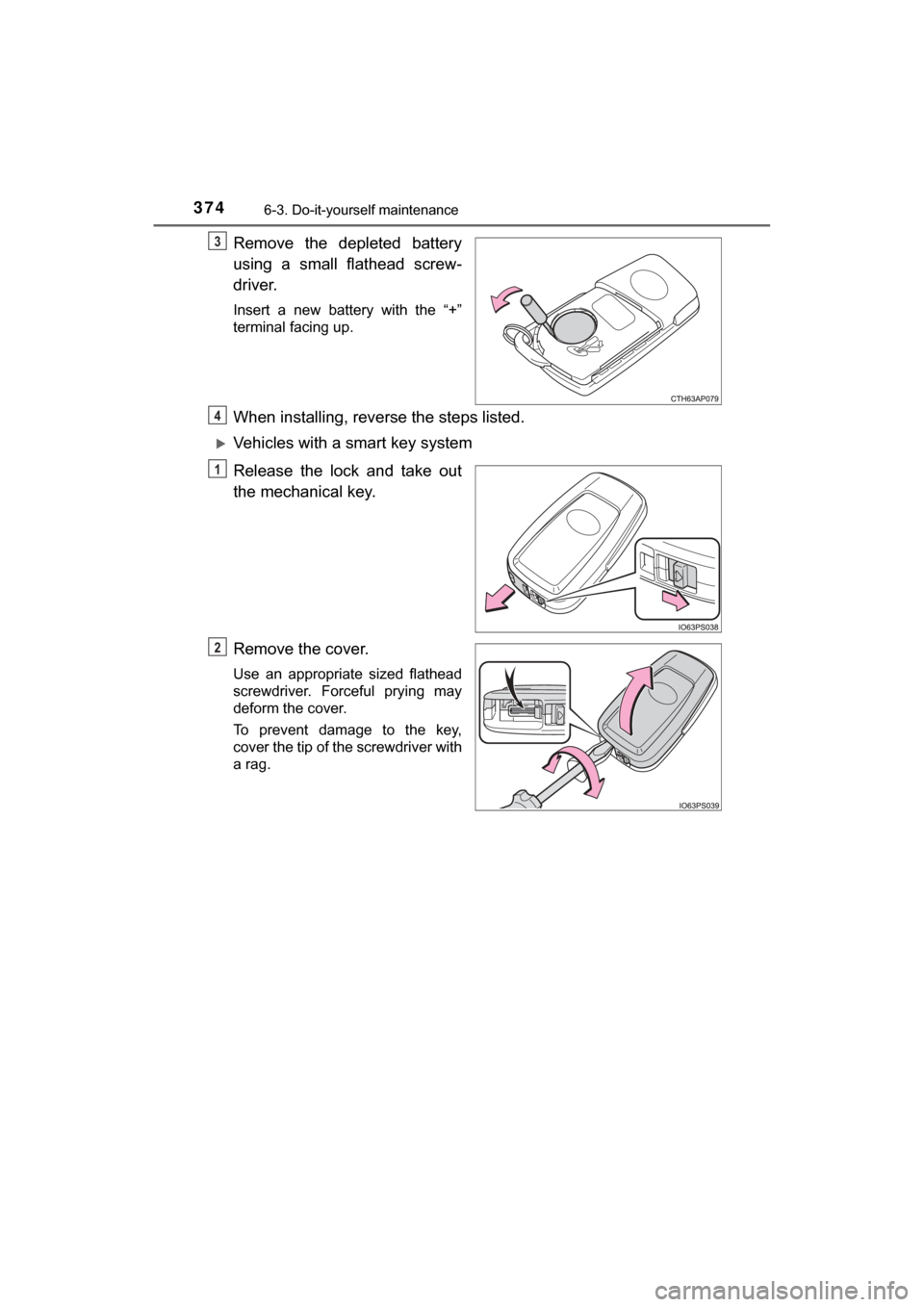

Remove the depleted battery
using a small flathead screw-
driver.
Insert a new battery with the “+”
terminal facing up.
When installing, reverse the steps listed.
Vehicles with a smart key system
Release the lock and take out
the mechanical key.
Remove the cover.
Use an appropriate sized flathead
screwdriver. Forceful prying may
deform the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
3
4
1
2

3756-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10526U
Remove the depleted battery.
When removing the cover, if the
battery cannot be seen due to the
electronic key module attaching to
the upper cover, remove the elec-
tronic key module from the cover
so that the battery is visible as
shown in the illustration.
Use an appropriate sized flathead
screwdriver when removing the
battery.
Insert a new battery with the “+” terminal facing up.
When installing, reverse the steps listed.
■Use a CR1620 (vehicles without a sm art key system) or CR2032 (vehicles
with a smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
●The smart key system (if equipped) and wireless remote control will not
function properly.
● The operational range will be reduced.
3
4

3766-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10526U
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

3776-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10526U

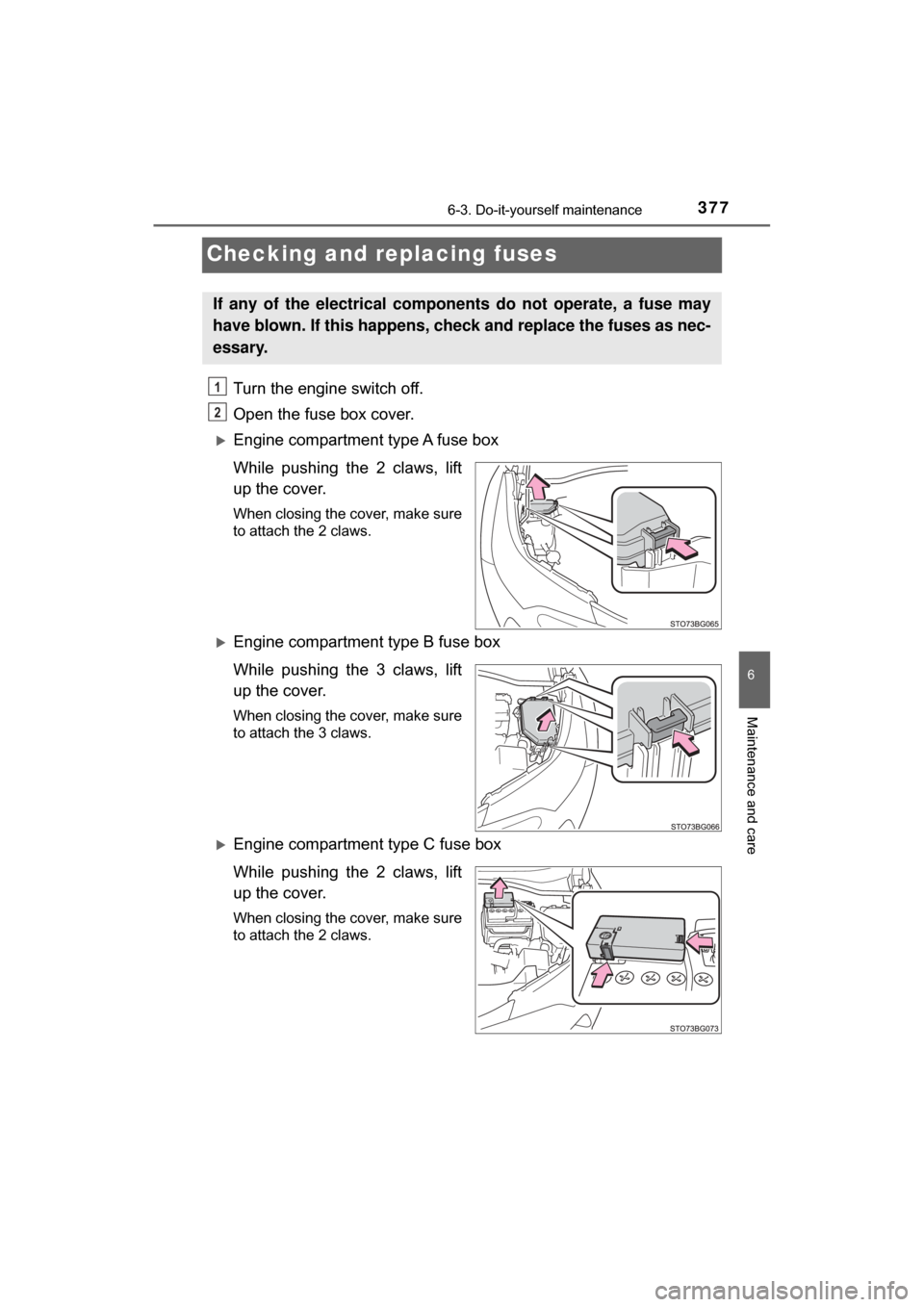

Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
Engine compartment type A fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make sure
to attach the 2 claws.
Engine compartment type B fuse box
While pushing the 3 claws, lift
up the cover.
When closing the cover, make sure
to attach the 3 claws.
Engine compartment type C fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make sure
to attach the 2 claws.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

3786-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10526U
Left side instrument panel
Remove the lid.
Make sure to press the claw during
removal or installation.
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
3

3796-3. Do-it-yourself maintenance
6
Maintenance and care
C-HR_OM_USA_OM10526U
Check if the fuse is blown.Normal fuse
Blown fuse
Except for type E:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact your Toyota dealer.
4
Ty p e AType B
Ty p e CType D
Ty p e E

3806-3. Do-it-yourself maintenance
C-HR_OM_USA_OM10526U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 381)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
