Page 3 of 48
1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6-7
Light control-Instrument cluster 9
Smart Key system
1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18-22
Auxiliary storage 24
Blind Spot Monitor with Rear Cross
5 S B G m D " M F S U # 4 . X 3 $ 5 "
Brake hold feature 11
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 24
Drive modes 15
Electric parking brake 11
Lights
1 & turn signals 12
Multi-Information Display (MID)1 15
Power outlet 14
Rear view monitor system 25
Seat adjustments-Front 13
Seat heaters 16
Seats-Folding rear 13
Seats-Head restraints 13
Steering wheel switches &
U F M F Q I P O F D P O U S P M T # M V F U P P U I
®
Tilt & telescopic steering wheel 10
TRAC/VSC OFF switch 24
USB/AUX port 25
Windows-Automatic power 14
Windshield wipers & washers 12
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
" V U P N B U J D ) J H I # F B N T " ) #
Full-Speed Range Dynamic Radar
$ S V J T F $ P O U S P M % 3 $ $
Lane Departure Alert with Steering
" T T J T U G V O D U J P O - % " X 4 "
Pre-Collision System with Pedestrian
% F U F D U J P O G V O D U J P O 1 $ 4 X 1 %
Quick overview-
Toyota Safety Sense
™ 1 5 4 4 1
26
Sensors 27
BLUETOOTH® DEVICE
PAIRING SECTION 42-44 Doors-Child safety locks 37
Floor mat installation 41
Seat belts 37
Seat belts-Shoulder belt anchor 37
Spare tire & tools 39
Star Safety System
TM 40-41
Tire Pressure Monitoring
X B S O J O H
4 Z T U F N 5 1 . 4
Page 20 of 48
18
FEATURES & OPERATIONS
CAUTION:
DISPLAY AUDIO
Settings Press this button to access function settings to customize your audio
system.
a. Language, system volume, Equalizer(EQ) and more can all be adjusted in Settings.
Power/Volume Press to turn radio on/off,
turn to adjust volume.
Tune/Seek These buttons allow you to tune up or down to select radio
station or access a desired track.
Media Press this button to access the Audio screens to select AM/FM/
BT/USB/Aha Audio.
Phone Press this button to access Bluetooth®1 system, register a new
phone or access phone contacts.
Voice command Press to start the voice
command system, press and hold to cancel.
Touch-screen U S E Y O U R l N G E R
to control selected functions.
Certain functions and features of the Display Audio system are not
available or appear differently when the vehicle reaches certain
speeds.
The following items will be deactivated or appear differently when the
vehicle is traveling above approximately 1 MPH.
‡ Album Art and/or radio station logo will display generic icon
‡ Auto Scrolling Button is deactivated for station name and album
descriptions.
The following items will be deactivated or appear differently when the
vehicle is traveling above approximately 5 MPH.
‡ Certain buttons on the audio screen are deactivated
‡ Browse list button is deactivated
‡ Additional Information appears blank and deactivated
‡ Listed information is limited to within five pages
NOTE: Concentrating on the road should always be your first priority while driving. Do
not use the audio system if it will distract you.
1
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is
under license. Other trademarks and trade names are those of their respective owners. The phones on toyota.com have been tested for
Bluetooth® wireless technology compatibility with Toyota vehicles. Performance will vary based on phone software version, coverage
and your wireless carrier.
Audio
Page 24 of 48
22
FEATURES & OPERATIONS
1Android, Google Play, and other marks are trademarks of Google Inc.2iPhone® not included. iPhone and iTunes are registered trademarks of Apple Inc.
Be sure to obey traffic regulations and maintain awareness of road and traffic conditions at all times.
In order to use the Aha® audio system, it is necessary to connect an
iPhone® or Android® phone with the Aha® application installed.
CONNECTING AN ANDROID
©1 PHONE
1. Switch to Aha® mode.
2. Touch “Yes”.
3. Connected Android
® device will be
displayed.
s If there are Android
®1 phones in paired device list, touch one to connect it for Phone and
Audio Player.
s The USB/AUX port is located on the instrument panel, or near the shift knob, etc. The
actual design and port position will differ depending on the vehicle. For details, refer to
vehicle “Owner’s Manual”. CONNECTING AN iPHONE
®2
1. Open the cover of the USB/AUX port and
connect an iPhone using an iPhone cable to
the USB port.
2. Open the Aha application on your phone
and select Aha audio source on the head unit
NOTE: In order to use the Bluetooth® audio system for Aha®, it is necessary to pair an
Android® phone and connect it for Phone and Audio Player. To use Aha® you must have
a data plan for your smartphone (minimum 2GB plan recommended), access to a Wi-Fi
network, or data connectivity through a portable hotspot device.
NOTE: iPhones must use the USB cable. To use Aha®
you must have a data plan for your
smartphone (minimum 2GB plan recommended), access to a Wi-Fi network, or data
connectivity through a portable hotspot device.
NOTE: iPhone®2 cables are not provided with your vehicle. Please use the cables that were
provided with your phone.
AUDIO: CONNECTING FOR AHA®
AUDIO: CONNECTING A PHONE
Page 25 of 48
23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to the Toyota Owner’s Manual for more information.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.
Audio control switches
Multi-Information Display (MID) switches
Microphone
Microphone
Steering wheel switches
& telephone controls (Bluetooth®)
Previous screen
% N T E R S E L E C T
3 E A R C H I T E M
change pages Volume“
” or “” 5 S E T O
adjust volume.
Voice command switch Telephone controls “>>” 5 S E T O S E A R C H W I T H I N T H E
S E L E C T E D A U D I O S O U R C E R A D I O 5 3 " E T C
“MODE” Push to turn
audio ON and select
an audio mode. Push
and hold to
T U R N T H E A U D I O / & &
Page 44 of 48
42
BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.
Page 45 of 48
43

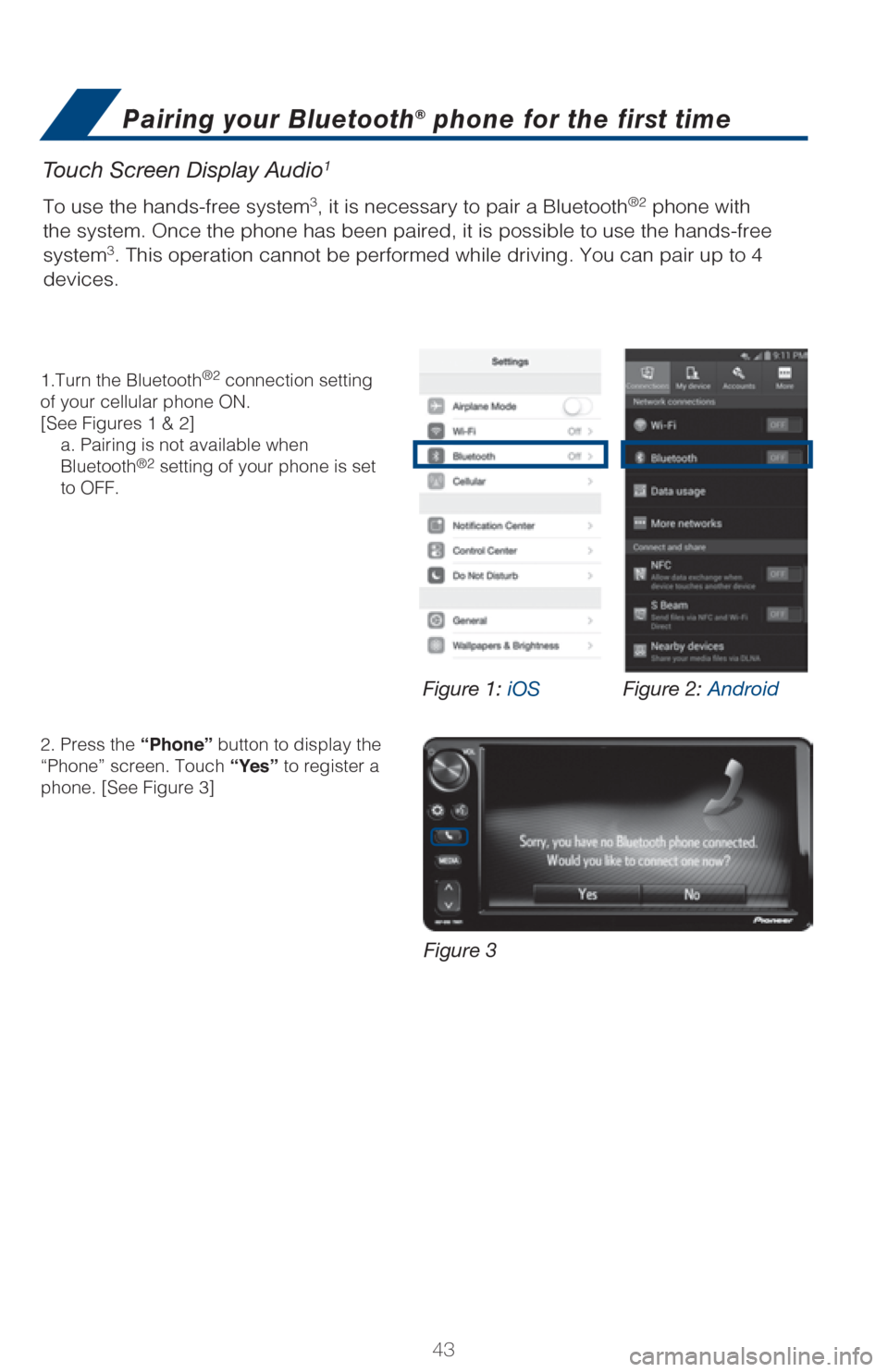

Touch Screen Display Audio1
To use the hands-free system3, it is necessary to pair a Bluetooth®2 phone with
the system. Once the phone has been paired, it is possible to use the hands-free
system
3. This operation cannot be performed while driving. You can pair up to 4
devices.
Pairing your Bluetooth® phone for the first time
1.Turn the Bluetooth®2 connection setting
of your cellular phone ON.
[See Figures 1 & 2]
a. Pairing is not available when
Bluetooth
®2 setting of your phone is set
to OFF.
2. Press the “Phone” button to display the
“Phone” screen. Touch “Yes” to register a
phone. [See Figure 3]
Figure 3 Figure 1:
iOSFigure 2: Android
Page 46 of 48
44

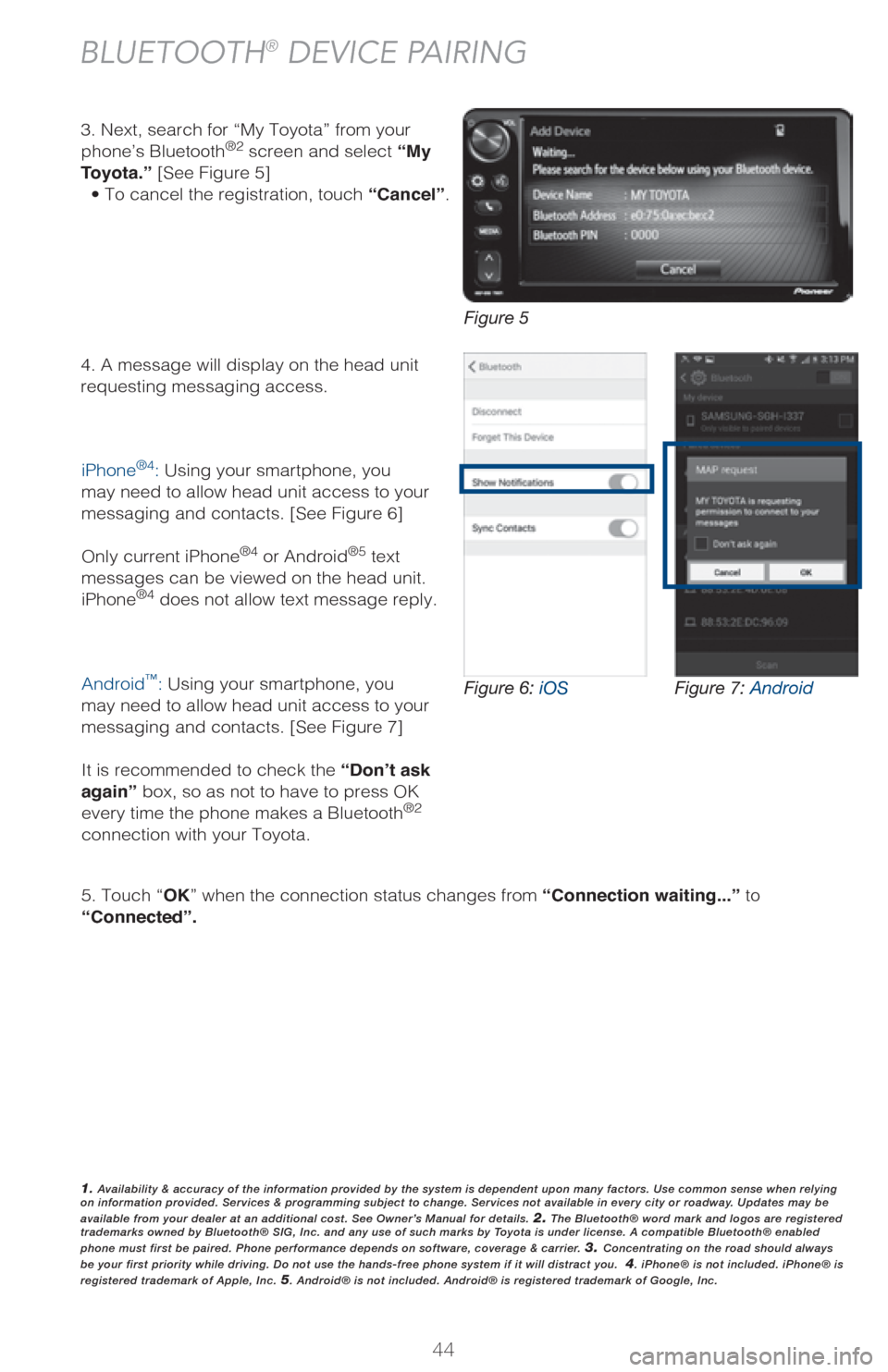

BLUETOOTH® DEVICE PAIRING
4. A message will display on the head unit
requesting messaging access.
5. Touch “OK” when the connection status changes from “Connection waiting...” to
“Connected”.
iPhone®4: Using your smartphone, you
may need to allow head unit access to your
messaging and contacts. [See Figure 6]
Only current iPhone
®4 or Android®5 text
messages can be viewed on the head unit.
iPhone
®4 does not allow text message reply.
Android™: Using your smartphone, you
may need to allow head unit access to your
messaging and contacts. [See Figure 7]
It is recommended to check the ´ ' R Q · W D V N
again” box, so as not to have to press OK
every time the phone makes a Bluetooth
®2
connection with your Toyota. 3. Next, search for “My Toyota” from your
phone’s Bluetooth
®2 screen and select “My
To y o t a . ” [See Figure 5]
t To cancel the registration, touch “Cancel”.
1. Availability & accuracy of the information provided by the system is dependent upon many factors. Use common sense when relying
on information provided. Services & programming subject to change. Services not available in every city or roadway. Updates may be
available from your dealer at an additional cost. See Owner’s Manual for details.
2. The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth® enabled
phone must first be paired. Phone performance depends on software, coverage & carrier.
3. Concentrating on the road should always
be your first priority while driving. Do not use the hands-free phone system if it will distract you. 4. iPhone® is not included. iPhone® is
registered trademark of Apple, Inc. 5. Android® is not included. Android® is registered trademark of Google, Inc.
Figure 6: iOSFigure 7: Android
Figure 5
