coolant capacity TOYOTA C-HR 2022 Owners Manual

7738-1. Specifications
C-HR_HV_OM_Europe_OM10720E
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Cooling system
Capacity*
Gasoline
engine
2ZR-FXE engine
5.4 L (5.7 qt., 4.7 Imp.qt.)
M20A-FXS engine
5.9 L (6.2 qt., 5.2 Imp.qt.)
Power
control unit
2ZR-FXE engine
1.4 L (1.5 qt., 1.3 Imp.qt.)
M20A-FXS engine
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
Make
2ZR-FXE engine
DENSO FC16HR-CY9
M20A-FXS engine
DENSO FC16HR-Q8
Gap
2ZR-FXE engine
0.9 mm (0.035 in.)
M20A-FXS engine
0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.

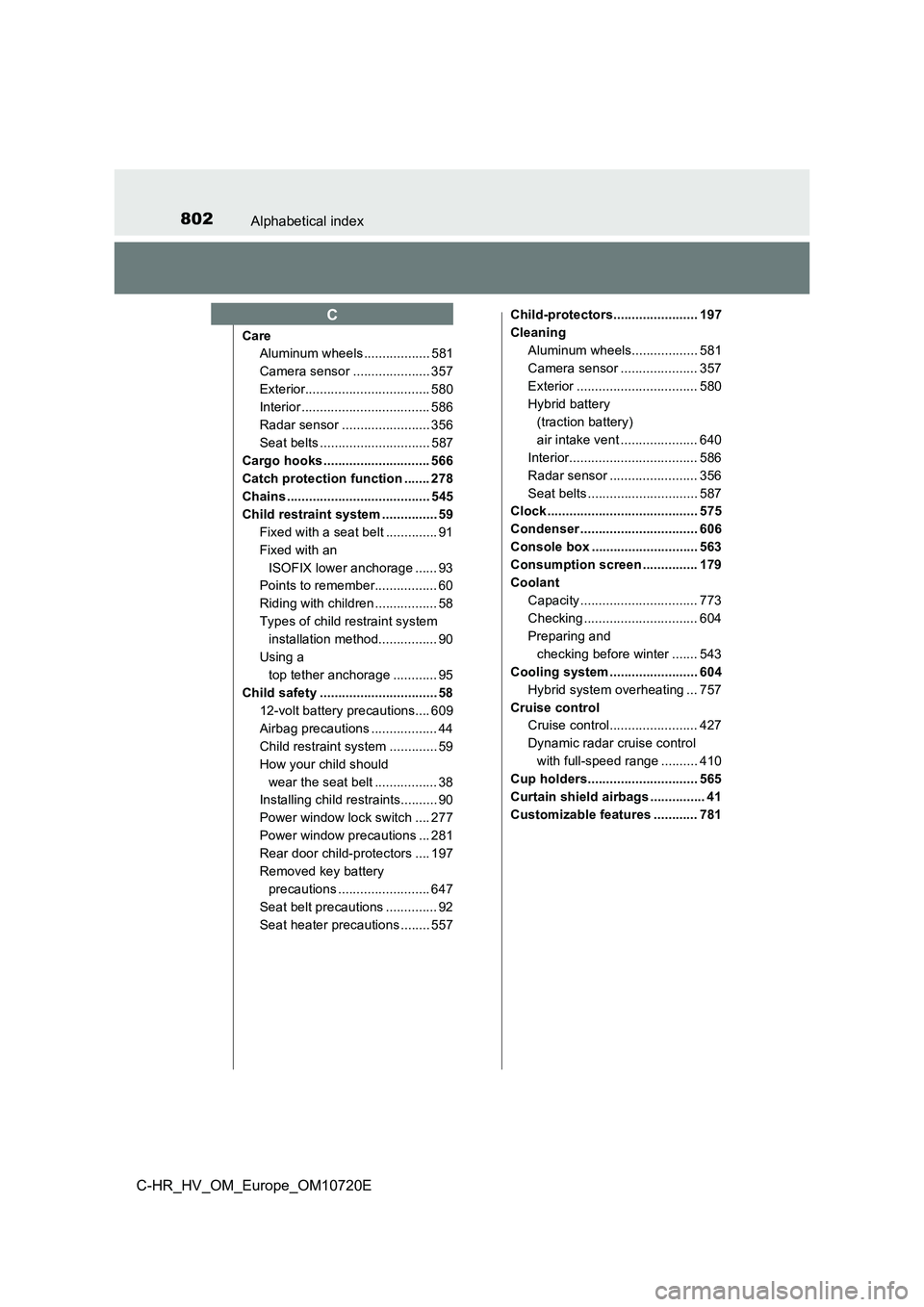

802Alphabetical index
C-HR_HV_OM_Europe_OM10720E
Care
Aluminum wheels .................. 581
Camera sensor ..................... 357
Exterior.................................. 580
Interior ................................... 586
Radar sensor ........................ 356
Seat belts .............................. 587
Cargo hooks ............................. 566
Catch protection function ....... 278
Chains ....................................... 545
Child restraint system ............... 59
Fixed with a seat belt .............. 91
Fixed with an
ISOFIX lower anchorage ...... 93
Points to remember................. 60
Riding with children ................. 58
Types of child restraint system
installation method................ 90
Using a
top tether anchorage ............ 95
Child safety ................................ 58
12-volt battery precautions.... 609
Airbag precautions .................. 44
Child restraint system ............. 59
How your child should
wear the seat belt ................. 38
Installing child restraints.......... 90
Power window lock switch .... 277
Power window precautions ... 281
Rear door child-protectors .... 197
Removed key battery
precautions ......................... 647
Seat belt precautions .............. 92
Seat heater precautions ........ 557
Child-protectors....................... 197
Cleaning
Aluminum wheels.................. 581
Camera sensor ..................... 357
Exterior ................................. 580
Hybrid battery
(traction battery)
air intake vent ..................... 640
Interior................................... 586
Radar sensor ........................ 356
Seat belts .............................. 587
Clock ......................................... 575
Condenser ................................ 606
Console box ............................. 563
Consumption screen ............... 179
Coolant
Capacity ................................ 773
Checking ............................... 604
Preparing and
checking before winter ....... 543
Cooling system ........................ 604
Hybrid system overheating ... 757
Cruise control
Cruise control........................ 427
Dynamic radar cruise control
with full-speed range .......... 410
Cup holders.............................. 565
Curtain shield airbags ............... 41
Customizable features ............ 781
C

805Alphabetical index
C-HR_HV_OM_Europe_OM10720E
Engine coolant
Capacity ................................ 773
Checking ............................... 604
Preparing and
checking before winter........ 543
Warning light ......................... 686
Engine oil
Capacity ................................ 770
Checking ............................... 601
Oil pressure warning light ..... 681
Preparing and checking
before winter....................... 543
Engine switch........................... 305
Auto power off function ......... 307
Changing the
power switch modes ........... 306
If your vehicle has to be
stopped in an emergency ... 671
Starting the hybrid system .... 305
EPS
(Electronic Power Steering)
Function ................................ 533
Warning light ......................... 682
EV drive mode .......................... 312
EV indicator ...................... 120, 163
Exhaust gas precautions .......... 54
Extended headlight lighting
system .................................... 334
First-aid kit storage space ...... 569
Flat tire.............................. 699, 729
Floor mats .................................. 32
Fluid
Brake .................................... 775
Transmission ........................ 774
Washer ................................. 611
Fog lights
Replacing
light bulbs ........... 655, 662, 666
Switch ................................... 343
Wattage ................................ 778
Front doors .............................. 193
Front fog lights
Replacing light bulbs..... 655, 666
Switch ................................... 343
Wattage ................................ 778
Front personal lights ............... 560
Wattage ................................ 778
Front position lights
Light switch ........................... 333
Replacing light bulbs............. 666
Front seats ............................... 262
Adjustment ............................ 262
Cleaning................................ 586
Correct driving posture ........... 34
Head restraints ..................... 266
Seat heaters ......................... 557
F

806Alphabetical index
C-HR_HV_OM_Europe_OM10720E
Front turn signal lights
Replacing light bulbs ..... 657, 666
Turn signal lever ................... 324
Wattage................................. 778
Fuel
Capacity ................................ 769
Emergency
shut off system ................... 124
Fuel gauge ............................ 166
Gas station information ......... 816
Information ............................ 779
Refueling ............................... 350
Type ...................................... 769
Warning light ......................... 685
Fuel filler door .......................... 352
Opener .................................. 352
Refueling ............................... 350
When the fuel filler door
cannot be opened ............... 353
Fuses ........................................ 648
Gas station information .......... 816
Gauges...................................... 166
Glove box ................................. 563
GPF (Gasoline Particulate
Filter) system ......................... 531
Grocery bag hooks .................. 566
Hands-free system
(for cellular phone)*
Head restraints ........................ 266
Headlight cleaners................... 345
Headlights ................................ 333
Automatic headlight
leveling ............................... 337
Automatic High Beam ........... 338
Extended headlight lighting
system ................................ 334
Light switch ........................... 333
Manual headlight leveling
dial...................................... 335
Replacing light bulbs............. 666
Heated steering wheel............. 557
Heaters
Automatic air conditioning
system ................................ 548
Heated steering wheel .......... 557
Outside rear view mirrors...... 552
Seat heaters ......................... 557
High coolant temperature
warning light .......................... 686
High mounted stoplight
Replacing .............................. 666
Hill-start assist control............ 533
Hood ......................................... 596
G
H

810Alphabetical index
C-HR_HV_OM_Europe_OM10720E
Parking assist sensors
S-IPA (Simple Intelligent
Parking Assist System)....... 492
Toyota parking
assist-sensor ...................... 456
Parking brake ........................... 325
Parking brake engaged
warning buzzer ................... 328
Warning light ................. 684, 685
Parking Support Brake
function (rear-crossing
vehicles) ................................. 489
Parking Support Brake
function (static objects) ........ 485
PCS (Pre-Collision System)
Enabling/disabling the
system ................................ 375
Function ................................ 369
Warning light ......................... 684
Personal lights ......................... 560
Wattage................................. 778
Power control unit coolant
Capacity ................................ 773
Checking ............................... 604
Preparing and checking
before winter....................... 543
Radiator ................................ 606
Power outlet ............................. 576
Power steering (Electric
Power Steering system) ....... 533
Warning light ......................... 682
Power switch............................ 305
Auto power off function ......... 307
Changing the
power switch modes........... 306
If your vehicle has to be
stopped in an emergency ... 671
Starting the
hybrid system ..................... 305
Power windows
Catch protection function ...... 278
Door lock
linked window operation ..... 280
Jam protection function......... 278
Operation .............................. 277
Window lock switch............... 277
Pre-Collision System (PCS)
Enabling/disabling the
system ................................ 375
Function ................................ 369
Warning light ......................... 684
P
