TOYOTA CAMRY 1997 Owner's Manual

17
SETTING THE SYSTEM
1. Turn the ignition key to the LOCKº
position and remove it.
2. Have all passengers get out of the ve-
hicle.
3. Close and lock all the doors, trunk and
hood.
The indicator light will come on when all
the doors, trunk and hood are clsoed and
locked.As the doors are locked, the syste, will
give you a preparation time of 30 seconds
before the setting, during which the doors,
trunk and hood may be opened to prepare
for the setting.
Be careful not to unlock any door with the
key or wireless remote control transmitter
during setting. This will cancel the system.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indica-
tor light will flash to show the system is
set. If any of the doors, trunck or hood is
open at that time, the setting is interrupted
until it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the insode will activate the system.WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm and cut the
starter circuit under the following condi-
tions:

If any of the doors is unlocked or if the
trunk or hood is forcibly opened without
the key or wireless remote control trans-
mitter

If the battery terminal is disconnected
and then reconnected
After one minute, the alarm will automati-
cally stop with the starter cirucit cut kept
on.
Reactivating the alarm
Once set, the system automatically resets
the alarm each time all the doors, trunk
and hood are closed after the alarm stops.
The alarm will be activated again under
the following conditiions:

If any of the doors, trunk or hood is
opened

If the battery terminal is disconnected
and then reconnected
ProCarManuals.com

18
Stopping the alarm
Turn the ignition key from the LOCKº to
ACCº position . The alarm will be stopped
with the starter circuit kep on. Stopping
the arm in this manner will keep the alarm
from being reactivated when any of the
doors, trunk or hood is opened.
Interrupting the setting
With the system set, the trunk can be
opened with the key without activating or
cancelling the system. While it is open,
the doors and hood may be opened in
addition. However, when the battery ter-
minal is disconnected and then recon-
nected, the system is activated.
To resume the setting, close and lock all
the doors, trunk and hood. The trunk must
be closed with the key removed.
CANCELLING THE SYSTEM
Unlock either front door with the key or
wireless remote control transmitter. This
cancels the system completely and the
starter circuit cut will be cancelled at once.INDICATOR LIGHT
The indicator light gives the following
three indications.
FLASHINGÐThe system is set. You
need the key or wireless remote control
transmitter to open the doors, trunk and
hood.
ONÐThe system will automatically be set
when the time comes. The doors, trunk
and hood may be opened without a key or
wireless remote control tranmsitter.
OFFÐThe system is inactive. You may
open any door, trunk and hood.TESTING THE SYSTEM
1. Open all the windows
2. Set the system as described above.
The doors should be locked with the
key or wireless remote control trans-
mitter. Be sure to wait until the indica-
tor light starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system by unlocking any of
the doors with the key or wireless re-
mote control transmitter.
5. Repeart this operation for the other
doors, trunk and hood. When testing
on the hood, also check that the sys-
tem is activated when the battery ter-
minal is disconnected and then recon-
nected.
If the system does not work properly, have
it checked by your Toyota dealer.
ProCarManuals.com

19
1. To open the fuel filler door, pull the
lever up.
CAUTION!

Do not smoke, cause sparks or al-
low open flames when refuelling.
The fumes are flammable.

When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before remov-
ing it. after removing the cap, hang
it on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a click.
Except 5S-FE engined vehicles with
manual transmissionÐ
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION!

Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.

Use only a genuine Toyota fuel tank
cap for replacement. It has a built in
check valve to reduce fuel tank vac-
uum.
Fuel tank cap
ProCarManuals.com

20
Sliding operation
Tilting operationTo operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ONº position. However,
if all the doors are closed, it works for 45
seconds even after the ignition switch is
turned off. It stops working when any of
the doors are opened.
Sun shade operationÐ
The sun shade can be opened or closed
by hand.
Sliding operationÐ
To open: Push the switch on the SLIDE
OPENº side.
The roof will fully open. To stop the roof
partway, push the switch on either the
SLIDE OPENº or TILT UPº side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch on the ºTILT UPº
side.
As a precaution when closing, the roof
stops at the three-quarters closed posi-
tion before fully closing. Therefore, re-
lease the switch and then push it again to
close it completely.Tilting operationÐ
To tilt up: Push the switch on the TILT UPº
side.
To lower: Push the switch on the ºSLIDE
OPENº side.
You may stop the moon roof at any de-
sired position. The roof will move while the
switch is being pushed and stop when re-
leased.
CAUTION!
To avoid serious personal injury, you
must do the following.

When the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an ac-
cident.
Electric moon roof
ProCarManuals.com

21

Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof . If some-
one's neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When any-
one closes the roof, first make sure
it is safe to do so.

Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can become in-
volved in serious accidents.

Never sit on top of the vehicle
around the roof opening.
ProCarManuals.com

Part 1SeatsFront seatsÐ
ÐSeat adjustment precautions
23
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1-3
Seats, Seat belts, Steering
wheel and Mirrors

Seats

Front seats

Fold-down rear seat

Head restraints

Seat belts

SRS airbags

Child restraint

Tilt steering wheel

Outside rear view mirrors

Anti-glare inside rear view
mirror

Sun visors
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belt provided.
CAUTION!

Do not drive with the occupants not
properly seated such as sitting on
top of a folded-down seatback, or
in the luggage compartment. Per-
sons not properly seated and not
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a colli-
sion.

During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.Adjust the driver's seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of the
driver.
CAUTION!

Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.

When adjusting the seat, be careful
not to hit the seat against a passen-
ger or luggage.

After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.

After adjusting the seatback, exert
body pressure to make sure it is
locked in position.

Do not put objects under the seats
as they may interfere with the seat-
lock mechanism or unexpectedly
push up the seat position adjusting
lever; the seat may suddenly move,
causing the driver to lose control of
the vehicle.
ProCarManuals.com

24

While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch
and injure your hands or fingers.1. SEAT POSITION ADJUSTING LE-
VER
Pull the lever up. Then slide the seat to
the desired position with slight body
pressure and release lever.
2. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION!
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection when the driver and
the passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore,
in the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
ÐAdjusting front seats
(manual seat)
ProCarManuals.com

25
3. SEAT CUSHION HEIGHT ADJUST-
ING KNOB
Turn the knob either way.
4. SEAT LUMBAR SUPPORT AD-
JUSTING LEVER
Pull the lever upward or downward.1. SEAT POSITION AND SEAT CUSH-
ION HEIGHT ADJUSTING SWITCH
More the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats. It might interfere with the seat-lock
mechanism.
2. SEATBACK ANGLE ADJUSTING
SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
ÐAdjusting front seats
(power seat)
ProCarManuals.com

26

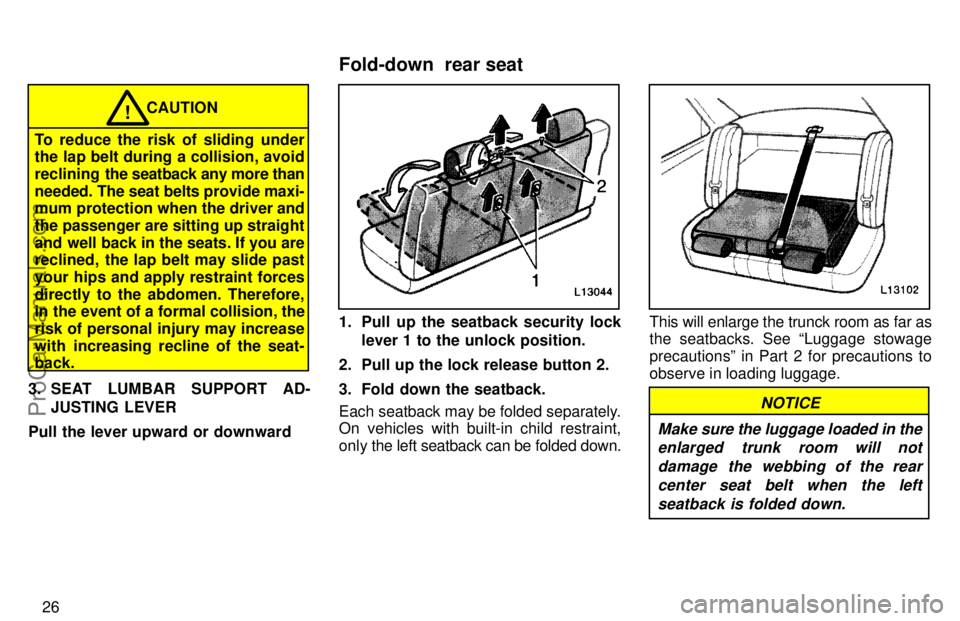

CAUTION!
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection when the driver and
the passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore,
in the event of a formal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
3. SEAT LUMBAR SUPPORT AD-
JUSTING LEVER
Pull the lever upward or downward
1. Pull up the seatback security lock
lever 1 to the unlock position.
2. Pull up the lock release button 2.
3. Fold down the seatback.
Each seatback may be folded separately.
On vehicles with built-in child restraint,
only the left seatback can be folded down.This will enlarge the trunck room as far as
the seatbacks. See Luggage stowage
precautionsº in Part 2 for precautions to
observe in loading luggage.
NOTICE
Make sure the luggage loaded in the
enlarged trunk room will not
damage the webbing of the rear
center seat belt when the left
seatback is folded down.
Fold-down rear seat
ProCarManuals.com

27

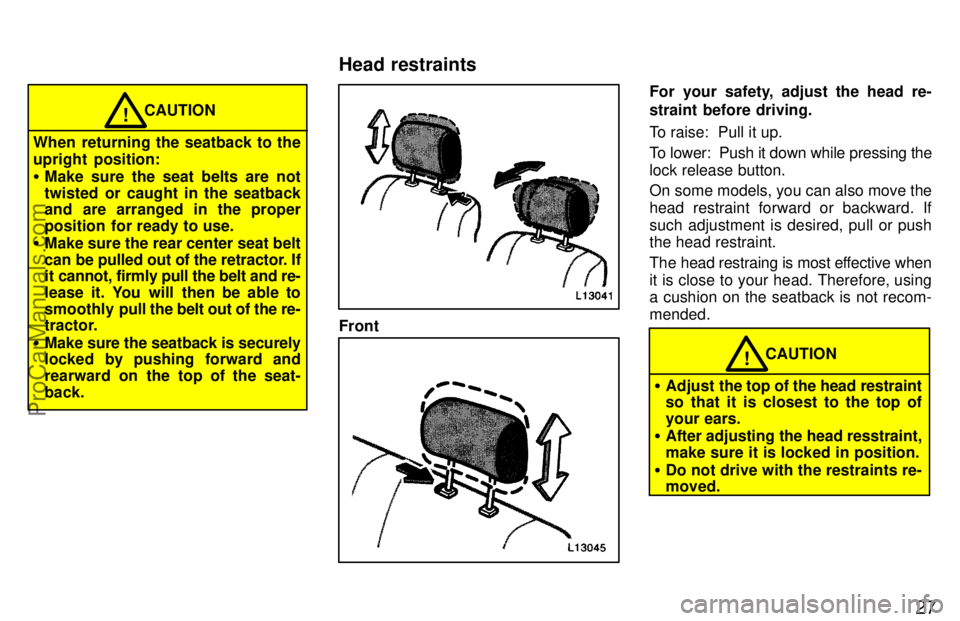

CAUTION!
When returning the seatback to the
upright position:

Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper
position for ready to use.

Make sure the rear center seat belt
can be pulled out of the retractor. If
it cannot, firmly pull the belt and re-
lease it. You will then be able to
smoothly pull the belt out of the re-
tractor.

Make sure the seatback is securely
locked by pushing forward and
rearward on the top of the seat-
back.
Front
For your safety, adjust the head re-
straint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
On some models, you can also move the
head restraint forward or backward. If
such adjustment is desired, pull or push
the head restraint.
The head restraing is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION!

Adjust the top of the head restraint
so that it is closest to the top of
your ears.

After adjusting the head resstraint,
make sure it is locked in position.

Do not drive with the restraints re-
moved.
Head restraints
ProCarManuals.com
