TOYOTA CAMRY 1999 Service Repair Manual

MX±8
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE UNIT
1809 Author: Date:
28. REMOVE TRANSAXLE
Lower the engine left side and remove the transaxle from the
engine.
HINT:
At the time of installation, please refer to the following items.

Align the input shaft with the clutch disc and install the
transaxle to the engine.

Temporarily tighten the transaxle mounting bolts.

MX051±01
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE UNIT
MX±9
1810 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page MX±4).
HINT:
After installation, check and inspect items as follows.

Front wheel alignment (See page SA±4).

Do the road test.

MX052±02

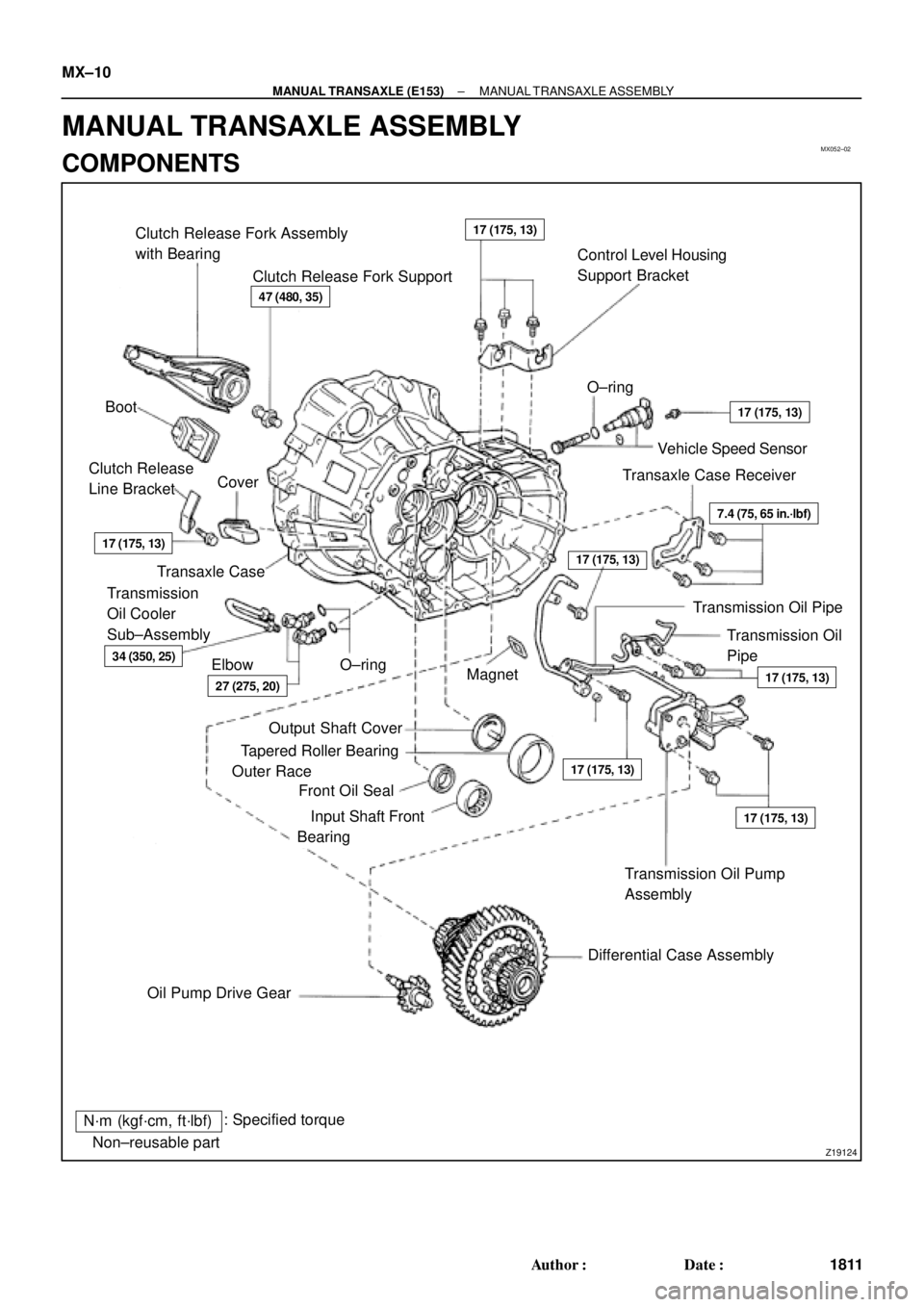

Z19124
Clutch Release Fork Assembly
with Bearing
Clutch Release Fork SupportControl Level Housing
Support Bracket
BootO±ring
Vehicle Speed Sensor
Transaxle Case Receiver Clutch Release
Line BracketCover
Transaxle Case
Transmission Oil
Pipe Transmission
Oil Cooler
Sub±Assembly
ElbowO±ring
Magnet

Transmission Oil Pump
Assembly
Differential Case Assembly
Oil Pump Drive GearOutput Shaft Cover
Tapered Roller Bearing
Outer Race
Front Oil Seal
Input Shaft Front
Bearing
N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part
47 (480, 35)
17 (175, 13)
17 (175, 13)
17 (175, 13)
17 (175, 13)
17 (175, 13)
7.4 (75, 65 in.´lbf)
17 (175, 13)
27 (275, 20)
34 (350, 25)
17 (175, 13)
Transmission Oil Pipe MX±10
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE ASSEMBLY
1811 Author: Date:

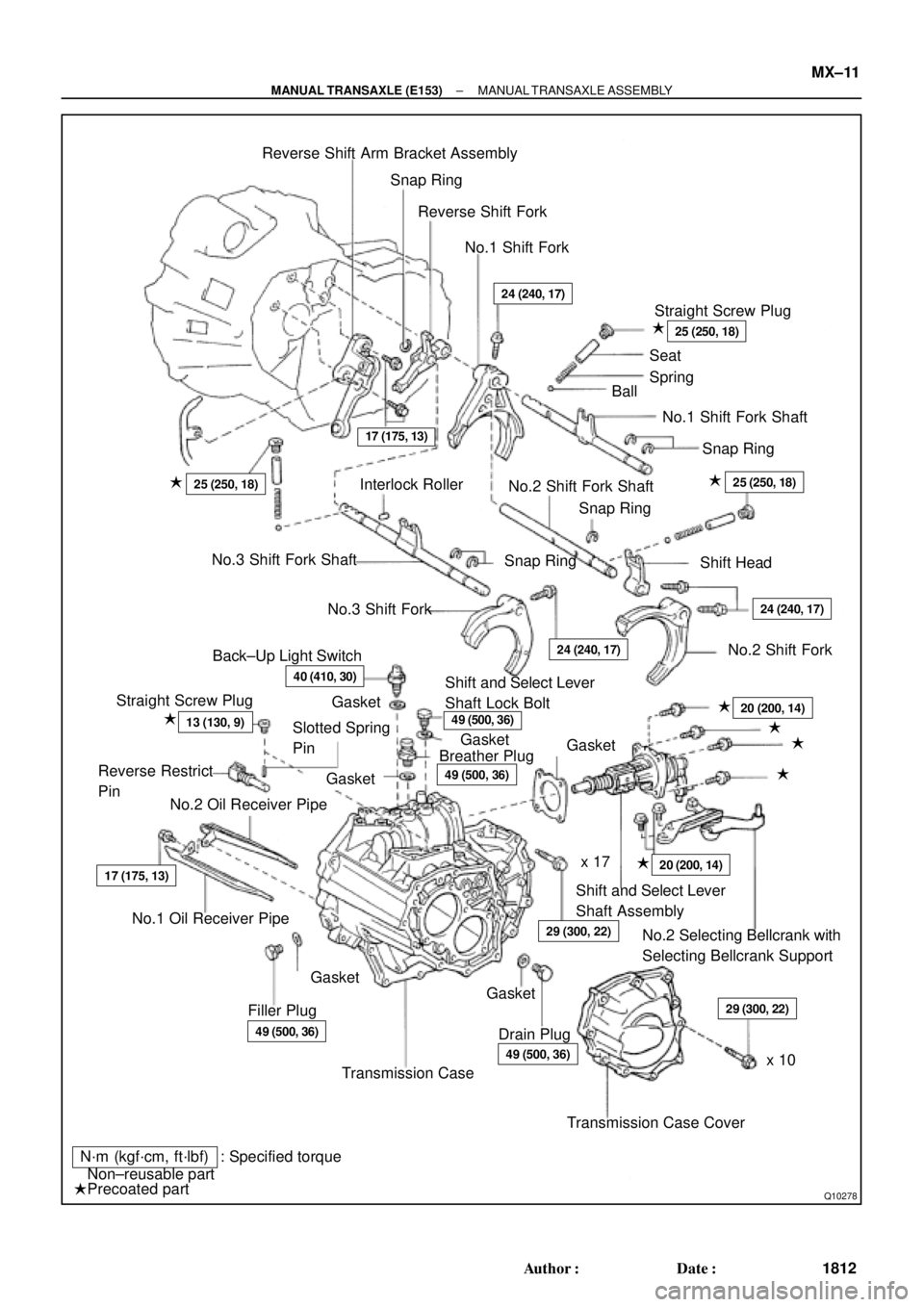

MANUAL TRANSAXLE ASSEMBLY
COMPONENTS

Q10278
Reverse Shift Arm Bracket Assembly
Snap Ring
Reverse Shift Fork
No.1 Shift Fork
Straight Screw Plug
Seat
Spring
Ball
No.1 Shift Fork Shaft
Snap Ring


24 (240, 17)
25 (250, 18)
25 (250, 18)

Interlock Roller
No.2 Shift Fork Shaft
Snap Ring
Shift Head25 (250, 18)

No.3 Shift Fork Shaft
Snap Ring
No.3 Shift Fork
24 (240, 17)
24 (240, 17)
No.2 Shift Fork
Back±Up Light Switch
40 (410, 30)
Straight Screw Plug
13 (130, 9)Slotted Spring
Pin
Reverse Restrict
Pin
No.2 Oil Receiver PipeShift and Select Lever
Shaft Lock Bolt
Breather Plug
49 (500, 36)
20 (200, 14)
29 (300, 22)








20 (200, 14)x 17
Shift and Select Lever
Shaft Assembly
No.2 Selecting Bellcrank with
Selecting Bellcrank Support
29 (300, 22)
x 10
Transmission Case Cover
Drain Plug49 (500, 36)
Transmission Case Filler Plug
49 (500, 36)
No.1 Oil Receiver Pipe
17 (175, 13)
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part

Precoated partGasket Gasket
Gasket
Gasket
Gasket



49 (500, 36)
Gasket
17 (175, 13)
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE ASSEMBLY
MX±11
1812 Author: Date:

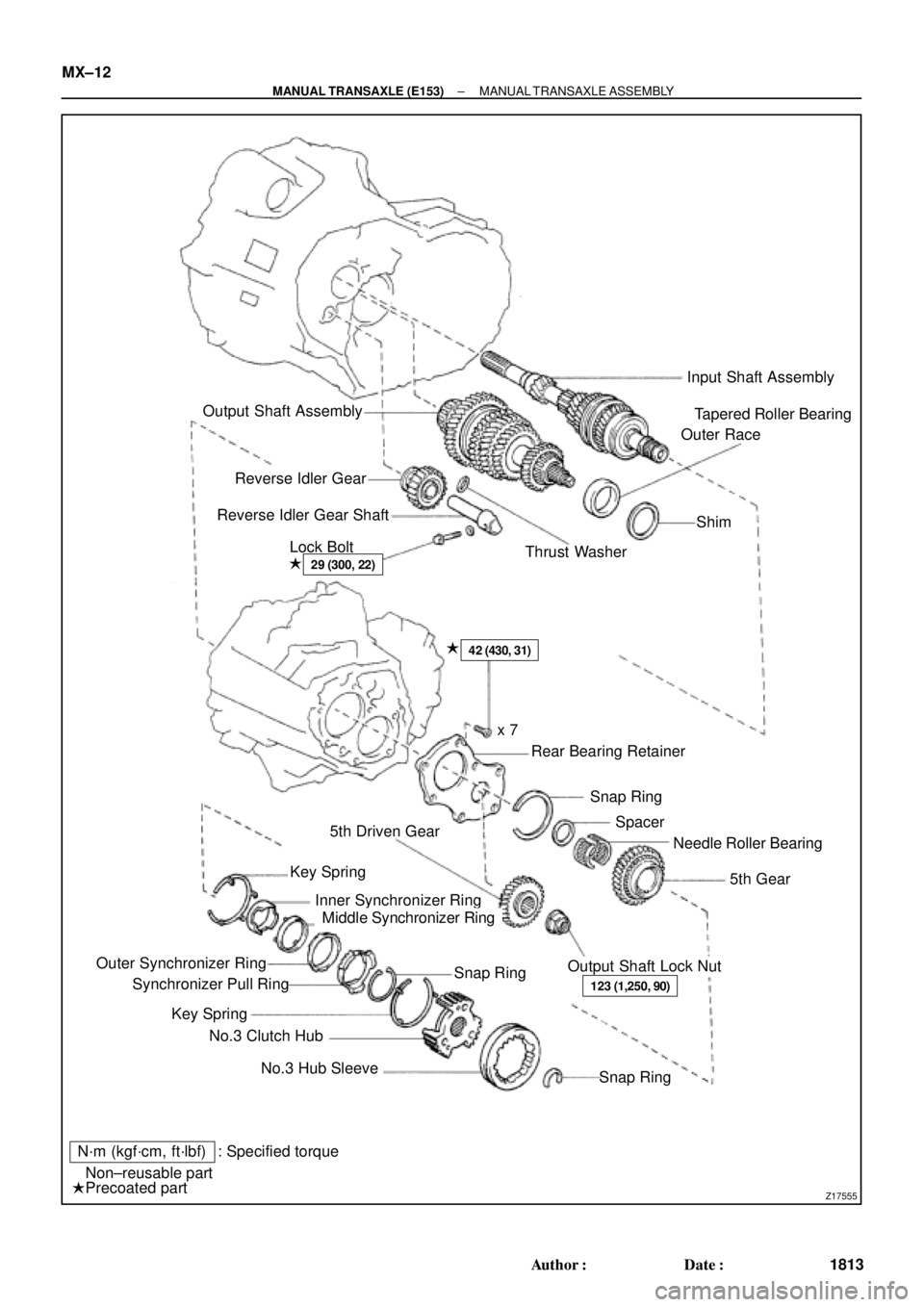

Z17555
Input Shaft Assembly
Output Shaft Assembly
Tapered Roller Bearing
Outer Race
Shim
Thrust Washer Reverse Idler Gear
Reverse Idler Gear Shaft
Lock Bolt
29 (300, 22)

42 (430, 31)
Rear Bearing Retainer
Snap Ring
Spacer
Needle Roller Bearing
5th Gear 5th Driven Gear
Key Spring
Inner Synchronizer Ring
Synchronizer Pull Ring
Key Spring Outer Synchronizer Ring
Middle Synchronizer Ring
Snap Ring
Snap Ring
Output Shaft Lock Nut
123 (1,250, 90)
No.3 Clutch Hub
No.3 Hub Sleeve
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part

Precoated part

 x 7 MX±12
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE ASSEMBLY
1813 Author: Date:

MX053±02
Q05816
FIPG
Q00449
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE ASSEMBLY
MX±13
1814 Author: Date:
DISASSEMBLY
1. REMOVE RELEASE FORK AND BEARING
2. REMOVE BACK±UP LIGHT SWITCH WITH GASKET
Torque: 40 N´m (410 kgf´cm, 30 ft´lbf)
3. REMOVE BOLT AND VEHICLE SPEED SENSOR
Torque: 17 N´m (175 kgf´cm, 13 ft´lbf)
4. REMOVE NO.2 SELECTING BELLCRANK WITH SE-
LECTING BELLCRANK SUPPORT
Remove the 2 bolts and No.2 selecting bellcrank with the se-
lecting bellcrank support.
Sealant:
Part No. 08833 ± 00080, THREE BOND 1344, LOCTITE
242 or equivalent
Torque: 20 N´m (200 kgf´cm, 14 ft´lbf)
5. REMOVE SHIFT AND SELECT LEVER SHAFT LOCK
BOLT WITH GASKET
Torque: 49 N´m (500 kgf´cm, 36 ft´lbf)
6. REMOVE SHIFT AND SELECT LEVER SHAFT AS-
SEMBLY WITH GASKET
Remove the 4 bolts, shift and select lever shaft assembly and
gasket.
Sealant:
Part No. 08833 ± 00080, THREE BOND 1344, LOCTITE
242 or equivalent
Torque: 20 N´m (200 kgf´cm, 14 ft´lbf)
7. REMOVE TRANSMISSION CASE COVER
Remove the 10 bolts and transmission case cover.
FIPG:
Part No. 08826 ± 00090, THREE BOND 1281 or equiva-
lent
Torque: 29 N´m (300 kgf´cm, 22 ft´lbf)
8. REMOVE BREATHER PLUG WITH GASKET
Torque: 49 N´m (500 kgf´cm, 36 ft´lbf)
9. REMOVE OUTPUT SHAFT LOCK NUT
(a) Unstake the lock nut.
(b) Engage the gear double meshing.
(c) Remove the lock nut.
Torque: 123 N´m (1,250 kgf´cm, 90 ft´lbf)
(d) Disengage the gear double meshing.
10. REMOVE NO.3 HUB SLEEVE AND NO.3 SHIFT FORK
(a) Remove the No.3 shift fork set bolt.
Torque: 24 N´m (240 kgf´cm, 17 ft´lbf)
(b) Remove the No.3 hub sleeve and No.3 shift fork.

Q05849
SST
Z01304
Z01306
Q00299
MX±14
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE ASSEMBLY
1815 Author: Date:
11. REMOVE 5TH DRIVEN GEAR
Using SST, remove the 5th driven gear.
SST 09950±30010
12. MEASURE 5TH GEAR THRUST CLEARANCE AND
RADIAL CLEARANCE
(a) Using a dial indicator, measure the thrust clearance.
Standard clearance:
0.10 ± 0.57 mm (0.0039 ± 0.0224 in.)
Maximum clearance:
0.65 mm (0.0256 in.)
(b) Using a dial indicator, measure the radial clearance.
Standard clearance:
0.009 ± 0.050 mm (0.0004 ± 0.0020 in.)
Maximum clearance:
0.070 mm (0.0028 in.)
13. REMOVE NO.3 CLUTCH HUB AND 5TH GEAR
(a) Using 2 screwdrivers and a hammer, tap out the snap
ring.
HINT:
At the time of reassembly, please refer to the following item.
Select a snap ring that allows the minimum axial play.
MarkThickness mm (in.)MarkThickness mm (in.)
a1.75 (0.0689)f2.00 (0.0787)
b1.80 (0.0709)g2.05 (0.0807)
c1.85 (0.0729)h2.10 (0.0827)
d1.90 (0.0748)j2.15 (0.0847)
e1.95 (0.0768)±±

Z01308
SST
Q06190
Q01615
Q00056
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE ASSEMBLY
MX±15
1816 Author: Date:
(b) Using SST, remove the No.3 clutch hub with the synchro-
nizer ring and 5th gear.
SST 09950±30010
14. REMOVE NEEDLE ROLLER BEARING AND SPACER
15. REMOVE REAR BEARING RETAINER
Using a torx socket wrench (T45), remove the 7 torx screws and
rear bearing retainer.
Sealant:
Part No. 08833 ± 00080, THREE BOND 1344, LOCTITE
242 or equivalent
Torque: 42 N´m (430 kgf´cm, 31 ft´lbf)
16. REMOVE SNAP RING
(a) Using a snap ring expander, remove the input shaft rear
bearing snap ring.
(b) Using 2 screwdrivers and a hammer, remove the 2 snap
rings.
17. REMOVE STRAIGHT SCREW PLUG, SEAT, SPRING
AND LOCKING BALL
(a) Using a hexagon wrench (6 mm), remove the plug.
Sealant:
Part No. 08833 ± 00080, THREE BOND 1344, LOCTITE
242 or equivalent
Torque: 25 N´m (250 kgf´cm, 18 ft´lbf)
(b) Using a magnetic finger, remove the seat, spring and
locking ball.
18. REMOVE REVERSE IDLER GEAR SHAFT LOCK BOLT
Sealant:
Part No. 08833 ± 00080, THREE BOND 1344, LOCTITE
242 or equivalent
Torque: 29 N´m (300 kgf´cm, 22 ft´lbf)

Q05815
FIPG
MT0669
MT0693
SST
Q06375
Z17557
Matchmarks MX±16
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE ASSEMBLY
1817 Author: Date:
19. REMOVE TRANSMISSION CASE
Remove the 17 bolts and tap the case with a plastic hammer.
FIPG:
Part No. 08826 ± 00090, THREE BOND 1281 or equiva-
lent
Torque: 29 N´m (300 kgf´cm, 22 ft´lbf)
20. REMOVE SHIM
HINT:
At the time of reassembly, please refer to the following item.
Install the previously selected shim by adjusting output shaft
preload.
(See page MX±22)
21. REMOVE OUTPUT SHAFT REAR TAPER ROLLER
BEARING OUTER RACE
Using SST and a hammer, remove the output shaft rear taper
roller bearing outer race.
SST 09316±60011 (09316±00011)
22. REMOVE TRANSMISSION OIL PIPE
(a) Remove the gasket from the oil pipe.
(b) Remove the 2 bolts and oil pipe.
Torque: 17 N´m (175 kgf´cm, 13 ft´lbf)
23. REMOVE REVERSE SHIFT ARM BRACKET AS-
SEMBLY
Remove the bolt and pull off the reverse shift arm and bracket.
Torque: 17 N´m (175 kgf´cm, 13 ft´lbf)
24. REMOVE REVERSE IDLER GEAR AND SHAFT
Pull out the shaft, and remove the reverse idler gear and thrust
washer.
HINT:
At the time of reassembly, please refer to the following item.
Align the matchmarks, as shown.

Q01614
Q08124
Q08125
Q08126
Z00182
± MANUAL TRANSAXLE (E153)MANUAL TRANSAXLE ASSEMBLY
MX±17
1818 Author: Date:
25. REMOVE STRAIGHT SCREW PLUG, LOCKING BALL
AND SPRING
(a) Using a hexagon wrench (6 mm), remove the 2 plugs.
Sealant:
Part No. 08833 ± 00080, THREE BOND 1344, LOCTITE
242 or equivalent
Torque: 25 N´m (250 kgf´cm, 18 ft´lbf)
(b) Using a magnetic finger, remove the 2 seats, springs and
balls.
26. REMOVE NO.1, NO.2 SHIFT FORKS AND SHIFT HEAD
SET BOLT
Torque: 24 N´m (240 kgf´cm, 17 ft´lbf)
27. REMOVE NO.1 SHIFT FORK SHAFT
Pull up the No.3 shift fork shaft, and remove the No.1 shift fork
shaft.
HINT:
At the time of reassembly, please refer to the following item.
When it is difficult to push the fork shaft through the reverse shift
fork, pull up the No.3 shift fork shaft.
28. REMOVE INTERLOCK ROLLER
Using a magnetic finger, remove the interlock roller from the re-
verse shift fork.
29. REMOVE NO.2 SHIFT FORK SHAFT, SHIFT HEAD
AND NO.1 SHIFT FORK
(a) Pull out the No.2 shift fork shaft.
(b) Remove the shift head and No.1 shift fork.
30. REMOVE NO.3 SHIFT FORK SHAFT WITH REVERSE
SHIFT FORK AND NO.2 SHIFT FORK
(a) Pull out the No.3 shift fork shaft with the reverse shift fork.
(b) Remove the No.2 shift fork.
31. REMOVE SNAP RING
(a) Using 2 screwdrivers and a hammer, remove the snap
ring and reverse shift fork from the No.3 shift fork shaft.
(b) Using 2 screwdrivers and a hammer, remove the 3 snap
rings from the No.1, No.2 and No.3 shift fork shafts.
