± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±511
746 Author: Date:
DTC 21, 22, 23, 24 ABS Actuator Solenoid Circuit
CIRCUIT DESCRIPTION
This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel
cylinders thus controlling the braking force.
DTC No.DTC Detecting ConditionTrouble Area
21
Condition 1. or 2. continues for 0.05 sec. or more:
1. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, there
is open or short circuit in actuator solenoid SFRR or
SFRH.
2. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, and
while ABS is control in operation.*
1

ABS actuator

SFRR or SFRH circuit
22
Condition 1. or 2. continues for 0.05 sec. or more:
1. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, there
is open or short circuit in actuator solenoid SFLR or
SFLH.
2. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, and
while ABS is control in operation.*
1

ABS actuator

SFLR or SFLH circuit
23
Condition 1. or 2. continues for 0.05 sec. or more:
1. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, there
is open or short circuit in actuator solenoid SRRR or
SRRH.
2. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, and
while ABS is control in operation.*
1

ABS actuator

SRRR or SRRH circuit
24
Condition 1. or 2. continues for 0.05 sec. or more:
1. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, there
is open or short circuit in actuator solenoid SRLR or
SRLH.
2. IG1 terminal voltage of ABS ECU is 9.5 ± 18.5 V, and
while ABS is control in operation.*
1

ABS actuator

SRLR or SRLH circuit
*1
Solenoid relay contact ON condition:
All of solenoid terminal voltage is half of IG1 terminal voltage or less than.
Fail safe function:
If trouble occurs in the actuator solenoid circuit, the ECU cuts off current to the ABS solenoid relay and pro-
hibits ABS control.
DI03J±03

F07147
ABS Solenoid RelayGR±R1
IK1
GR±RABS ECU
26
A19R+
34
56
33
3
3 1
2 DLC1Engine Room
R/B No.3
GR
7
2ABS
1
3
W±L
B±G
Fusible Link Block
1
F5 F41
B±G
FL Main
Battery ALT
EAW±B4
A4A18 SR
ABS
Actuator
1
A5
A55
A53
7
A5
A5
A5
A5
A54
8
2
6R±B
W±R11
IK2
IK212R±B
W±R2
A19
A191
A18
A18
A18
A18
A19
A19 L±B
W±L
W±R
R±G
G±Y
LG±B13
IK2
IK255
6
11
12
15
14SFRH
SFRR
SFLH
SFLR
SRRH
SRRR
SRLH
SRLR 3
G±Y
LG±B DI±512
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
747 Author: Date:

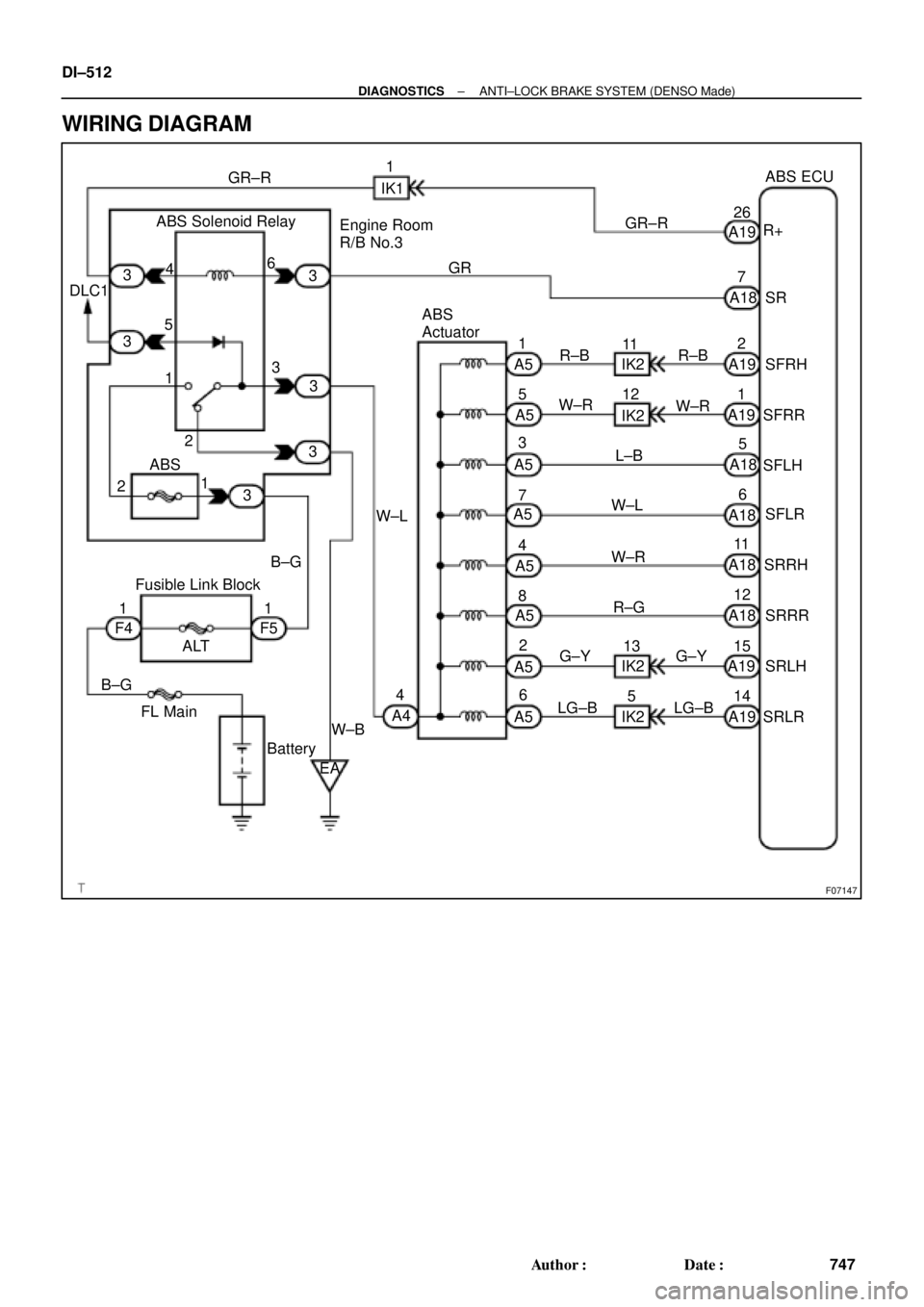

WIRING DIAGRAM

W00714
A4
A5
1 2 3
4
5
6
7 8
4
A4
A5
1 2 3
4
5
6
7 8
4
A4
A5
1 2 3
4
5
6
7 8
4
A4
A5
1 2 3
4
5
6
7 8
4
A4
A5
1 2 3
4
5
6
7 8
4
A4
A5
1 2 3
4
5
6
7 8
4
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±513
748 Author: Date:
INSPECTION PROCEDURE
1 Check ABS actuator solenoid.
PREPARATION:
Disconnect the 2 connectors from ABS actuator.
CHECK:
Check continuity between terminals A4 ± 4 and A5 ± 1, 2, 3, 4,
5, 6, 7, 8 of ABS actuator connector.
OK:
Continuity
HINT:
Resistance of each solenoid coil is 1.2 W.
NG Replace ABS actuator.
OK
2 Check for open and short circuit in harness and connector between ABS ECU
and actuator (See page IN±31).
NG Repair or replace harness or connector.
OK
If the same code is still output after the DTC is deleted, check the contact condition of each con-
nection.
If the connections are normal, the ECU may be defective.

BR3583
BR3582F00010
RotorSpeed Sensor
Magnet
To ECU
+V
±VHigh Speed
Low Speed
CoilNS
DI±514
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
749 Author: Date:
DTC31, 32, 33, 34Speed Sensor Circuit
CIRCUIT DESCRIPTION
The speed sensor detects wheel speed and sends the ap-
propriate signals to the ECU. These signals are used to control
the ABS system. The front and rear rotors each have 48 serra-
tions.
When the rotors rotate, the magnetic field emitted by the perma-
nent magnet in the speed sensor generates an AC voltage.
Since the frequency of this AC voltage changes in direct propor-
tion to the speed of the rotor, the frequency is used by the ECU
to detect the speed of each wheel.

DTC No.DTC Detecting ConditionTrouble Area
31, 32, 33, 34
Detection of any of conditions from 1. through 4.:
1. Vehicle speed is at 10 km/h (6 mph) or more and the
speed sensor signal circuit is open or short circuit con-
tinues for 15 sec. or more.
2. Momentary interruption of the speed sensor signal oc-
curs 7 times or more.
3. Vehicle speed is at 20 km/h (12mph) or more and inter-
ference on the speed sensor signal continues for 5 sec.
or more.
4. Open circuit condition of the speed sensor signal circuit
continues for 0.5 sec. or more.

Right front, left front, right rear, left rear speed sensor

Each speed sensor circuit

Speed sensor rotor
HINT:

DTC No. 31 is for the right front speed sensor.

DTC No. 32 is for the left front speed sensor.

DTC No. 33 is for the right rear speed sensor.

DTC No. 34 is for the left rear speed sensor.
Fail safe function:
If trouble occurs in the speed sensor circuit, the ECU cuts off current to the ABS solenoid relay and prohibits
ABS control.
DI1JM±02

F00116
Right Front
Speed Sensor
Left Front
Speed Sensor
Right Rear
Speed Sensor
Left Rear
Speed Sensor2
1A18
A19 12
1
2
2 1A18
A18
A18
A19
A19
A19ABS ECU
W
B
R
G
B
G RB WG R
IK2
IL1
ID1IK2
ID1 IL11
6
2
1
3
983
FR+
FR±
FL+
FL±
RR+
RR±
RL+
RL±Right Front
Speed Sensor
Left Front
Speed Sensor
Left Rear
Speed Sensor2
1A18
A19 12
1
2
2 1A18
A18
A18
A19
A19
A19ABS ECU
W
B
R
G
W
G RB WG R
IK2
IL1
ID1IK2
ID1 IL11
6
2
1
3
99
93
FR+
FR±
FL+
FL±
RR+
RR±
RL+
RL± 2
10
23
R
G22
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±515
750 Author: Date:

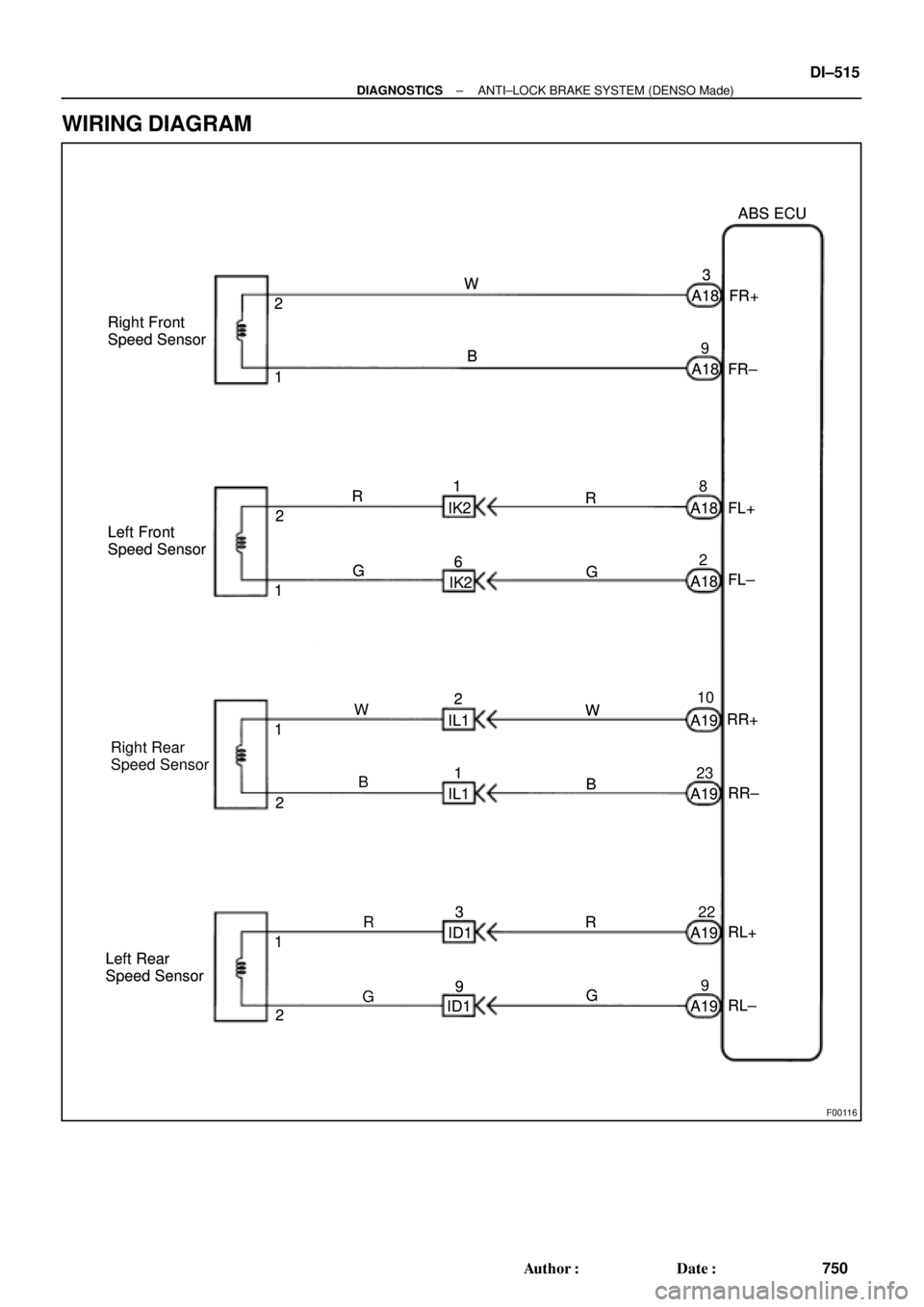

WIRING DIAGRAM

R14205
1
2
R14213
12 12
12
12
12
1212
DI±516
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
751 Author: Date:
INSPECTION PROCEDURE
1 Check speed sensor.
Front:
PREPARATION:
(a) Remove the front fender liner.
(b) Disconnect the speed sensor connector.
CHECK:
Measure resistance between terminals 1 and 2 of speed sensor
connector.
OK:
Resistance: 0.6 ± 2.5 kW
CHECK:
Measure resistance between terminals 1 and 2 of speed sensor
connector and body ground.
OK:
Resistance: 1 MW or higher
Rear:
PREPARATION:
(a) Remove the seat cushion and side seatback.
(b) Disconnect the speed sensor connector.
CHECK:
Measure resistance between terminals 1 and 2 of speed sensor
connector.
OK:
Resistance: 1.2 ± 2.3 kW
CHECK:
Measure resistance between terminals 1 and 2 of speed sensor
connector and body ground.
OK:
Resistance: 1 MW or higher
NG Replace speed sensor.
NOTICE:
Check the speed sensor signal last (See page DI±493).
OK

BR3795
OK NG OK NG
OK NGOK NG
W04200
Normal Signal Waveform
1 V / Division2 m/s / DivisionGND
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±517
752 Author: Date:
2 Check for open and short circuit in harness and connector between each speed
sensor and ECU (See page IN±31).
NG Repair or replace harness or connector.
OK
3 Check speed sensor installation.
CHECK:
Check the speed sensor installation.
OK:
The installation bolt is tightened properly and there is
no clearance between the sensor and steering
knuckle or rear axle carrier.
NG Replace speed sensor.
NOTICE:
Check the speed sensor signal last (See page DI±493).
OK
4 Check speed sensor and sensor rotor serrations.
REFERENCE: INSPECTION USING OSCILLOSCOPE
PREPARATION:
(a) Remove the ABS ECU.
(b) Connect the oscilloscope to the terminals FR+, FL+, RR+
or RL+ and GND of the ABS ECU.
CHECK:
Drive the vehicle with about 30 km/h (19 mph), and check the
signal waveform.
OK Check and replace ABS ECU.
NG

R00948
R00947
DI±518
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
753 Author: Date:
5 Check sensor rotor and sensor tip.
Front:
PREPARATION:
Remove the front drive shaft (See page SA±17 or SA±26).
CHECK:
Check the sensor rotor serrations.
OK:
No scratches or missing teeth or foreign objects.
PREPARATION:
Remove the front speed sensor (See page BR±68).
CHECK:
Check the sensor tip.
OK:
No scratches or foreign objects on the sensor tip.
Rear:
PREPARATION:
Remove the axle hub (See page SA±52).
CHECK:
Check the sensor rotor serrations.
OK:
No scratches or missing teeth or foreign objects.
PREPARATION:
Remove the rear speed sensor (See page BR±71).
CHECK:
Check the sensor tip.
OK:
No scratches or foreign objects on the sensor tip.
NG Replace sensor rotor or speed sensor.
NOTICE:
Check the speed sensor signal last (See page DI±493).
OK
Check and replace ABS ECU.

± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
DI±519
754 Author: Date:
DTC 33, 34 Rear Speed Sensor Rotor Faulty
CIRCUIT DESCRIPTION
DTC No.DTC Detecting ConditionTrouble Area
33, 34
The condition that the both rear side wheels' speed is
lower than the front wheels' speed at 20 km/h (12 mph) or
more for 20 sec. or more when the IG switch turns ON
and OFF , which is repeated in a sequence more than 8
times.

Rear axle hub

Right rear, left rear speed sensor

Rear speed sensor circuit
INSPECTION PROCEDURE
1 Check rear axle hub (See page SA±9).
NG Replace rear axle hub.
OK
2 Check rear speed sensor (See page DI±514).
NG Replace rear speed sensor.
OK
3 Check for open and short circuit in harness and connector between rear speed
sensor and ECU (See page IN±31).
NG Repair or replace harness and connector.
OK
Check and replace ABS ECU.
DI03L±03

F07156
Ignition
Switch
W24
AM1
IG1
B±YInstrument Panel J/B
19
1K
ECU±IG1JB±RJ/C
J12
C
CB±R13
A19ABS ECU
IG1
Instrument Panel J/B
21
1K
1B
AM1
B±R
FL Block
1
1
F4 F9
ALT
B±G
FL MAIN
Battery
IG A
Instrument
Panel Brace LH J11
Junction
ConnectorW±B
W±B12
A19
A1925GND1
GND2 DI±520
± DIAGNOSTICSANTI±LOCK BRAKE SYSTEM (DENSO Made)
755 Author: Date:
DTC 41 IG Power Source Circuit
CIRCUIT DESCRIPTION
This is the power source for the ECU, hence the actuators.
DTC No.DTC Detecting ConditionTrouble Area
41
Condition 1. or 2. is detected:
1. Vehicle speed is at 3 km/h (1.9 mph) or more and ECU
terminal IG1 voltage is 9.5 V or less , which continues
for 10 sec. or more.
2. When IG1 terminal voltage is less than 9.5 V, there is
open circuit in the motor relay or in the solenoid relay, or
the solenoid circuit malfunction.

Battery

Charging system

Power source circuit
Fail safe function:
If trouble occurs in the power source circuit, the ECU cuts off current to the ABS solenoid relay and prohibits
ABS control.

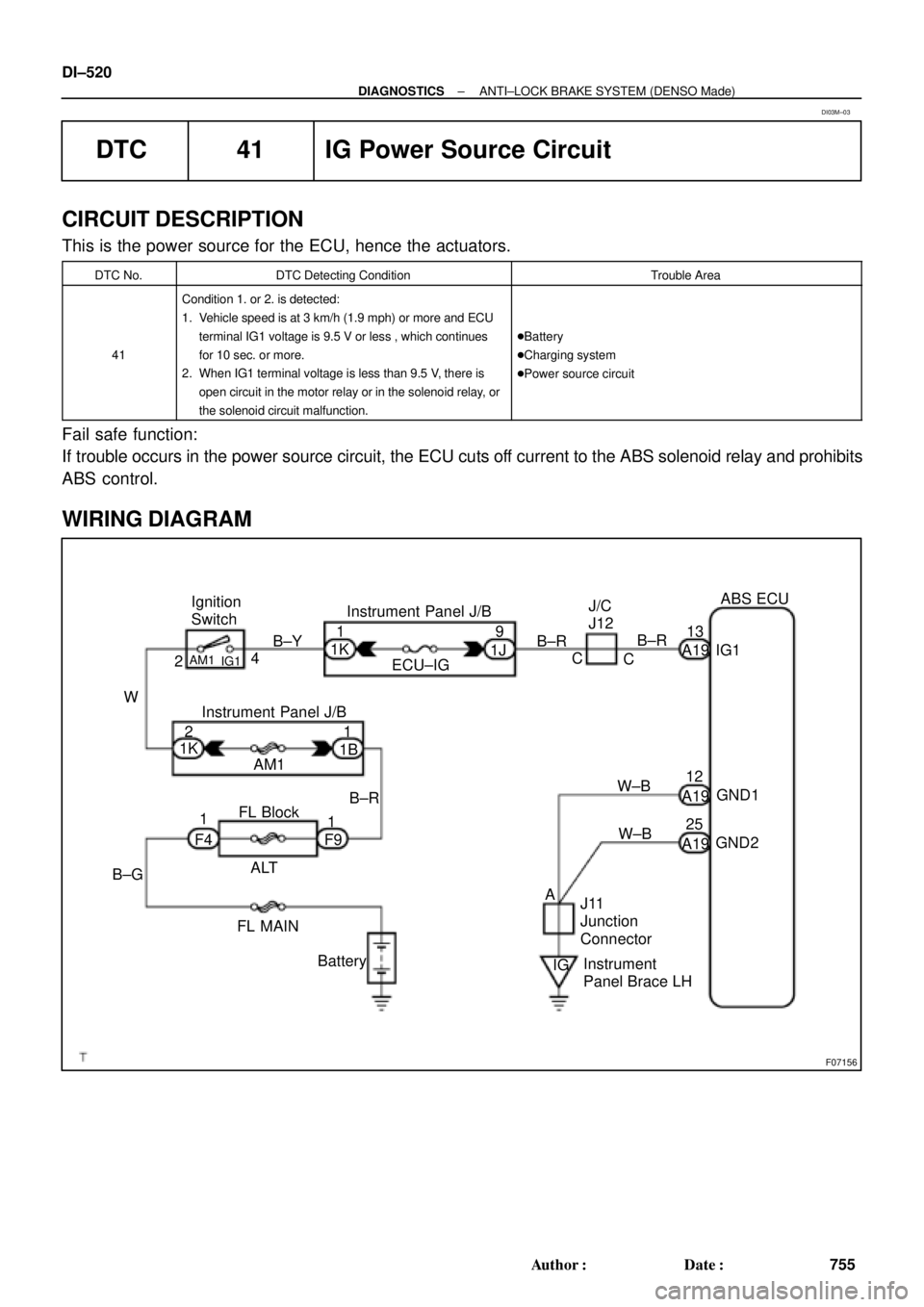

WIRING DIAGRAM
DI03M±03
