’05Camry_U (L/O 0409)
323
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
Adding washer fluidReplacing light bulbs—

’05Camry_U (L/O 0409)
324
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (high)900560A
Headlights (low)900651B
Parking and front
side marker lights—5C
Front turn signal
lights (type A)415727D
Front turn signal
lights (type B)—21D
Rear turn signal
lights (type A)415727D
Rear turn signal
lights (type B)—21D
Stop/tail and rear
side marker lights
(type A)
315727/8C
Stop/tail and rear
side marker lights
(type B)
—21/5C
Ta i l l i g h t s—5C
Back −up lights92118C
Front fog lights900651B
License plate lights—5C
Light bulbsBulb
No.WTy p e
High mounted
stoplight92118C
Personal lights—4.9C
Interior light
(type A)—5E
Interior light
(type B)—8E
Vanity lights—1.4E
Glove box light—5C
Trunk light (type A)—3E
Trunk light (type B)—5C
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: Double end bulbs

’05Camry_U (L/O 0409)
325
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

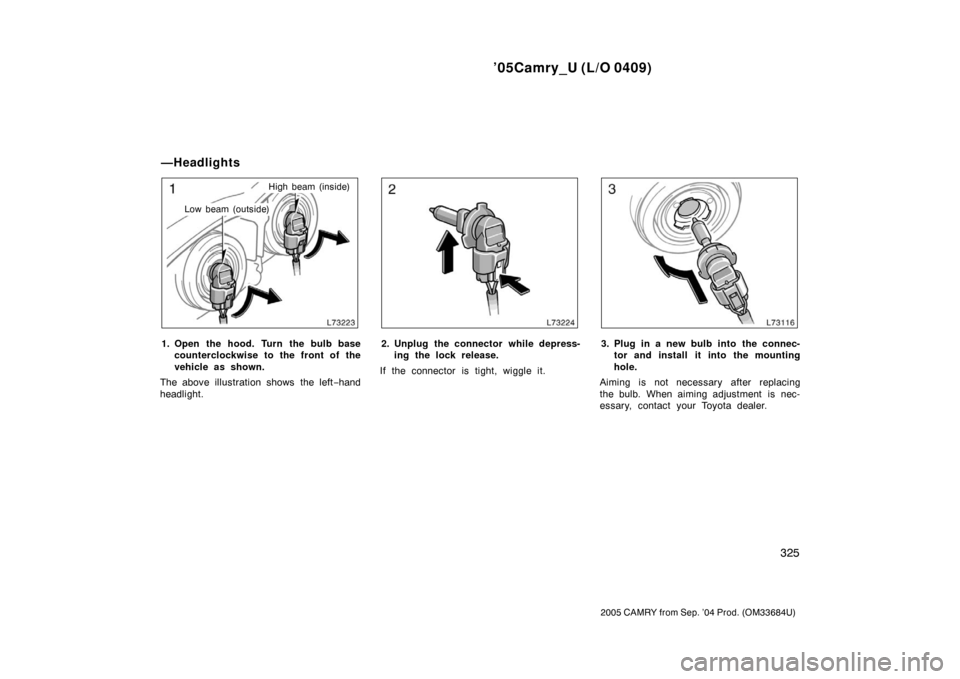

Low beam (outside)High beam (inside)
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
The above illustration shows the left −hand
headlight.2. Unplug the connector while depress- ing the lock release.
If the connector is tight, wiggle it.3. Plug in a new bulb into the connec- tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

’05Camry_U (L/O 0409)
326
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

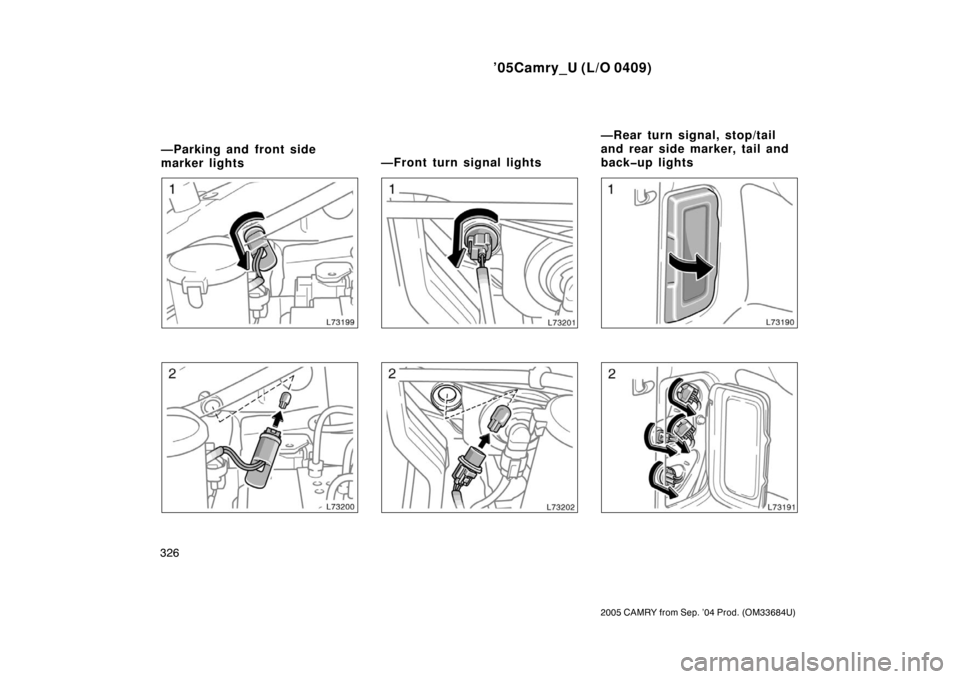

—Parking and front side
marker lights—Front turn signal lights—Rear turn signal, stop/tail
and rear side marker, tail and
backup lights

’05Camry_U (L/O 0409)
327
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

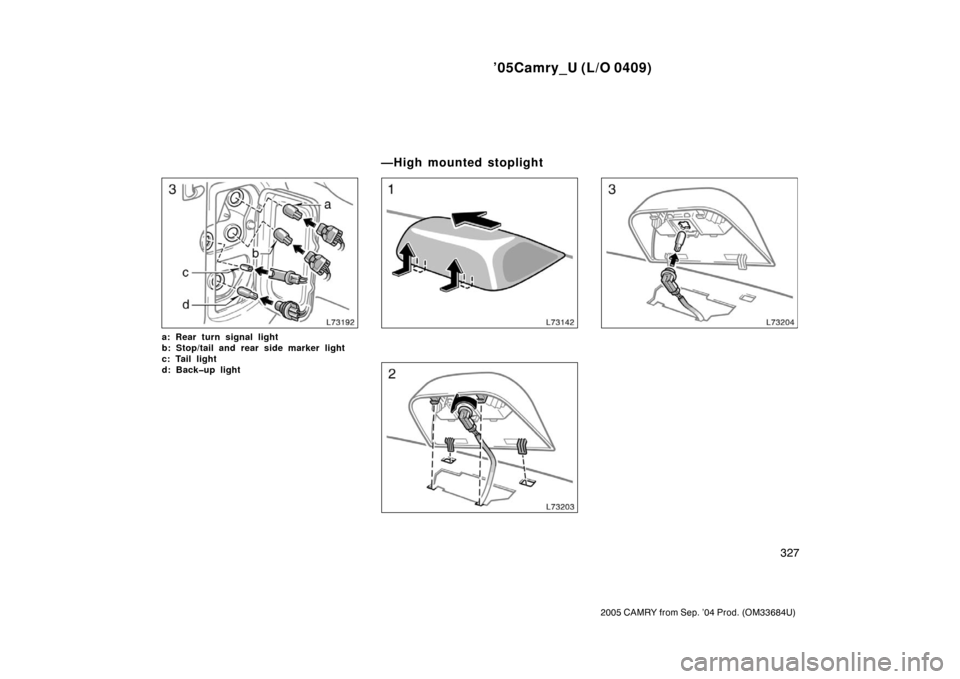

a: Rear turn signal light
b: Stop/tail and rear side marker light
c: Tail light
d: Backup light
—High mounted stoplight

’05Camry_U (L/O 0409)
328
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
If either the left or right front fog or
license plate lights burns out, contact
your Toyota dealer.
NOTICE
Do not try to replace the front fog or
license plate light bulbs by yourself.
You may damage the vehicle.
—Front fog and license plate
lights

’05Camry_U (L/O 0409)
329
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
SPECIFICATIONS
Specifications
Dimensions and weights330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 336
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’05Camry_U (L/O 0409)
330
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Model:2AZ− FE, 1MZ −FE and 3MZ −FE
Type:
2AZ− FE engine
4 cylinder in line, 4 cycle, gasoline
1MZ −FE and 3MZ −FE engines
6 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 2AZ− FE engine
88.5 96.0 (3.48 3.78)
1MZ −FE engine
87.5 83.0 (3.44 3.27)
3MZ −FE engine
92.0 83.0 (3.62 3.27)
Displacement, cm
3 (cu. in.):
2AZ− FE engine 2362 (144.1)
1MZ −FE engine 2995 (182.8)
3MZ −FE engine 3311 (202.1)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1 mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
∗
1: Unladen vehicle∗2: With 205/65R15 tires∗3: With 215/60R16 and 215/55R17 tires 1490 (58.7)
∗
2
1500 (59.1)∗3
4805 (189.2)
1795 (70.7)
2720 (107.1)
1545 (60.8)
1535 (60.4)
410 (900)
Towing capacity
(trailer weight + cargo weight) kg (lb.) 907 (2000)
Engine

’05Camry_U (L/O 0409)
331
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Fuel type:2AZ− FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
1MZ −FE and 3MZ −FE engines
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating of 91
(Research Octane Number 96) or
higher is recommended.
Fuel tank capacity, L (gal., Imp. gal.): 70 (18.5, 15.4) ENGINE
Valve clearance (engine cold), mm (in.):
2AZ− FE engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.30—0.40 (0.012—0.016)
1MZ −FE and 3MZ −FE engines
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
1MZ −FE and 3MZ −FE engines—
Drive belt tension measured with
Borroughs drive belt tension gauge
No.BT− 33−73F (used belt), Ibf:
125 10 ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2AZ− FE engine
With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
1MZ −FE and 3MZ −FE engines
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil
Fuel Service specifications

’05Camry_U (L/O 0409)
332
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Recommended oil viscosity:SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2AZ− FE engine 6.2 (6.6, 5.4)
1MZ −FE and 3MZ −FE engines
9.2 (9.8, 8.1)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
Note: If replacement is necessary, make
sure to do so with a battery that meets
the same standard as the original.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 2.5 (2.6, 2.2)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
