Accessories, spare parts andmodification of your Toyota
A wide variety of non −genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod-
ucts and is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or
adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non −genuine
Toyota products. Modification with non −genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
modification may not be covered under warranty.
Spark ignition system of your To y o t a
The spark ignition system in your Toyota meets all require-
ments of the Canadian Interference −Causing Equipment
Standard.
Installation of a mobile twoway radio system
As the installation of a mobile two −way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronic throttle control system, cruise
control system, anti −lock brake system, traction control
system, vehicle skid control system, SRS airbag system
and seat belt pretensioner system, be sure to check with
your Toyota dealer for precautionary measures or special
instructions regarding installation.

’05Camry_U (L/O 0409)
2
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Automatic transmission selector lever or manual transmission gear shift lever
13. Cup holder
14. Parking brake lever
15. Instrument panel light control dial
16. Window lock switch
17. Power rear view mirror control switches
Instrument panel overview
 With lever type parking brake

’05Camry_U (L/O 0409)
3
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11 . G l o v e b o x
12. Rear vents
13. Automatic transmission selector lever
14. Cup holder
15. Instrument panel light control dial
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches

With pedal type parking brake

’05Camry_U (L/O 0409)
4
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Ignition switch
10. Tilt steering lock release lever 11. Hood lock release lever
12. Traction control system off switch
13. Power adjustable pedals switch

With manual air conditioning controls

’05Camry_U (L/O 0409)
5
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Ignition switch
10. Tilt steering lock release lever 11. Hood lock release lever
12. Traction control system off switch
13. Power adjustable pedals switch

With automatic air conditioning controls

’05Camry_U (L/O 0409)
9
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
or
Front passenger ’s seat belt reminder light∗1Vehicle stability control system and traction
control system warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
“AIRBAG ON” indicator light
or
“AIRBAG OFF” indicator light
Headlight low beam indicator light
Tail light indicator light
Indicator symbols on the instrument panel

’05Camry_U (L/O 0409)
12
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

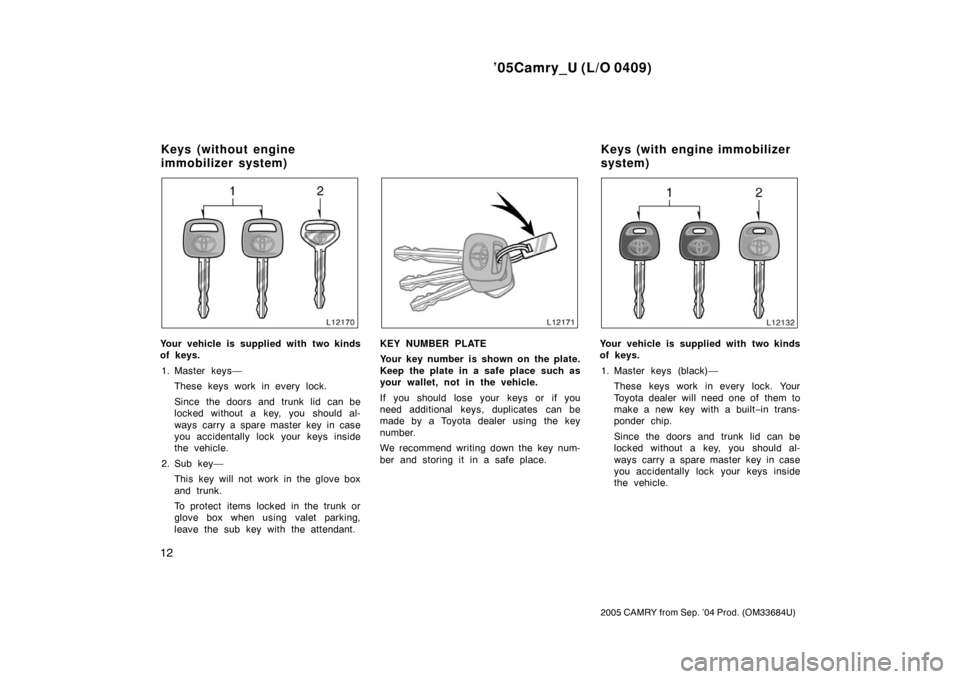

Your vehicle is supplied with two kinds
of keys.1. Master keys— These keys work in every lock.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
2. Sub key— This key will not work in the glove box
and trunk.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)— These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built −in trans-
ponder chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)

’05Camry_U (L/O 0409)
13
2005 CAMRY from Sep. ’04 Prod. (OM33684U)
2. Sub key (gray)—This key will not work in the glove box
and trunk.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.

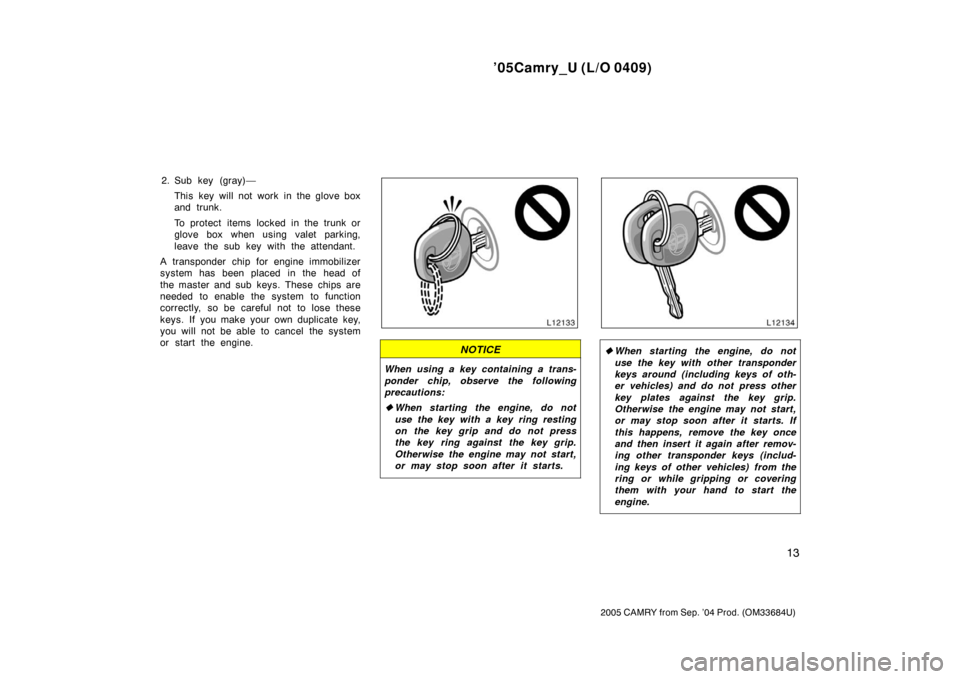

NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’05Camry_U (L/O 0409)
17
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

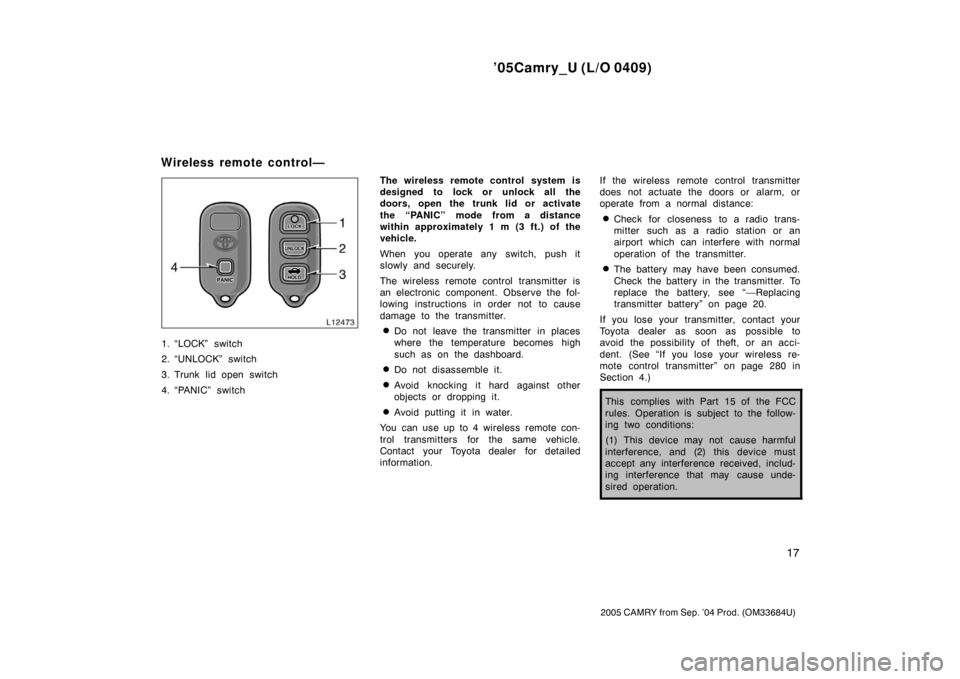

1. “LOCK” switch
2. “UNLOCK” switch
3. Trunk lid open switch
4. “PANIC” switchThe wireless remote control system is
designed to lock or unlock all the
doors, open the trunk lid or activate
the “PANIC” mode from a distance
within approximately 1 m (3 ft.) of the
vehicle.
When you operate any switch, push it
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
transmitter battery” on page 20.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 280 in
Section 4.)
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
Wireless remote control—

’05Camry_U (L/O 0409)
18
2005 CAMRY from Sep. ’04 Prod. (OM33684U)

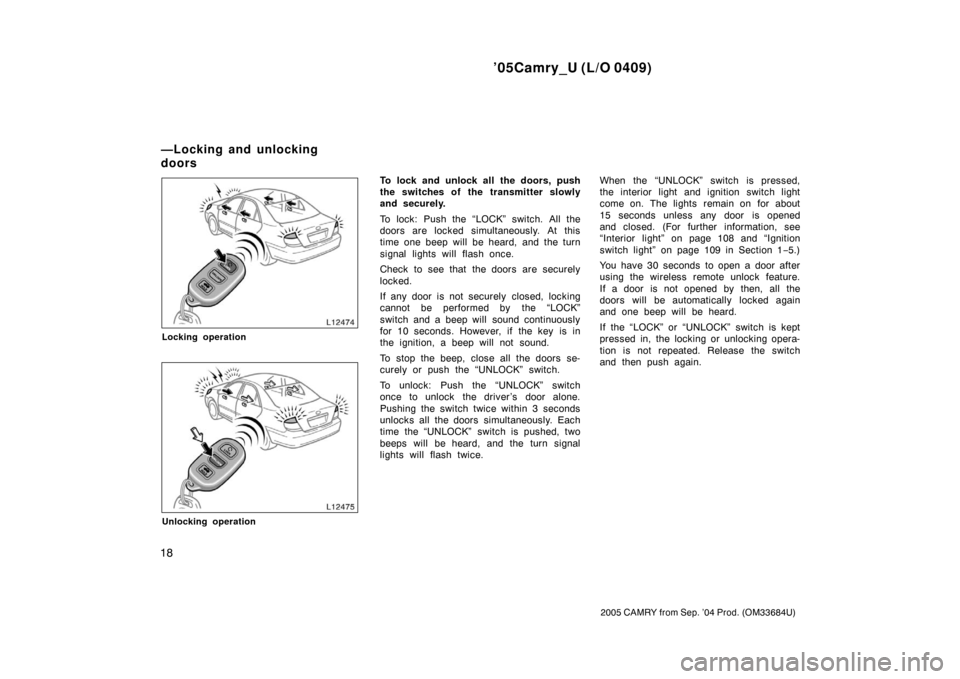

Locking operation
Unlocking operation
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time one beep will be heard, and the turn
signal lights will flash once.
Check to see that the doors are securely
locked.
If any door is not securely closed, locking
cannot be performed by the “LOCK”
switch and a beep will sound continuously
for 10 seconds. However, if the key is in
the ignition, a beep will not sound.
To stop the beep, close all the doors se-
curely or push the “UNLOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, two
beeps will be heard, and the turn signal
lights will flash twice.When the “UNLOCK” switch is pressed,
the interior light and ignition switch light
come on. The lights remain on for about
15 seconds unless any door is opened
and closed. (For further information, see
“Interior light” on page 108 and “Ignition
switch light” on page 109 in Section 1
−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again
and one beep will be heard.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
—Locking and unlocking
doors
