TOYOTA CAMRY 2007 XV40 / 8.G Navigation Manual

100
Microphone
You can use the microphone above when
talking on the phone.The other party’s voice outputs from the driv-
er’s speaker. When the received calls or re-
ceived voice outputs, the audio from the audio
system or voice guidance from the navigation
system will be muted.
INFORMATION
Talk alternately with the other party on
the phone. If you talk at the same time,
the voice may not reach each other. (It
is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
In the following situations, your voice
may not reach the other party.
Driving on unpaved road. (Making
a traffic noise.)
Driving at the high speed.
The window is open.
Turning the airconditioning vents
towards the microphone.
The sound of the airconditioning
fan is loud.
1Indicates the condition of Bluetooth
connection.
“Blue” indicates an excellent connection to
Bluetooth.
“Yellow” indicates a bad connection to Blue-
tooth, resulting in possible deterioration of
voice quality.
: No connection to Bluetooth.
2Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth is con-
necting or the phone book data is being trans-
ferred.
The amount left does not always correspond
with the one of your cellular phone. This sys-
tem doesn’t have a charging function.

101
3Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always corre-
spond with the one of your cellular phone.
INFORMATION
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individual-
ly.
An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth connection may turn yellow and
the system may not function when you
use the Bluetooth phone in the following
conditions and places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or is covered
with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
Bluetooth is a trademark owned by Bluetooth
SIG, Inc.When you release your car:
A lot of personal data is registered when
you use the Handsfree system. When
you release your car, initialize your data.
(See “(c) Delete personal data” on page
145.)
If you initialize it, the former state will never
come back again. Pay much attention when
initializing the data.
You can initialize the following data in the sys-
tem.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code

102
FCC ID: HYQDNNS016
IC ID: 1551ADNNS016
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS−210 Rules. Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause harmful
interference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired op-
eration.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s au-
thority to operate the equipment.
— Enter a Bluetooth phone
To use the handsfree system, you need
to enter your phone into the system. Once
you have registered it, you can make a
handsfree call.
1. Push the “INFO” button to display the
“Information” screen.
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push
of the steering wheel to
display this screen when the vehicle is
stopped.
3. Touch “Settings” to display “Settings”
screen.
4. Touch “Bluetooth” to display the
“Bluetooth Settings” screen.

103
5. Touch “Register” to connect your cel-
lular phone to the system.
6. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case of
using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.
Connecting a Bluetooth phone
AUTOMATICALLY
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.

104
When the ignition switch is set at ACC or
ON, the selected Bluetooth phone will be
automatically connected and the connec-
tion result is displayed.
This screen appears when the Bluetooth
phone is first connected after the ignition
switch is set at ACC or ON.MANUALLY
When the auto connection failed or turned
off, you have to connect Bluetooth manu-
ally.
Touch “Connect” after having enabled the
Bluetooth connection on the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth phone.
Reconnecting the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Bluetooth
network when the ignition switch is set at
ACC or ON, the system automatically re-
connects the Bluetooth phone. In this
case, the connection result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone off,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

105
— Call on the Bluetooth
phone
After you enter the Bluetooth phone, you
can call by using handsfree system. You
can call using the 7 methods described
below.
By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is de-
leted.
When you touch
, the number you called
last is inputted.
Touch
or push of the steering wheel.
By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has one phone book. You can
register up to 1000 numbers.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
1. Touch “Phone Book” to display
“Phone Book” screen.
2. Select the desired number from the list.
Touch or push of the steering wheel.

106
By dialed numbers
You can call by dialed number. The sys-
tem memorizes up to 5 dialed numbers. If
it is more than 5, the oldest number is de-
leted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgoing
Calls” screen.
When you call by phone book, the name
(if registered) is displayed.
When you call the same number
continuously, only the newest number is
registered.
2. Select the desired number from the list.
Touch or push of the steering wheel.
By received calls
You can call by received calls. When a call
is received, the system memorizes up to 5
numbers. If it is more than 5, the oldest
number is deleted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgoing
Calls” screen.
2. Touch “Incoming Calls” to display the
“Incoming Calls” screen.

107

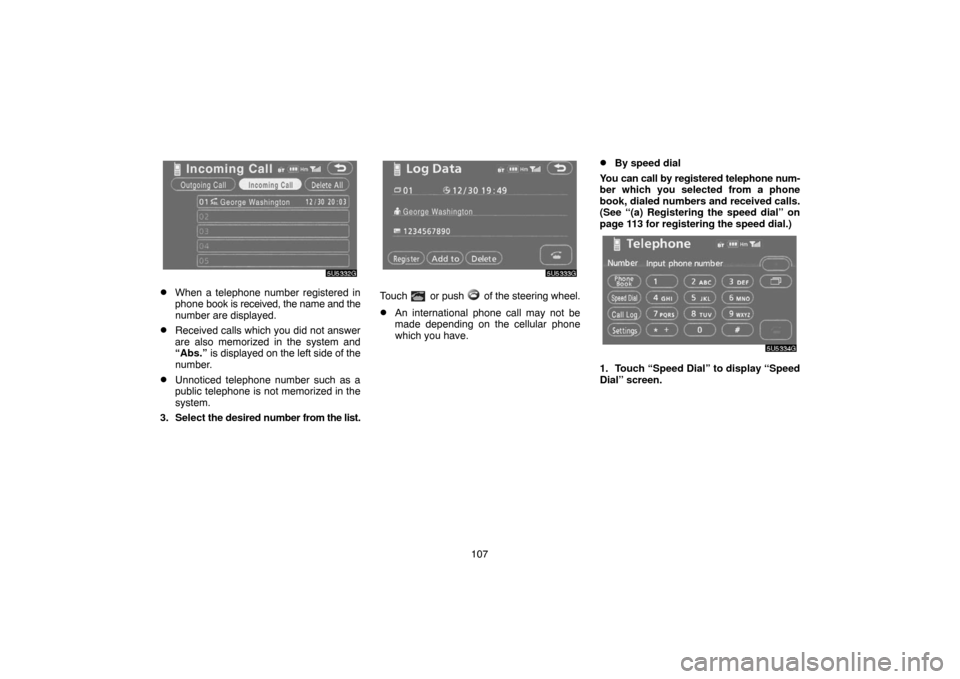

When a telephone number registered in
phone book is received, the name and the
number are displayed.
Received calls which you did not answer
are also memorized in the system and
“Abs.” is displayed on the left side of the
number.
Unnoticed telephone number such as a
public telephone is not memorized in the
system.
3. Select the desired number from the list.
Touch or push of the steering wheel.
An international phone call may not be
made depending on the cellular phone
which you have.

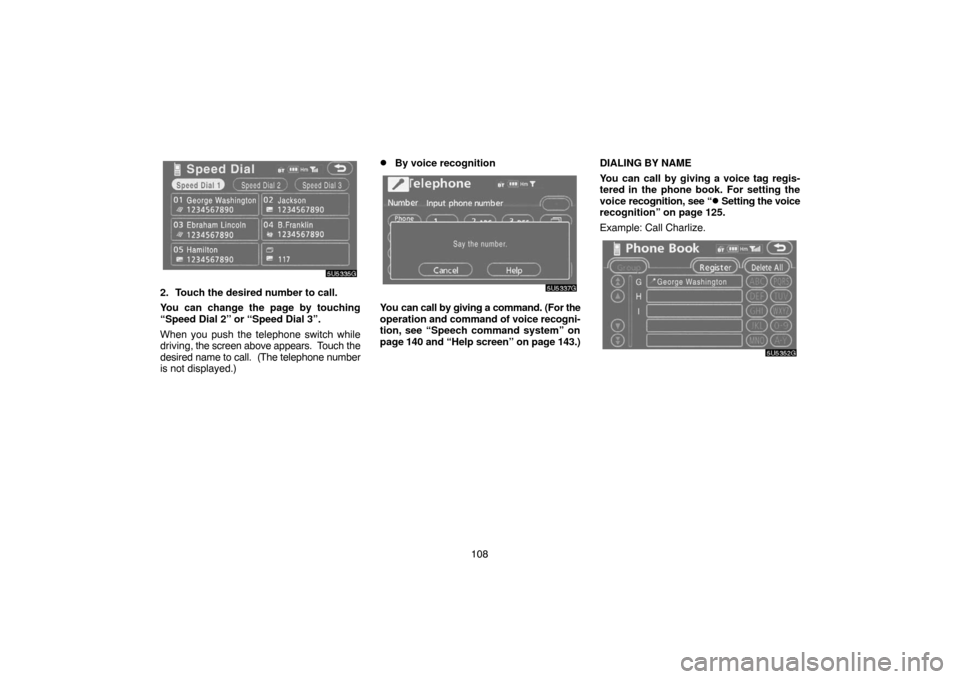

By speed dial
You can call by registered telephone num-
ber which you selected from a phone
book, dialed numbers and received calls.
(See “(a) Registering the speed dial” on
page 113 for registering the speed dial.)
1. Touch “Speed Dial” to display “Speed
Dial” screen.

108
2. Touch the desired number to call.
You can change the page by touching
“Speed Dial 2” or “Speed Dial 3”.
When you push the telephone switch while
driving, the screen above appears. Touch the
desired name to call. (The telephone number
is not displayed.)
By voice recognition
You can call by giving a command. (For the
operation and command of voice recogni-
tion, see “Speech command system” on
page 140 and “Help screen” on page 143.)DIALING BY NAME
You can call by giving a voice tag regis-
tered in the phone book. For setting the
voice recognition, see “
 Setting the voice
recognition” on page 125.

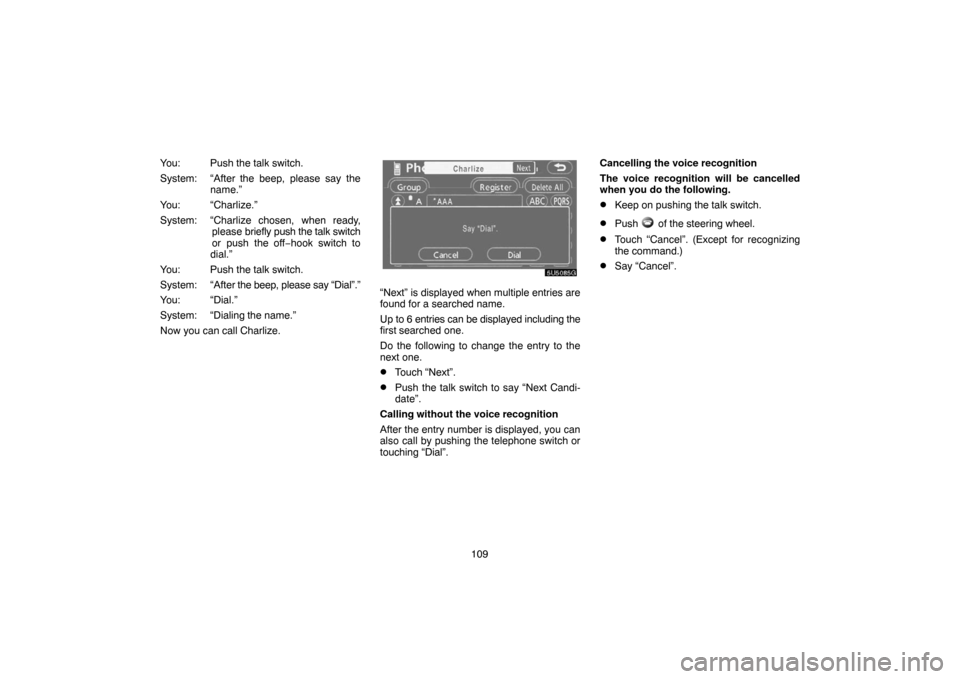

Example: Call Charlize.

109 You: Push the talk switch.
System: “After the beep, please say the
name.”
You: “Charlize.”
System: “Charlize chosen, when ready,
please briefly push the talk switch
or push the off−hook switch to
dial.”
You: Push the talk switch.
System: “After the beep, please say “Dial”.”
You: “Dial.”
System: “Dialing the name.”
Now you can call Charlize.
“Next” is displayed when multiple entries are
found for a searched name.
Up to 6 entries can be displayed including the
first searched one.
Do the following to change the entry to the
next one.
Touch “Next”.
Push the talk switch to say “Next Candi-
date”.
Calling without the voice recognition
After the entry number is displayed, you can
also call by pushing the telephone switch or
touching “Dial”.Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch.
Push of the steering wheel.
Touch “Cancel”. (Except for recognizing
the command.)
Say “Cancel”.
