TOYOTA CAMRY 2007 XV40 / 8.G Navigation Manual

180
To clean a compact disc: Wipe it with a soft,
lint−free cloth that has been dampened with
water. Wipe in a straight line from the center
to the edge of the disc (not in circles). Dry it
with another soft, lint−free cloth. Do not use
a conventional record cleaner or anti−static
device.TERMS
Packet write—
This is a general term that describes the pro-
cess of writing data on−demand to CD−R,
etc., in the same way that data is written to
floppy or hard discs.
ID3 Tag—
This is a method of embedding track−related
information in an MP3 file. This embedded in-
formation can include the track title, the art-
ist’s name, the album title, the music genre,
the year of production, comments and other
data. The contents can be freely edited using
software with ID3 tag editing functions. Al-
though the tags are restricted to the number
of characters, the information can be viewed
when the track is played back.
WMA Tag—
WMA files can contain a WMA tag that is used
in the same way as an ID3 tag. WMA tags
carry information such as track title, artist
name.ISO 9660 format—
This is the international standard for the for-
matting of CD−ROM folders and files. For the
ISO 9660 format, there are two levels of regu-
lations.
Level 1:
The file name is in 8.3 format (8 character file
names, with a 3 character file extension. File
names must be composed of one−byte capi-
tal letters and numbers. The “_” symbol may
also be included.)
Level 2:
The file name can have up to 31 characters
(including the separation mark “.” and file ex-
tension). Each folder must contain fewer than
8 hierarchies.

181 m3u—
Playlists created using “WINAMP” software
have a playlist file extension (.m3u).
MP3—
MP3 is an audio compression standard deter-
mined by a working group (MPEG) of the ISO
(International Standard Organization). MP3
compresses audio data to about 1/10 the size
of that on conventional discs.
WMA—
WMA (Windows Media Audio) is an audio
compression format developed by Microsoft.
It compresses files into a size smaller than
that of MP3 files. The decoding formats for
WMA files are Ver. 7, 8, and 9.

182

183
APPENDIX
Appendix
Limitations of the navigation system184 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates186 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION VII

184
Limitations of the
navigation system
This navigation system calculates the cur-
rent vehicle position using satellite sig-
nals, various vehicle signals, map data,
etc. However, the accurate position may
not be shown depending on the satellite
condition, road configuration, vehicle
condition or other circumstances.
The Global Positioning System (GPS) devel-
oped and operated by the U.S. Department of
Defense provides an accurate current vehicle
position using 3 to 4 satellites. The GPS sys-
tem has a certain level of inaccuracy. While
the navigation system will compensate for
this most of the time, occasional positioning
errors of up to 300 feet (100 m) can and
should be expected. Generally, position er-
rors will be corrected within a few seconds.

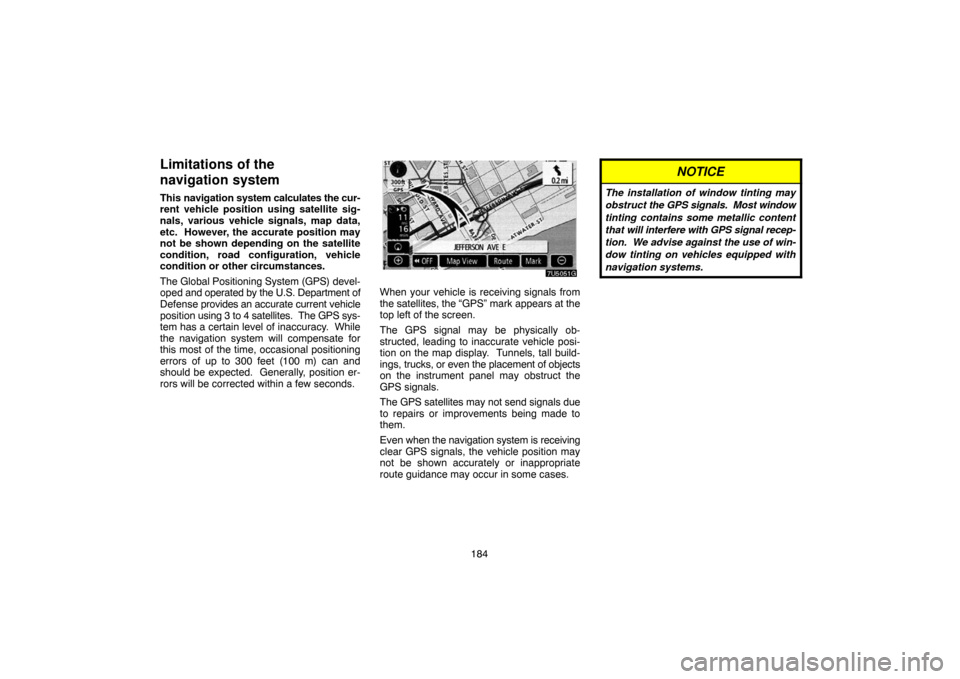

When your vehicle is receiving signals from
the satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle posi-
tion on the map display. Tunnels, tall build-
ings, trucks, or even the placement of objects
on the instrument panel may obstruct the
GPS signals.
The GPS satellites may not send signals due
to repairs or improvements being made to
them.
Even when the navigation system is receiving
clear GPS signals, the vehicle position may
not be shown accurately or inappropriate
route guidance may occur in some cases.
NOTICE
The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content
that will interfere with GPS signal recep-
tion. We advise against the use of win-
dow tinting on vehicles equipped with
navigation systems.

185 (a) Accurate current vehicle position
may not be shown in the following cases:
When driving on a small angled Y−shaped
road.
When driving on a winding road.
When driving on a slippery road such as
in sand, gravel, snow, etc.
When driving on a long straight road.
When motorway and surface streets run
in parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during high
speed driving.
When driving without setting the current
position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning on
a turntable in the parking lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or larger
than the factory specifications.
When the tire pressure in any of the four
tires is not correct.
INFORMATION
If your vehicle cannot receive GPS sig-
nals, you can correct the current posi-
tion manually. For information on set-
ting the current position calibration, see
page 88.
(b) Inappropriate route guidance may oc-
cur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will display
a route returning to the destination on the
previous route.
When turning at an intersection for which
there is no route guidance.
When passing through an intersection for
which there is no route guidance.
During auto reroute, the route guidance
may not be available for the next turn to
the right or left.
It may take a long time to operate auto re-
route during high speed driving. In auto
reroute, a detour route may be shown.
After auto reroute, the route may not be
changed.
An unnecessary U−turn may be shown or
announced.
A location may have multiple names and
the system will announce one or more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the route
guidance may not be shown.
Your destination point might be shown on
the opposite side of the street.

186
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
sons.
The road and map data stored in your nav-
igation system may not be complete or
may not be the latest version.
After replacing a tire, implement the op-
eration described in the “TIRE CHANGE
CALIBRATION”. (See page 89.)
This navigation system uses tire turning data
and is designed to work with factory−speci-
fied tires for your vehicle. Installing tires that
are larger or smaller than the originally
equipped diameter may cause inaccurate
display of the vehicle’s position. The tire pres-
sure also affects the diameter of the tires so
please make sure the tire pressure of all four
tires is correct.
Map database information and
updates —

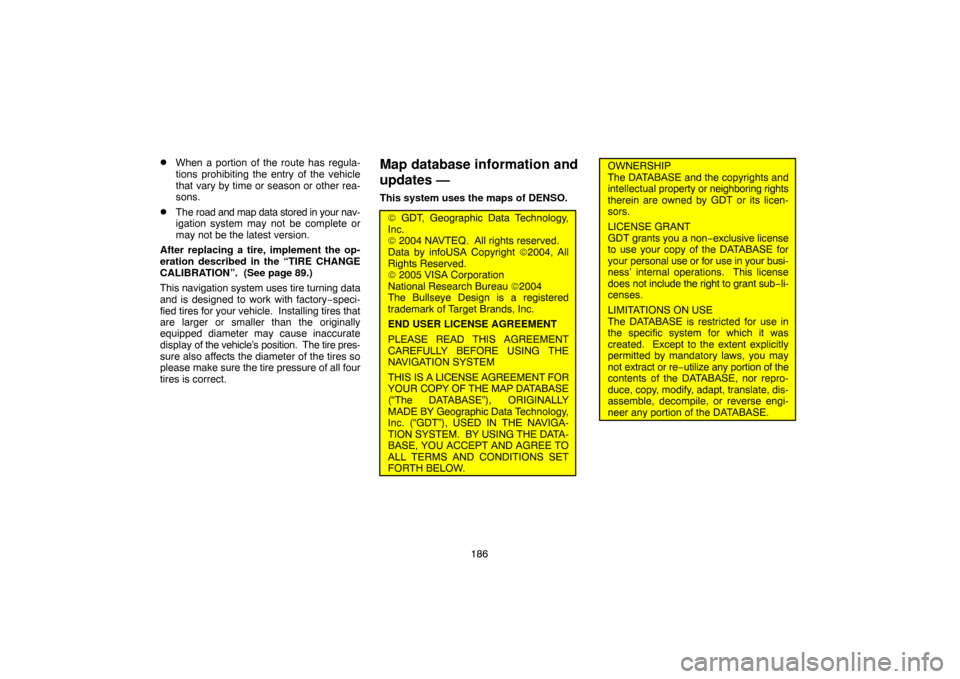

This system uses the maps of DENSO.
© GDT, Geographic Data Technology,
Inc.
© 2004 NAVTEQ. All rights reserved.
Data by infoUSA Copyright ©2004, All
Rights Reserved.
© 2005 VISA Corporation
National Research Bureau ©2004
The Bullseye Design is a registered
trademark of Target Brands, Inc.
END USER LICENSE AGREEMENT
PLEASE READ THIS AGREEMENT
CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT FOR
YOUR COPY OF THE MAP DATABASE
(“The DATABASE”), ORIGINALLY
MADE BY Geographic Data Technology,
Inc. (“GDT”), USED IN THE NAVIGA-
TION SYSTEM. BY USING THE DATA-
BASE, YOU ACCEPT AND AGREE TO
ALL TERMS AND CONDITIONS SET
FORTH BELOW.
OWNERSHIP
The DATABASE and the copyrights and
intellectual property or neighboring rights
therein are owned by GDT or its licen-
sors.
LICENSE GRANT
GDT grants you a non−exclusive license
to use your copy of the DATABASE for
your personal use or for use in your busi-
ness’ internal operations. This license
does not include the right to grant sub−li-
censes.
LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or re−utilize any portion of the
contents of the DATABASE, nor repro-
duce, copy, modify, adapt, translate, dis-
assemble, decompile, or reverse engi-
neer any portion of the DATABASE.

187

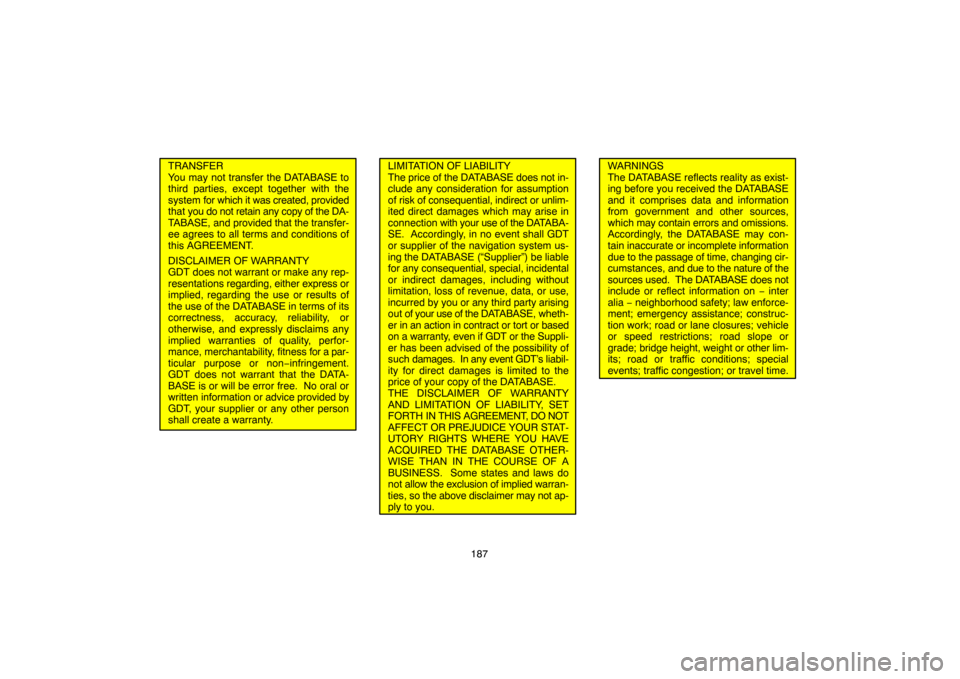

TRANSFER
You may not transfer the DATABASE to
third parties, except together with the
system for which it was created, provided
that you do not retain any copy of the DA-
TABASE, and provided that the transfer-
ee agrees to all terms and conditions of
this AGREEMENT.
DISCLAIMER OF WARRANTY
GDT does not warrant or make any rep-
resentations regarding, either express or
implied, regarding the use or results of
the use of the DATABASE in terms of its
correctness, accuracy, reliability, or
otherwise, and expressly disclaims any
implied warranties of quality, perfor-
mance, merchantability, fitness for a par-
ticular purpose or non−infringement.
GDT does not warrant that the DATA-
BASE is or will be error free. No oral or
written information or advice provided by
GDT, your supplier or any other person
shall create a warranty.LIMITATION OF LIABILITY
The price of the DATABASE does not in-
clude any consideration for assumption
of risk of consequential, indirect or unlim-
ited direct damages which may arise in
connection with your use of the DATABA-
SE. Accordingly, in no event shall GDT
or supplier of the navigation system us-
ing the DATABASE (“Supplier”) be liable
for any consequential, special, incidental
or indirect damages, including without
limitation, loss of revenue, data, or use,
incurred by you or any third party arising
out of your use of the DATABASE, wheth-
er in an action in contract or tort or based
on a warranty, even if GDT or the Suppli-
er has been advised of the possibility of
such damages. In any event GDT’s liabil-
ity for direct damages is limited to the
price of your copy of the DATABASE.
THE DISCLAIMER OF WARRANTY
AND LIMITATION OF LIABILITY, SET
FORTH IN THIS AGREEMENT, DO NOT
AFFECT OR PREJUDICE YOUR STAT-
UTORY RIGHTS WHERE YOU HAVE
ACQUIRED THE DATABASE OTHER-
WISE THAN IN THE COURSE OF A
BUSINESS. Some states and laws do
not allow the exclusion of implied warran-
ties, so the above disclaimer may not ap-
ply to you.WARNINGS
The DATABASE reflects reality as exist-
ing before you received the DATABASE
and it comprises data and information
from government and other sources,
which may contain errors and omissions.
Accordingly, the DATABASE may con-
tain inaccurate or incomplete information
due to the passage of time, changing cir-
cumstances, and due to the nature of the
sources used. The DATABASE does not
include or reflect information on − inter
alia − neighborhood safety; law enforce-
ment; emergency assistance; construc-
tion work; road or lane closures; vehicle
or speed restrictions; road slope or
grade; bridge height, weight or other lim-
its; road or traffic conditions; special
events; traffic congestion; or travel time.

188
GOVERNMENT END USERS
If the DATABASE is for a region of North
America and is being acquired by or on
behalf of the United States government
or any other entity seeking or applying
rights similar to those customarily
claimed by the United States govern-
ment, the DATABASE is licensed with
“limited rights.” Utilization of the DATA-
BASE is subject to the restrictions
specified in the “Rights in Technical Data
and Computer Database” clause at
DFARS 252.227−7013, or the equivalent
clause for non−defense agencies.
Manufacturer of the DATABASE for
North America is Geographic Data
Technology, Inc., at 11 Lafayette Street,
Lebanon, New Hampshire 03766, USA.END USER NOTICE
PLEASE READ THIS NOTICE CARE-
FULLY BEFORE USING THIS NAVIGA-
TION SYSTEM
The Point Of Interest Data (“POI” Data) in
the navigation system is in part provided
by infoUSA Inc. (“infoUSA”). By using
the POI Data, you accept and agree to all
terms and conditions set forth below.
1. Ownership
All rights, title and interest to the infoUSA
POI Data shall be retained by infoUSA.
2. Limitations on use
Except to the extent explicitly permitted
by mandatory laws, you may not extract
or re−utilize any portion of the contents of
the POI Data, nor reproduce, copy,
modify, adapt, translate, disassemble,
decompile, or reverse engineer any por-
tion of the POI Data.
3. Transfer
You may not transfer the POI Data to third
parties, except together with the system
for which it was created, provided that
you do not retain any copy of the POI
Data.4. Disclaimer of warranty
EXCEPT AS STATED HEREIN,
INFOUSA MAKES NO EXPRESS OR
IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, ANY
EXPRESS OR IMPLIED WARRANTY
OF FITNESS FOR A PARTICULAR
PURPOSE OR WARRANTY OF
MERCHANTABILITY.
5. Limitation of Liability
EITHER INFOUSA OR SUPPLIER OF
POI DATA SHALL NOT BE LIABLE FOR
ANY INDIRECT, CONSEQUENTIAL OR
INCIDENTAL DAMAGES MADE OR AL-
LEGED IN CONNECTION WITH YOUR
USE OF THE POI DATA.

189
END USER LICENSE AGREEMENT
Personal Use Only. You agree to use this
information for solely personal, non−
commercial purposes, and not for ser-
vice bureau, time−sharing or other simi-
lar purposes. You may not modify the in-
formation or remove any copyright no-
tices that appear on the information in
any way. You may not decompile, disas-
semble or reverse engineer any portion
of this information, and may not transfer
or distribute it in any form, for any pur-
pose. Without limiting the foregoing, you
may not use this information with any
products, systems, or applications
installed or otherwise connected to or in
communication with vehicles, capable of
vehicle navigation, positioning, dispatch,
real time route guidance, fleet manage-
ment or similar applications.No Warranty. This information is pro-
vided to you “as is,” and you agree to use
it at your own risk. DENSO and its licen-
sors (and their licensors and suppliers,
collectively “DENSO”) make no guaran-
tees, representations or warranties of
any kind, express or implied, arising by
law or otherwise, including but not limited
to, and DENSO expressly disclaims any
warranties regarding content, quality, ac-
curacy, completeness, effectiveness,
reliability, fitness for a particular purpose,
non−infringement, usefulness, use or re-
sults to be obtained from this information,
or that the information or server will be
uninterrupted or error−free. Some
states, territories and countries do not al-
low certain warranty exclusions, so to
that extent, the above exclusion may not
apply to you.Disclaimer of Liability: DENSO SHALL
NOT BE LIABLE TO YOU FOR ANY
CLAIM, DEMAND OR ACTION, IR-
RESPECTIVE OF ITS NATURE, AL-
LEGING ANY LOSS, INJURY OR DAM-
AGES, WHETHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSE-
QUENTIAL DAMAGES, INCLUDING
ANY LOSS OF PROFIT, REVENUE OR
CONTRACTS ARISING OUT OF YOUR
POSSESSION, USE OF OR INABILITY
TO USE THIS INFORMATION, ANY DE-
FECT IN THE INFORMATION, OR THE
BREACH OF THESE TERMS OR CON-
DITIONS, WHETHER IN AN ACTION IN
CONTRACT OR TORT OR BASED ON
A WARRANTY, EVEN IF DENSO OR
ITS LICENSORS HAVE BEEN AD-
VISED OF THE POSSIBILITY OF SUCH
DAMAGES. Some states, territories and
countries do not allow certain liability ex-
clusions or damages limitations, so to
that extent the above may not apply to
you.
