TOYOTA CAMRY 2007 XV40 / 8.G Navigation Manual

20
1“Address”
A house number and the street address can
be input by using the input keys. 24. . . . . . .
2“POI Name”
Select one of the many POIs (Points of Inter-
est) that have already been stored in the sys-
tem’s database. 29. . . . . . . . . . . . . . . . . . . . .
3“POI Category”
A destination can be selected from the POI
category. 32. . . . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous”
A destination can be selected from any of the
last 100 previously set destinations and from
the previous starting point. 36. . . . . . . . . . . .
5“Memory”
The location can be selected from the regis-
tered “Memory points”. (To register memory
points, see “ — Registering memory points”
on page 71.) 36. . . . . . . . . . . . . . . . . . . . . . . .
6“Emergency”
One of the four categories of emergency ser-
vice points that are already stored in the sys-
tem’s database can be selected. 35. . . . . . .
Quick reference (“Destination” screen)

21
7“Map”
A destination can be selected simply by
touching the location on the displayed map.
37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8“Intersection”
The names of two intersecting streets can be
entered. This is helpful if only the general vi-
cinity, not the specific address, is known.
37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9“Freeway Ent./Exit”
The name of a freeway (interstate) entrance
or exit can be entered. 38. . . . . . . . . . . . . . .
10“?”
Function help for the “Destination” screen can
be viewed on this screen. 7. . . . . . . . . . . . . .
11“Change”
To change the search area, touch this button.
22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Quick access touchscreen buttons
One of 5 preset destinations can be selected
by touching the screen directly. To use this
function, it is necessary to set the “Quick
Access” for each memory point. (To register
a “Quick Access”, see “ — Editing memory
points” on page 72.) 24. . . . . . . . . . . . . . . . .
13Home touchscreen button
A personal home address can be selected
without entering the address each time. To
use this function, it is necessary to set “Home”
for the memory point. (To register “Home”,
see “ — Registering home” on page 76.)
24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Phone #”
A destination can be entered by the telephone
number. 40. . . . . . . . . . . . . . . . . . . . . . . . . . . .
15“Coordinates”
A destination can be set by using latitude and
longitude as coordinates. 39. . . . . . . . . . . . .
Destination search —
Push the “DEST” button and the “Destina-
tion” screen appears.
You can use one of 13 different methods to
search your destination. (See pages 24
through 40.)
INFORMATION
When searching the destination, the re-
sponse to the touchscreen button may
be slow.

22

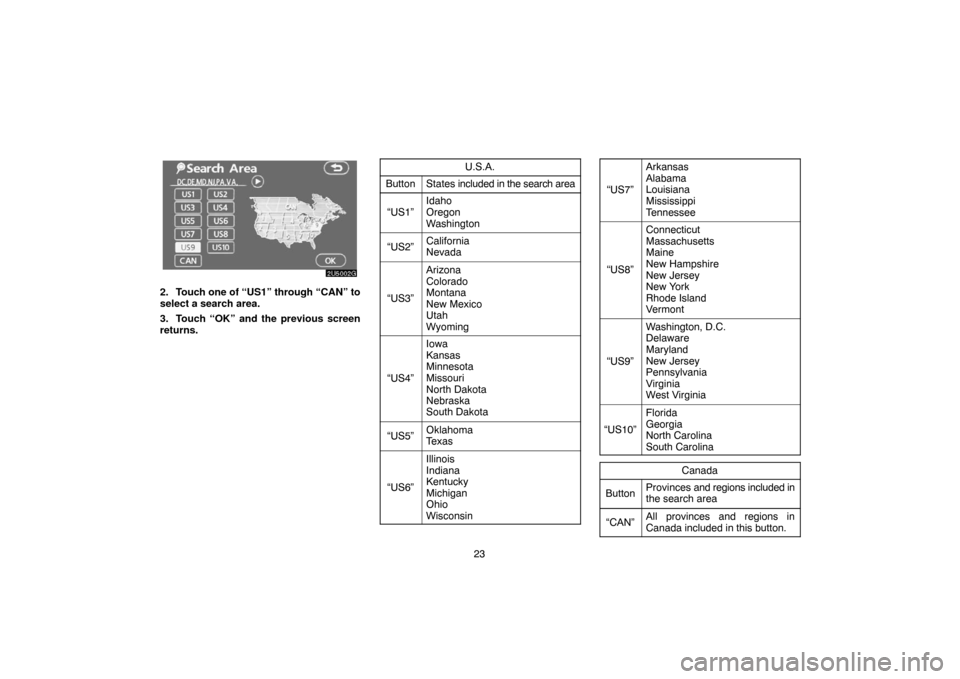

— Selecting the search area
SELECTING THE SEARCH AREA ON THE
DESTINATION SCREEN
1. Touch “Change” on the “Destination”
screen to display a map of the United
States and Canada divided into 11 areas.
(For map database information and updates,
see “Map database information and updates”
on page 186.)
2. Touch one of “US1” through “CAN” to
select a search area.
3. Touch “OK” and the “Destination”
screen returns.SELECTING THE SEARCH AREA ON THE
INPUT SCREEN
Change the search area in order to set a des-
tination from a different area by using “Ad-
dress”, “POI Name”, “Freeway Ent./Exit” or
“Intersection”.
1. Touch the search area button like
“US8” on the input screen to display a
map of the United States and Canada di-
vided into 11 areas. (For map database in-
formation and updates, see “Map database
information and updates” on page 186.)

23
2. Touch one of “US1” through “CAN” to
select a search area.
3. Touch “OK” and the previous screen
returns.U.S.A.
ButtonStates included in the search area
“US1”
Idaho
Oregon
Washington
“US2”California
Nevada
“US3”
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
“US4”
Iowa
Kansas
Minnesota
Missouri
North Dakota
Nebraska
South Dakota
“US5”Oklahoma
Texas
“US6”
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
“US7”
Arkansas
Alabama
Louisiana
Mississippi
Tennessee
“US8”
Connecticut
Massachusetts
Maine
New Hampshire
New Jersey
New York
Rhode Island
Vermont
“US9”
Washington, D.C.
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
West Virginia
“US10”
Florida
Georgia
North Carolina
South Carolina
Canada
ButtonProvinces and regions included in
the search area
“CAN”All provinces and regions in
Canada included in this button.

24
— Destination search by
Home
Touch the home touchscreen button on
the “Destination” screen.
The screen changes and displays the map
location for home and the route preference.
(See “Starting route guidance” on page 40.)
To use this function, it is necessary to set
“Home” for the memory point. (To register
“Home”, see page 76.)
INFORMATION
Guidance starts from the current vehicle
position to your home if “Enter” is
touched even while driving.
— Destination search by
Quick access
Touch any of the quick access touch
screen buttons on the “Destination”
screen.
The screen changes and displays the map
location of the quick access point and the
route preference. (See “Starting route guid-
ance” on page 40.)
To use this function, it is necessary to set
“Quick Access” for each memory point. (To
register “Quick Access”, see page 73.)
INFORMATION
Guidance starts from the current vehicle
position to the quick access point if “En-
ter” is touched even while driving.
— Destination search by
“Address”
There are 2 ways to input a destination by ad-
dress.
Touch “Address” on the “Destination”
screen.

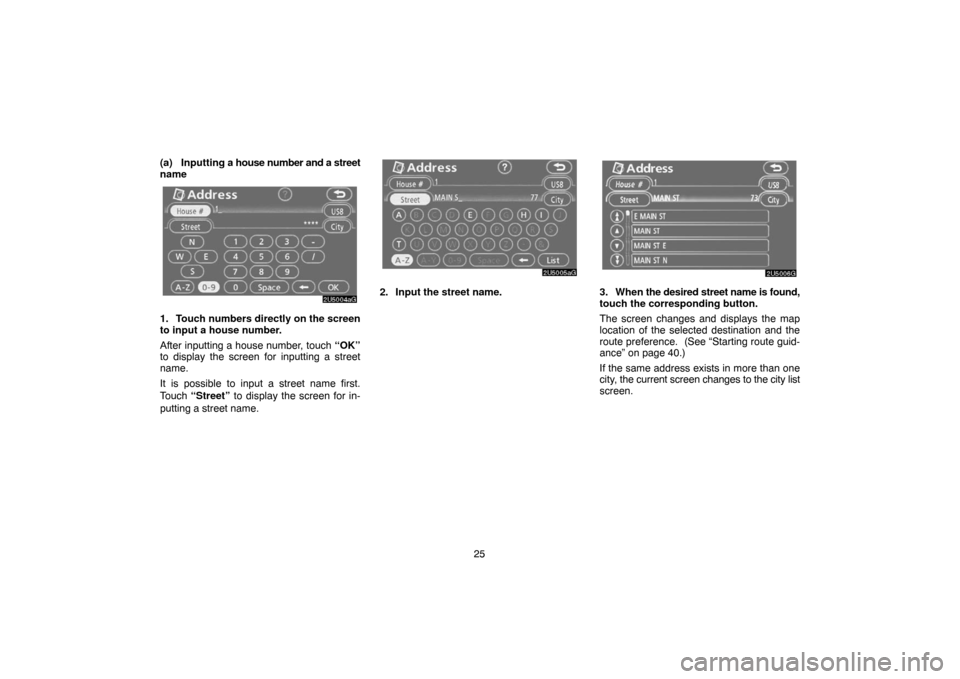

25 (a) Inputting a house number and a street
name
1. Touch numbers directly on the screen
to input a house number.
After inputting a house number, touch “OK”
to display the screen for inputting a street
name.
It is possible to input a street name first.
Touch “Street” to display the screen for in-
putting a street name.
2. Input the street name.3. When the desired street name is found,
touch the corresponding button.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route guid-
ance” on page 40.)

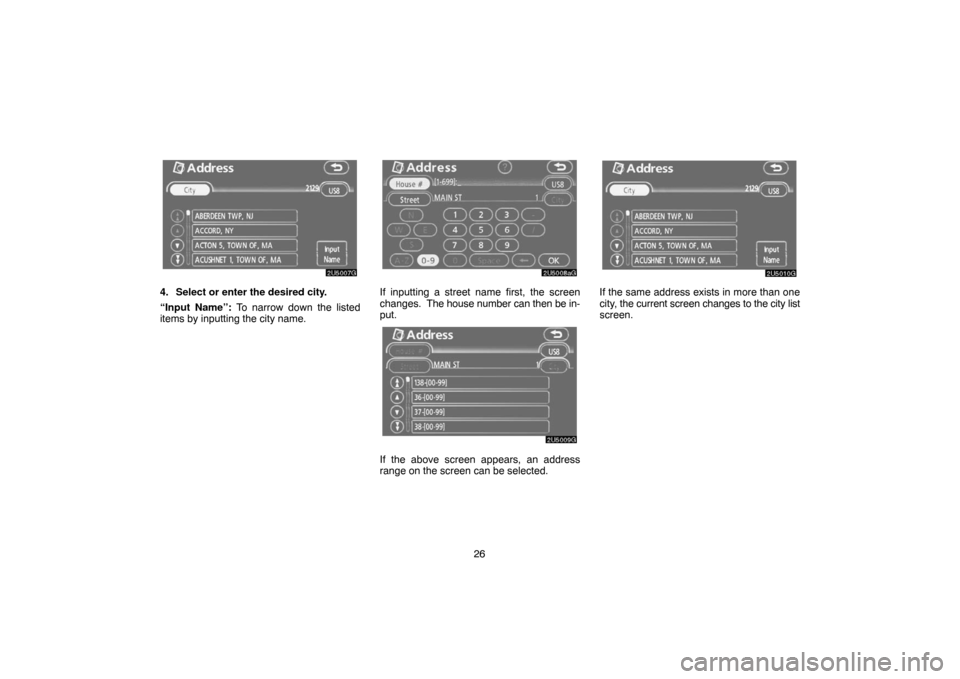

If the same address exists in more than one
city, the current screen changes to the city list
screen.

26
4. Select or enter the desired city.
“Input Name”: To narrow down the listed
items by inputting the city name.If inputting a street name first, the screen
changes. The house number can then be in-
put.
If the above screen appears, an address
range on the screen can be selected.
If the same address exists in more than one
city, the current screen changes to the city list
screen.

27 (b) Selecting a city to search
Touch “City”.
To search by city, the following three methods
are possible.
1. Input the city name
2. Select from the nearest 5 cities
3. Select from the last 5 cities
INFORMATION
To change the search area, touch
“Search Area”.
To cancel the city setting, touch “Any
City”.
INPUTTING THE CITY NAME
1. Touch “Input City Name”.
2. Input a city name.

28
3. Touch the button of the desired city
name from the displayed list.
“Map”: To display the selected destination
and the route preference. (See “Starting
route guidance” on page 40.)
The current screen changes to the screen for
inputting a house number or a street name.
(See “(a) Inputting a house number and a
street name” on page 25.)SELECTING FROM THE NEAREST 5
CITIES
1. Touch “Nearest 5 Cities”.
2. Touch the button of the desired city
name from the displayed list.
The current screen changes to the screen for
inputting a house number or a street name.
(See “(a) Inputting a house number and a
street name” on page 25.)SELECTING FROM THE LAST 5 CITIES
Touch the button of the desired city name.
If the navigation has not be used, no cities will
be displayed on the screen.
The current screen changes to the screen for
inputting a house number or a street name.
(See “(a) Inputting a house number and a
street name” on page 25.)

29
— Destination search by “POI
Name”
1. Touch “POI Name” on the “Destina-
tion” screen.
2. Input the name of the Point of Interest.
3. Touch the button of the desired des-
tination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route guid-
ance” on page 40.)
When inputting the name of a specific Point of
Interest, and there are two or more sites with
the same name, the list screen is displayed.Touch the button of the desired destina-
tion.
If the same name exists in more than one city,
a search can be performed more easily with
“City” and “Category”. (See “(a) Selecting
a city to search” on page 30 and “(b) Select-
ing from the categories” on page 31.)
INFORMATION
The desired Point of Interest can be dis-
played on the map screen. (See “ — Dis-
play POI icons” on page 57.)
